Article-No.:

                            94228

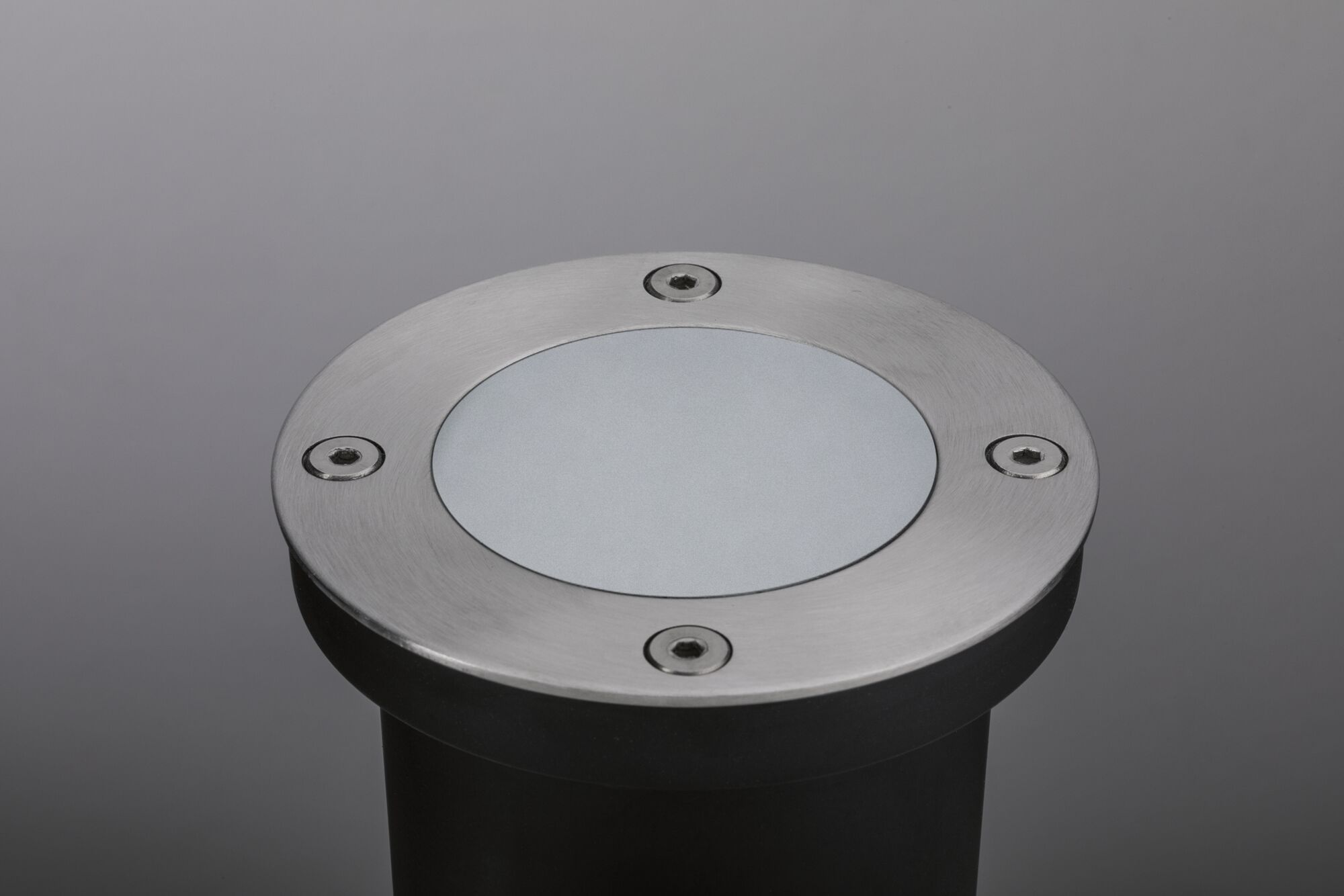

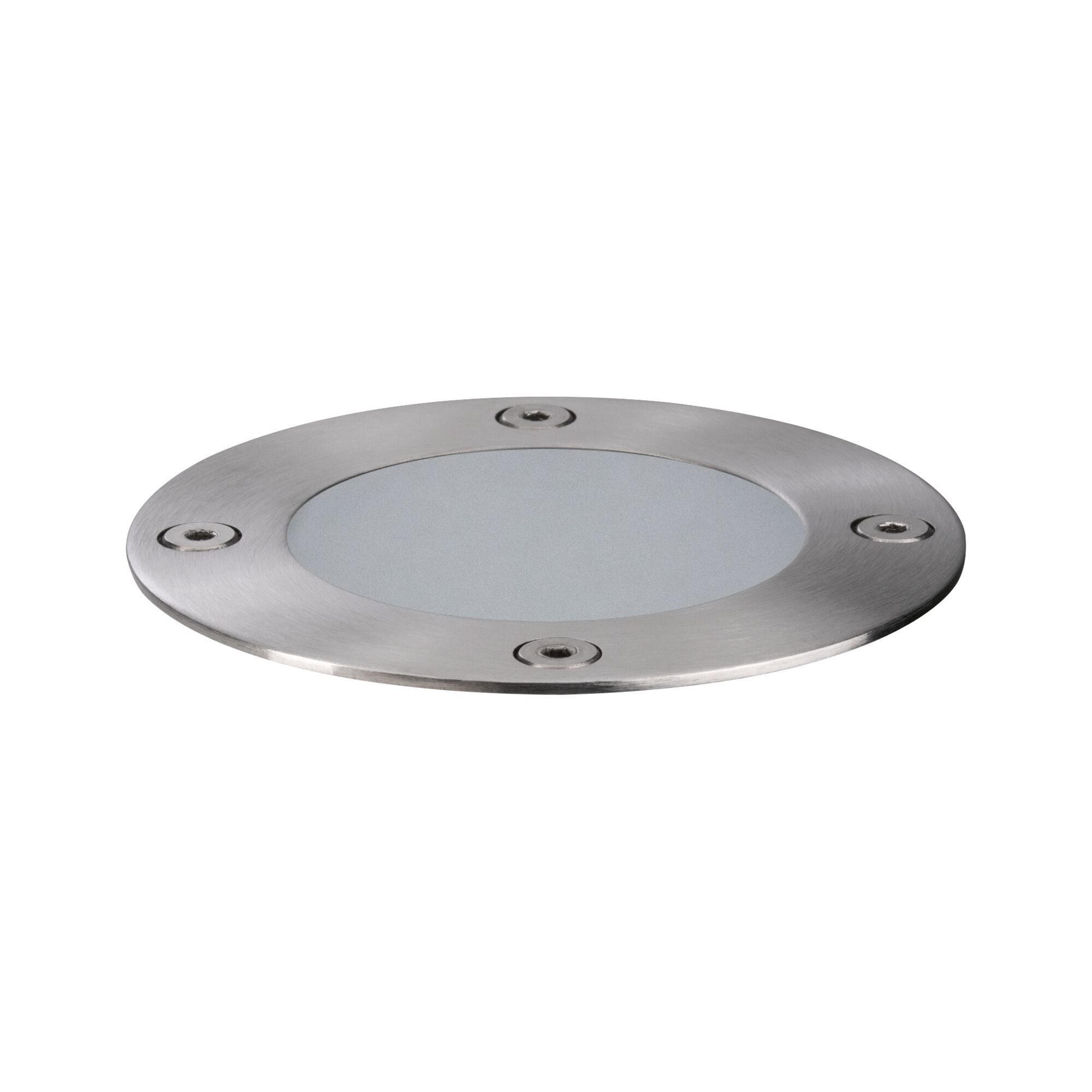

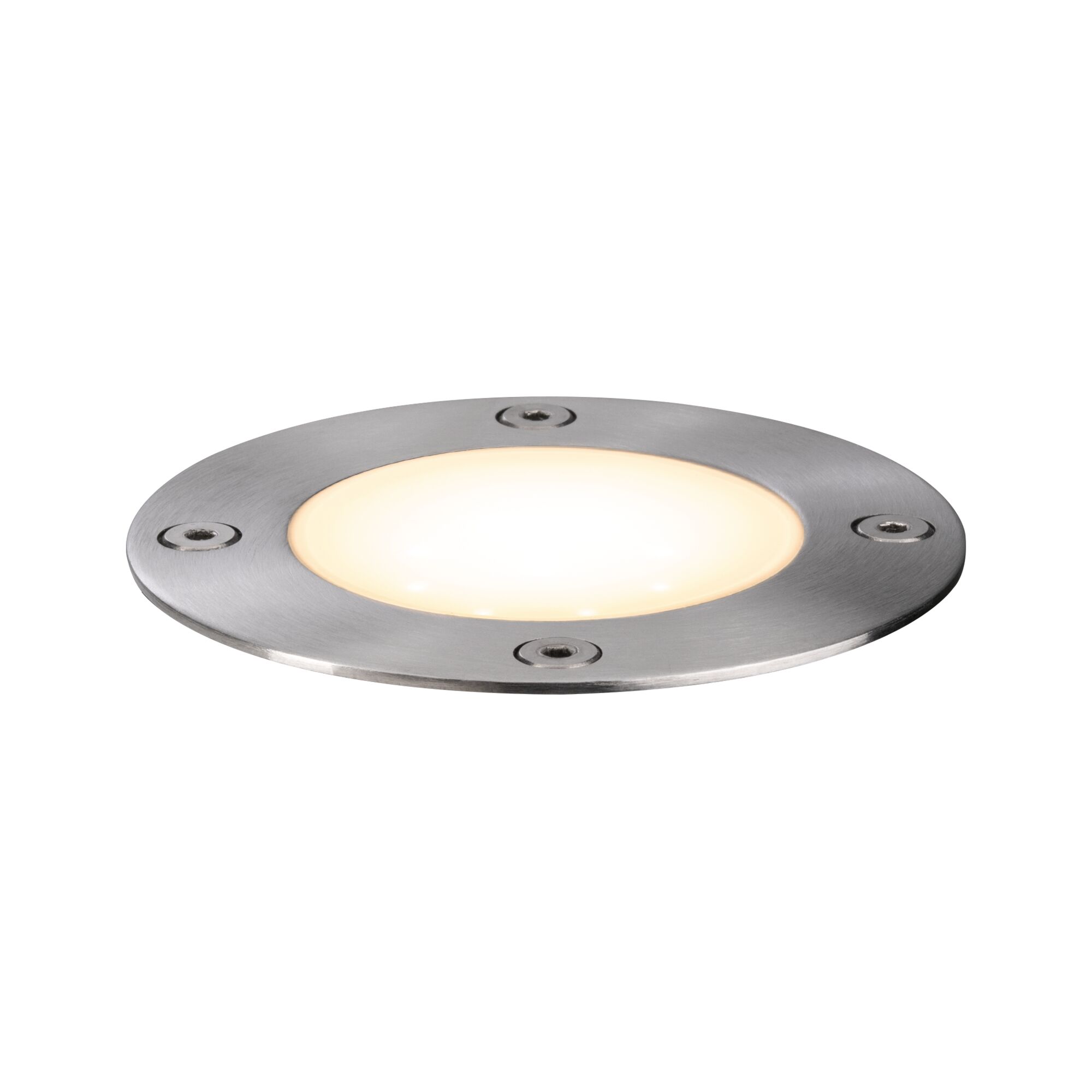

Plug & ShineLED Recessed floor luminaire
                                    Floor  Individual Spot

                            IP67 3000K 3,8W Stainless steel

IP67 3000K 3,8W Stainless steel

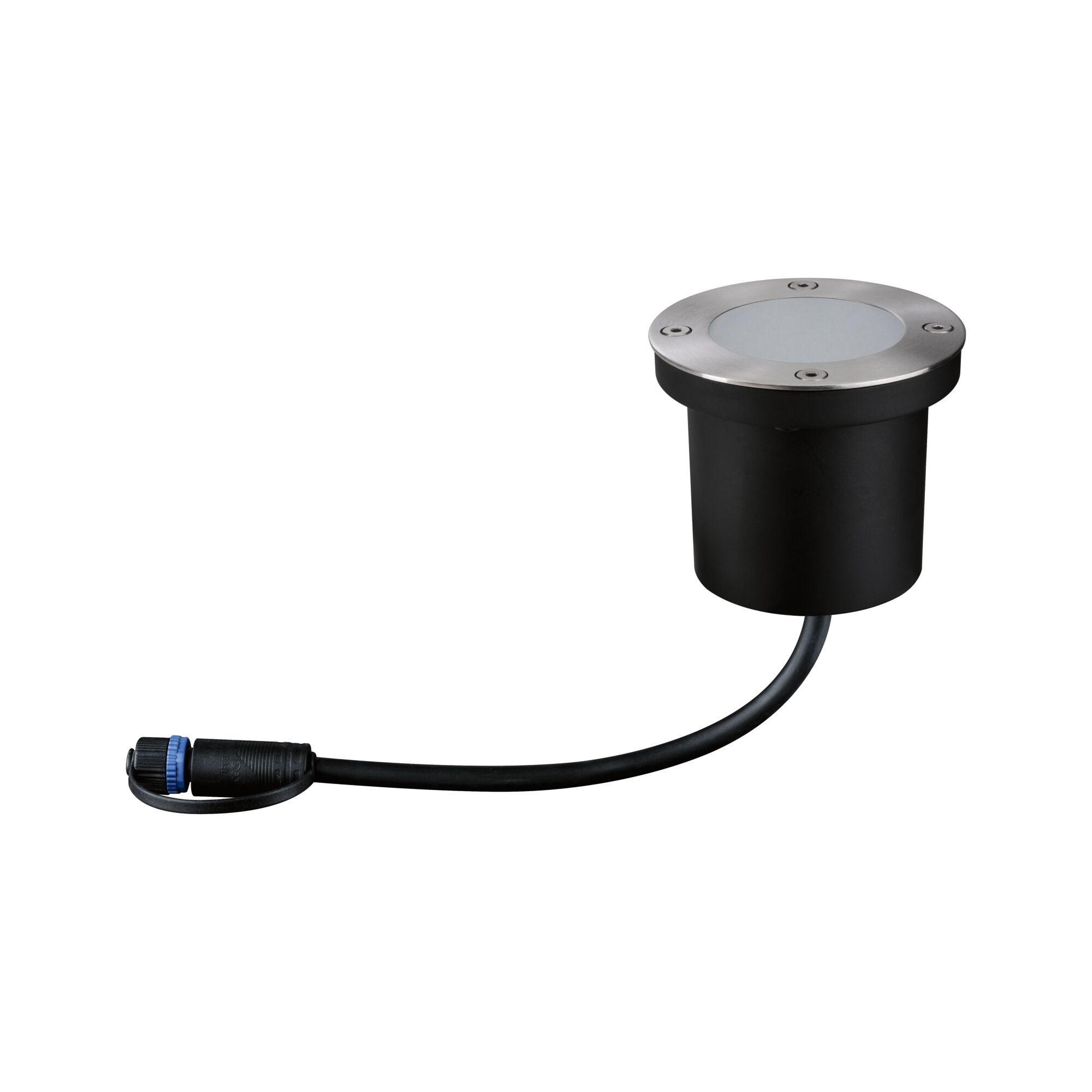

- 24 V floor recessed luminaire
- LED lamp (fixed) included in scope of delivery
- Color temperatur: 3000K - Warm white
Plug & Shine LED Recessed floor luminaire Floor Individual Spot IP67 3000K 3,8W Stainless steel

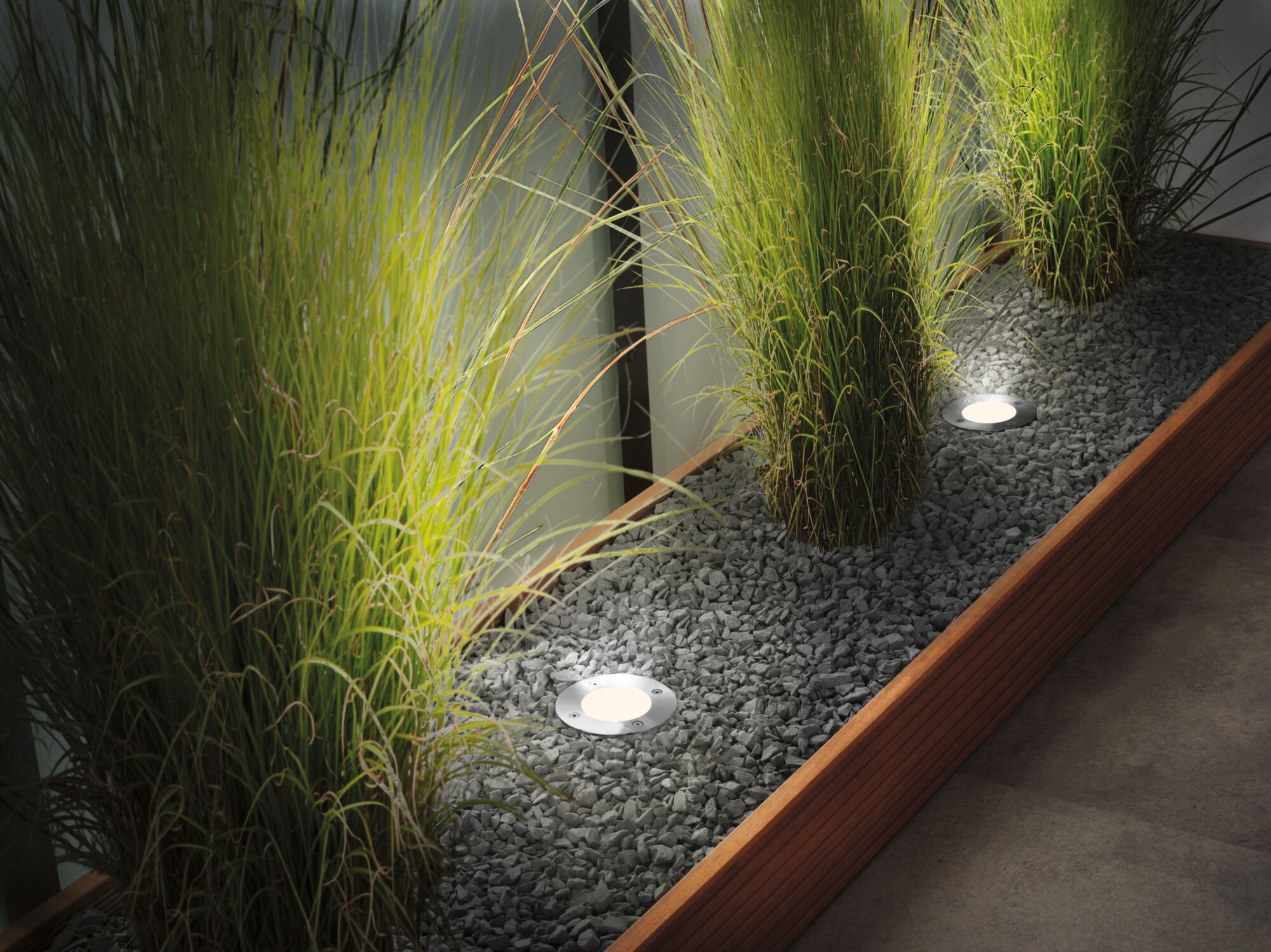

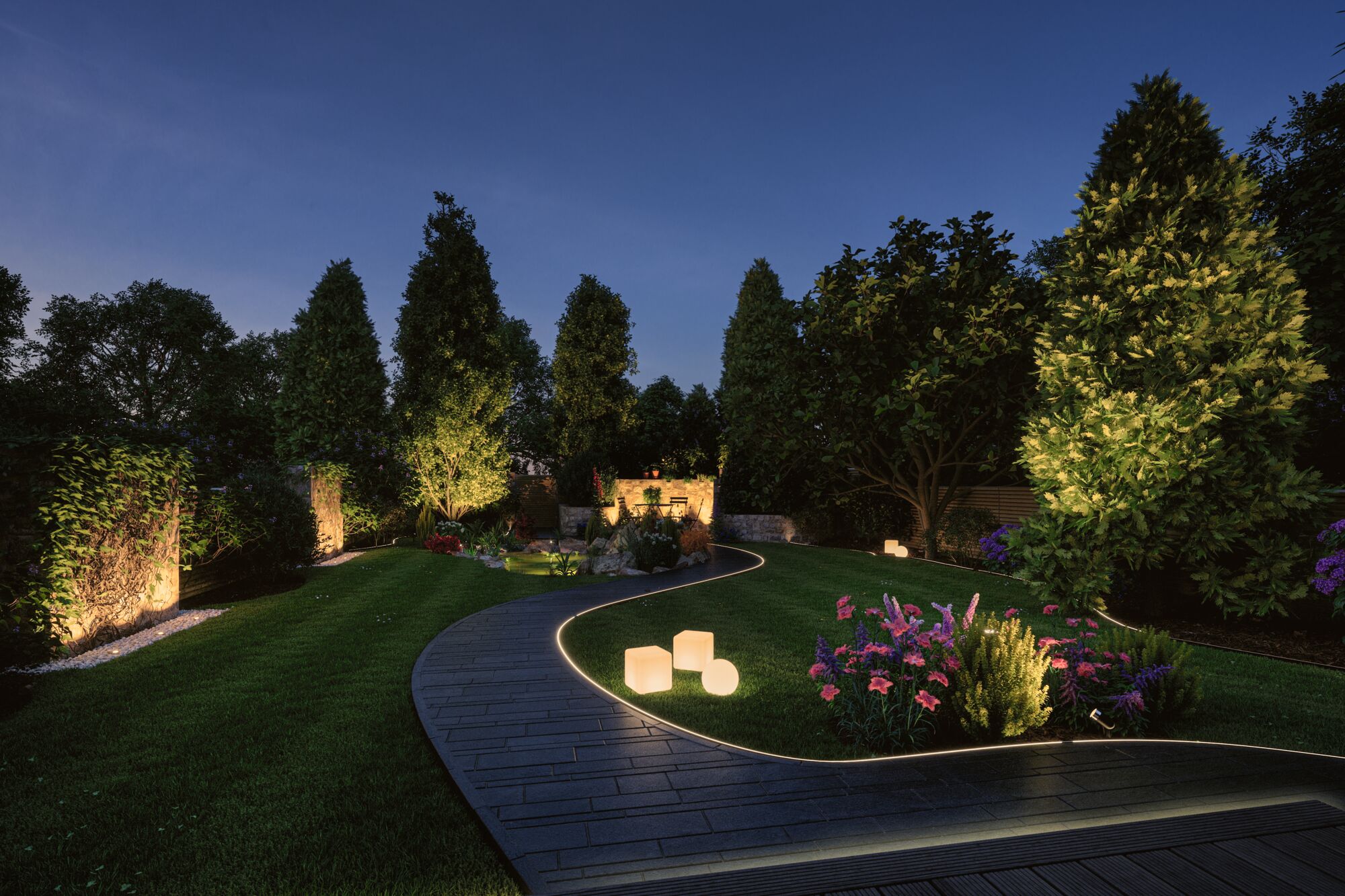

                            This 4 W round Plug & Shine recessed floor spotlight creates decorative points of light along garden paths, in driveways or on patios. The luminaire is load-bearing up to 500 kg and is therefore a perfect choice for outdoor traffic areas. It is non-corrosive, waterproof and dustproof and provides warm white light in any weather.

- 24 V floor recessed luminaire
- LED lamp (fixed) included in scope of delivery
- Color temperatur: 3000K - Warm white
- Max. load up to 500 kg
- Compatible with all accessories in the Plug & Shine series
- Don't forget: Order compatible transformers as well!
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 91 mm |
| Diameter | 98 mm |
| Built-in diameter | 95 mm |
| Mounting depth | 95 mm |
| Depth of hollow wall | 80 mm |
| Design and Material | |
|---|---|
| Form | round |
| Colour | Stainless steel |
| Material | Metal, Plastic |
| Stainless | stainless |
| Installation | |
|---|---|
| Application | For decorative light points on paths, driveways and patios |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 3000 K |
| Nominal luminous flux | 300 lm |
| Luminous flux LED module | 410 lm |
| Lamp Features | |
|---|---|
| Dimmable | Yes |
| Dim | with dimmer |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel fest integriert |
| Incandescent Equivalent | 45 W |
| IP protection | IP67 |
| Protection class | Protection class III |
| Technique | LED |
| Component parts | 3,8 W |
| Number of component parts | 1x |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced. |
| Power consumption | 3,8 W |
| Adjustability | fixed |
| Voltage | 24 V |
| Voltage type | DC |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
