Article-No.:
94685
Plug & ShineLED Garden spotlightSmart Home Zigbee 3.0
Pike CH
IP44 RGBW+ 3x4,2W 30VA Anthracite
IP44 RGBW+ 3x4,2W 30VA Anthracite
- Can be controlled with the Smart Home Zigbee remote control
- Usable with smart home gateways that have a Zigbee interface
- RGBW multicolour colour change
Plug & Shine LED Garden spotlight Smart Home Zigbee 3.0 Pike CH Basic Set IP44 RGBW+ 3x4,2W 30VA Anthracite

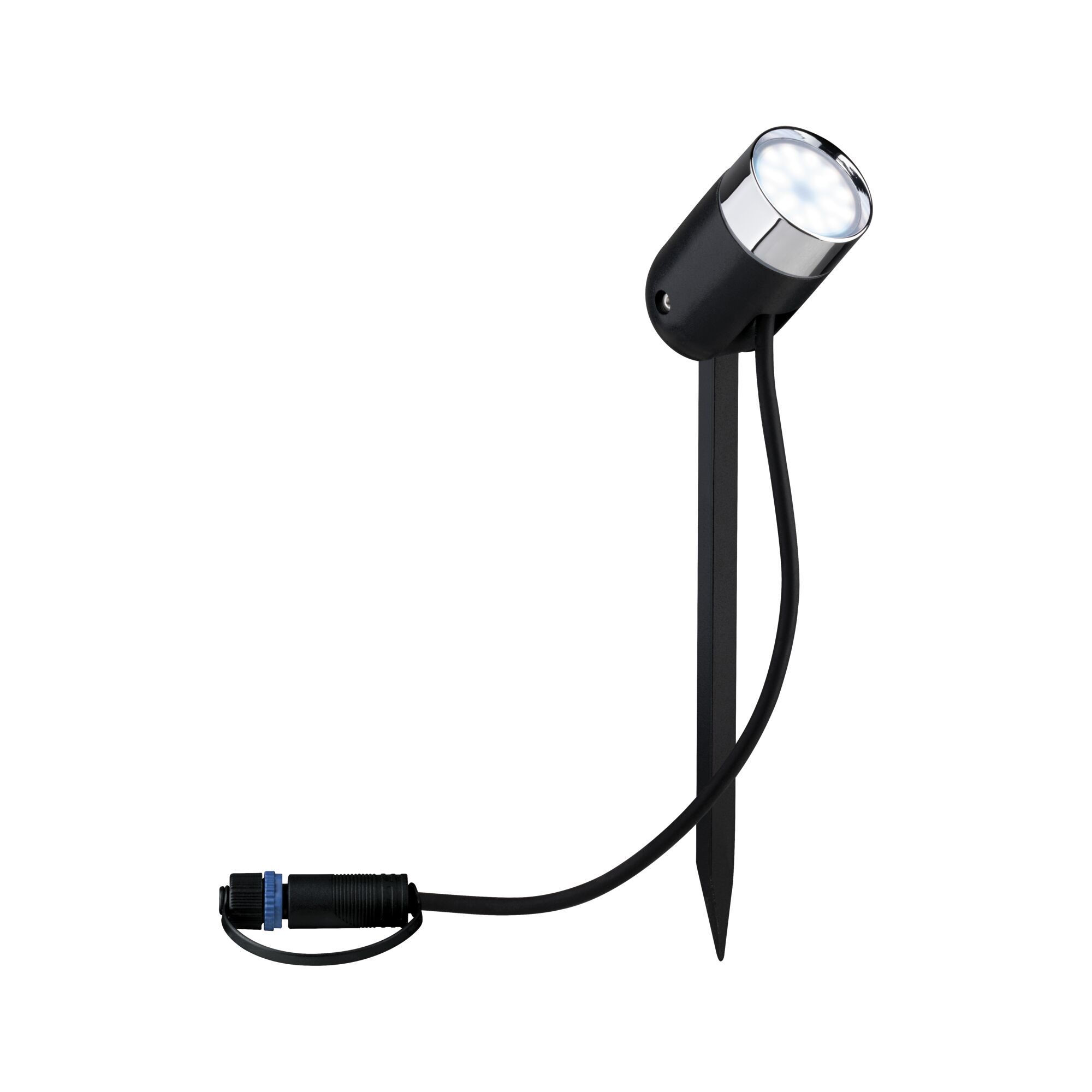

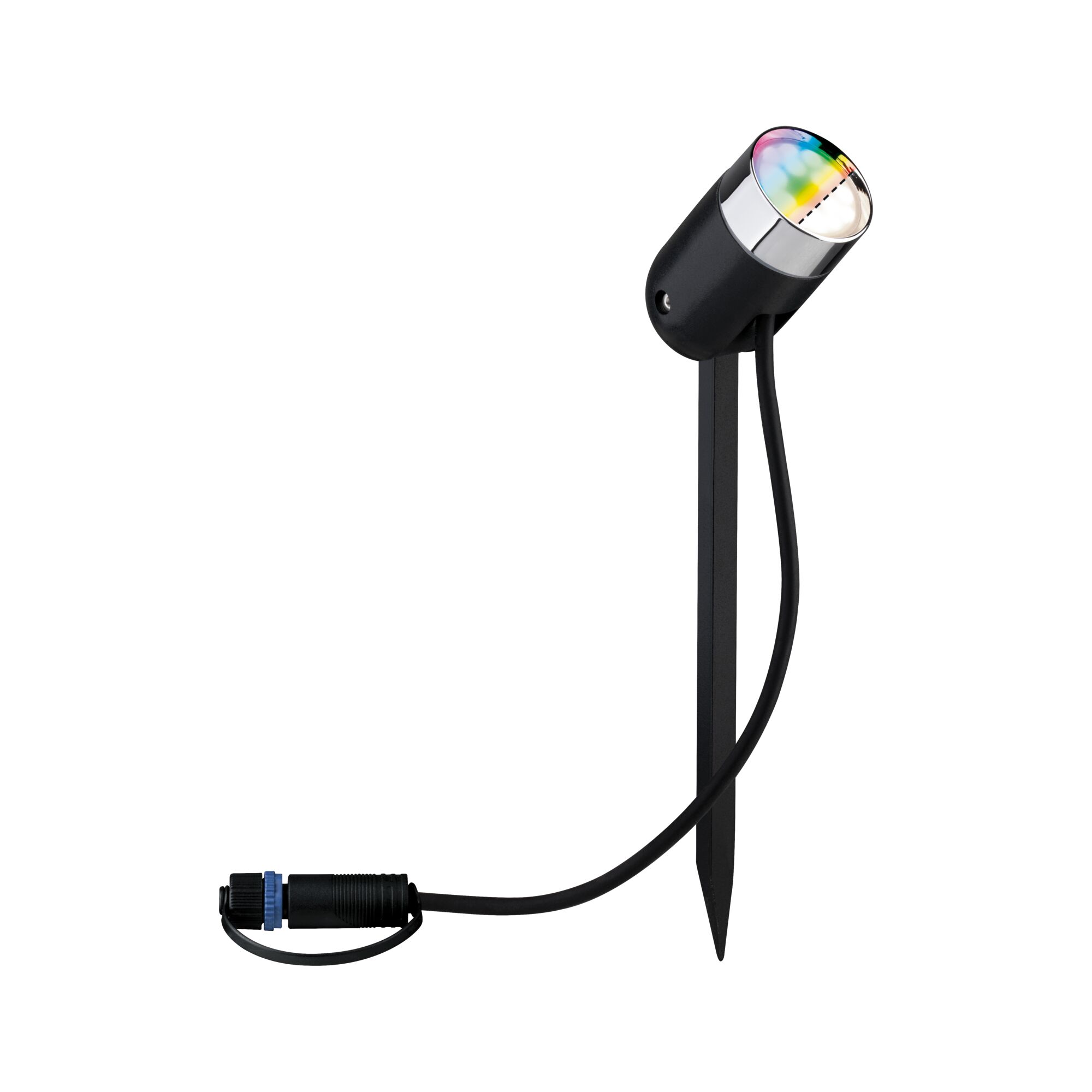

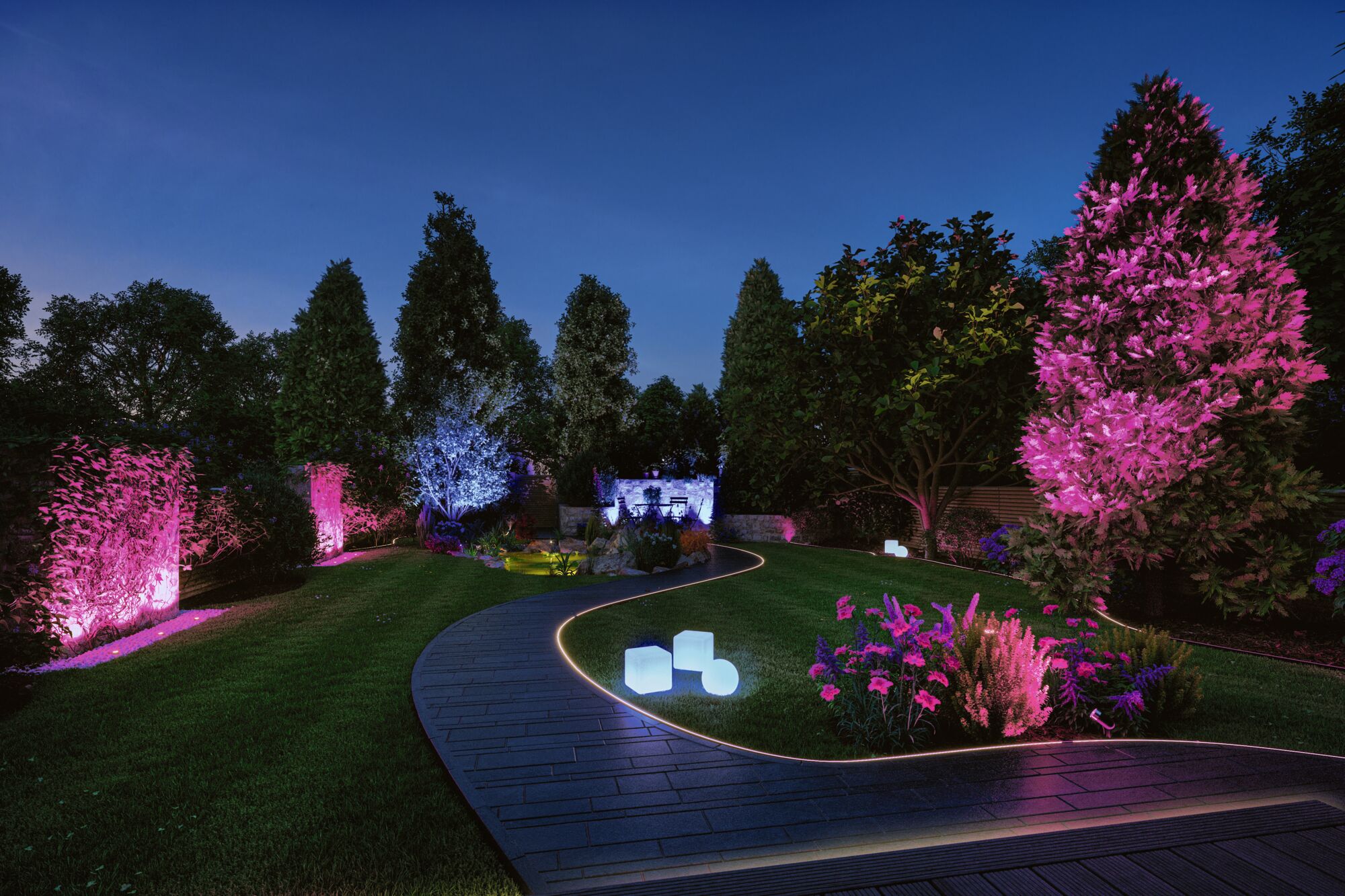

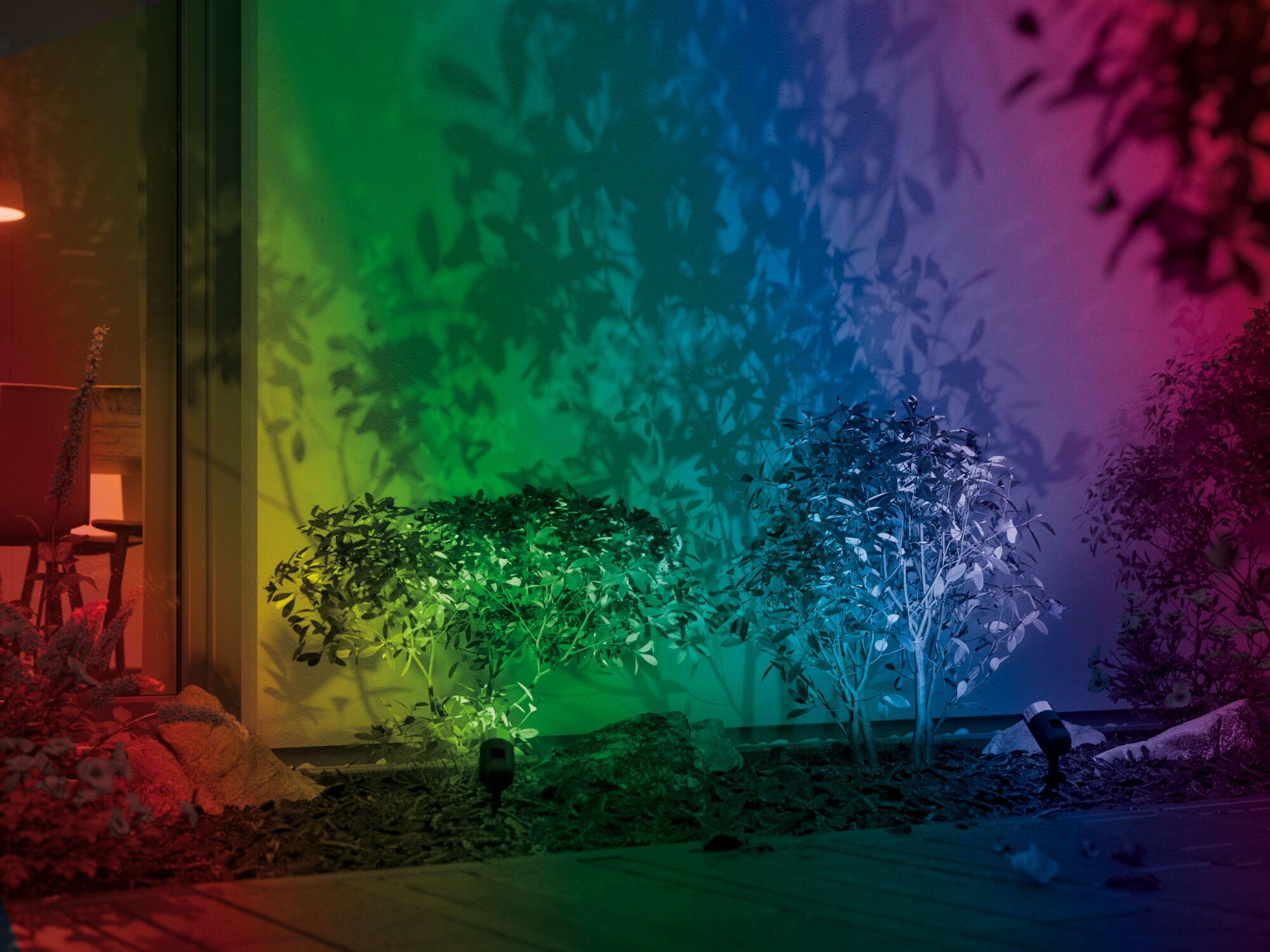

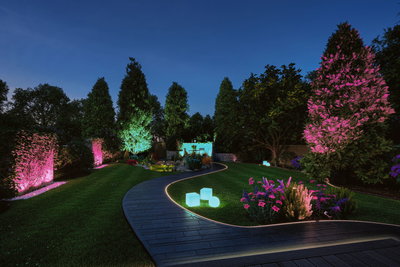

Just unpack, plug in, and illuminate your garden: the Plug & Shine Zigbee 3.0 Pike starter set consisting of three RGBW ground spikes, transformer and connecting cable offers you the ideal introduction to outdoor lighting. The spikes are ideal for illuminating plants or other objects, they can be directed individually and are absolutely weather-resistant. The permanently installed LED modules can emit either coloured or white light. The colour settings can easily be adjusted via Zigbee 3.0. As a result, additional control elements like the Plug & Shine controller are not needed.
- Can be controlled with the Smart Home Zigbee remote control
- Usable with smart home gateways that have a Zigbee interface
- RGBW multicolour colour change

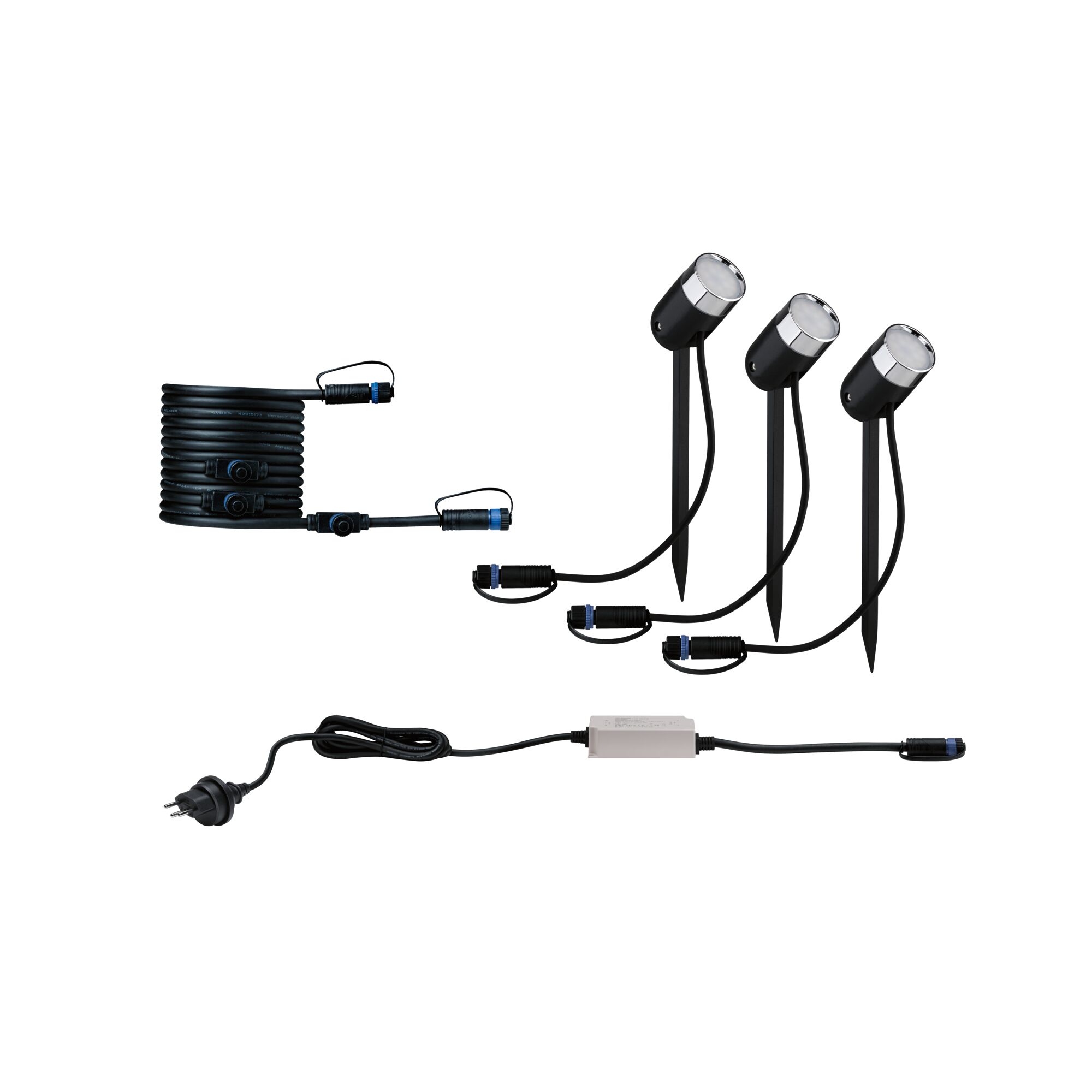

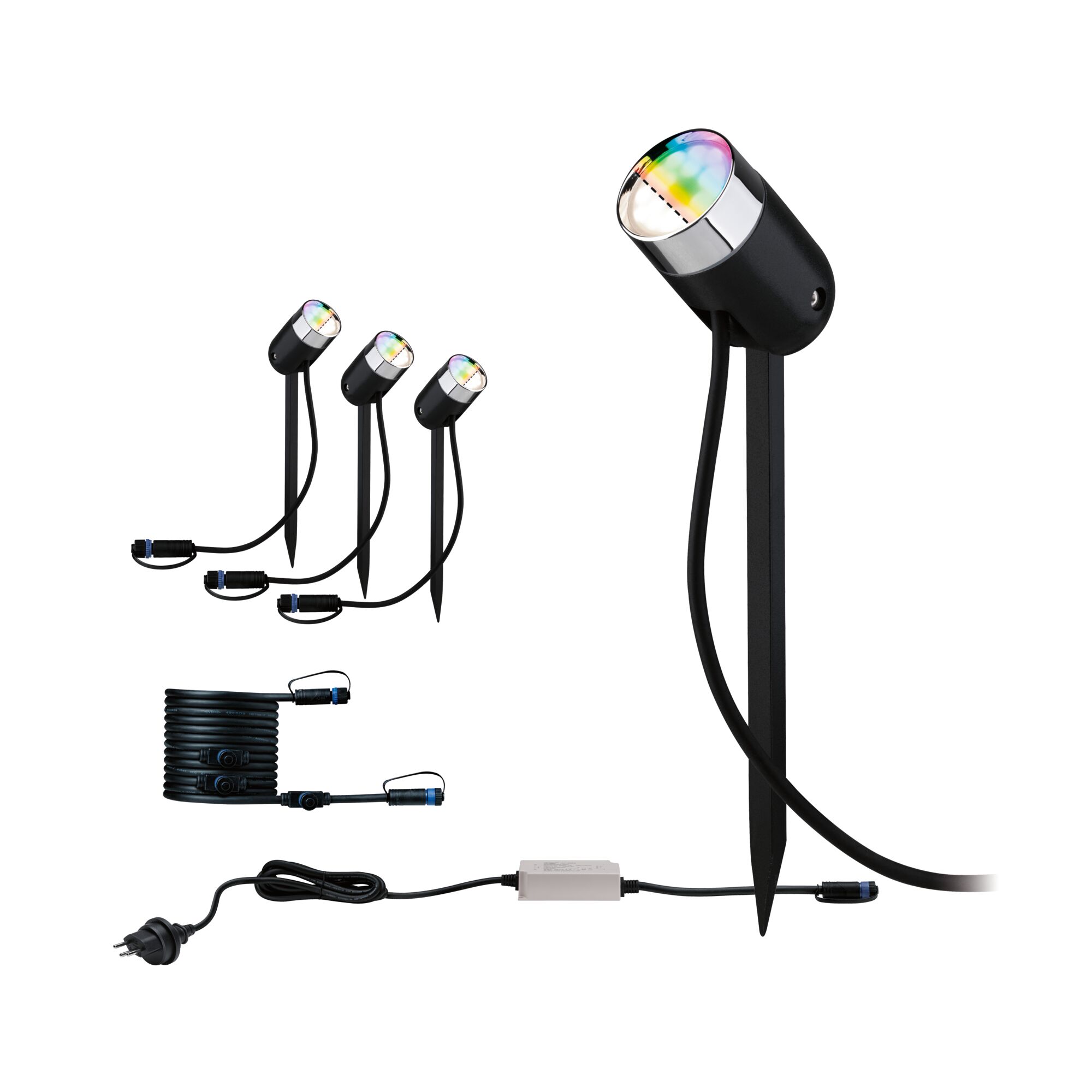

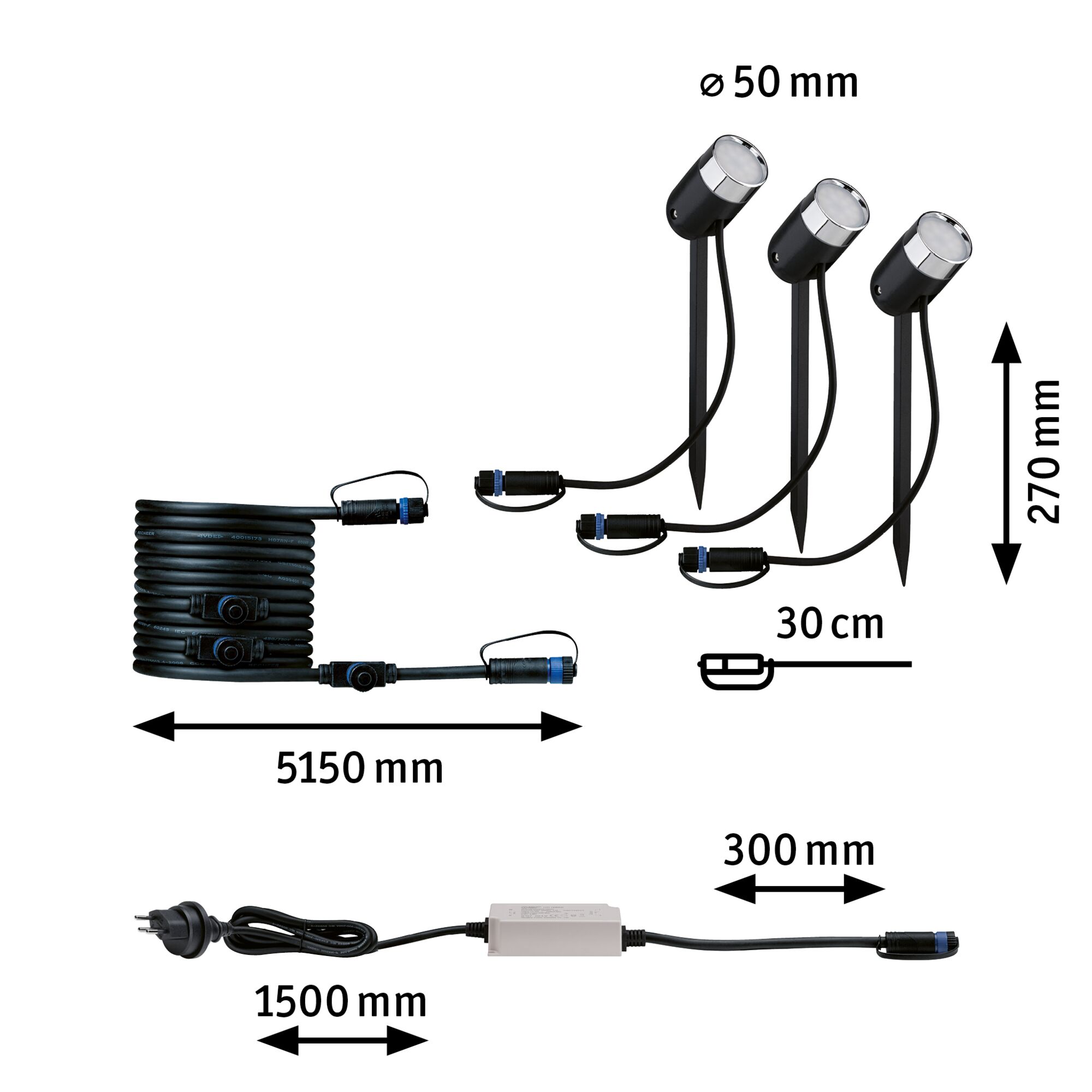

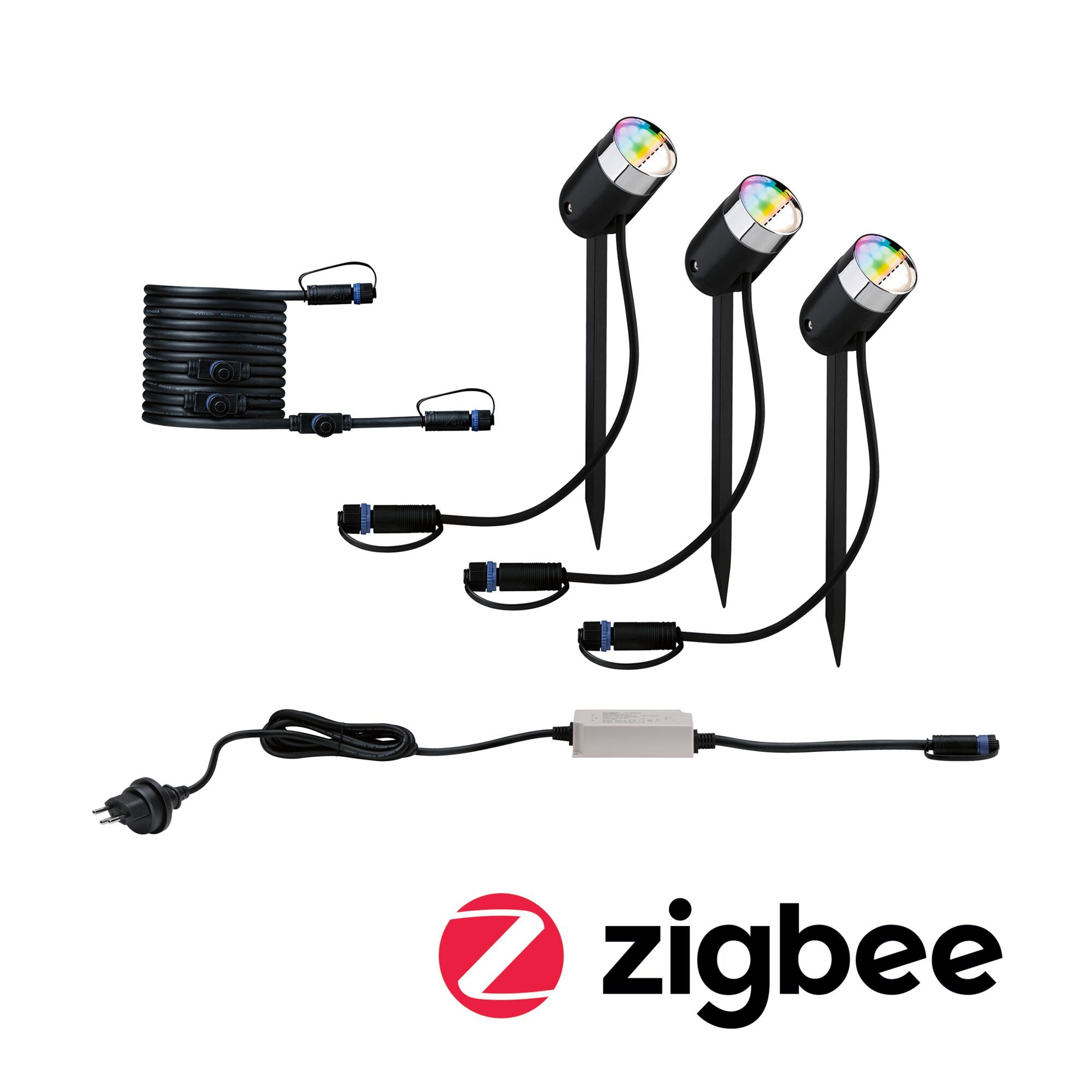

- Plug & Shine basic set consisting of three luminaires, five meters of connecting cable and transformer
- Directed light
- LED lamp (fixed) included in scope of delivery
- Compatible with all accessories in the Plug & Shine series
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 313 T: 88 mm |
| Ø | 50 mm |
| Design and Material | |
|---|---|
| stainless | stainless |
| Colour | Anthracite |
| Material | Plastic |
| Installation | |
|---|---|
| can be used with the following dimmers | Paulmann Plug & Shine 180.10/ 180.11, Paulmann Plug & Shine ZigBee Controller 939.99 |
| Connections | |
|---|---|
| Plug | CH-IP55 |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| Colour change | Color change RGBW, Tunable White |
| Usable luminous flux | 170 lm |
| Luminous flux LED module | 300 lm |
| color temp | 3000 - 6500 K |
| Lamp Features | |
|---|---|
| Component parts | 4,2 W |
| Compatible Smart Home technology | Zigbee |
| Technique | LED |
| IP protection | IP44 |
| Dim | with Smart Home |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Incandescent Equivalent | 25 W |
| Number of component parts | 3x |
| protection class | protection class I |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced. |
| Power consumption | 17 W |
| Transformer | |
|---|---|
| Transformer power | 30 VA |
| apparent power | 16 VA |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Zigbee certification | Zigbee zertifiziert |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 10 m |
