Article-No.:
94686
Plug & ShineLED Garden spotlight
Pike CH
IP65 3000K 3x3W 30VA Anthracite
IP65 3000K 3x3W 30VA Anthracite

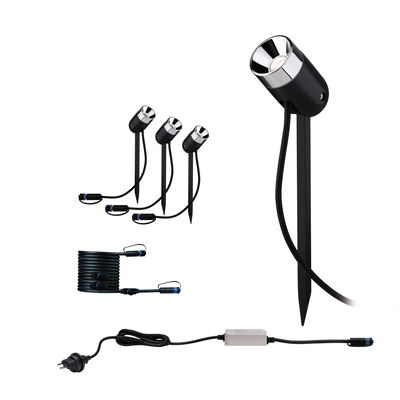

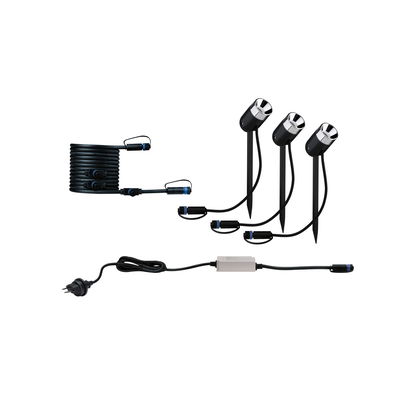

- Plug & Shine basic set consisting of three luminaires, five meters of connecting cable and transformer
- Directed light
- LED lamp (fixed) included in scope of delivery
Plug & Shine LED Garden spotlight Pike CH Basic Set IP65 3000K 3x3W 30VA Anthracite
Unpack, plug together, light up the garden: the Plug & Shine Pike starter set consisting of three warm white ground spikes, transformer and connecting cable offers you an ideal start into outdoor lighting. The spikes are ideal for illuminating plants or other objects, they can be directed individually and are absolutely weather-resistant. And the system can be added to with additional Plug & Shine components as required.
- Plug & Shine basic set consisting of three luminaires, five meters of connecting cable and transformer
- Directed light
- LED lamp (fixed) included in scope of delivery
- Color temperatur: 3000K - Warm white
- Compatible with all accessories in the Plug & Shine series

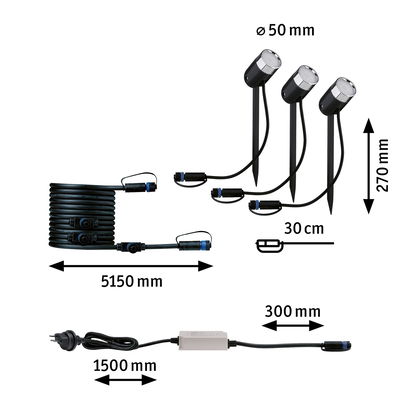

| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 313 x T: 88 mm |
| Ø | 50 mm |
| Length | 5 m |
| Form | round |
| Design and Material | |
|---|---|
| stainless | stainless |
| Colour | Anthracite |
| Material | Plastic |
| Installation | |
|---|---|
| can be used with the following dimmers | Paulmann Plug & Shine 180.10/ 180.11, Paulmann Plug & Shine ZigBee Controller 939.99 |
| Connections | |
|---|---|
| Plug | CH-IP55 |
| Energy consumption | |
|---|---|
| Energy efficiency | D |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| color temp | Warm white |
| Beam angle | 45 ° |
| Usable luminous flux | 240 lm |
| Luminous flux LED module | 340 lm |
| Beam angle LED module | 118 ° |
| Lamp Features | |
|---|---|
| Component parts | 3 W |
| Technique | LED |
| Dim | with dimmer |
| Inclusive lamp | yes |
| Incandescent Equivalent | 33 W |
| Adjustability | swivelling/tilting |
| Dimmable | Yes |
| IP protection | IP65 |
| Number of component parts | 3x |
| protection class | Protection class I |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced. |
| Power consumption | 11 W |
| Transformer | |
|---|---|
| Transformer power | 30 VA |
| apparent power | 11.3 VA |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
