Article-No.:
94323
Plug & ShineLED Bollard luminaire
Classic Single Luminaire Mini
IP44 3000K 2W Anthracite
IP44 3000K 2W Anthracite
- 24 V bollard light
- LED lamp included in scope of delivery
- Color temperatur: 3000K - Warm white

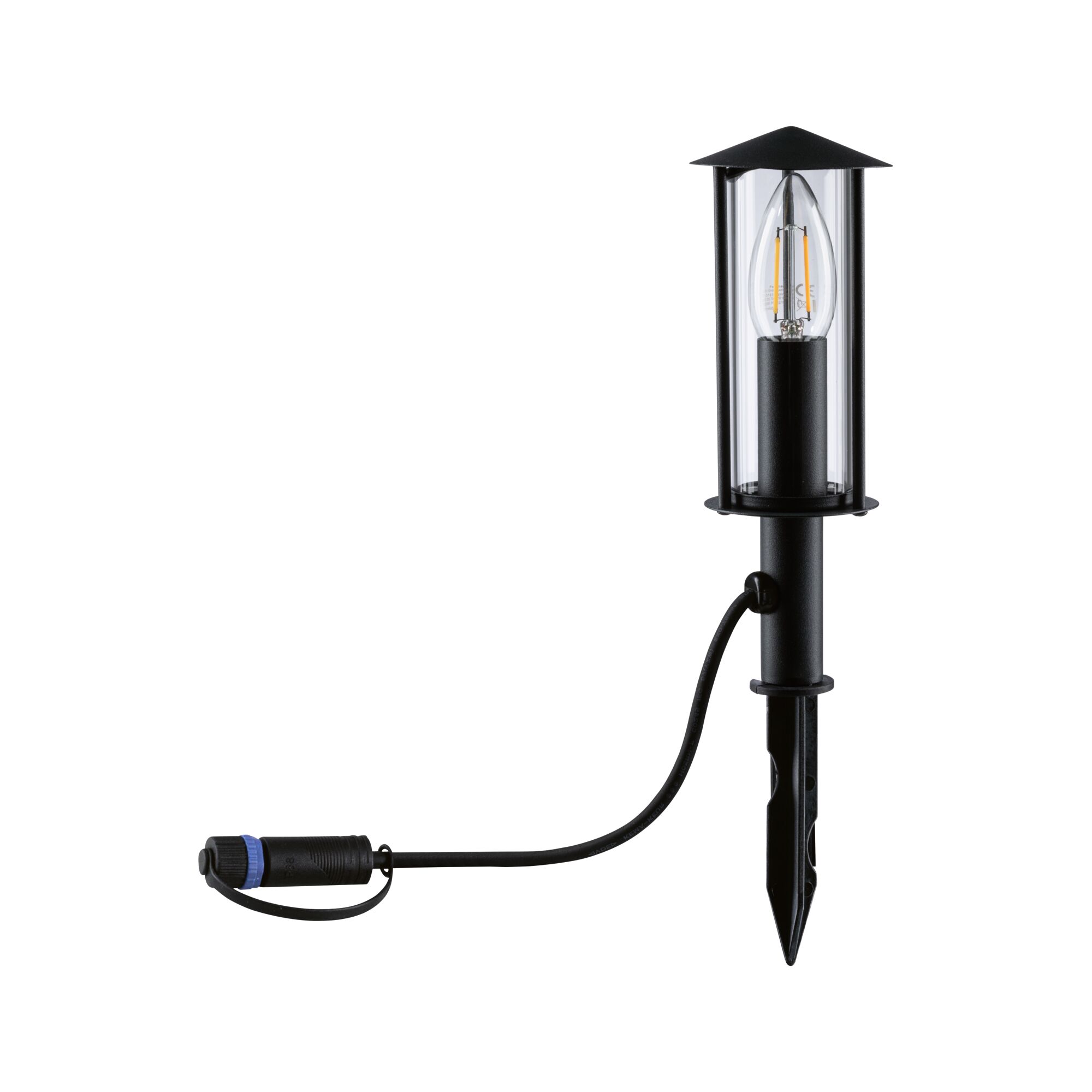

Plug & Shine LED Bollard luminaire Classic Single Luminaire Mini IP44 3000K 2W Anthracite

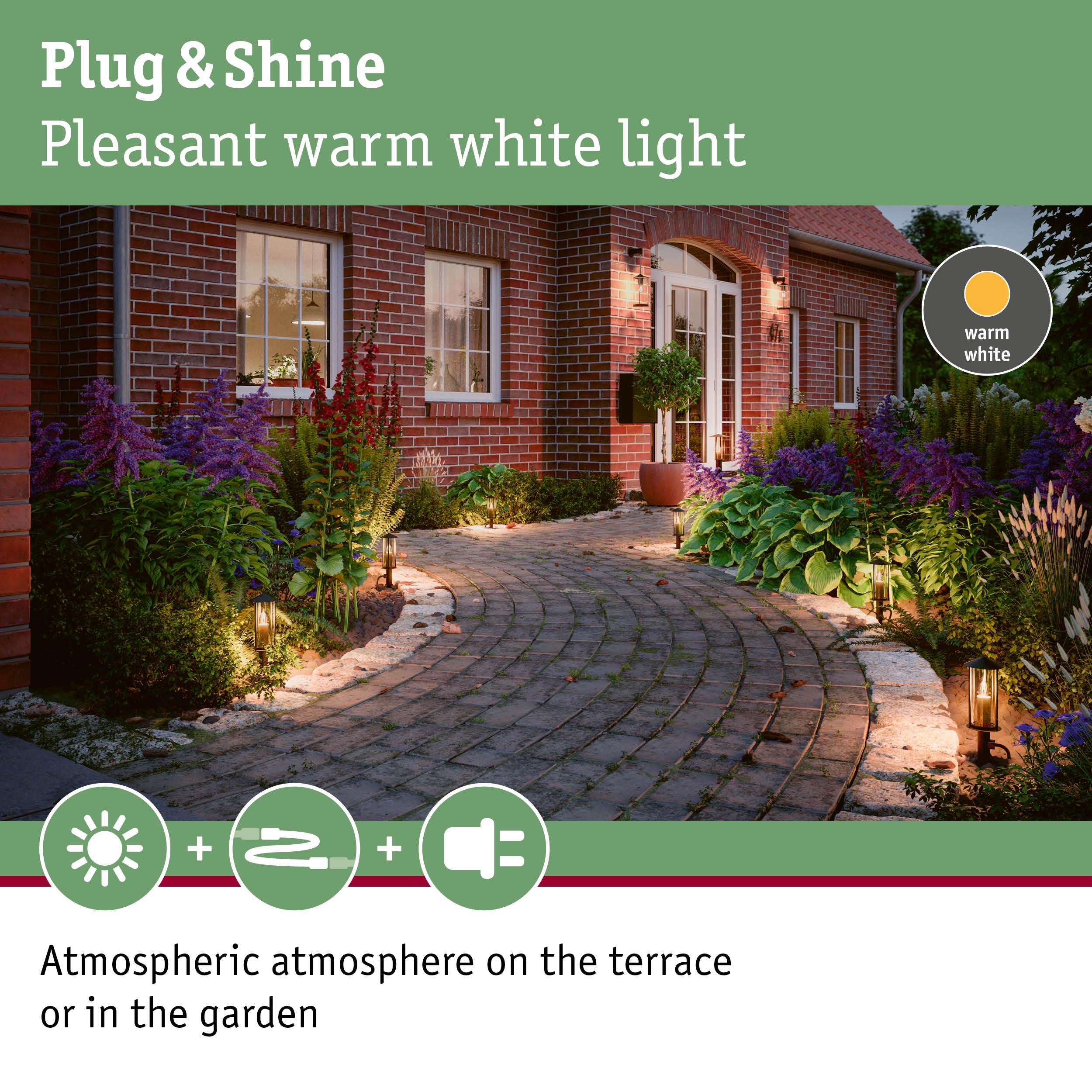

The Mini bollard light boasts a classic design. The anthracite-coloured frame and clear glass shade create a nostalgic look on paths, driveways and in your favourite spots in the garden. Combine with transformers, connectors and other luminaires from the Plug & Shine series to create an individual lighting installation for outdoor areas.
- 24 V bollard light
- LED lamp included in scope of delivery
- Color temperatur: 3000K - Warm white

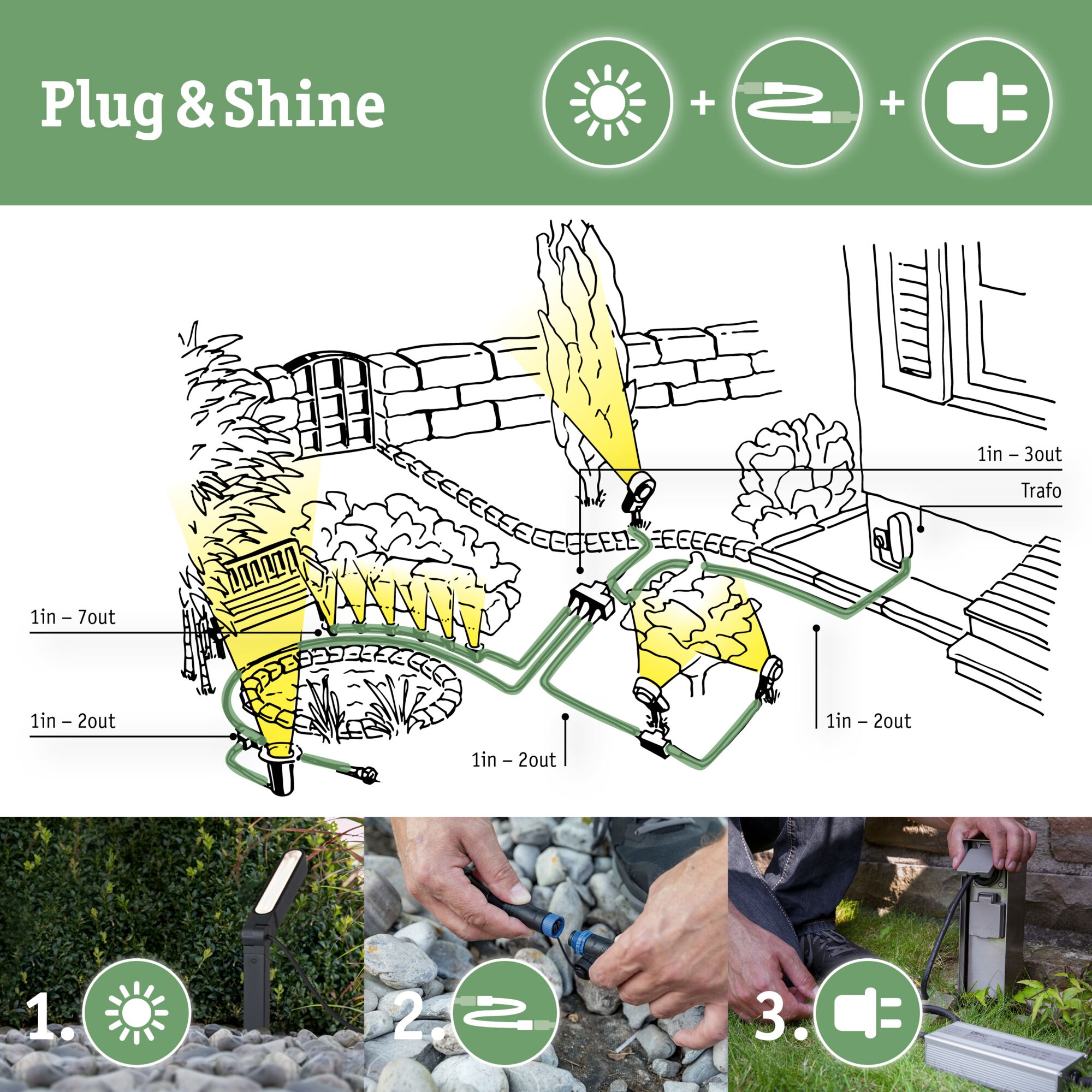

- Compatible with all accessories in the Plug & Shine series
- Don't forget: Order compatible transformers as well!
- Remember: Order the cable at the same time!
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 220 mm |
| Ø | 80 mm |
| Design and Material | |
|---|---|
| stainless | stainless |
| Colour | Anthracite |
| Material | Metal |
| Installation | |
|---|---|
| can be used with the following dimmers | Paulmann Plug & Shine 180.10/ 180.11, Paulmann Plug & Shine ZigBee Controller 939.99 |
| Installation site (recommendation) | Floor mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | G |
| Service life | |
|---|---|
| Lifetime | 15000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| Usable luminous flux | 160 lm |
| color temp | 3000 K |
| colour consistency | SDCM 6 |
| Color rendering index | > 85 Ra |
| Lamp Features | |
|---|---|
| Component parts | 2 W |
| Technique | LED |
| Socket | E14 |
| IP protection | IP44 |
| Type | Candle |
| Dim | with dimmer |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Incandescent Equivalent | 17 W |
| Maximum wattage range | max. 10 W |
| Number of component parts | 1x |
| protection class | protection class III |
| Replacable | 1 Lightsource is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 2 W |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
