Article-No.:
70964

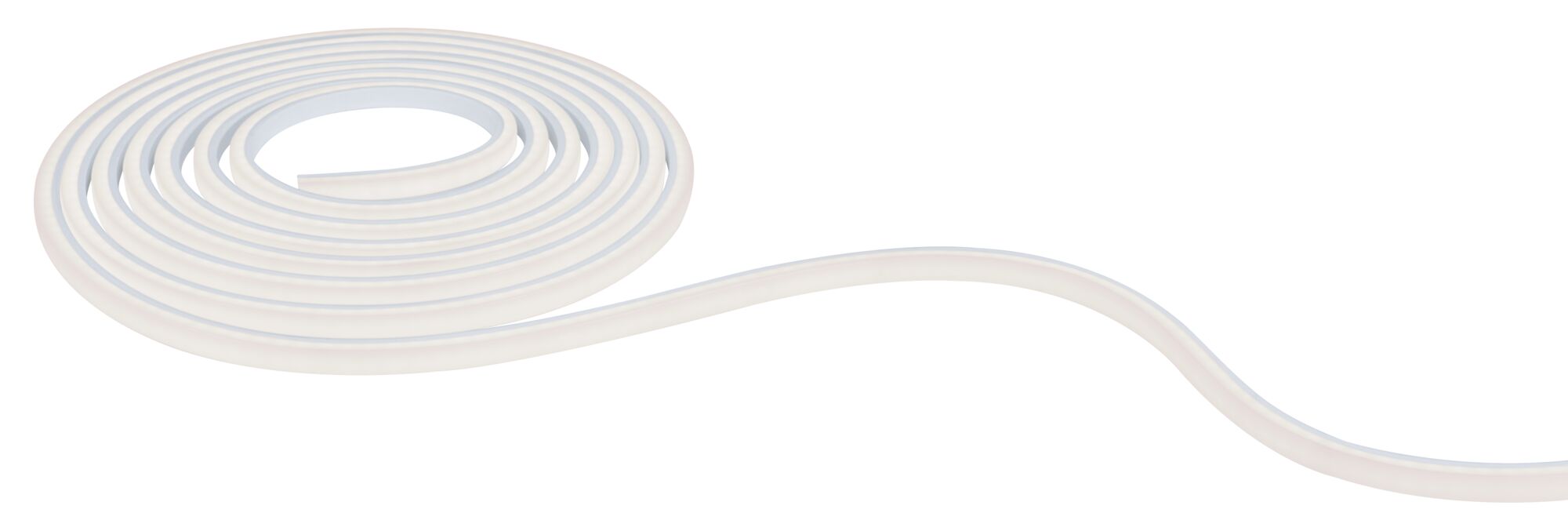

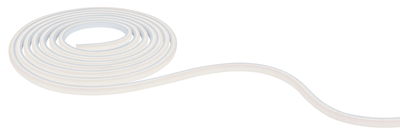

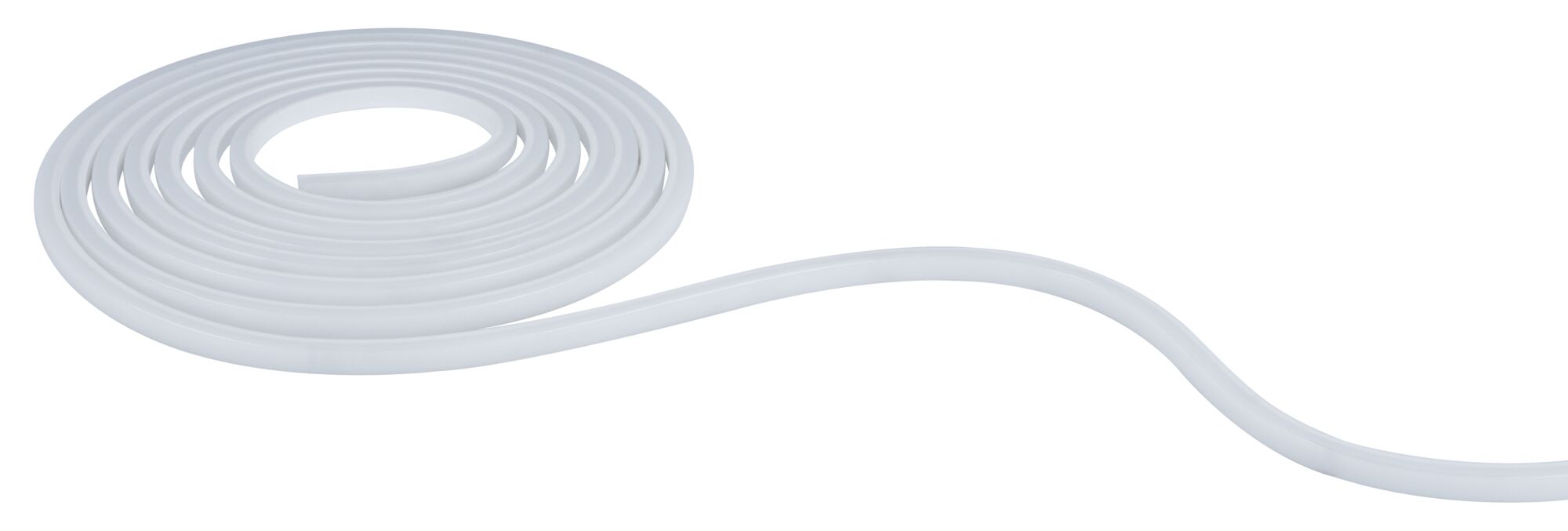

MaxLED FlowLED Strip
Basic set warm white
5m coated 52W 1300lm/m 180 LEDs/m 2700K 75VA
5m coated 52W 1300lm/m 180 LEDs/m 2700K 75VA
- Uniform homogeneous lighting strip without irritating individual light points

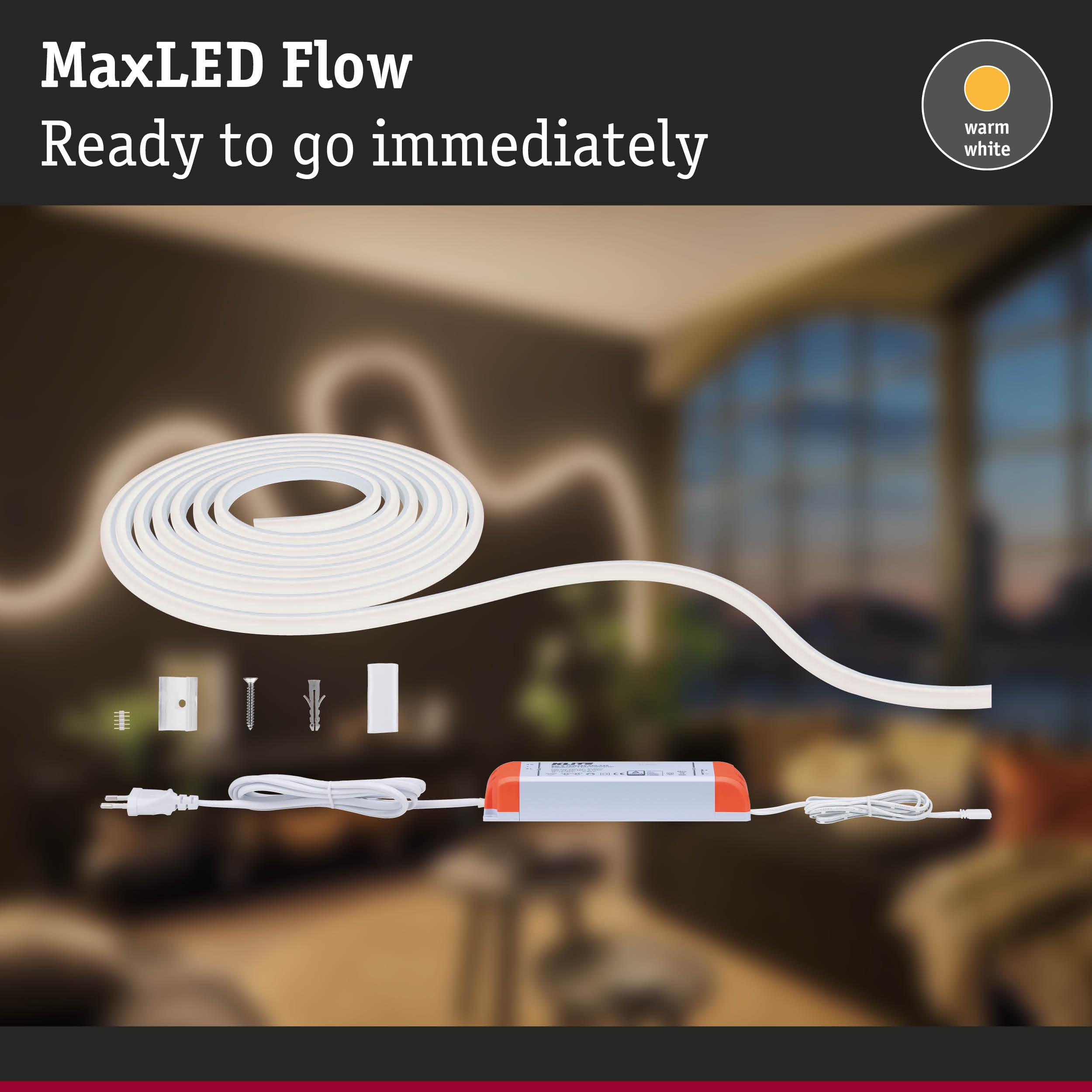

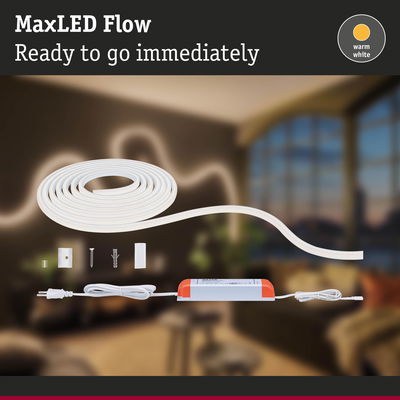

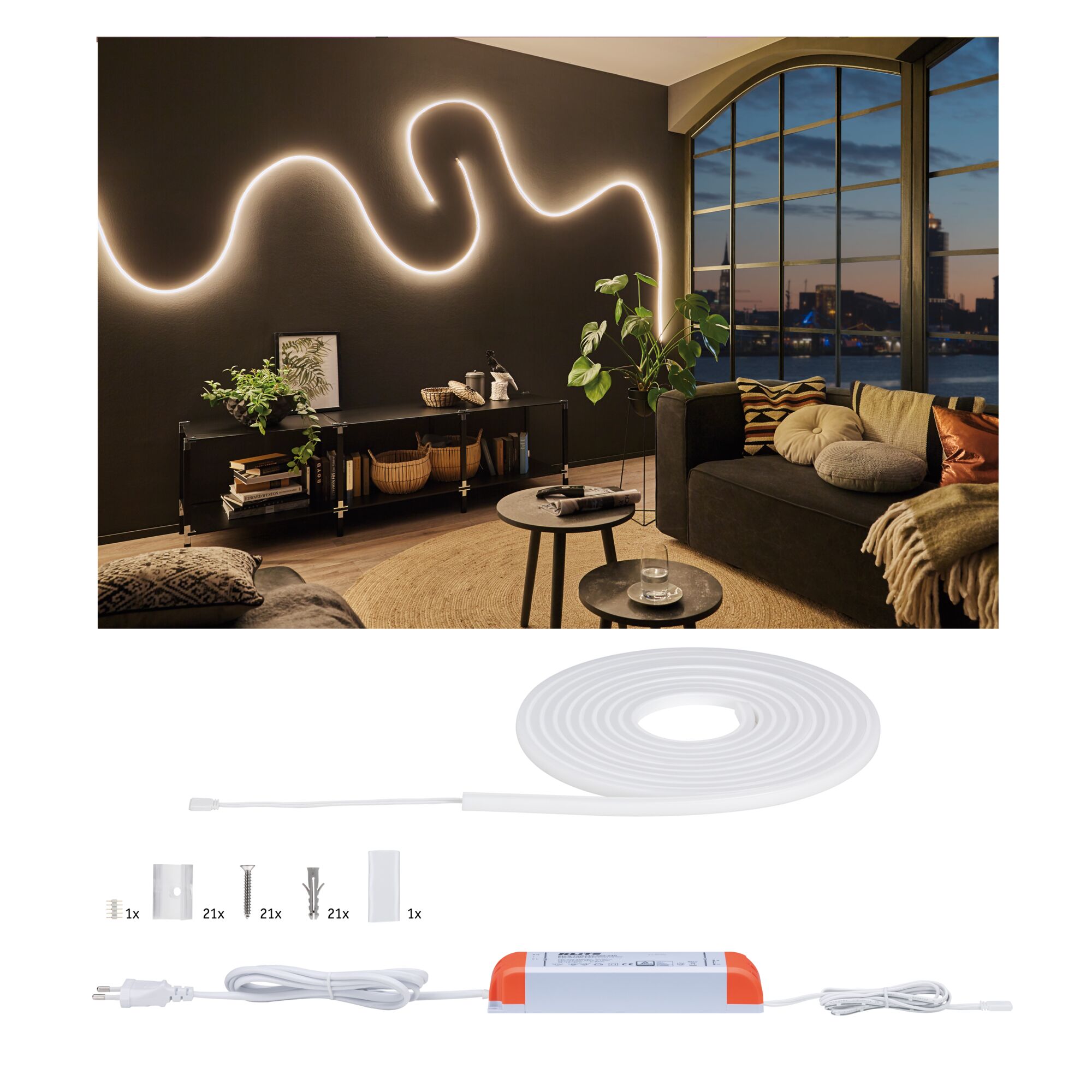

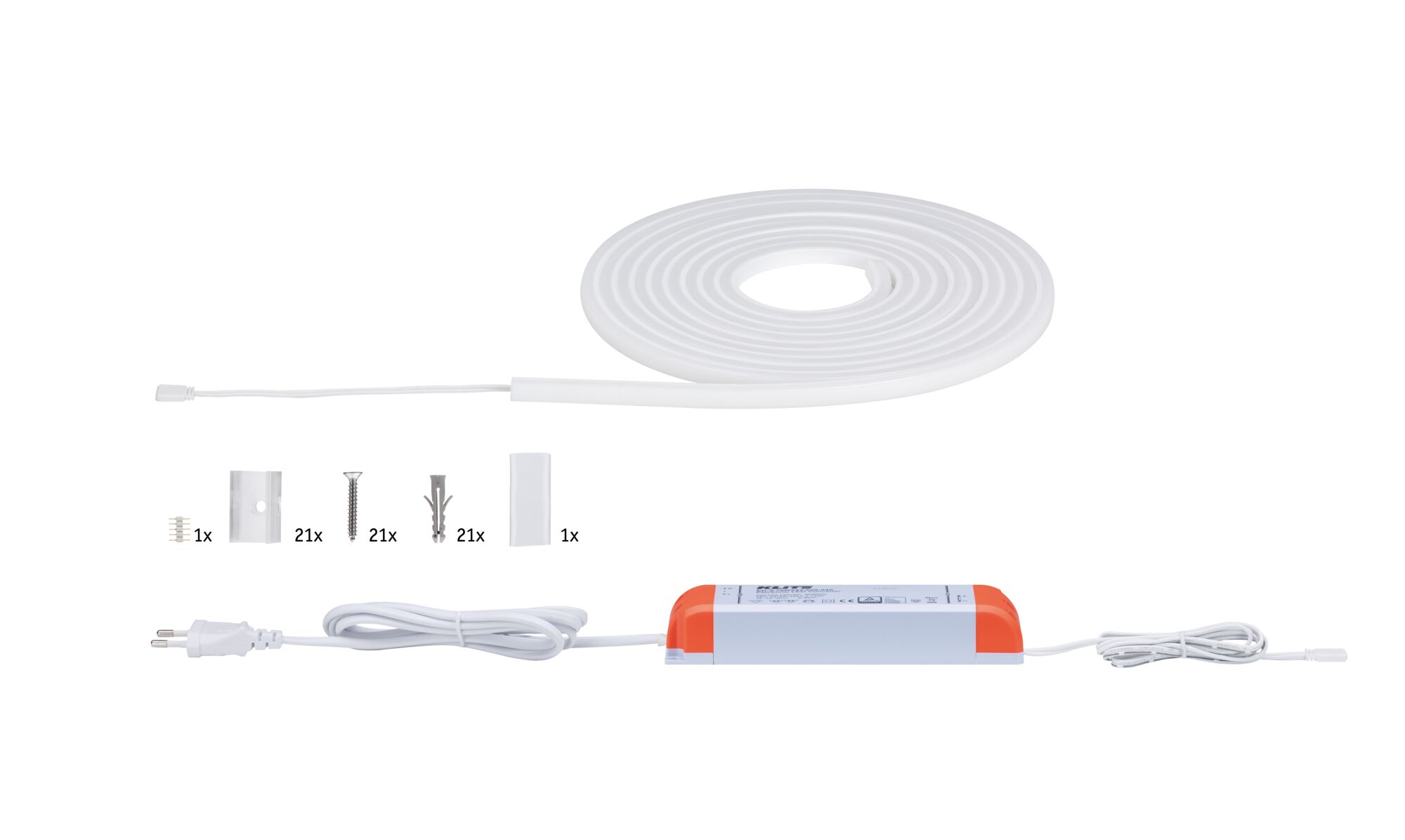

- Complete set incl. strip and power supply
- Set not expandable
MaxLED Flow LED Strip Basic set warm white 5m coated 52W 1300lm/m 180 LEDs/m 2700K 75VA

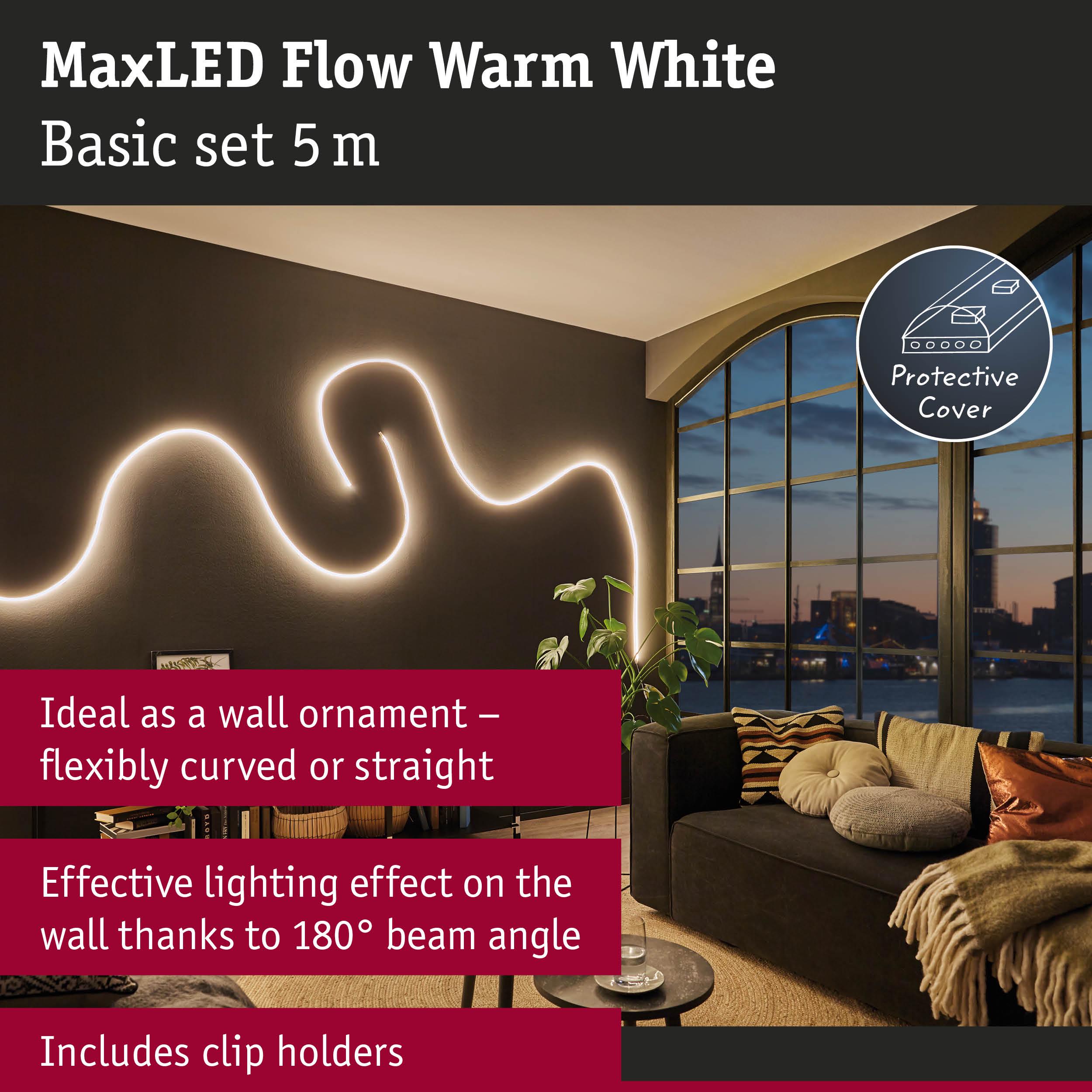

Subtle, uniform & bright! MaxLED Flow RGB with its 52 W output spreads wide coverage, even light without visible LED points. It is cast into a flexible profile with a large, high-effect beam angle and can be routed straight or in curves. Transparent, barely visible attachment clips, screws and wall anchors come with the set. Thanks to IP67 protection, the strip can also be used in wet rooms, e.g. to brighten your wellness spa.
- Uniform homogeneous lighting strip without irritating individual light points
- Complete set incl. strip and power supply
- Set not expandable

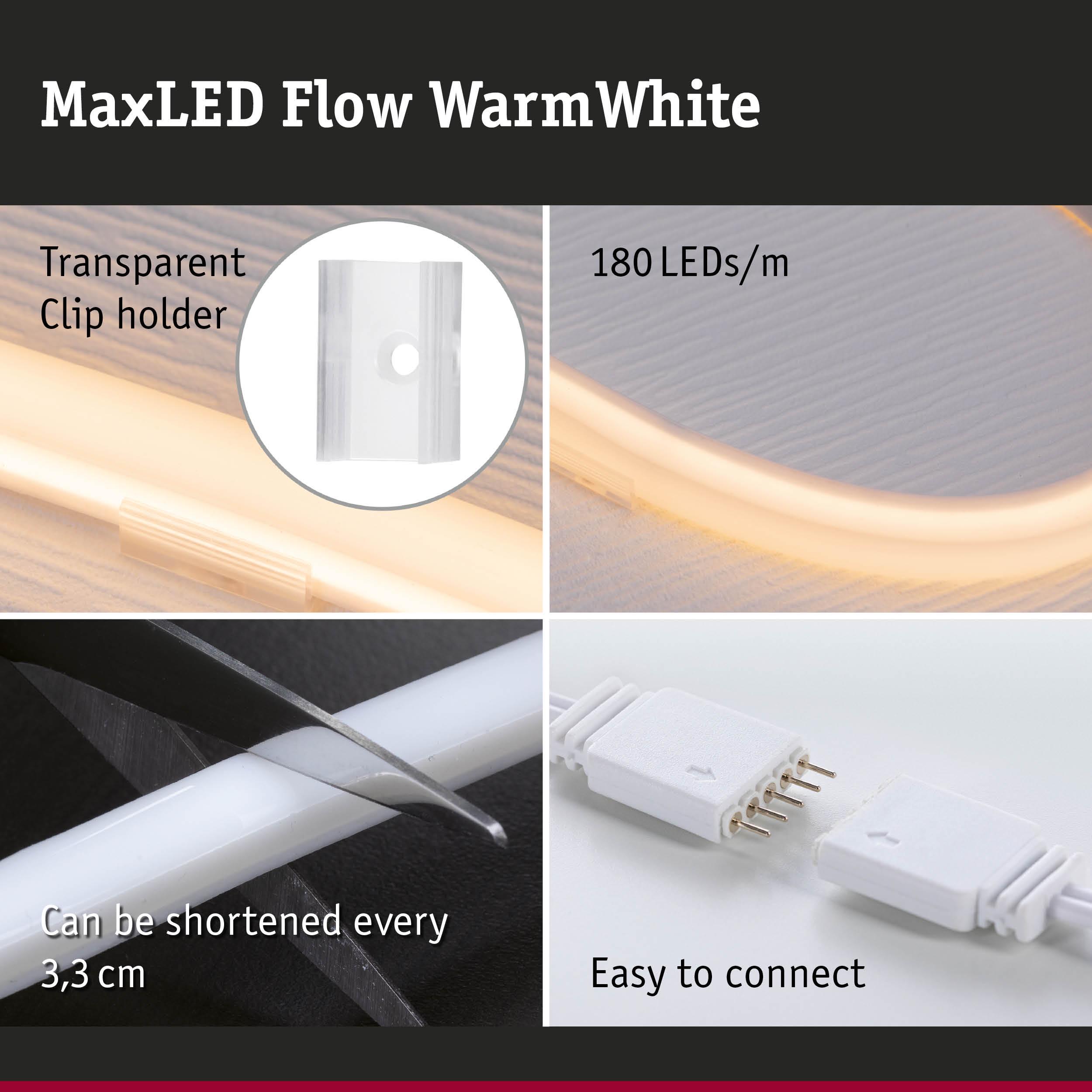

- Incl. retaining clips to hold in place
- Can be shortened as required
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 10 x T: 10 mm |
| Length | 5 m |
| Shortenability Strips | 33 mm |
| Design and Material | |
|---|---|
| Colour | White |
| Material | Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Universal |
| Connections | |
|---|---|
| Plug | Euro flat plug (type C-CEE 7/16) |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | G |
| Service life | |
|---|---|
| Lifetime | 20000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 2700 K |
| Nominal luminous flux | 3750 lm |
| Luminous flux LED module | 6500 lm |
| Lumens per metre | 1300 lm/m |
| Lamp Features | |
|---|---|
| Dimmable | Yes |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel fest integriert |
| Incandescent Equivalent | 250 W |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 52 W |
| Number of component parts | 1x |
| Number of LED's per meter | 180 |
| Replacable | 1 Lightsource is replaceable without damage the lighting fixture by enduser.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 62 W |
| Adjustability | fixed |
| Voltage | 230/24 V |
| Voltage type | AC / DC |
| Transformer | |
|---|---|
| apparent power | 60 VA |
| Transformer power range | 75 VA |
| Transformer height | 30 mm |
| Transformer width | 52 mm |
| Transformer depth | 180 mm |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
