Article-No.:
78884
MaxLED 500
LED Strip
Smart Home Zigbee 3.0
RGBW Coated Basic Set

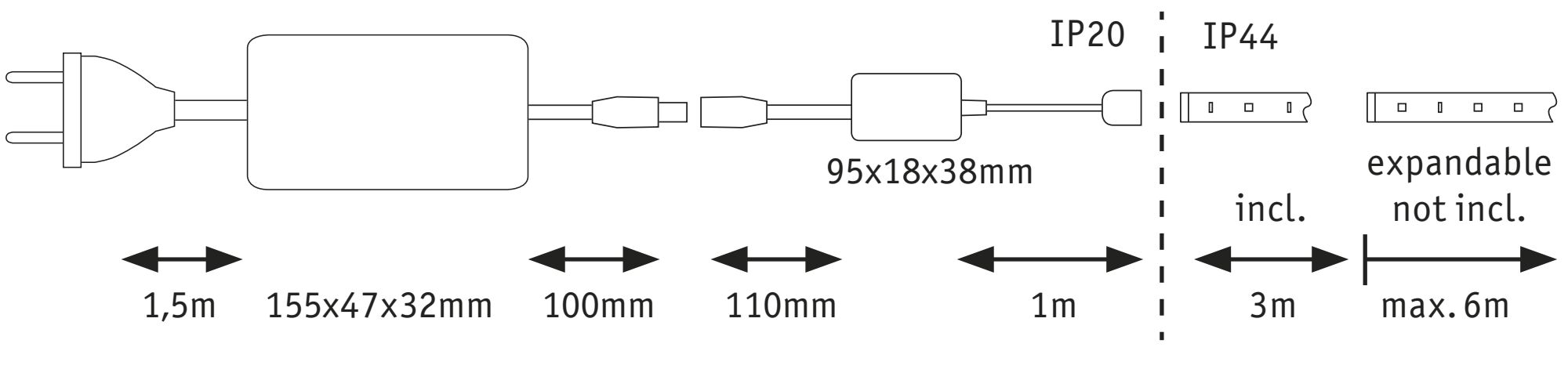

3m IP44 27W 350lm/m 60 LEDs/m RGBW+ 60VA
3m IP44 27W 350lm/m 60 LEDs/m RGBW+ 60VA
- Can be shortened as required
- RGBW colour control
- Coating protects against splashing water and dust

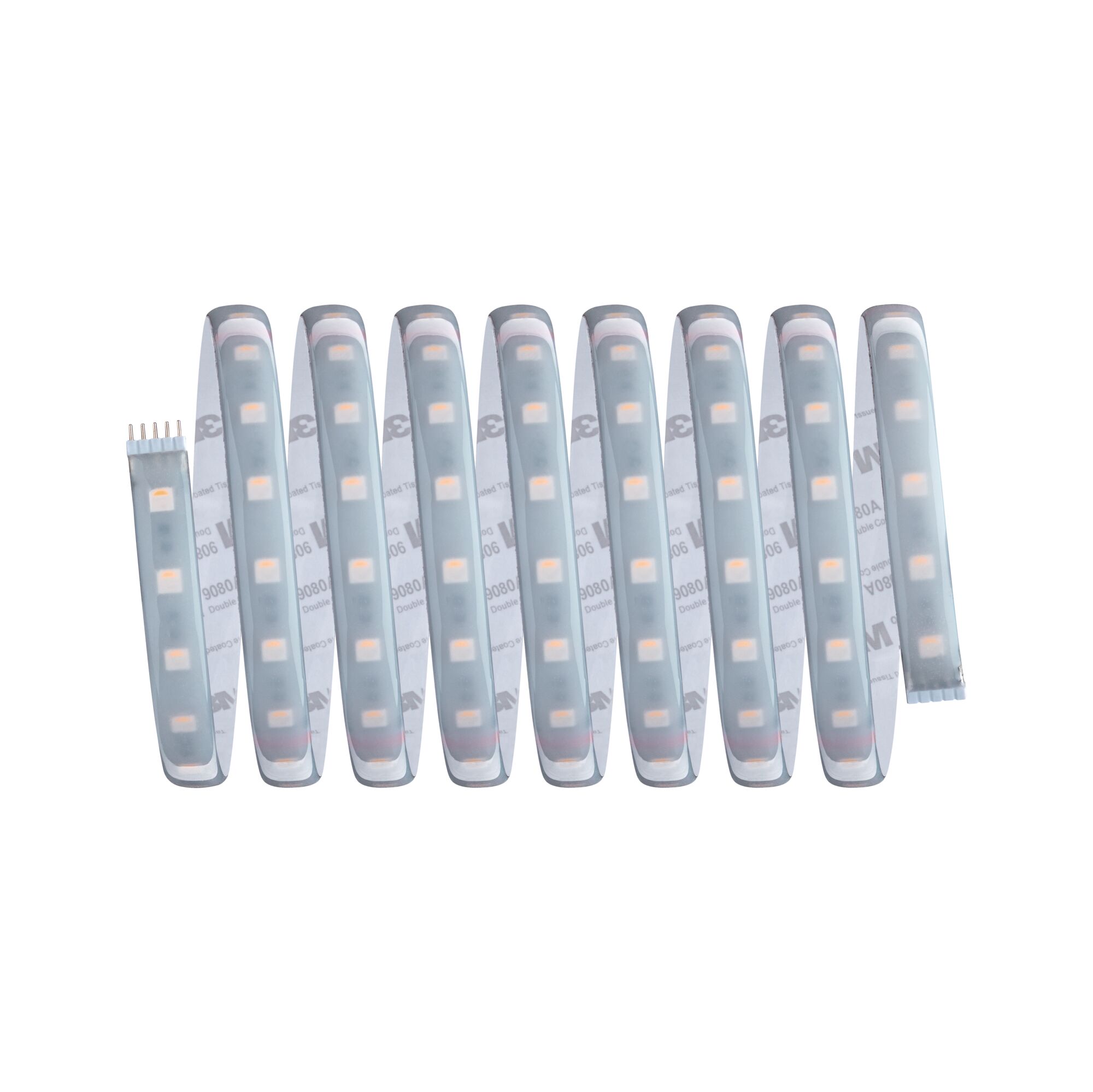

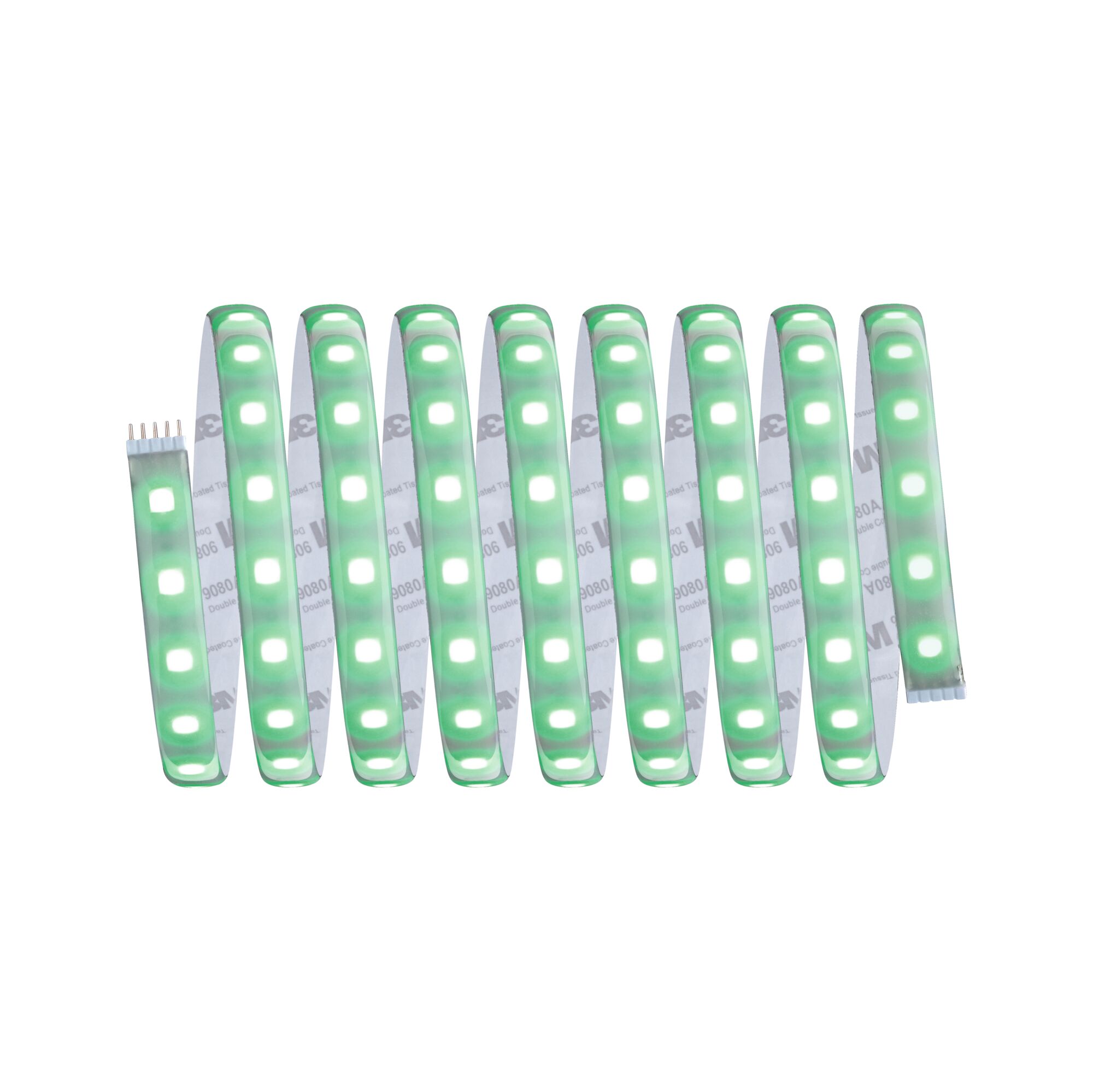

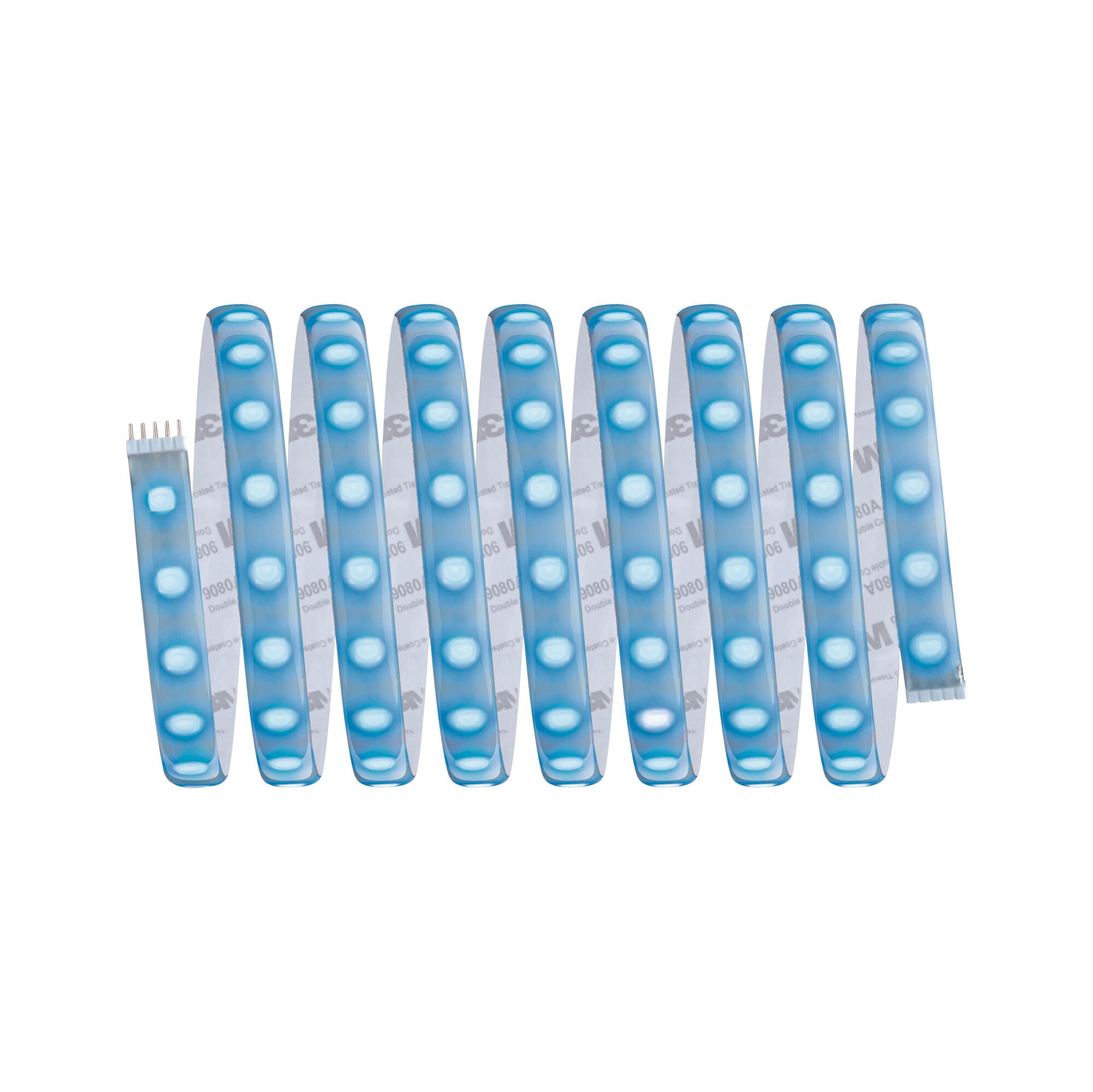

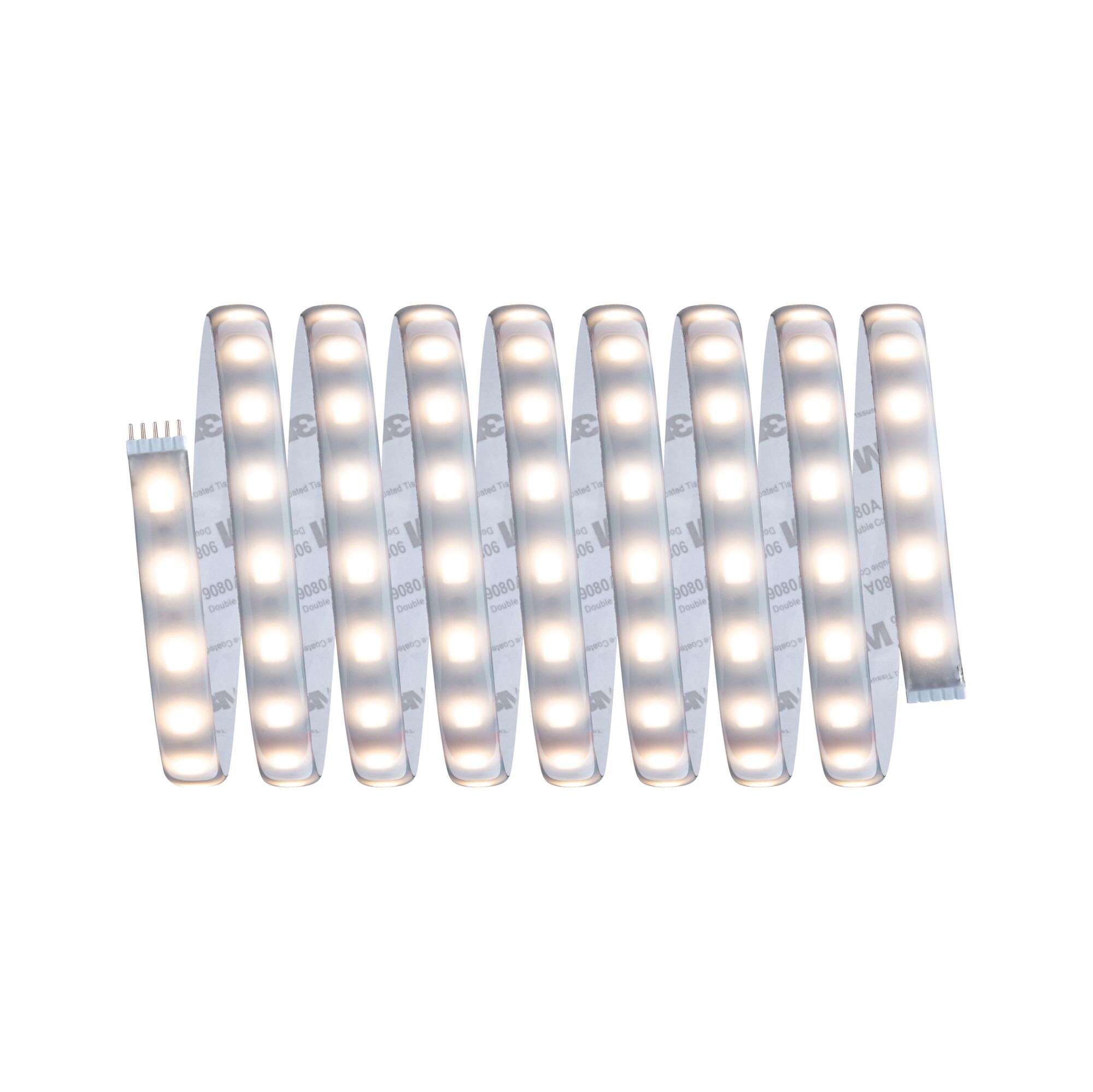

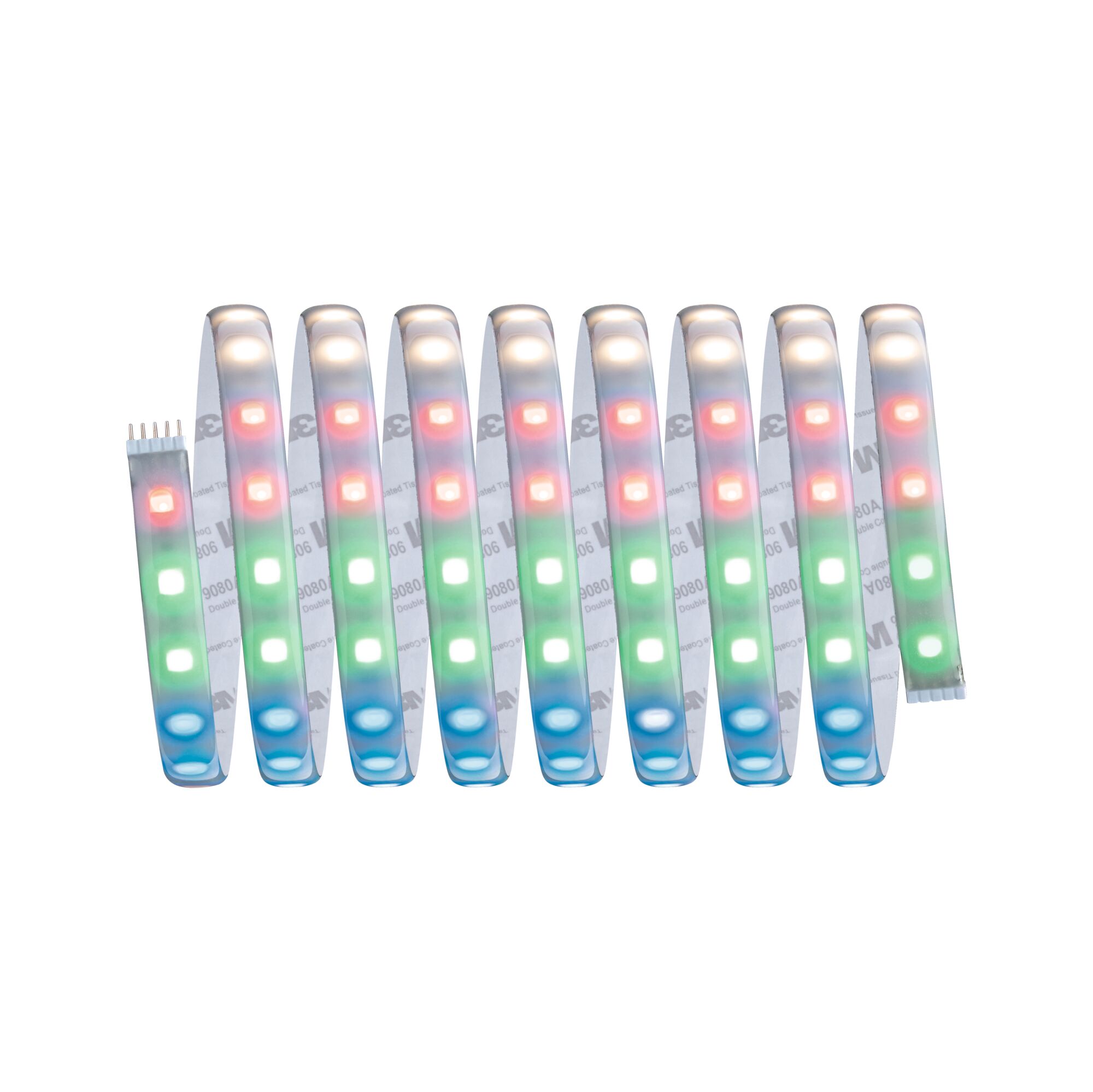

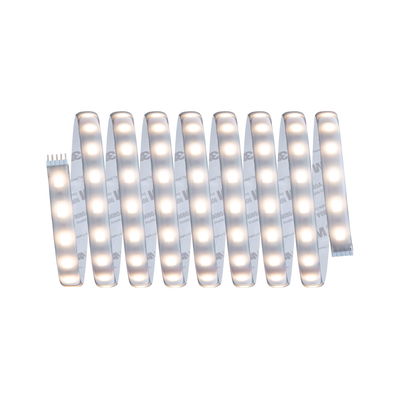

MaxLED 500 LED Strip Smart Home Zigbee 3.0 RGBW Coated Basic Set 3m IP44 27W 350lm/m 60 LEDs/m RGBW+ 60VA

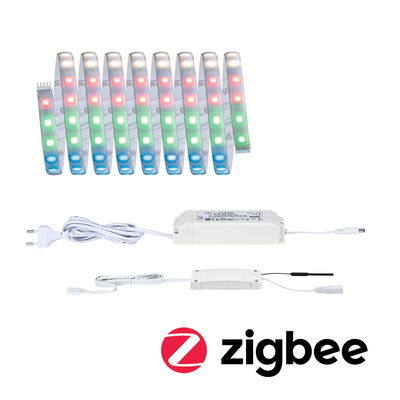

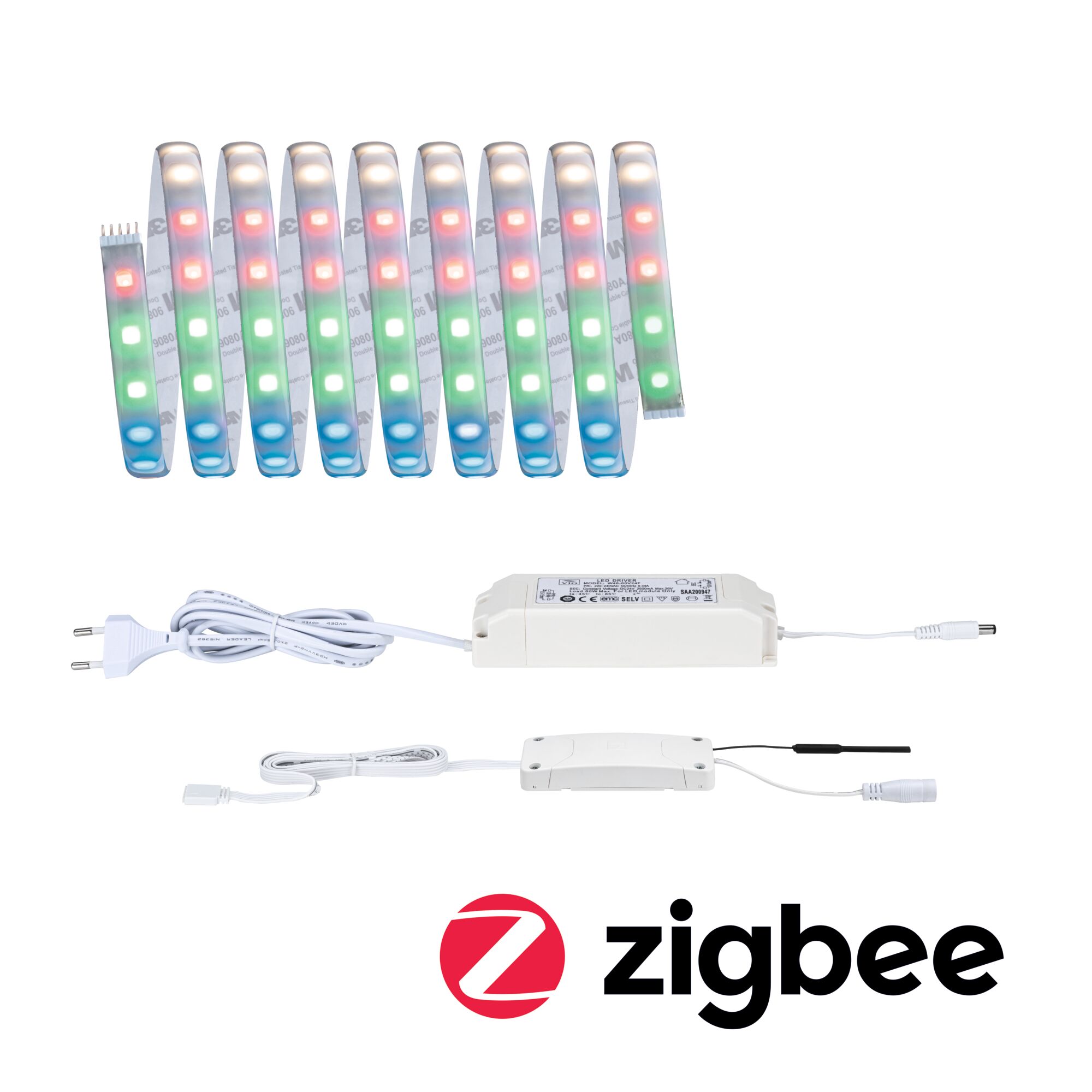

With an output of 27W, MaxLED strips are powerful enough to be used for room illumination. They are real highlights especially in profiles. The mood-setting colour-change function allows you to create your own living atmosphere – ranging from monochrome continuous lighting to multi-coloured light effects. A diode in white (W) additionally provides a cosy warm white light and makes it unnecessary to mix a white tone from the colours red, green and blue (RGB). The basic set not only includes the strip, with a length of 3 m, but also a suitable ballast and smart controls, thanks to the integrated Zigbee 3.0 function. Zigbee 3.0 is a radio transmission protocol that interlinks devices from different manufacturers. Depending on your needs, the set can also be extended with additional strips and connectors.
- Can be shortened as required
- RGBW colour control
- Coating protects against splashing water and dust
- Easy plug-in system for hassle-free assembly
- Rear self-adhesive for simple installation
- Flexible material for mounting on flat or curved surfaces
- Incl. 5-pin plug for easy connection of the strips
- Can be controlled with the Smart Home Zigbee remote control
- Usable with smart home gateways that have a Zigbee interface
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 3 x B: 12,5 x T: 12,5 mm |
| Length | 3 m |
| Design and Material | |
|---|---|
| Colour | Silver |
| Material | Plastic |
| Installation | |
|---|---|
| Length max. | 6 m |
| can be used with the following dimmers | Paulmann SmartHome Zigbee Gent2 501.40 |
| Connections | |
|---|---|
| Plug | Euro flat plug (type C-CEE 7/16) |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | F |
| Service life | |
|---|---|
| Lifetime | 30.000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| Colour change | Color change RGBW, Tunable White |
| Usable luminous flux | 1.050 lm |
| Luminous flux LED module | 1200 lm |
| color temp | 3.000 K |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 27 W |
| Compatible Smart Home technology | Zigbee |
| Technique | LED |
| IP protection | IP44 |
| Dim | with Smart Home |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Total Width | 12,5 mm |
| Number of component parts | 1x |
| protection class | protection class II |
| Radio frequency | 2,4 GHz |
| Radio range | 20 m |
| Number of LED's per meter | 60 |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 29 W |
| Transformer | |
|---|---|
| Transformer power | 60 VA |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
