Article-No.:
70565
MaxLED 500LED StripSmart Home Bluetooth
Tunable White Basic Set
10m 47W 550lm/m 60 LEDs/m Tunable White 80VA
10m 47W 550lm/m 60 LEDs/m Tunable White 80VA
- Convenient control via the Paulmann Boss remote control

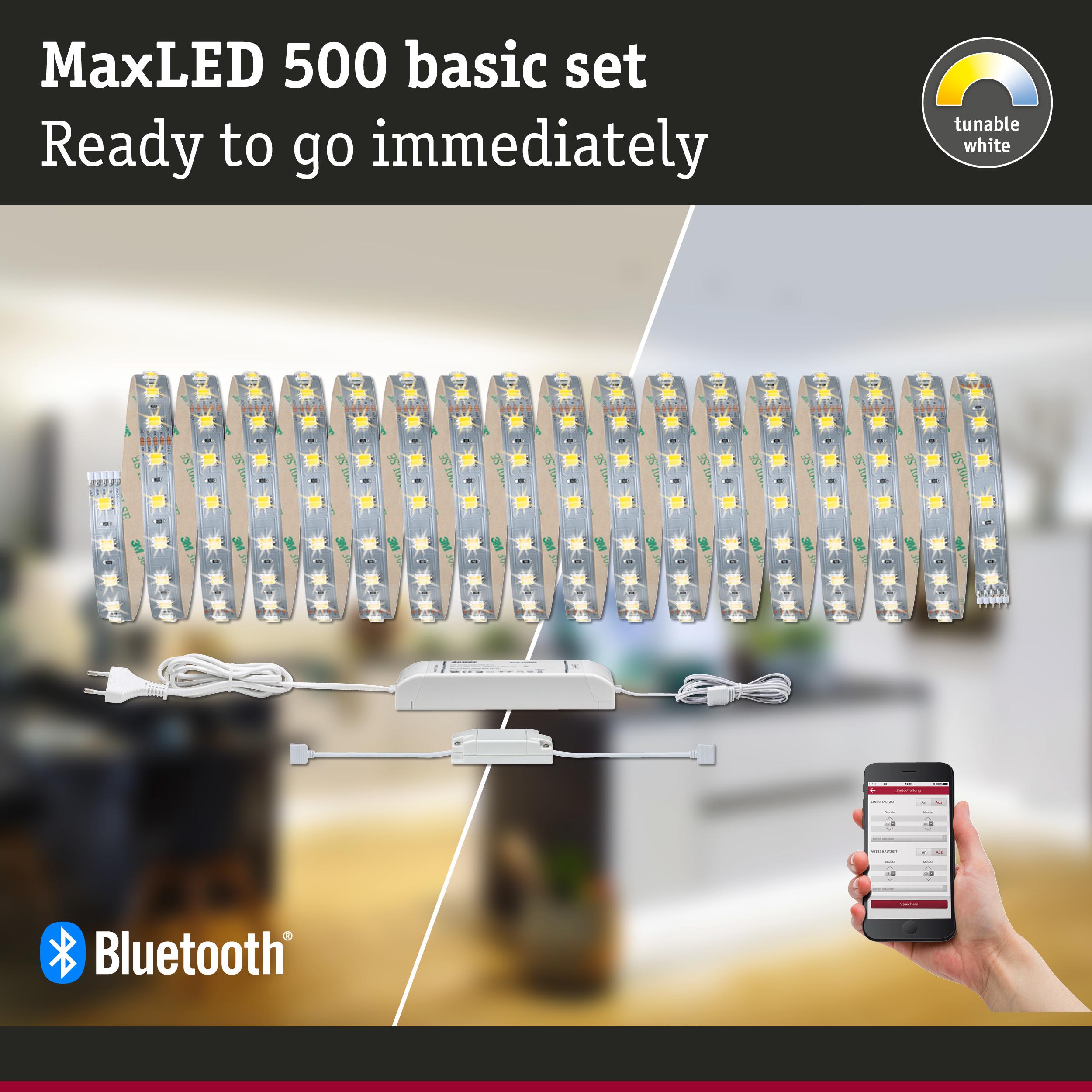

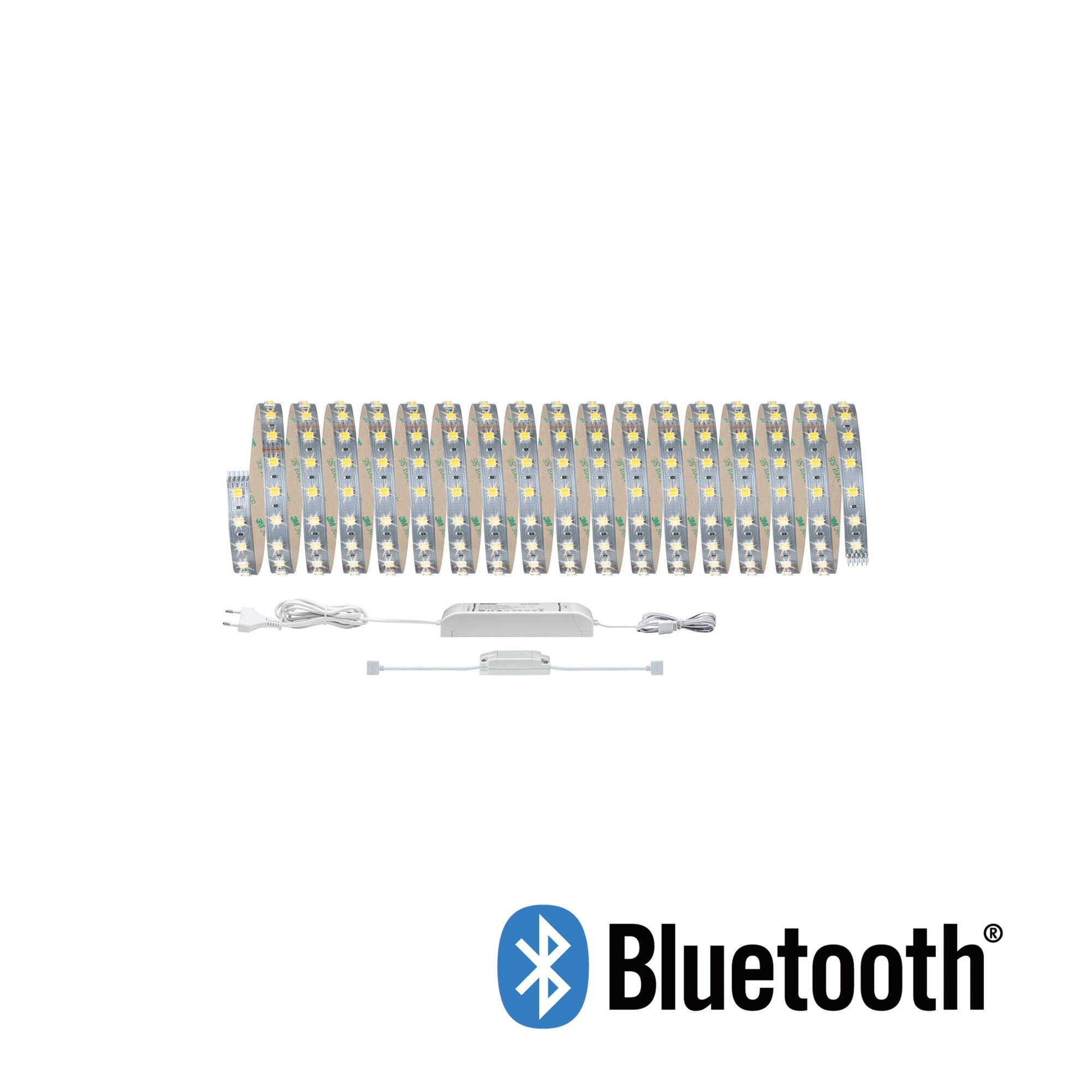

- Complete set incl. strip, power supply and tunable white controller
- Simple plug-in system for easy installation
MaxLED 500 LED Strip Smart Home Bluetooth Tunable White Basic Set 10m 47W 550lm/m 60 LEDs/m Tunable White 80VA

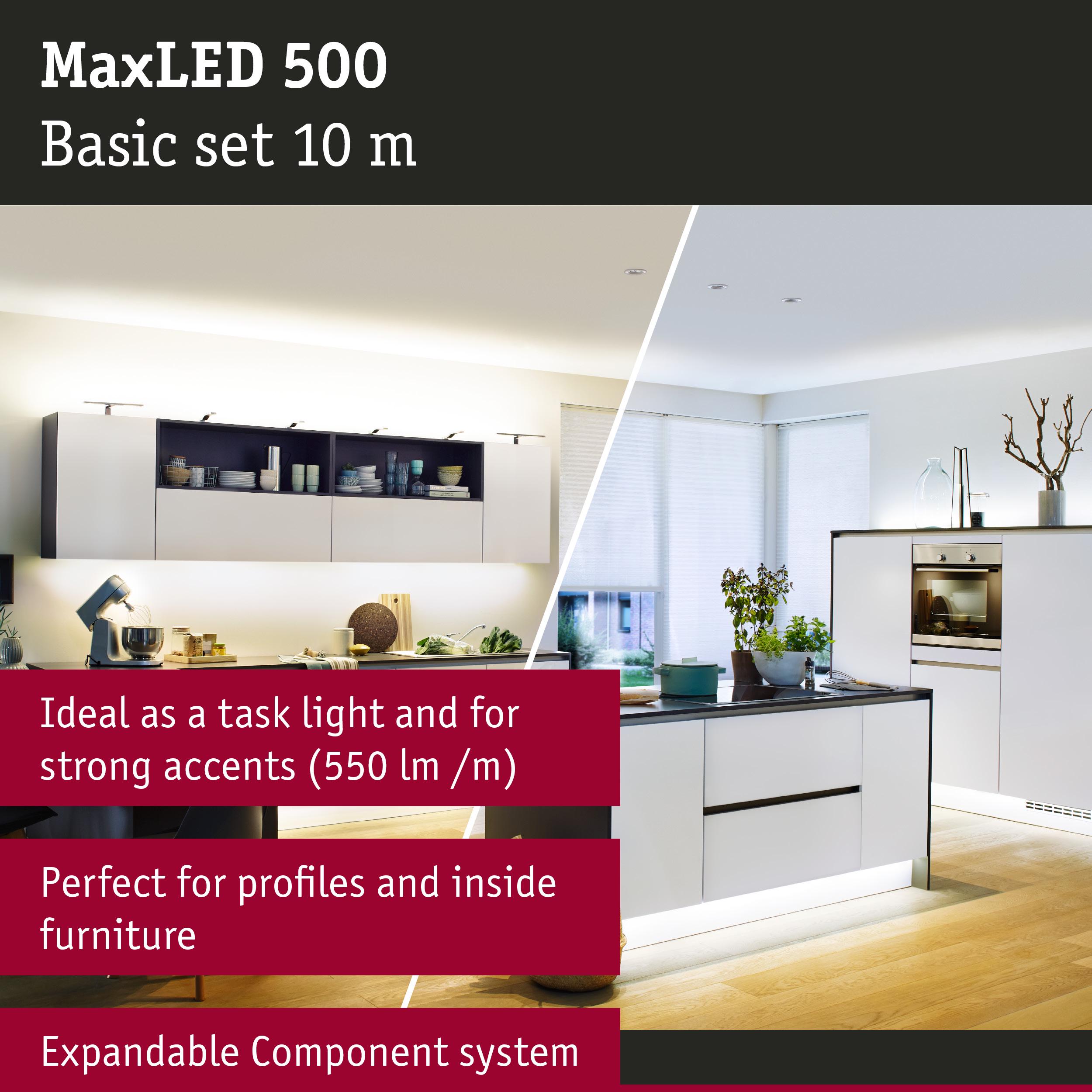

MaxLED-Strips 500 are so powerful with 47W and 550lm/m that they can be used for room illumination without any problems. They are real highlights, especially in profiles. Thanks to the intelligent Tunable White white light control, the light color of the strips can be individually varied - from daylight white working light to warm white relaxation lighting, everything is possible. In addition to the strip with a length of 10m, the set includes a matching ballast and the MaxLED dimming/switching controller from the Smart Home series. This allows the strip to be switched and dimmed. The controller is controlled via Bluetooth - control is convenient via the Paulmann Boss remote control.
- Convenient control via the Paulmann Boss remote control
- Complete set incl. strip, power supply and tunable white controller
- Simple plug-in system for easy installation
- With white-light control (Tunable White)
- Colour temperature: 3000 K - Warm white up to 6500 K - Daylight white

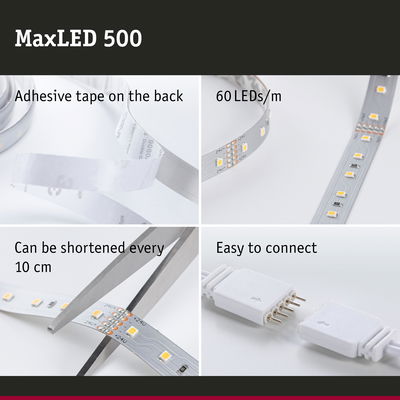

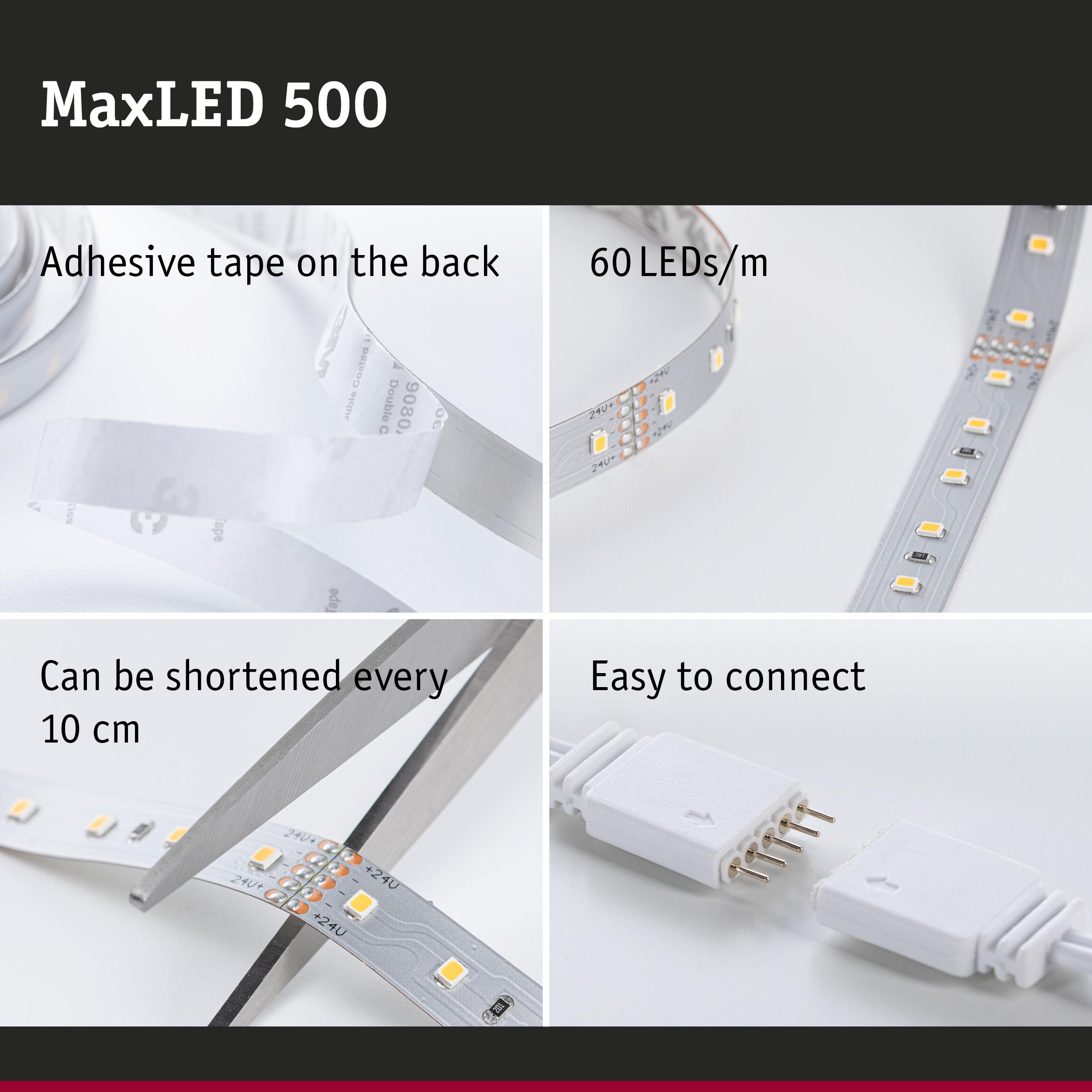

- Can be shortened as required
- No memory effect with 230 V separation (switch)
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 3 T: 12,5 mm |
| Length | 10 m |
| Design and Material | |
|---|---|
| Colour | Silver |
| Material | Plastic |
| Connections | |
|---|---|
| Transformator plug | Transformator plug |
| Plug | Euro flat plug (type C-CEE 7/16) |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| Colour change | Tunable White |
| Beam angle | 120 ° |
| Usable luminous flux | 5500 lm |
| Lumens per metre | 550 lm/m |
| color temp | 3000 - 6500 K |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 47 W |
| Compatible Smart Home technology | Bluetooth & BLE |
| Technique | LED |
| Dim | with Smart Home |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Number of component parts | 1x |
| protection class | protection class II |
| Number of LED's per meter | 60 |
| Replacable | 1 Lightsource is replaceable without damage the lighting fixture by enduser.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 53 W |
| Transformer | |
|---|---|
| Transformer power | 80 VA |
| apparent power | 55.2 VA |
| Transformer height | 33 mm |
| Transformer width | 60 mm |
| Transformer depth | 190 mm |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | BLE 4.0 Letaron |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 10 m |
