Article-No.:
79838
MaxLED 500LED Strip
Kitchen set
coated 3x3,1W / 3x0,6W 172lm/m 2700K 20VA
coated 3x3,1W / 3x0,6W 172lm/m 2700K 20VA
- Easy plug-in system for hassle-free assembly
- Can be shortened as required
- Rear self-adhesive for simple installation

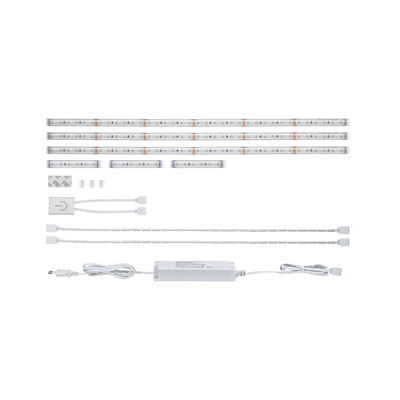

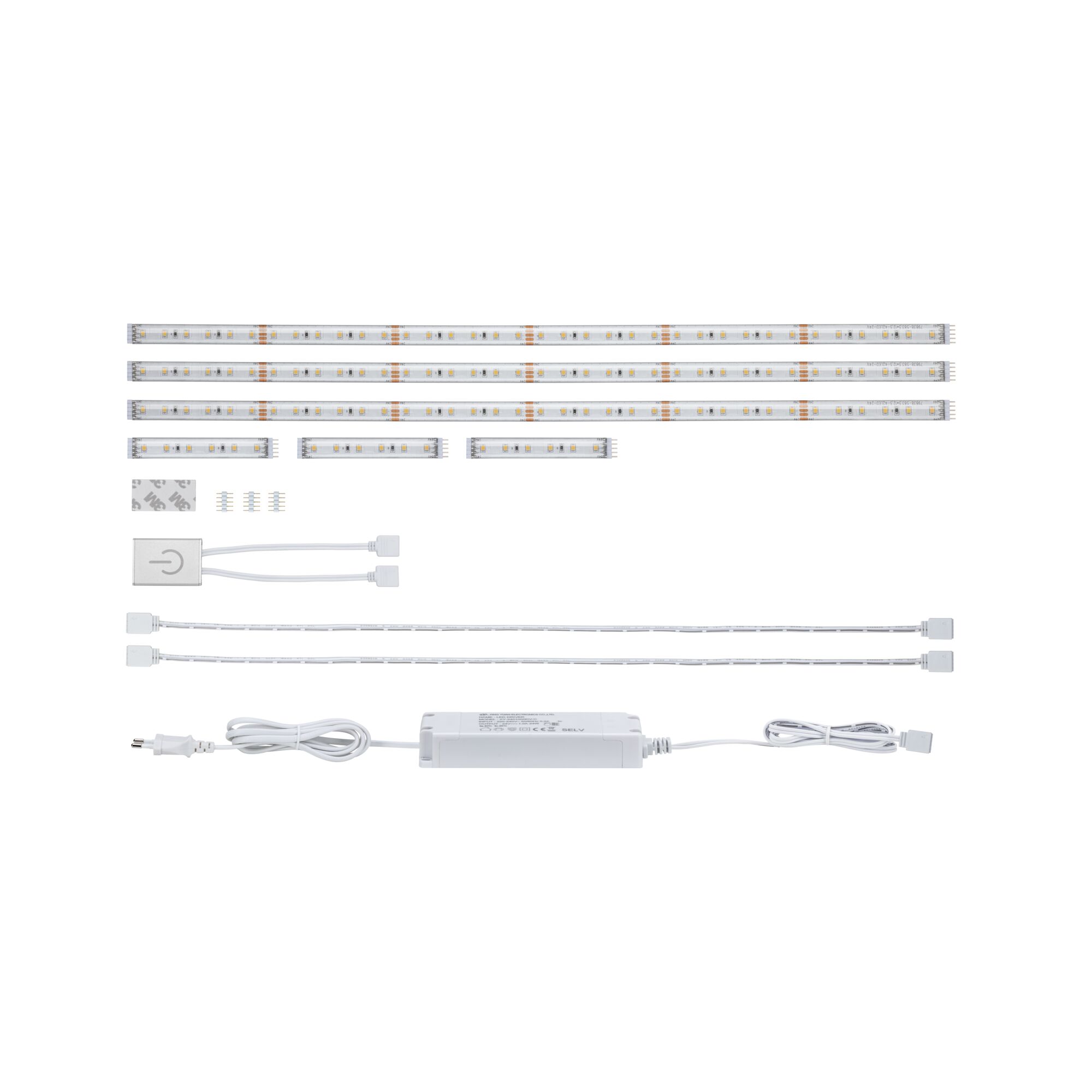

MaxLED 500 LED Strip Basic set Kitchen set 1,8m coated 3x3,1W / 3x0,6W 172lm/m 2700K 20VA

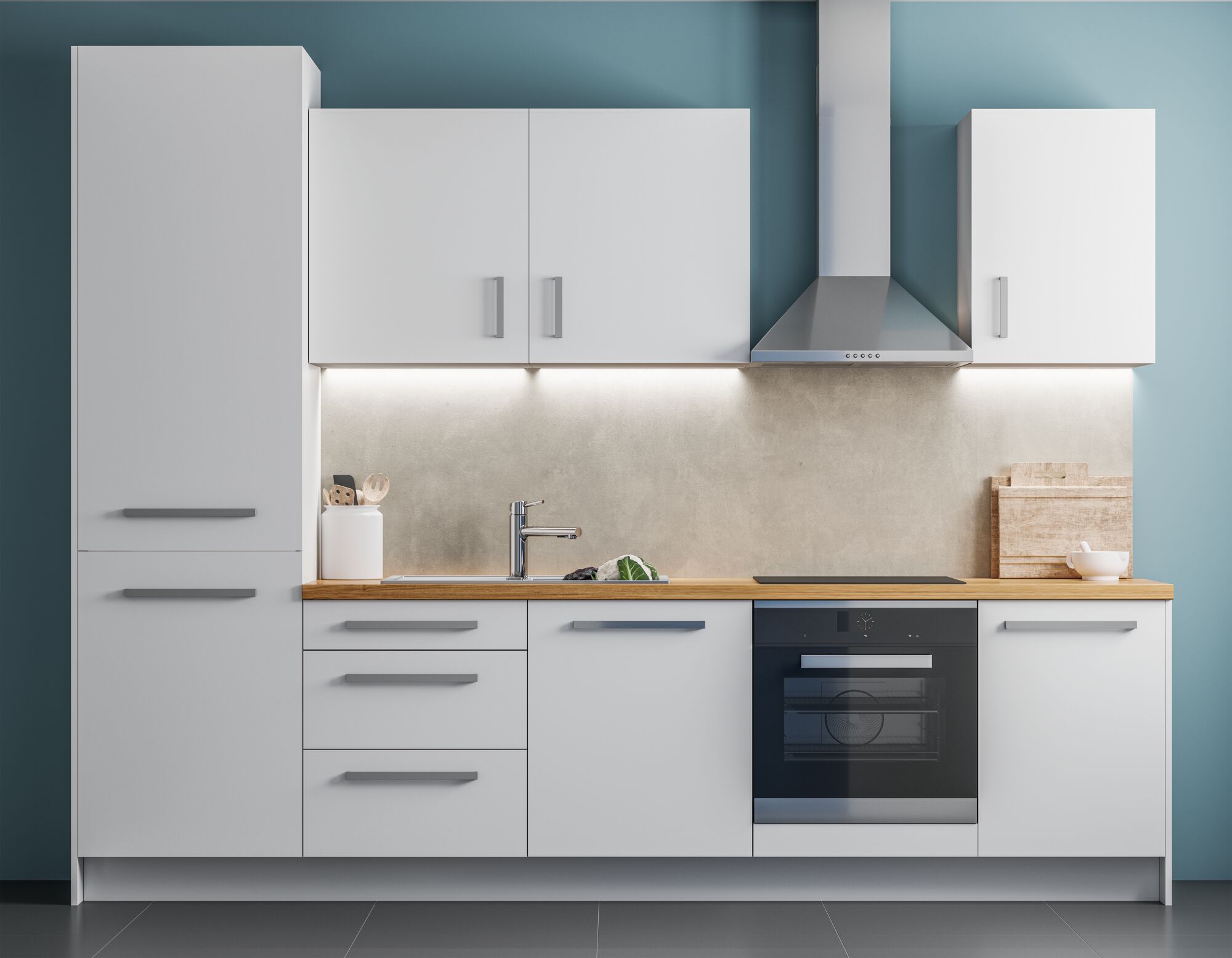

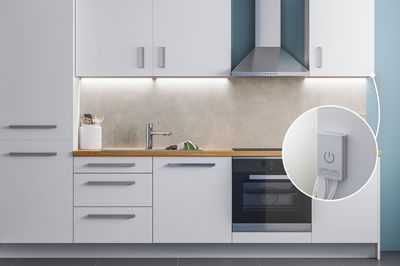

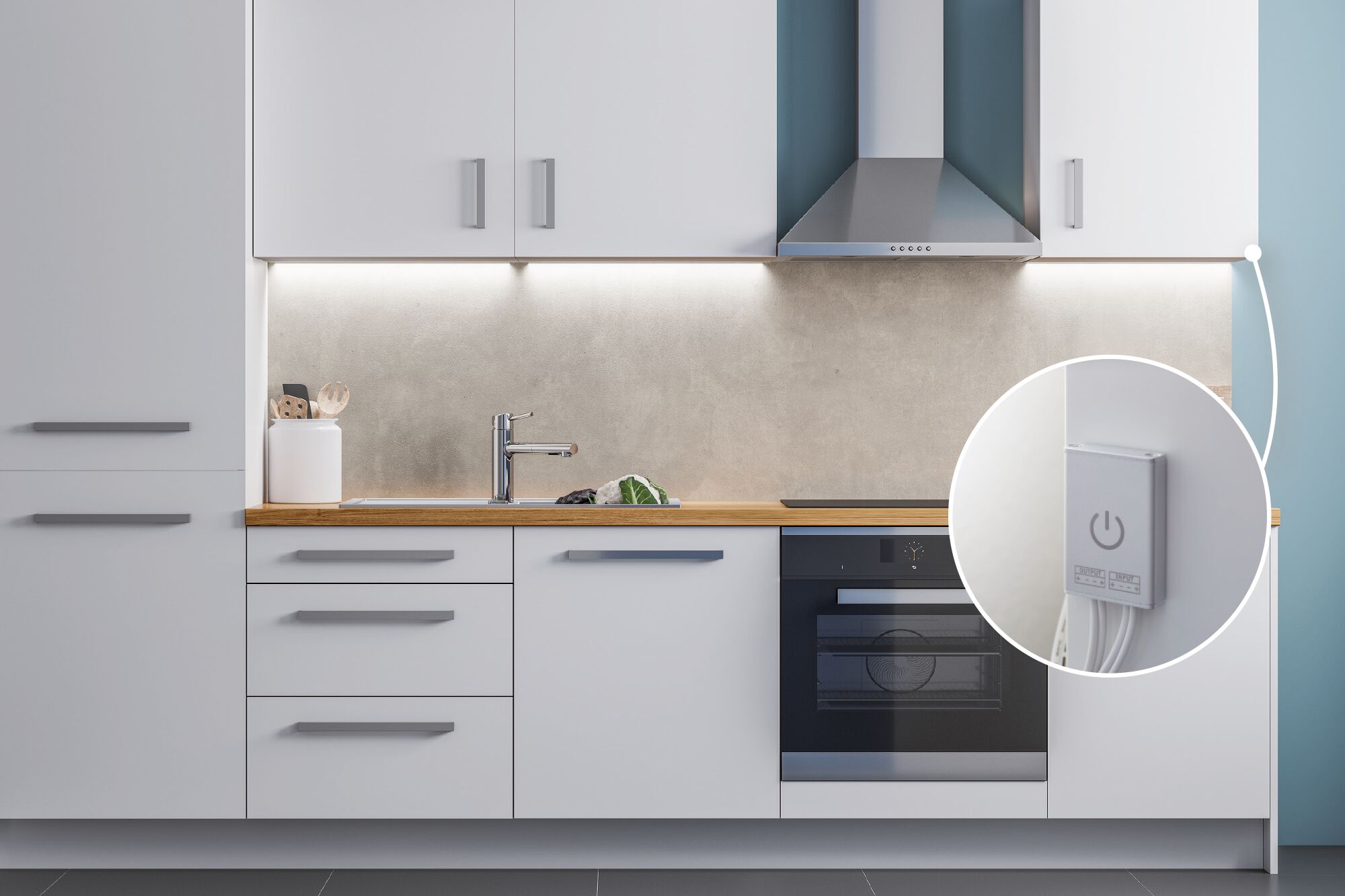

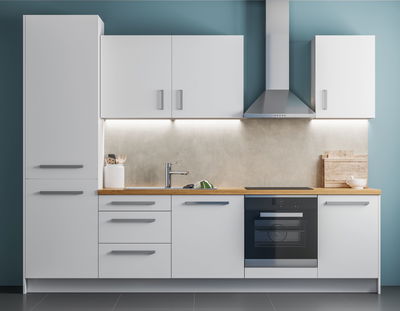

The set provides the perfect working light under the kitchen cabinet. The three coated strips are designed for three 60 cm wall-mounted cabinets. If they do not fit, the strips can be cut by up to 8 cm or expanded with an additional strip up to 3 m. The set comes with a long supply line and two additional cables to enable installation behind an extractor hood. The light can be switched on and off directly beneath the cabinet using the slim touch switch and dimmer. The high-quality metal casing of the switch responds to single touches by switching on/off. Press it for longer to activate the continuous dimming function.
- Easy plug-in system for hassle-free assembly
- Can be shortened as required
- Rear self-adhesive for simple installation
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 3 x T: 12,5 mm |
| Length | 1,8 m |
| Design and Material | |
|---|---|
| Colour | Silver |
| Material | Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Universal |
| Length max. | 2,8 m |
| Connections | |
|---|---|
| Plug | Euro flat plug (type C-CEE 7/16) |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 2700 K |
| Nominal luminous flux | 245 lm |
| useful luminous flux 2 | 40 lm |
| Luminous flux LED module | 310 lm |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Dimmable | Yes |
| Dim | with touch dimmer |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel fest integriert |
| Incandescent Equivalent | 29 W |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 3,1 W |
| Number of component parts | 3x |
| Number of LED's per meter | 70 |
| Replacable | 1 Lightsource is replaceable without damage the lighting fixture by enduser.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 13 W |
| Adjustability | fixed |
| Voltage | 230/24 V |
| Voltage type | AC / DC |
| Transformer | |
|---|---|
| Transformer power range | 20 VA |
| Transformer height | 22 mm |
| Transformer width | 43 mm |
| Transformer depth | 126 mm |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
