Article-No.:
70529

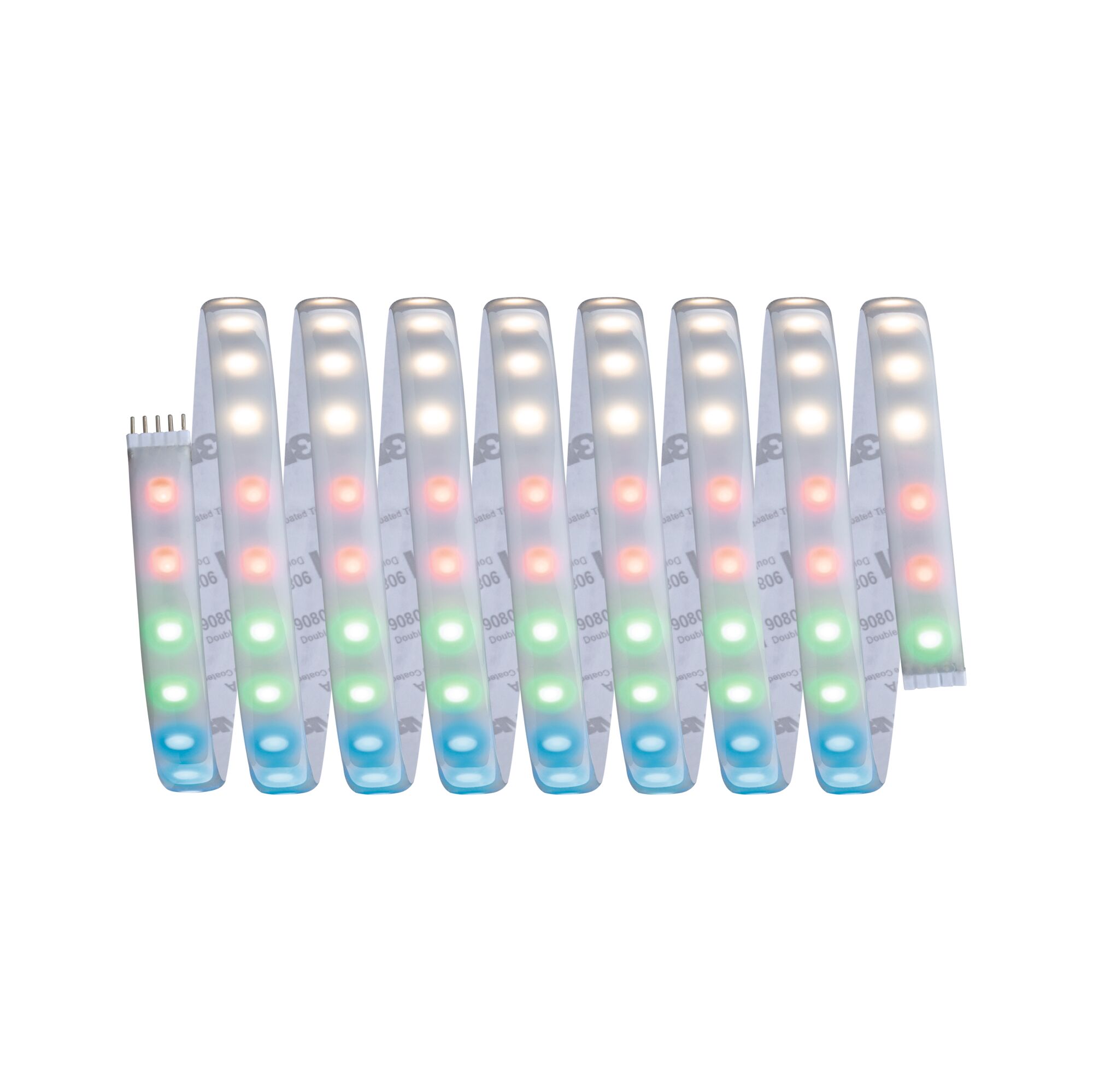

MaxLED 1000LED Strip
Basic set 3m RGBW
coated 33W 1000lm/m RGBW+ 75VA
coated 33W 1000lm/m RGBW+ 75VA

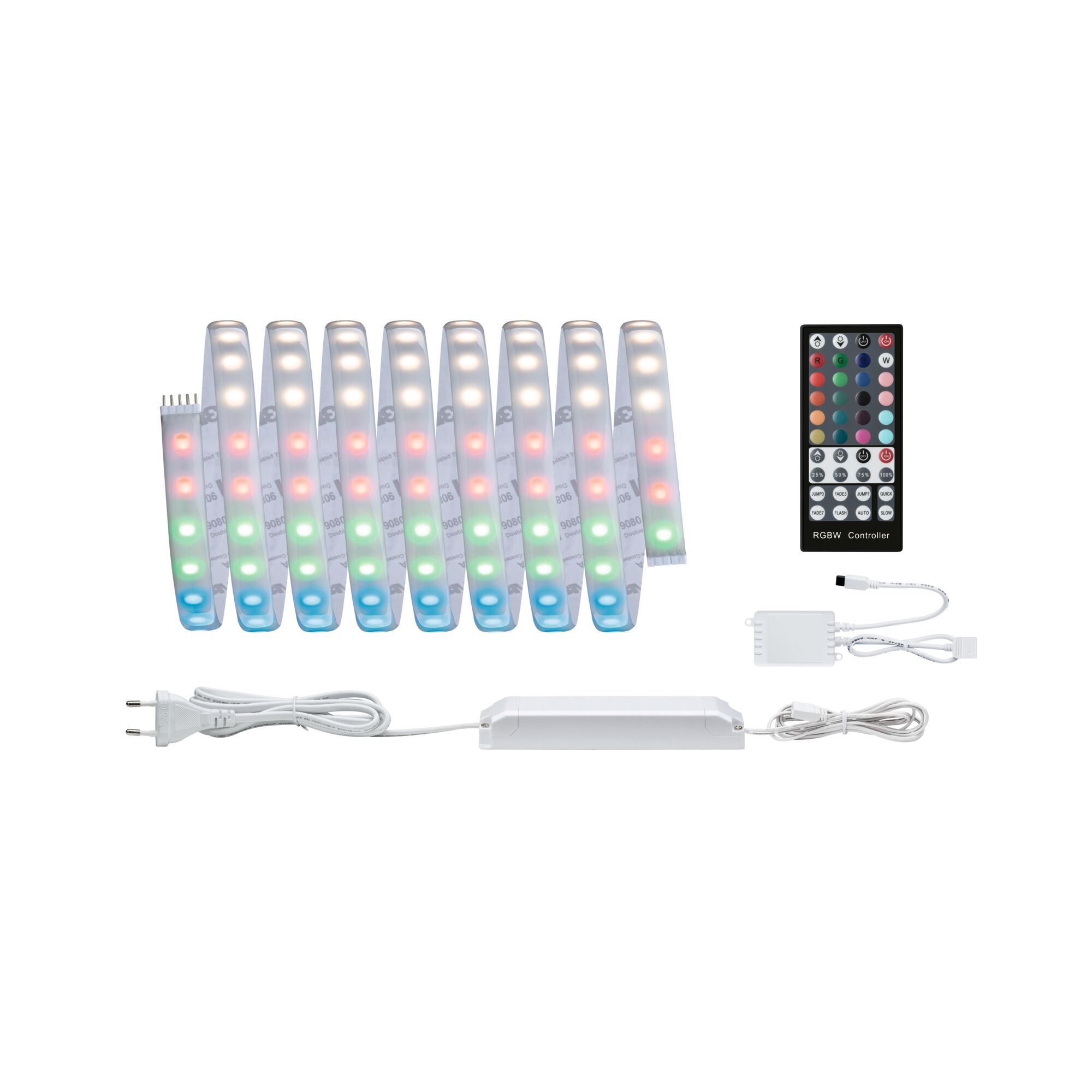

- Complete set incl. strip, power supply and remote control

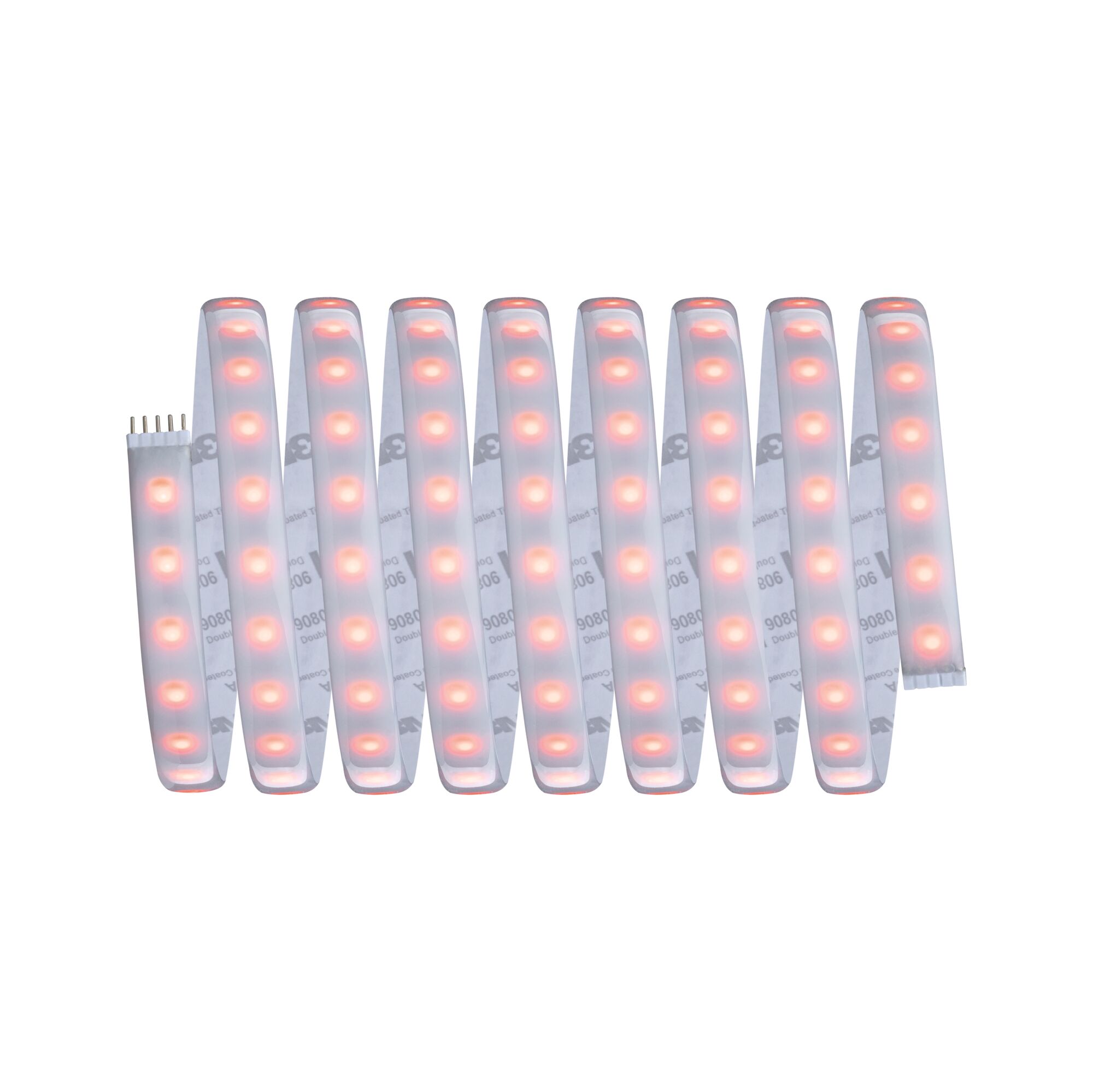

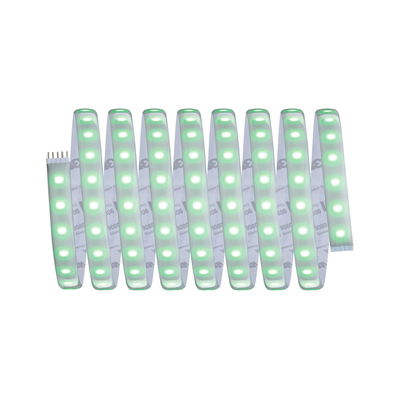

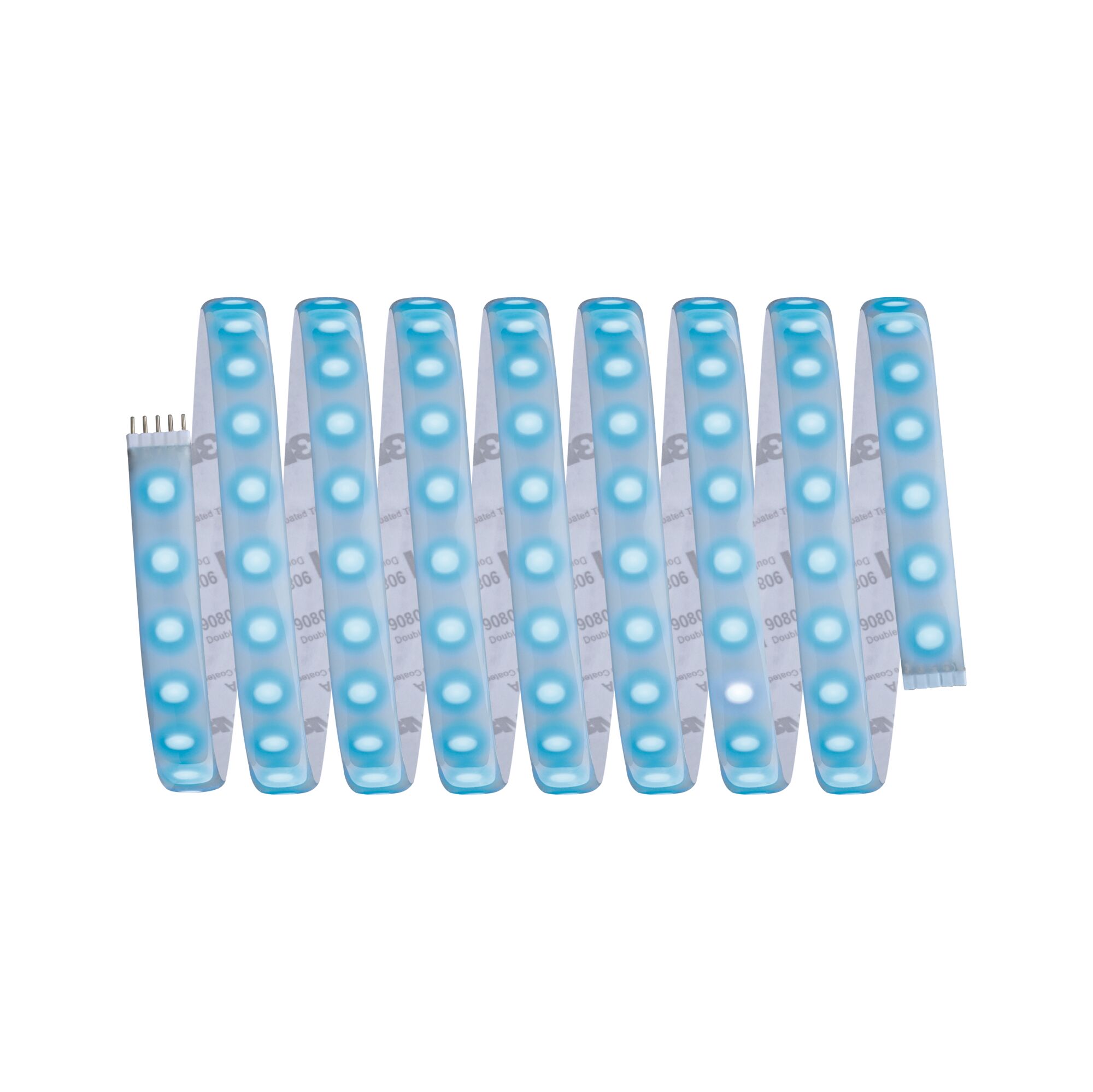

- RGBW function offers a free choice of light colour
- IP protection: IP44 splash-protected

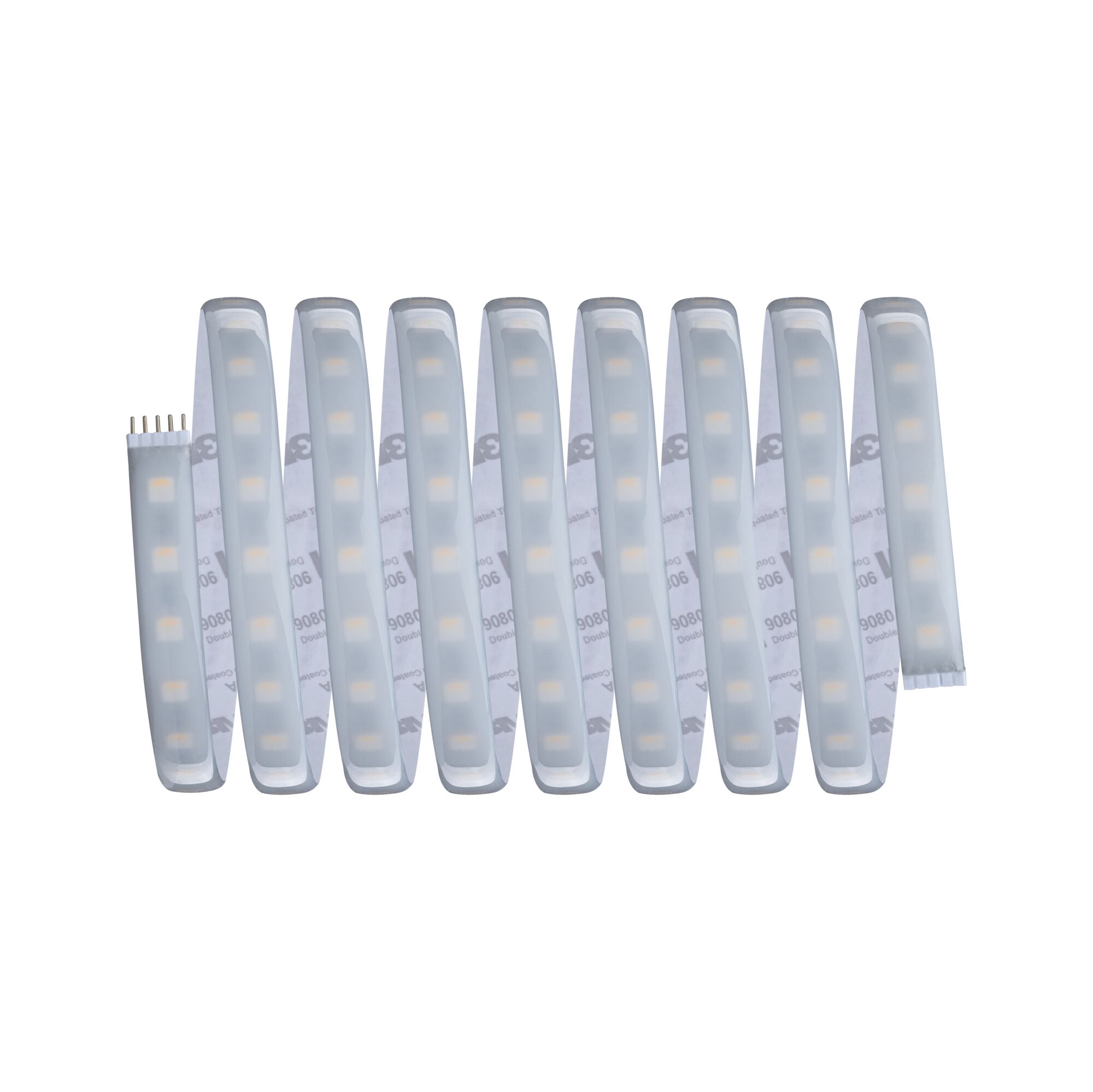

MaxLED 1000 LED Strip Basic set 3m RGBW coated 33W 1000lm/m RGBW+ 75VA
The 3 m strip has a luminous intensity of around 1000 lm/m and can therefore be used for basic lighting. It is a real highlight, especially when placed in profiles. The mood-setting colour-change function lets you create your own living atmosphere – ranging from monochrome continuous lighting to multi-coloured lighting effects. A diode in white (W) additionally provides a cosy warm white light and makes it unnecessary to mix a white tone from the colours red, green and blue (RGB). The basic set includes the strip, remote control, a receiver, and a suitable ballast. Depending on your needs, it can also be extended with additional strips and connectors. The stated max. length must not be exceeded.
- Complete set incl. strip, power supply and remote control
- RGBW function offers a free choice of light colour
- IP protection: IP44 splash-protected

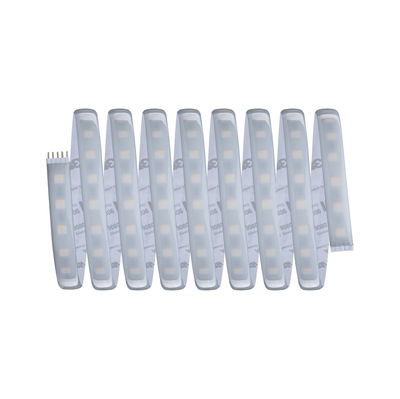

- Coating protects against splashing water and dust
- Simple plug-in system for easy installation
- Rear self-adhesive for simple installation
- Flexible material for installation on flat or arched base surfaces

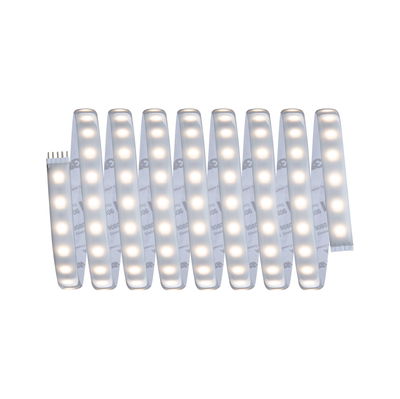

- Color temperatur: 3000K - Warm white
- Energy-saving LED technology conserves up to 80% energy in comparison to conventional filament lamps
- Incl. 5-pin plug for easy connection of the strips
- Can be shortened as required
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 3 x B: 12,5 mm |
| Length | 3 m |
| Shortenability Strips | 84 mm |
| Design and Material | |
|---|---|
| Colour | Silver |
| Material | Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Universal |
| Connections | |
|---|---|
| Plug | Euro flat plug (type C-CEE 7/16) |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | G |
| Service life | |
|---|---|
| Lifetime | 20000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 3000 K |
| Nominal luminous flux | 2460 lm |
| Luminous flux LED module | 3000 lm |
| Color rendering index | > 80 Ra |
| Colour change | coloured light with Tunable White function (RGBW), Tunable White |
| Lumens per metre | 1000 lm/m |
| Lamp Features | |
|---|---|
| Dimmable | Yes |
| Dim | with remote control |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel fest integriert |
| IP protection | IP44 |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 33 W |
| Number of component parts | 1x |
| Number of LED's per meter | 72 |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 40 W |
| Adjustability | fixed |
| Voltage | 230/24 V |
| Voltage type | AC / DC |
| Transformer | |
|---|---|

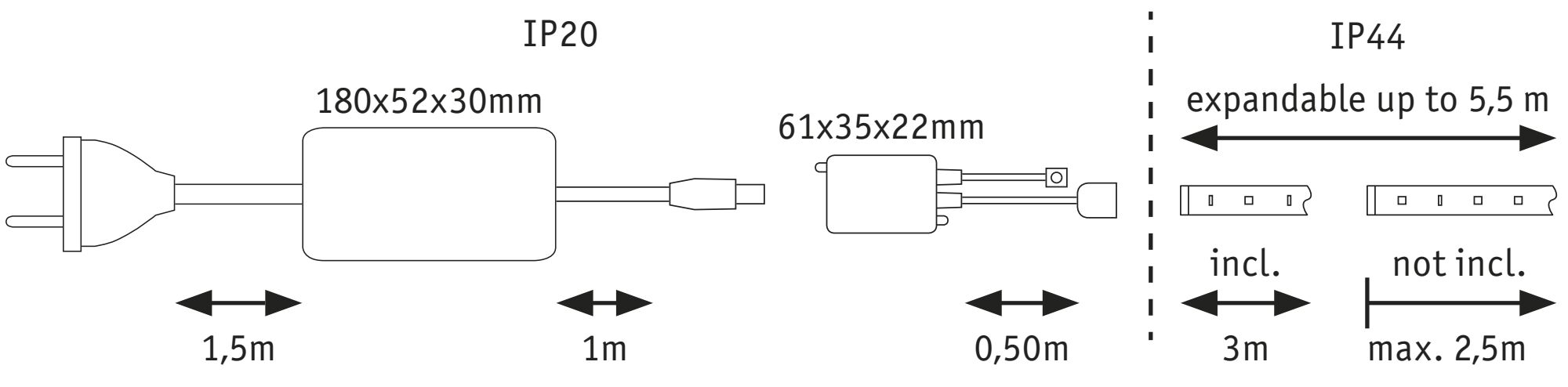

| Transformer power range | 75 VA |
| Transformer height | 180 mm |
| Transformer width | 52,5 mm |
| Transformer depth | 30 mm |
| Accessories | |
|---|---|
| Radio control included | yes |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
