Article-No.:
78426
LumiTilesLED StripSmart Home Zigbee 3.0
Full-Line COB Slim
1m coated IP44 3W 260lm/m 544 LEDs/m Tunable White 7VA
1m coated IP44 3W 260lm/m 544 LEDs/m Tunable White 7VA
- Super narrow LED strip, only 8 mm wide
- Controllable via app or voice control in smart Zigbee systems
- Suitable for any installation: Strips can be shortened every 30 mm

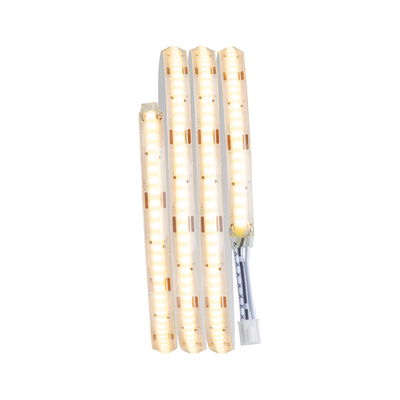

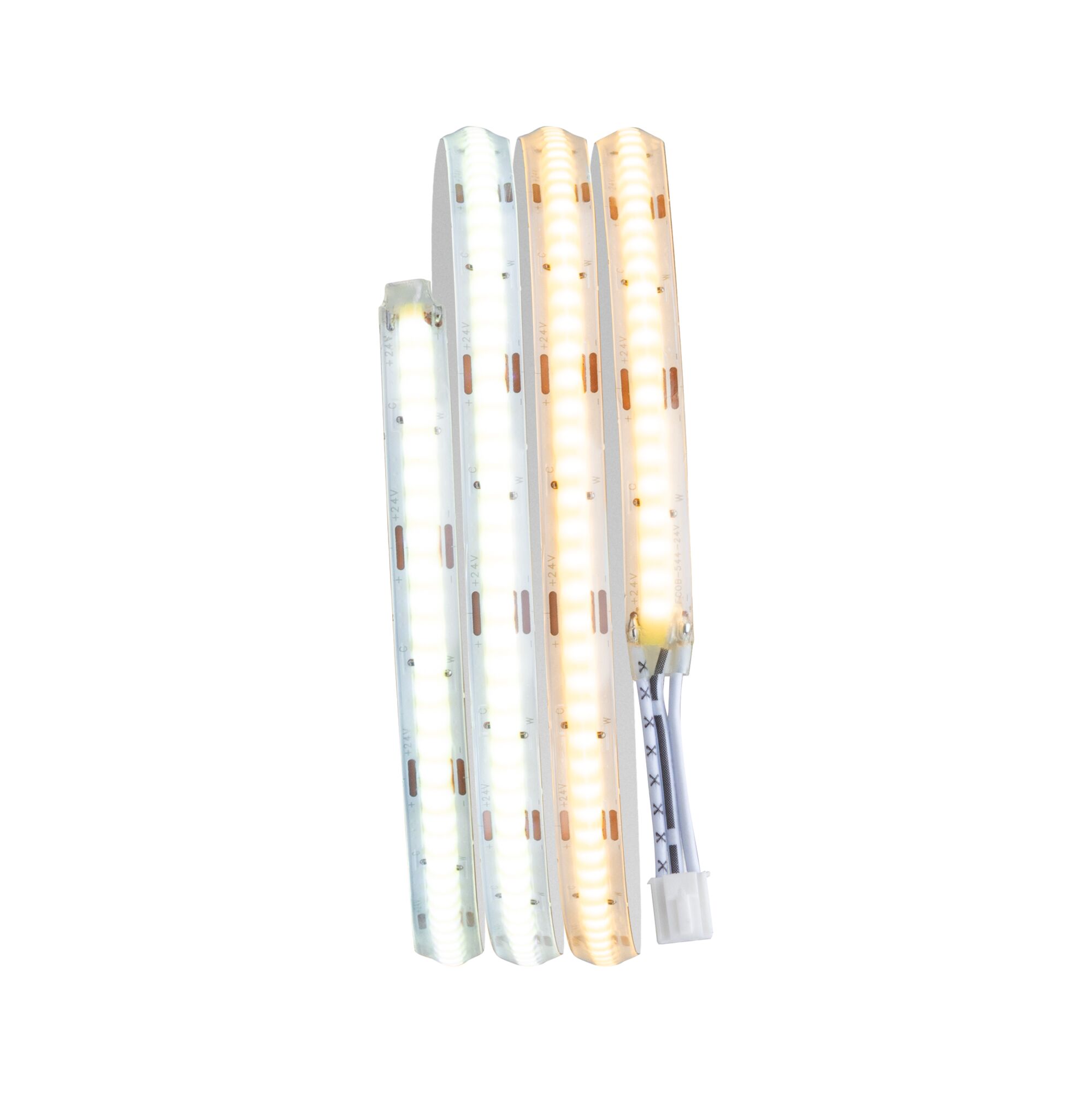

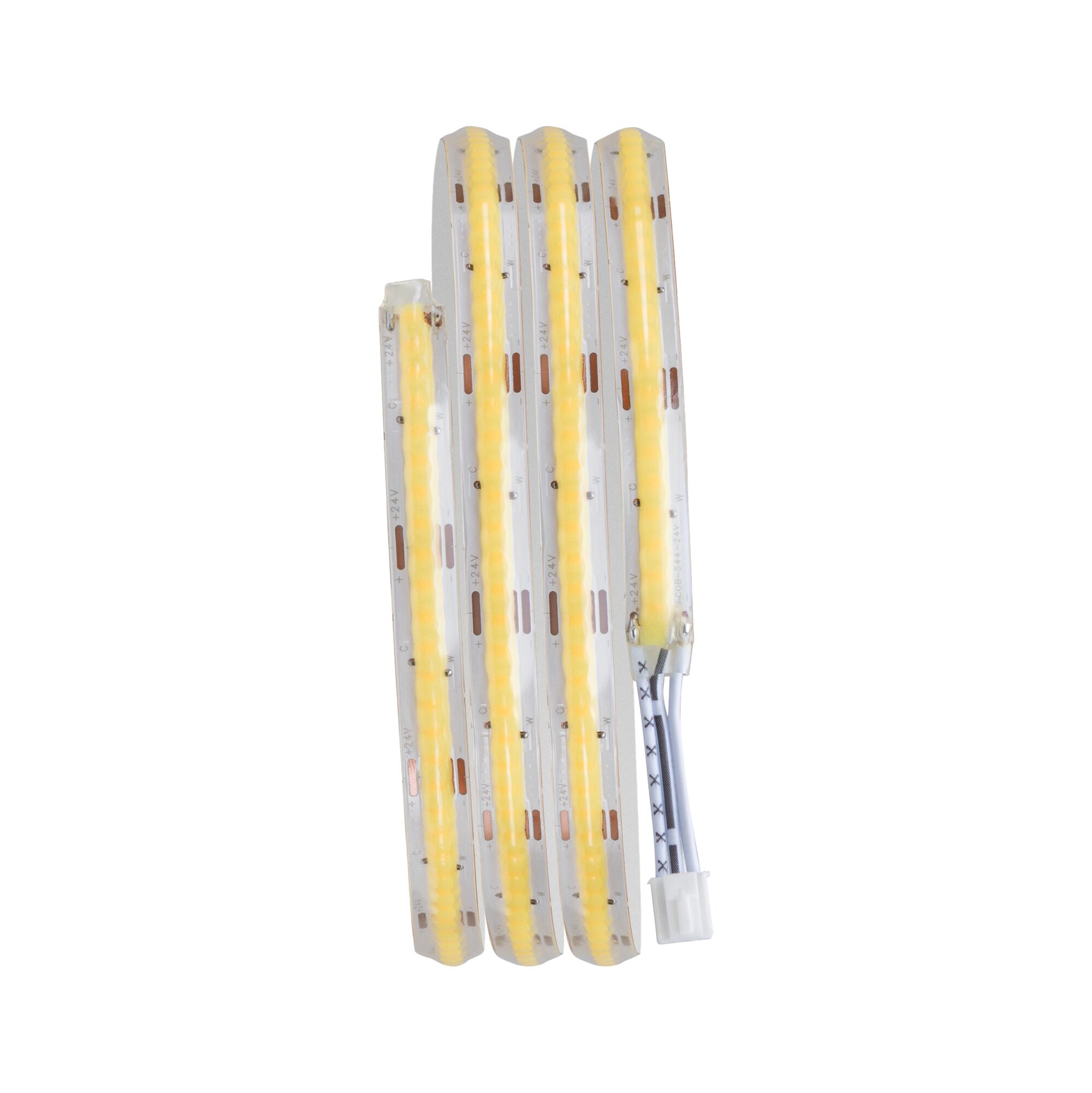

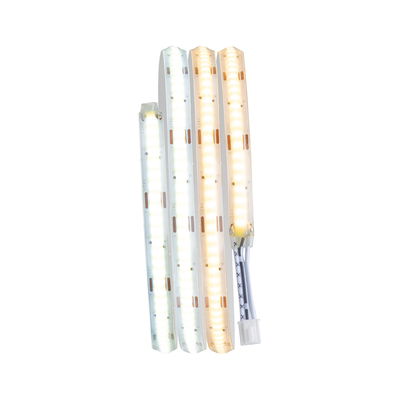

LumiTiles LED Strip Smart Home Zigbee 3.0 Full-Line COB Slim 1m coated IP44 3W 260lm/m 544 LEDs/m Tunable White 7VA

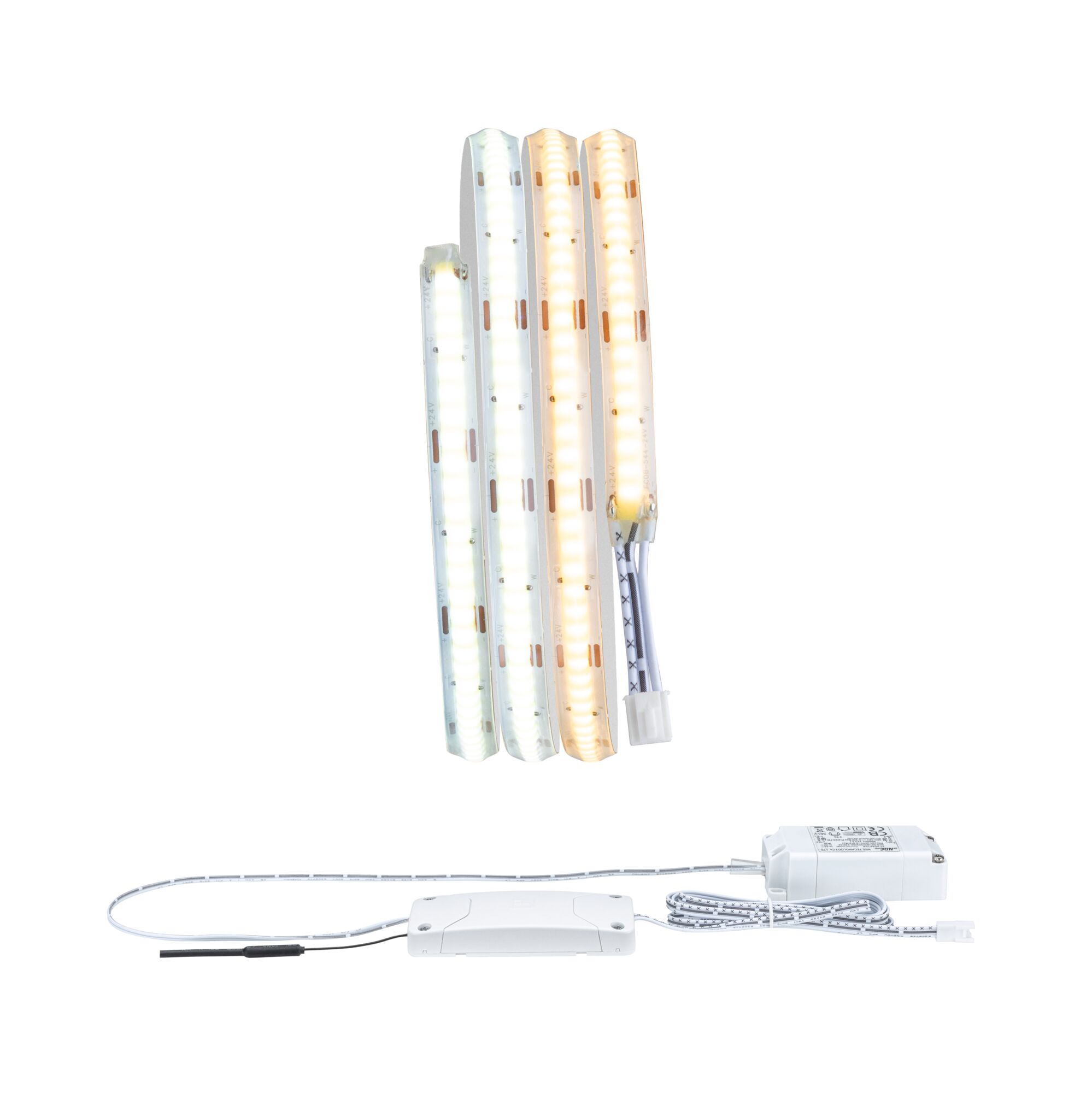

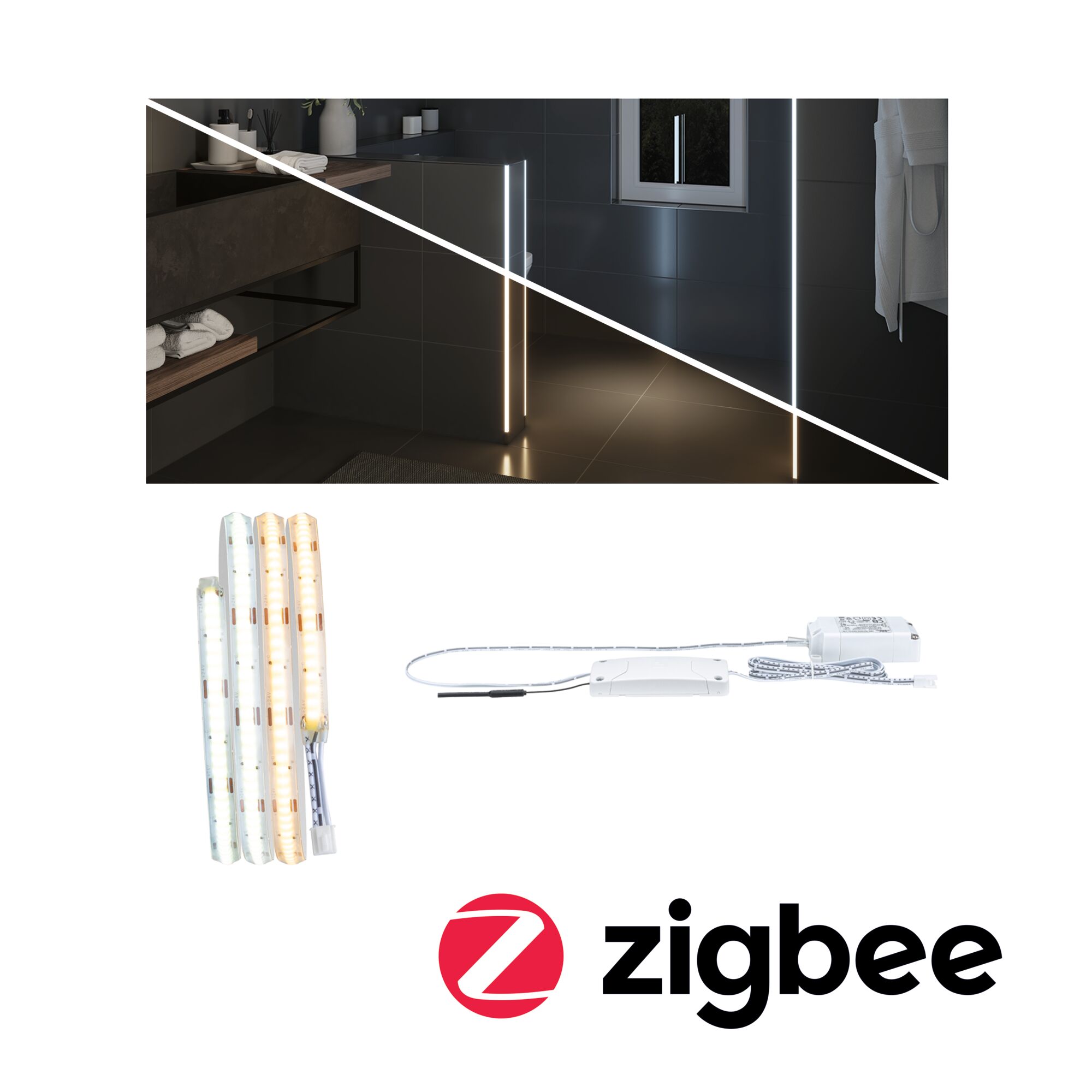

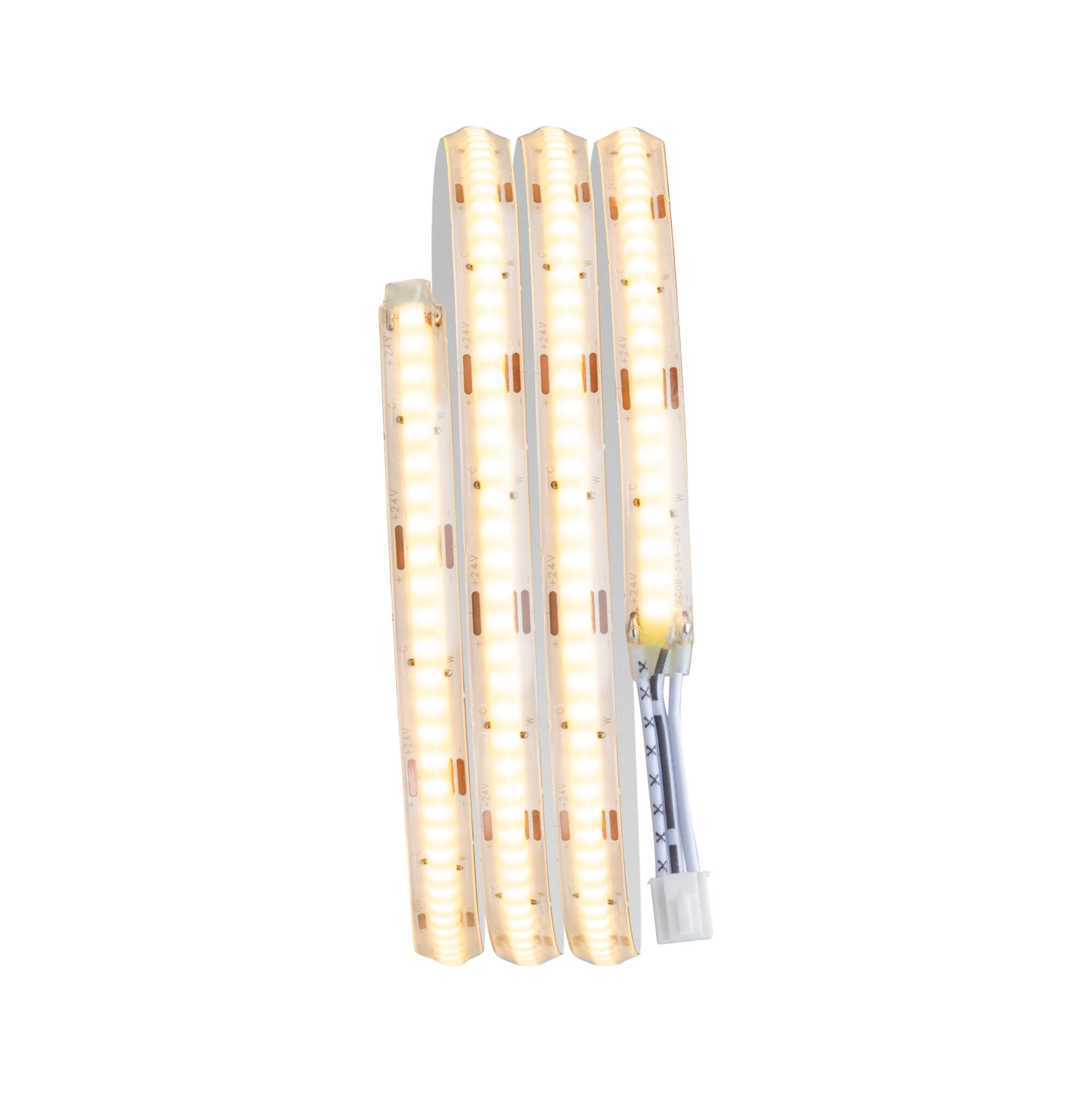

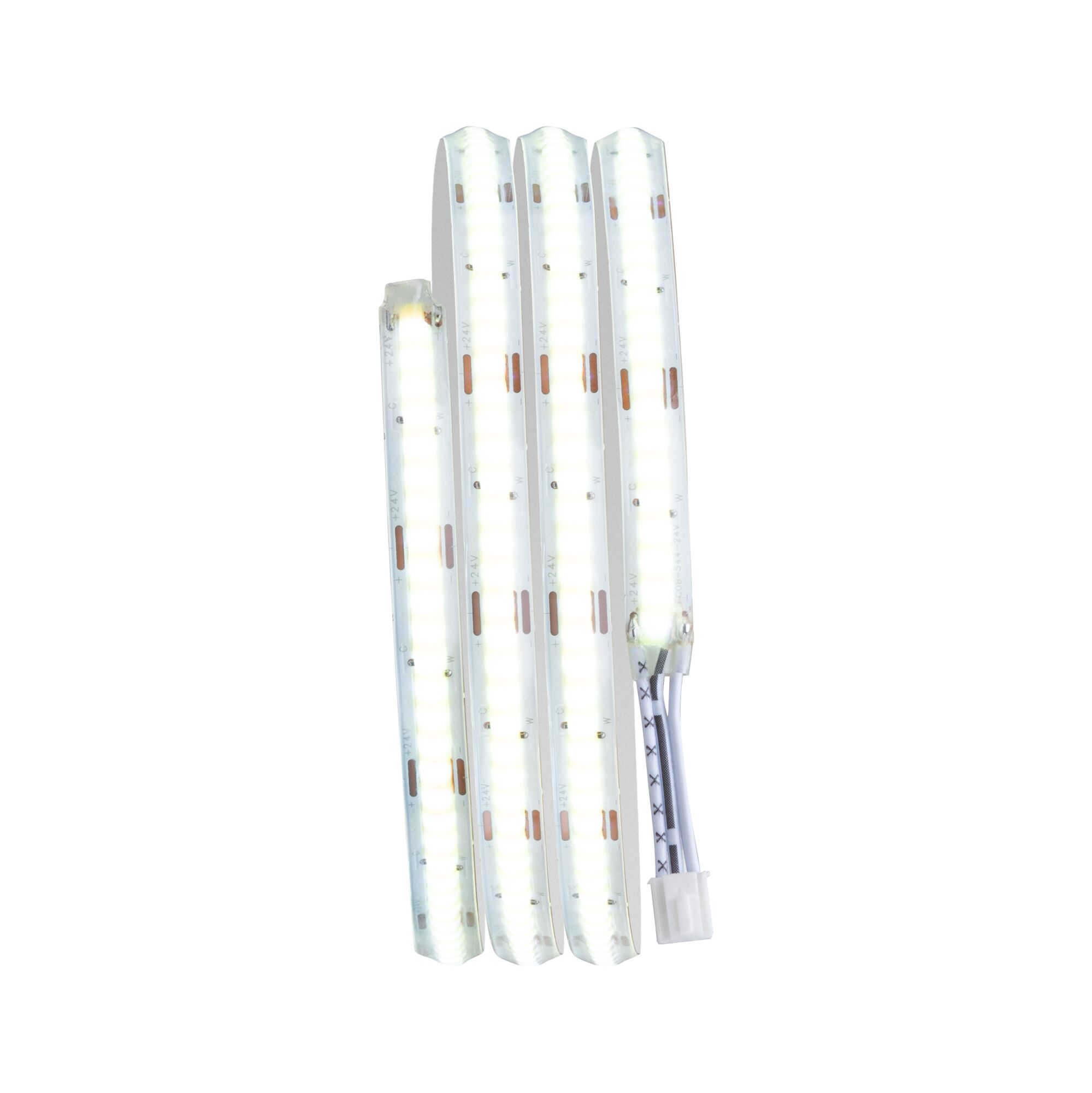

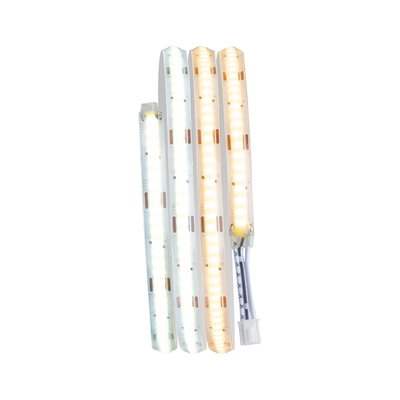

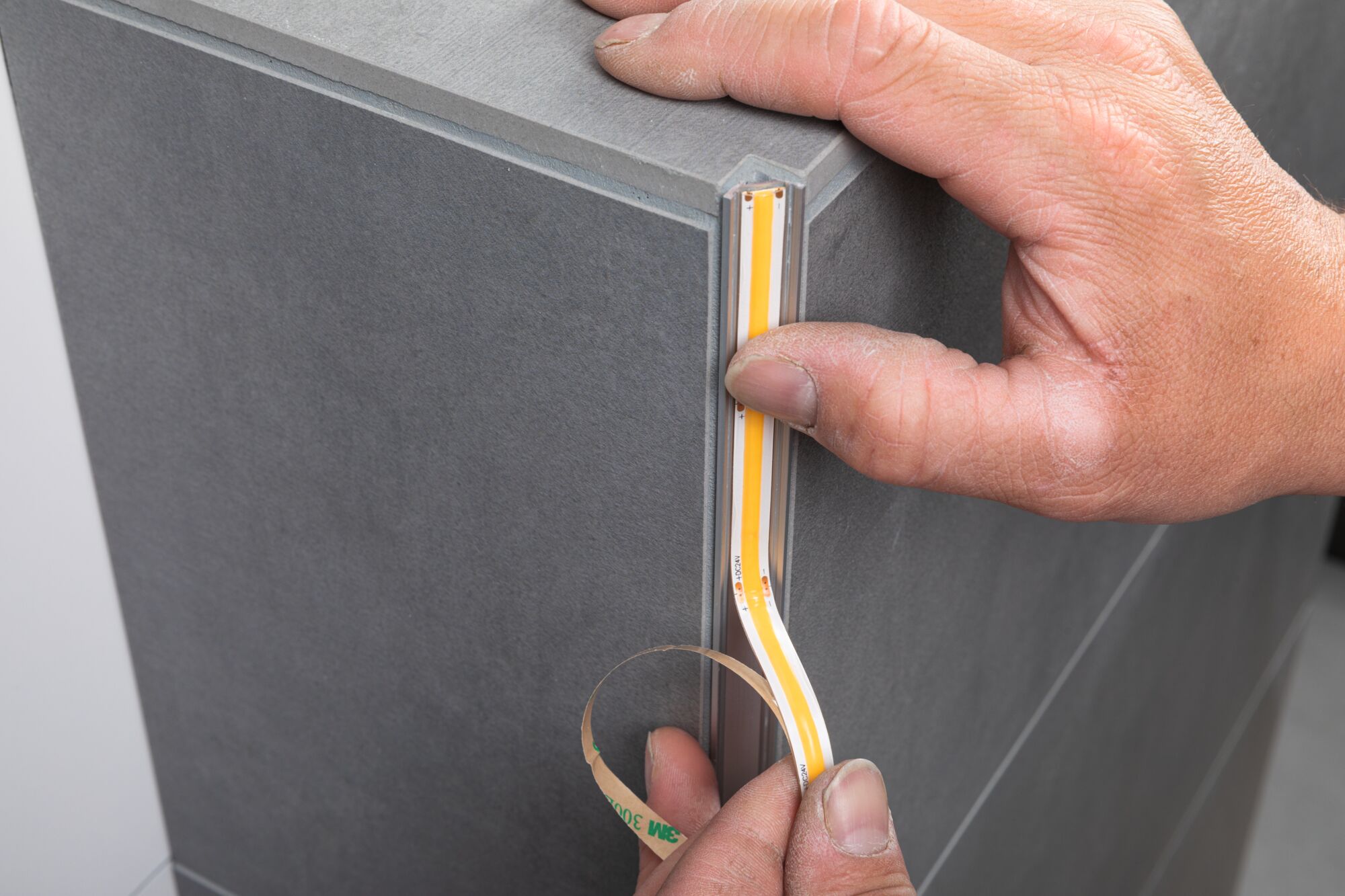

The COB slim strip, which is 1m long and 8 mm wide, has been developed specially for the Frame profile. It creates an impressive linear lighting effect on the diffuser. When switched off, the strip is invisible. Thank to the smart Tunable White function, the light colour can be changed from warm to cold. The Zigbee 3.0 controller offers three different control methods: the light colour or dimming level can be selected via the app, voice control or remote control. The strip can be trimmed every 30 mm. Incremental shortening of the strip enables a precise fit of the profile without shadows.
- Super narrow LED strip, only 8 mm wide
- Controllable via app or voice control in smart Zigbee systems
- Suitable for any installation: Strips can be shortened every 30 mm
- New innovative COB strip technology with 544 LEDs per metre
- IP44 protective coating against splashing water
- Uniform lighting effect along the entire length, no light points in combination with the profile
| Dimension | |
|---|---|

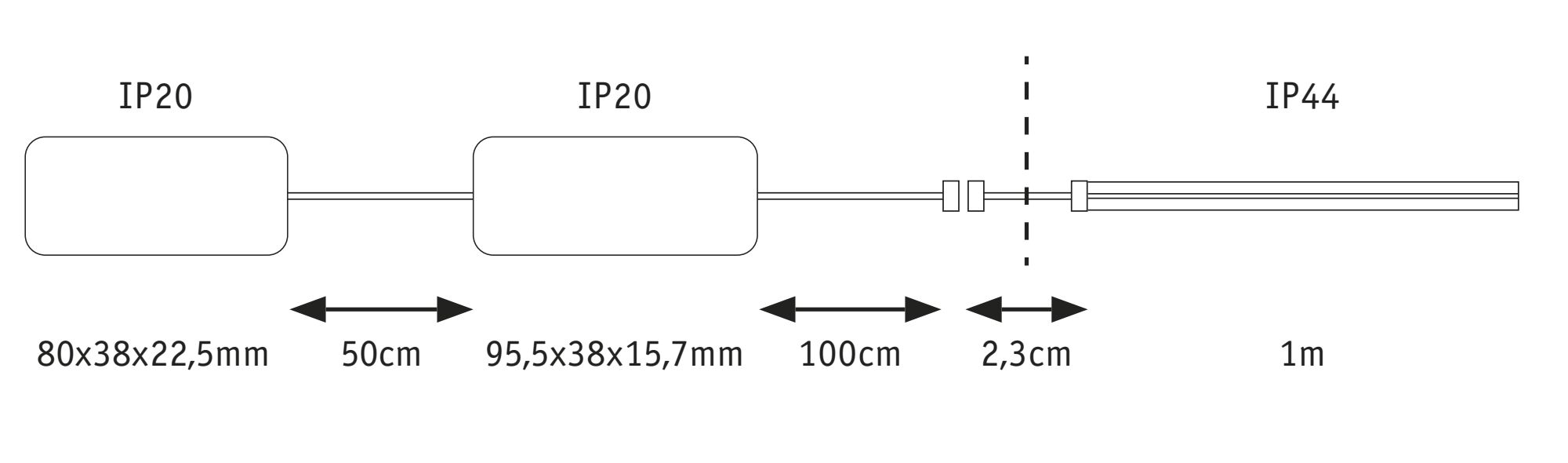

| Dimensions (Height x Width x Depth) | H: 3 x B: 8 mm |
| Length | 1 m |
| Design and Material | |
|---|---|
| Colour | White |
| Material | Plastic |
| Installation | |
|---|---|
| can be used with the following dimmers | Paulmann SmartHome Zigbee Gent2 501.40 |
| Energy consumption | |
|---|---|
| Energy efficiency | G |
| Service life | |
|---|---|
| Lifetime | 20000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| colour temperature to | 6500 K |
| color temp | Warm white to Daylight white |
| Colour change | Tunable White |
| Usable luminous flux | 260 lm |
| Color rendering index | > 80 Ra |
| Luminous flux LED module | 260 lm |
| Lamp Features | |
|---|---|
| Component parts | 3 W |
| Compatible Smart Home technology | Zigbee |
| Technique | LED |
| Dim | with Smart Home |
| Inclusive lamp | yes |
| Adjustability | fixed |
| Dimmable | Yes |
| IP protection | IP44 |
| Number of component parts | 1x |
| protection class | Protection class II |
| Number of LED's per meter | 544 |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 4 W |
| Transformer | |
|---|---|
| Transformer power | 7 VA |
| Transformer height | 23 mm |
| Transformer width | 38 mm |
| Transformer depth | 80 mm |
| Accessories | |
|---|---|
| Radio control included | no |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Zigbee certification | Zigbee zertifiziert |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 20 m |
