Article-No.:
79508
LED Wall luminaire
Smart Home Zigbee 3.0
Ranva
Tunable White 1400lm / 210lm 230V 13W dimmable Matt white
Tunable White 1400lm / 210lm 230V 13W dimmable Matt white
- With white-light control (Tunable White)
- Usable with smart home gateways that have a Zigbee interface
- Can be controlled with the Smart Home Zigbee remote control
LED Wall luminaire Smart Home Zigbee 3.0 Ranva Tunable White 1400lm / 210lm 230V 13W dimmable Matt white

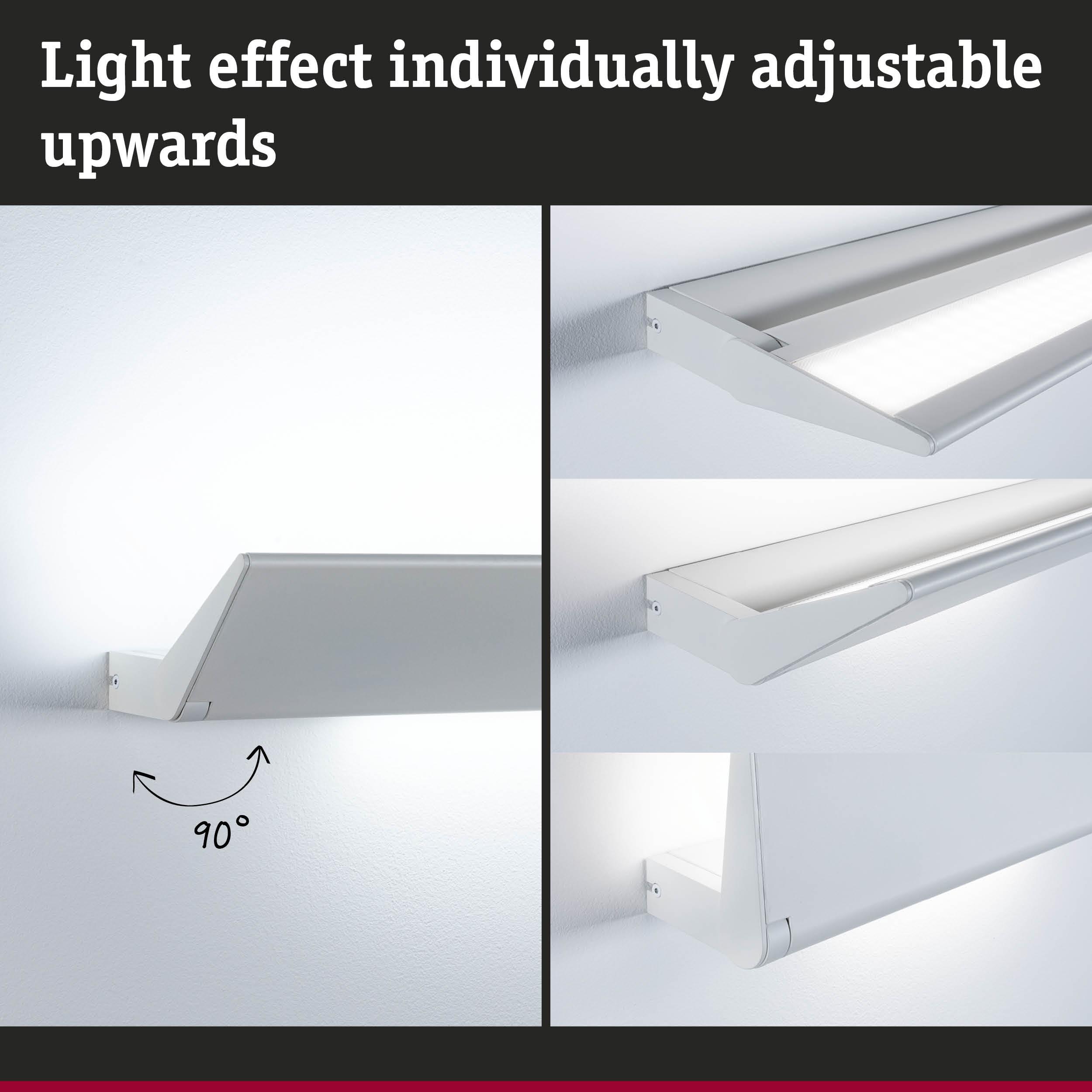

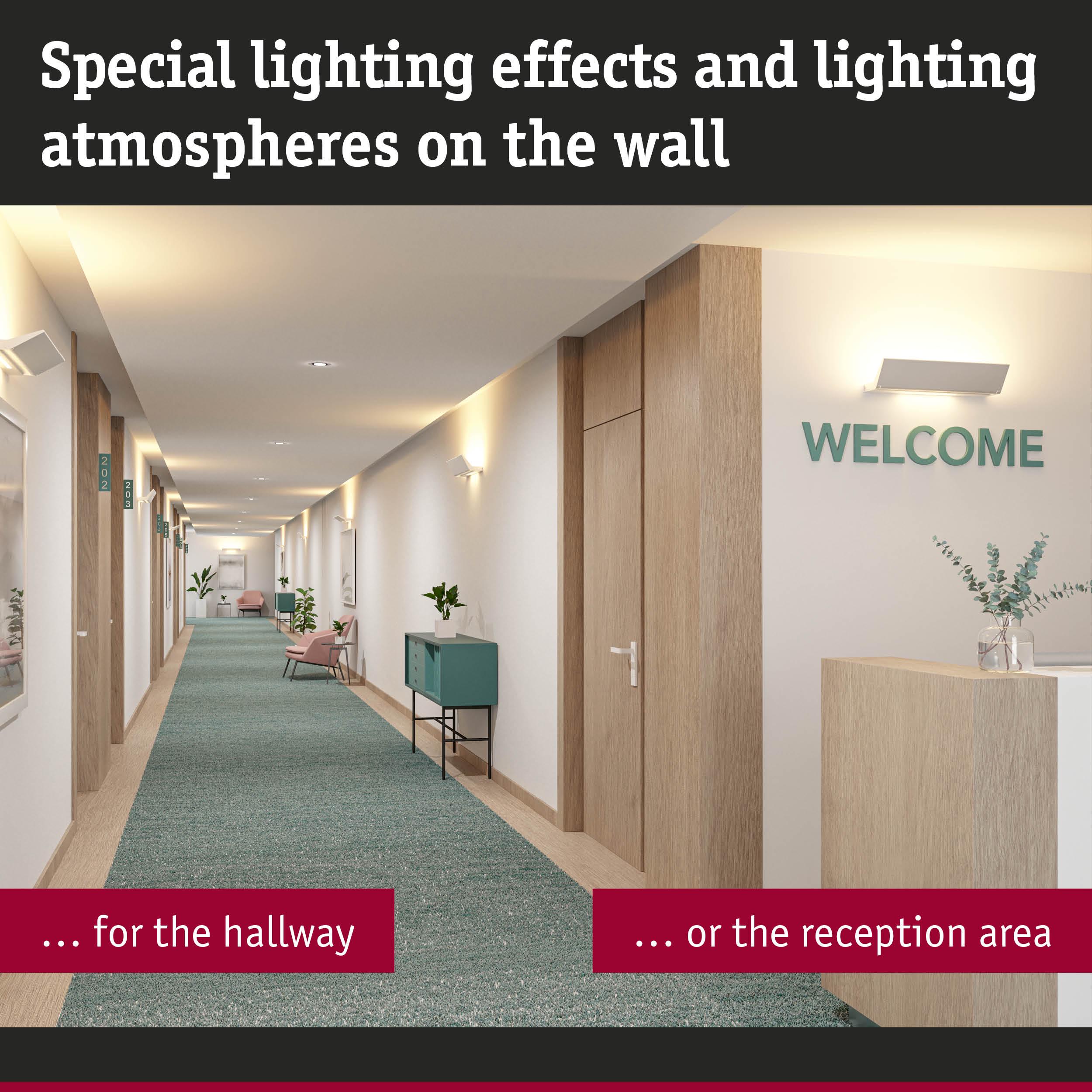

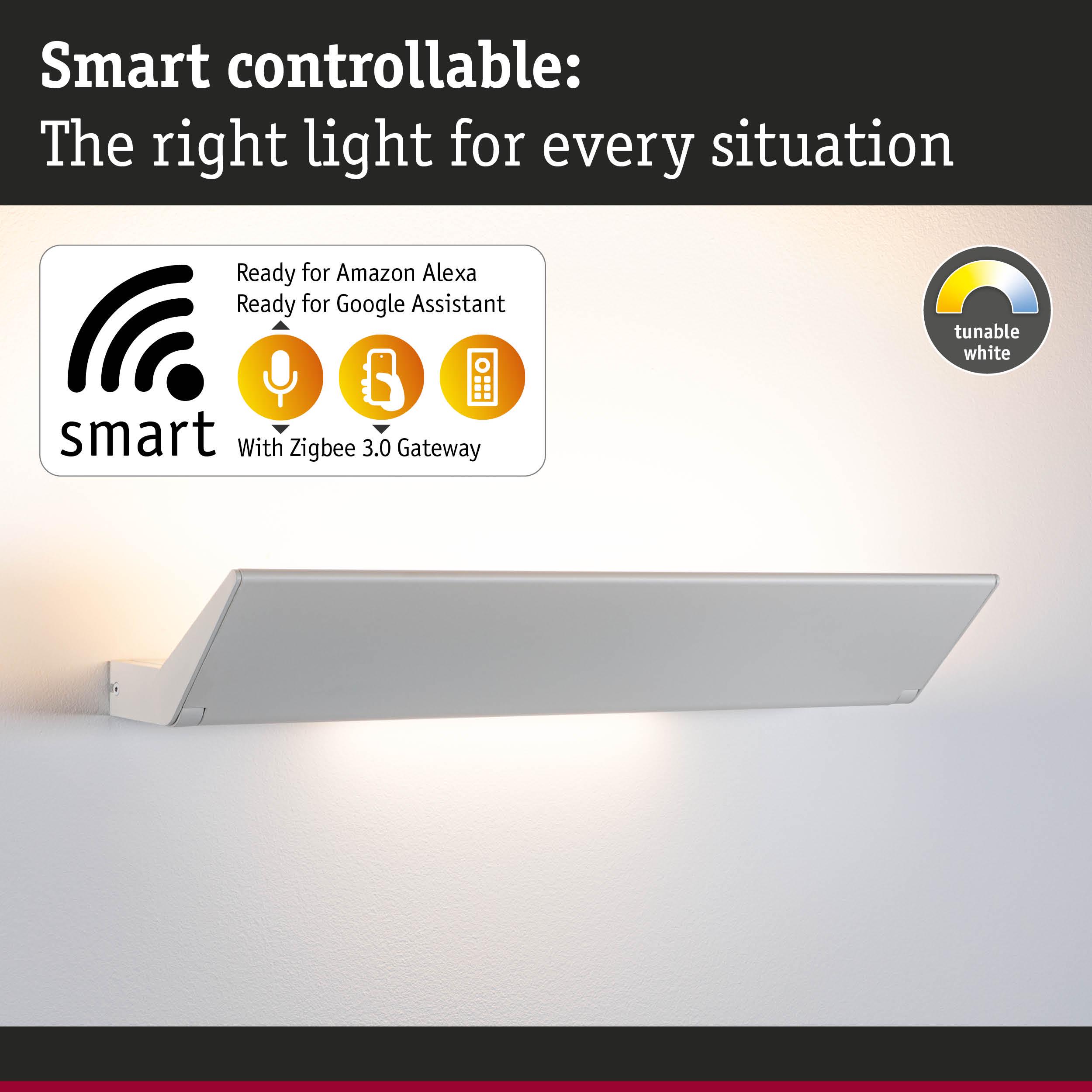

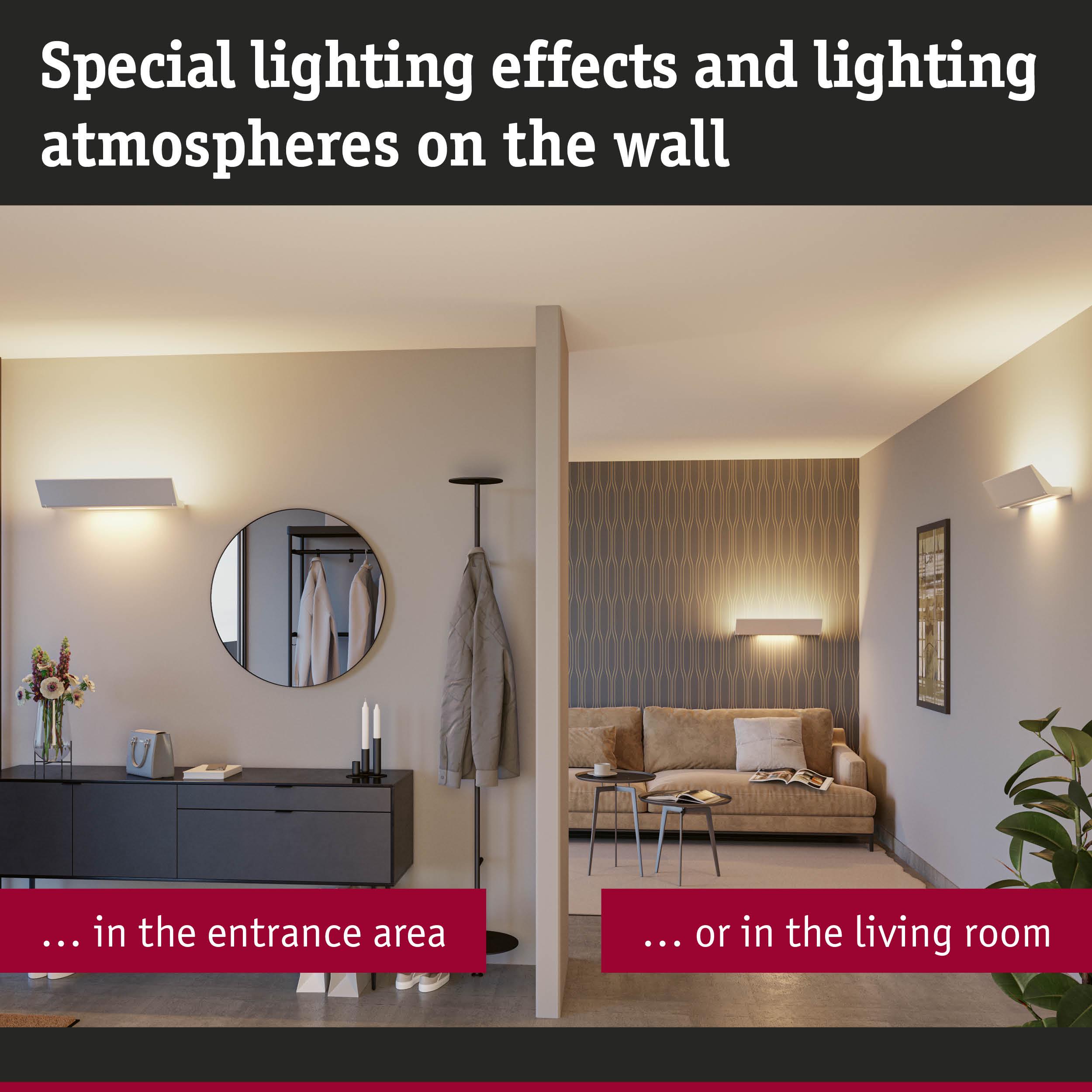

Cosy and indirect auxiliary lighting in the living room; eye-catching, atmospheric zonal light in the entrance area; or picture illumination in the living area. The dimmable Ranva surface-mounted wall luminaire in Matt white with a length of 55 cm illuminates the wall with its particularly decorative lighting effects. The luminaire’s modern design makes it suitable for a wide range of interior styles. The upward light effect can be individually adjusted by swivelling the shade, while a decorative additional light shines downwards. The light shines evenly thanks to the textured diffuser pane. The wall luminaire can be controlled smartly via voice control, remote control or app. The light colour can be adjusted as required from daylight white working light to relaxing warm white lighting thanks to the integrated Tunable White function. The luminaire is Zigbee 3.0-compatible. Zigbee 3.0 is a radio transmission protocol that interlinks devices from different manufacturers.
- With white-light control (Tunable White)
- Usable with smart home gateways that have a Zigbee interface
- Can be controlled with the Smart Home Zigbee remote control
- Decorative lighting effects highlight the wall
- Color: Matt white
- swivelling
Dimension | |
---|---|
Dimensions (Height x Width x Depth) | H: 33 x B: 550 x T: 195 mm |
Design and Material | |
---|---|
Colour | Matt white |
Material | Aluminium |
Installation | |
---|---|
can be used with the following dimmers | Paulmann SmartHome Zigbee Gent2 501.40 |
Energy consumption | |
---|---|
Energy efficiency (A to G) | F |
Service life | |
---|---|
Lifetime | 30000 h |
Light Characteristics | |
---|---|
Colour temp. | 2700 K |
Colour change | Tunable White |
Beam angle | 107 ° |
Usable luminous flux | 800 lm |
Luminous flux LED module | 1610 lm |
color temp | 2700 - 6500 K |
Color rendering index | > 80 Ra |
Lamp Features | |
---|---|
Component parts | 13 W |
Compatible Smart Home technology | Zigbee |
Swivel range | 90 ° |
Technique | LED |
IP protection | IP20 |
Dim | with Smart Home |
Dimmable | Yes |
Inclusive lamp | yes |
Total Width | 550 mm |
Incandescent Equivalent | 105 W |
Maximum wattage range | max. 15 W |
Number of component parts | 1x |
protection class | protection class II |
Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
Power consumption | 16 W |
Transformer | |
---|---|
apparent power | 19.1 VA |
Transformer height | 16 mm |
Transformer width | 100 mm |
Transformer depth | 46 mm |
Labelling | |
---|---|
WEEE-Reg.-No | DE 39236390 |
Smart_Home | |
---|---|
Protocol type | Zigbee 3.0 |
Zigbee certification | Zigbee zertifiziert |
Radio frequency | 2,4 GHz |
Radio range | 20 m |
