Article-No.:
70790
LED Wall luminaire
Bar
2700K 560lm 230V 5,5W White
2700K 560lm 230V 5,5W White
- Indirect and area lighting
- Decorative lighting effects highlight the wall
- LED lamp (fixed) included in scope of delivery

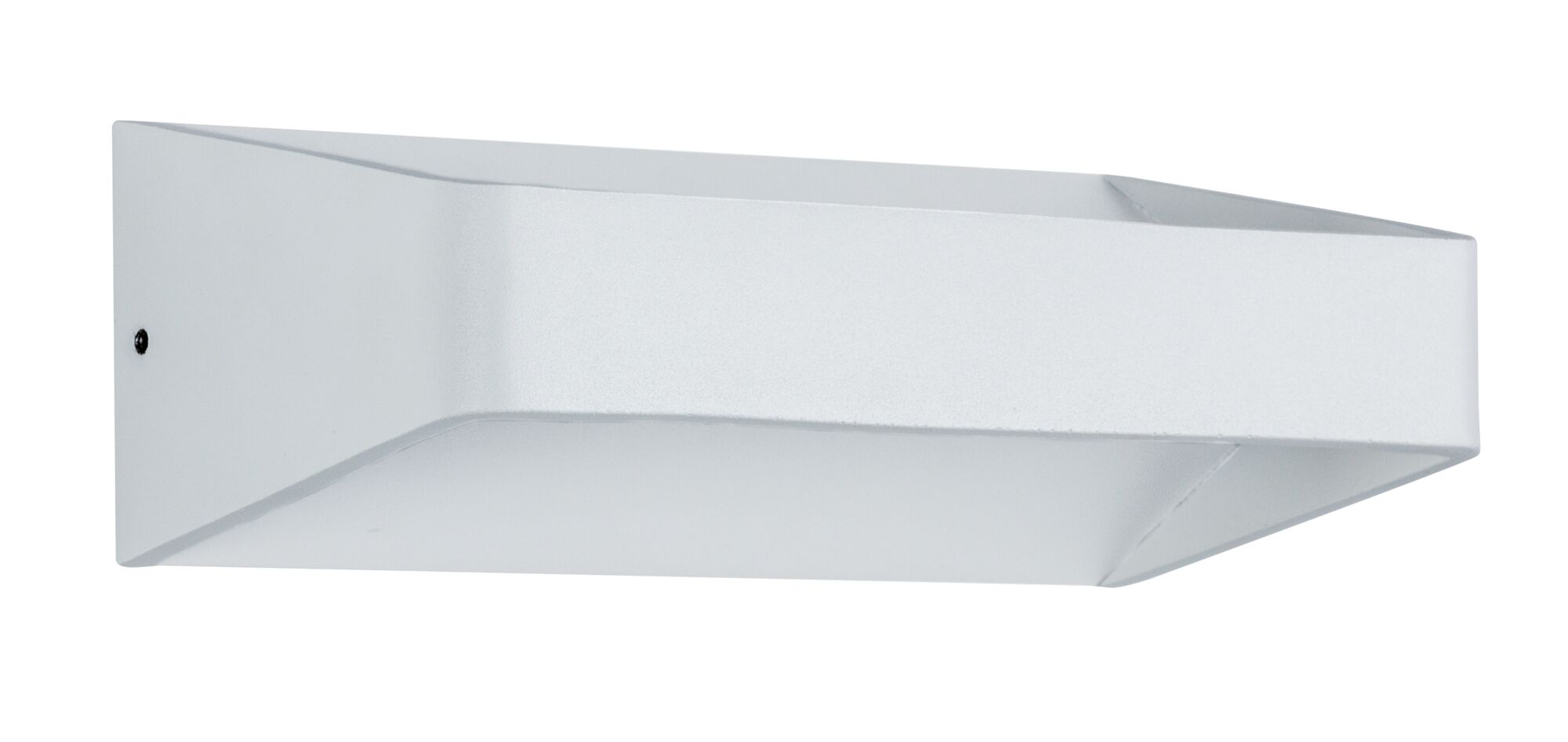

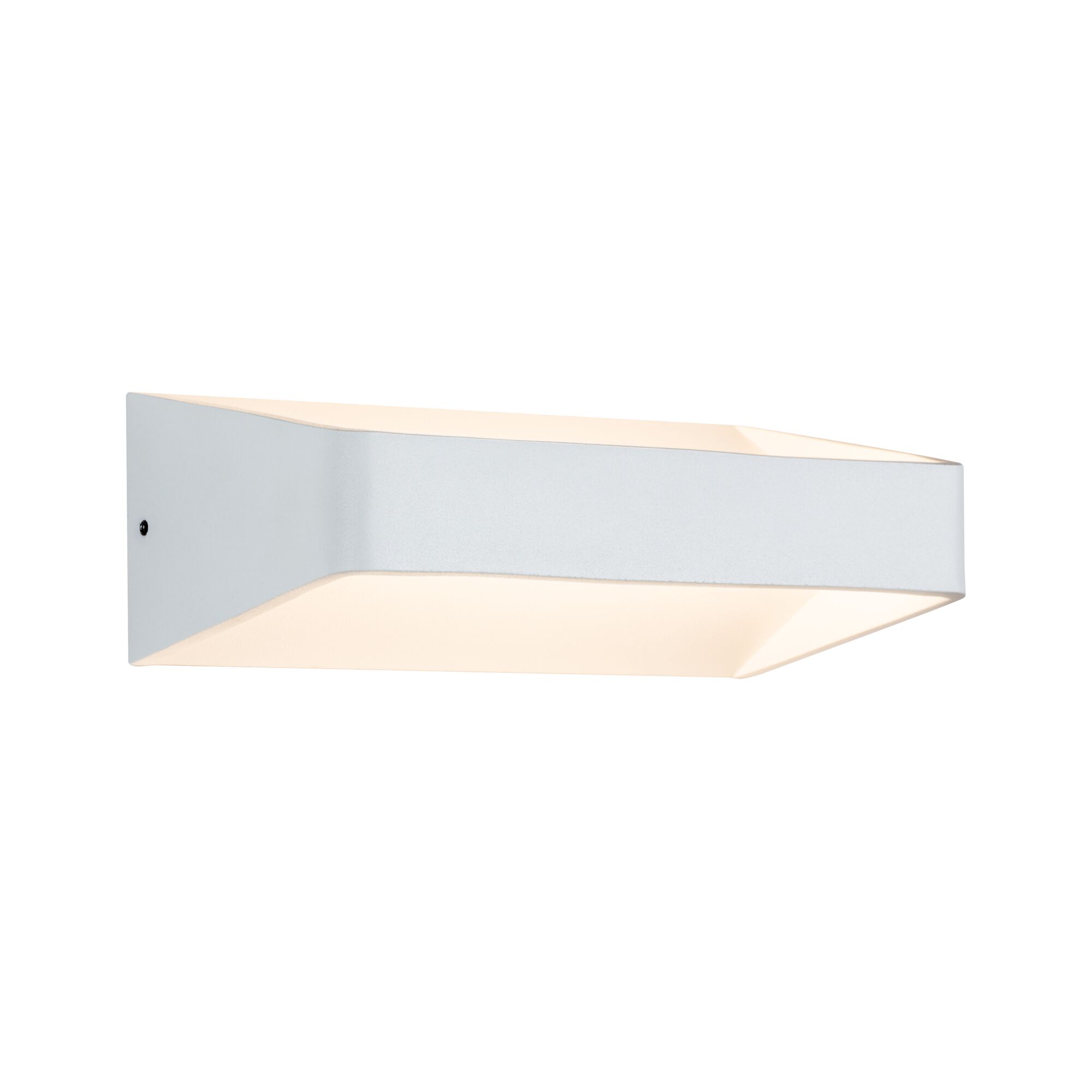

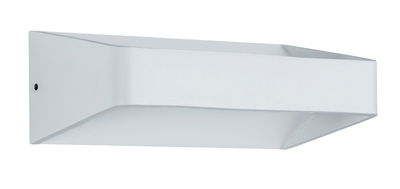

LED Wall luminaire Bar 2700K 560lm 230V 5,5W White

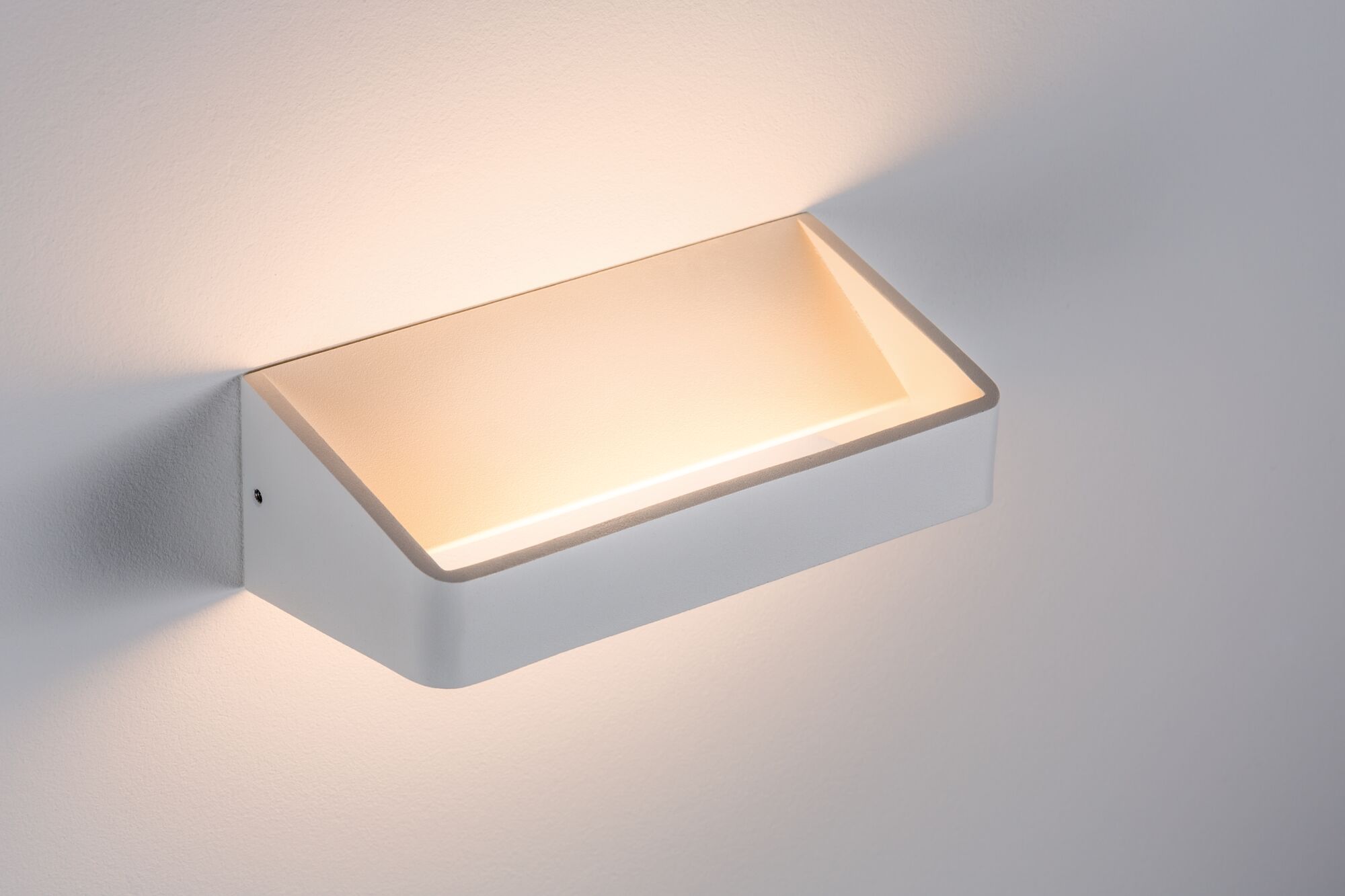

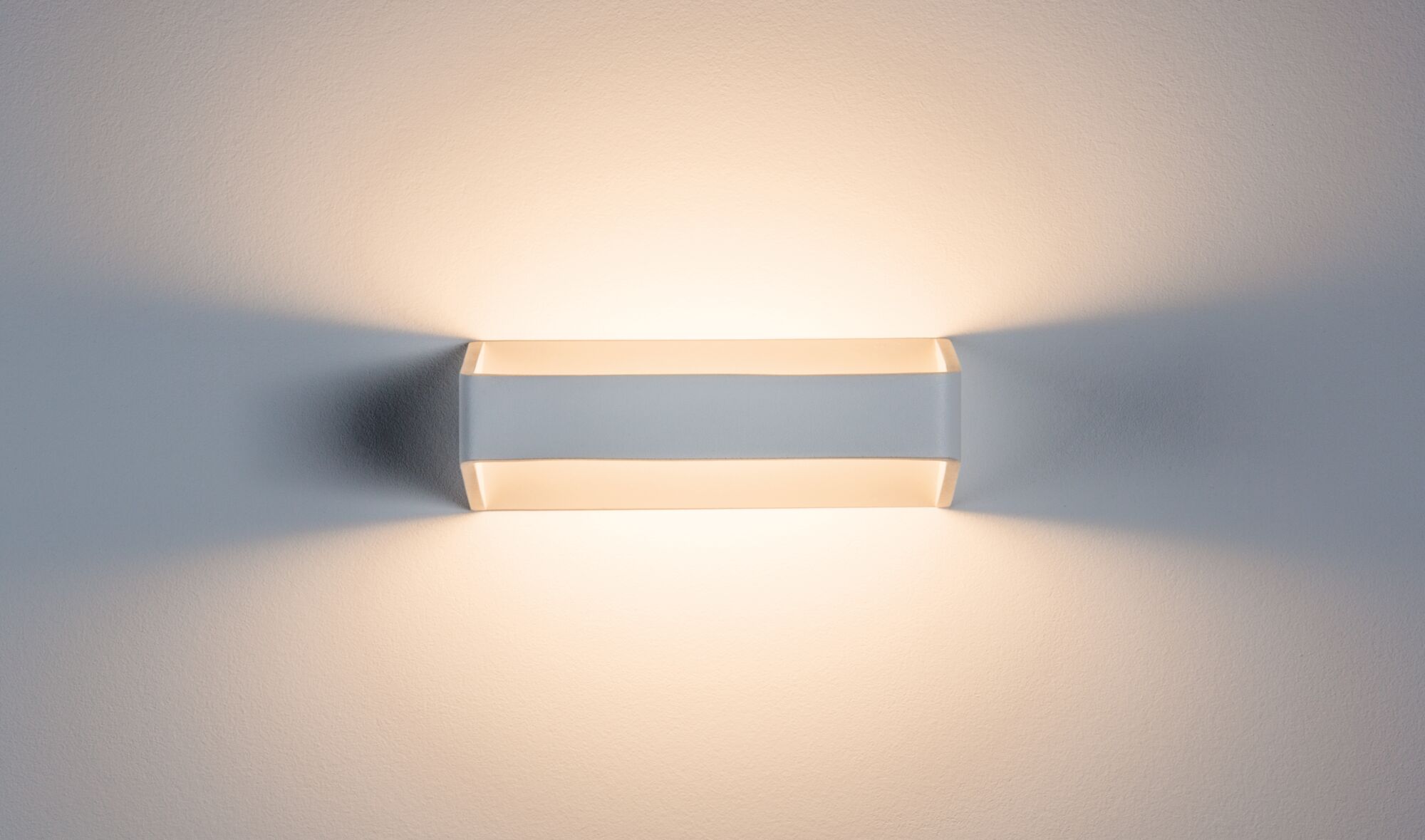

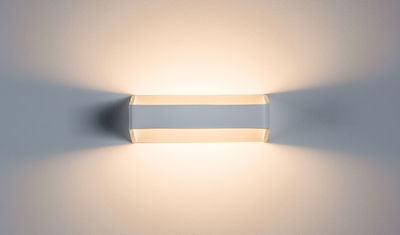

Light need not always come from above: the Bar wall luminaire creates attractive lighting accents indoors. Light can be emitted upwards or downwards. Discreet design and modern colours blend in with all interior furnishing styles.
- Indirect and area lighting
- Decorative lighting effects highlight the wall
- LED lamp (fixed) included in scope of delivery
- Color temperatur: 2700K - Warm white
| Dimension | |
|---|---|

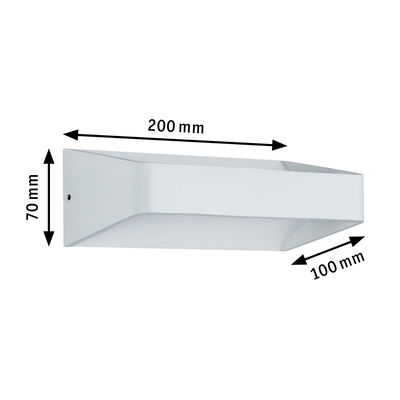

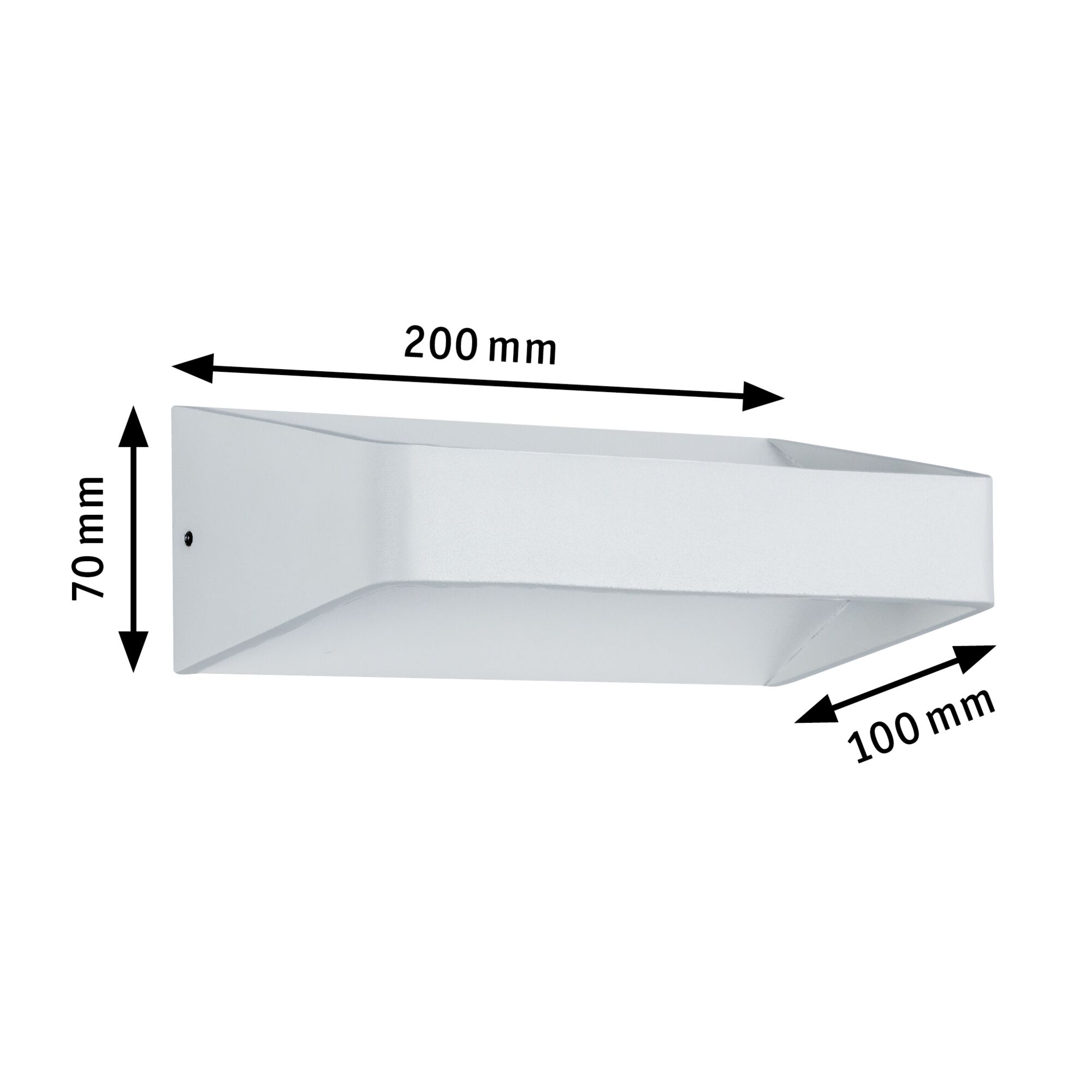

| Dimensions (Height x Width x Depth) | H: 70 x B: 200 x T: 100 mm |
| Form | square |
| Design and Material | |
|---|---|
| Colour | White |
| Material | Aluminium |
| Installation | |
|---|---|
| Installation site (recommendation) | Wall mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | E |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Rated life time | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| Usable luminous flux | 560 lm |
| Luminous flux LED module | 765 lm |
| color temp | 2700 K |
| Color rendering index | > 80 Ra |
| Rated luminous flux (Lumen) | 560 lm |
| Lamp Features | |
|---|---|
| Component parts | 5,5 W |
| Technique | LED |
| Dimmable | No |
| Inclusive lamp | yes |
| Total Width | 200 mm |
| Incandescent Equivalent | 57.6 W |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 6,5 W |
| Transformer | |
|---|---|
| Transformer power | 6 VA |
| Transformer height | 21 mm |
| Transformer width | 29 mm |
| Transformer depth | 59 mm |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
