Article-No.:
92944

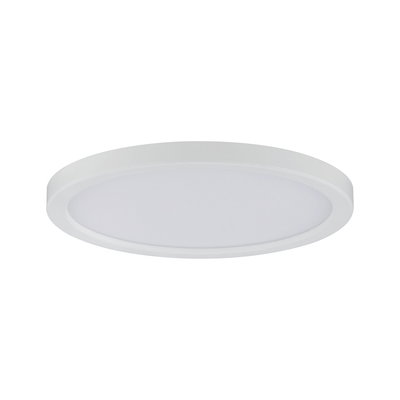

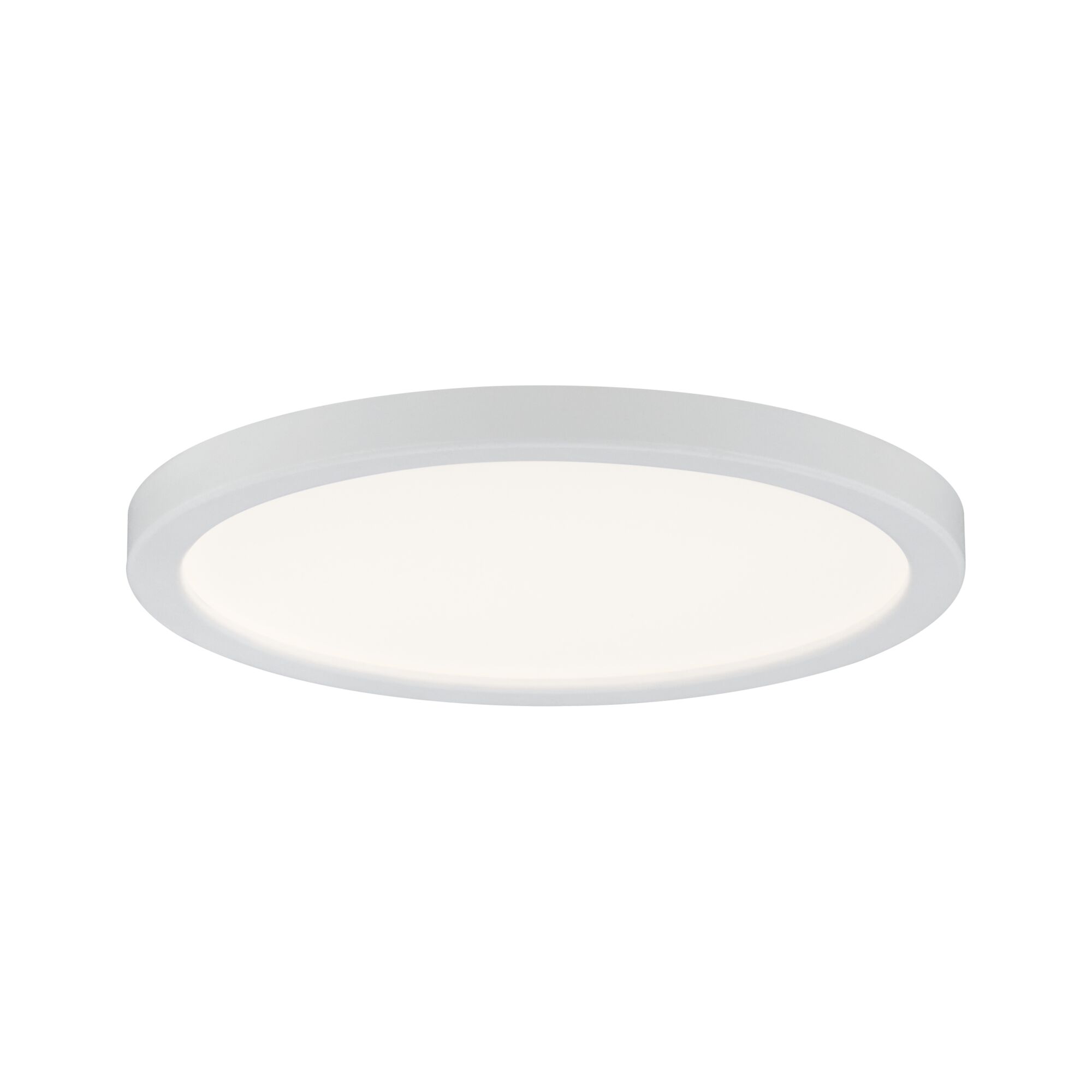

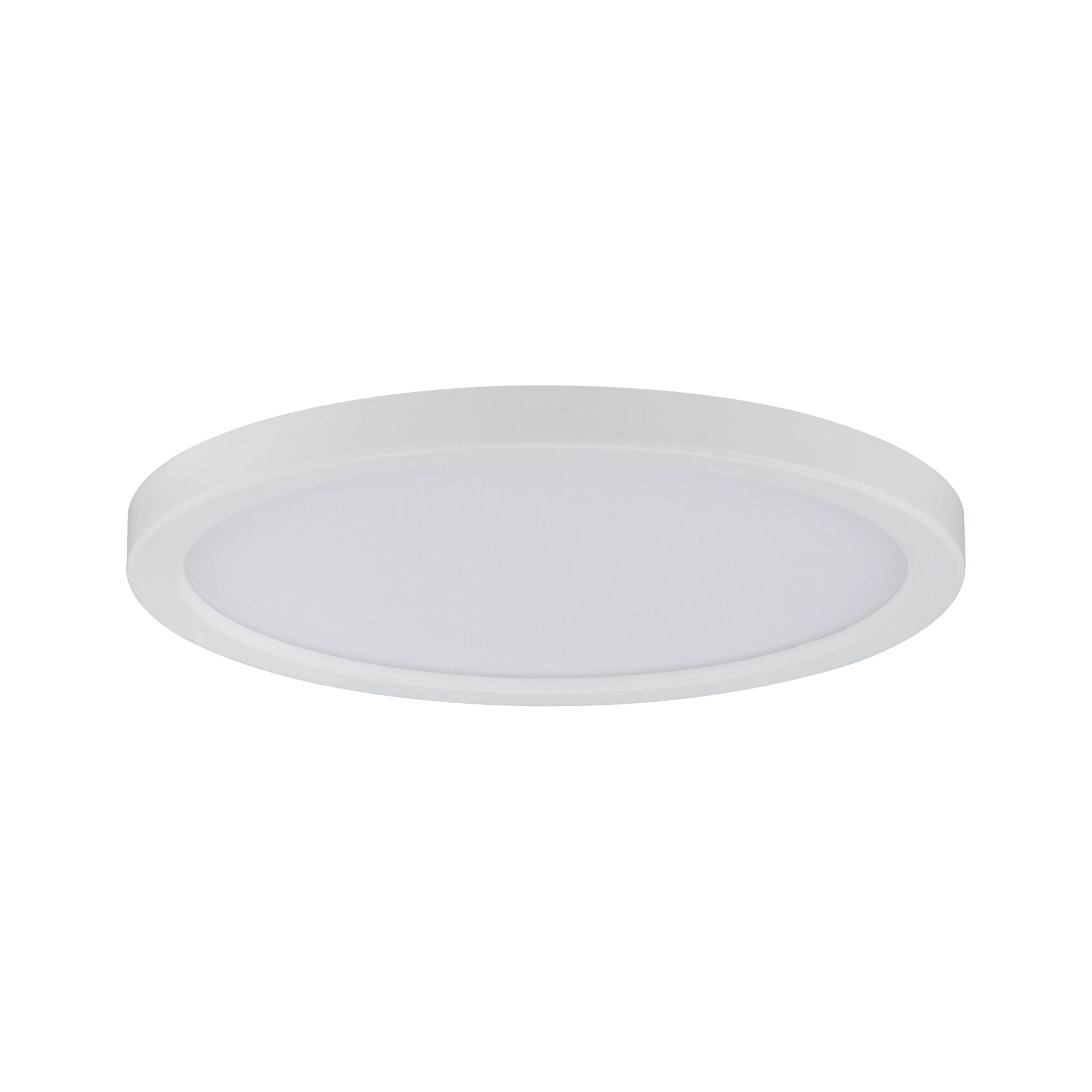

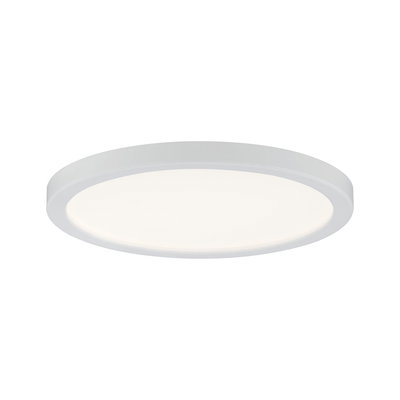

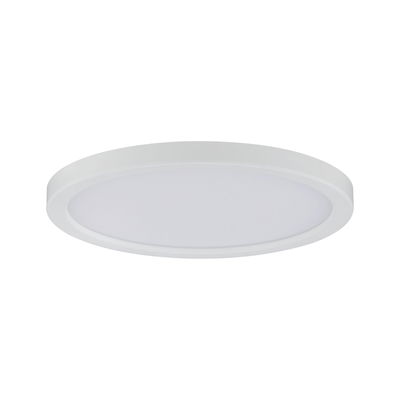

LED Recessed panel
Areo
round 120mm 7,5W 460lm 3000K Matt white
round 120mm 7,5W 460lm 3000K Matt white

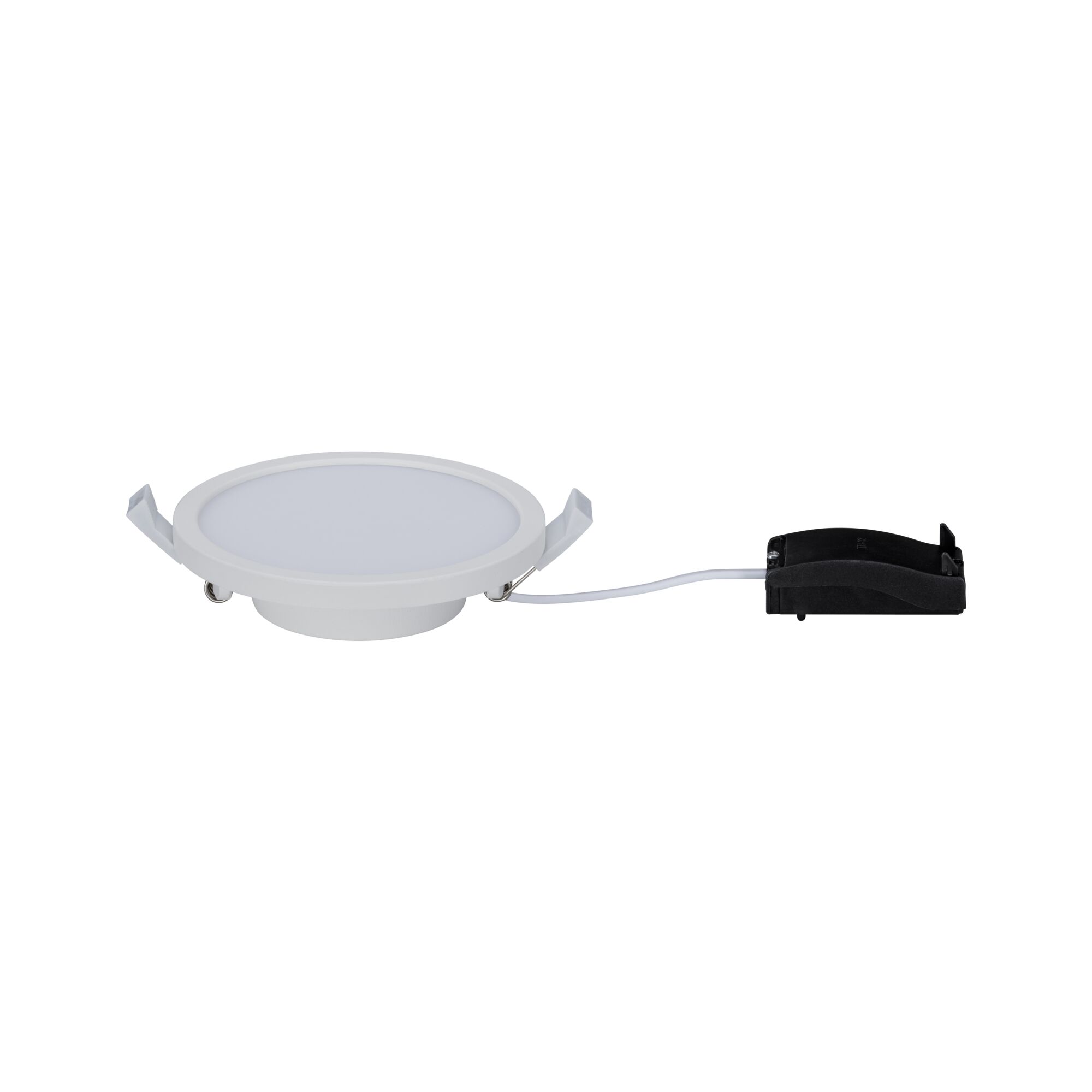

- Complete set incl. panel, supply line and fixation material
- Satined plastic cover for fine diffusion of light
- Low mounting depth: only 35mm

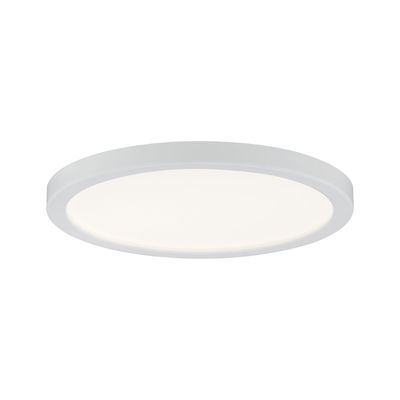

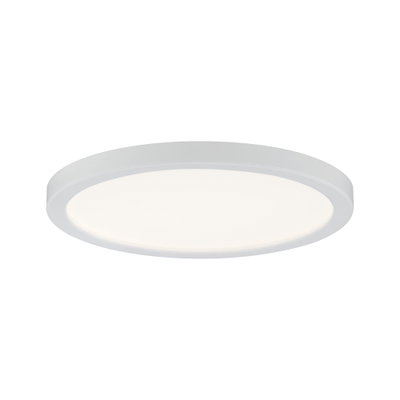

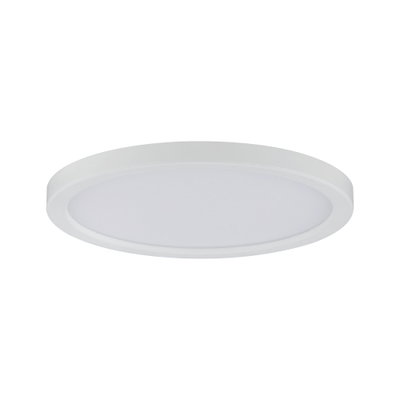

LED Recessed panel Areo round 120mm 7,5W 460lm 3000K Matt white
The Areo round LED panel with an output of 8 watts provides uniform room illumination. The matt white edge is especially narrow, so that it is hardly noticed. The luminaire is made of plastic and is thus particularly easy to keep clean. It is also easy to install on account of its low weight.
- Complete set incl. panel, supply line and fixation material
- Satined plastic cover for fine diffusion of light
- Low mounting depth: only 35mm

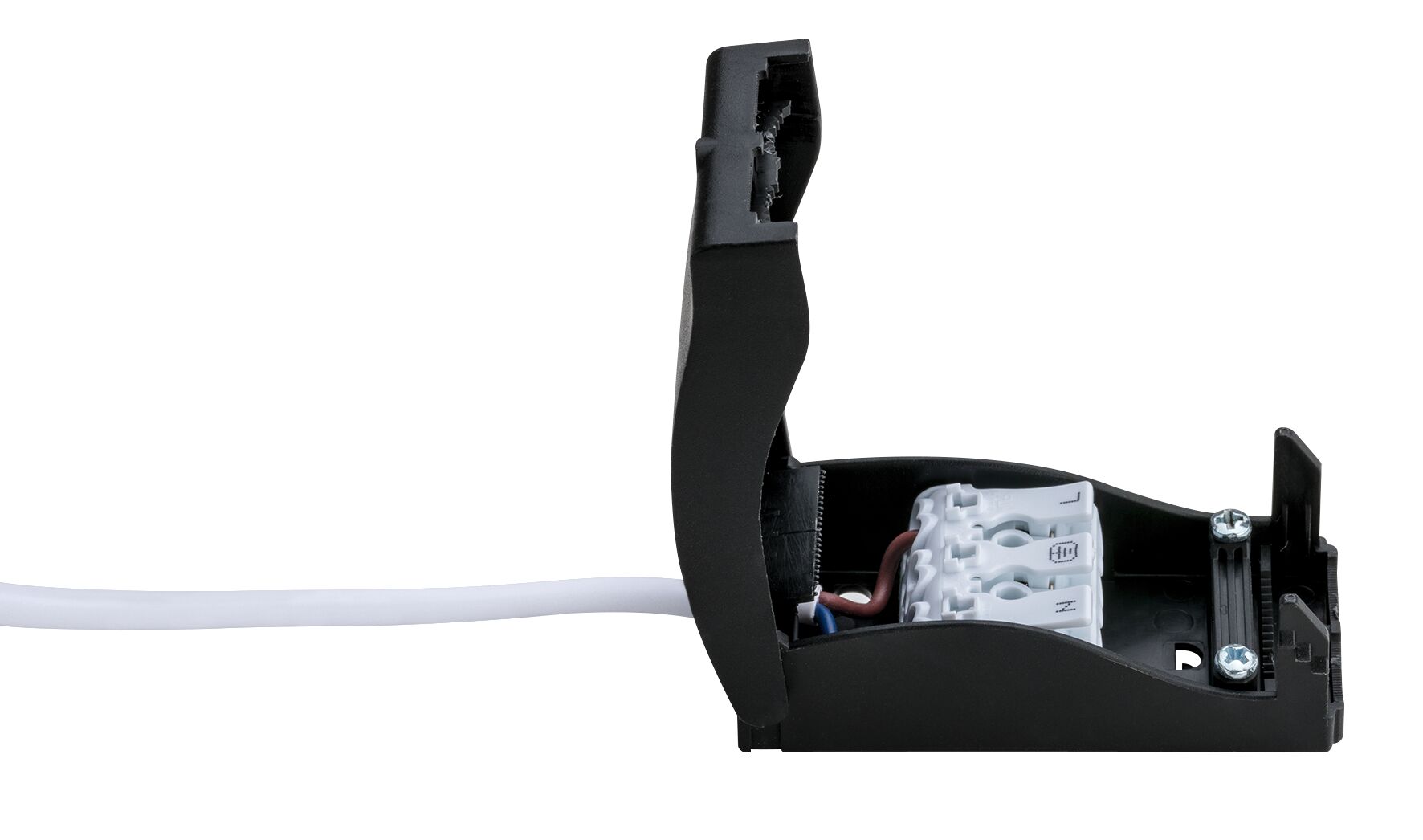

- For 230 V direct connection
- LED lamp (fixed) included in scope of delivery
- Color temperatur: 3000K - Warm white

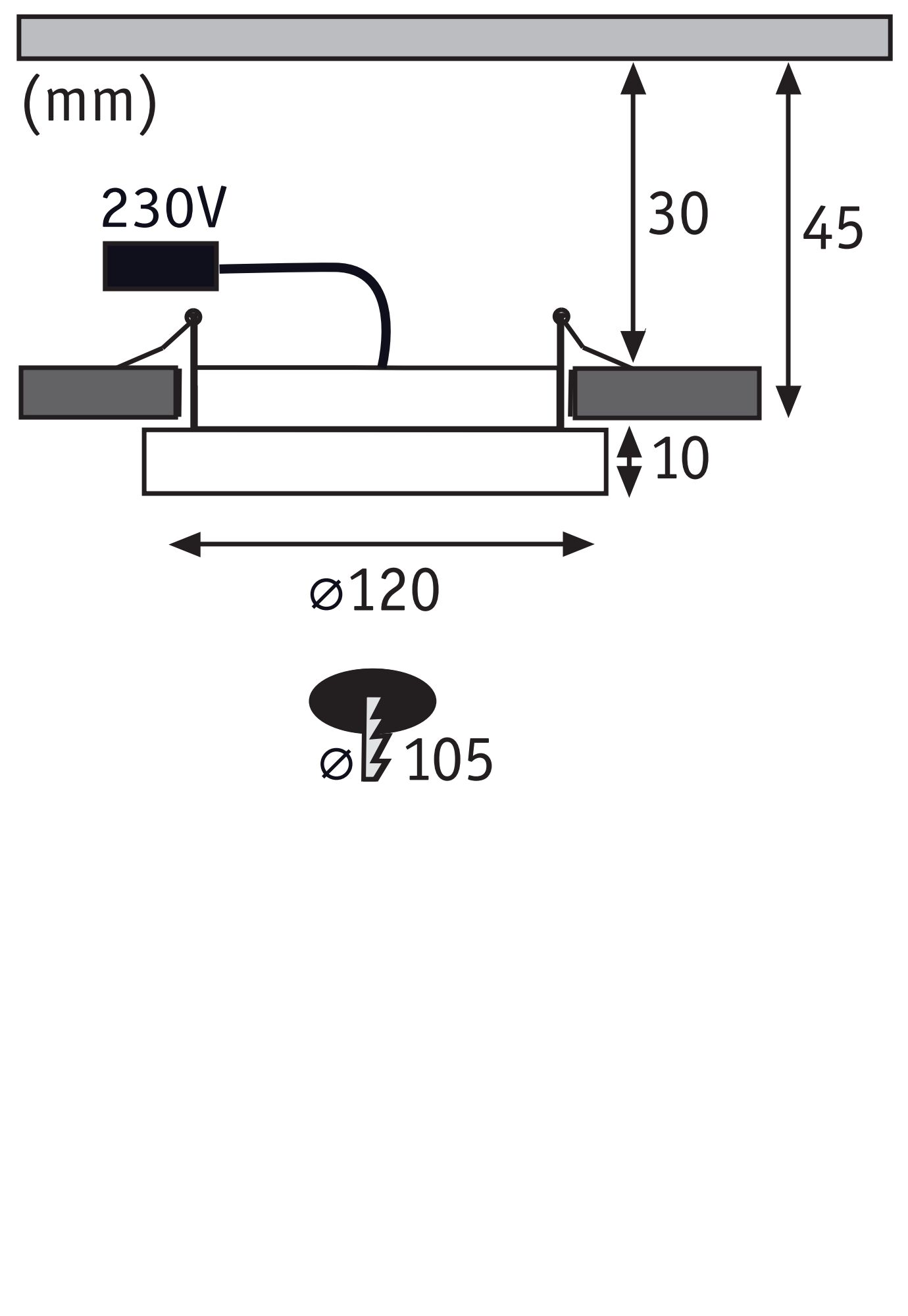

| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 10 mm |
| Diameter | 120 mm |
| Built-in diameter | 105 mm |
| Mounting depth | 35 mm |
| Depth of hollow wall | 20 mm |
| Design and Material | |
|---|---|
| Form | round |
| Colour | Matt white |
| Material | Plastic |
| Stainless | stainless |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 3000 K |
| Nominal luminous flux | 460 lm |
| Luminous flux LED module | 720 lm |
| Lamp Features | |
|---|---|
| Dimmable | No |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel fest integriert |
| Incandescent Equivalent | 55 W |
| IP protection | IP23 ceiling mounting |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 7,5 W |
| Number of component parts | 1x |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|6 Control gear is not replaceable, the complete lighting must be replaced. |
| Power consumption | 9 W |
| Adjustability | fixed |
| Voltage | 230 V |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
