Article-No.:
92939
LED Recessed panel
Areo
IP44 square 180x180mm 11W 770lm 3000K Nickel matt dimmable
IP44 square 180x180mm 11W 770lm 3000K Nickel matt dimmable
- Made of easy-care plastic
- For 230 V direct connection
- IP protection: IP44 splash-protected

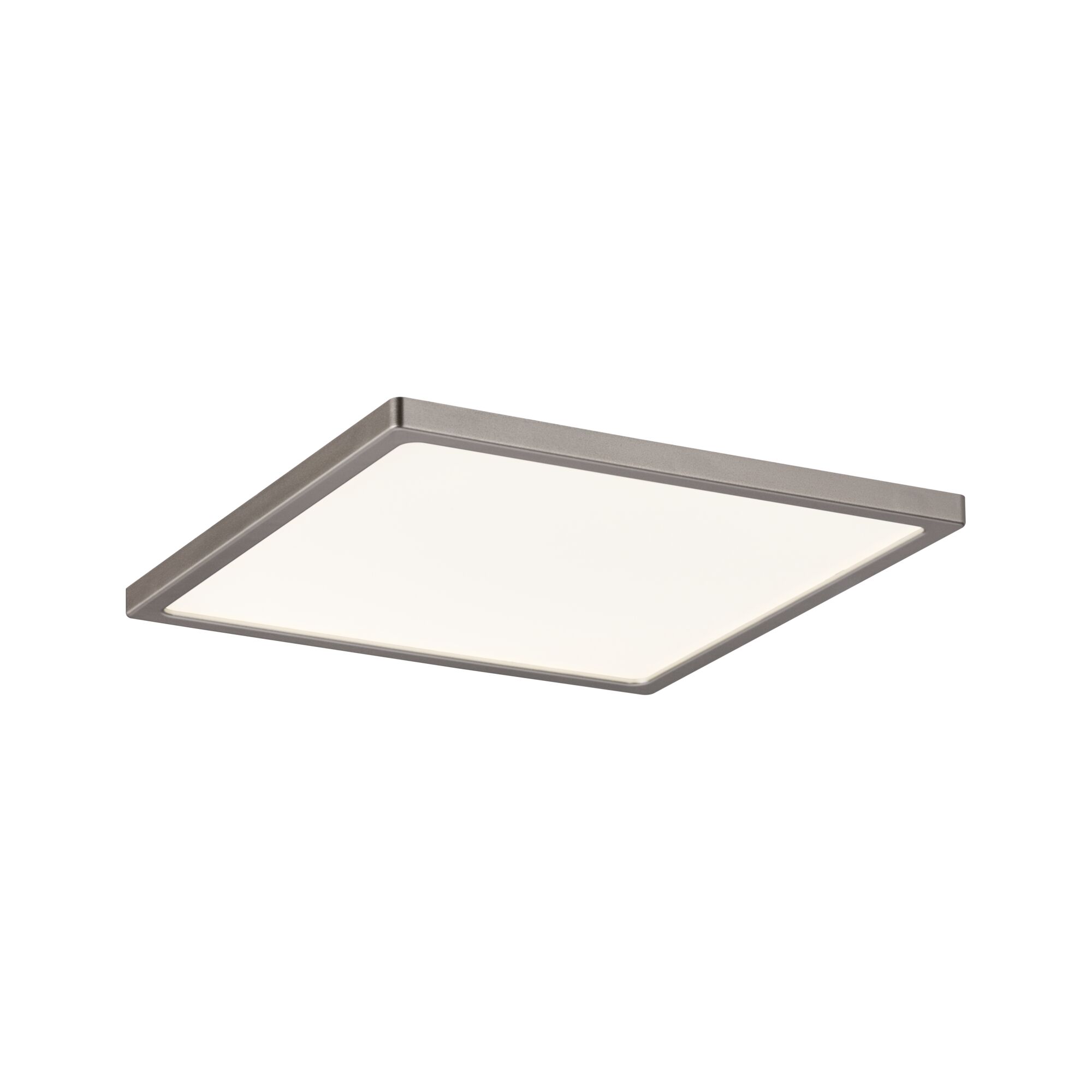

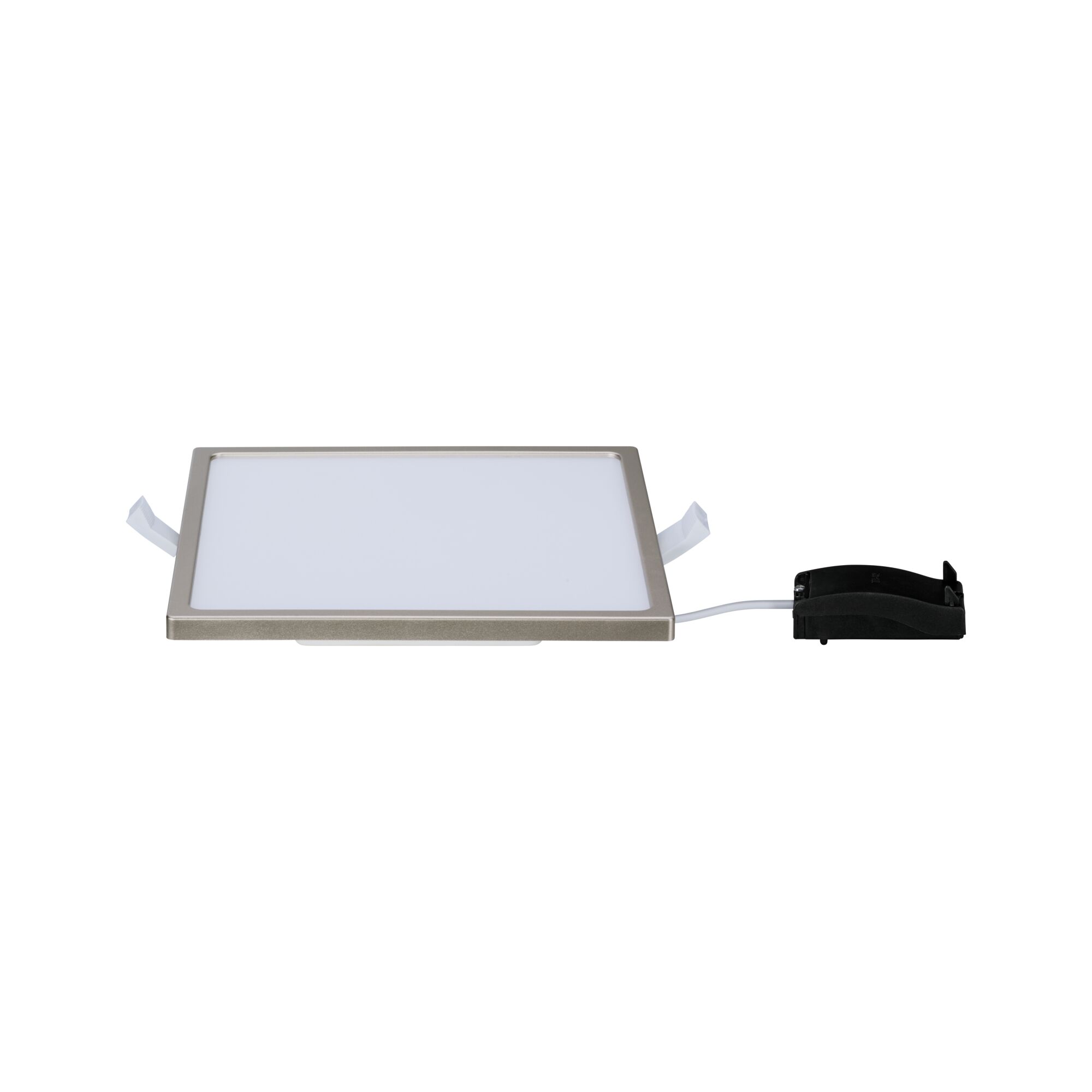

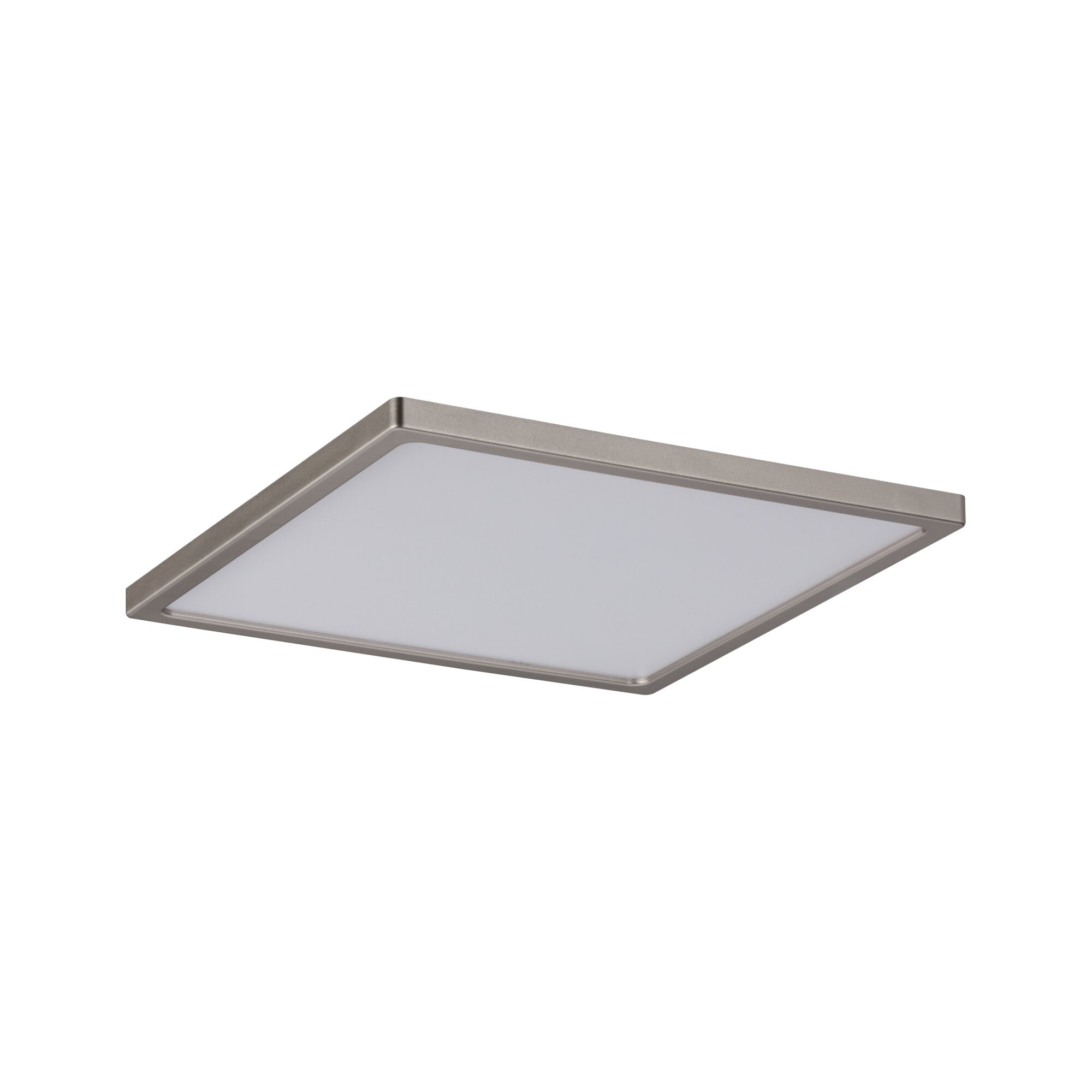

LED Recessed panel Areo IP44 square 180x180mm 11W 770lm 3000K Nickel matt dimmable
The rectangular Areo LED recessed panel with an edge length of 18 centimetres and 12W power features an extra-narrow edge and dimming function. The matt nickel-coloured plastic housing is particularly easy to install and keep clean thanks to its low weight.
- Made of easy-care plastic
- For 230 V direct connection
- IP protection: IP44 splash-protected
- LED lamp (fixed) included in scope of delivery
- Color temperatur: 3000K - Warm white
- Dimmable

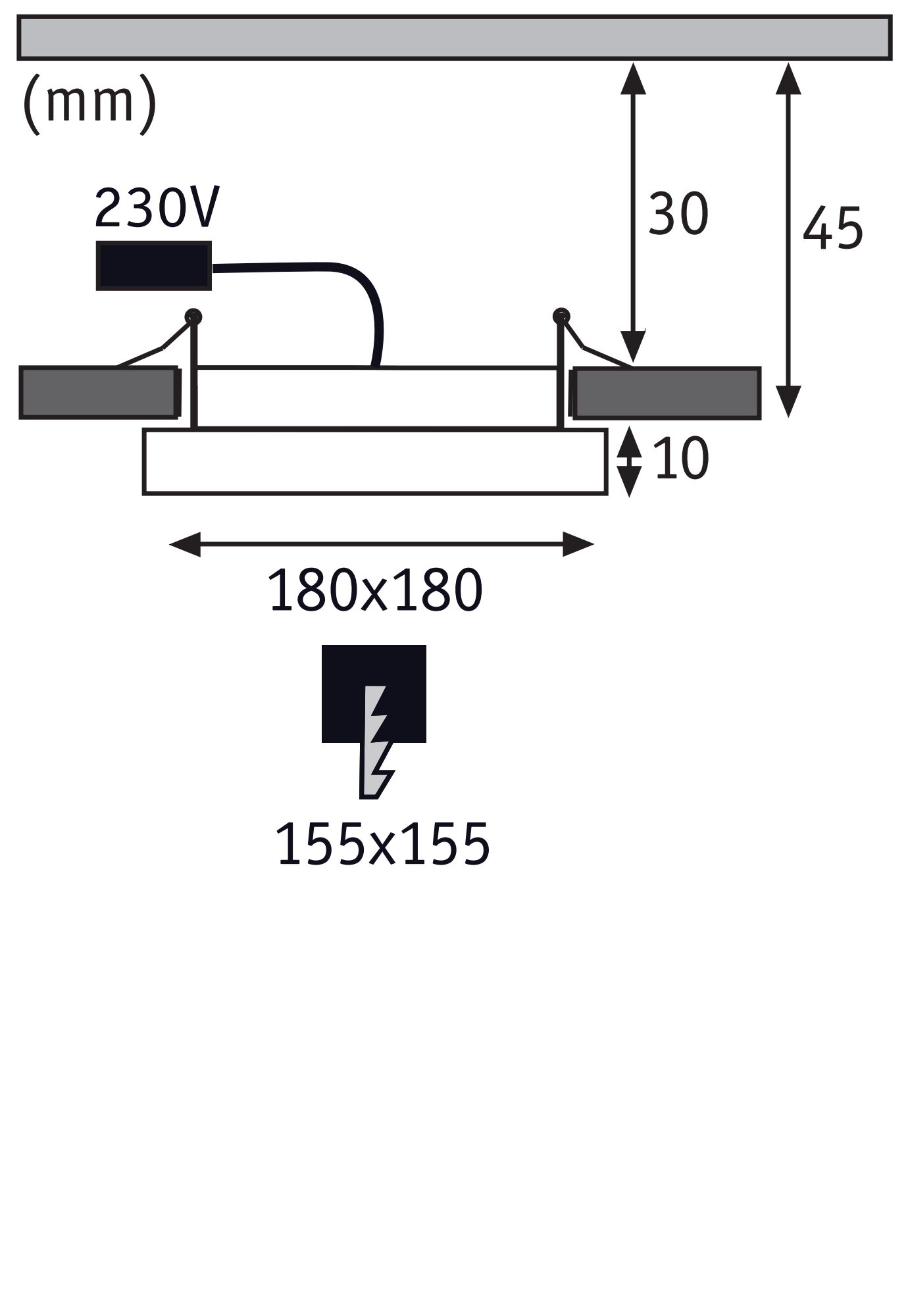

| Dimension | |
|---|---|
| mounting hole 2 | 155 mm |
| Total Mounting depth | 35 mm |
| Dimensions (Height x Width x Depth) | H: 10 x B: 180 x T: 180 mm |
| Mounting hole | 155 mm |
| Form | square |
| Depth of hollow wall | 20 mm, 20 mm |
| Design and Material | |
|---|---|
| stainless | stainless |
| Colour | Nickel matt |
| Material | Plastic |
| Installation | |
|---|---|
| Installation site (recommendation) | Ceiling mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | E |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| Usable luminous flux | 770 lm |
| Luminous flux LED module | 1200 lm |
| color temp | 3000 K |
| Lamp Features | |
|---|---|
| Component parts | 11 W |
| Technique | LED |
| IP protection | IP44 ceiling mounting |
| Dimmable | with dimmer R+C f.elect.trafos+230V bulbs |
| Inclusive lamp | yes |
| Total Width | 180 mm |
| Incandescent Equivalent | 83 W |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|6 Control gear is not replaceable, the complete lighting must be replaced. |
| Power consumption | 13 W |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
