Article-No.:
92254

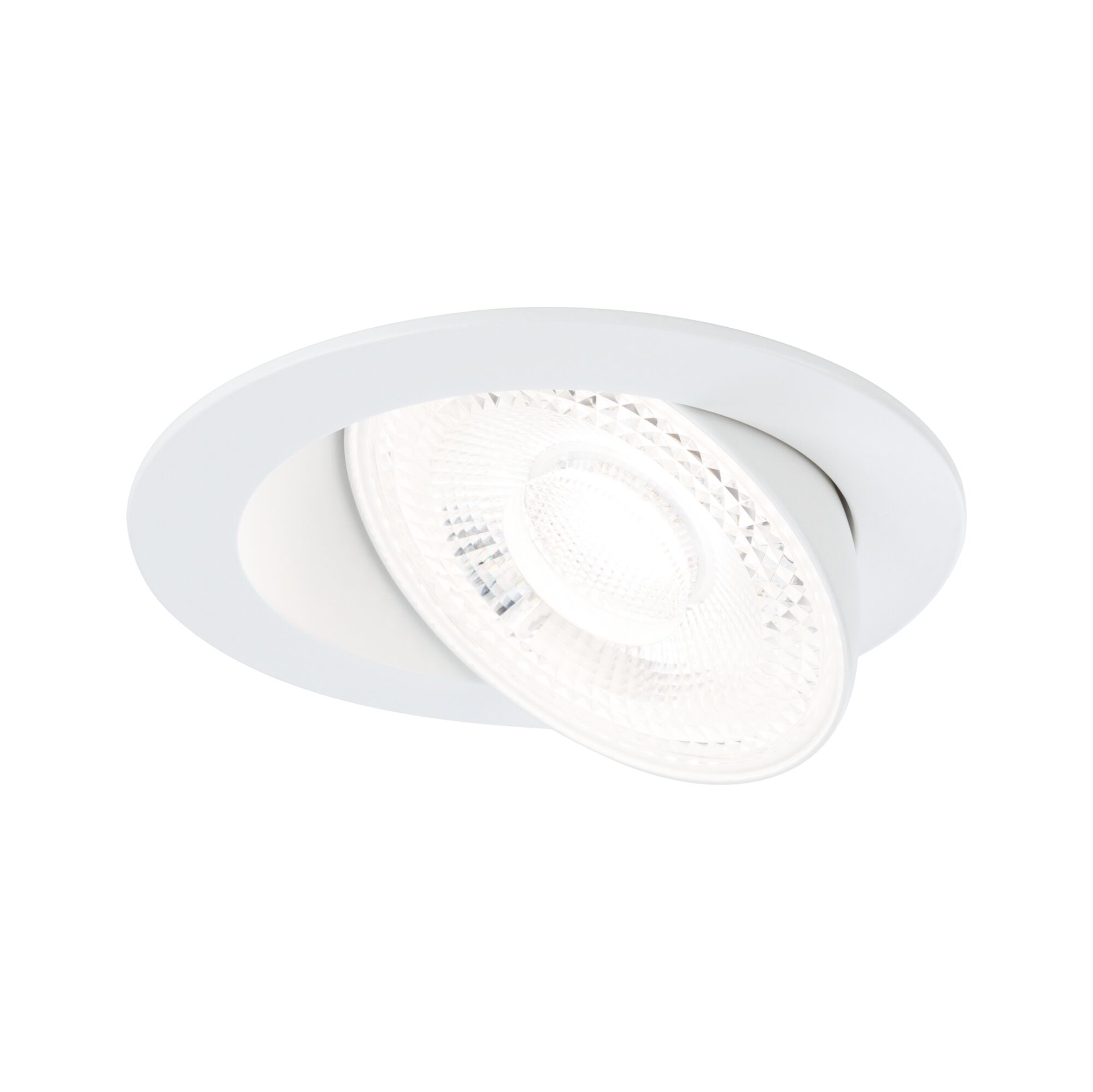

LED Recessed luminaire
White Select
Aumus 3-piece set
round 105mm 90° 3x5W 3x700lm 230V dimmable 2700 - 6500K White
round 105mm 90° 3x5W 3x700lm 230V dimmable 2700 - 6500K White
- Attractive design and innovative technology for effective illumination solutions
- Shallow cavity depth of only 50 mm
- Can be dimmed with a standard light switch, with 3 dimming levels

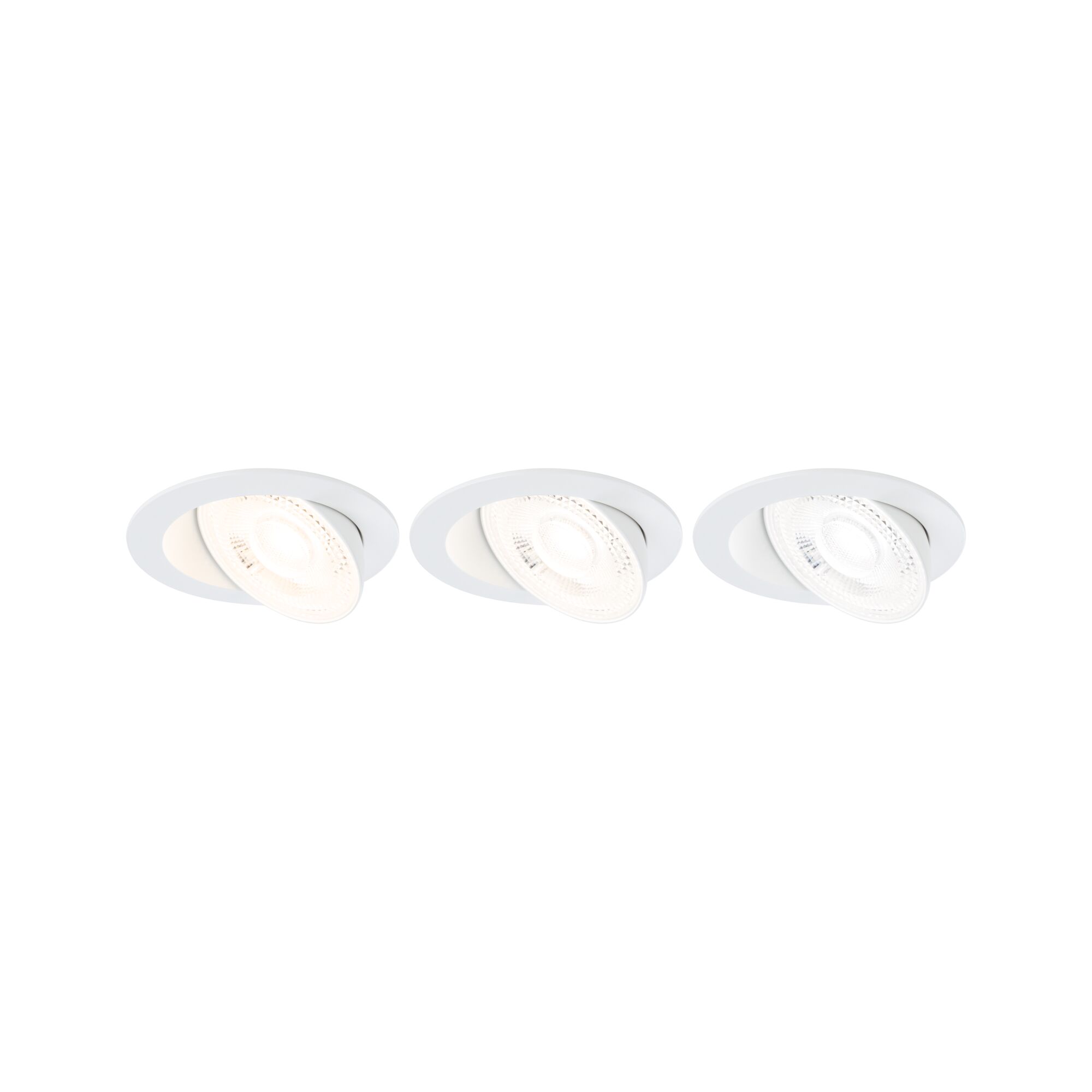

LED Recessed luminaire White Select Aumus 3-piece set round 105mm 90° 3x5W 3x700lm 230V dimmable 2700 - 6500K White

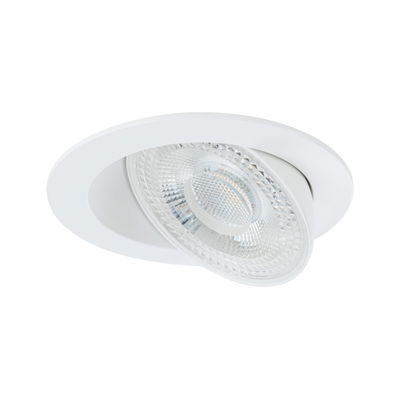

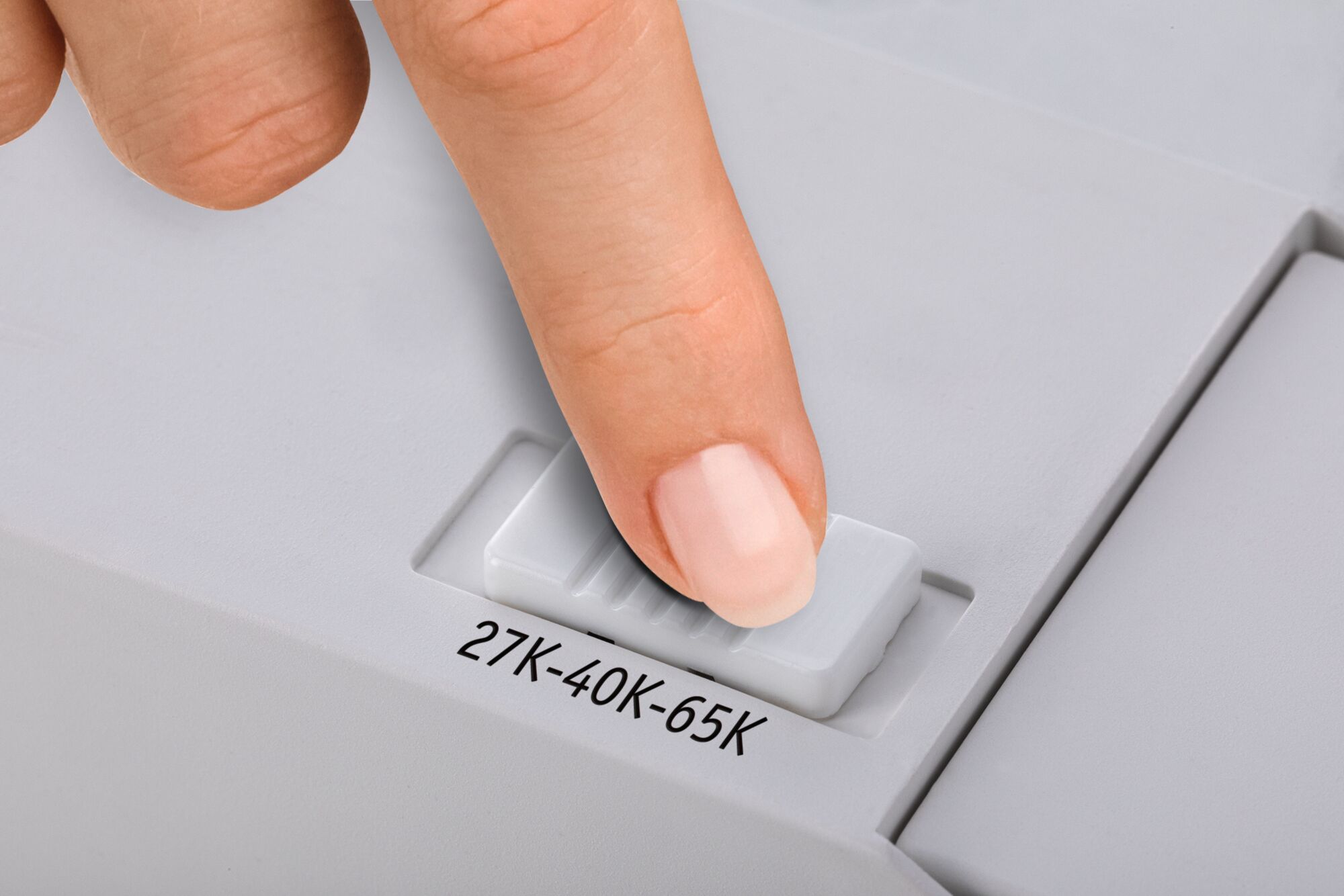

The Aumus recessed luminaires in White also come as a 3-piece set and feature a swivel action of up to 180°. At just 50mm, their cavity depth requirement is minimal, raising the bar for lighting technology. Use the integrated dip switch to choose one of three optional light colours (2700K, 4000K, or 6500K) available via the White Select function before installation. This recessed luminaires also feature a practical 3-step-dim function to access the three dimming levels (100%, 50%, 25%) via a traditional light switch. The innovative junction box ensures a tool-free installation of the recessed luminaire in seconds. The attractive design and innovative technology combined in these recessed luminaires make them a great choice for any space where a versatile and effective lighting solution is needed.
- Attractive design and innovative technology for effective illumination solutions
- Shallow cavity depth of only 50 mm
- Can be dimmed with a standard light switch, with 3 dimming levels
- Tool-free installation in seconds
- Perfect for rooms needing flexible illumination options

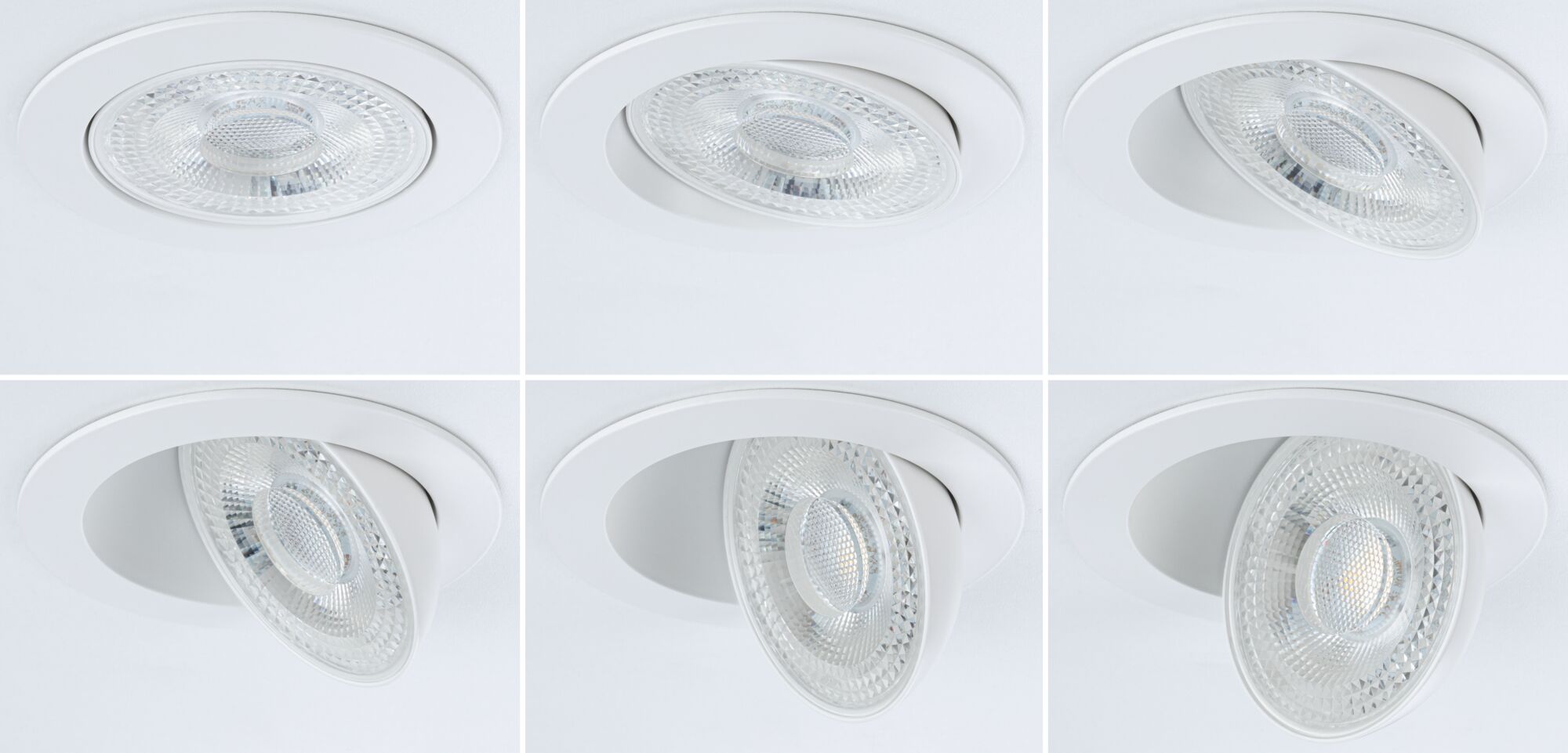

- Swivel function for angles up to 180° for custom lighting settings

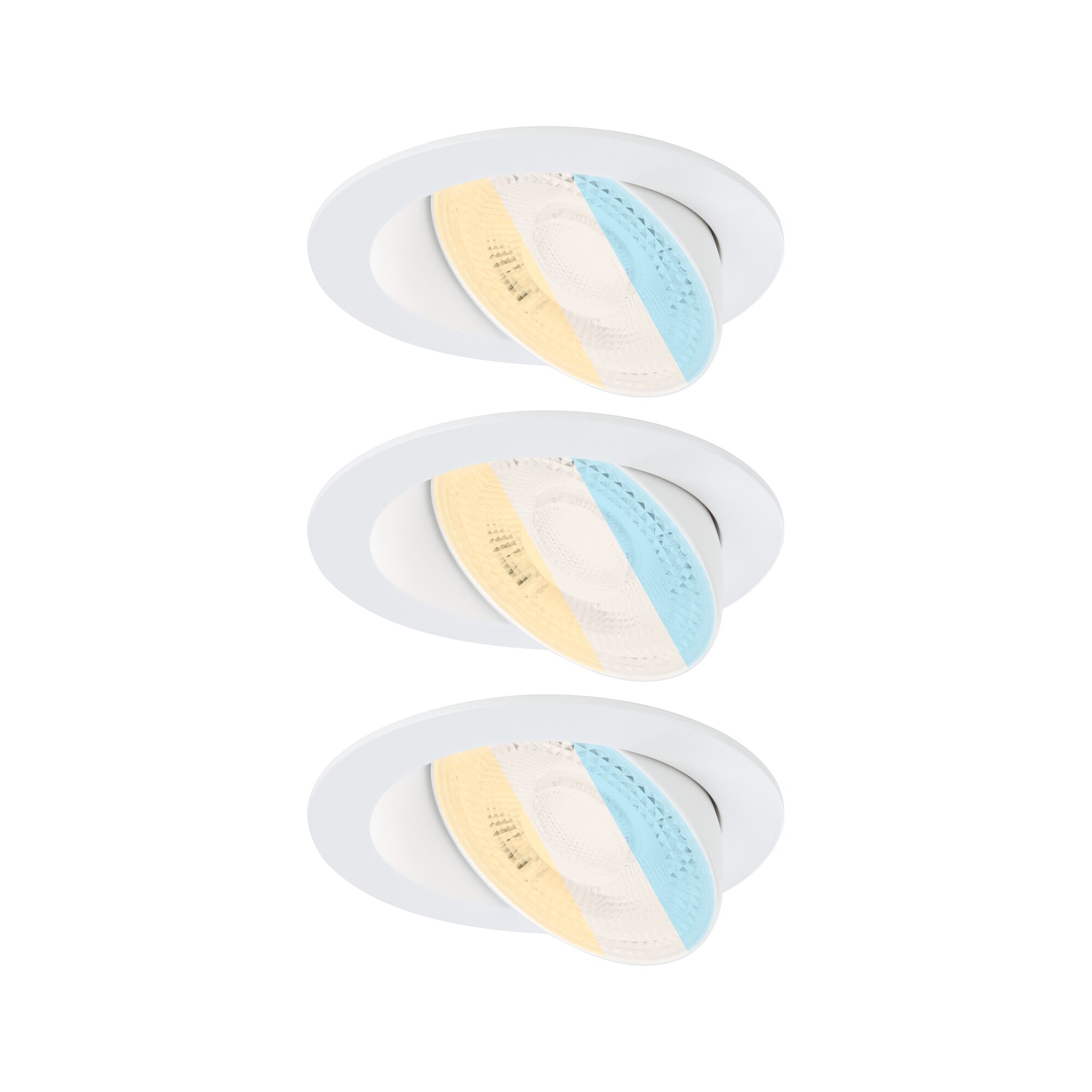

- Customisable colour selection (2700K, 4000K, 6500K) via the White Select function before installation

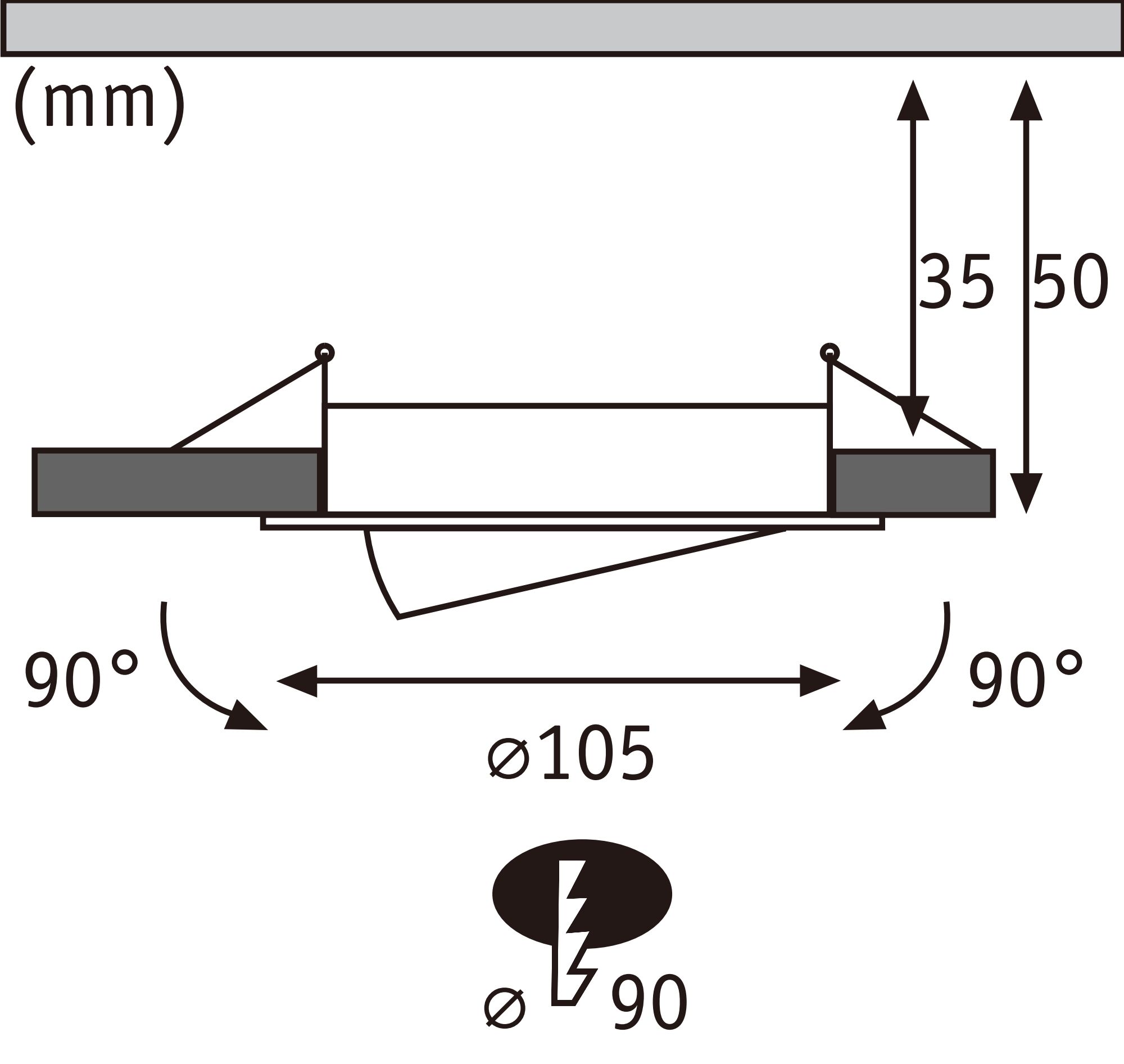

| Dimension | |
|---|---|
| Depth of hollow wall | 35 mm, 35 mm |
| Total Mounting depth | 50 mm |
| Dimensions (Height x Width x Depth) | H: 40 mm |
| Ø | 105 mm |
| Mounting hole | 90 mm |
| Form | round |
| Design and Material | |
|---|---|
| Colour | White |
| Material | Plastic, Aluminium |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | D |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| Colour change | White Select |
| Beam angle | 36 ° |
| Usable luminous flux | 700 lm |
| Luminous flux LED module | 750 lm |
| color temp | 2700 - 6500 K |
| Beam angle LED module | 36 ° |
| Lamp Features | |
|---|---|
| Component parts | 5 W |
| Swivel range | 90 ° |
| Technique | LED |
| IP protection | IP20 |
| Dim | dimmable in 3 steps with normal light switch |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Incandescent Equivalent | 54 W |
| Number of component parts | 3x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 6,5 W |

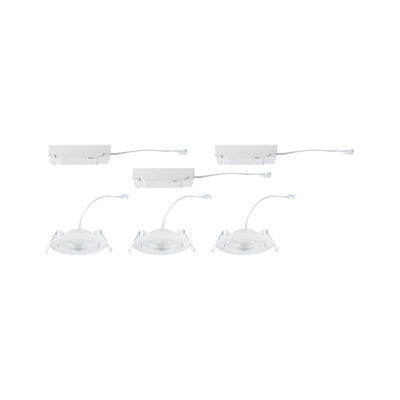

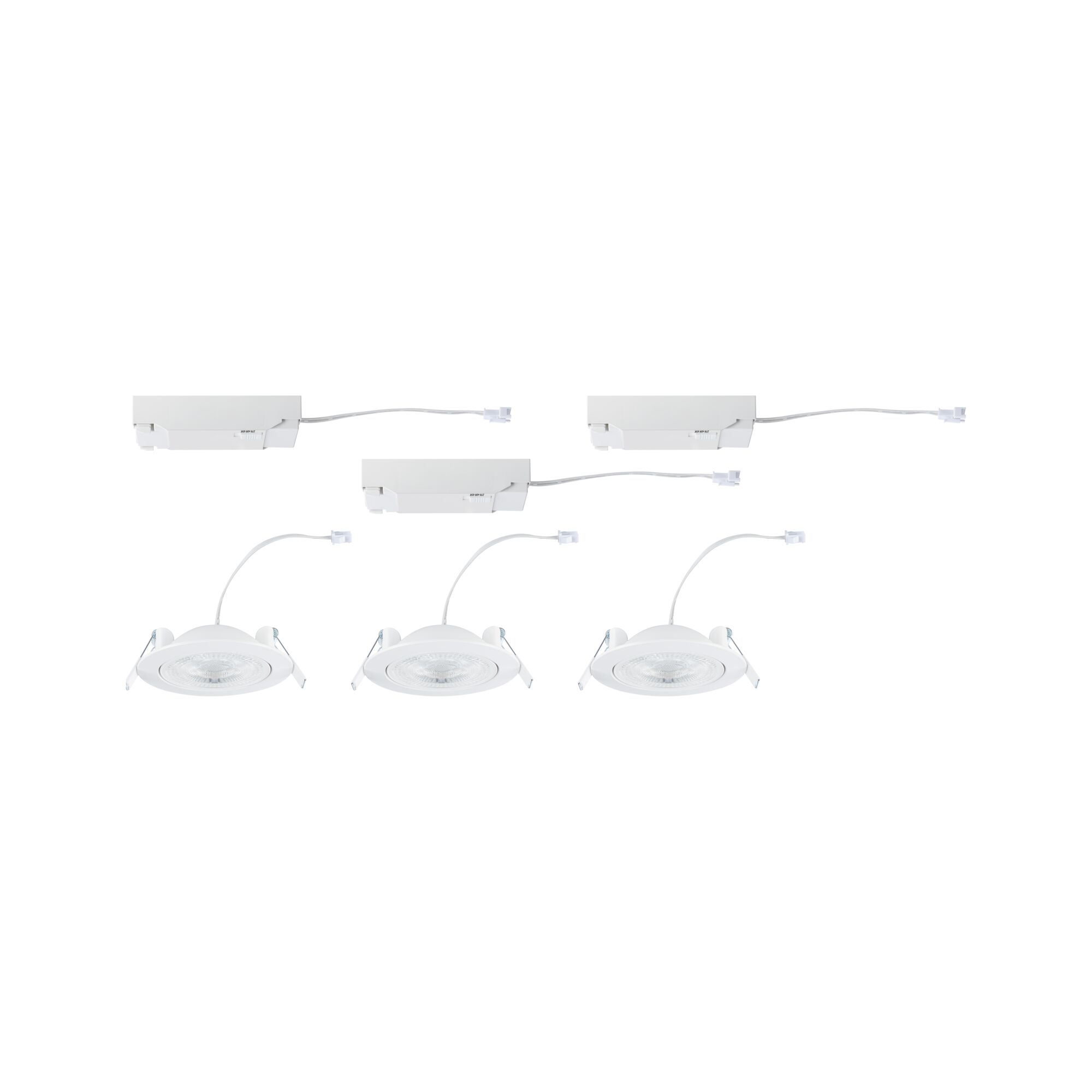

| Transformer | |
|---|---|
| apparent power | 12 VA |
| Transformer height | 25 mm |
| Transformer width | 115 mm |
| Transformer depth | 40 mm |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
