Article-No.:
92904
LED Recessed luminaire
Nova Plus Single Luminaire Swivelling
IP65 angular 93x93mm 30° GU10 7W 460lm 230V dimmable 2700K Matt white/Chrome
IP65 angular 93x93mm 30° GU10 7W 460lm 230V dimmable 2700K Matt white/Chrome
LED Recessed luminaire Nova Plus Single Luminaire Swivelling IP65 angular 93x93mm 30° GU10 7W 460lm 230V dimmable 2700K Matt white/Chrome

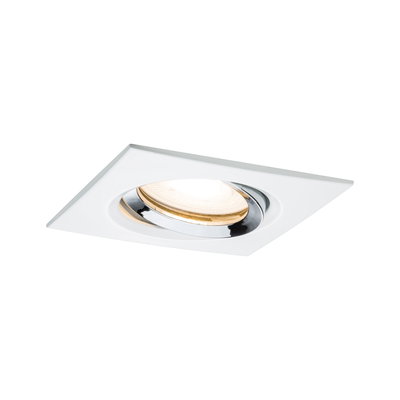

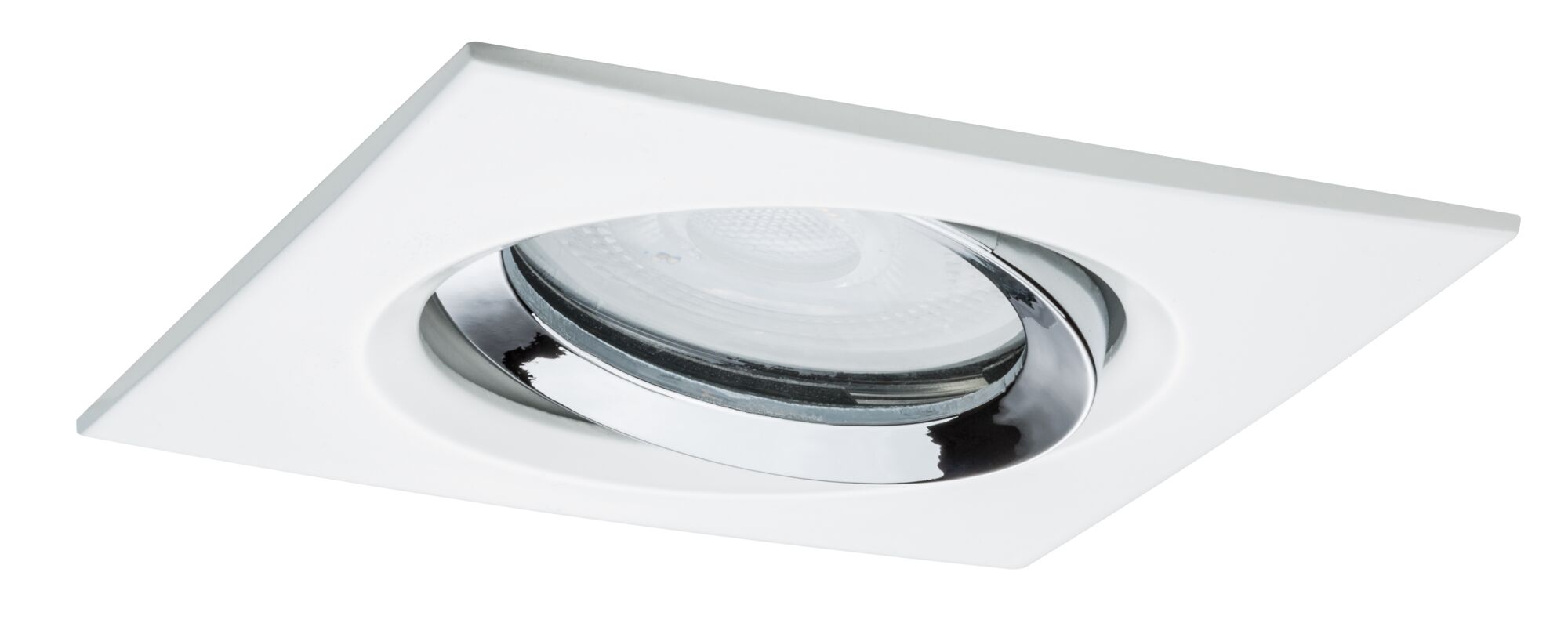

The angular Nova Plus recessed luminaire in Matt white/Chrome with a replaceable GU10 lamp is suitable for new installations, as well as for replacing existing installations. It can be installed in ceilings with a cavity of only 75 millimetres. Straightforward mounting with retaining springs means that the ceiling remains undamaged, even after repeated installation and removal. The dimming function lets you adjust the brightness according to your needs and emits a warm white work light and cosy mood lighting in one. Thanks to IP65 protection, the luminaire is specially protected against penetration by water jets, making it ideal for installation in wet rooms or outdoor areas.
- Dimmable
- Single luminaire
- With swivelling spots for ideal illumination

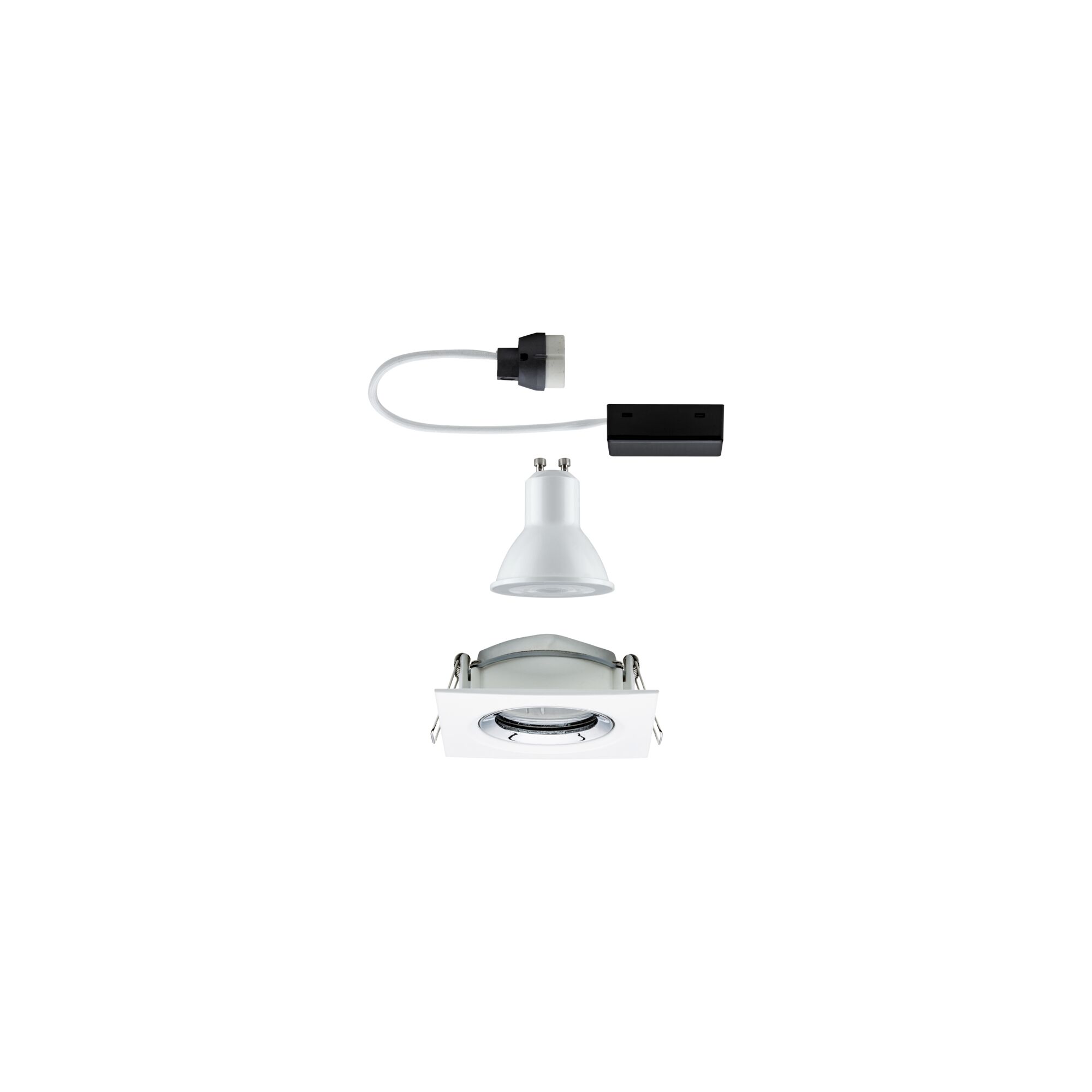

- Incl. replaceable LED lamp
- Color temperatur: 2700K - Warm white
- The lamp can easily be fitted without a snap ring
- IP protection: IP65 – water jet-protected
- For 230 V direct connection
| Dimension | |
|---|---|
| Depth of hollow wall | 75 mm, 75 mm |
| Total Mounting depth | 90 mm |
| Dimensions (Height x Width x Depth) | B: 93 x T: 93 mm |
| Mounting hole | 83 mm |
| Form | angular |
| Design and Material | |
|---|---|
| stainless | stainless alu |
| Colour | Chrome, Matt white |
| Material | Aluminium zinc |
| Installation | |
|---|---|
| can be used with the following dimmers | RC Kopp 8035.0208.0 /8078, RC Merten MEG 5136-0000, RLC Müller Paladin 873 030 LED, RC Jung 225 T DE, RC Gira 0307 00/I02, RLC Busch-Jäger 6523-U-102, RC Busch-Jäger 6513U-102 |
| Installation site (recommendation) | Ceiling mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | G |
| Energy consumption | 7 kWh_1000h |
| Service life | |
|---|---|
| Lifetime | 15000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| Beam angle | 36 ° |
| Usable luminous flux | 460 lm |
| color temp | 2700 K |
| colour consistency | SDCM 6 |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 7 W |
| Swivel range | 30 ° |
| Technique | LED |
| Socket | GU10 |
| IP protection | IP65 ceiling mounting |
| Dimmable | with dimmer R+C f.elect.trafos+230V bulbs |
| Inclusive lamp | yes |
| Maximum wattage range | max. 35 W |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 1 Lightsource is replaceable without damage the lighting fixture by enduser. |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
