Article-No.:
92459

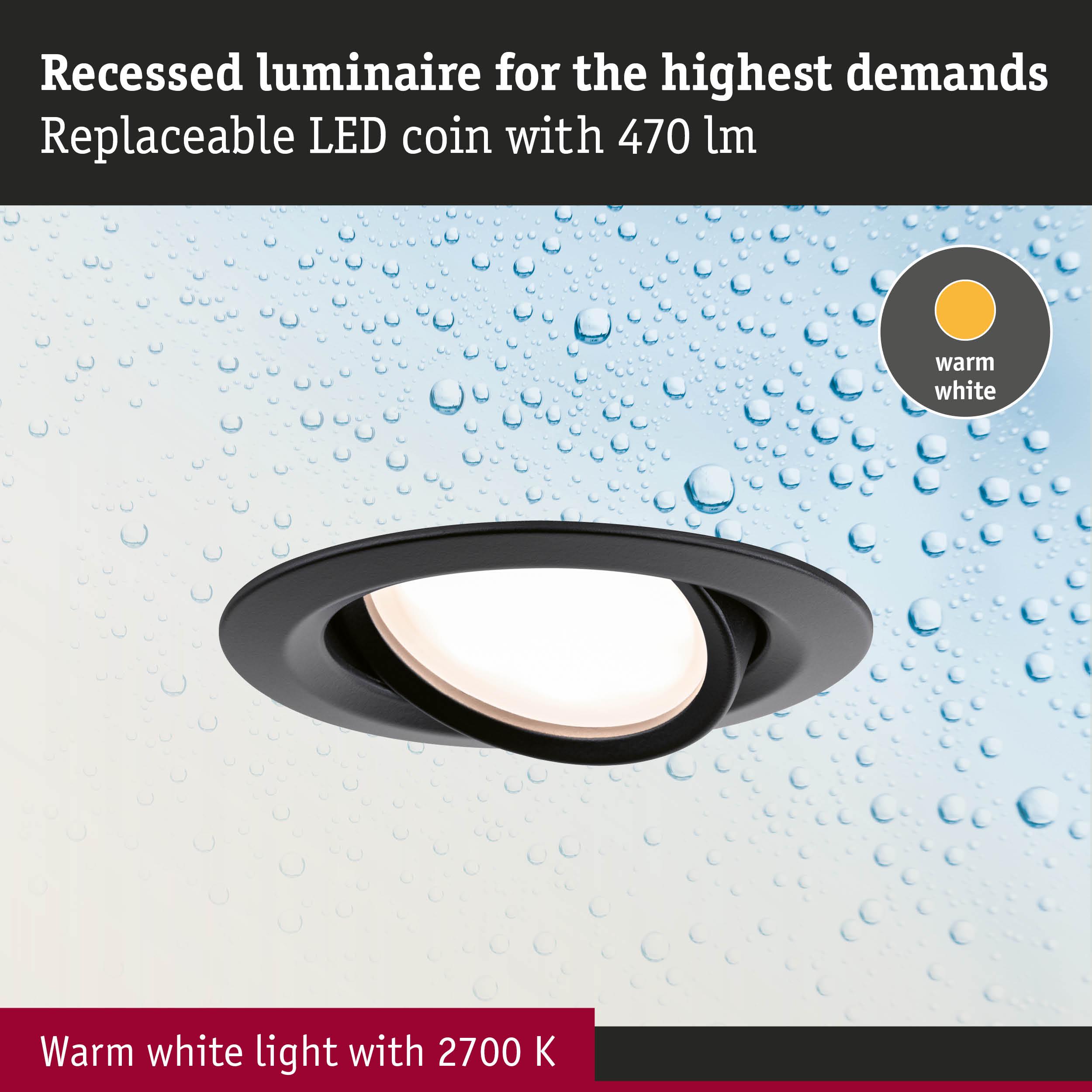

LED Recessed luminaire
Nova Plus Coin Single Luminaire Swivelling
IP65 round 93mm 30° Coin 6W 470lm 230V dimmable 2700K Black matt
IP65 round 93mm 30° Coin 6W 470lm 230V dimmable 2700K Black matt
- Set of 1 luminaire incl. LED module
- Color temperatur: 2700K - Warm white
- With satined protective glass
LED Recessed luminaire Nova Plus Coin Single Luminaire Swivelling IP65 round 93mm 30° Coin 6W 470lm 230V dimmable 2700K Black matt

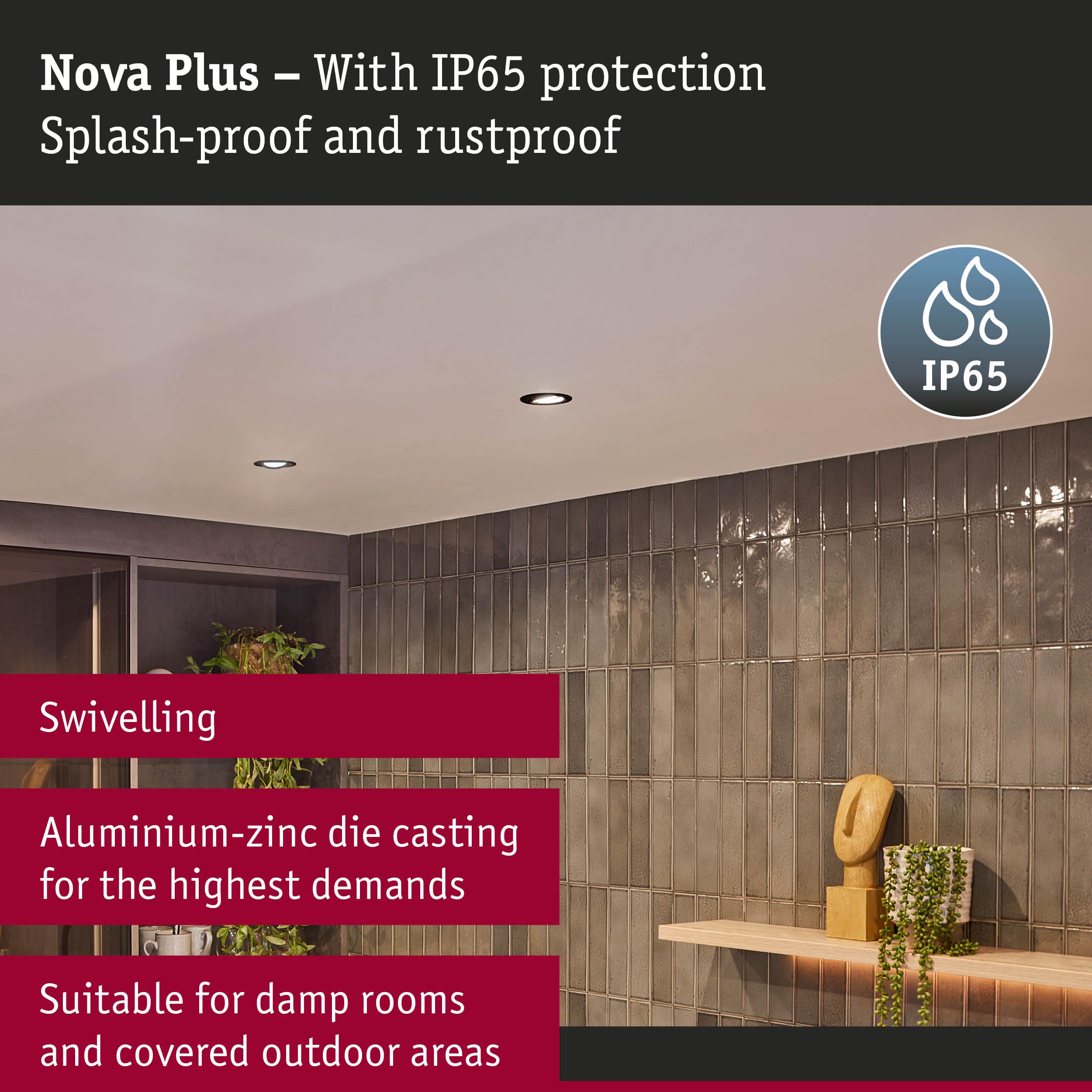

The round Nova Plus recessed luminaire (3-piece set) in Black matt with a replaceable LED coin is suitable for new installations, as well as for replacing existing installations. It is exceptionally flat, and can therefore be installed in ceilings with a cavity of only 30 millimetres. As the single luminaires can be easily linked together with quick clips, the installation is quick and easy. The dimming function lets you adjust the brightness according to your needs and emits a warm white work light and cosy mood lighting in one. Thanks to the swivelling function, the spot can be individually directed. Thanks to IP65 protection, the luminaire is specially protected against penetration by water jets, making it ideal for installation in wet rooms or outdoor areas.
- Set of 1 luminaire incl. LED module
- Color temperatur: 2700K - Warm white
- With satined protective glass

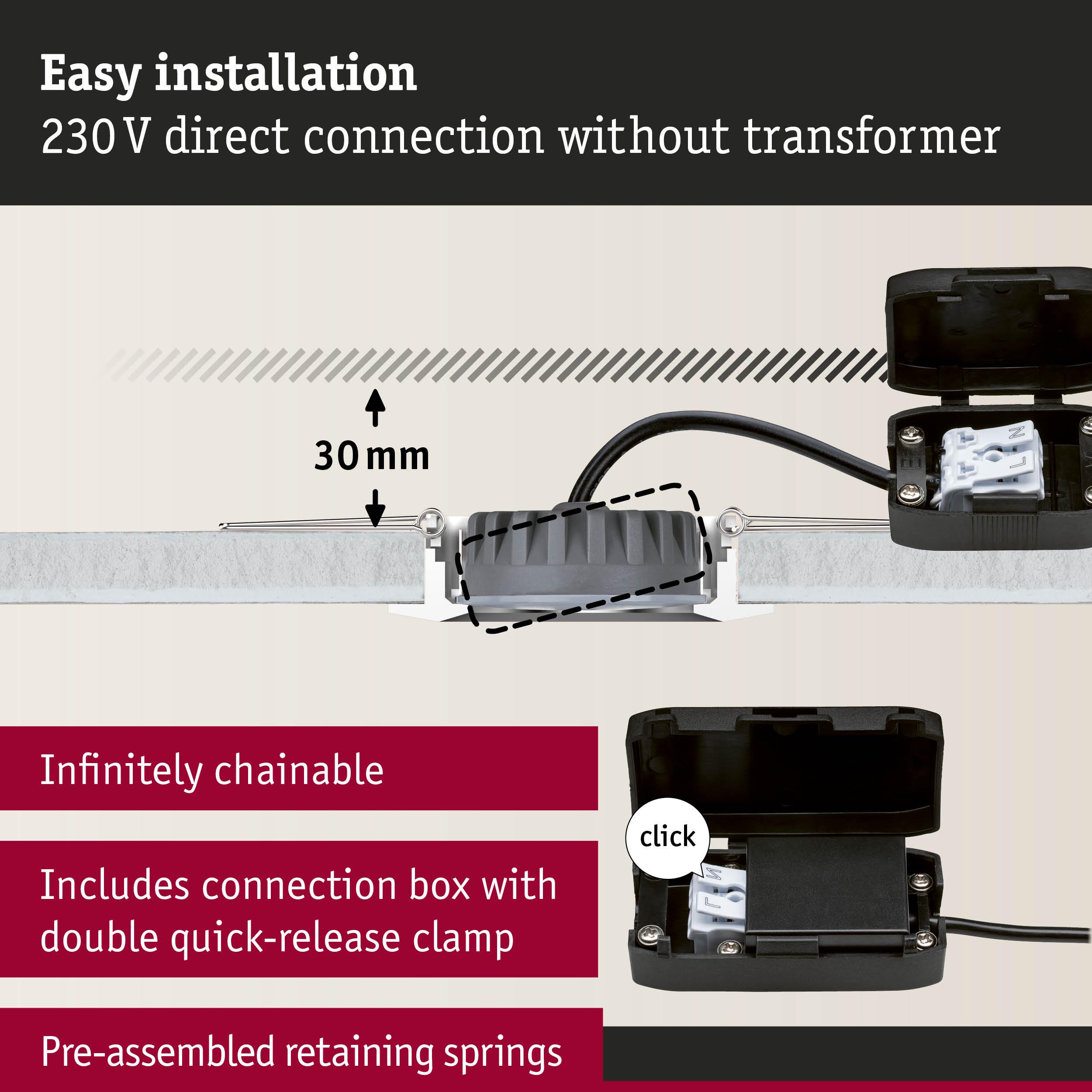

- Very flat – can also be mounted in small cavities of only 30 mm depth
- For 230 V direct connection
- IP protection: IP65 – water jet-protected
- Dimmable
| Dimension | |
|---|---|
| Diameter | 93 mm |
| Built-in diameter | 83 mm |
| Mounting depth | 45 mm |
| Depth of hollow wall | 30 mm |
| Design and Material | |
|---|---|
| Form | round |
| Colour | Black matt |
| Material | Aluminium |
| Recycled material included | no |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 2700 K |
| Nominal luminous flux | 470 lm |
| Color rendering index | > 80 Ra |
| Beam angle | 100 ° |
| Lamp Features | |
|---|---|
| Dimmable | with dimmer R+C f.elect.trafos+230V bulbs |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel enthalten und wechselbar |
| Swivel range | 30 ° |
| IP protection | IP65 ceiling mounting |
| Protection class | Protection class II |
| Base/Socket | Coin |
| Technique | LED |
| Component parts | 6 W |
| Number of component parts | 1x |
| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
| Adjustability | swivelling/tilting |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
Downloads
Product data, leaflets & safety instructions
Safety instructions
- LED Module recessed luminaire
