Article-No.: 93903

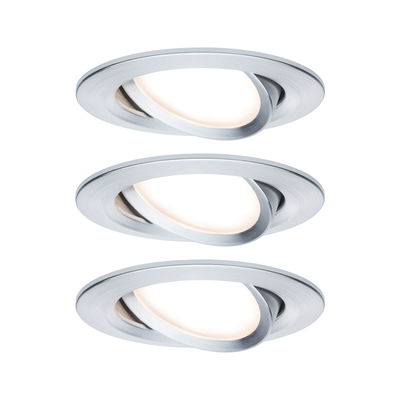

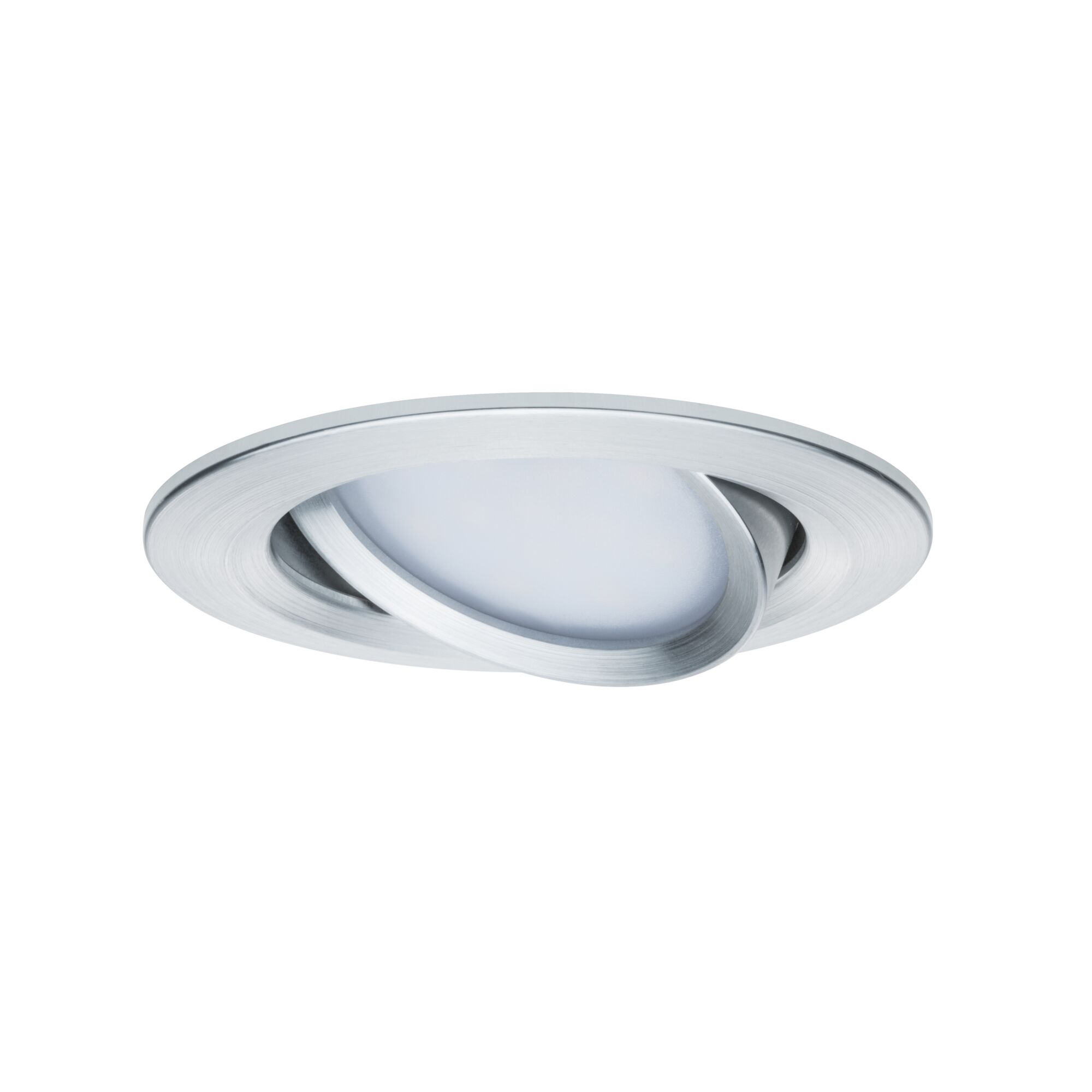

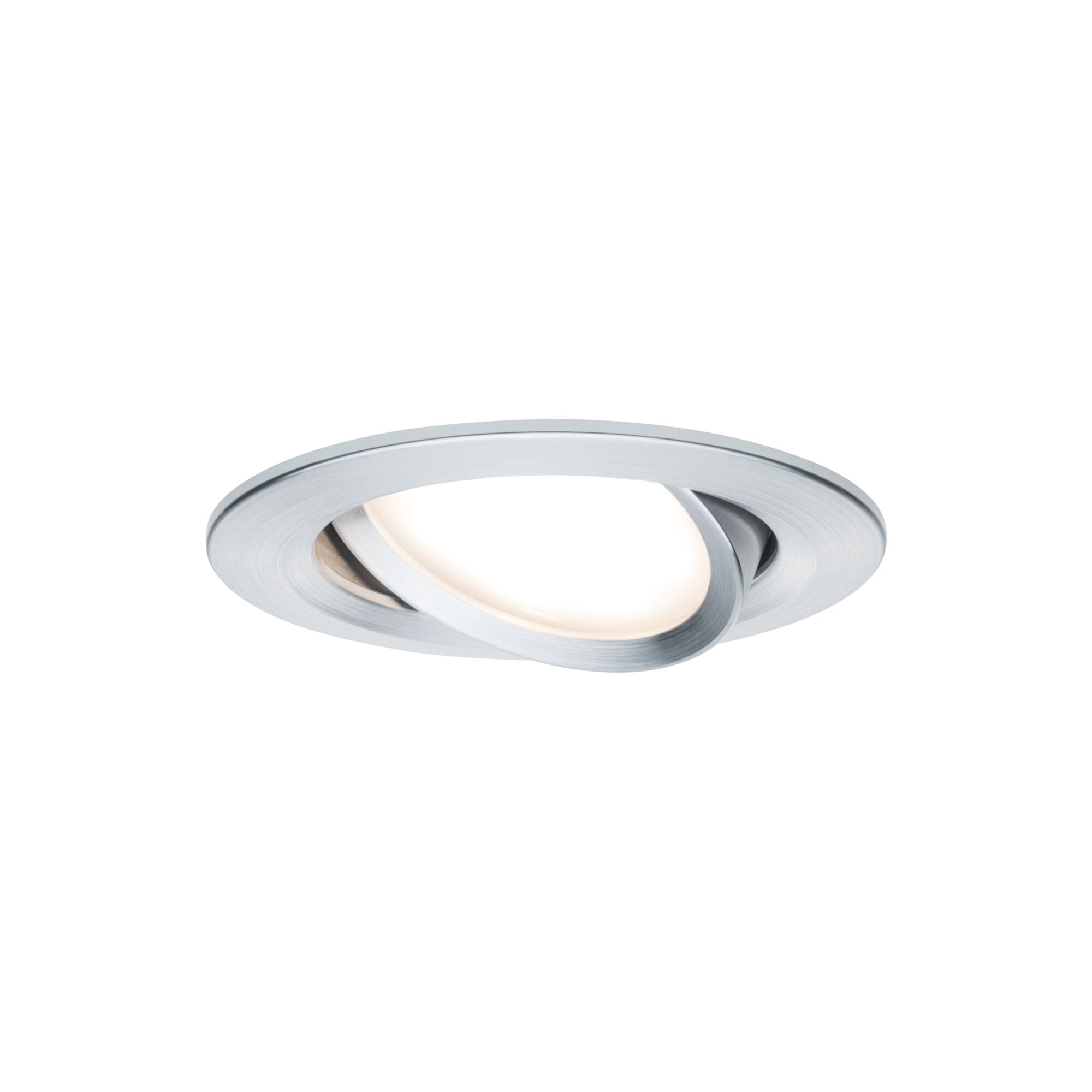

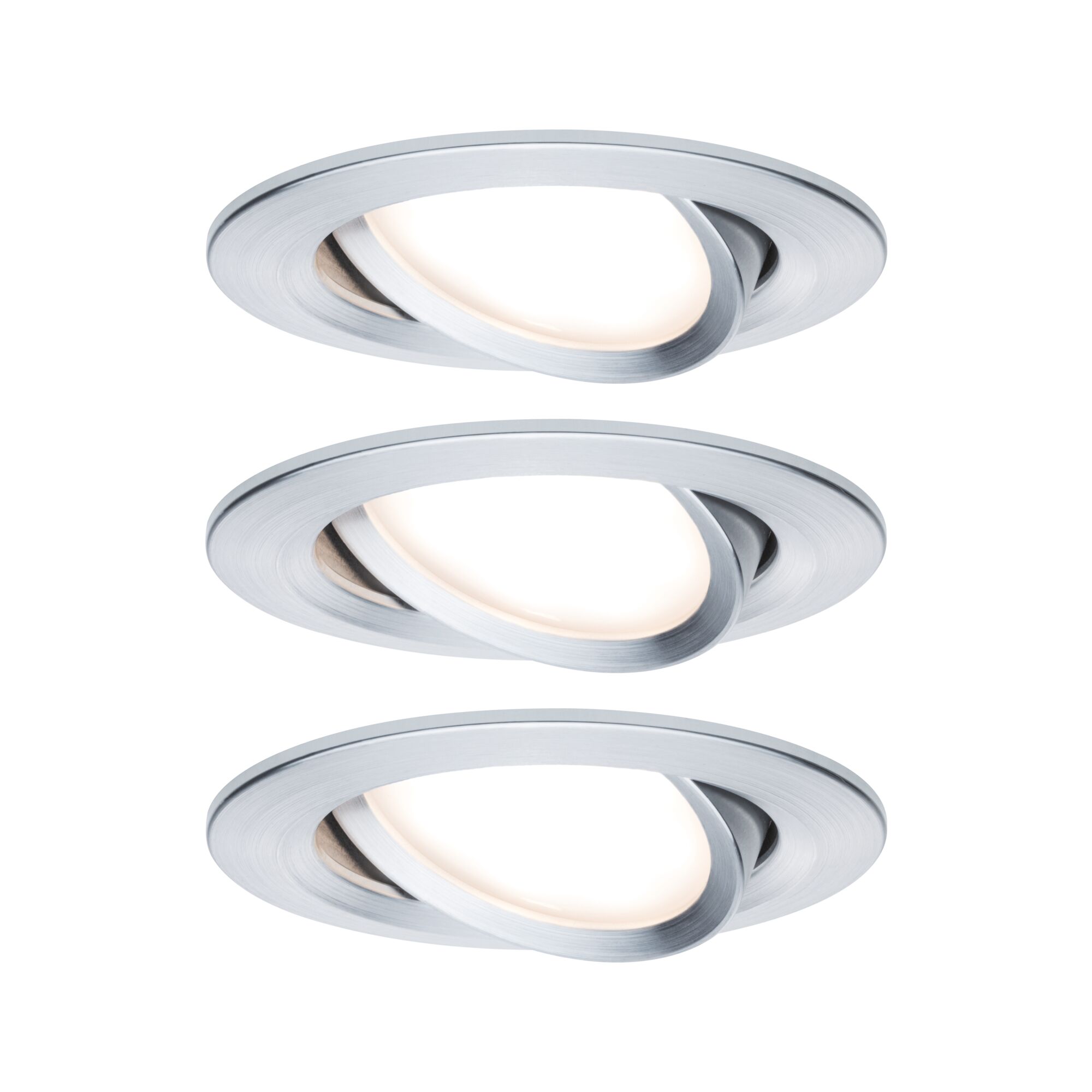

LED Recessed luminaire Nova Plus Coin Basic Set Swivelling

round 84mm 50° Coin 3x6W 3x470lm 230V dimmable 2700K Turned aluminium

Colour: Turned aluminium
Form: round
Version: Basic Set

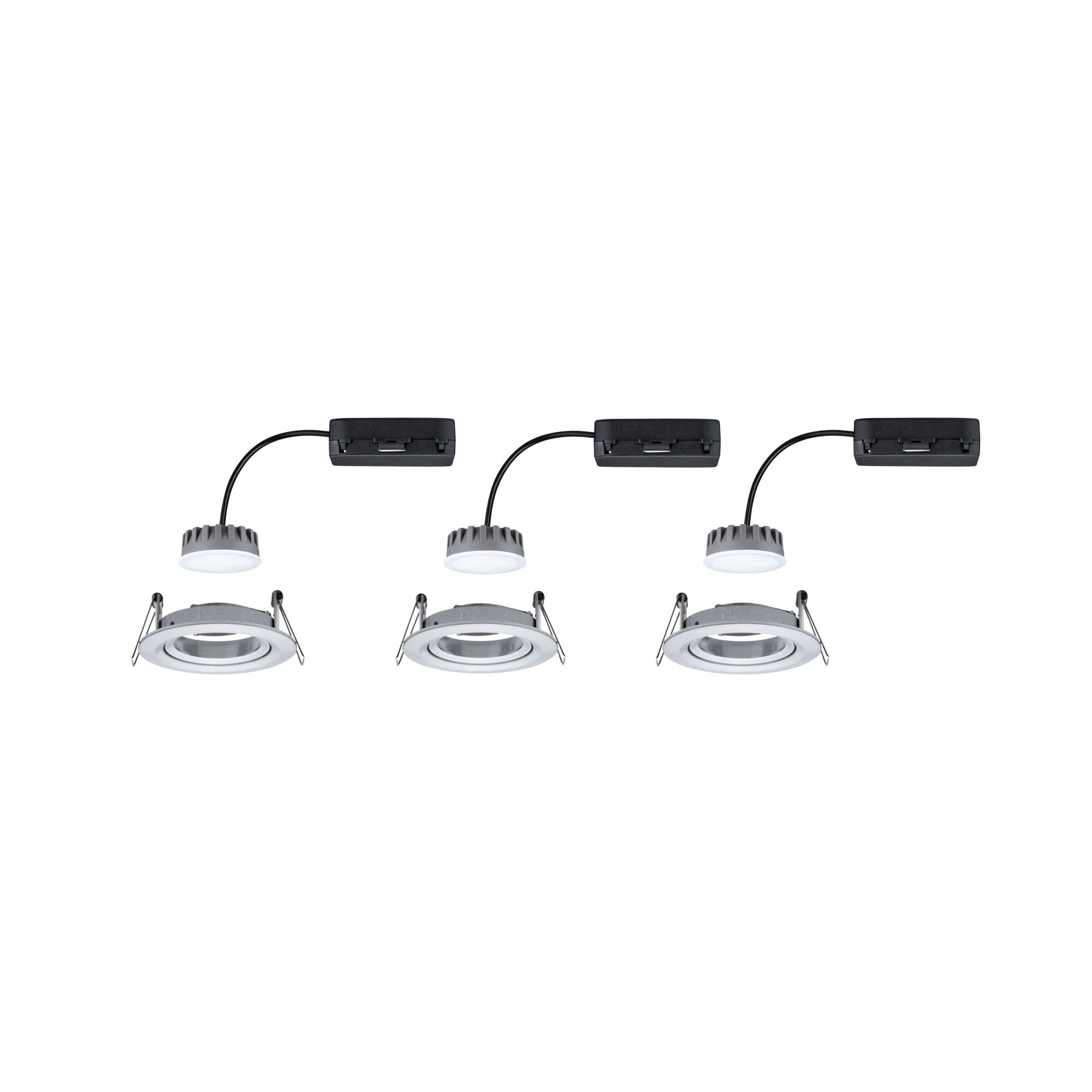

  • Set of 3 luminaires incl. LED module
  • Color temperatur: 2700K - Warm white
  • With satined protective glass

LED Recessed luminaire Nova Plus Coin Basic Set Swivelling round 84mm 50° Coin 3x6W 3x470lm 230V dimmable 2700K Turned aluminium

The round Nova Plus recessed luminaires (3-piece set) in Turned aluminium with a replaceable LED coin are suitable for new installations, as well as for replacing existing installations. They are exceptionally flat, and can therefore be installed in ceilings with a cavity of only 30 millimetres. As the single luminaires can be easily linked together with quick clips, the installation is quick and easy. The dimming function lets you adjust the brightness according to your needs and emits a warm white work light and cosy mood lighting in one. Thanks to the swivelling function, the spot can be individually directed.
  • Set of 3 luminaires incl. LED module
  • Color temperatur: 2700K - Warm white
  • With satined protective glass
  • Very flat – can also be mounted in small cavities of only 30 mm depth
  • With swivelling spots for ideal illumination
  • For 230 V direct connection
  • IP protection: IP23 - spray-protected
  • Dimmable

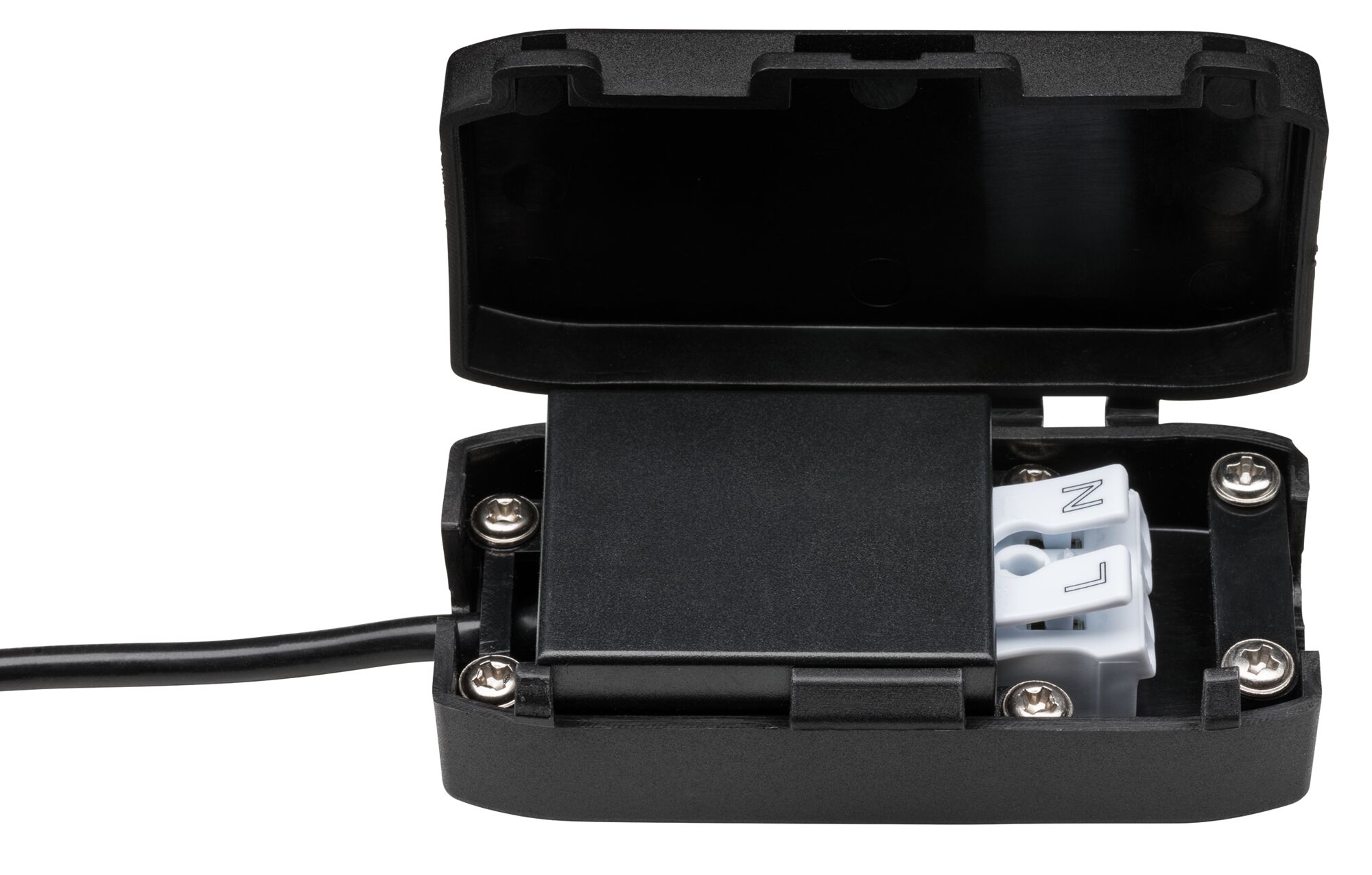

  • Incl. junction box with double quick clamp for feeding through wires
Dimension
Depth of hollow wall 30 mm, 30 mm
Mounting depth 45 mm
Ø 84 mm
Mounting hole 68 mm
Form round
Design and Material
stainless stainless alu
Colour Turned aluminium
Material Aluminium zinc
Installation
can be used with the following dimmers RC Merten MEG 5136-0000, RLC Müller Paladin 873 030 LED, RC Busch-Jäger 6513U-102
Installation site (recommendation) Ceiling mounting
Energy consumption
energy efficiency (A to G) G
Service life
lifetime 30.000 h
Light Characteristics
Colour temp. 2700 K
Beam angle 120 °
Useful luminous flux 470 lm
color temp 2.700 K
colour consistency SDCM 6
Color rendering index > 80 Ra
Rated luminous flux (Lumen) 3x425 lm
Lamp Features
Component parts 6 W
Swivel range 50 °
Technique LED
Socket Coin
IP protection IP23 ceiling mounting
Dimmable with dimmer R+C f.elect.trafos+230V bulbs
Incandescent Equivalent 43 W
Inclusive lamp
Number of component parts 3x
protection class protection class II
Replacable 2 Lightsource is replaceable without damage the lighting fixture by electrician.
Labelling
MM symbol MM symbol
WEEE-Reg.-No DE 39236390
