Article-No.:
93080
LED Recessed luminaire
Nova Plus Coin Basic Set Swivelling
round 84mm 50° Coin 3x6W 3x470lm 230V dimmable 2700K Black matt
round 84mm 50° Coin 3x6W 3x470lm 230V dimmable 2700K Black matt
- Very flat – can also be mounted in small cavities of only 30 mm depth

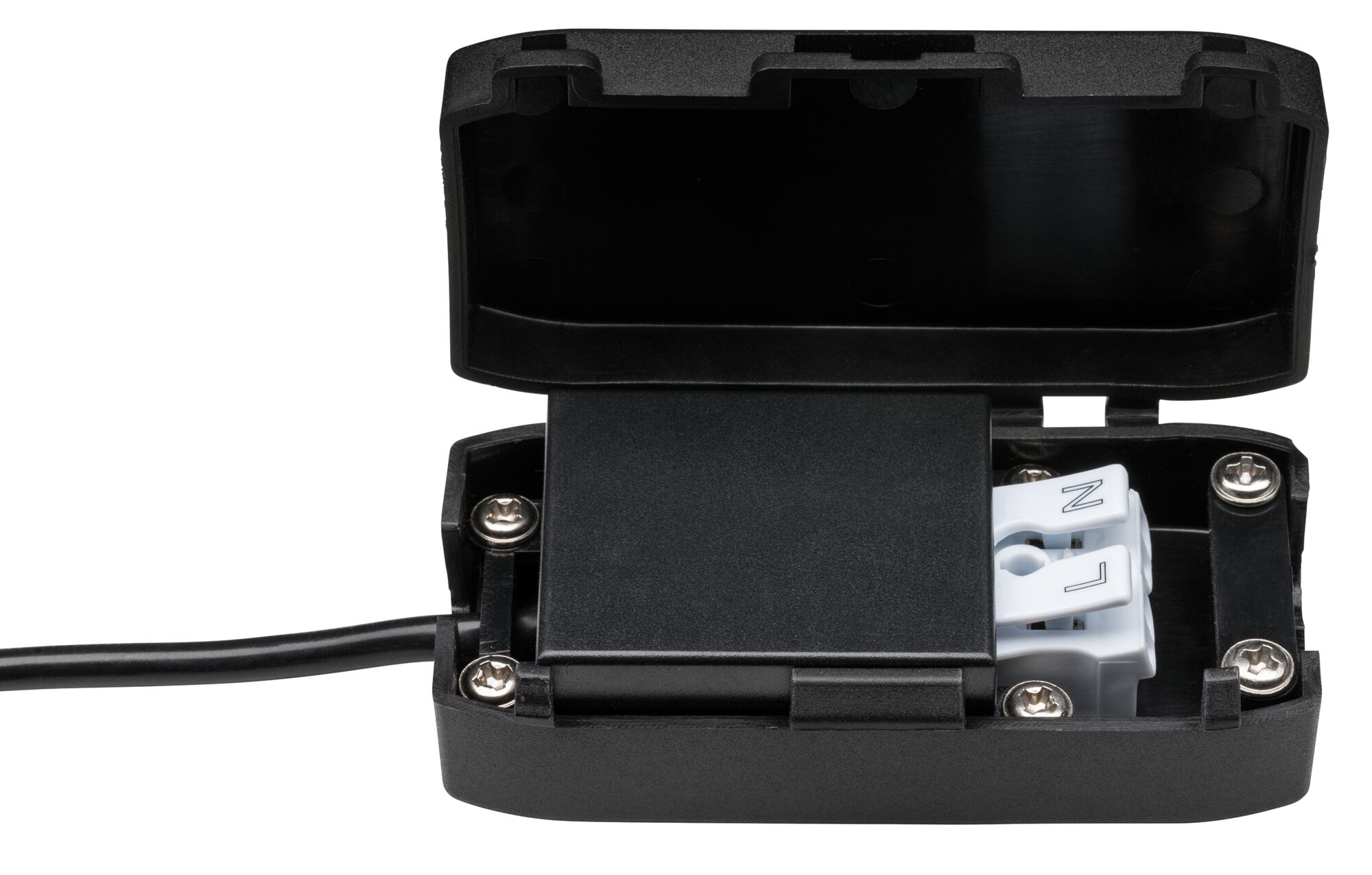

- For 230 V direct connection
- With satined protective glass

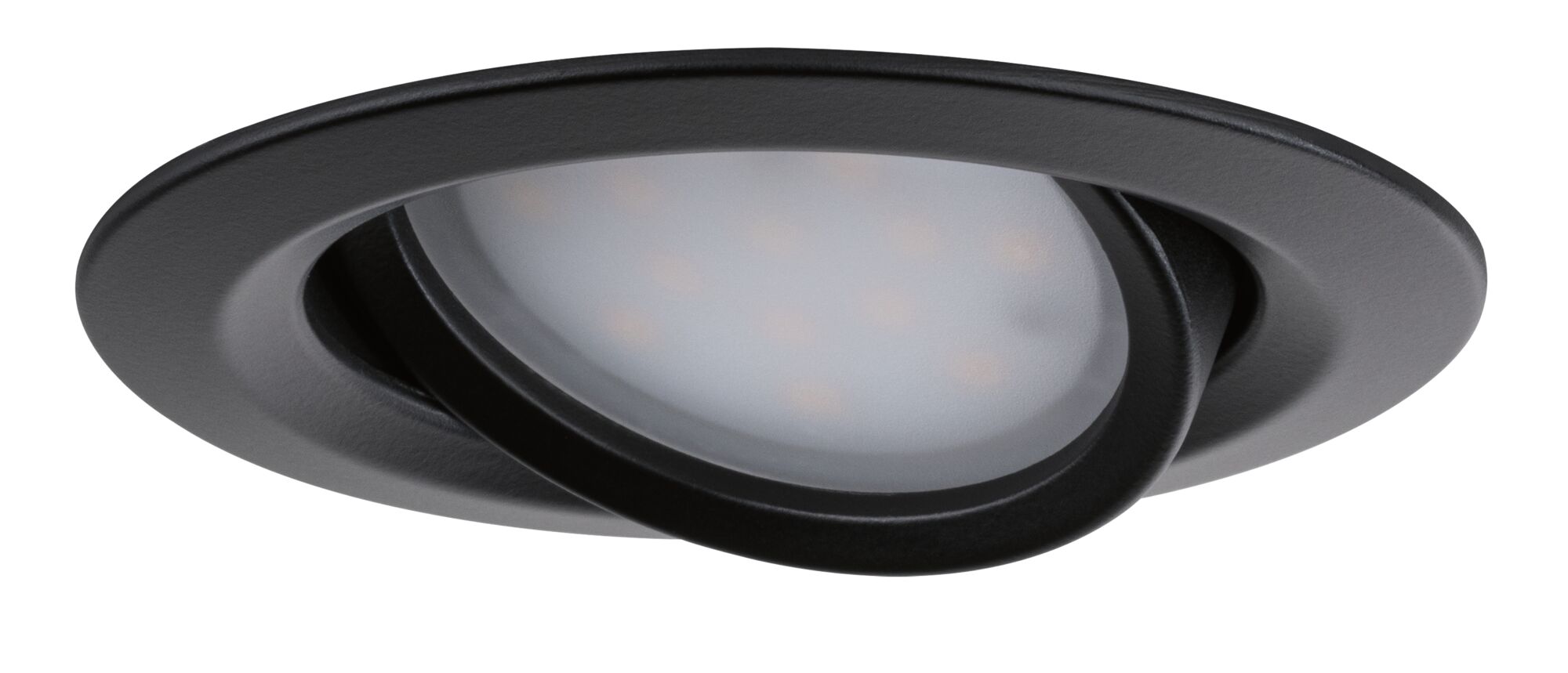

LED Recessed luminaire Nova Plus Coin Basic Set Swivelling round 84mm 50° Coin 3x6W 3x470lm 230V dimmable 2700K Black matt

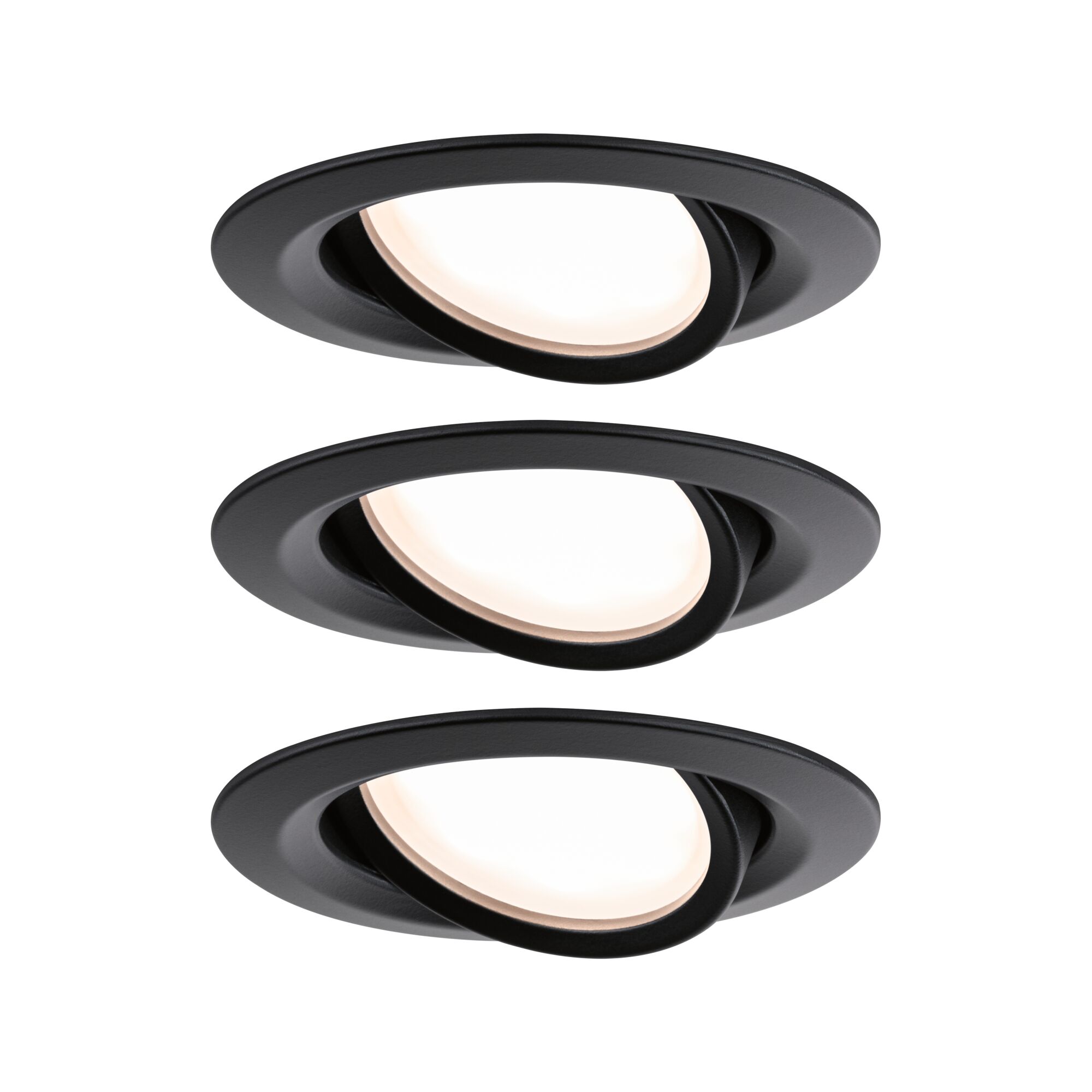

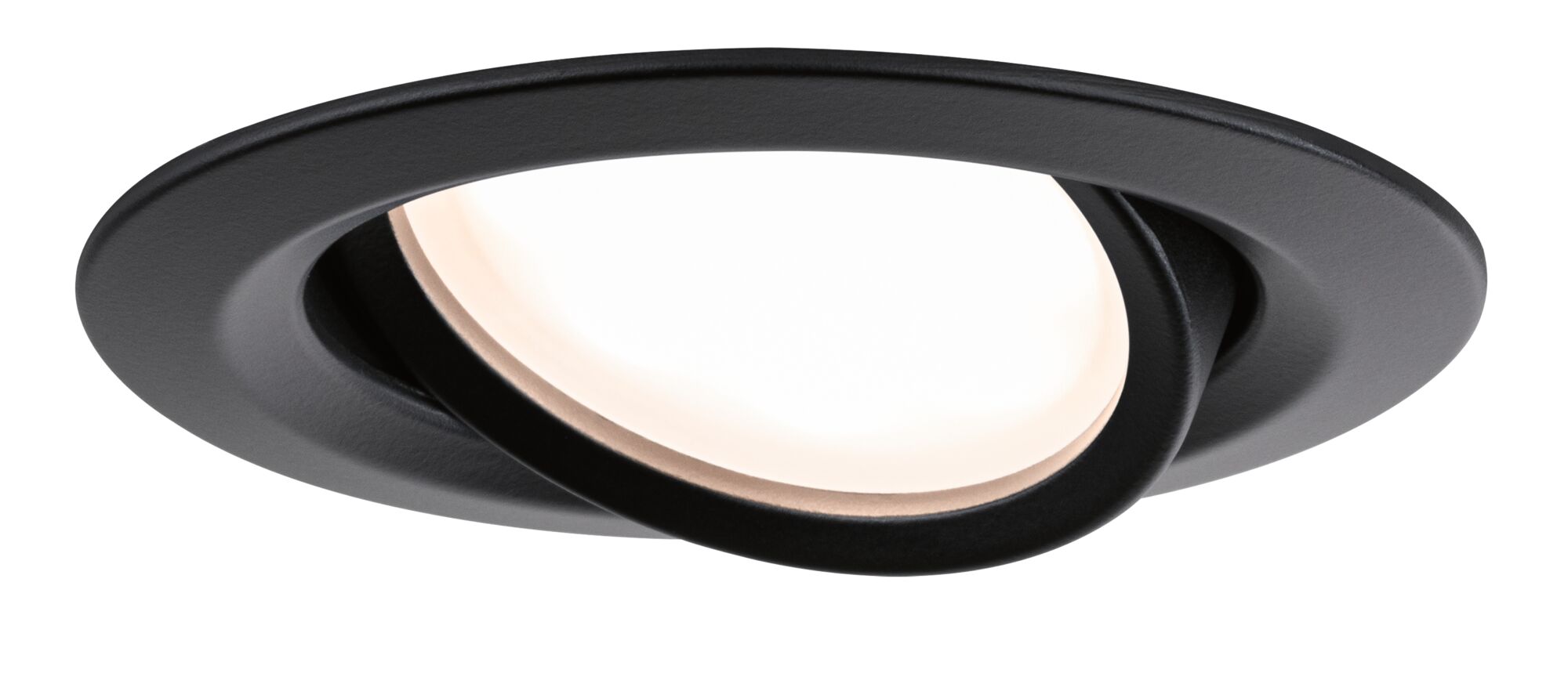

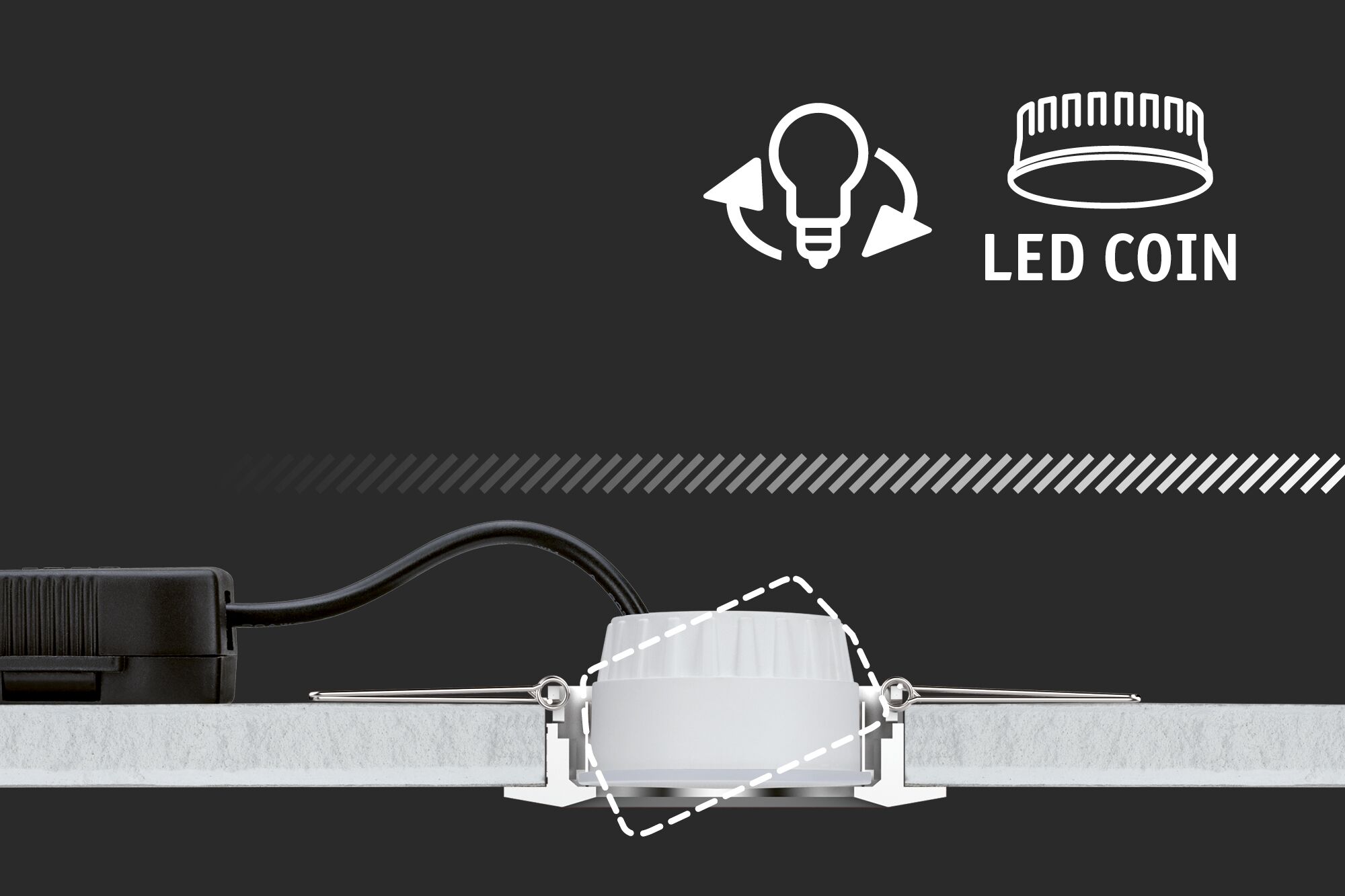

The round Nova Plus recessed luminaires (3-piece set) in Black matt with a replaceable LED coin are suitable for new installations, as well as for replacing existing installations. They are exceptionally flat, and can therefore be installed in ceilings with a cavity of only 30 millimetres. As the single luminaires can be easily linked together with quick clips, the installation is quick and easy. The dimming function lets you adjust the brightness according to your needs and emits a warm white work light and cosy mood lighting in one. Thanks to the swivelling function, the spot can be individually directed.
- Very flat – can also be mounted in small cavities of only 30 mm depth
- For 230 V direct connection
- With satined protective glass
- Color temperatur: 2700K - Warm white

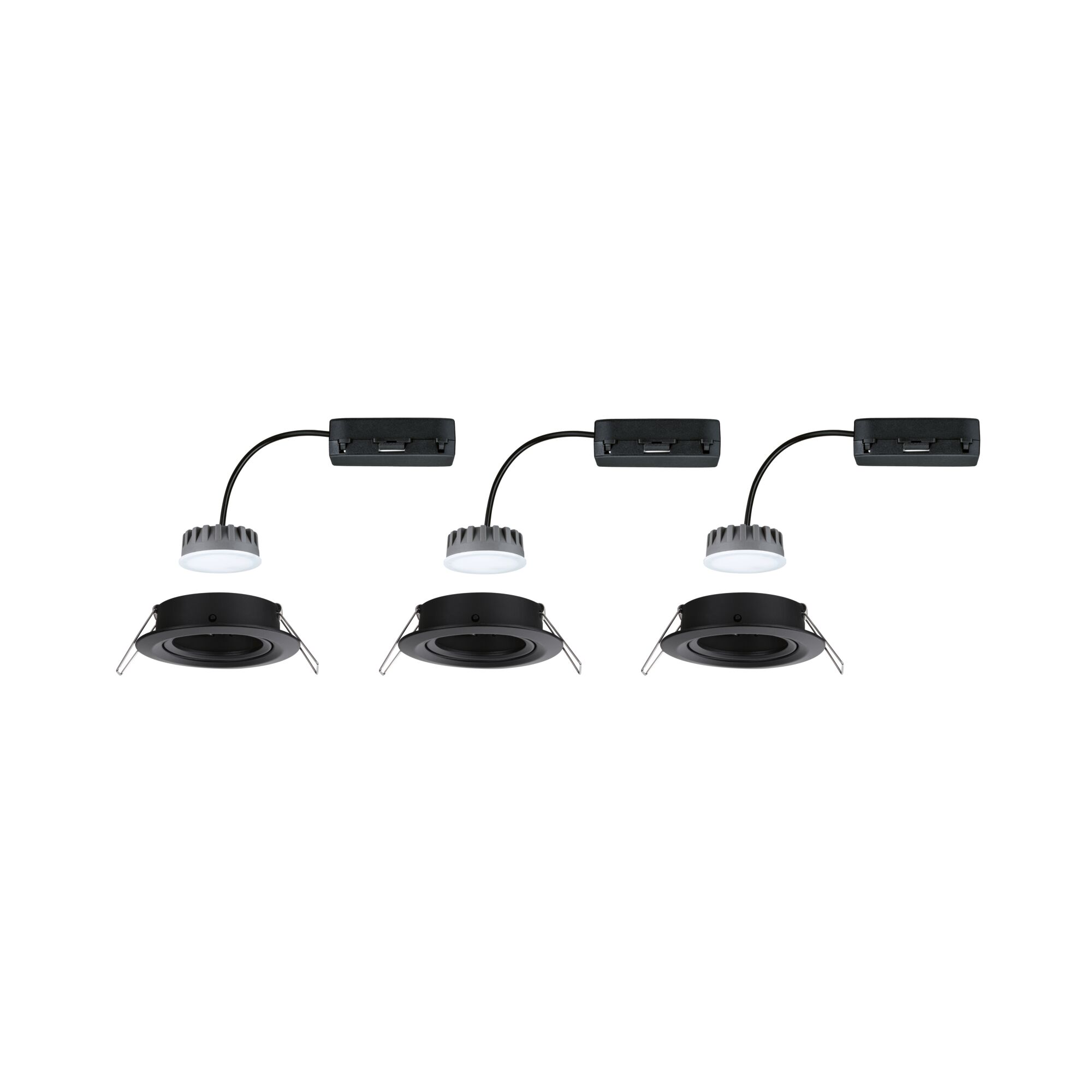

- Set of 3 luminaires incl. LED module
- IP protection: IP23 - spray-protected
- Dimmable

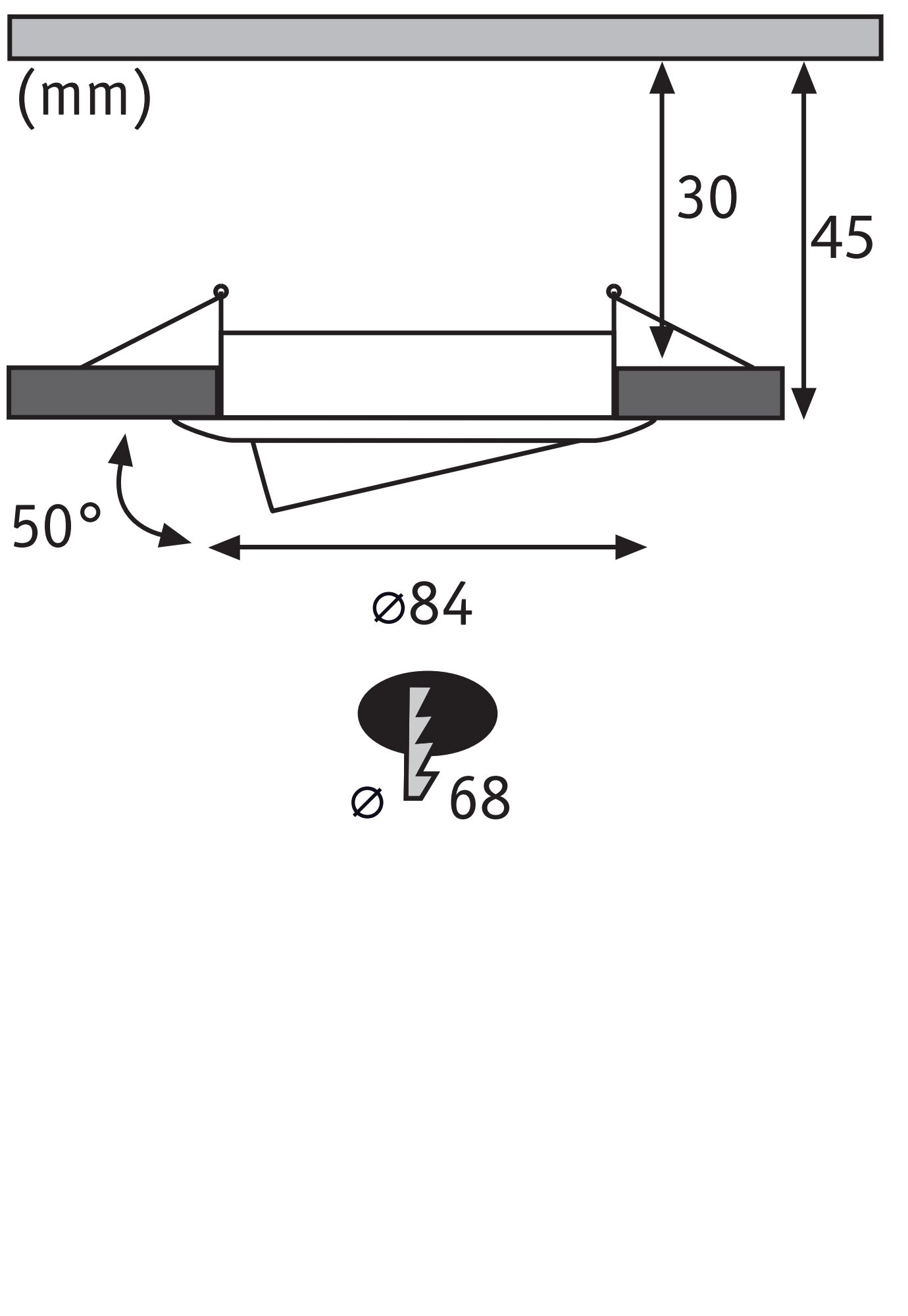

| Dimension | |
|---|---|
| Depth of hollow wall | 30 mm, 30 mm |
| Total Mounting depth | 45 mm |
| Ø | 84 mm |
| Mounting hole | 68 mm |
| Form | round |
| Design and Material | |
|---|---|
| stainless | stainless |
| Colour | Black matt |
| Material | Aluminium |
| Installation | |
|---|---|
| can be used with the following dimmers | RC Merten MEG 5136-0000, RLC Müller Paladin 873 030 LED, RC Busch-Jäger 6513U-102 |
| Energy consumption | |
|---|---|
| Energy consumption | 6 kWh_1000h |
| Energy efficiency | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| color temp | Warm white |
| Beam angle | 100 ° |
| Usable luminous flux | 470 lm |
| Color rendering index | > 80 Ra |
| Colour consistency (SDCM) | 6 |
| Lamp Features | |
|---|---|
| Component parts | 6 W |
| Swivel range | 50 ° |
| Technique | LED |
| Socket | Coin |
| Inclusive lamp | yes |
| Incandescent Equivalent | 43 W |
| Adjustability | fixed |
| Lamp property | Leuchtmittel enthalten und wechselbar |
| Dimmable | with dimmer R+C f.elect.trafos+230V bulbs |
| IP protection | IP23 ceiling mounting |
| Number of component parts | 3x |
| protection class | Protection class II |
| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
Downloads
- LED Module recessed luminaire
