Article-No.:
93680
LED Recessed luminaire
Nova Plus Coin Basic Set Swivelling
angular 84x84mm 50° Coin 3x6W 3x470lm 230V dimmable 2700K Turned aluminium
angular 84x84mm 50° Coin 3x6W 3x470lm 230V dimmable 2700K Turned aluminium
LED Recessed luminaire Nova Plus Coin Basic Set Swivelling angular 84x84mm 50° Coin 3x6W 3x470lm 230V dimmable 2700K Turned aluminium

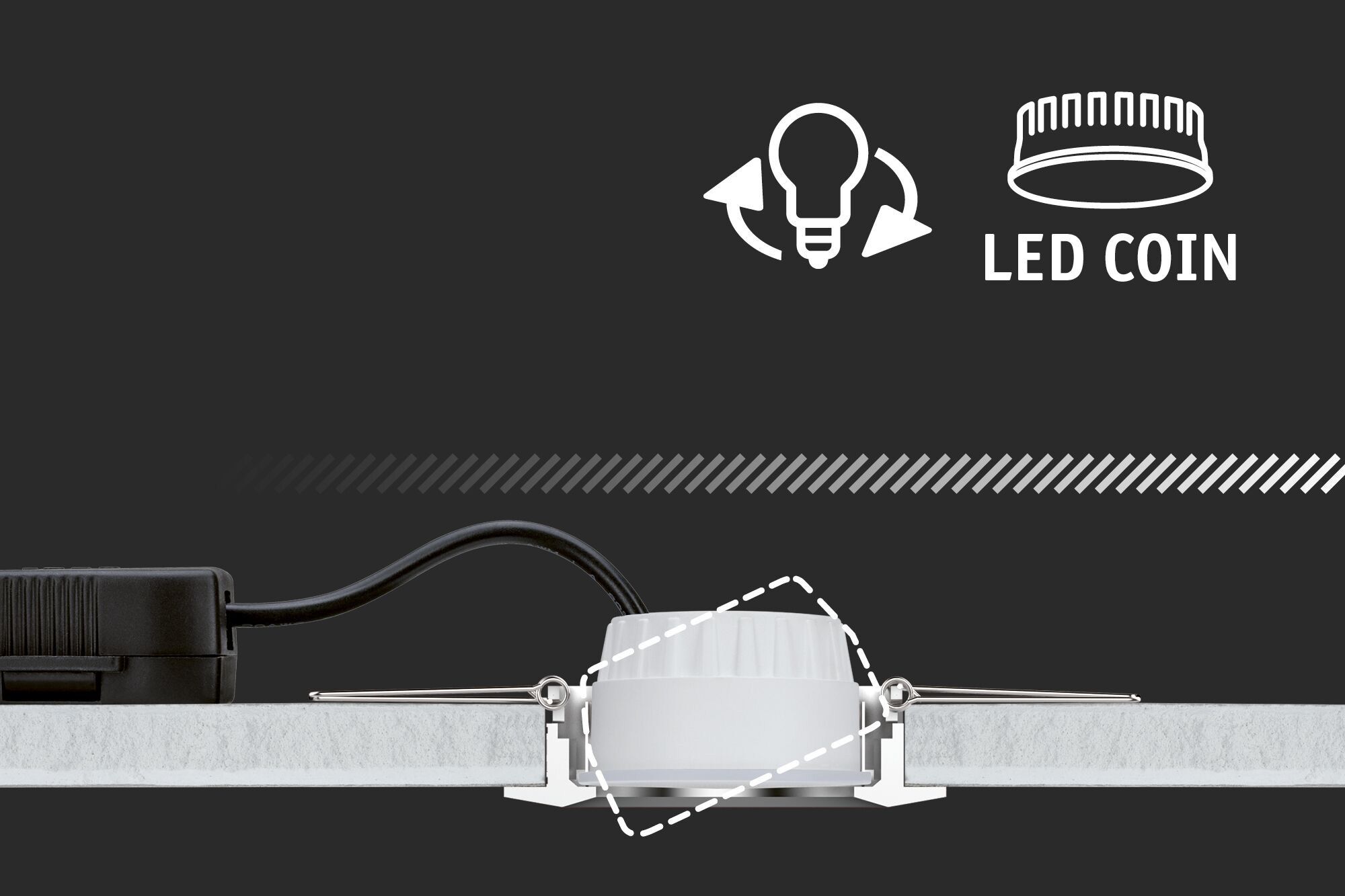

The angular Nova Plus recessed luminaires (3-piece set) in Turned aluminium with a replaceable LED coin are suitable for new installations, as well as for replacing existing installations. They are exceptionally flat, and can therefore be installed in ceilings with a cavity of only 30 millimetres. As the single luminaires can be easily linked together with quick clips, the installation is quick and easy. The dimming function lets you adjust the brightness according to your needs and emits a warm white work light and cosy mood lighting in one. Thanks to the swivelling function, the spot can be individually directed.
- Color temperatur: 2700K - Warm white
- For 230 V direct connection
| Dimension | |
|---|---|
| Depth of hollow wall | 30 mm, 30 mm |
| Total Mounting depth | 45 mm |
| Dimensions (Height x Width x Depth) | B: 84 x T: 84 mm |
| Mounting hole | 68 mm |
| Form | angular |
| Design and Material | |
|---|---|
| stainless | stainless alu |
| Colour | Turned aluminium |
| Material | Aluminium |
| Installation | |
|---|---|
| can be used with the following dimmers | RC Merten MEG 5136-0000, RLC Müller Paladin 873 030 LED |
| Installation site (recommendation) | Ceiling mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | G |
| Energy consumption | 6 kWh_1000h |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| color temp | Warm white |
| Beam angle | 120 ° |
| Usable luminous flux | 470 lm |
| Colour consistency (SDCM) | 6 |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 6 W |
| Swivel range | 50 ° |
| Technique | LED |
| Socket | Coin |
| Inclusive lamp | yes |
| Incandescent Equivalent | 43 W |
| Adjustability | swivelling/tilting |
| Dimmable | with dimmer R+C f.elect.trafos+230V bulbs |
| IP protection | IP23 ceiling mounting |
| Number of component parts | 3x |
| protection class | protection class II |
| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
