Article-No.:
93450
LED Recessed luminaire
Nova Coin Single Luminaire Swivelling
round 84mm 50° Coin 6W 470lm 230V 2700K Turned aluminium
round 84mm 50° Coin 6W 470lm 230V 2700K Turned aluminium
- For 230 V direct connection
- Color temperatur: 2700K - Warm white
- Incl. replaceable LED lamp
LED Recessed luminaire Nova Coin Single Luminaire Swivelling round 84mm 50° Coin 6W 470lm 230V 2700K Turned aluminium

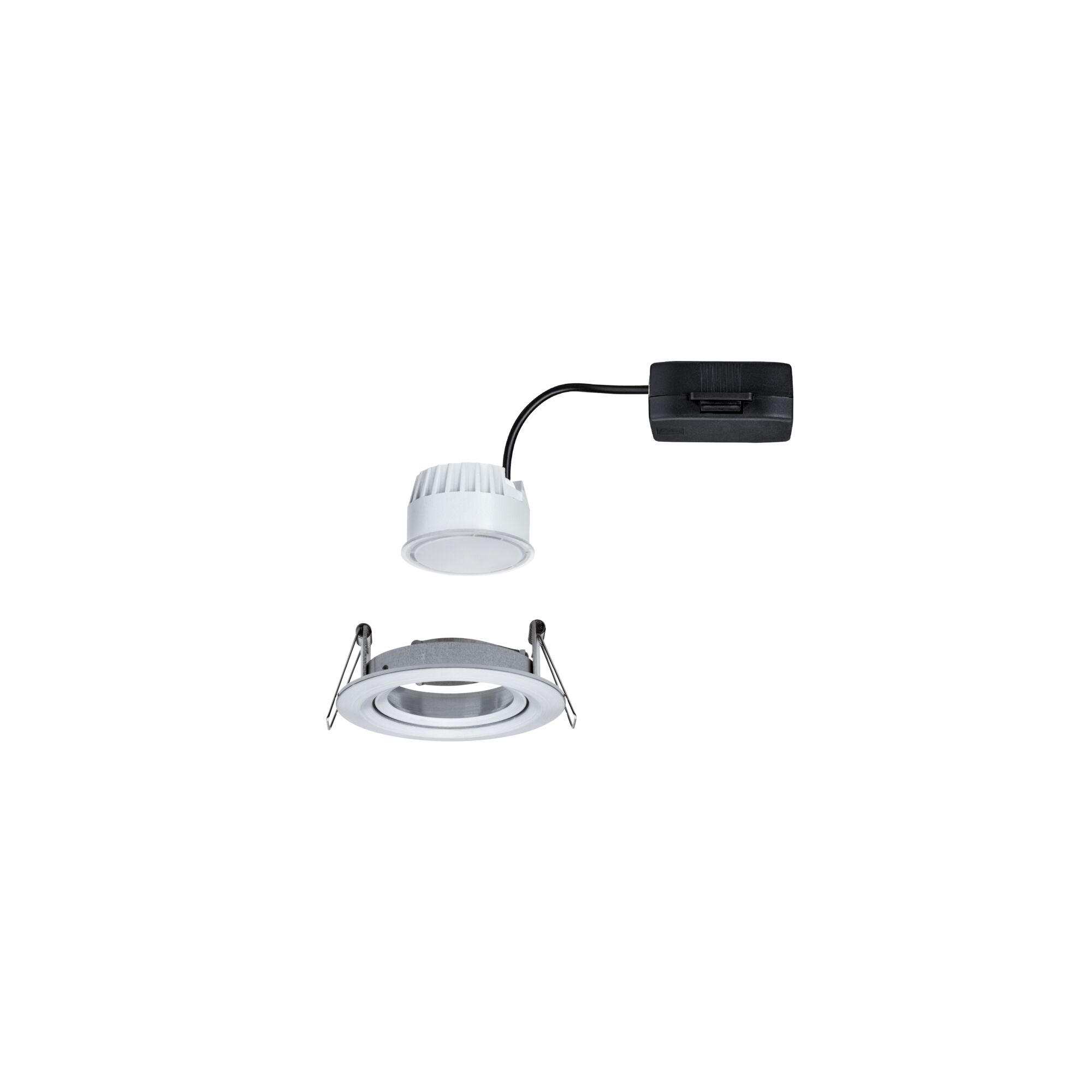

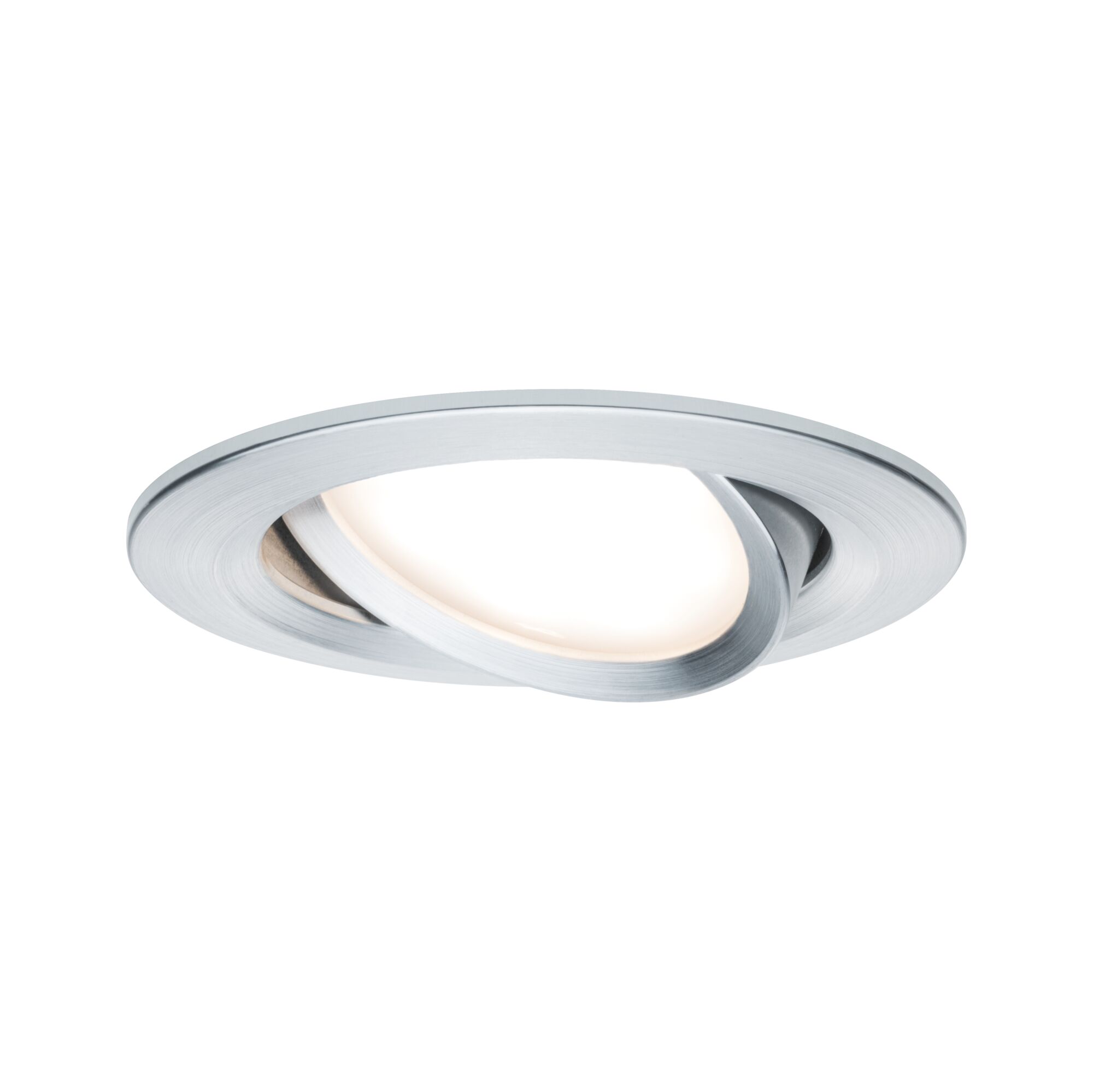

The round Nova recessed luminaire (3-piece set) in Turned aluminium with a replaceable LED coin is suitable for new installations, as well as for replacing existing installations. It is exceptionally flat, and can therefore be installed in ceilings with a cavity of only 30 millimetres. As the single luminaires can be easily linked together with quick clips, the installation is quick and easy. The spot emits both a warm white work light and cosy feel-good lighting in one. Thanks to the swivelling function, the spot can be individually directed.
- For 230 V direct connection
- Color temperatur: 2700K - Warm white
- Incl. replaceable LED lamp
| Dimension | |
|---|---|
| Depth of hollow wall | 30 mm, 30 mm |
| Total Mounting depth | 45 mm |
| Ø | 84 mm |
| Mounting hole | 68 mm |
| Form | round |
| Design and Material | |
|---|---|
| stainless | stainless alu |
| Colour | Turned aluminium |
| Material | Aluminium |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | G |
| Energy consumption | 7 kWh_1000h |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| Beam angle | 100 ° |
| Usable luminous flux | 470 lm |
| color temp | 2700 K |
| colour consistency | SDCM 6 |
| Color rendering index | > 85 Ra |
| Lamp Features | |
|---|---|
| Component parts | 6 W |
| Swivel range | 50 ° |
| Technique | LED |
| Socket | Coin |
| IP protection | IP23 ceiling mounting |
| Dimmable | No |
| Inclusive lamp | yes |
| Incandescent Equivalent | 40 W |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
