Article-No.:
93461

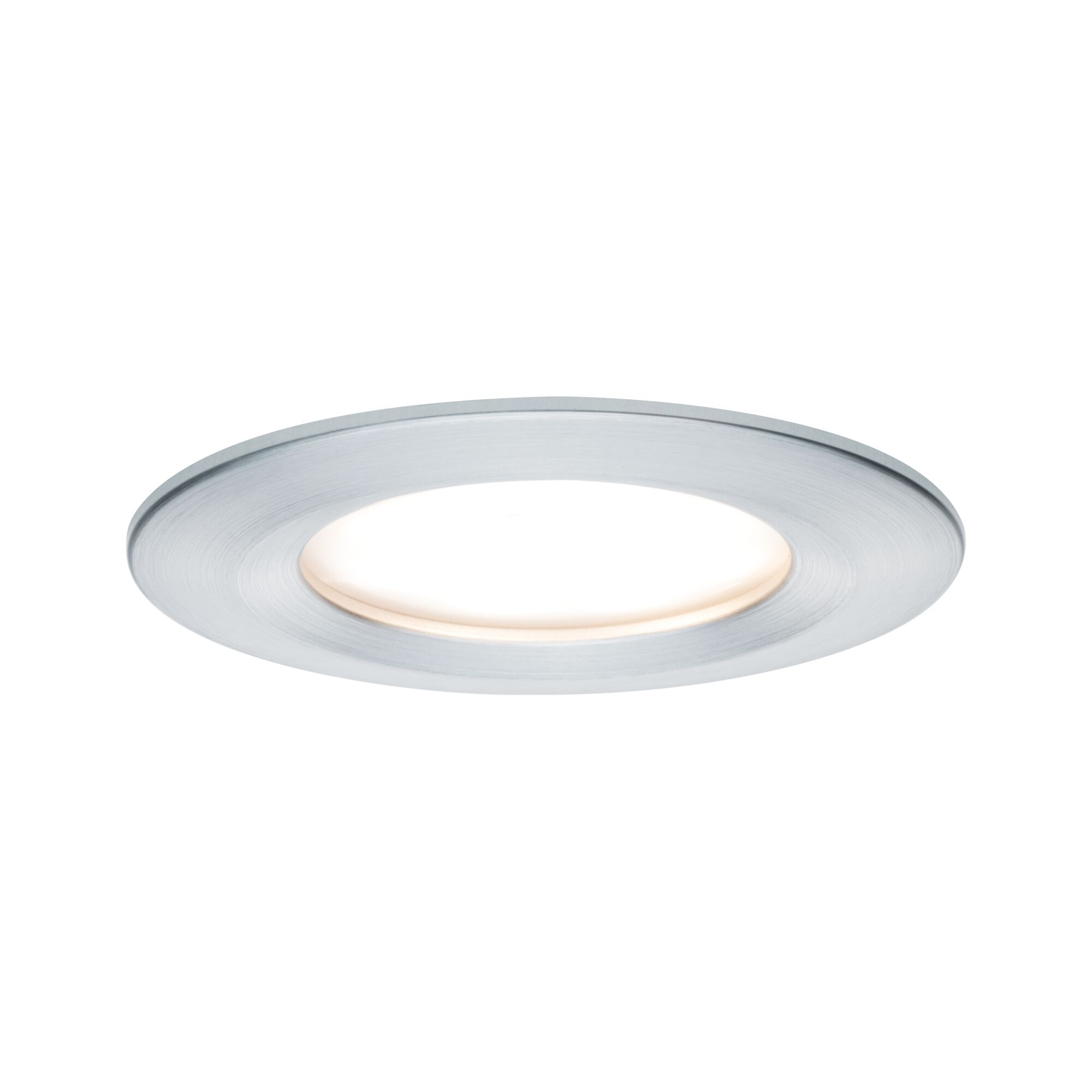

LED Recessed luminaire
Nova Coin Single Luminaire Rigid
IP44 round 78mm Coin 6W 470lm 230V 2700K Turned aluminium
IP44 round 78mm Coin 6W 470lm 230V 2700K Turned aluminium
- For 230 V direct connection
- Color temperatur: 2700K - Warm white
- Incl. replaceable LED lamp
LED Recessed luminaire Nova Coin Single Luminaire Rigid IP44 round 78mm Coin 6W 470lm 230V 2700K Turned aluminium

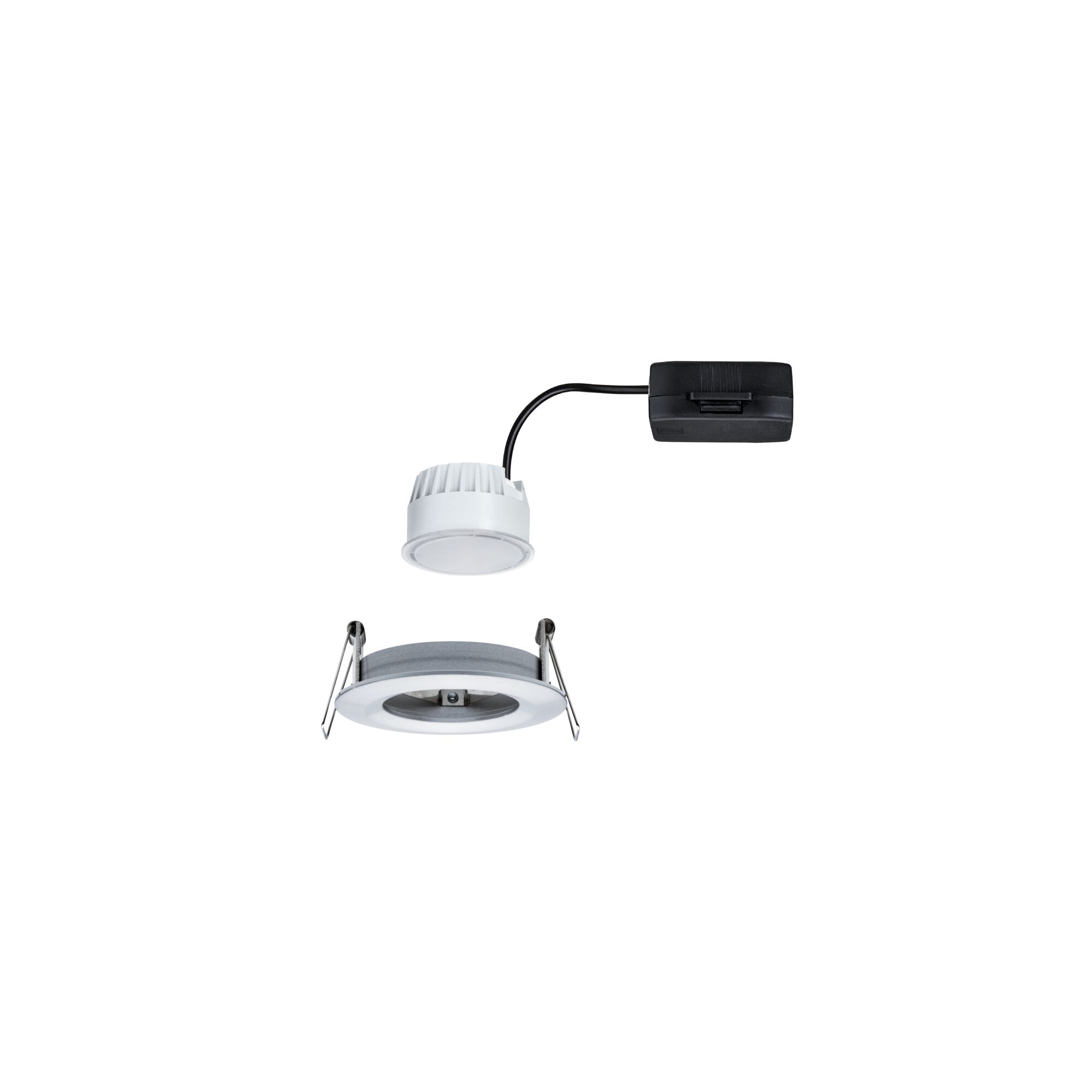

The round Nova recessed luminaire (3-piece set) in Turned aluminium with a replaceable LED coin is suitable for new installations, as well as for replacing existing installations. It is exceptionally flat, and can therefore be installed in ceilings with a cavity of only 30 millimetres. As the single luminaires can be easily linked together with quick clips and without any tools, the installation will be really quick and easy. The luminaire even provides cosy lighting in the kitchen and bathroom, thanks to its IP44 splash protection.
- For 230 V direct connection
- Color temperatur: 2700K - Warm white
- Incl. replaceable LED lamp
| Dimension | |
|---|---|
| Depth of hollow wall | 30 mm, 30 mm |
| Total Mounting depth | 45 mm |
| Ø | 78 mm |
| Mounting hole | 68 mm |
| Form | round |
| Design and Material | |
|---|---|
| stainless | stainless alu |
| Colour | Turned aluminium |
| Material | Aluminium |
| Energy consumption | |
|---|---|
| Energy consumption | 7 kWh_1000h |
| Energy efficiency | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| color temp | Warm white |
| Beam angle | 100 ° |
| Usable luminous flux | 470 lm |
| Color rendering index | > 85 Ra |
| Colour consistency (SDCM) | 6 |
| Lamp Features | |
|---|---|
| Component parts | 6 W |
| Technique | LED |
| Socket | Coin |
| Inclusive lamp | yes |
| Incandescent Equivalent | 40 W |
| Adjustability | fixed |
| Dimmable | No |
| IP protection | IP44 ceiling mounting |
| Number of component parts | 1x |
| protection class | Protection class II |
| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
Downloads
- LED Module recessed luminaire
