Article-No.:
92238
LED Recessed luminaire
Lanati Individual Spot
round 84mm 30° Coin 6W 470lm 230V 2700K Oiled oak colour tone/Black matt
round 84mm 30° Coin 6W 470lm 230V 2700K Oiled oak colour tone/Black matt
LED Recessed luminaire Lanati Individual Spot round 84mm 30° Coin 6W 470lm 230V 2700K Oiled oak colour tone/Black matt

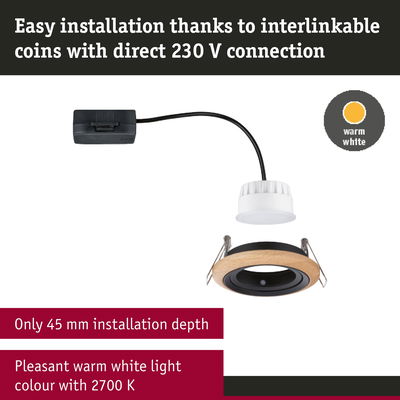

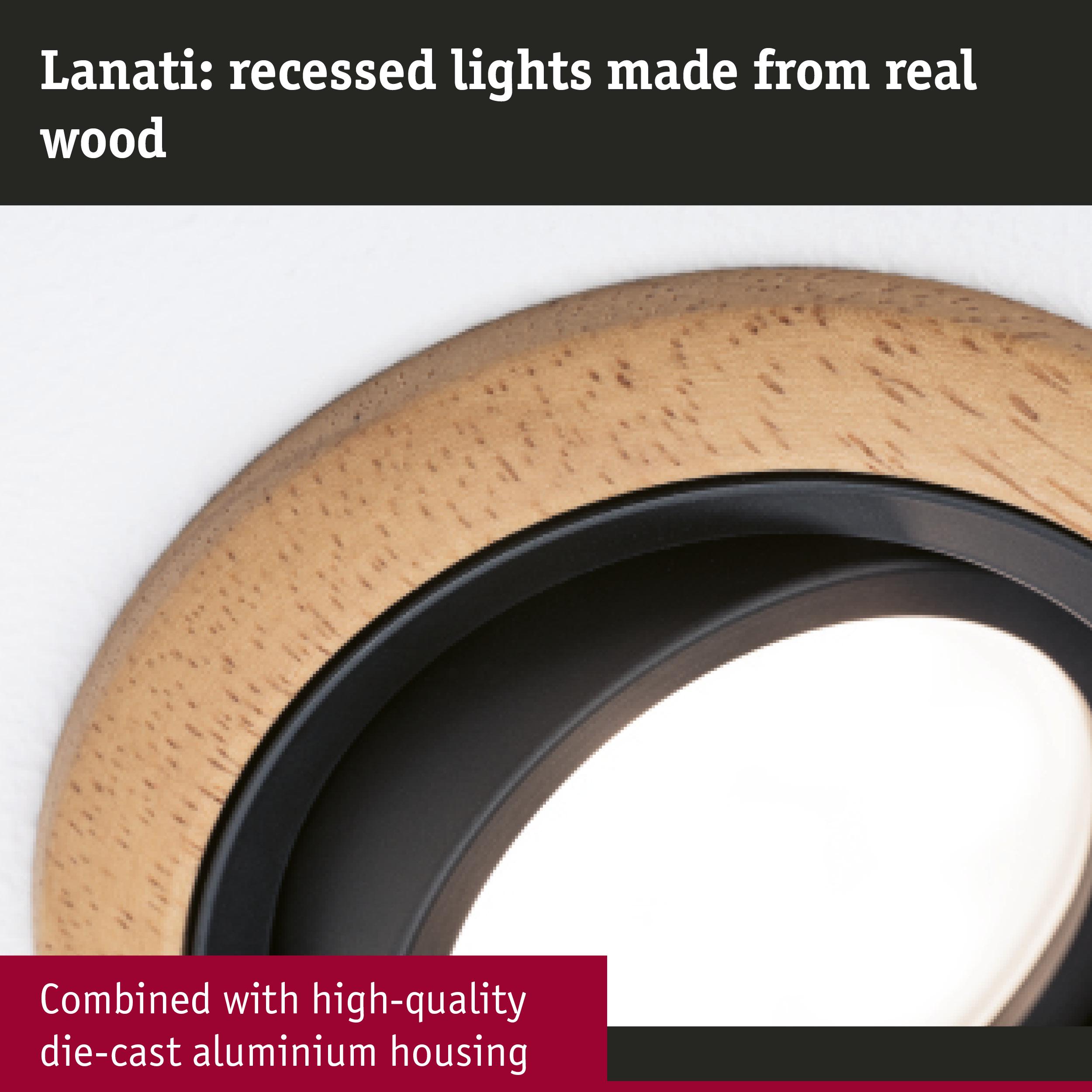

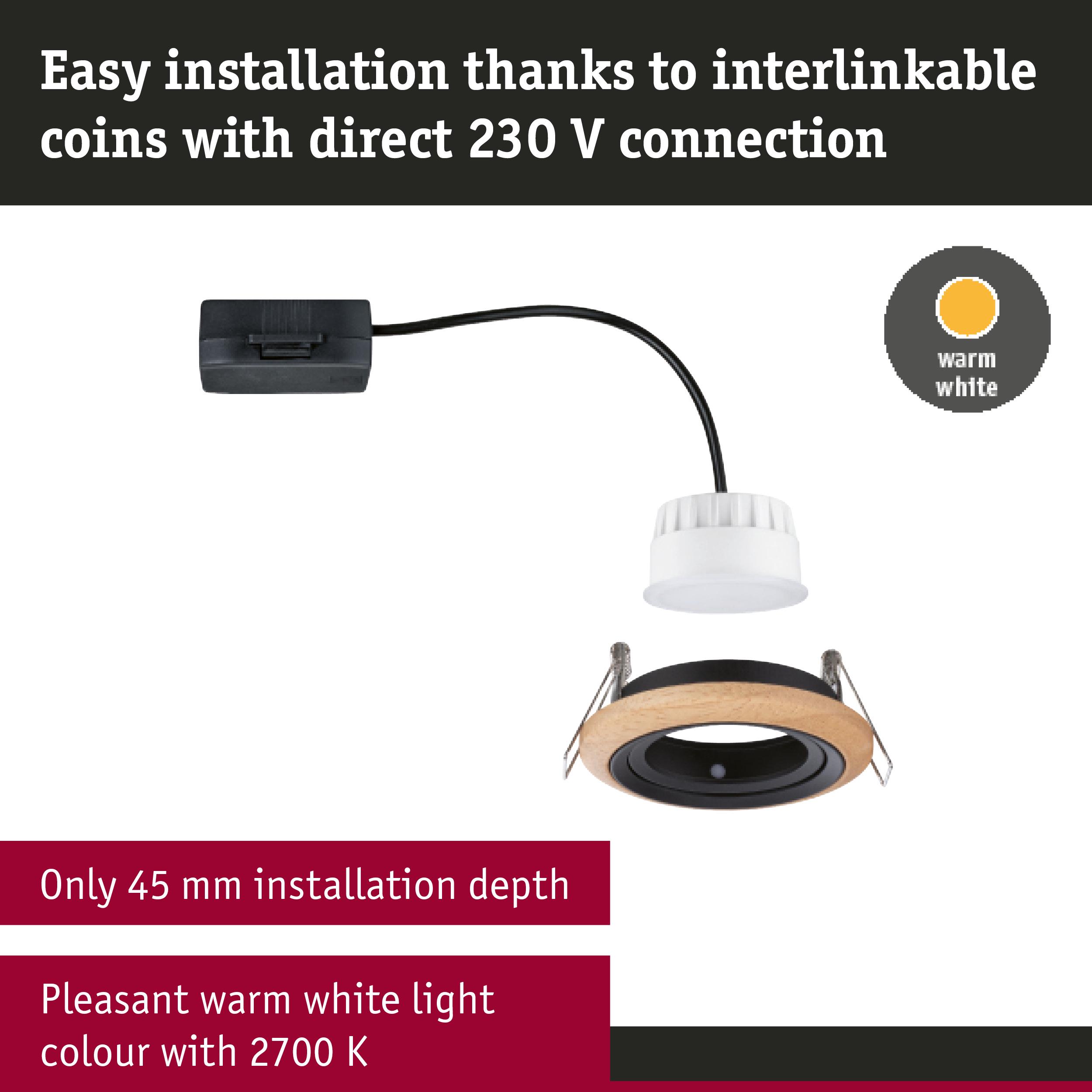

The Lanati recessed luminaire in Oiled oak colour tone/Black matt is the perfect solution for custom lighting. The swivelling spot allows for simple alignment of the illumination to bring light where you want it. The oak wood used in the luminaire design lends it an authentic look, while the gentle warm white light colour at 2700K ensures an inviting ambience. Its comparatively small installation depth of just 45mm and the standard installation diameter of 68mm makes this luminaire easy to install. The linkable coin permits a 230V direct connection.
- Minimal installation depth (45 mm)
- FSC certified
- swivelling
- Color temperatur: 2700K - Warm white
- Easy to install
- Standard installation diameter (68 mm)
- Linkable coins for direct 230V connections
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 36 mm |
| Diameter | 84 mm |
| Built-in diameter | 68 mm |
| Mounting depth | 45 mm |
| Depth of hollow wall | 30 mm |
| Design and Material | |
|---|---|
| Form | round |
| Colour | Oiled oak colour tone, Black matt |
| Material | Rubber tree, Aluminium |
| Recycled material included | no |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 2700 K |
| Nominal luminous flux | 470 lm |
| Color rendering index | > 80 Ra |
| Beam angle | 120 ° |
| Lamp Features | |
|---|---|
| Dimmable | No |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel enthalten und wechselbar |
| Swivel range | 30 ° |
| Incandescent Equivalent | 43 W |
| IP protection | IP20 |
| Protection class | Protection class II |
| Base/Socket | Coin |
| Technique | LED |
| Component parts | 6 W |
| Number of component parts | 1x |
| Adjustability | swivelling/tilting |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| FSC® | |
|---|---|
| FSC® | FSC® certified |
| FSC® Statement | FSC 100% |
| FSC® Wood type | Hevea brasiliensis (Pará Rubber Tree) |
| FSC® Product type | W18.8 Zier- und Dekorationsgegenstände |
Downloads
- LED Module recessed luminaire
