Article-No.:
92970
LED Recessed luminaireEasy Dim
Nova Mini Plus Coin Single Luminaire Swivelling
round 66mm 15° Coin 4,2W 300lm 230V dimmable 2700K Matt white
round 66mm 15° Coin 4,2W 300lm 230V dimmable 2700K Matt white

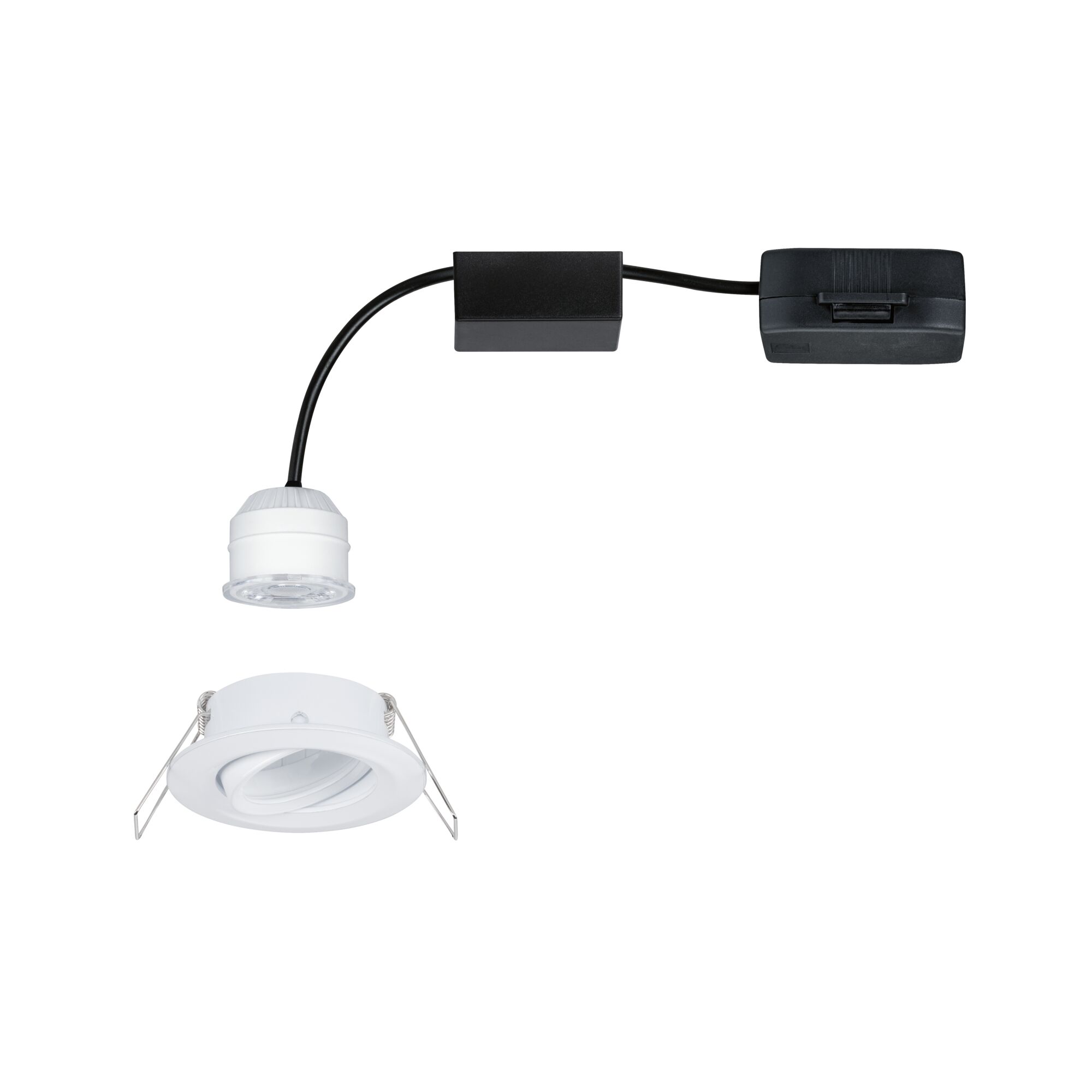

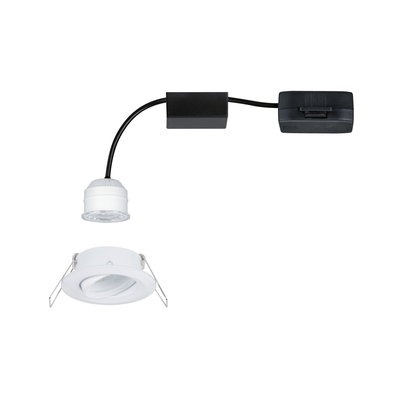

- Set of 1 luminaire incl. LED module
- Color temperatur: 2700K - Warm white

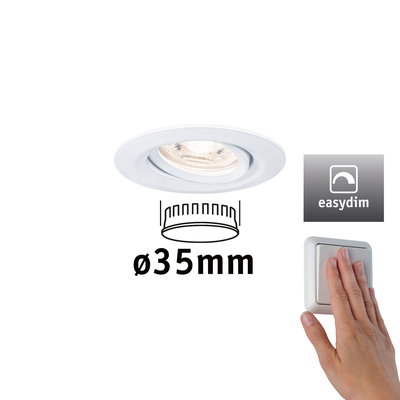

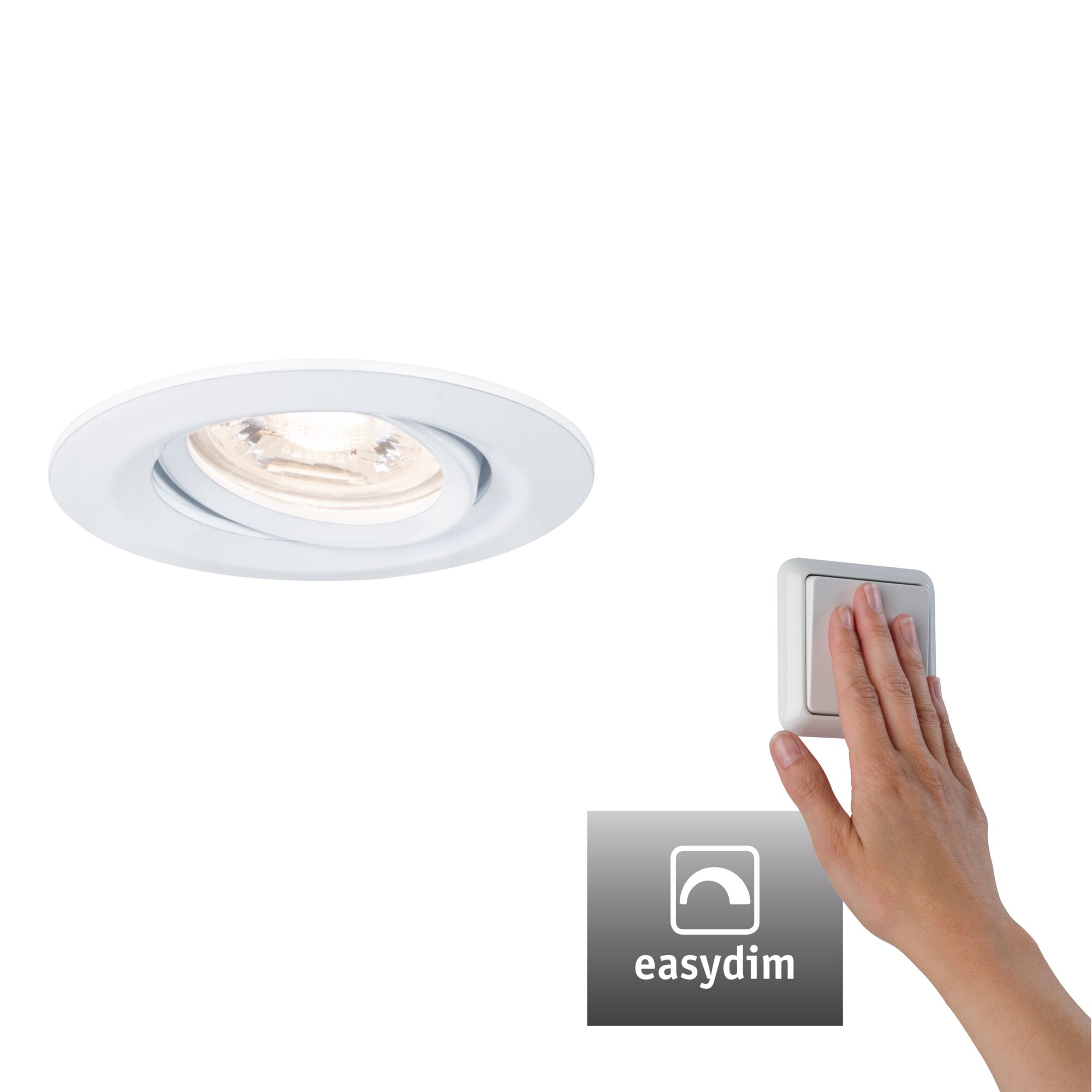

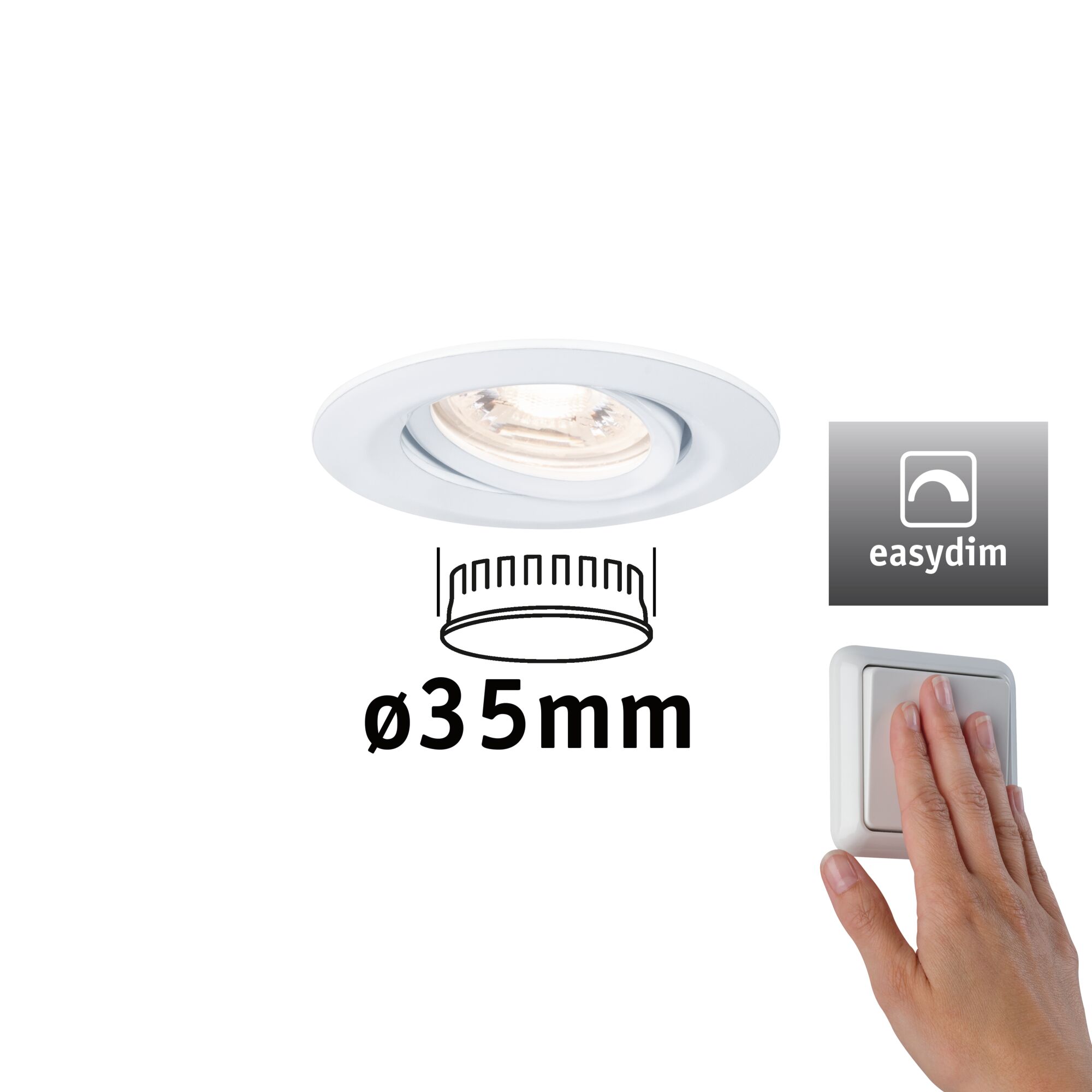

- EasyDim – continuous dimming via an existing wall switch
LED Recessed luminaire Easy Dim Nova Mini Plus Coin Single Luminaire Swivelling round 66mm 15° Coin 4,2W 300lm 230V dimmable 2700K Matt white

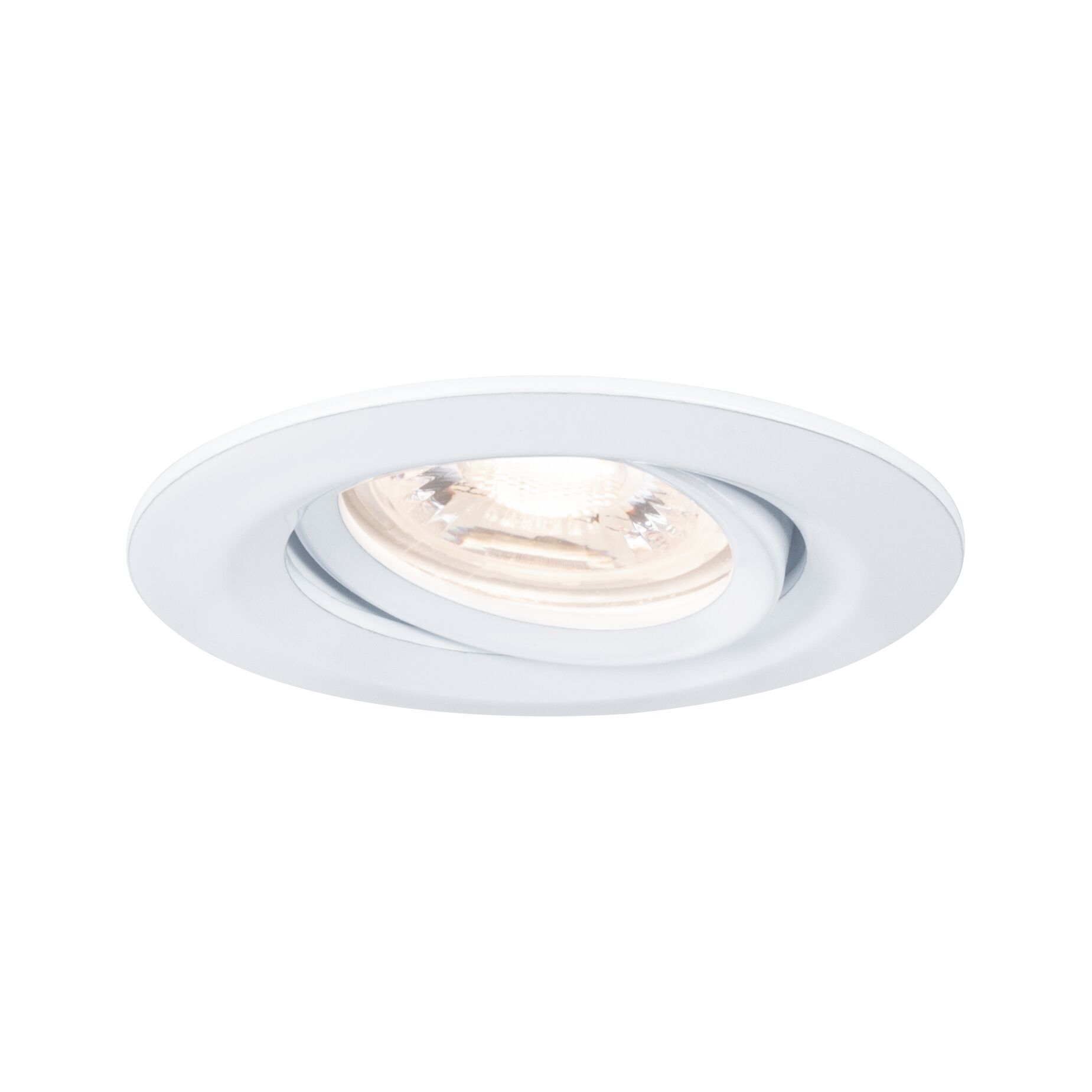

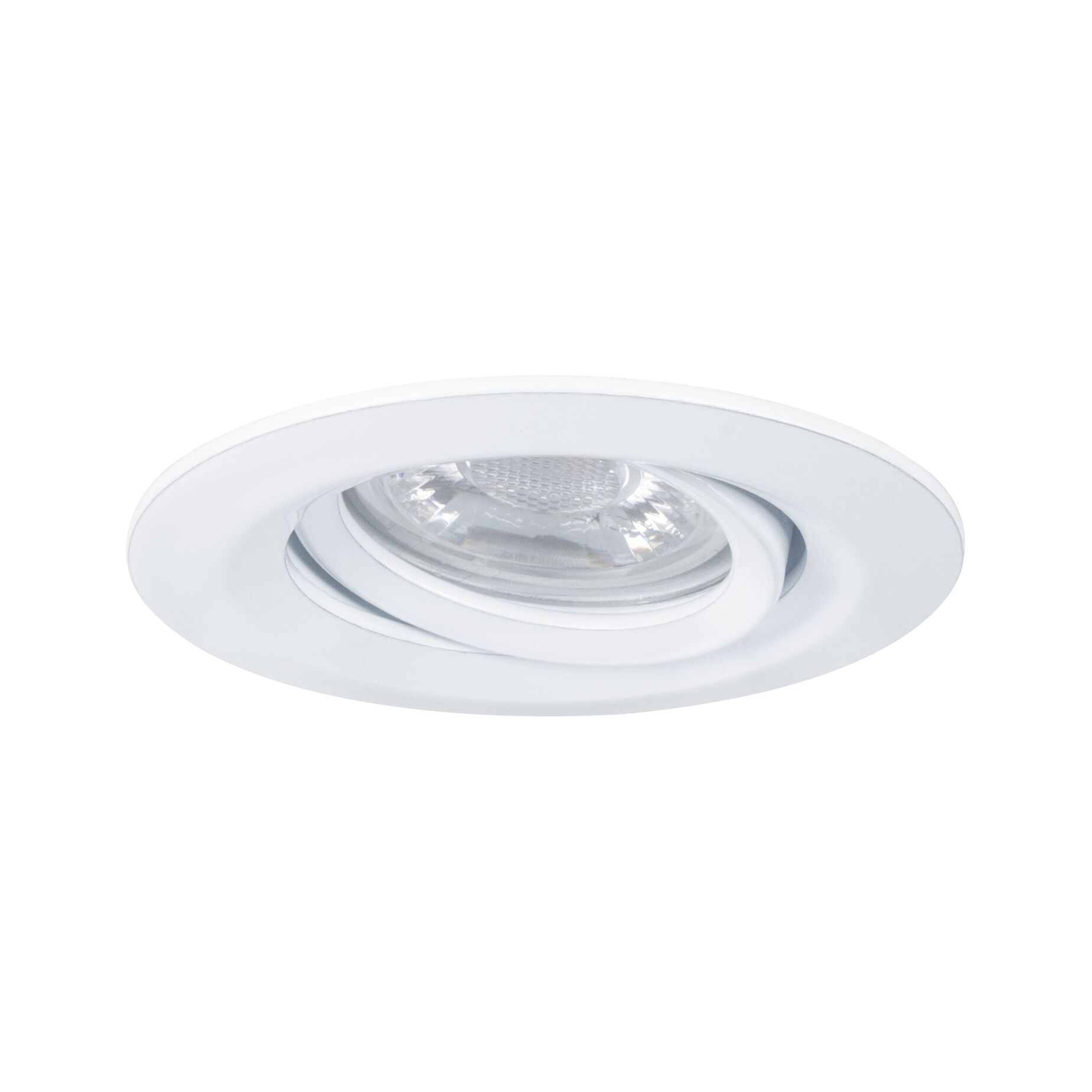

The swivelling recessed luminaire Nova mini in the colour Matt white offers whole new possibilities, thanks to its reduced size. The integrated EasyDim function enables continuous dimming via a regular commercial light switch. It is suitable for conservatories, spot lighting, bar counters and beam cladding. The unique 35 mm Coin is exchangeable, flat and can be linked unlimited times.
- Set of 1 luminaire incl. LED module
- Color temperatur: 2700K - Warm white
- EasyDim – continuous dimming via an existing wall switch
- For 230 V direct connection
| Dimension | |
|---|---|
| Depth of hollow wall | 35 mm, 35 mm |
| Total Mounting depth | 50 mm |
| Ø | 66 mm |
| Mounting hole | 54 mm |
| Form | round |
| Design and Material | |
|---|---|
| Colour | Matt white |
| Material | Aluminium |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | G |
| Energy consumption | 5 kWh_1000h |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| color temp | 2700 K |
| Farbtemperatur_Text | Warmweiß |
| Beam angle | 38 ° |
| Usable luminous flux | 300 lm |
| colour consistency | SDCM 6 |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 4,2 W |
| Swivel range | 15 ° |
| Technique | LED |
| Socket | Coin |
| IP protection | IP23 |
| Dim | EasyDim |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Incandescent Equivalent | 28 W |
| Adjustability | swivelling/tilting |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 4,2 W |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
