Nova Mini
Article-No.: 92974

LED Recessed luminaire Nova Mini Plus Coin Single luminaire Swivelling

round 66mm 15° Coin 4,2W 300lm 230V dimmable 2700K Aluminium

LED Recessed luminaire Easy Dim Nova Mini Plus Coin Single luminaire Swivelling round 66mm 15° Coin 4,2W 300lm 230V dimmable 2700K Aluminium
LED Recessed luminaire Easy Dim Nova Mini Plus Coin Single luminaire Swivelling round 66mm 15° Coin 4,2W 300lm 230V dimmable 2700K Aluminium
LED Recessed luminaire Easy Dim Nova Mini Plus Coin Single luminaire Swivelling round 66mm 15° Coin 4,2W 300lm 230V dimmable 2700K Aluminium
LED Recessed luminaire Easy Dim Nova Mini Plus Coin Single luminaire Swivelling round 66mm 15° Coin 4,2W 300lm 230V dimmable 2700K Aluminium
LED Recessed luminaire Easy Dim Nova Mini Plus Coin Single luminaire Swivelling round 66mm 15° Coin 4,2W 300lm 230V dimmable 2700K Aluminium
LED Recessed luminaire Easy Dim Nova Mini Plus Coin Single luminaire Swivelling round 66mm 15° Coin 4,2W 300lm 230V dimmable 2700K Aluminium
LED Recessed luminaire Easy Dim Nova Mini Plus Coin Single luminaire Swivelling round 66mm 15° Coin 4,2W 300lm 230V dimmable 2700K Aluminium
LED Recessed luminaire Easy Dim Nova Mini Plus Coin Single luminaire Swivelling round 66mm 15° Coin 4,2W 300lm 230V dimmable 2700K Aluminium
LED Recessed luminaire Easy Dim Nova Mini Plus Coin Single luminaire Swivelling round 66mm 15° Coin 4,2W 300lm 230V dimmable 2700K Aluminium
LED Recessed luminaire Easy Dim Nova Mini Plus Coin Single luminaire Swivelling round 66mm 15° Coin 4,2W 300lm 230V dimmable 2700K Aluminium
LED Recessed luminaire Easy Dim Nova Mini Plus Coin Single luminaire Swivelling round 66mm 15° Coin 4,2W 300lm 230V dimmable 2700K Aluminium
LED Recessed luminaire Easy Dim Nova Mini Plus Coin Single luminaire Swivelling round 66mm 15° Coin 4,2W 300lm 230V dimmable 2700K Aluminium
LED Recessed luminaire Easy Dim Nova Mini Plus Coin Single luminaire Swivelling round 66mm 15° Coin 4,2W 300lm 230V dimmable 2700K Aluminium
LED Recessed luminaire Easy Dim Nova Mini Plus Coin Single luminaire Swivelling round 66mm 15° Coin 4,2W 300lm 230V dimmable 2700K Aluminium
LED Recessed luminaire Easy Dim Nova Mini Plus Coin Single luminaire Swivelling round 66mm 15° Coin 4,2W 300lm 230V dimmable 2700K Aluminium
LED Recessed luminaire Easy Dim Nova Mini Plus Coin Single luminaire Swivelling round 66mm 15° Coin 4,2W 300lm 230V dimmable 2700K Aluminium
LED Recessed luminaire Easy Dim Nova Mini Plus Coin Single luminaire Swivelling round 66mm 15° Coin 4,2W 300lm 230V dimmable 2700K Aluminium
LED Recessed luminaire Easy Dim Nova Mini Plus Coin Single luminaire Swivelling round 66mm 15° Coin 4,2W 300lm 230V dimmable 2700K Aluminium
LED Recessed luminaire Easy Dim Nova Mini Plus Coin Single luminaire Swivelling round 66mm 15° Coin 4,2W 300lm 230V dimmable 2700K Aluminium
LED Recessed luminaire Easy Dim Nova Mini Plus Coin Single luminaire Swivelling round 66mm 15° Coin 4,2W 300lm 230V dimmable 2700K Aluminium
LED Recessed luminaire Easy Dim Nova Mini Plus Coin Single luminaire Swivelling round 66mm 15° Coin 4,2W 300lm 230V dimmable 2700K Aluminium
LED Recessed luminaire Easy Dim Nova Mini Plus Coin Single luminaire Swivelling round 66mm 15° Coin 4,2W 300lm 230V dimmable 2700K Aluminium
Version: Single luminaire
Colour: Aluminium

  • Set of 1 luminaire incl. LED module
  • Color temperatur: 2700K - Warm white
  • EasyDim – continuous dimming via an existing wall switch

LED Recessed luminaire Easy Dim Nova Mini Plus Coin Single luminaire Swivelling round 66mm 15° Coin 4,2W 300lm 230V dimmable 2700K Aluminium

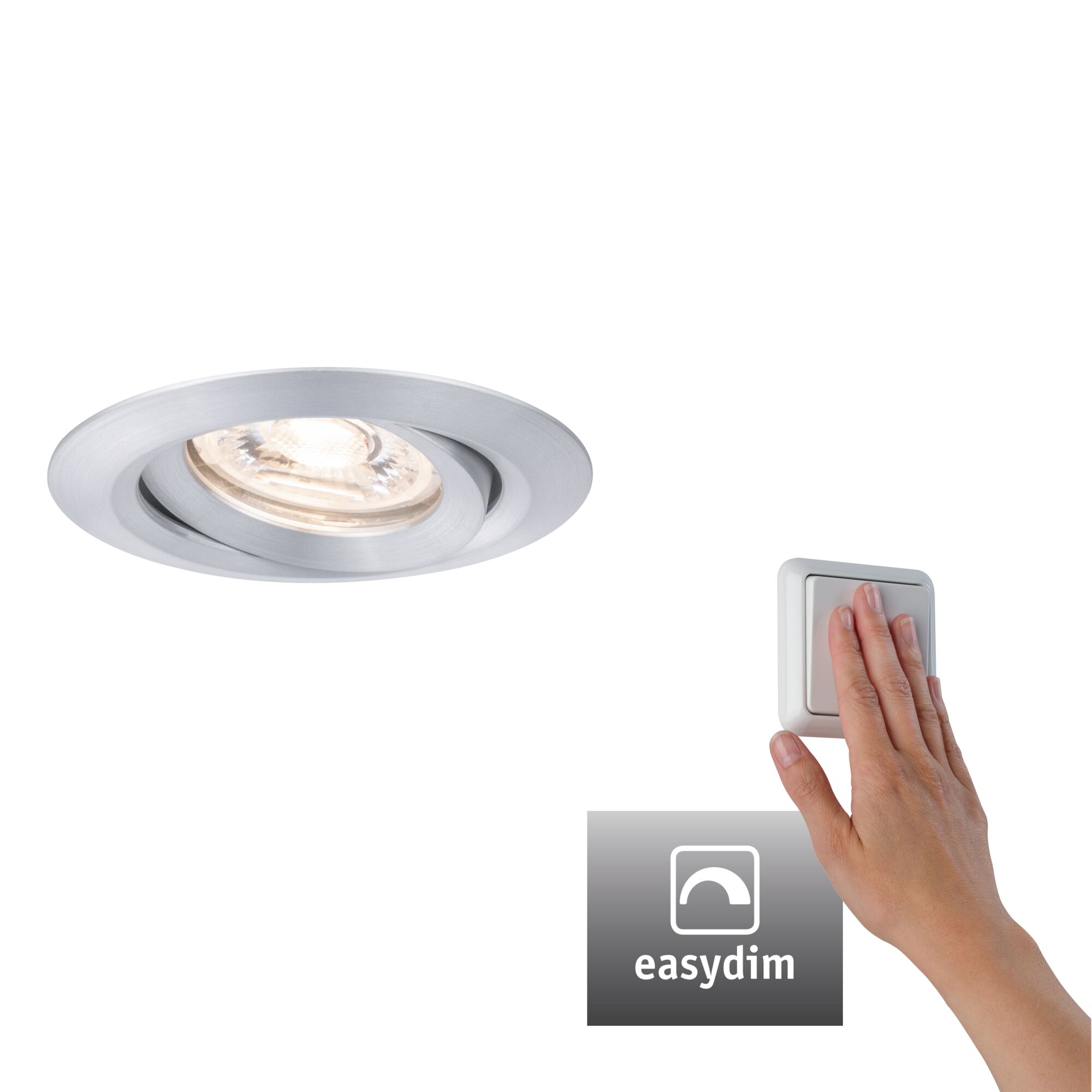

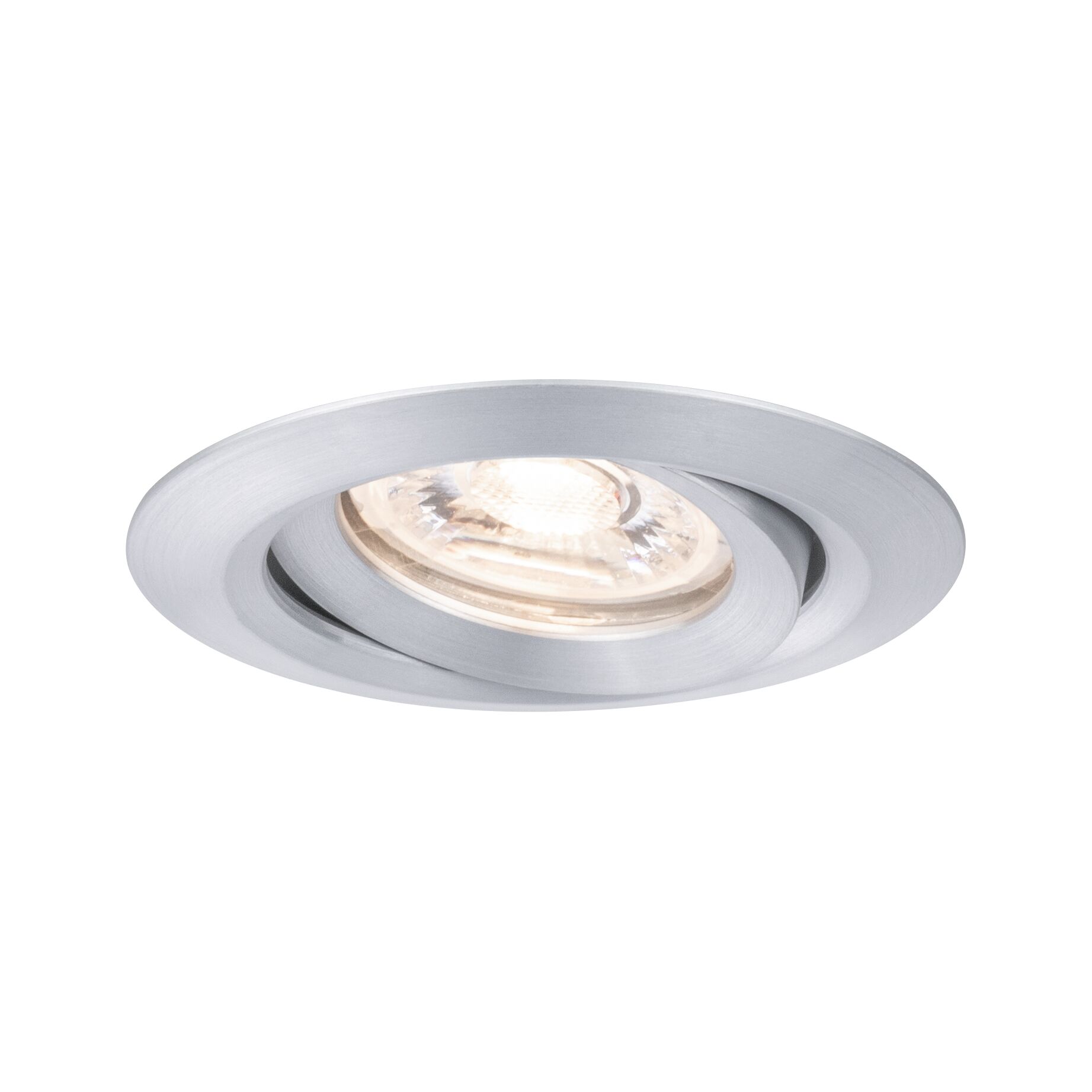

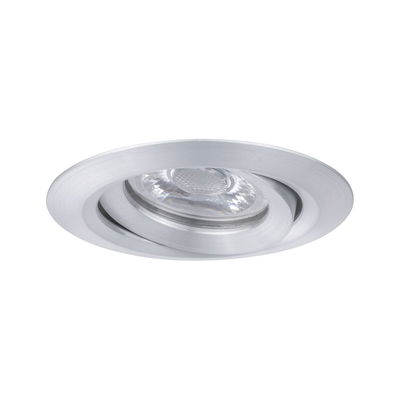

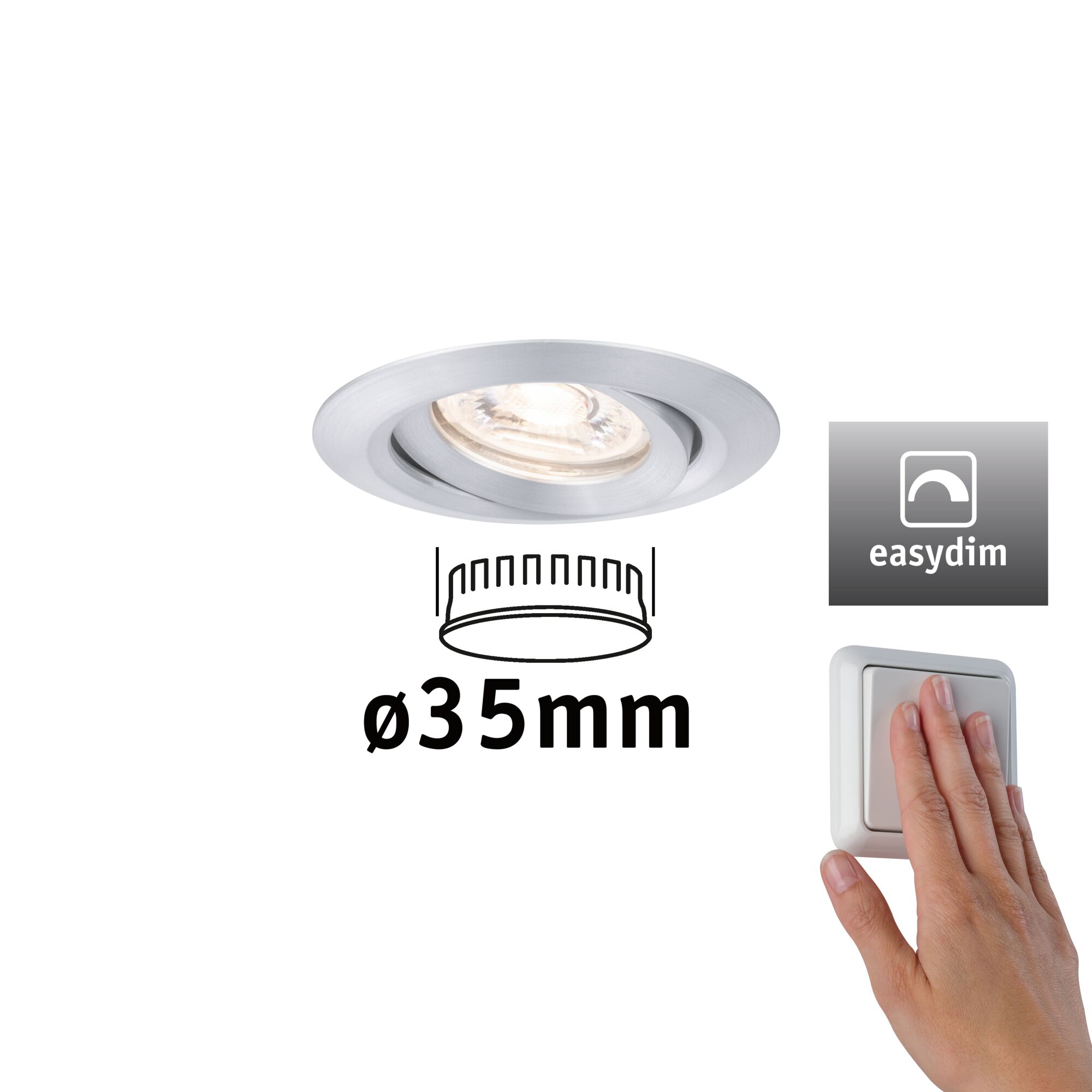

The swivelling recessed luminaire Nova mini in the colour Aluminium offers whole new possibilities, thanks to its reduced size. The integrated EasyDim function enables continuous dimming via a regular commercial light switch. It is suitable for conservatories, spot lighting, bar counters and beam cladding. The unique 35 mm Coin is exchangeable, flat and can be linked unlimited times.

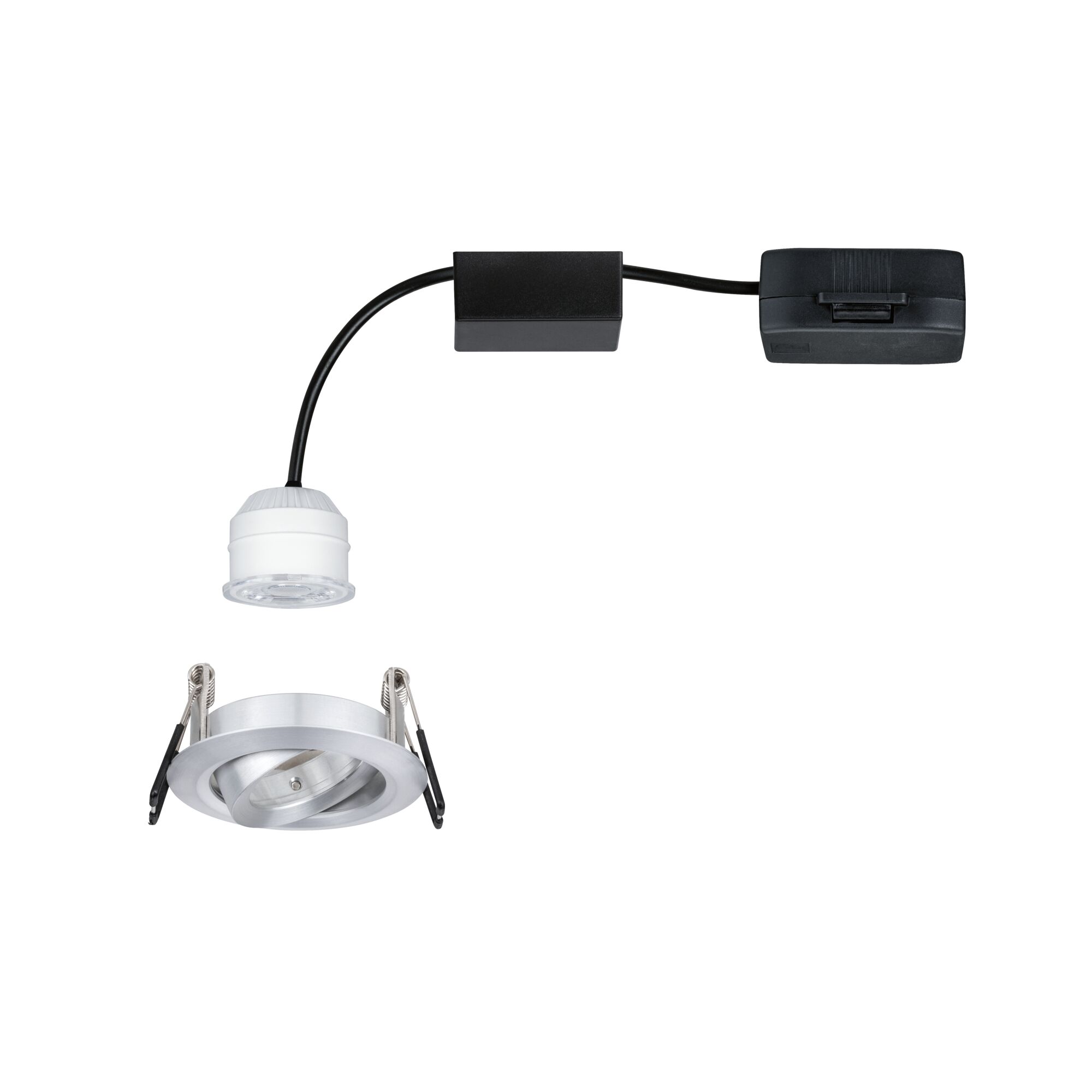

  • Set of 1 luminaire incl. LED module
  • Color temperatur: 2700K - Warm white
  • EasyDim – continuous dimming via an existing wall switch
  • For 230 V direct connection
Dimension
depth of hollow wall 35 mm
Mounting depth 50 mm
Ø 66 mm
Mounting hole 55 mm
Form round
Depth of hollow wall 35 mm
Design and Material
Colour Aluminium
Material Aluminium
Energy consumption
energy efficiency (A to G) F
Energy consumption 5 kWh_1000h
Service life
lifetime 30.000 h
Light Characteristics
Color temp. 2700 K
Beam angle 38 °
Useful luminous flux 300 lm
color temp 2.700 K
colour consistency <= 6 Step of the MacAdam ellipse
Color rendering index > 80 Ra
Lamp Features
Component parts 4,2 W
Swivel range 15 °
Technique LED
Socket Coin
IP protection IP23
Dim EasyDim mit Wandschalter
Dimmable Yes
Incandescent Equivalent 28 W
Inclusive lamp ✓
Number of component parts 1x
protection class protection class II
Replacable 2 Lightsource is replaceable without damage the lighting fixture by electrician.
Power consumption 4,2 W
Labelling
MM symbol MM symbol
WEEE-Reg.-No DE 39236390

Downloads

Manuals
Download Installation/Montage
Flyer
Downlights
Recommended lamps

Empfohlene Leuchtmittel

LED Module recessed luminaire Easy Dim Nova Mini Plus Coin round 35mm Coin 4,2W 300lm 230V dimmable 2700K Clear
A G F
  • LED Module recessed luminaire
Nova Mini Plus
