Article-No.:
92973
LED Recessed luminaireEasy Dim
Nova Mini Plus Coin Basic Set Swivelling
round 66mm 15° Coin 3x4,2W 3x300lm 230V dimmable 2700K Brushed iron
round 66mm 15° Coin 3x4,2W 3x300lm 230V dimmable 2700K Brushed iron

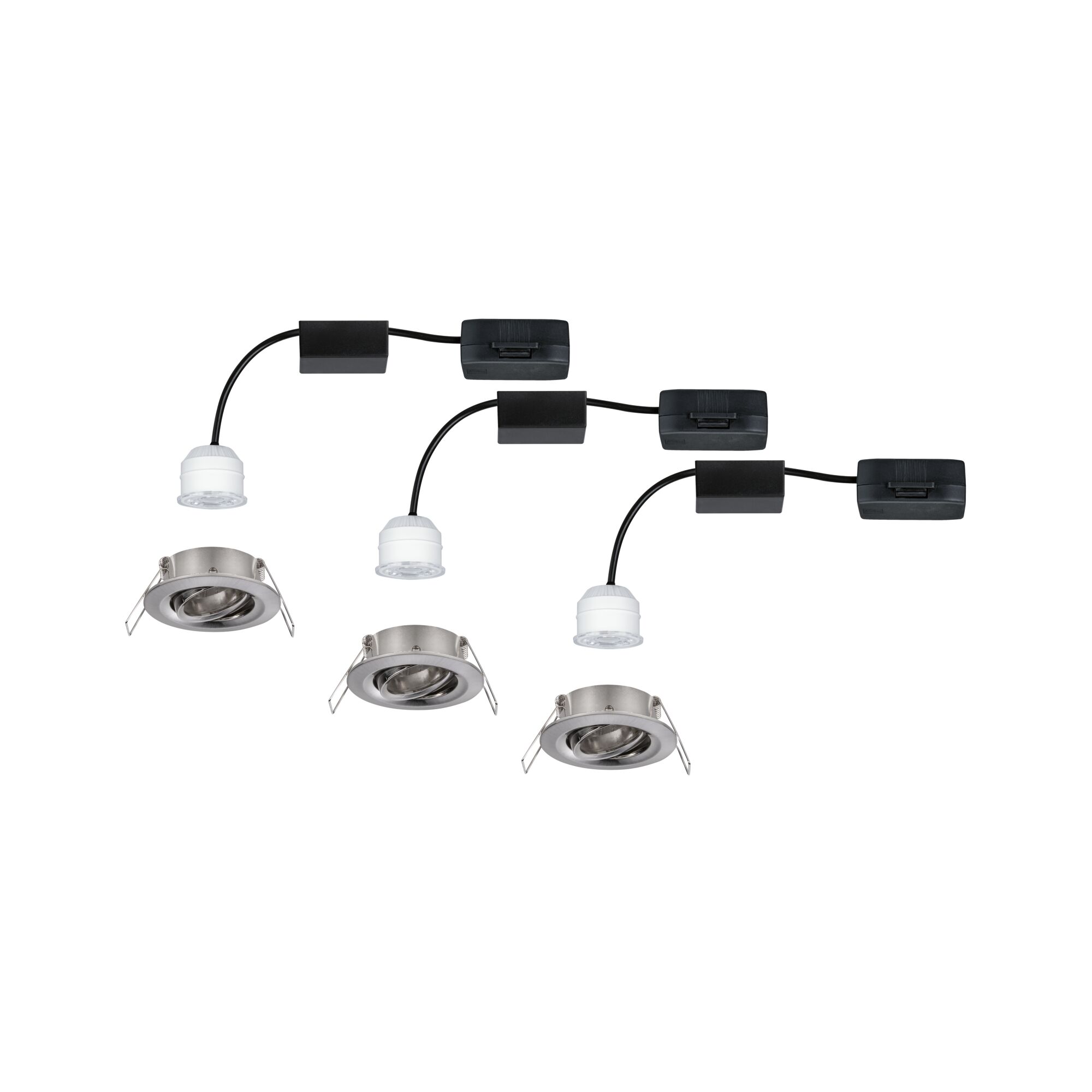

- Set of 3 luminaires incl. LED module
- Color temperatur: 2700K - Warm white

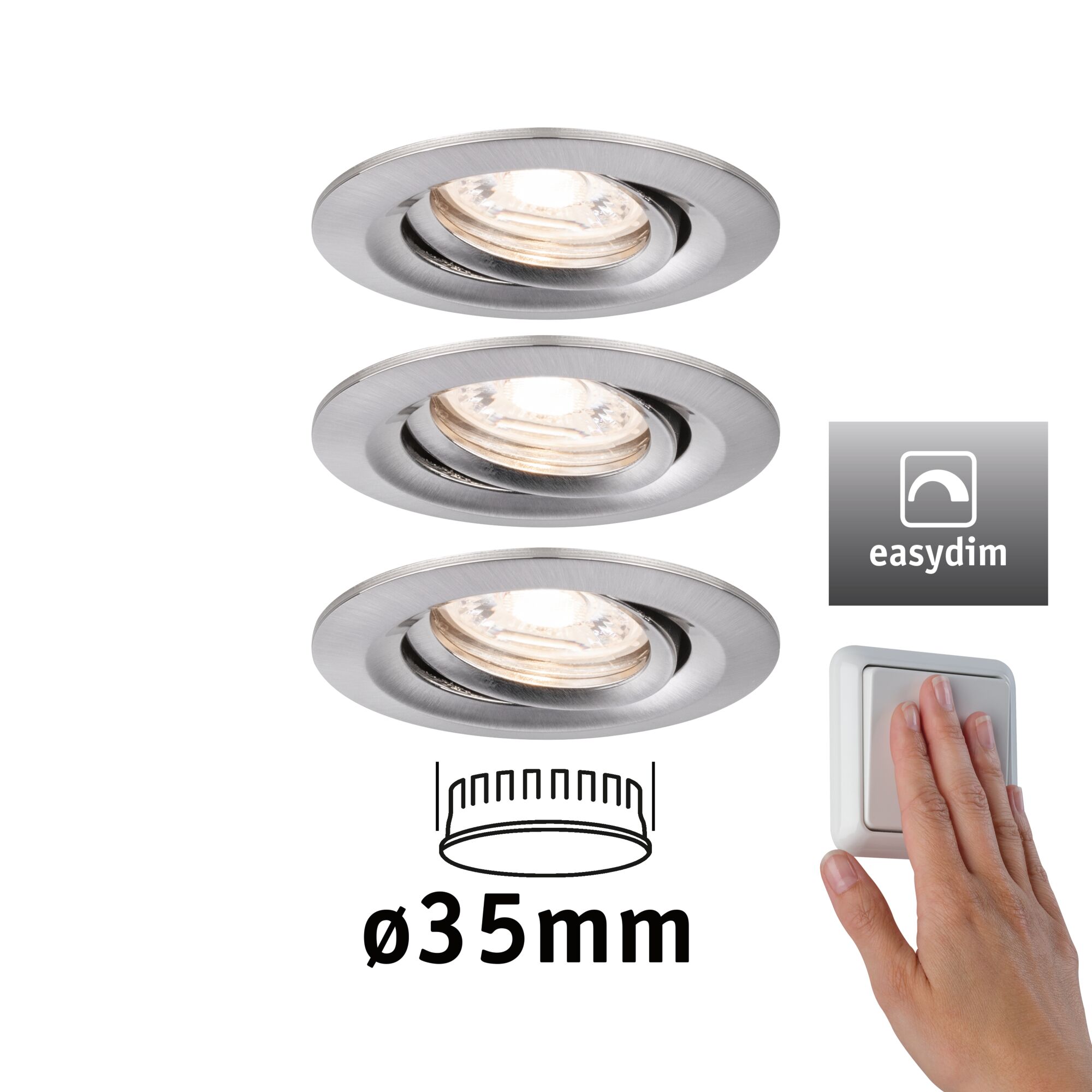

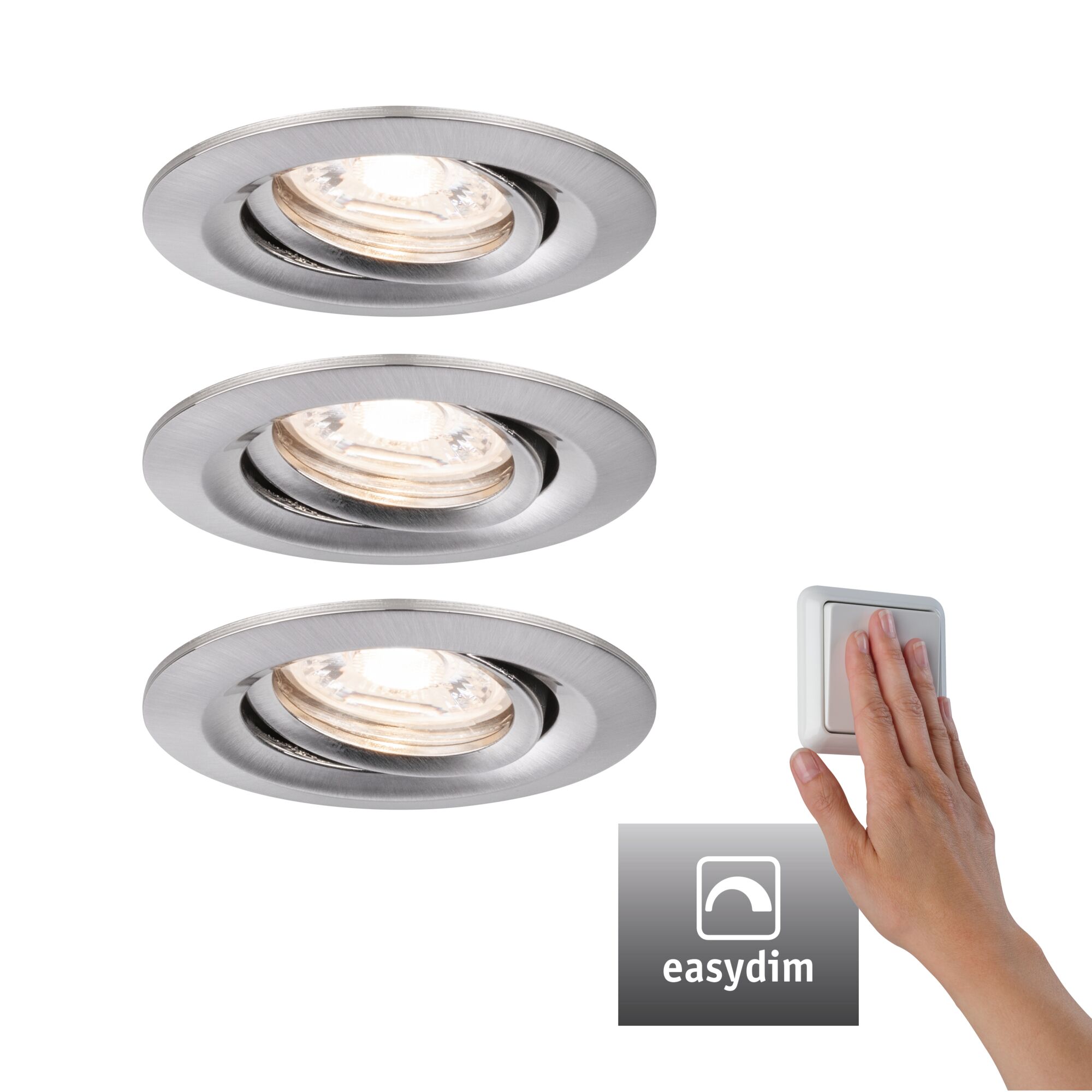

- EasyDim – continuous dimming via an existing wall switch

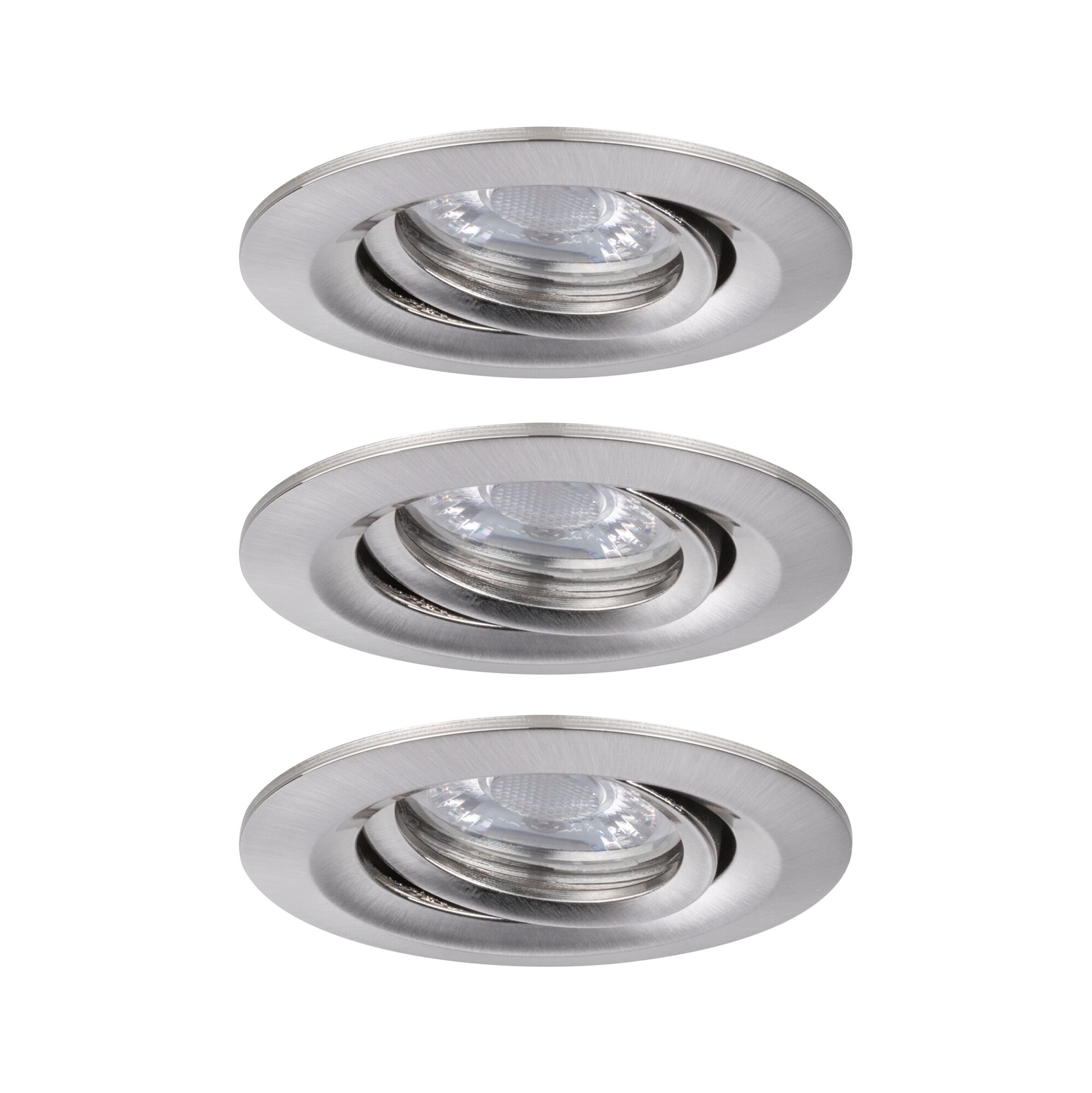

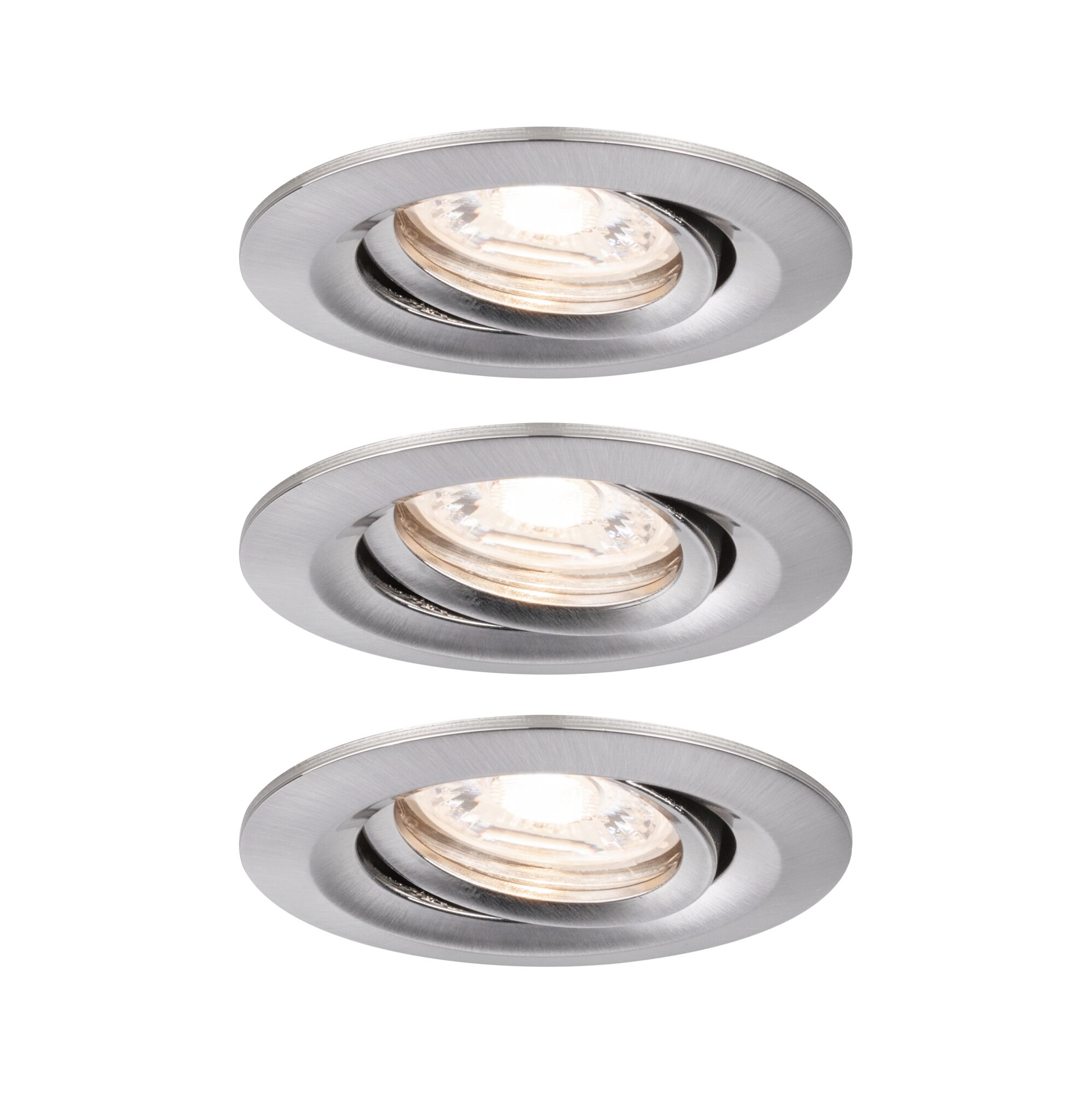

LED Recessed luminaire Easy Dim Nova Mini Plus Coin Basic Set Swivelling round 66mm 15° Coin 3x4,2W 3x300lm 230V dimmable 2700K Brushed iron
The swivelling recessed luminaires Nova mini in the colour Brushed iron offer whole new possibilities, thanks to their reduced size. The integrated EasyDim function enables continuous dimming via a regular commercial light switch. They are suitable for conservatories, spot lighting, bar counters and beam cladding. The unique 35 mm Coins are exchangeable, flat and can be linked unlimited times.
- Set of 3 luminaires incl. LED module
- Color temperatur: 2700K - Warm white
- EasyDim – continuous dimming via an existing wall switch
- For 230 V direct connection
Dimension | |
---|---|
Diameter | 66 mm |
Built-in diameter | 54 mm |
Mounting depth | 50 mm |
Depth of hollow wall | 35 mm |
Design and Material | |
---|---|
Form | round |
Colour | Brushed iron |
Material | Aluminium |
Energy consumption | |
---|---|
Energy efficiency (LED Module) | G |
Energy consumption | 5 kWh_1000h |
Service life | |
---|---|
Lifetime | 30000 h |
Light Characteristics | |
---|---|
Colour temperature | Warm white, 2700 K |
Nominal luminous flux | 300 lm |
Colour consistency (SDCM) | 6 |
Color rendering index | > 80 Ra |
Beam angle | 38 ° |
Lamp Features | |
---|---|
Dimmable | Yes |
Dim | EasyDim |
Inclusive lamp | yes |
Lamp property | Leuchtmittel enthalten und wechselbar |
Swivel range | 15 ° |
Incandescent Equivalent | 28 W |
IP protection | IP23 |
Protection class | Protection class II |
Base/Socket | Coin |
Technique | LED |
Component parts | 4,2 W |
Number of component parts | 3x |
Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
Power consumption | 4,2 W |
Adjustability | swivelling/tilting |
Voltage | 230 V |
Voltage type | AC 50 Hz |
Accessories | |
---|---|
Radio control included | no |
Labelling | |
---|---|
MM symbol | MM symbol |
WEEE-Reg.-No | DE 39236390 |
