Factory 2nd
Article-No.:
11192972

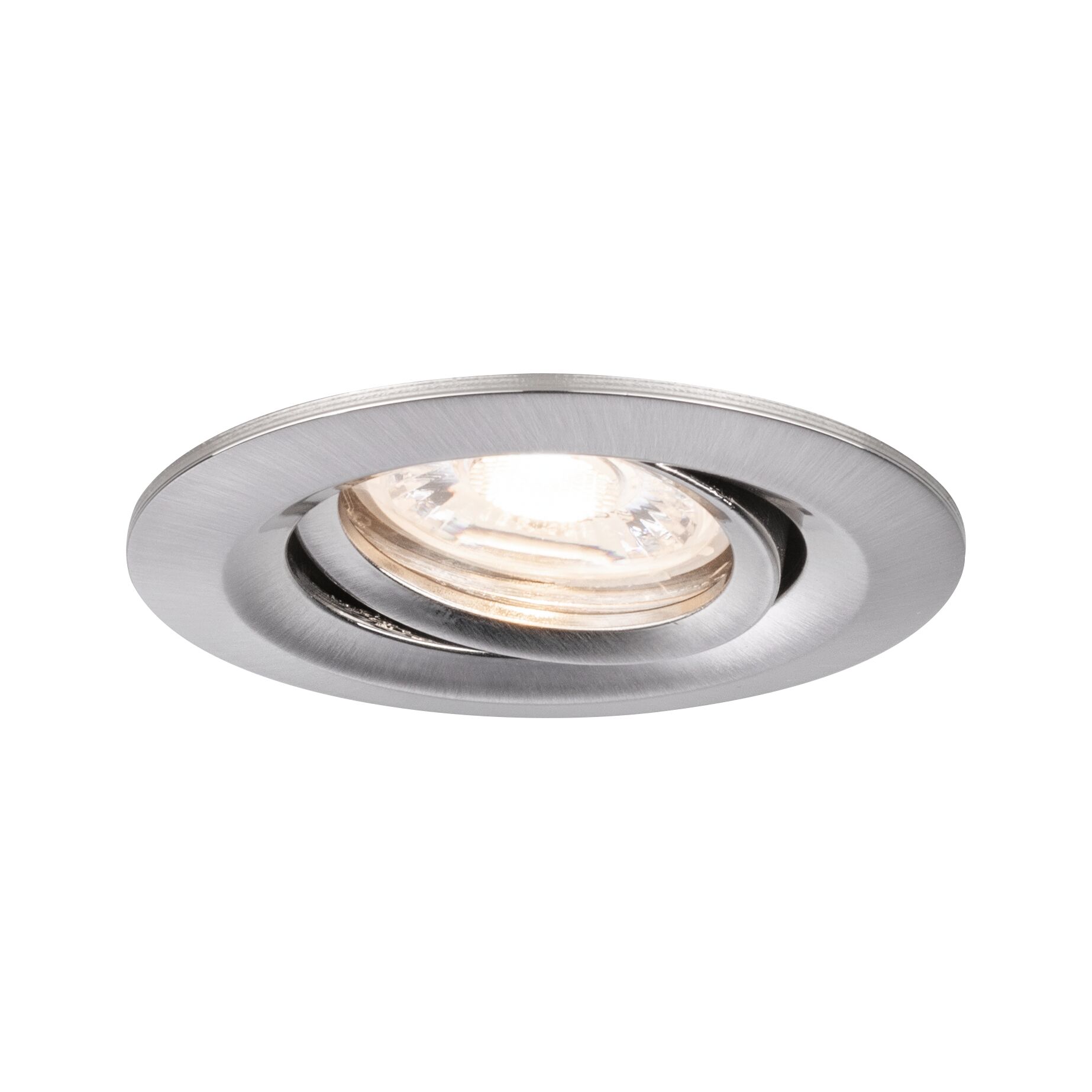

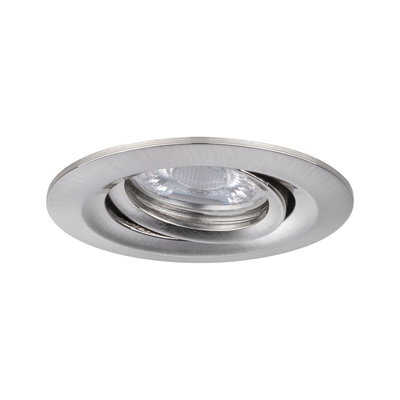

LED Recessed luminaireEasy Dim
Nova Mini Plus Coin Single Luminaire Swivelling
round 66mm 15° Coin 4,2W 300lm 230V dimmable 2700K Brushed iron
round 66mm 15° Coin 4,2W 300lm 230V dimmable 2700K Brushed iron
This product is technically flawless, tested and shows no signs of use. There are only cosmetic defects on the original packaging. The marked-down price refers to the price for the new product.
- Product condition: Item is technically flawless and has been fully tested
- Difference from new goods: visual defects on original packaging

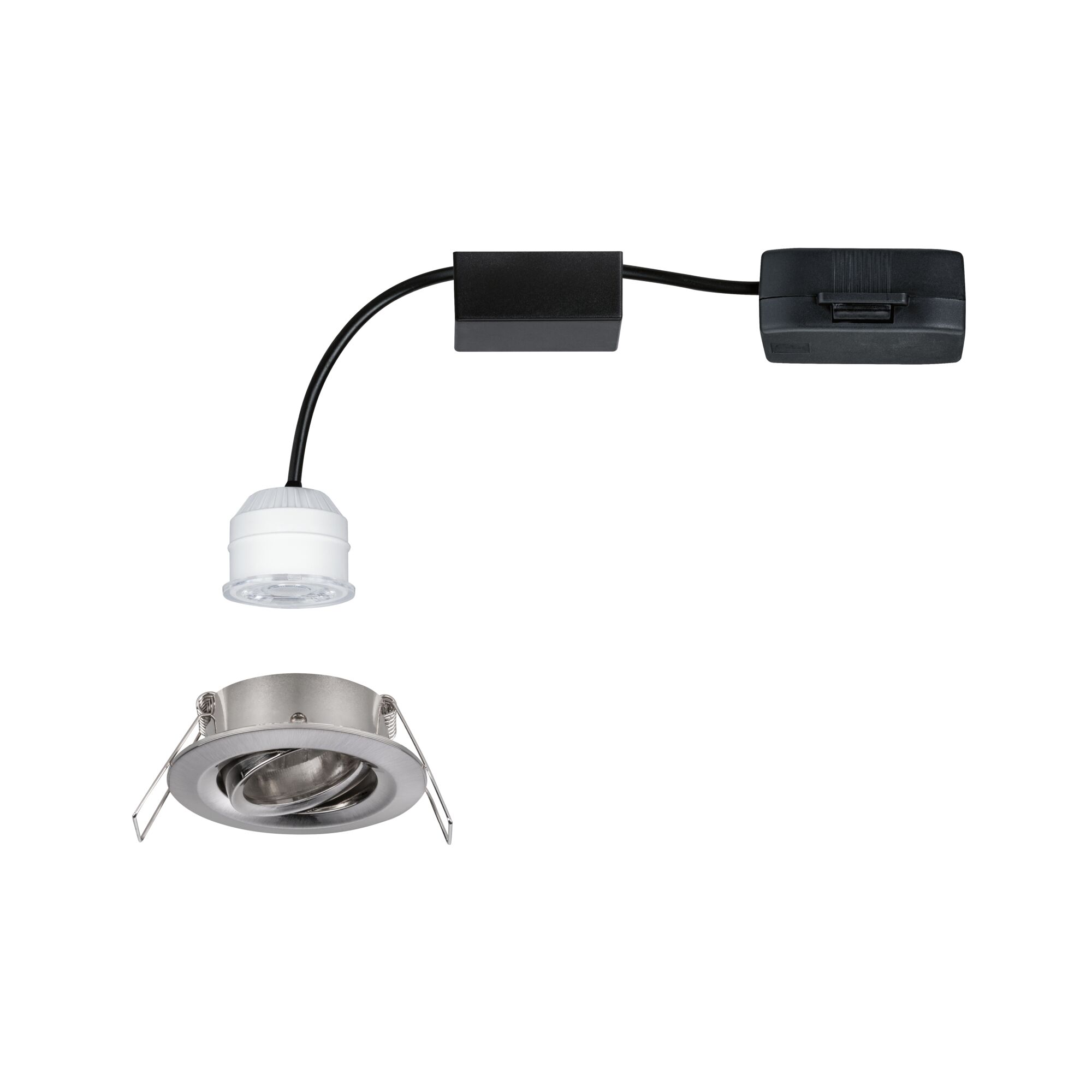

- Set of 1 luminaire incl. LED module
LED Recessed luminaire Easy Dim Factory second goods Nova Mini Plus Coin Single Luminaire Swivelling round 66mm 15° Coin 4,2W 300lm 230V dimmable 2700K Brushed iron

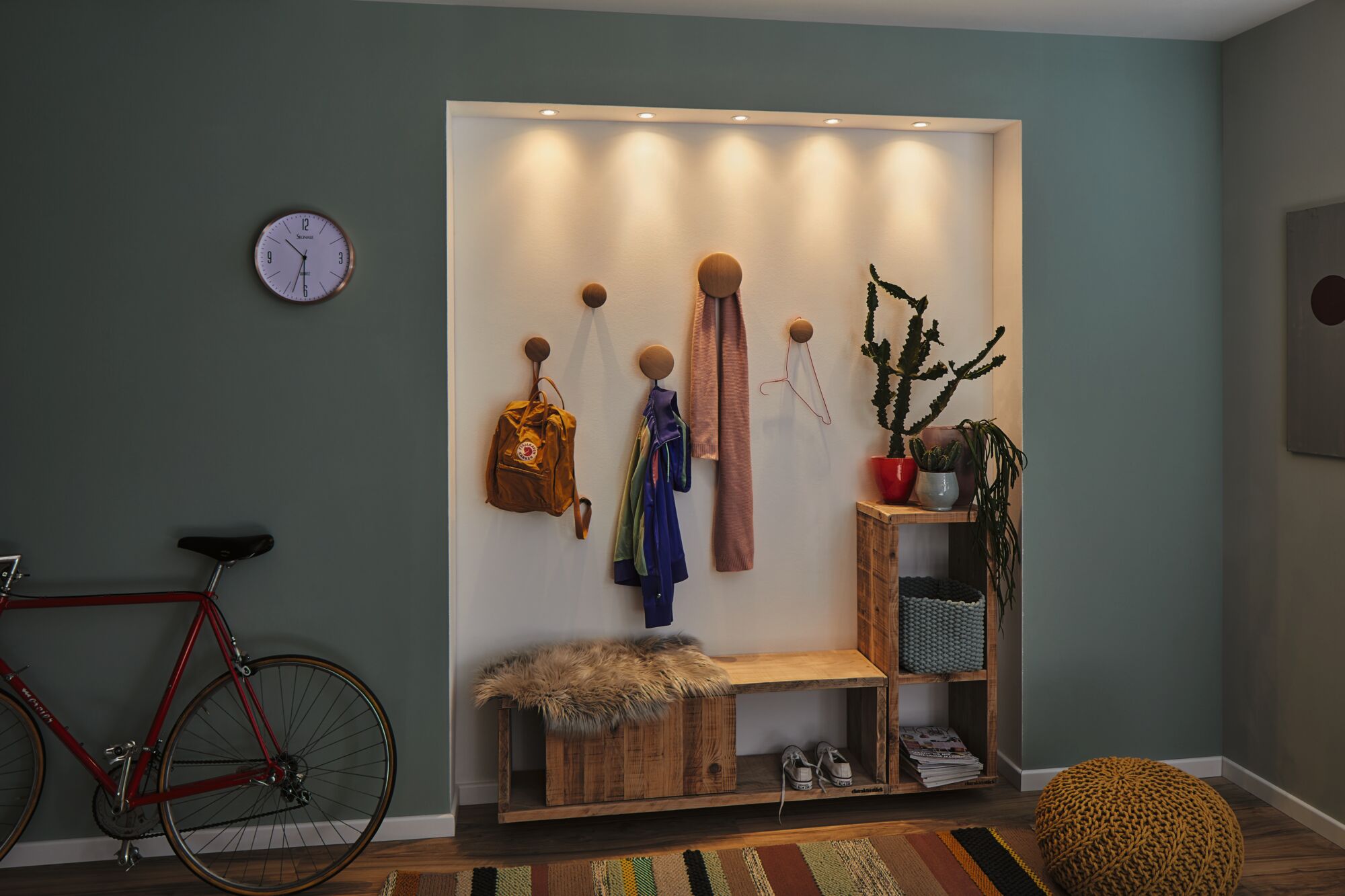

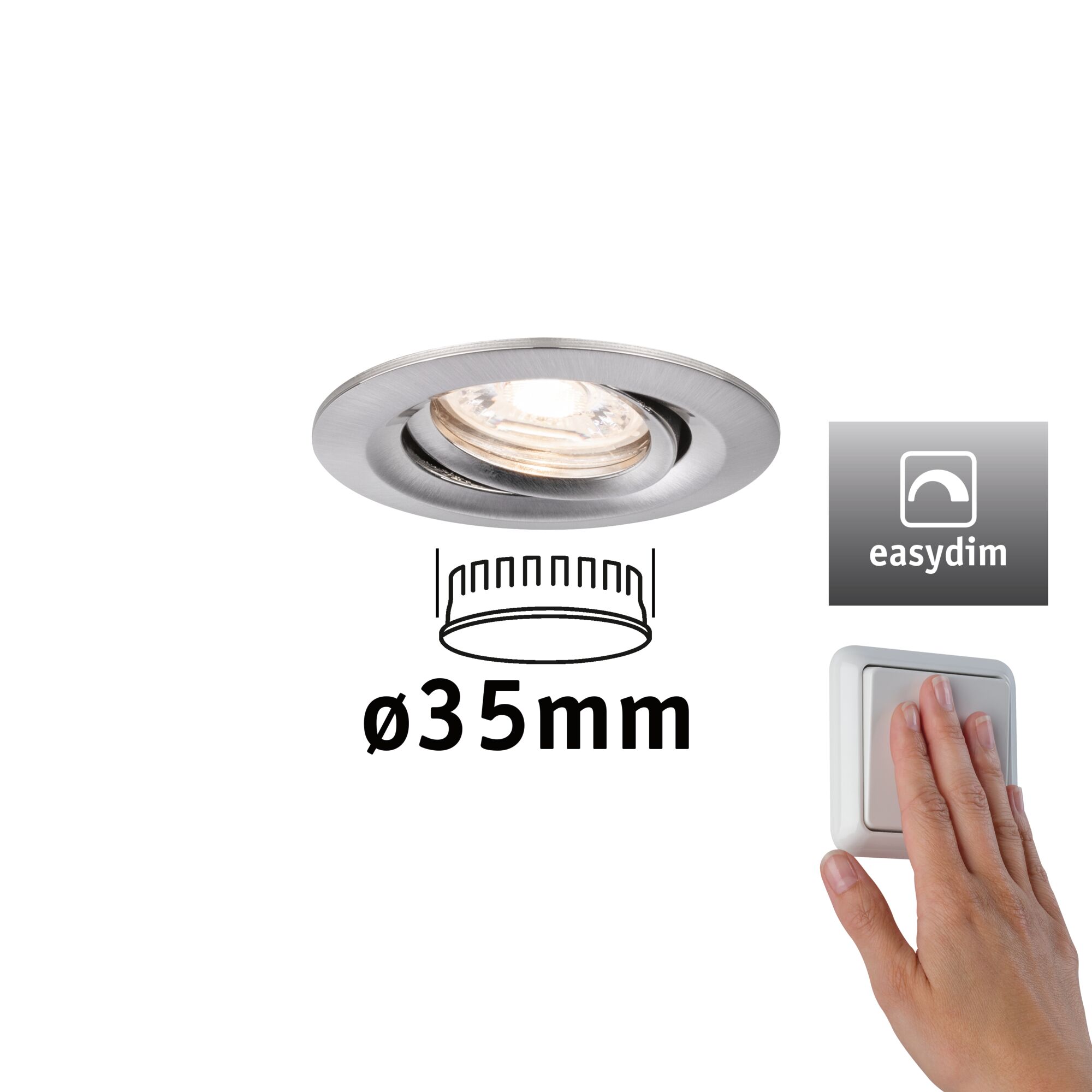

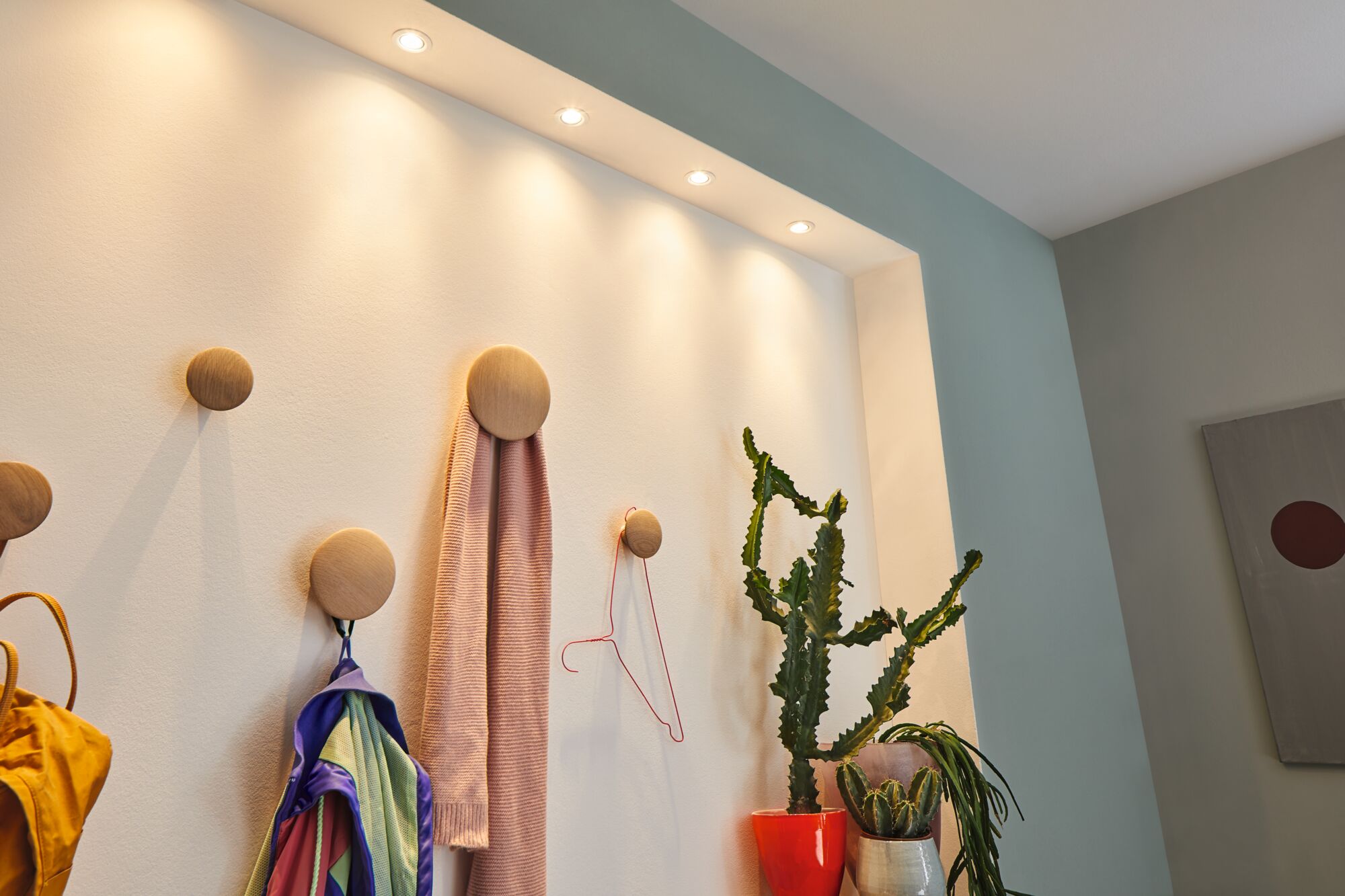

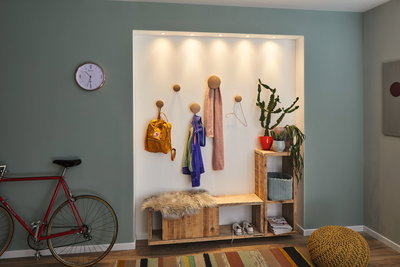

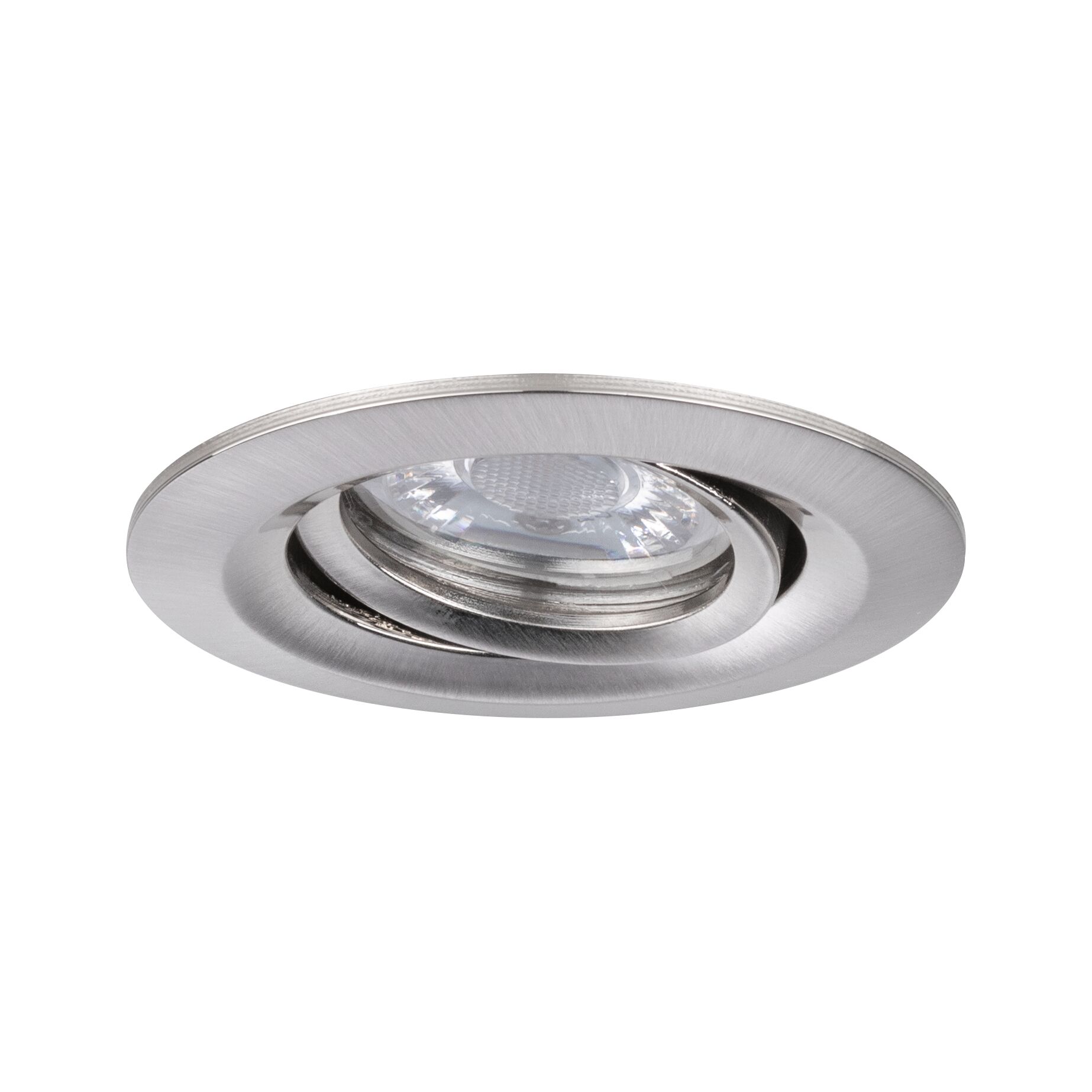

This technically flawless product shows no signs of wear and tear and is being offered at a significantly reduced price solely due to defects in the original packaging. The swivelling recessed luminaire Nova mini in the colour Brushed iron offers whole new possibilities, thanks to its reduced size. The integrated EasyDim function enables continuous dimming via a regular commercial light switch. It is suitable for conservatories, spot lighting, bar counters and beam cladding. The unique 35 mm Coin is exchangeable, flat and can be linked unlimited times.
- Product condition: Item is technically flawless and has been fully tested
- Difference from new goods: visual defects on original packaging
- Set of 1 luminaire incl. LED module
- Color temperatur: 2700K - Warm white

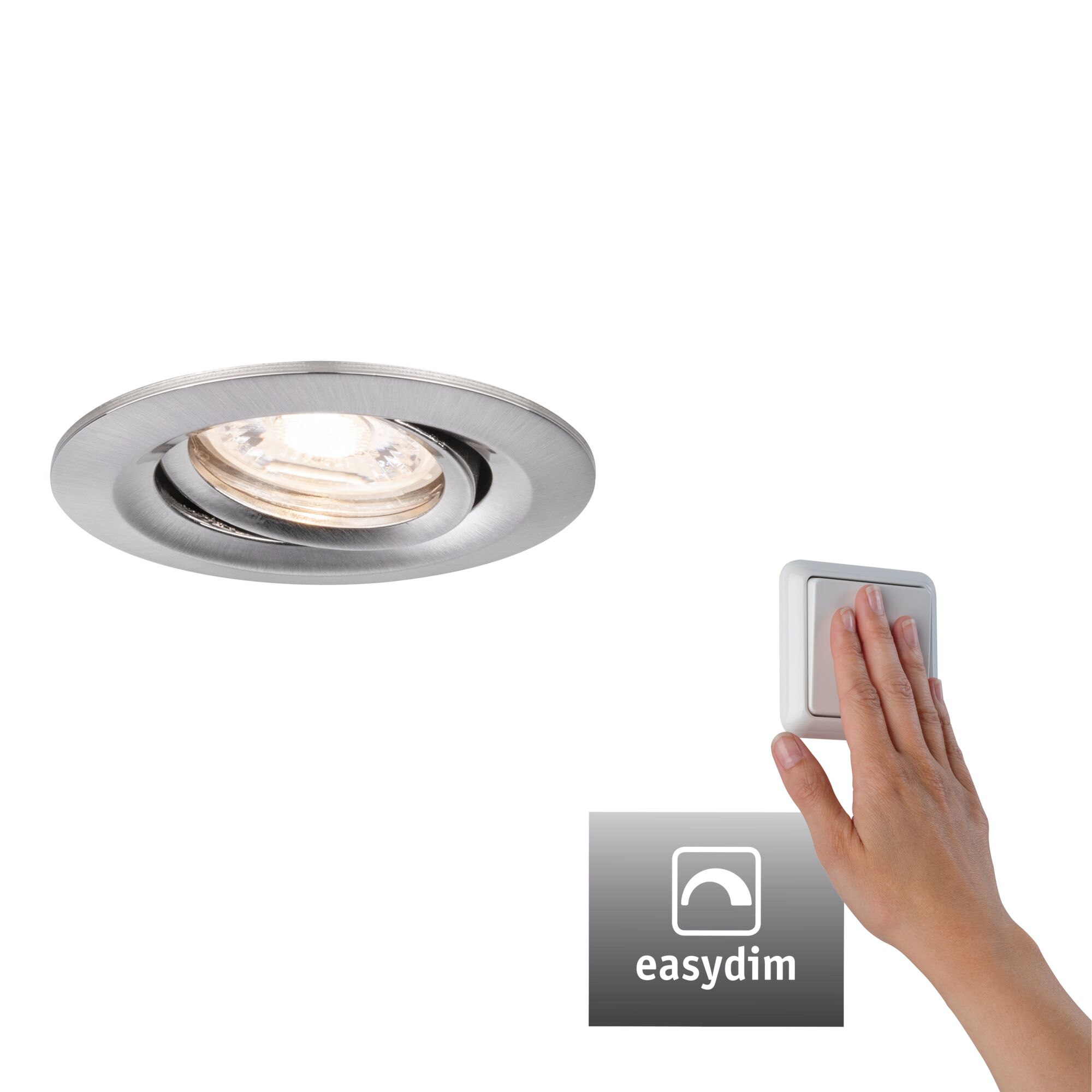

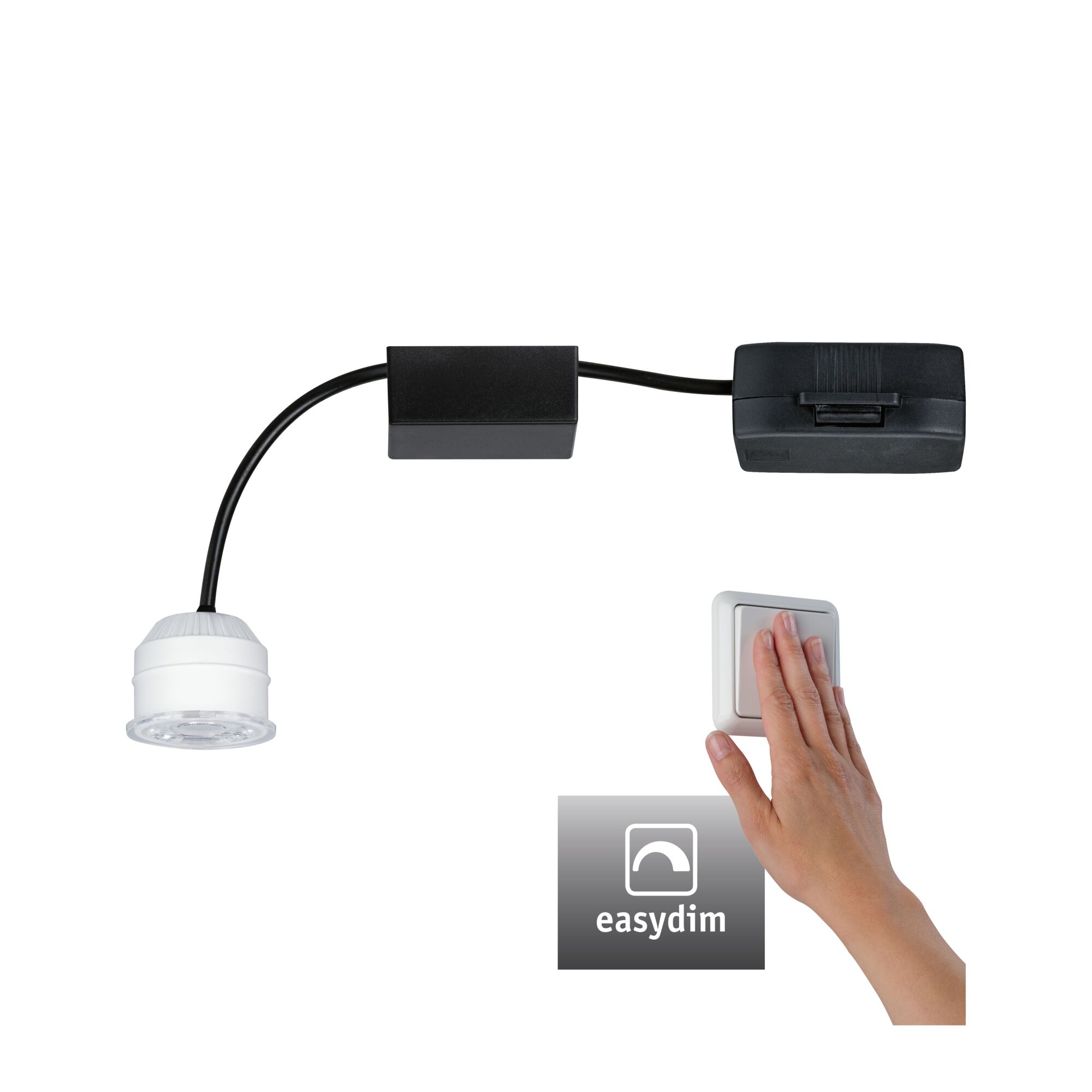

- EasyDim – continuous dimming via an existing wall switch
- For 230 V direct connection

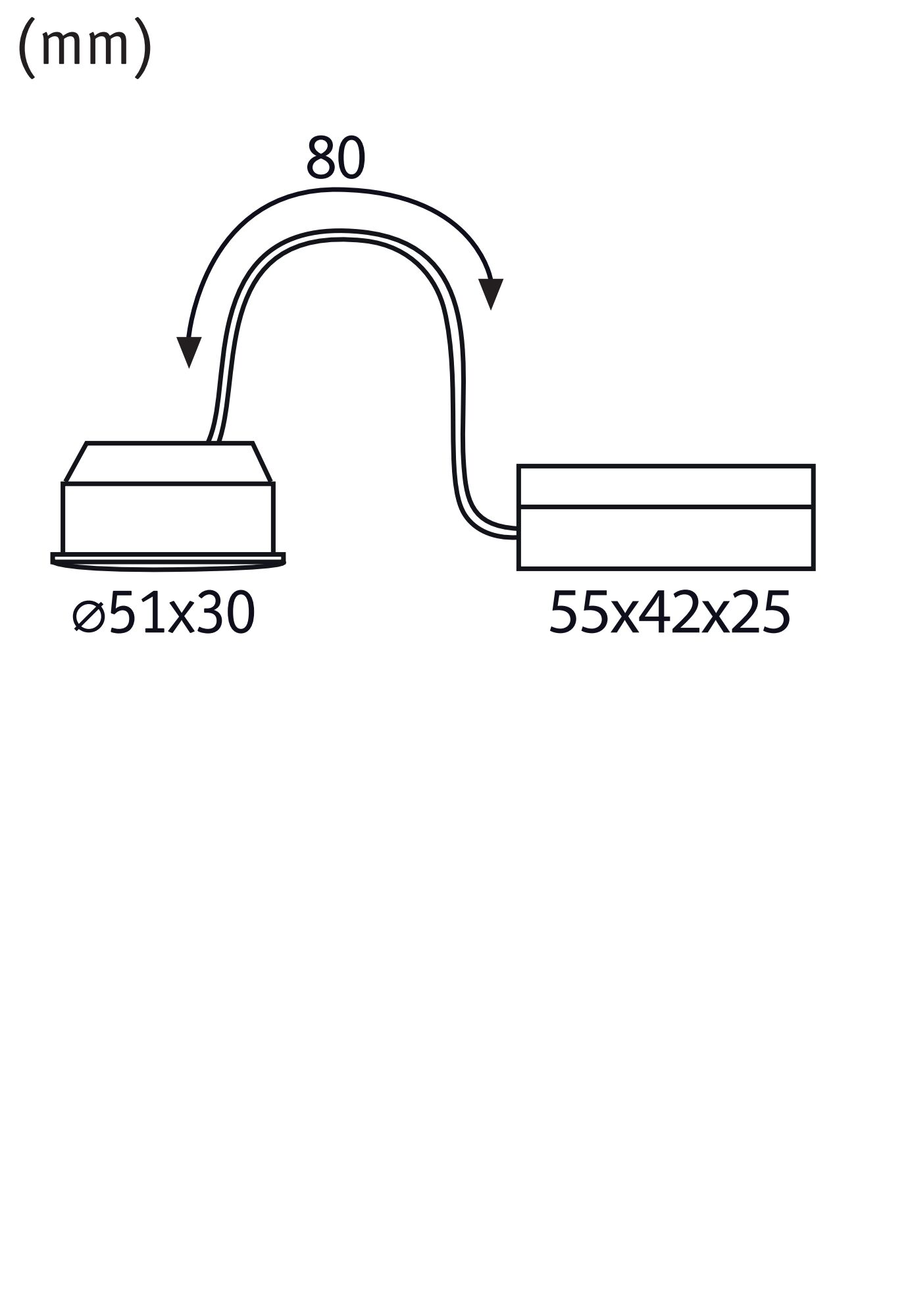

| Dimension | |
|---|---|
| Diameter | 66 mm |
| Built-in diameter | 54 mm |
| Mounting depth | 50 mm |
| Depth of hollow wall | 35 mm |
| net weight | 191 g |
| Design and Material | |
|---|---|
| Form | round |
| Colour | Brushed iron |
| Material | Aluminium |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | G |
| Energy consumption | 5 kWh_1000h |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 2700 K |
| Nominal luminous flux | 300 lm |
| Colour consistency (SDCM) | 6 |
| Color rendering index | > 80 Ra |
| Beam angle | 38 ° |
| Lamp Features | |
|---|---|
| Dimmable | Yes |
| Dimming Control | EasyDim |
| Inclusive lamp | yes |
| light source property | Without light source |
| Swivel range | 15 ° |
| Incandescent Equivalent | 28 W |
| IP protection | IP23 |
| Protection class | Protection class II |
| Base/Socket | Coin |
| Technique | LED |
| Component parts | 4,2 W |
| Number of component parts | 1x |
| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 4,2 W |
| Adjustability | swivelling/tilting |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
Downloads
- LED Module recessed luminaire
