Article-No.:
93670
LED Recessed luminaire
Calla Rigid
IP65 round 80mm 7W 370lm 230V 4000K Matt white
IP65 round 80mm 7W 370lm 230V 4000K Matt white
- Color temperatur: 4000K - Neutral white
- IP65 water jet protected for damp rooms or outdoor use
- For 230 V direct connection
LED Recessed luminaire Calla Rigid IP65 round 80mm 7W 370lm 230V 4000K Matt white
The recessed Calla spotlights 1x7W in Matt white, are glare-free recessed spotlights made of Plastic/Aluminium, , which are suitable for new installations, as well as for the renewal of older installations. The luminaires can be interlinked very simply thanks to the 230 V direct mains connection. The scope of delivery includes LED lamps in warm white for a relaxing and attractive ambiance.
- Color temperatur: 4000K - Neutral white
- IP65 water jet protected for damp rooms or outdoor use
- For 230 V direct connection

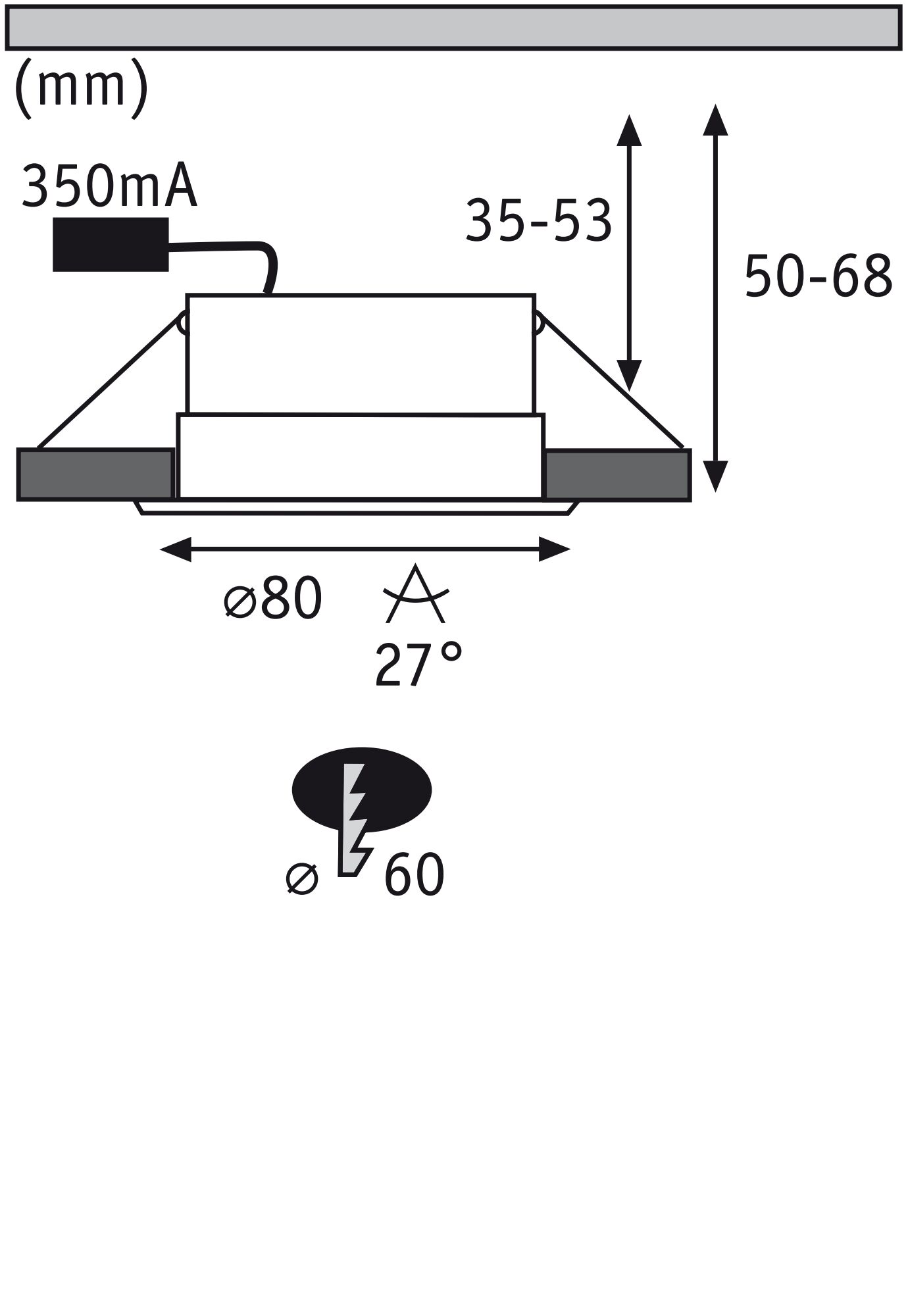

| Dimension | |
|---|---|
| mounting hole 2 | 68 mm |
| Depth of hollow wall | 35 mm, 35 mm |
| Total Mounting depth | 50 mm |
| Ø | 80 mm |
| Mounting hole | 60 mm |
| Form | round |
| Design and Material | |
|---|---|
| Colour | Matt white |
| Material | Plastic, Aluminium |
| Installation | |
|---|---|
| Installation site (recommendation) | Ceiling mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 4000 K |
| color temp | 4000 K |
| Farbtemperatur_Text | Neutralweiß |
| Beam angle | 27 ° |
| Usable luminous flux | 370 lm |
| Luminous flux LED module | 659 lm |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 7 W |
| Technique | LED |
| Dimmable | No |
| Inclusive lamp | yes |
| Incandescent Equivalent | 58 W |
| Adjustability | fixed |
| IP protection | IP65 ceiling mounting |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 9,5 W |
| Transformer | |
|---|---|
| Transformer power | 7 VA |
| Transformer height | 18 mm |
| Transformer width | 39 mm |
| Transformer depth | 122 mm |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
