Article-No.:
99925
LED Recessed luminaire
Calla Basic Set Swivelling
IP65 round 90mm 30° 10x5,2W 10x460lm 230V dimmable 4000K Chrome matt
IP65 round 90mm 30° 10x5,2W 10x460lm 230V dimmable 4000K Chrome matt
- Color temperatur: 4000K - Neutral white
- IP65 water jet protected for damp rooms or outdoor use
- With swivelling spots for ideal illumination
LED Recessed luminaire Calla Basic Set Swivelling IP65 round 90mm 30° 10x5,2W 10x460lm 230V dimmable 4000K Chrome matt
The recessed Calla spotlights 10x5.2W in Chrome matt, are glare-free recessed spotlights made of Plastic, , which are suitable for new installations, as well as for the renewal of older installations. The luminaires can be interlinked very simply thanks to the 230 V direct mains connection. The scope of delivery includes LED lamps in warm white for a relaxing and attractive ambiance.
- Color temperatur: 4000K - Neutral white
- IP65 water jet protected for damp rooms or outdoor use
- With swivelling spots for ideal illumination

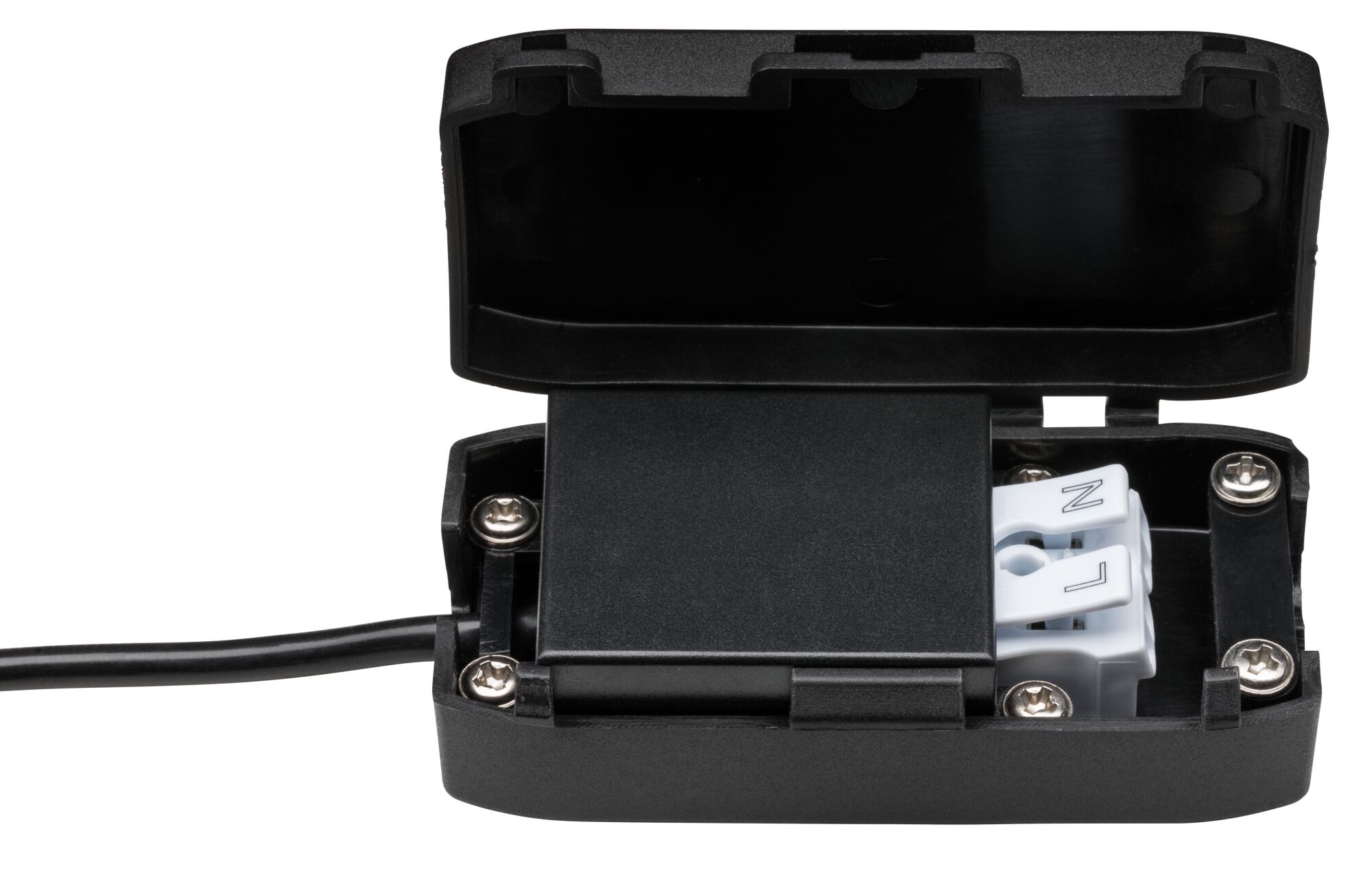

- For 230 V direct connection

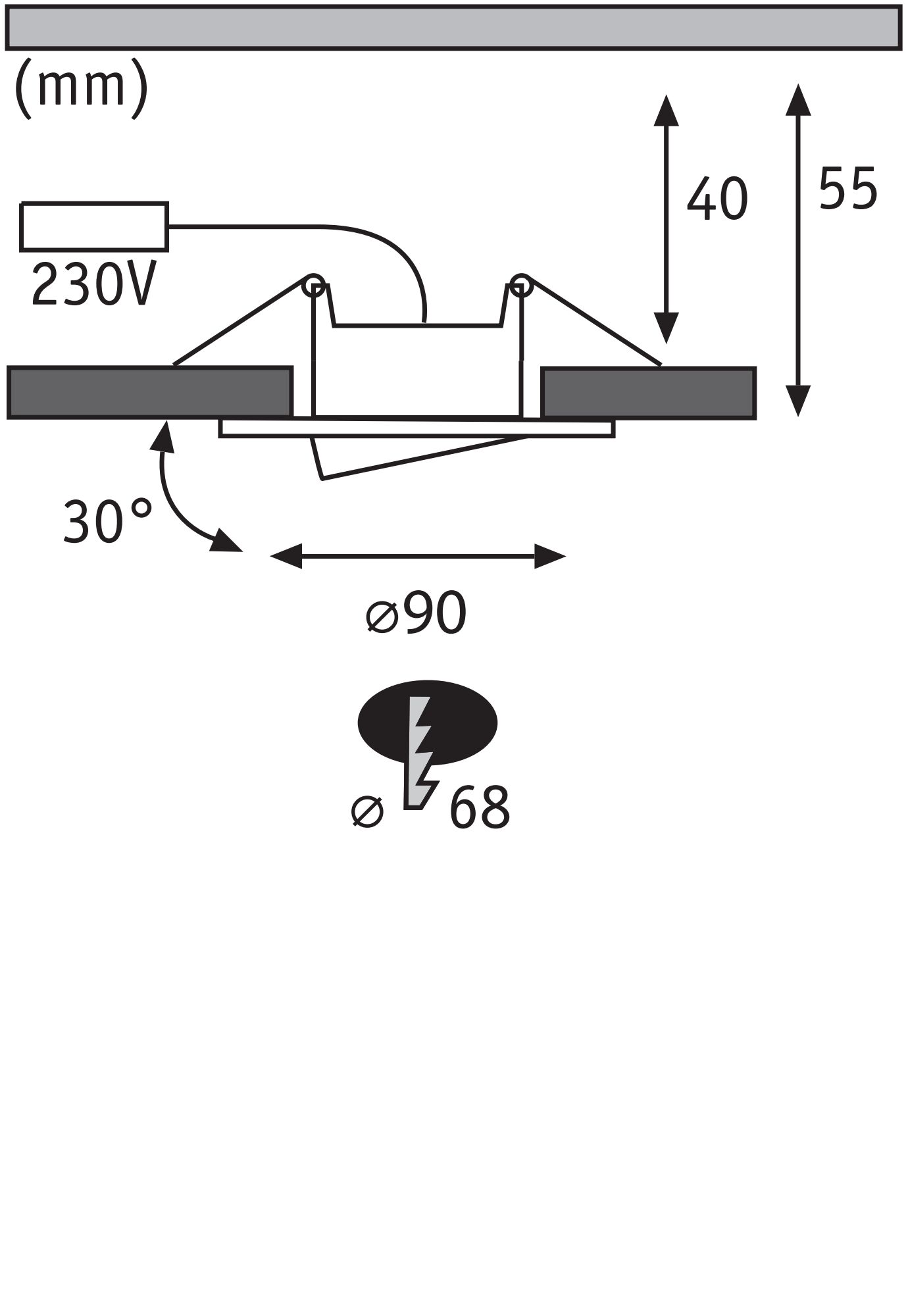

| Dimension | |
|---|---|
| Depth of hollow wall | 40 mm, 40 mm |
| Total Mounting depth | 55 mm |
| Ø | 90 mm |
| Mounting hole | 68 mm |
| Form | round |
| Design and Material | |
|---|---|
| Colour | Chrome matt |
| Material | Plastic |
| Installation | |
|---|---|
| can be used with the following dimmers | RC Merten MEG 5136-0000, RLC Müller Paladin 873 030 LED |
| Installation site (recommendation) | Ceiling mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 4000 K |
| Beam angle | 100 ° |
| Usable luminous flux | 460 lm |
| Luminous flux LED module | 598 lm |
| color temp | 4000 K |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 5,2 W |
| Swivel range | 30 ° |
| Technique | LED |
| IP protection | IP65 ceiling mounting |
| Dimmable | with dimmer R+C f.elect.trafos+230V bulbs |
| Inclusive lamp | yes |
| Incandescent Equivalent | 45 W |
| Number of component parts | 10x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 5,2 W |
| Transformer | |
|---|---|
| apparent power | 8 VA |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
