Article-No.:
98199
LED Recessed luminaire

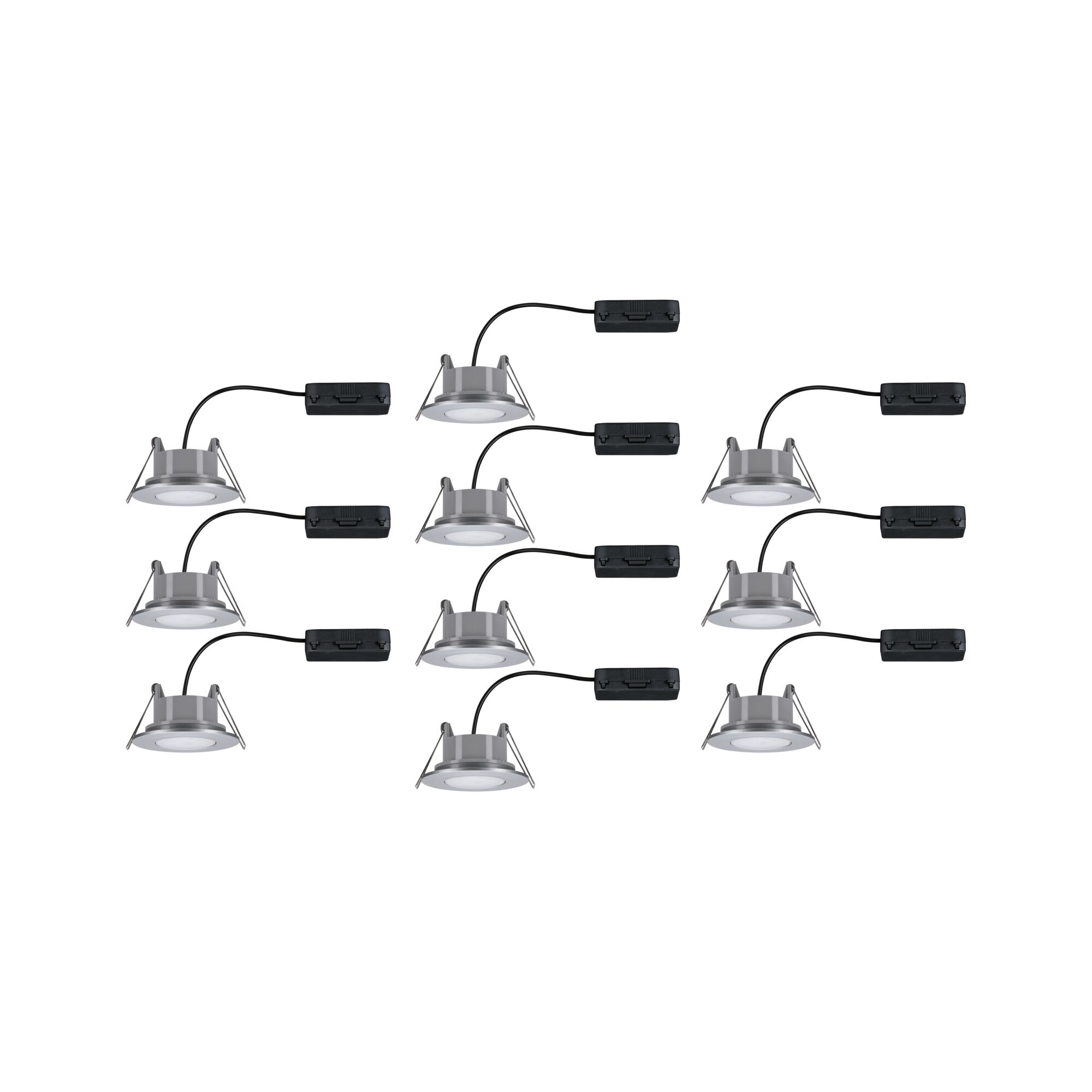

Calla 10-piece set
IP65 round 90mm 30° 10x5W 10x430lm 230V White Switch Chrome matt
IP65 round 90mm 30° 10x5W 10x430lm 230V White Switch Chrome matt
- With swivelling spots for ideal illumination
- IP65 water jet protected for damp rooms or outdoor use

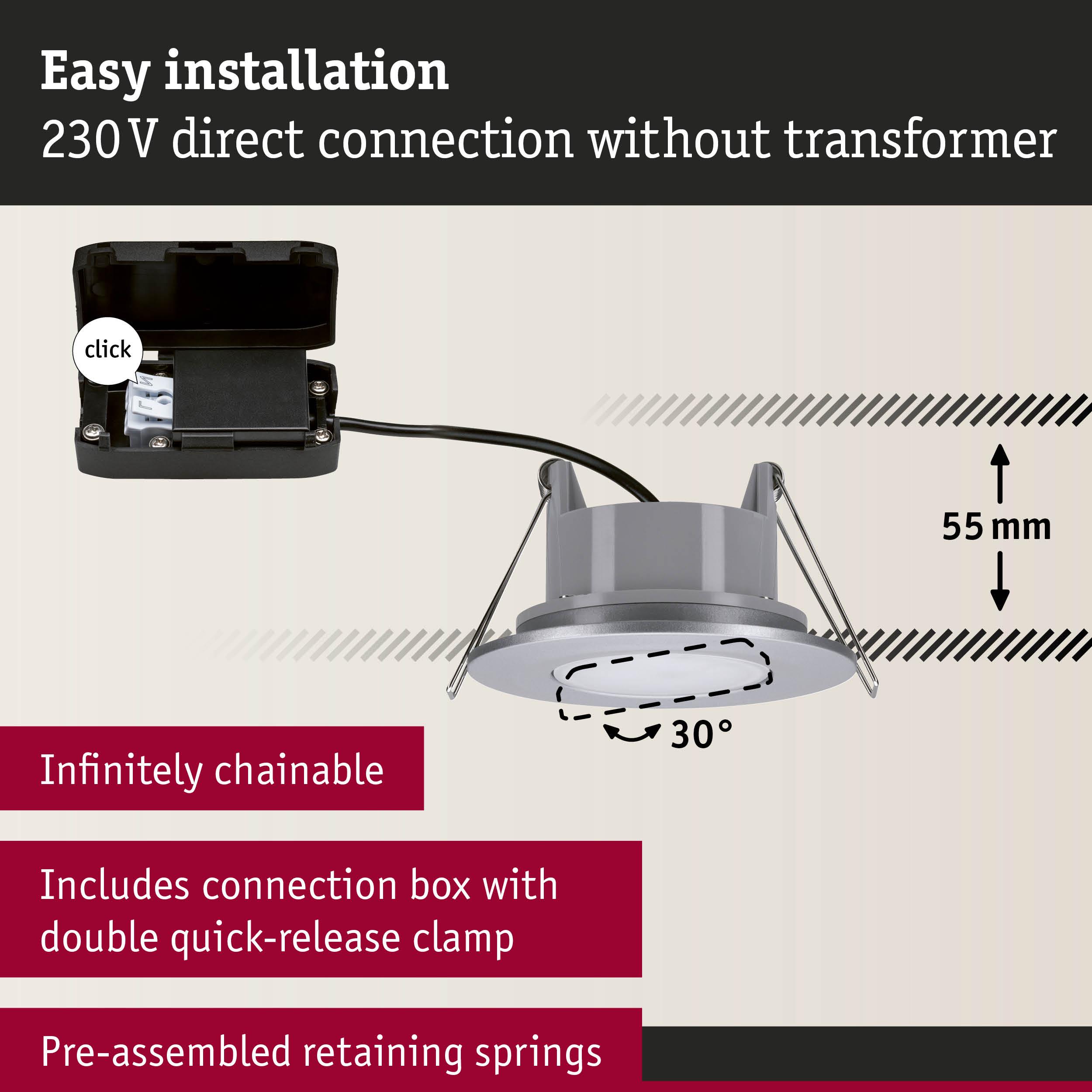

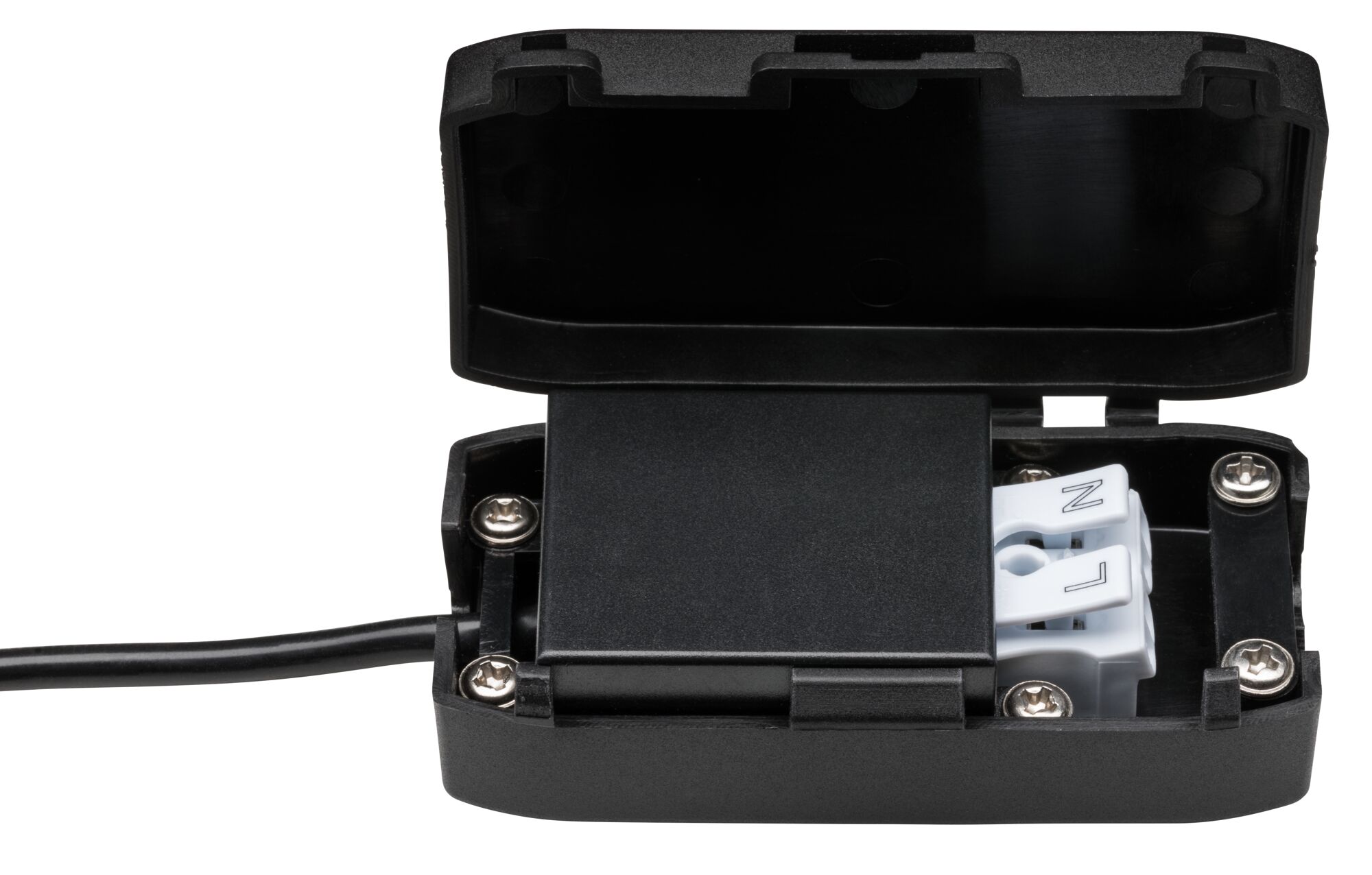

- For 230 V direct connection

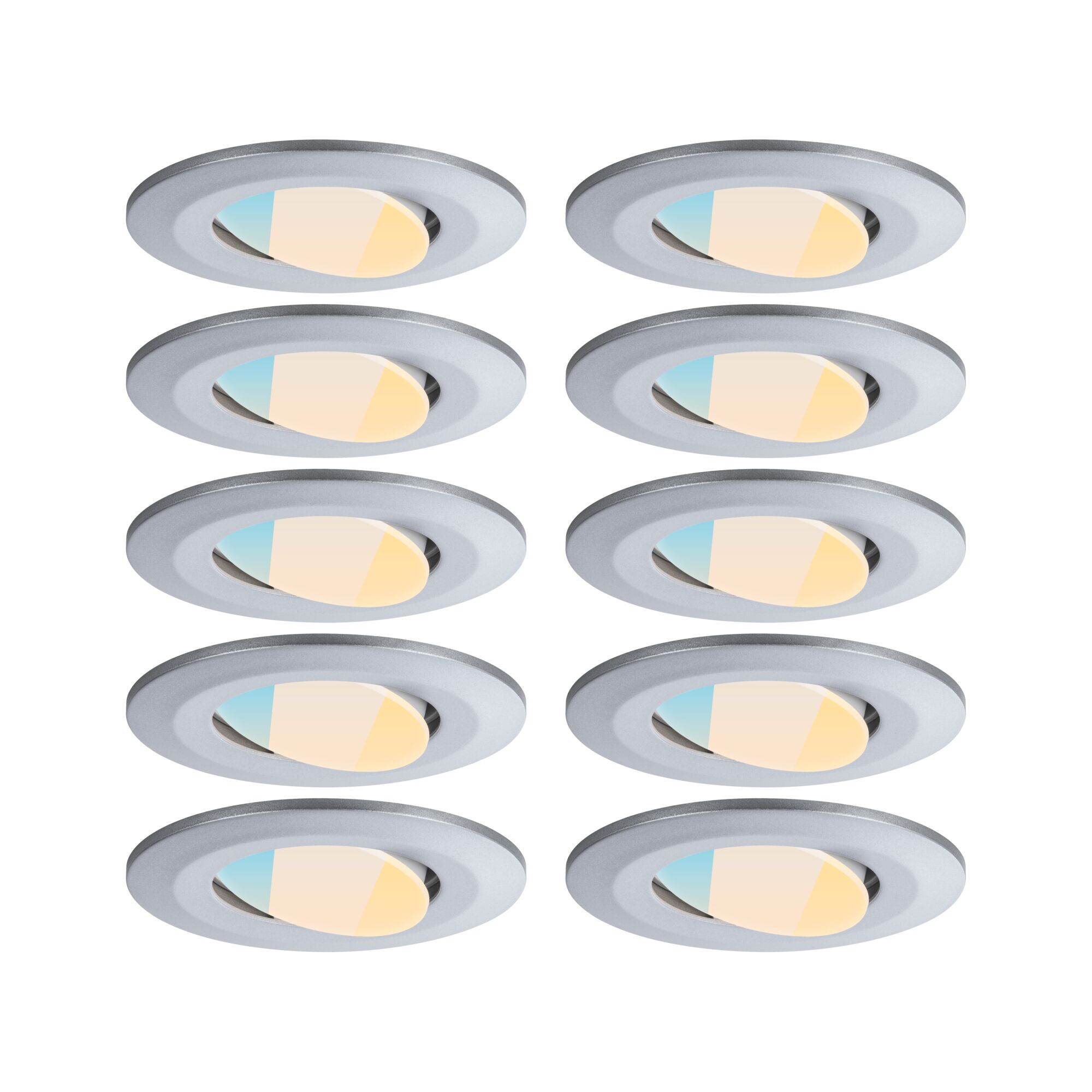

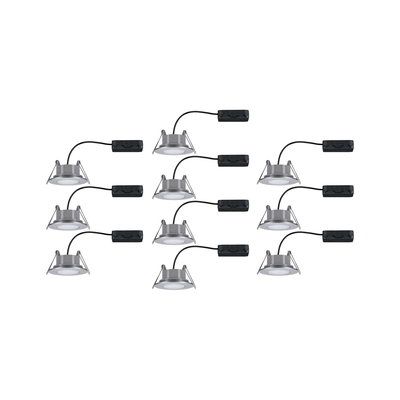

LED Recessed luminaire Calla 10-piece set IP65 round 90mm 30° 10x5W 10x430lm 230V White Switch Chrome matt

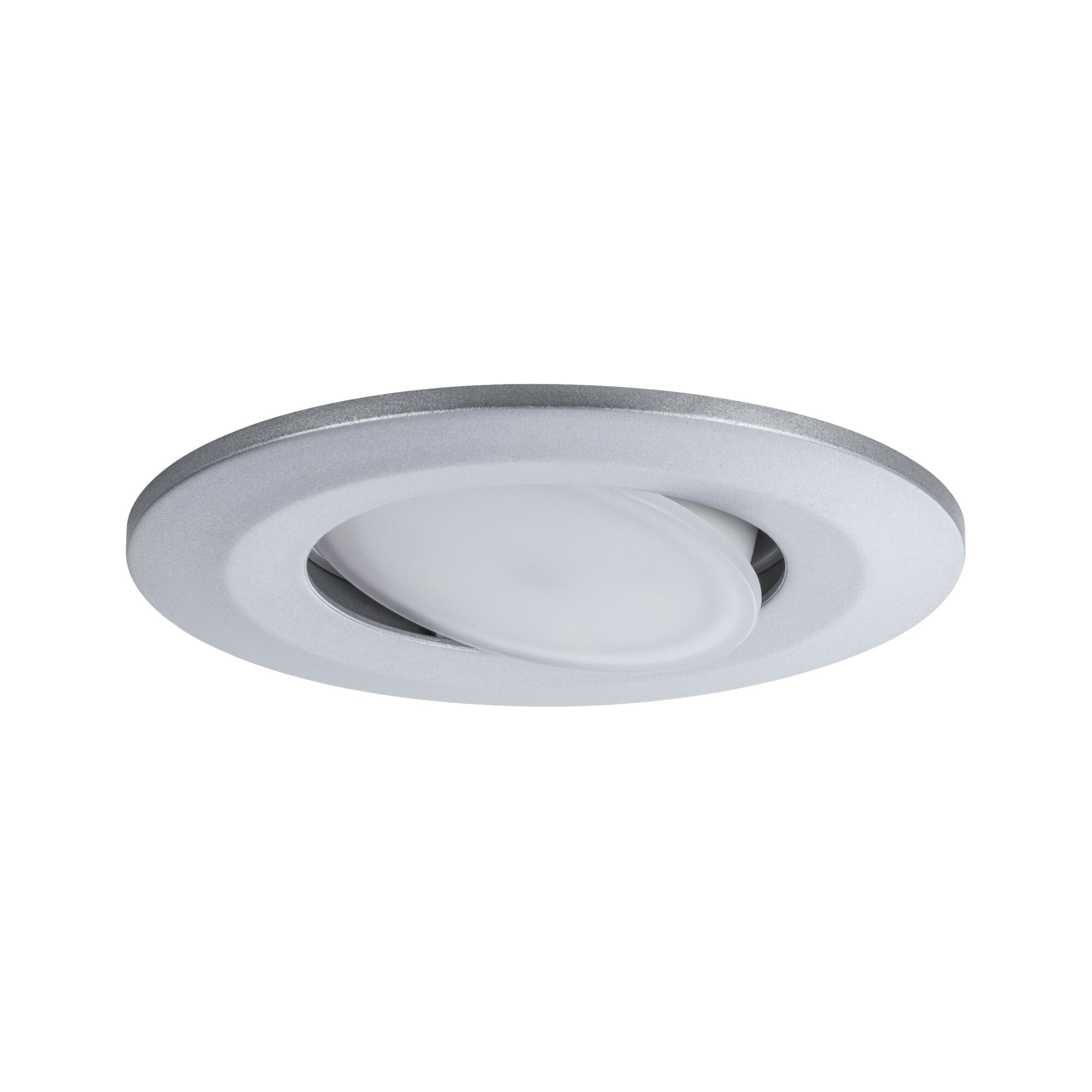

It’s compact, individual and powerful. The super versatile Calla LED recessed luminaire in Chrome matt comes in a set of 10 and is a great choice for wet rooms. Thanks to IP65 water jet protection, it is fully resistant to moisture. Its subtle design makes it a great match for any interior style. Thanks to the WhiteSwitch function, the light colour can be individually adjusted via wall switch to suit the time of day and current lighting needs. A swivel joint ensures that the light can be directed wherever it is needed.

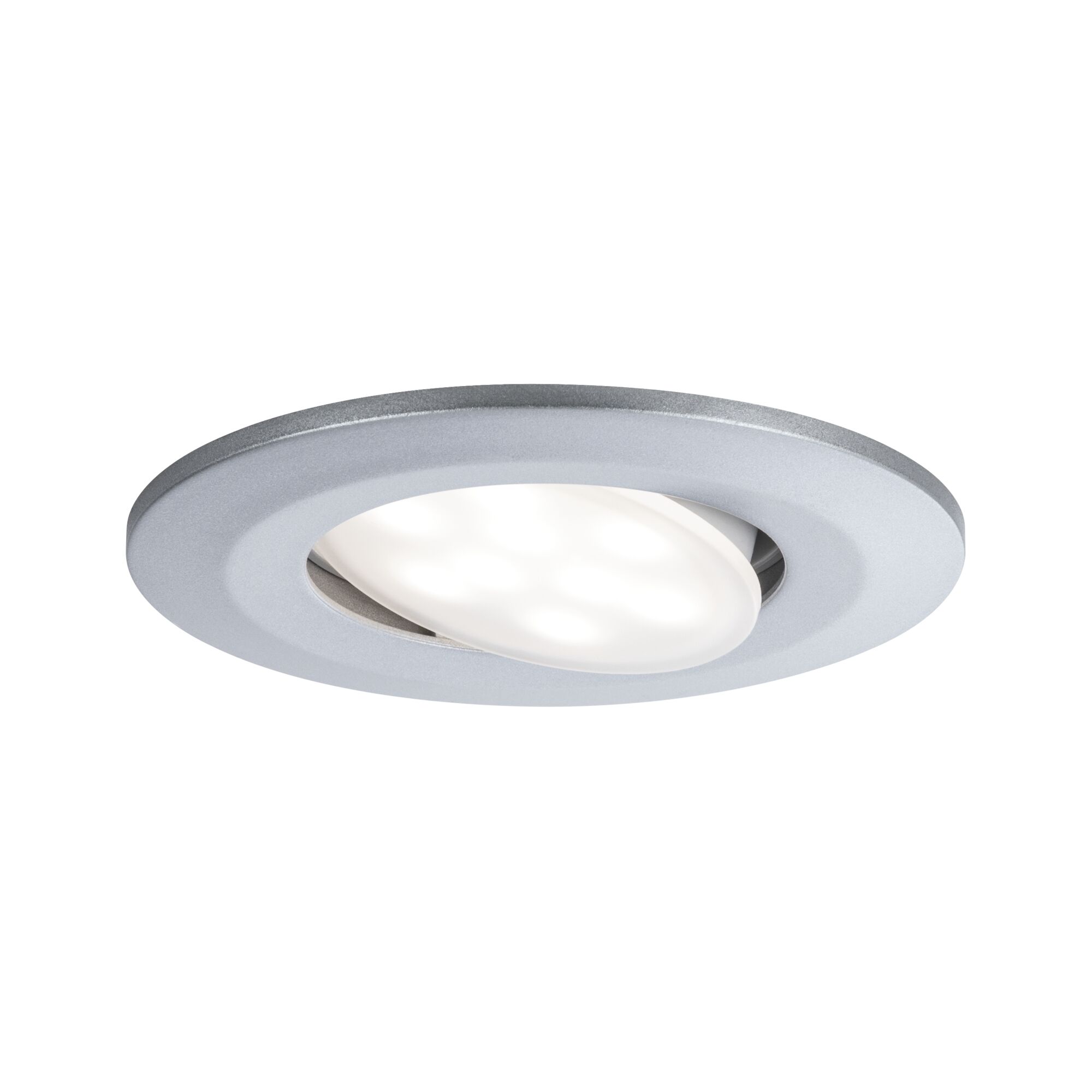

- With swivelling spots for ideal illumination

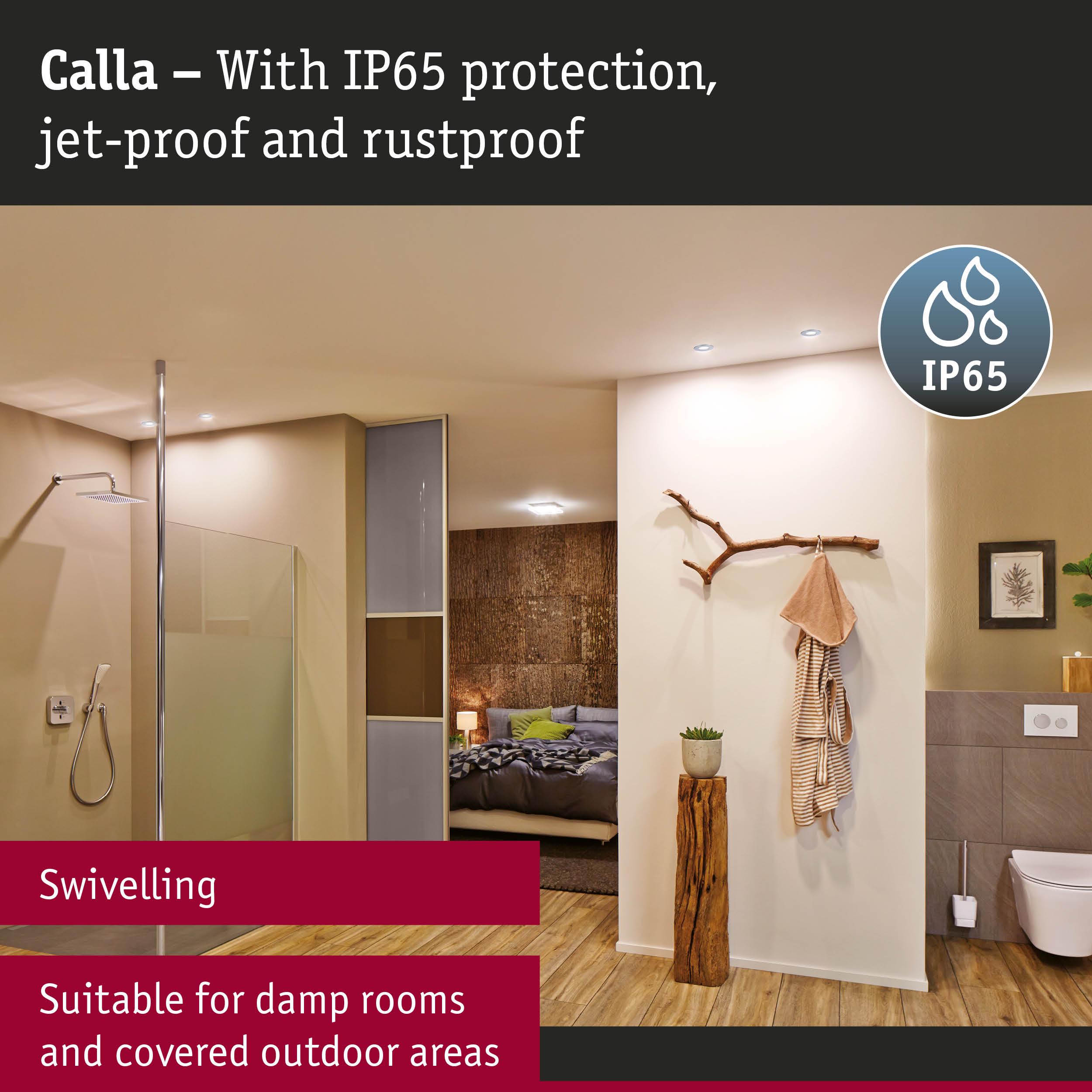

- IP65 water jet protected for damp rooms or outdoor use
- For 230 V direct connection
- Colour temperature: 3000 K - Warm white up to 6500 K - Daylight white

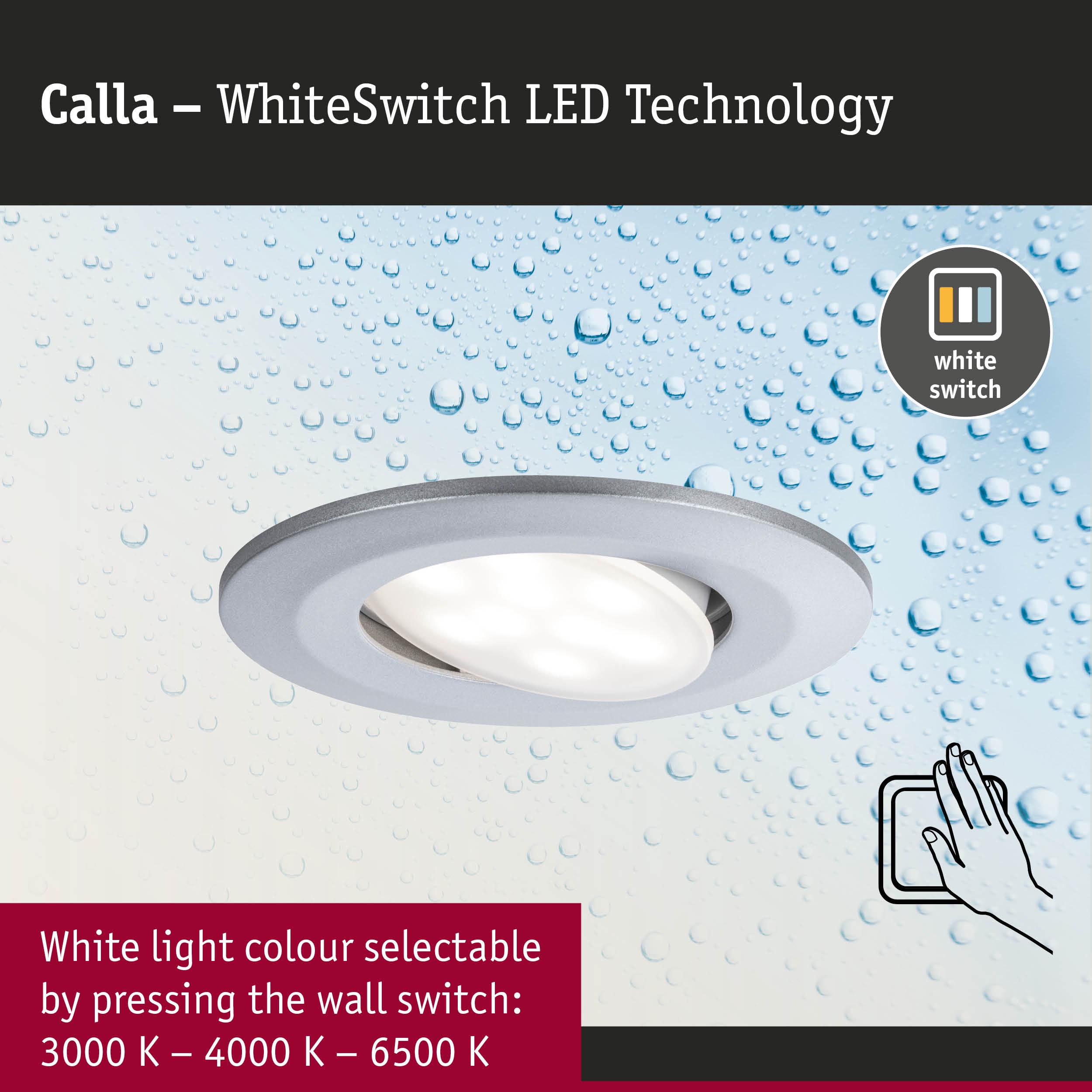

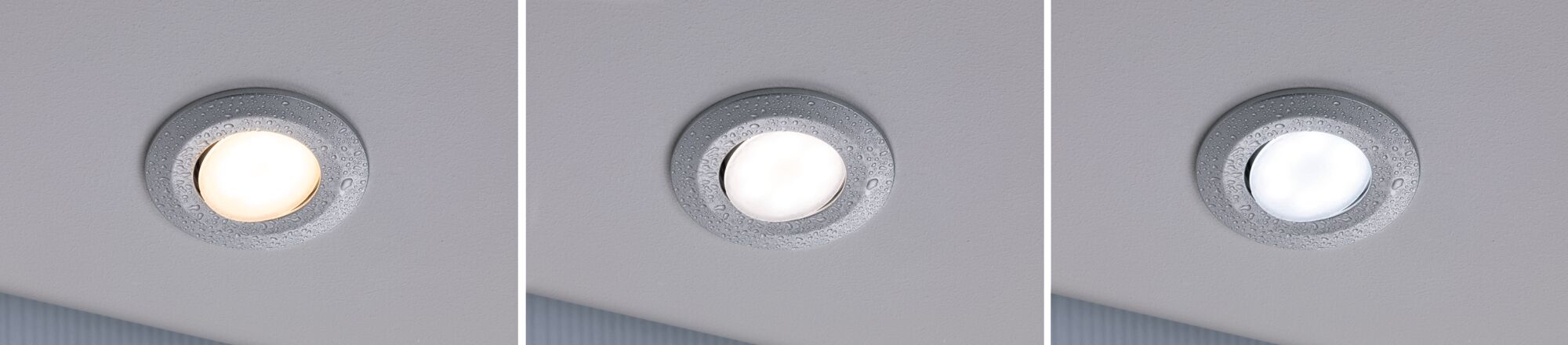

- Whiteswitch - the colour temperature can be set by pressing the wall switch several times

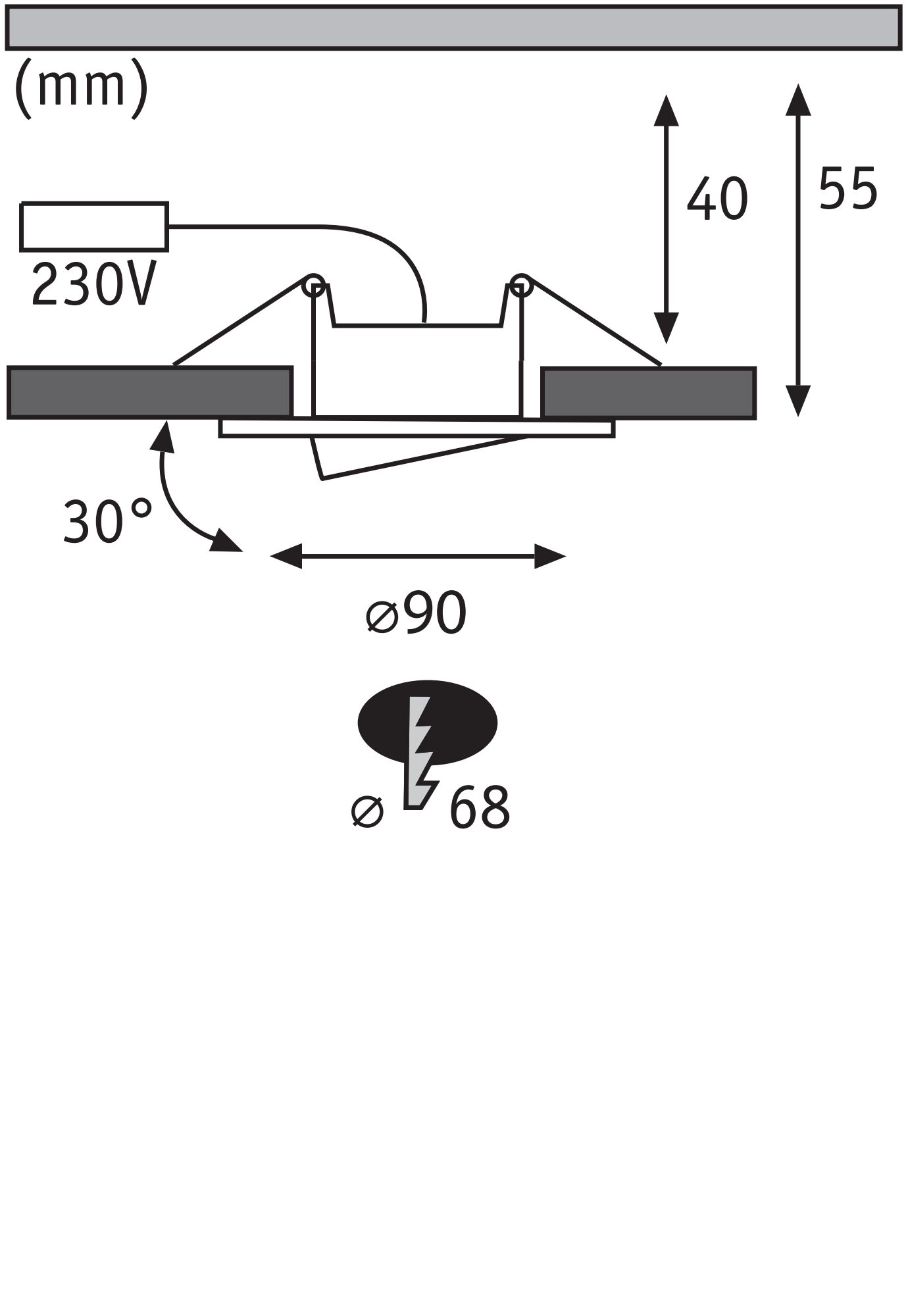

| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 20 mm |
| Diameter | 90 mm |
| Built-in diameter | 68 mm |
| Mounting depth | 55 mm |
| Depth of hollow wall | 40 mm |
| Design and Material | |
|---|---|
| Form | round |
| Colour | Chrome matt |
| Material | Plastic |
| Recycled material included | no |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature to | 6500 K |
| Colour temperature | Warm white to Daylight white, 3000 K |
| Nominal luminous flux | 430 lm |
| Luminous flux LED module | 550 lm |
| Color rendering index | > 80 Ra |
| Beam angle | 100 ° |
| Colour change | White Switch |
| Lamp Features | |
|---|---|
| Dimmable | No |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel fest integriert |
| Swivel range | 30 ° |
| Incandescent Equivalent | 43 W |
| IP protection | IP65 ceiling mounting |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 5 W |
| Number of component parts | 10x |
| Power consumption | 5,5 W |
| Adjustability | swivelling/tilting |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Transformer | |
|---|---|
| apparent power | 10 VA |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
