Article-No.:
92407
LED Recessed luminaire3-Step-Dim
Nova Coin Basic Set rigide
IP44 round 74mm Coin 3x6W 3x470lm 230V dimmable 2700K Gold matt
IP44 round 74mm Coin 3x6W 3x470lm 230V dimmable 2700K Gold matt
- Set of 3 luminaires, 470 lm, gold matt

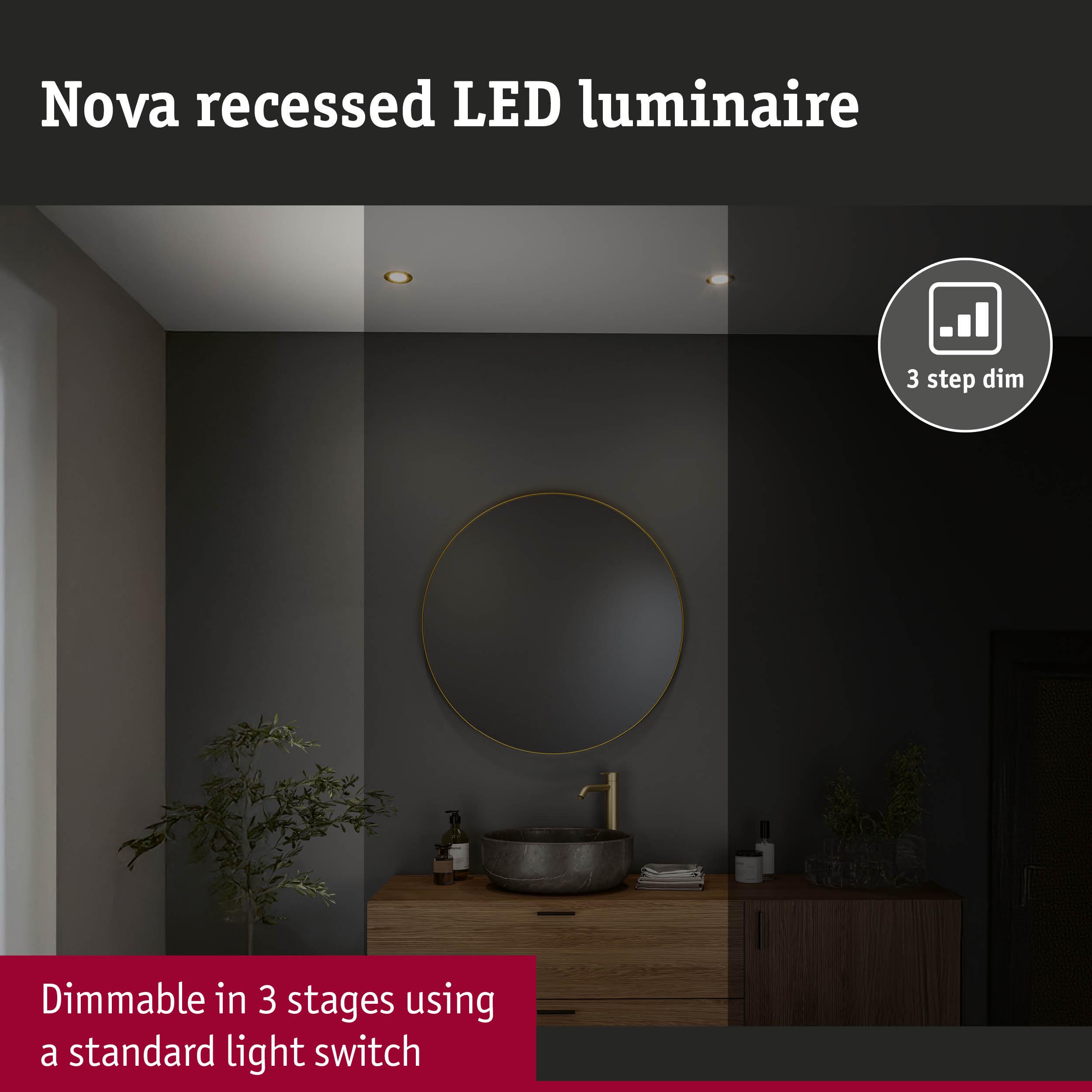

- Dimmable in 3 stages with standard light switch

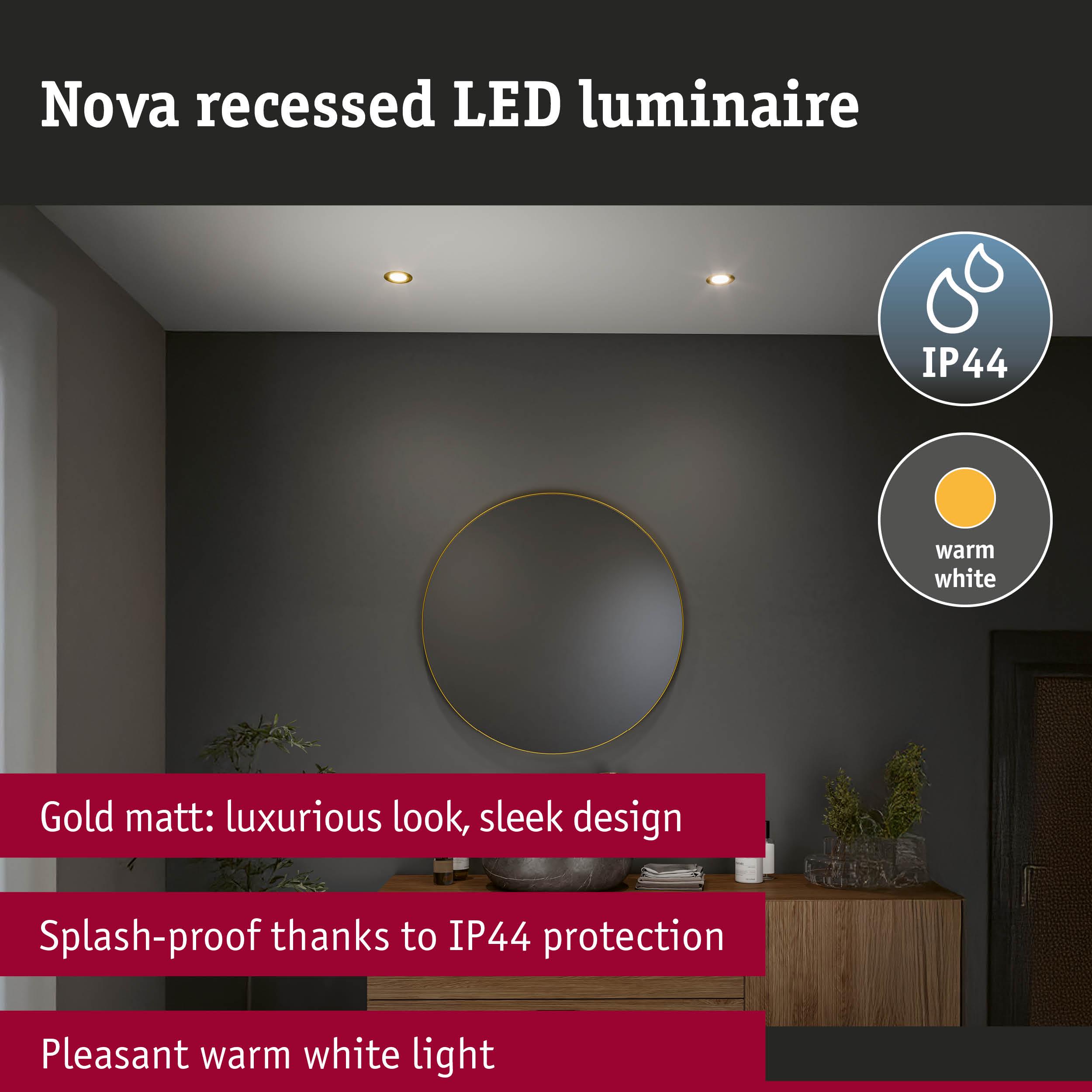

- IP protection: IP44 - splash-protected
LED Recessed luminaire 3-Step-Dim Nova Coin Basic Set rigide IP44 round 74mm Coin 3x6W 3x470lm 230V dimmable 2700K Gold matt

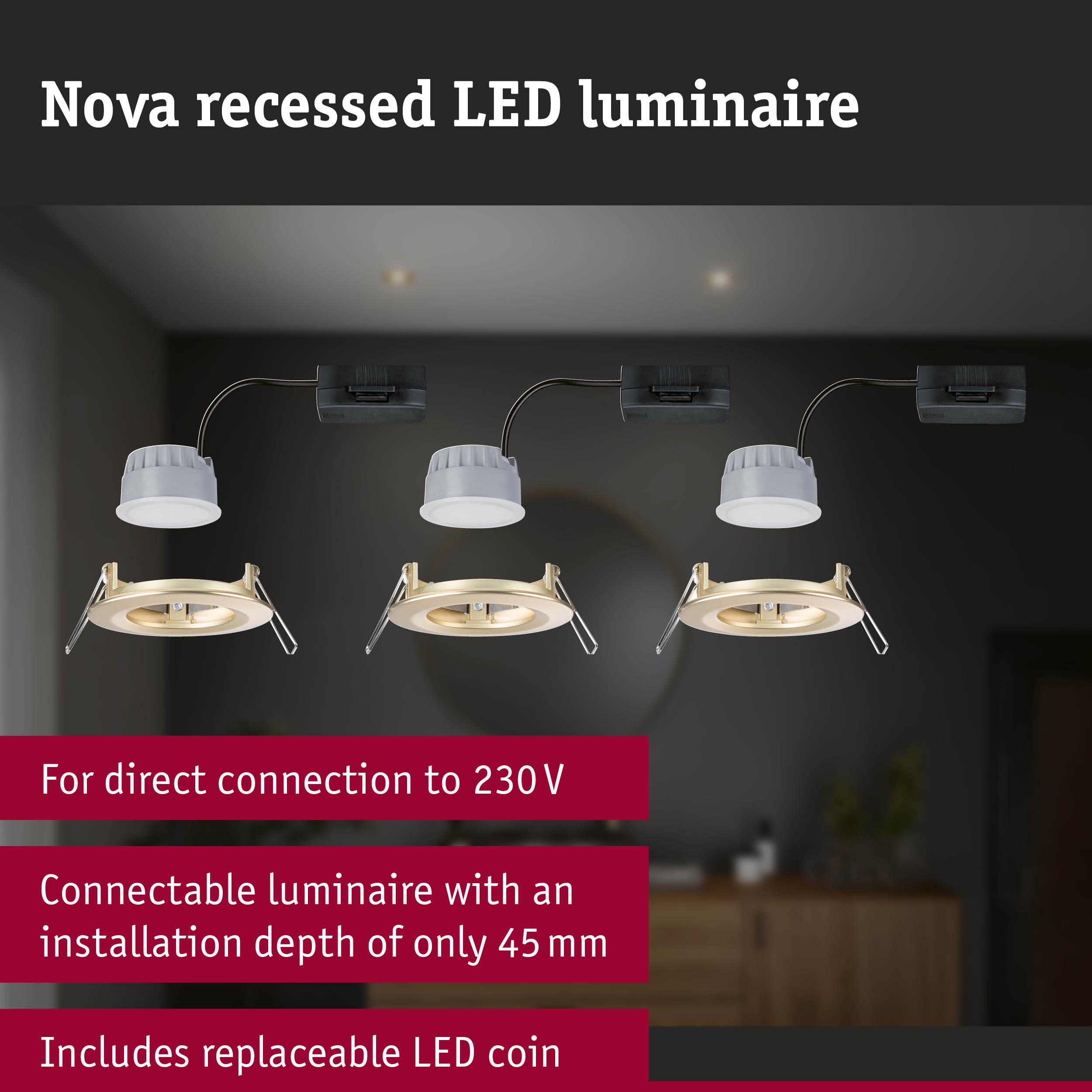

The round Nova coin recessed luminaire (3-piece set) in gold matt with 3 x 470 lm is the perfect choice for a functional and stylish lighting design. An integrated 3-Step-Dim function adds versatility: Repeated pressing of a regular light switch will dim the brightness in three stages. The high IP44 protection makes this luminaire ideally suitable for use in wet rooms, as it is additionally splash-protected. Manufactured as a durable aluminium die-cast unit with an installation depth of just 45 mm, this model is ideally suited for customised residential concepts. The minimalistic look is undisturbed by snap rings: No snap ring is needed, as the lamp is inserted back to front. The practical junction box allows a direct 230 V connection and ensures easy and unlimited interlinking of the luminaires. The simple mounting method with retaining springs means that the ceiling remains undamaged, even after repeated installations and removals. High-efficiency, long-life coin LED lamps are included in the delivery, which generate an attractive 2700 K warm white light for ambient lighting.
- Set of 3 luminaires, 470 lm, gold matt
- Dimmable in 3 stages with standard light switch
- IP protection: IP44 - splash-protected
- High-quality die-cast aluminium
- Shallow installation depth of the Nova coin recessed luminaires
- Easy installation of the recessed luminaires
- Linkable coins for direct 230V connections
Dimension | |
---|---|
Depth of hollow wall | 30 mm, 30 mm |
Total Mounting depth | 45 mm |
Dimensions (Height x Width x Depth) | H: 22 mm |
Ø | 74 mm |
Mounting hole | 68 mm |
Form | round |
Design and Material | |
---|---|
stainless | stainless alu |
Colour | Gold matt |
Material | Die cast aluminium |
Energy consumption | |
---|---|
Energy efficiency (A to G) | G |
Service life | |
---|---|
Lifetime | 30000 h |
Light Characteristics | |
---|---|
Colour temp. | 2700 K |
color temp | 2700 K |
Farbtemperatur_Text | Warmweiß |
Beam angle | 100 ° |
Usable luminous flux | 470 lm |
Color rendering index | > 85 Ra |
Lamp Features | |
---|---|
Component parts | 6 W |
Technique | LED |
Socket | Coin |
IP protection | IP44 ceiling mounting |
Dim | dimmable in 3 steps with normal light switch |
Dimmable | Yes |
Inclusive lamp | yes |
Incandescent Equivalent | 40 W |
Adjustability | fixed |
Number of component parts | 3x |
protection class | protection class II |
Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
Labelling | |
---|---|
MM symbol | MM symbol |
WEEE-Reg.-No | DE 39236390 |
