Article-No.:
93126

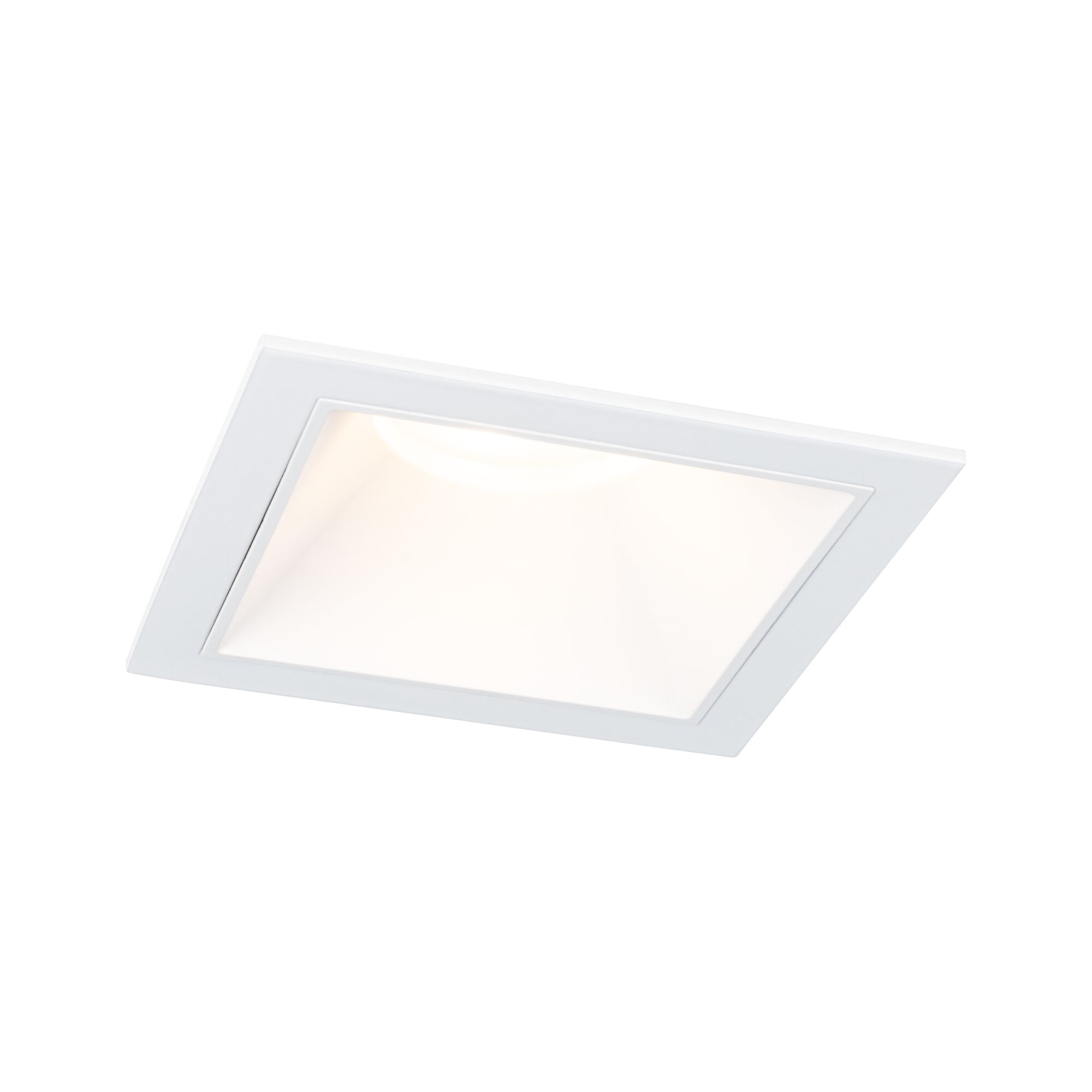

LED Recessed luminaire
3-Step-Dim

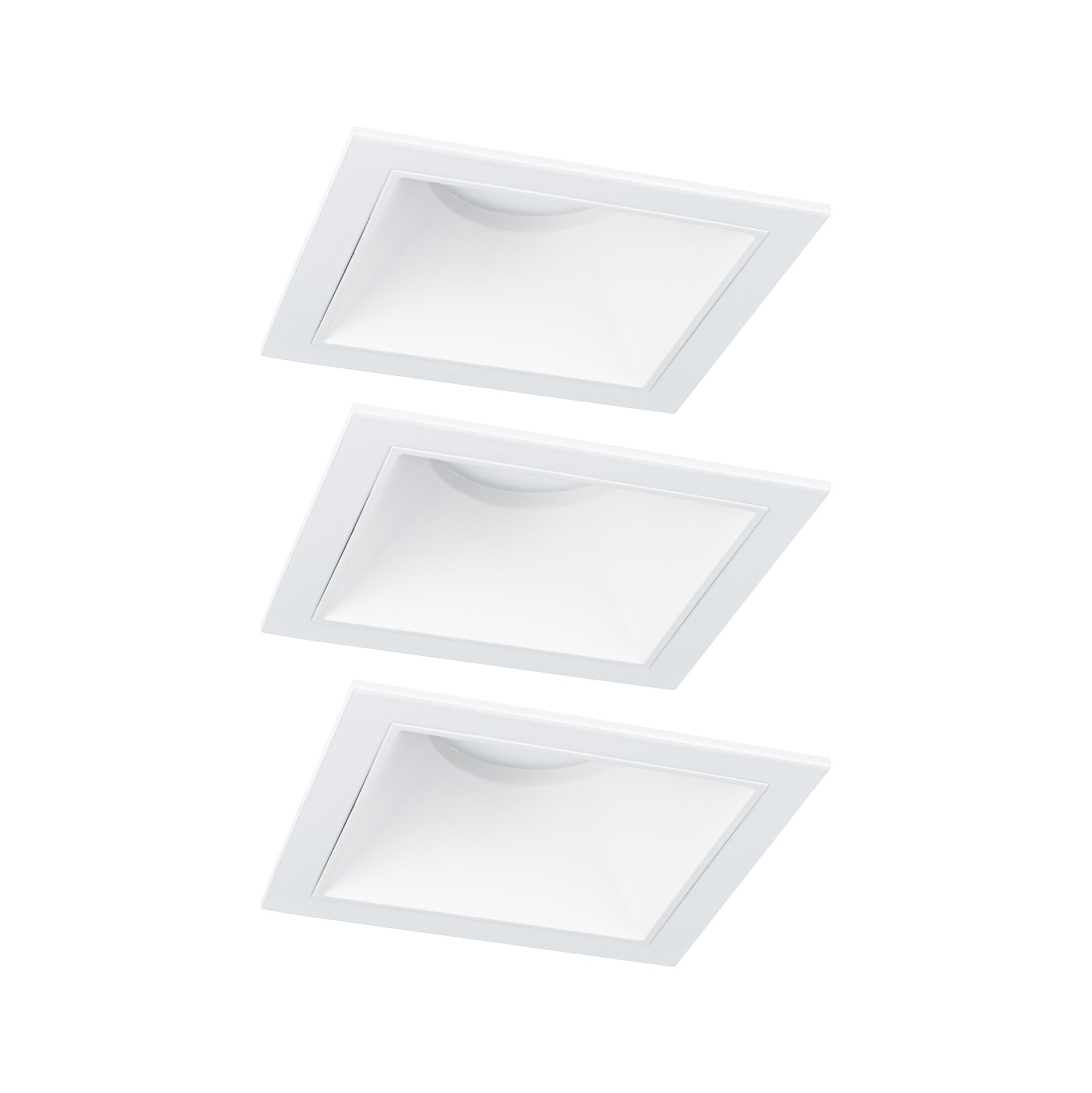

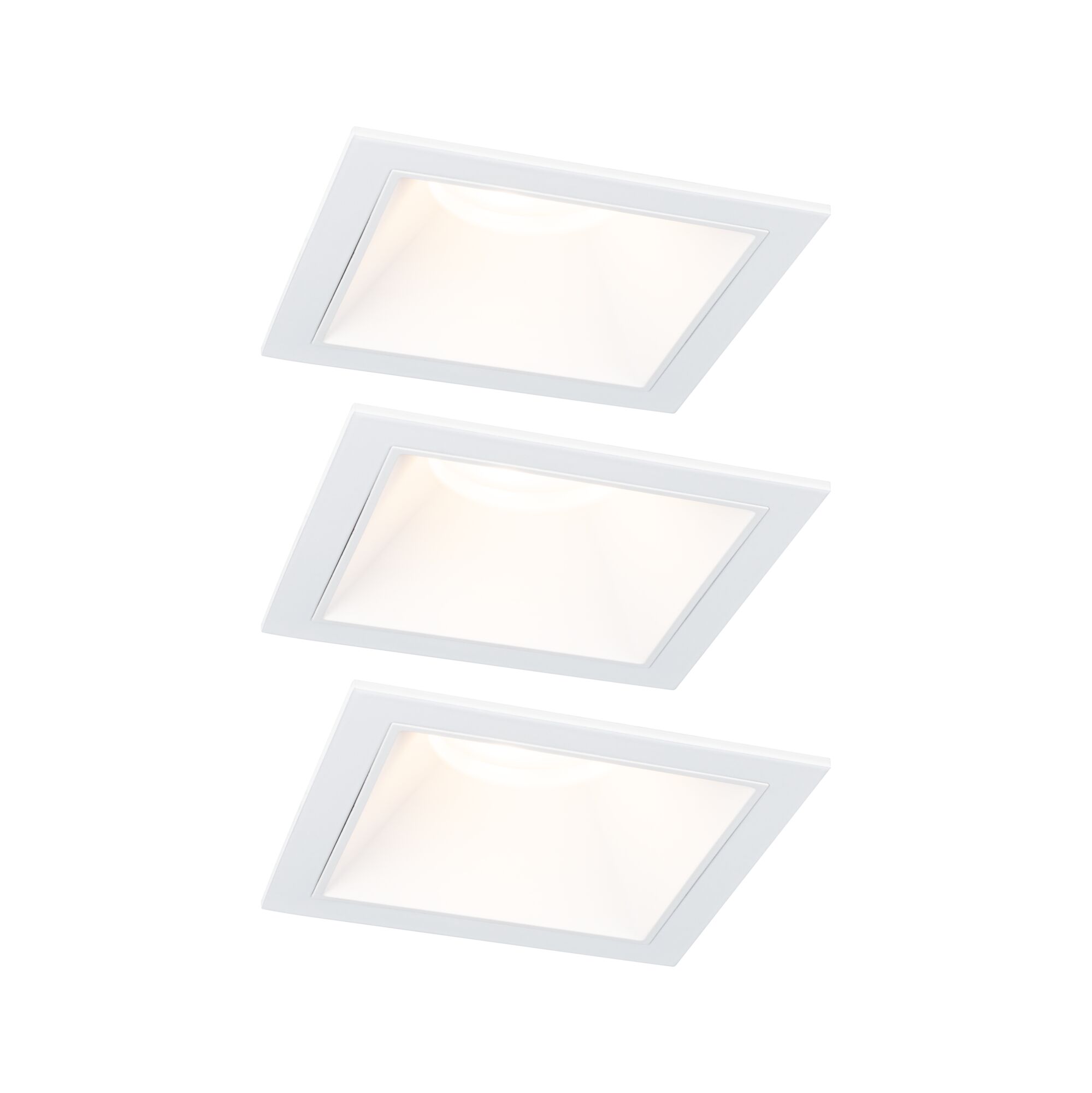

Cole Coin Basic Set
IP44 square 88x88mm Coin 3x6W 3x470lm 230V dimmable 2700K White
IP44 square 88x88mm Coin 3x6W 3x470lm 230V dimmable 2700K White
- Color temperatur: 2700K - Warm white
- For 230 V direct connection
- Incl. replaceable LED lamp

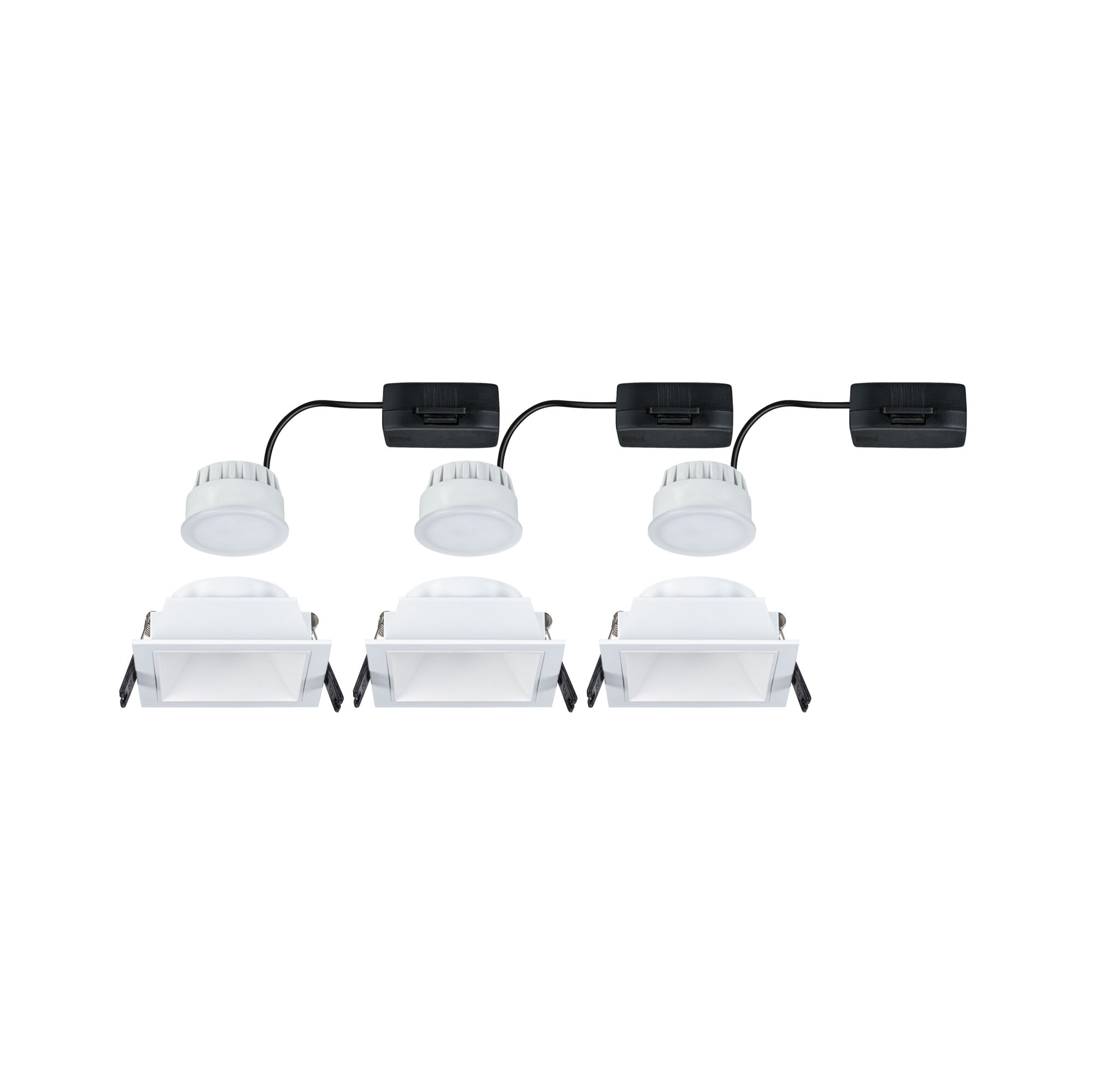

LED Recessed luminaire 3-Step-Dim Cole Coin Basic Set IP44 square 88x88mm Coin 3x6W 3x470lm 230V dimmable 2700K White

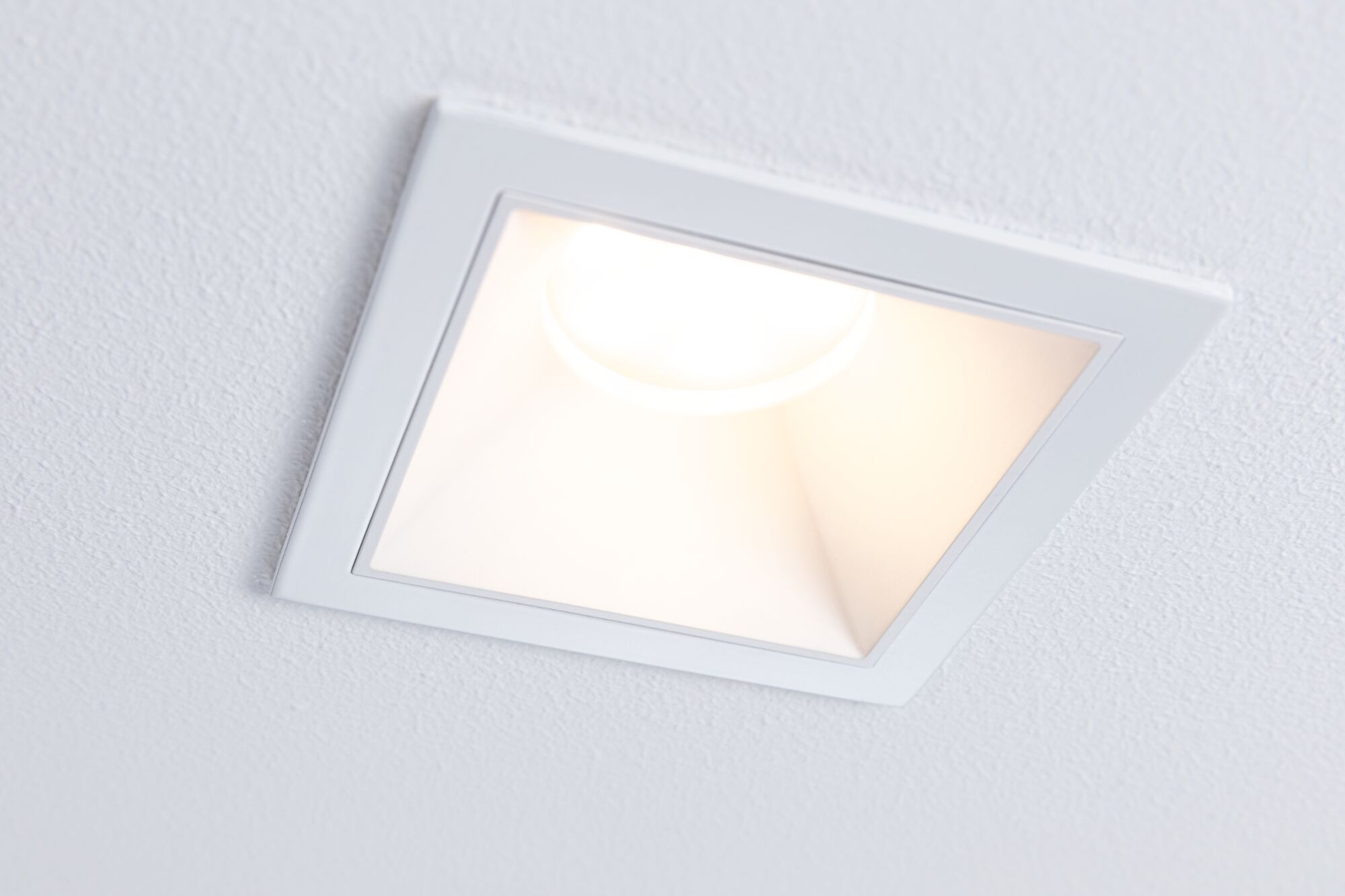

Love at second glance! The Cole recessed luminaires in white feature offset lamps, which allows them to almost blend into the ceiling. Once you do glimpse them it will be hard to look away. The light of the recessed coins on the matt black surface provides soft, glare-free lighting. They also get full marks for their brilliant technology: The replaceable LED coins emit a pleasant, warm white light and can be dimmed in three stages with a conventional light switch.
- Color temperatur: 2700K - Warm white

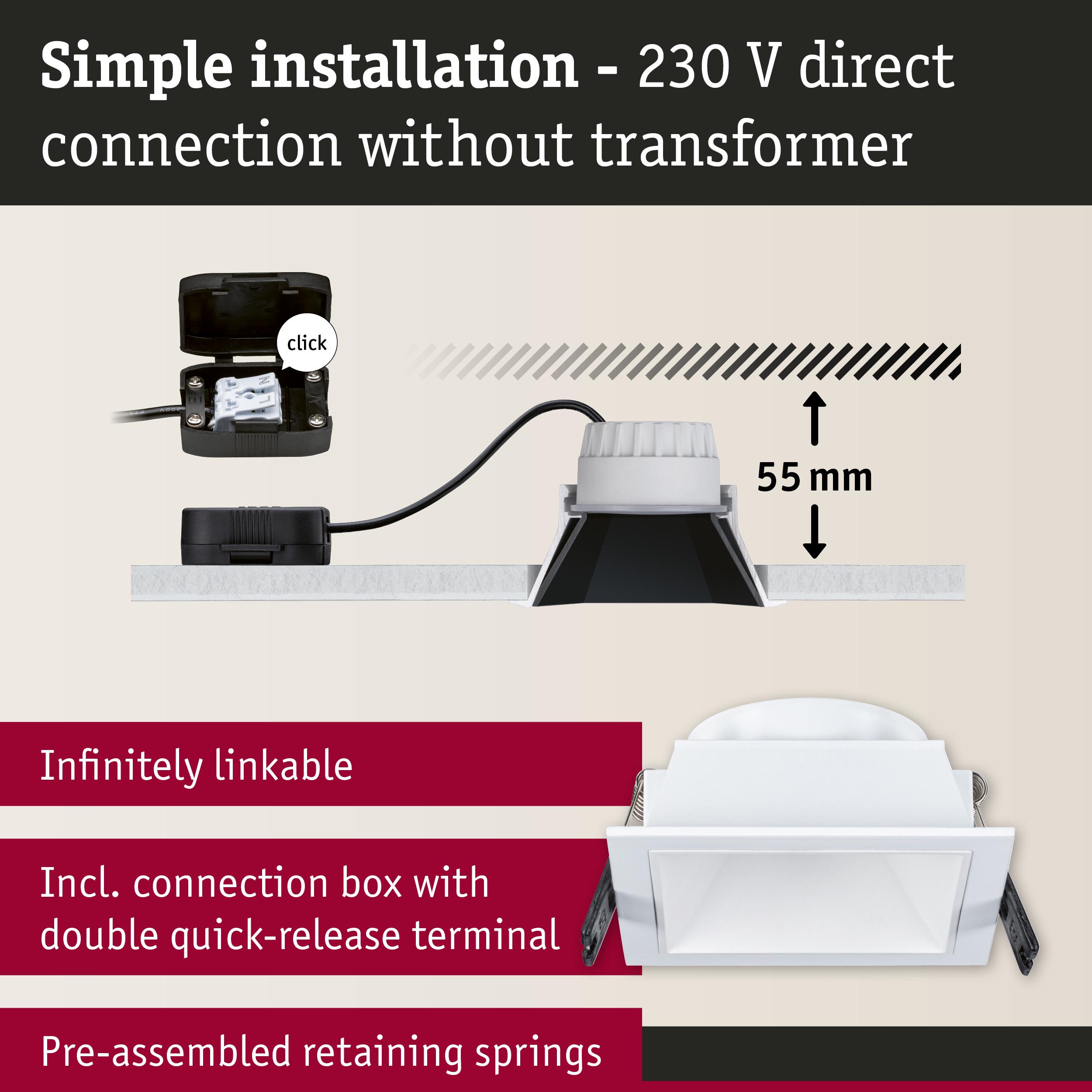

- For 230 V direct connection
- Incl. replaceable LED lamp

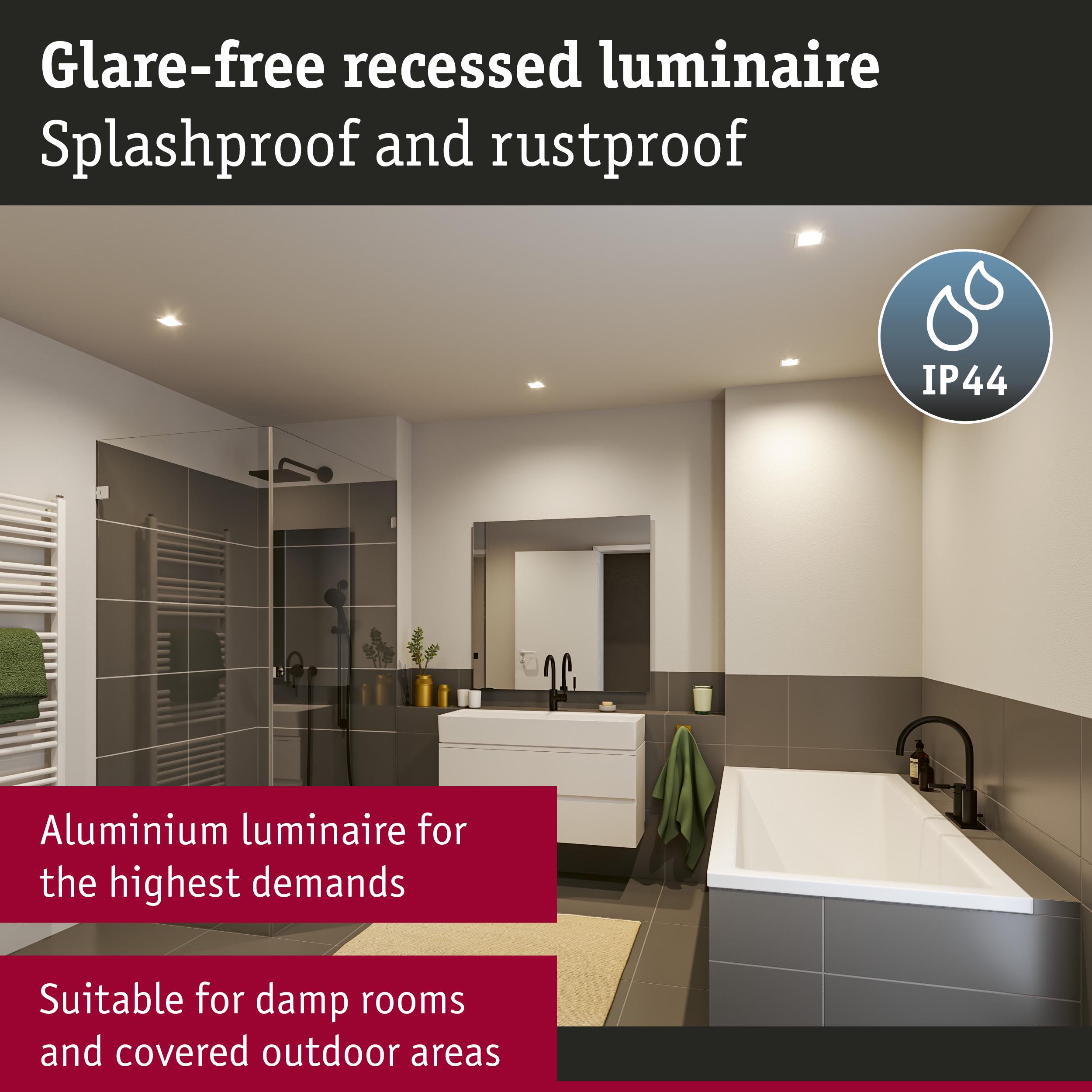

- IP protection: IP44 - splash-protected

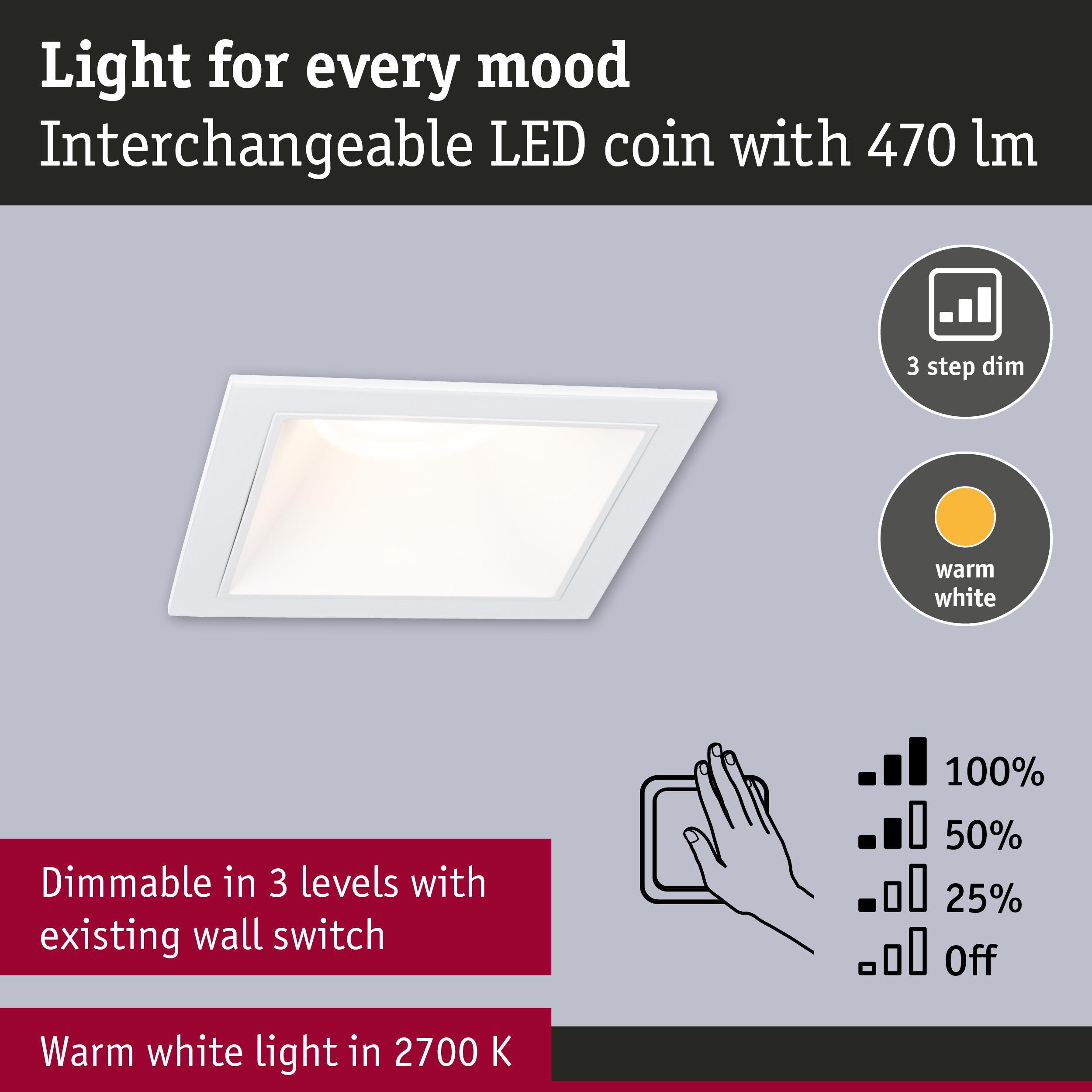

- Can be dimmed with a standard light switch, with 3 dimming levels
| Dimension | |
|---|---|
| Total Mounting depth | 70 mm |
| Dimensions (Height x Width x Depth) | H: 56 x B: 88 x T: 88 mm |
| Mounting hole | 80 mm |
| Form | square |
| Depth of hollow wall | 55 mm, 55 mm |
| Design and Material | |
|---|---|
| stainless | stainless alu |
| Colour | White |
| Material | Plastic, Aluminium zinc |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| Beam angle | 100 ° |
| Usable luminous flux | 470 lm |
| color temp | 2700 K |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 6 W |
| Technique | LED |
| Socket | Coin |
| IP protection | IP44 ceiling mounting |
| Dim | dimmable in 3Â steps with normal light switch |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Total Width | 88 mm |
| Incandescent Equivalent | 40 W |
| Number of component parts | 3x |
| protection class | protection class II |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
