Article-No.:
93408
LED Recessed luminaire3-Step-Dim
Cole Coin 3-piece set
IP44 round 88mm Coin 3x6W 3x470lm 230V dimmable 2700K Black/Silver matt
IP44 round 88mm Coin 3x6W 3x470lm 230V dimmable 2700K Black/Silver matt

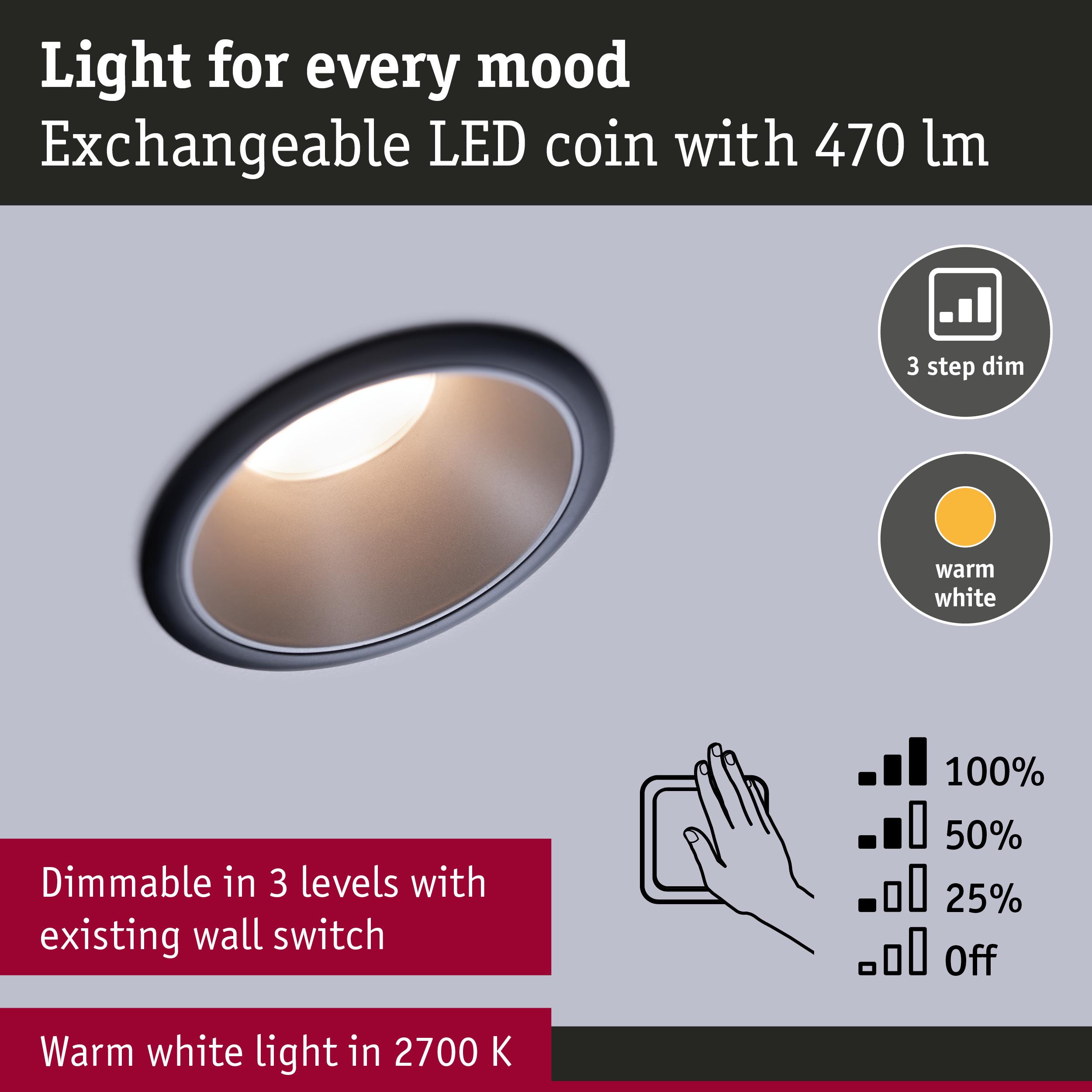

- Can be dimmed with a standard light switch, with 3 dimming levels
- Incl. replaceable LED lamp

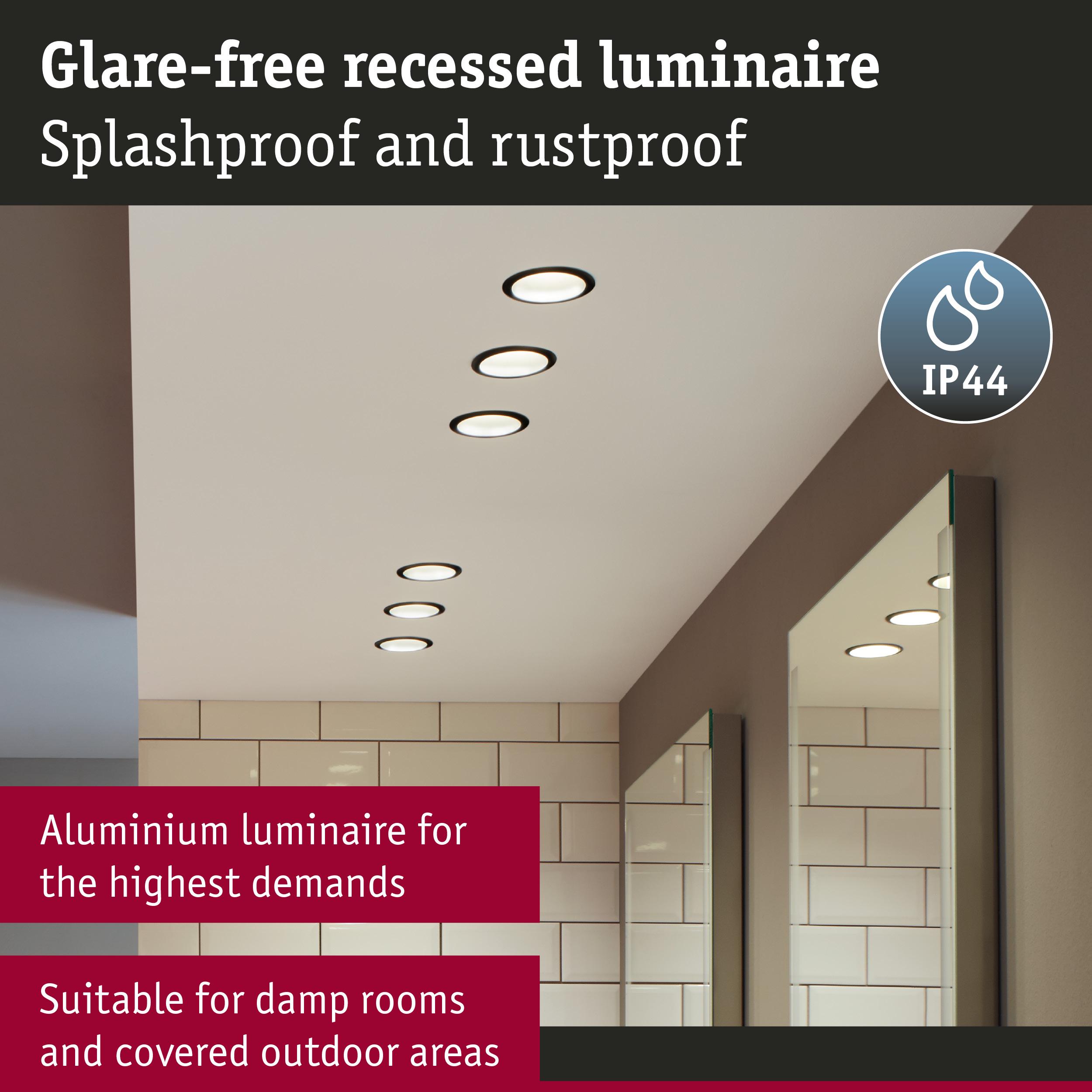

- IP protection: IP44 splash-protected
LED Recessed luminaire 3-Step-Dim Cole Coin 3-piece set IP44 round 88mm Coin 3x6W 3x470lm 230V dimmable 2700K Black/Silver matt
Love at second glance! The recessed luminaires Cole in black/silver blend almost seamlessly into the ceiling, thanks to the recessed lamps. Once you have spotted it though, you can hardly take your eyes off it. The light of the recessed coins on the matt silver surface provides soft, glare-free lighting. What’s more, they feature brilliant technology: The replaceable LED coins provide pleasant, warm white light and can be dimmed in three stages with a conventional light switch.
- Can be dimmed with a standard light switch, with 3 dimming levels
- Incl. replaceable LED lamp
- IP protection: IP44 splash-protected

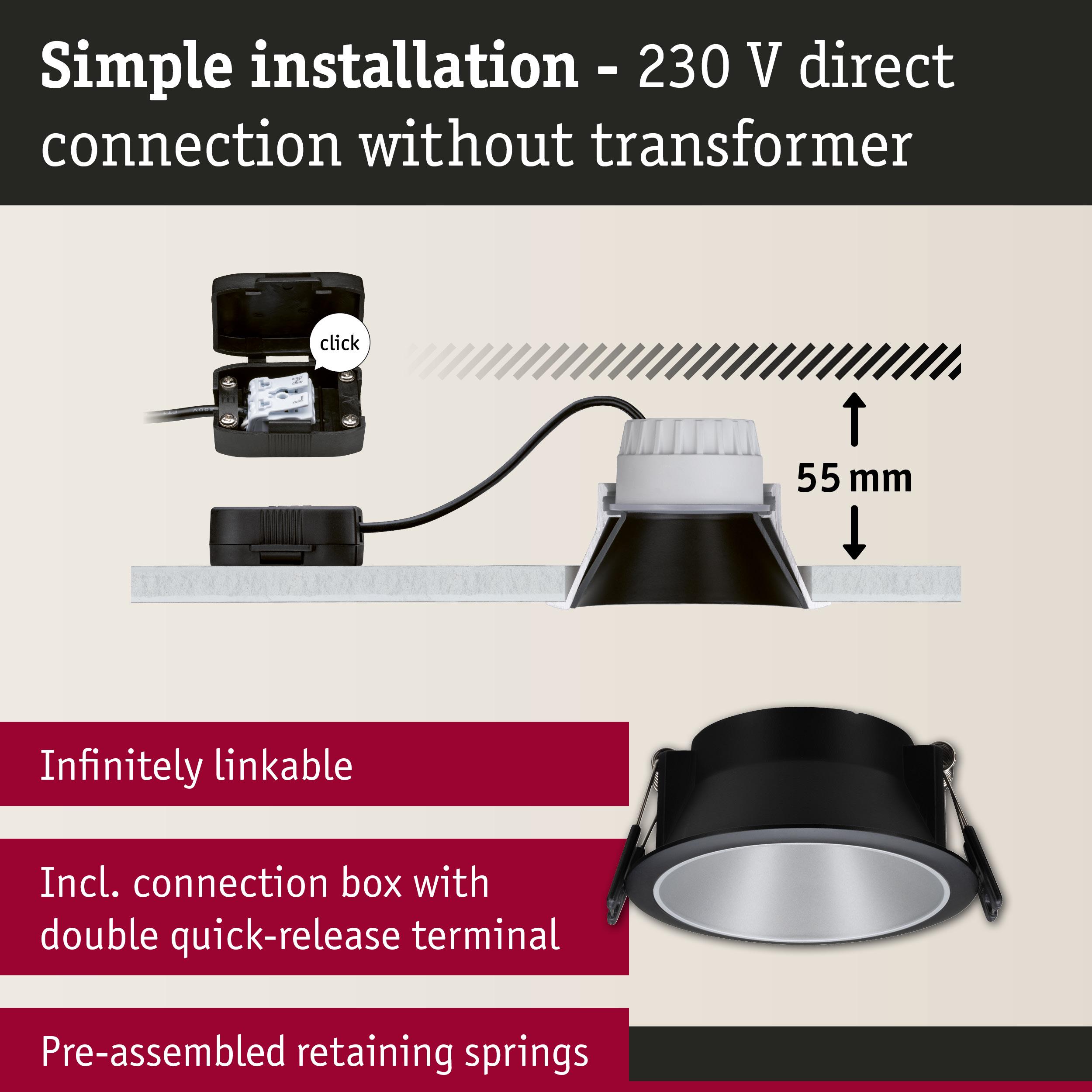

- For 230 V direct connection
| Dimension | |
|---|---|
| Total Mounting depth | 70 mm |
| Ø | 88 mm |
| Mounting hole | 80 mm |
| Form | round |
| Depth of hollow wall | 55 mm, 55 mm |
| Design and Material | |
|---|---|
| stainless | stainless alu |
| Colour | Black, Silver matt |
| Material | Plastic, Aluminium zinc |
| Energy consumption | |
|---|---|
| Energy consumption | 7 kWh_1000h |
| Energy efficiency | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| color temp | Warm white |
| Beam angle | 100 ° |
| Usable luminous flux | 470 lm |
| Color rendering index | > 85 Ra |
| Colour consistency (SDCM) | 6 |
| Lamp Features | |
|---|---|
| Component parts | 6 W |
| Technique | LED |
| Socket | Coin |
| Dim | dimmable in 3 steps with normal light switch |
| Inclusive lamp | yes |
| Incandescent Equivalent | 40 W |
| Adjustability | fixed |
| Dimmable | Yes |
| IP protection | IP44 ceiling mounting |
| Number of component parts | 3x |
| protection class | Protection class II |
| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
Downloads
- LED Module recessed luminaire
