Article-No.:
94870

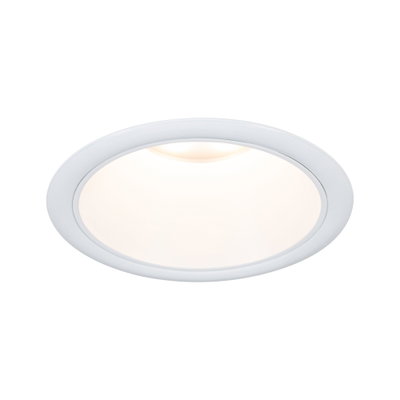

LED Recessed luminaire3-Step-Dim

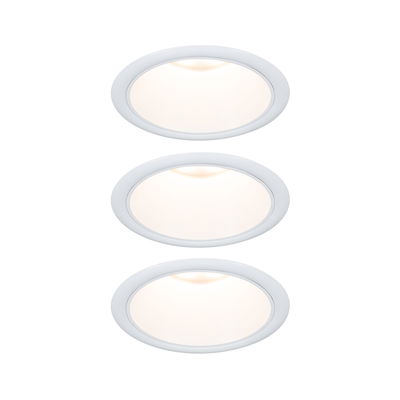

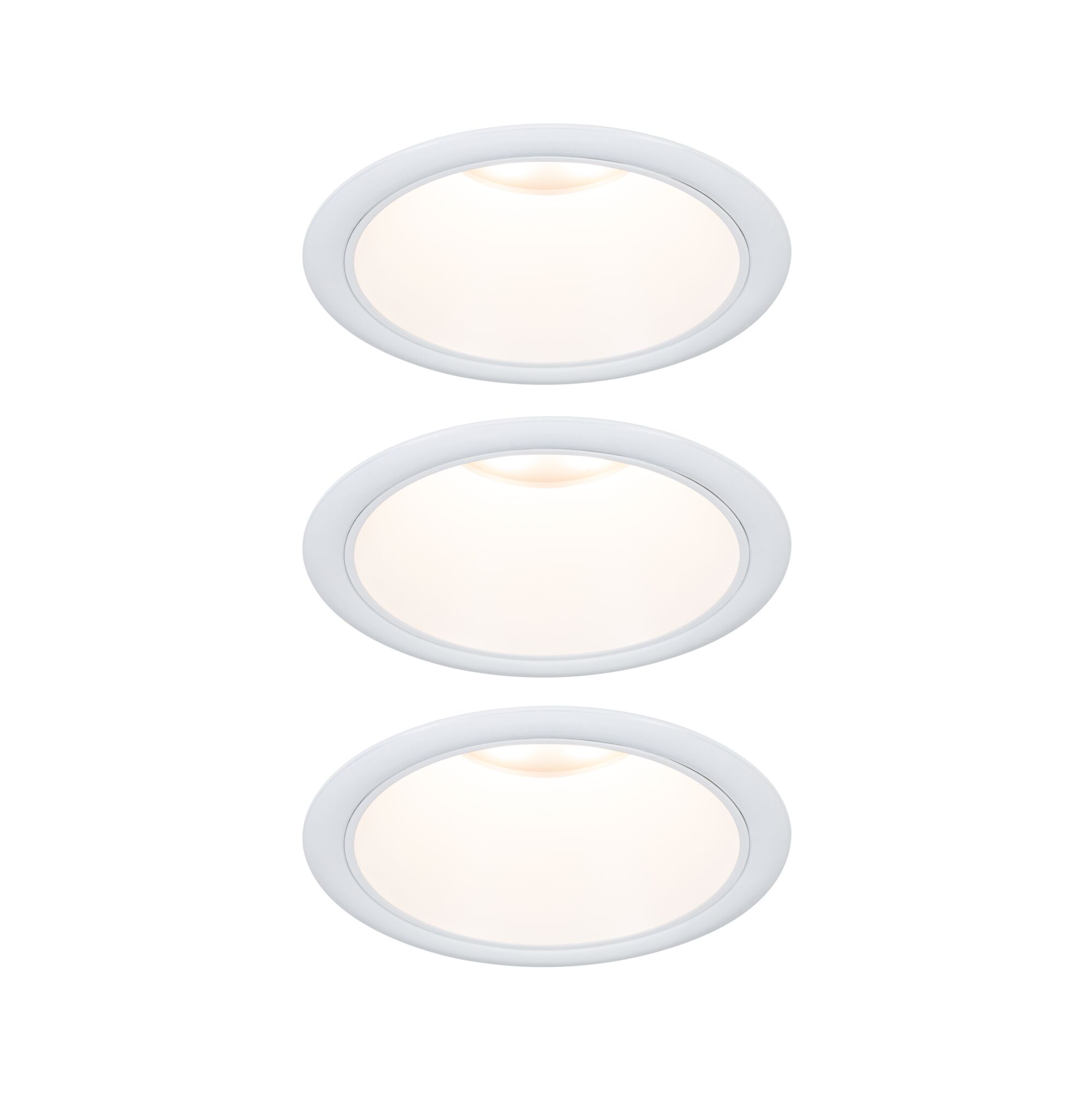

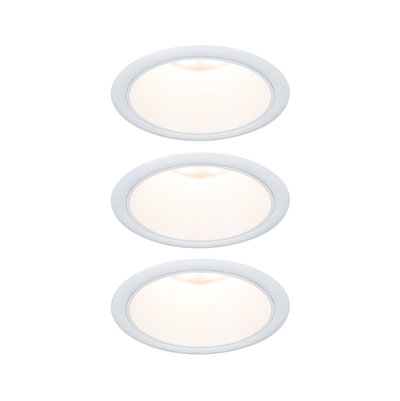

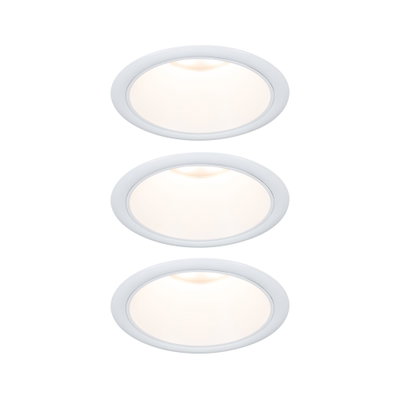

Cole Coin 3-piece set
IP44 round 88mm Coin 3x6W 3x470lm 230V dimmable 2700K White
IP44 round 88mm Coin 3x6W 3x470lm 230V dimmable 2700K White

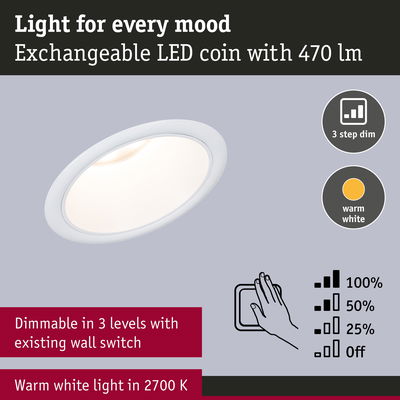

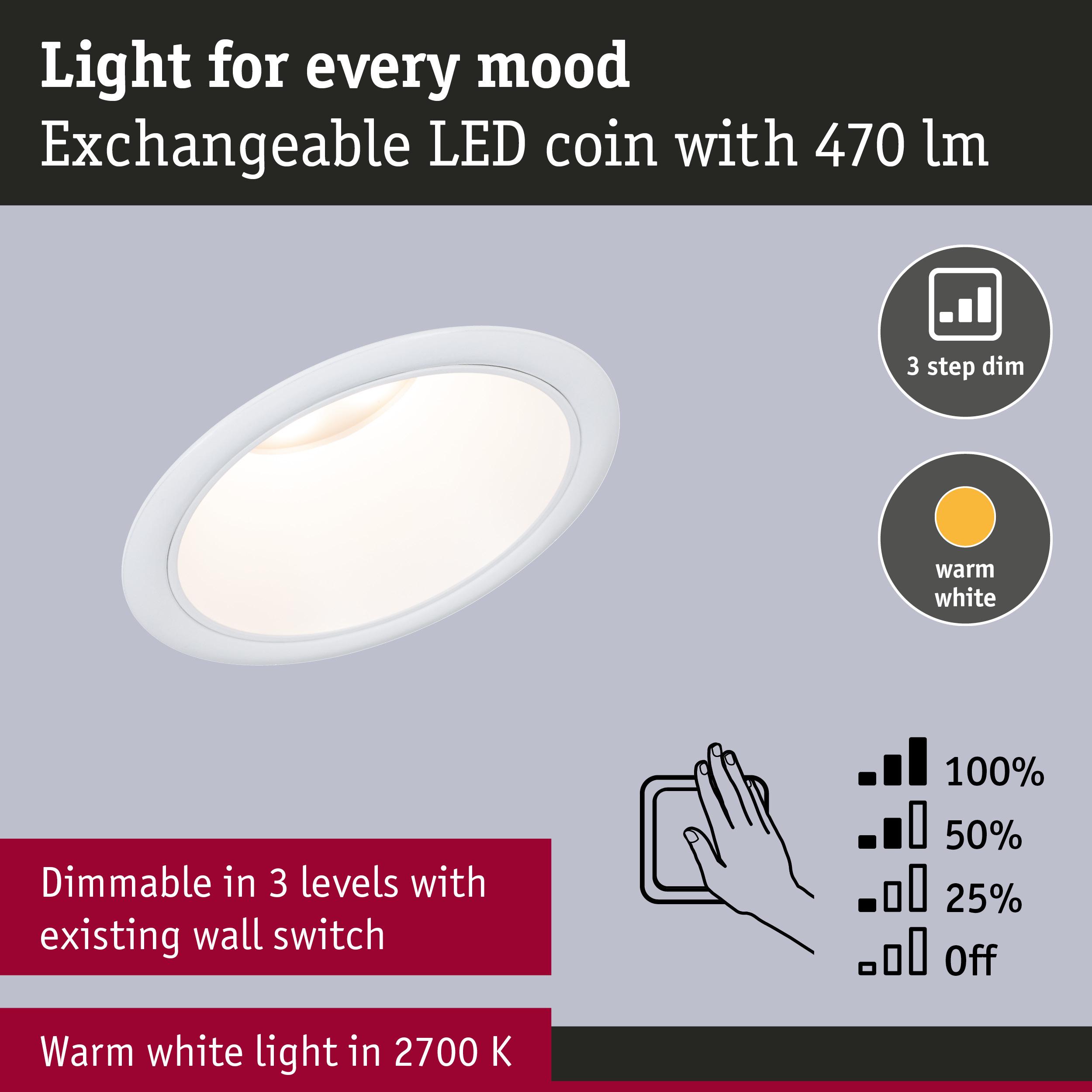

- Can be dimmed with a standard light switch, with 3 dimming levels

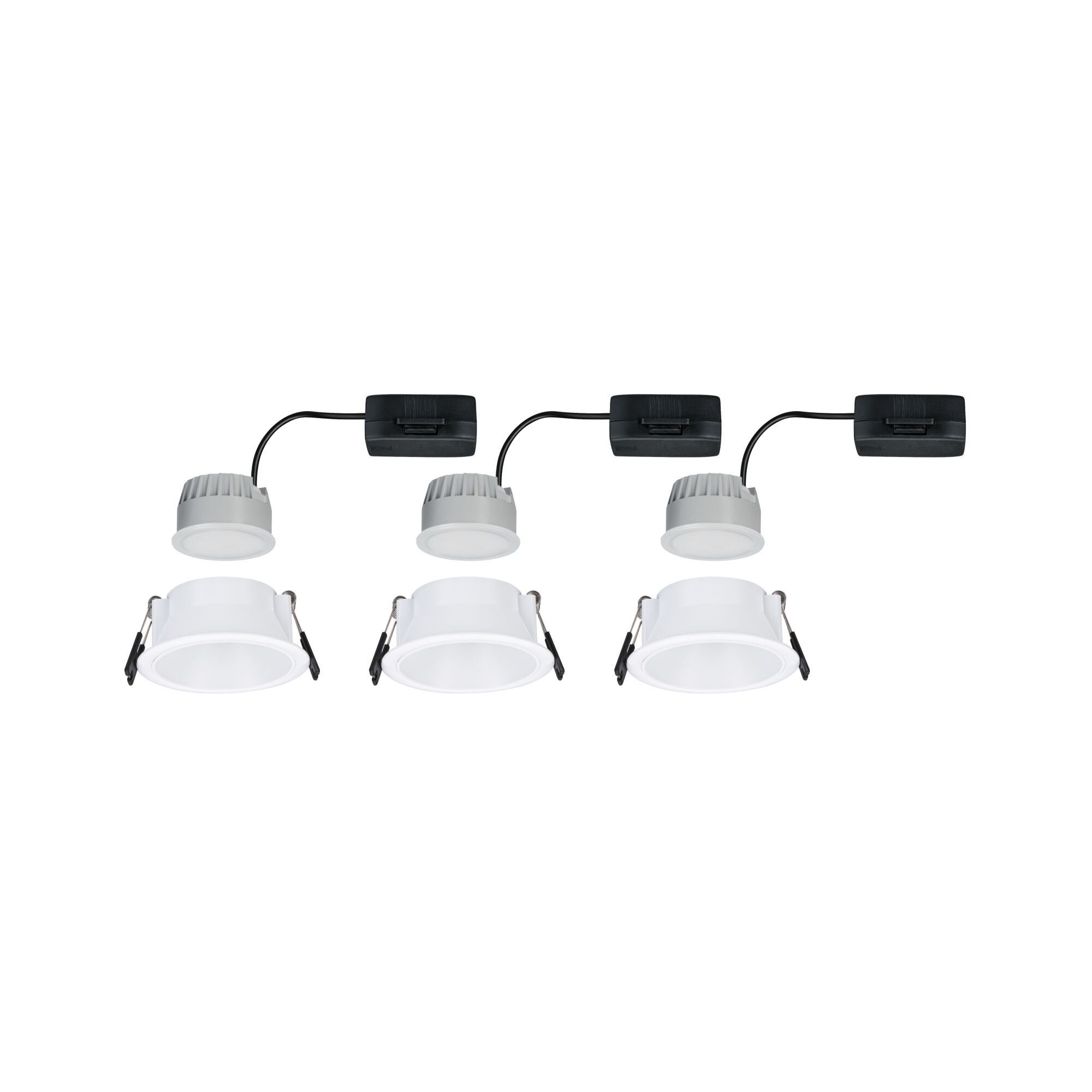

- Incl. replaceable LED lamp

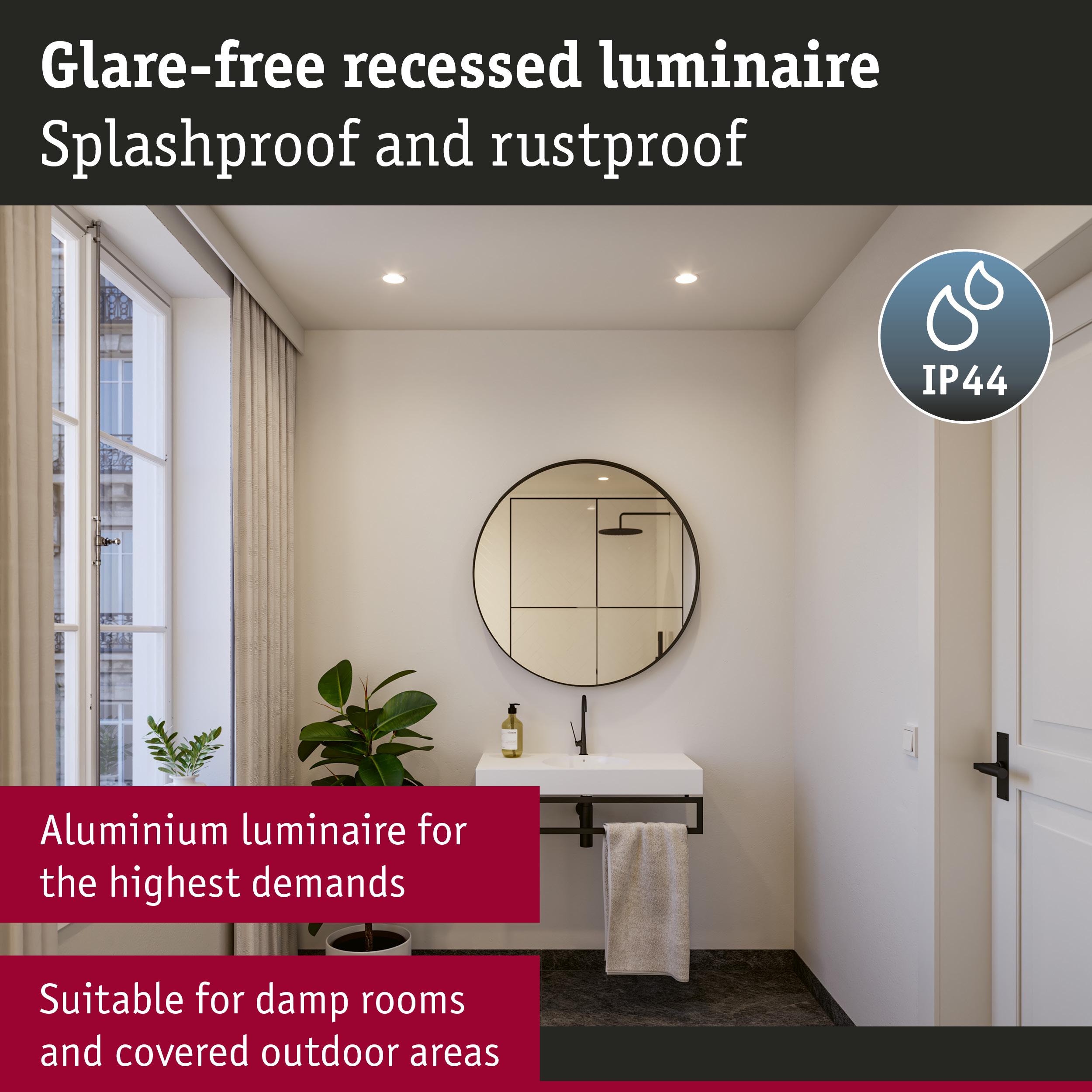

- IP protection: IP44 splash-protected
LED Recessed luminaire 3-Step-Dim Cole Coin 3-piece set IP44 round 88mm Coin 3x6W 3x470lm 230V dimmable 2700K White

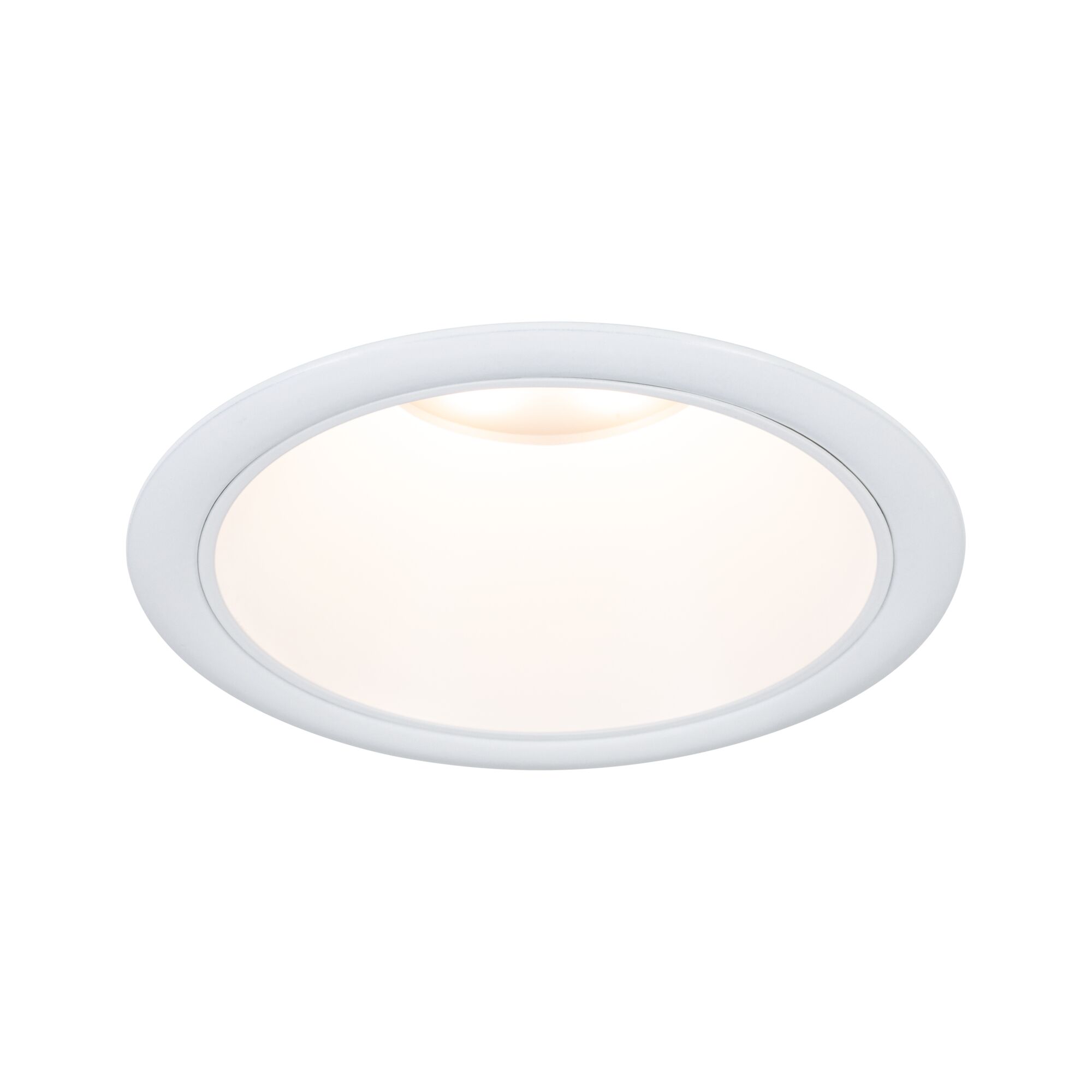

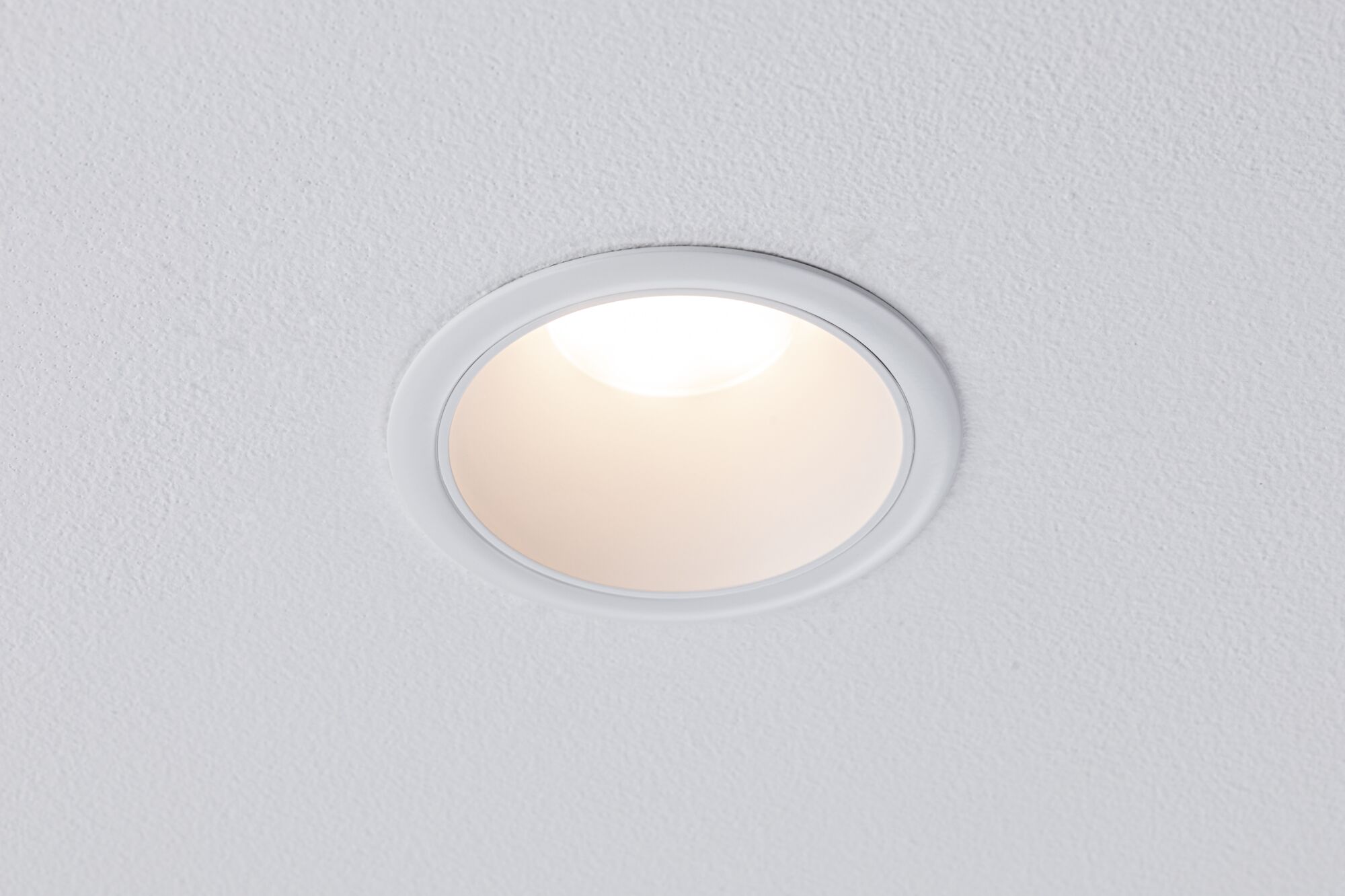

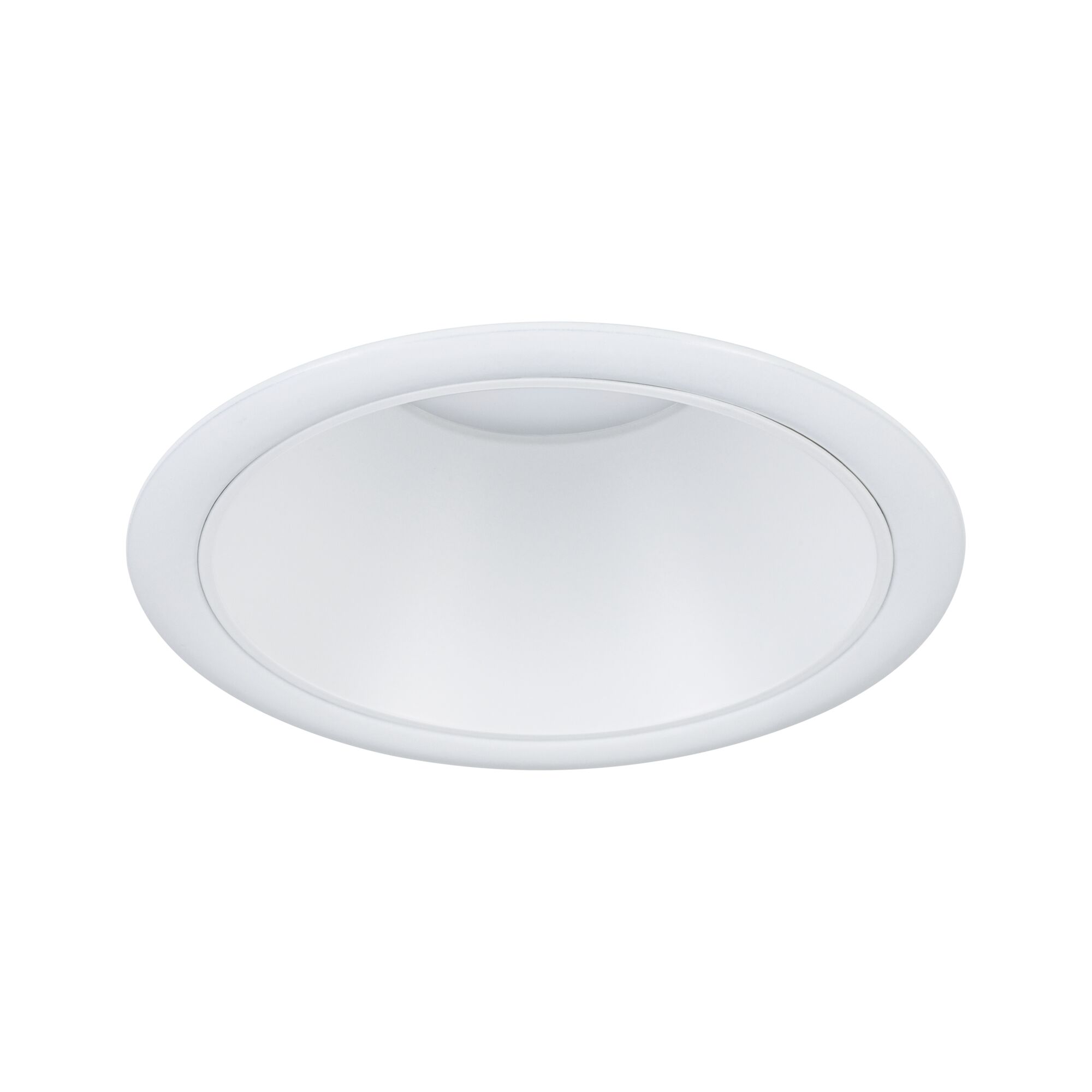

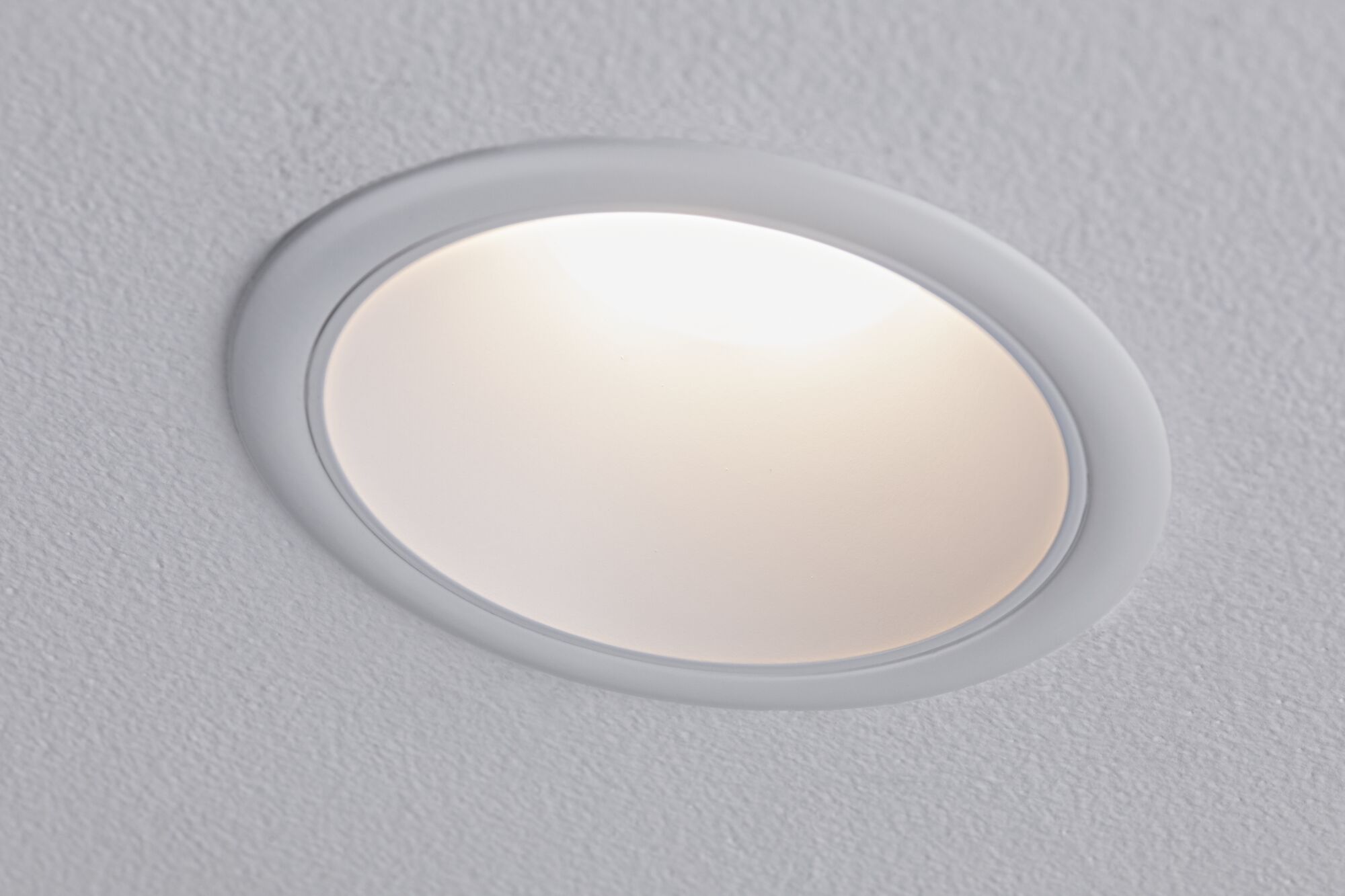

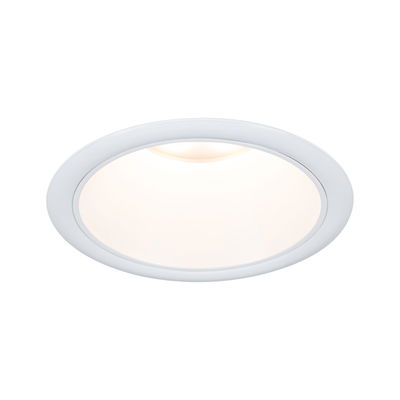

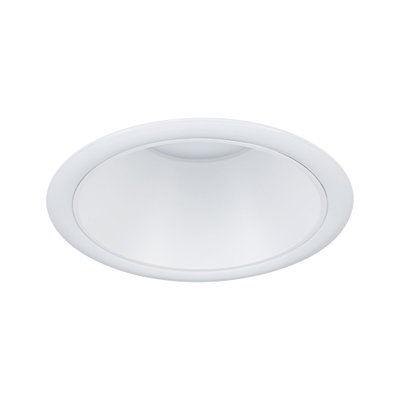

Love at second glance! The Cole recessed luminaires in white feature offset lamps, which allows them to almost blend into the ceiling. Once you do glimpse them it will be hard to look away. The light emitted the recessed coins on the matt white surface creates soft, glare-free illumination. They also get full marks for their brilliant technology: The replaceable LED coins emit a pleasant, warm white light and can be dimmed in three stages with a conventional light switch.
- Can be dimmed with a standard light switch, with 3 dimming levels
- Incl. replaceable LED lamp
- IP protection: IP44 splash-protected

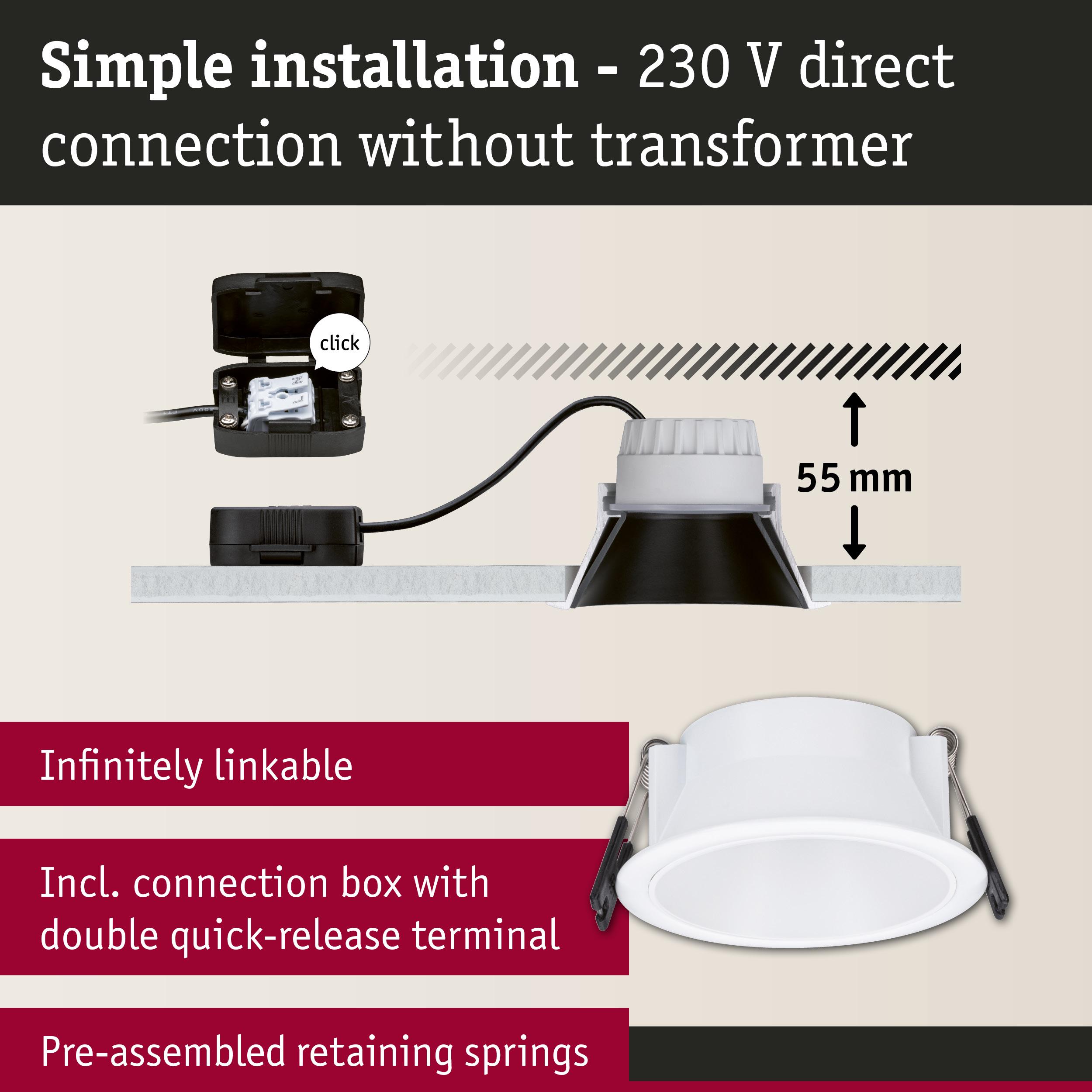

- For 230 V direct connection
| Dimension | |
|---|---|
| Total Mounting depth | 70 mm |
| Ø | 88 mm |
| Mounting hole | 80 mm |
| Form | round |
| Depth of hollow wall | 55 mm, 55 mm |
| Design and Material | |
|---|---|
| stainless | stainless alu |
| Colour | White |
| Material | Plastic, Aluminium zinc |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| color temp | 2700 K |
| Farbtemperatur_Text | Warmweiß |
| Beam angle | 100 ° |
| Usable luminous flux | 470 lm |
| colour consistency | SDCM 6 |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 6 W |
| Technique | LED |
| Socket | Coin |
| IP protection | IP44 ceiling mounting |
| Dim | dimmable in 3 steps with normal light switch |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Incandescent Equivalent | 40 W |
| Adjustability | fixed |
| Number of component parts | 3x |
| protection class | protection class II |
| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
