Article-No.:
93125

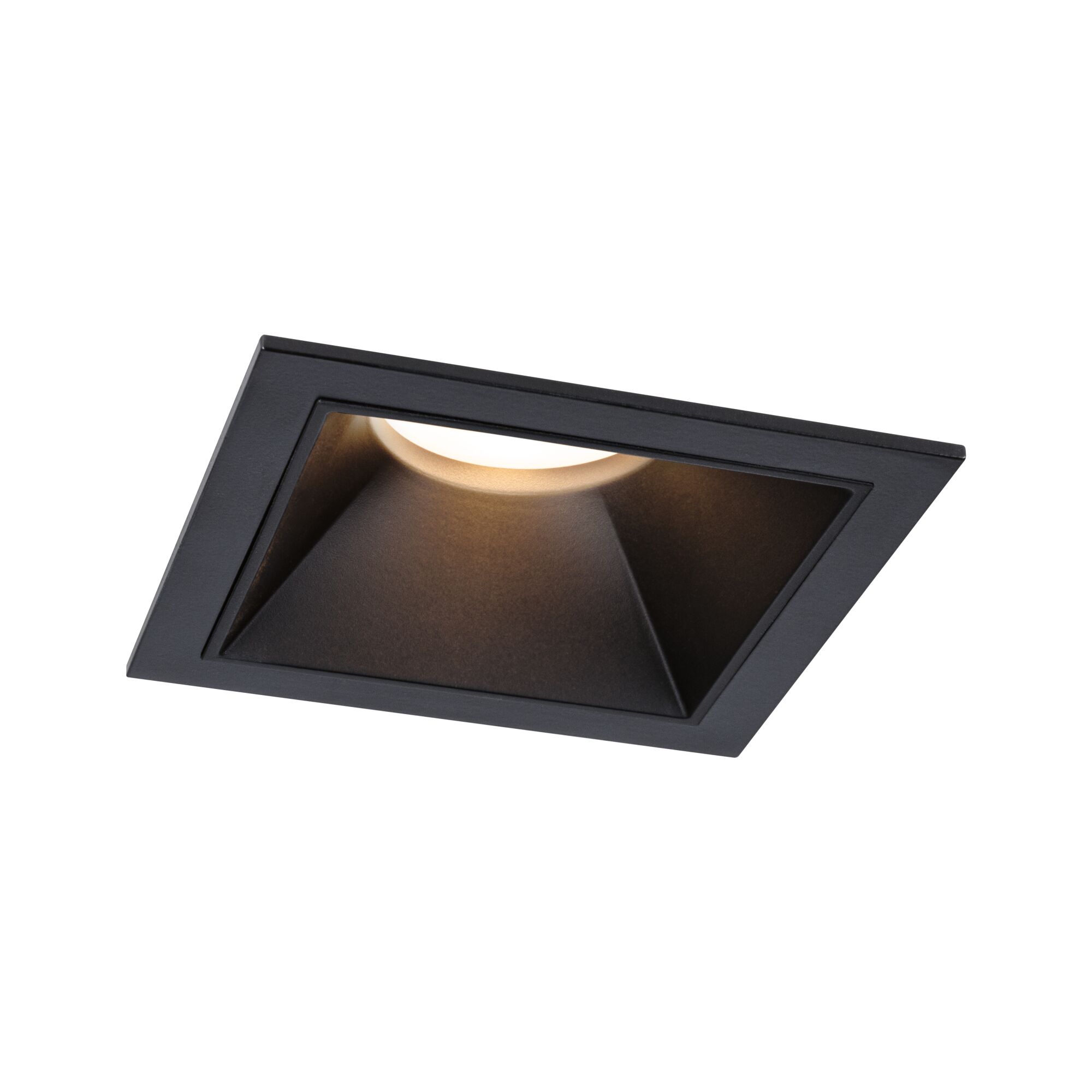

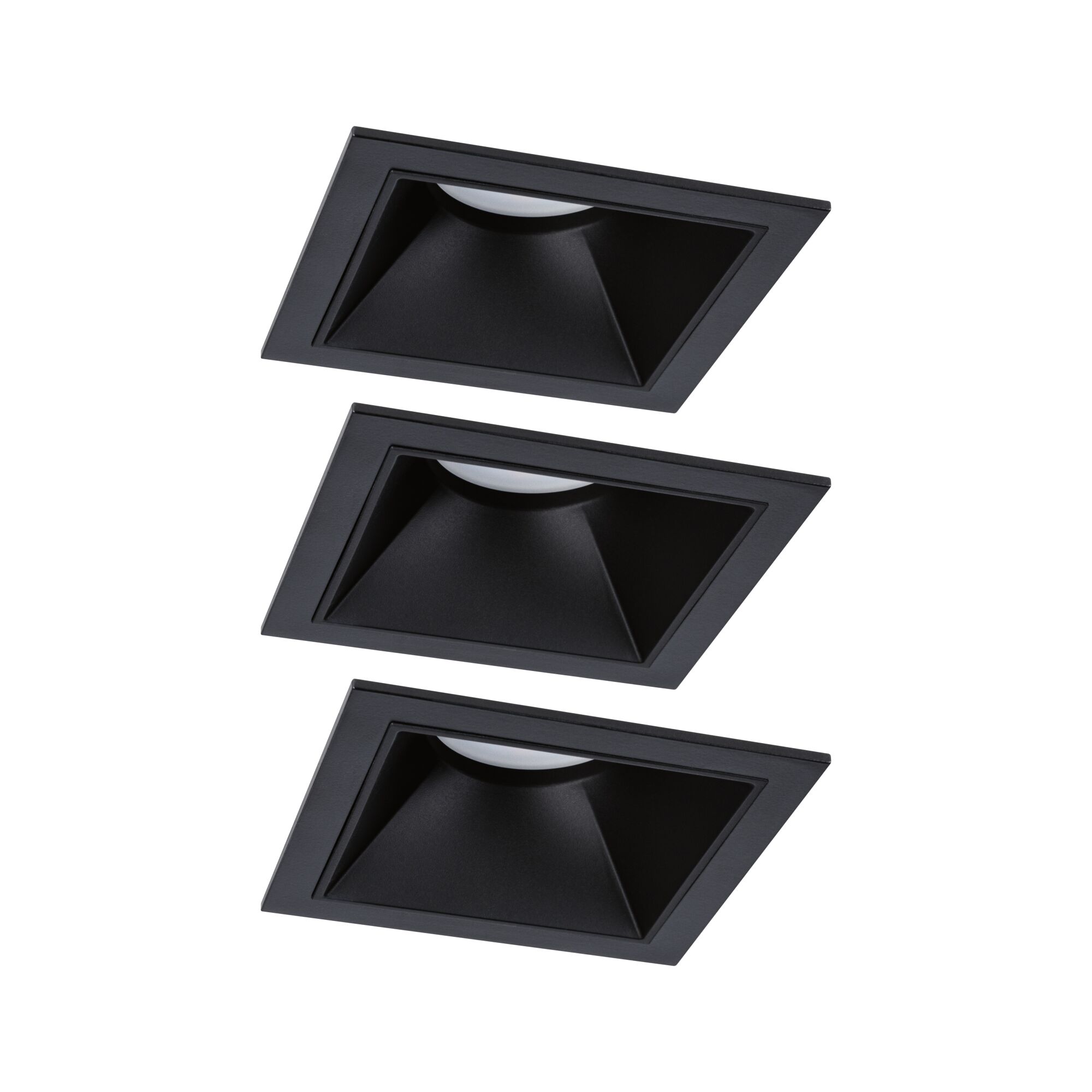

LED Recessed luminaire3-Step-Dim

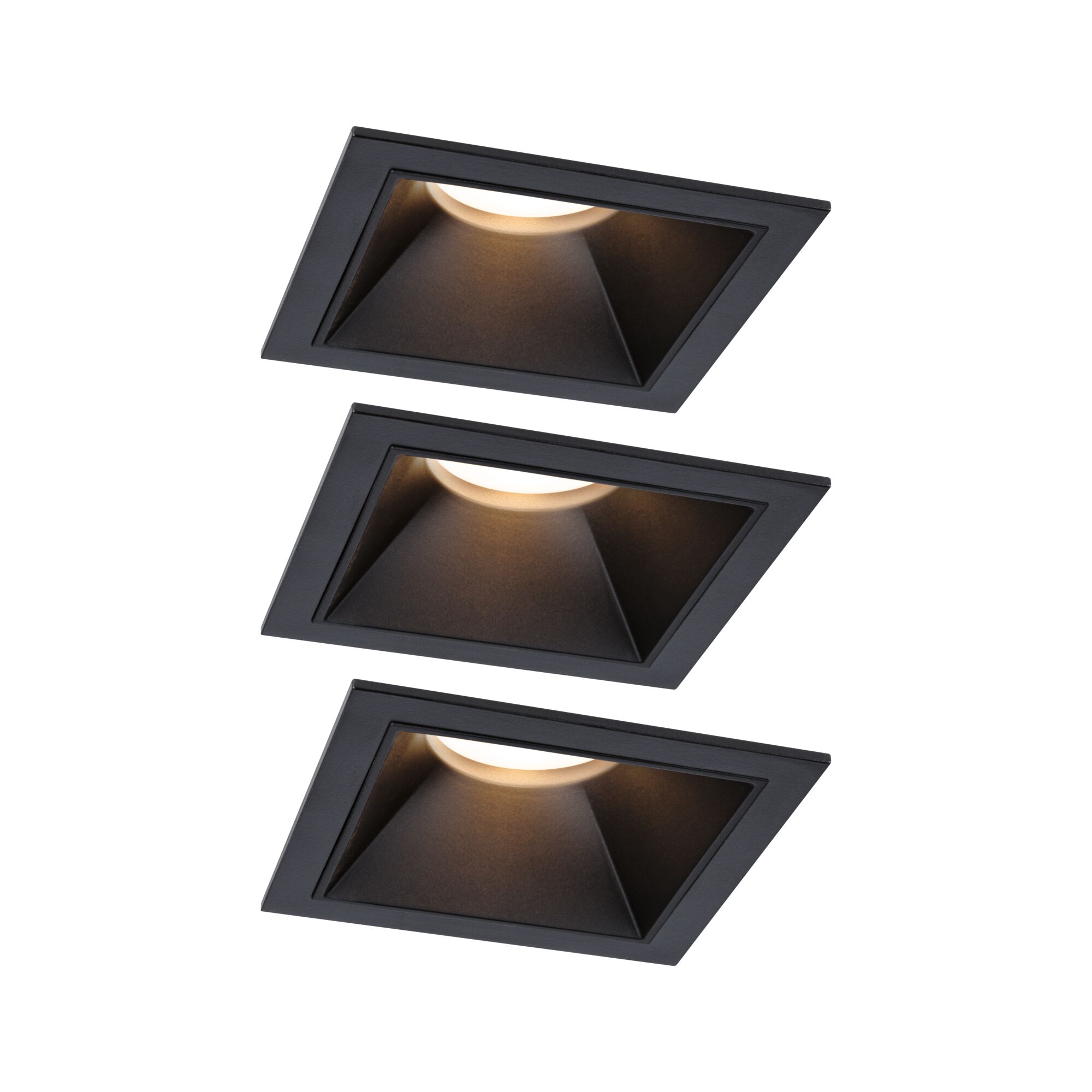

Cole Coin 3-piece set
IP44 angular 88x88mm Coin 3x6W 3x470lm 230V dimmable 2700K Black
IP44 angular 88x88mm Coin 3x6W 3x470lm 230V dimmable 2700K Black
- Color temperatur: 2700K - Warm white

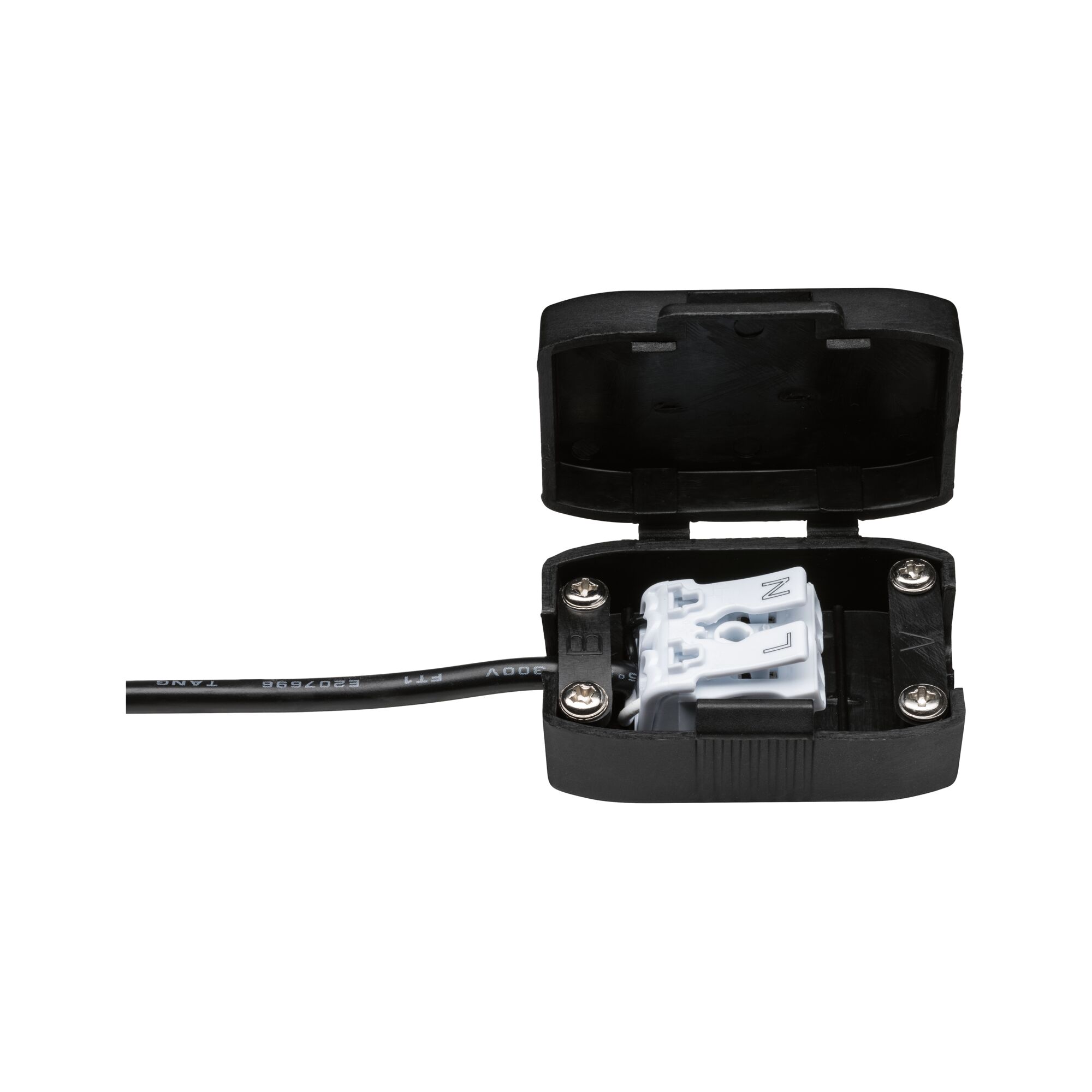

- For 230 V direct connection

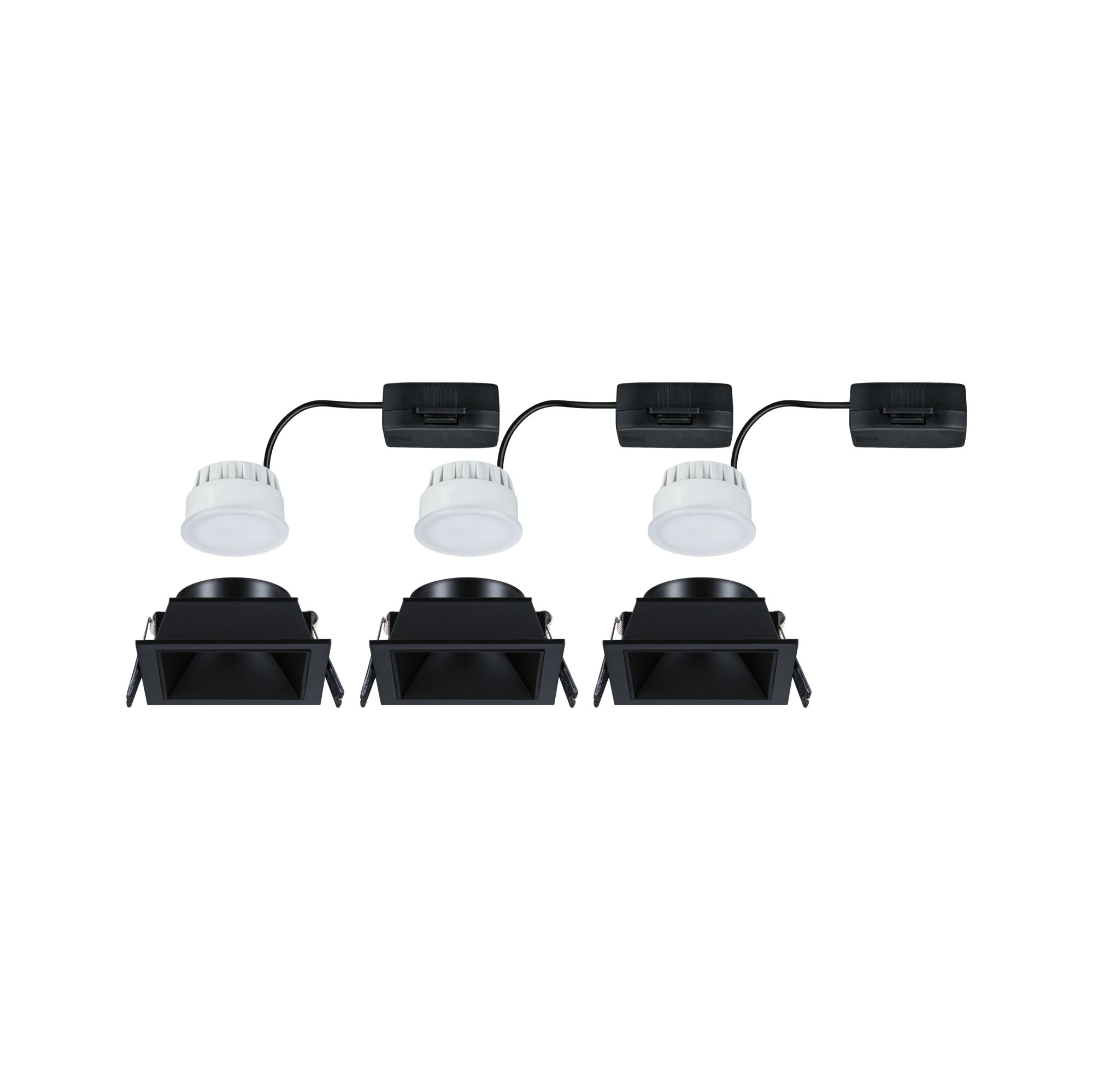

- Incl. replaceable LED lamp
LED Recessed luminaire 3-Step-Dim Cole Coin 3-piece set IP44 angular 88x88mm Coin 3x6W 3x470lm 230V dimmable 2700K Black

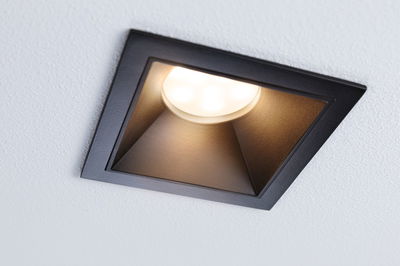

Love at second glance! The Cole recessed luminaires in black feature offset lamps, which allows them to almost blend into the ceiling. Once you do glimpse them it will be hard to look away. The light of the recessed coins on the matt black surface provides soft, glare-free lighting. They also get full marks for their brilliant technology: The replaceable LED coins emit a pleasant, warm white light and can be dimmed in three stages with a conventional light switch.
- Color temperatur: 2700K - Warm white
- For 230 V direct connection
- Incl. replaceable LED lamp

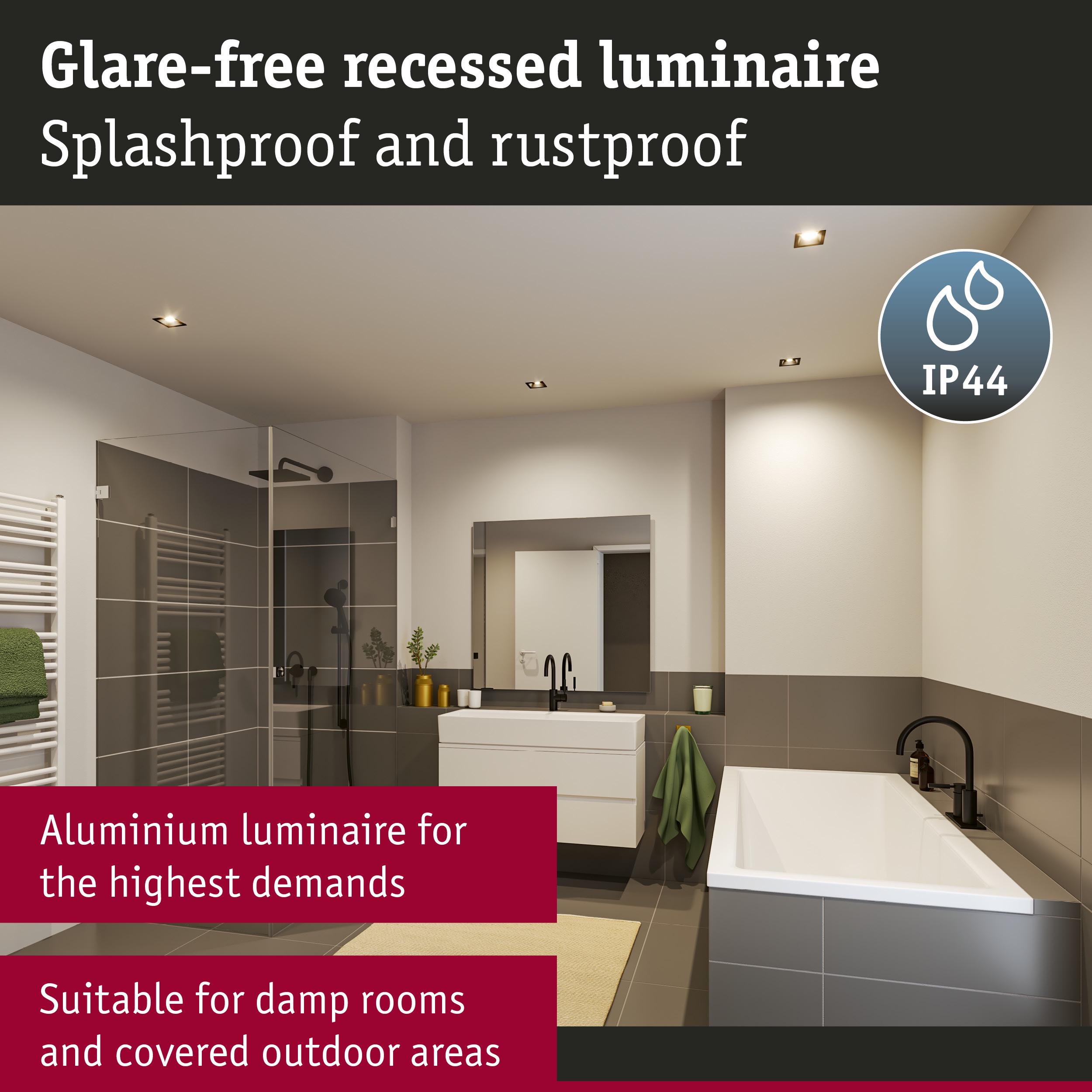

- IP protection: IP44 - splash-protected

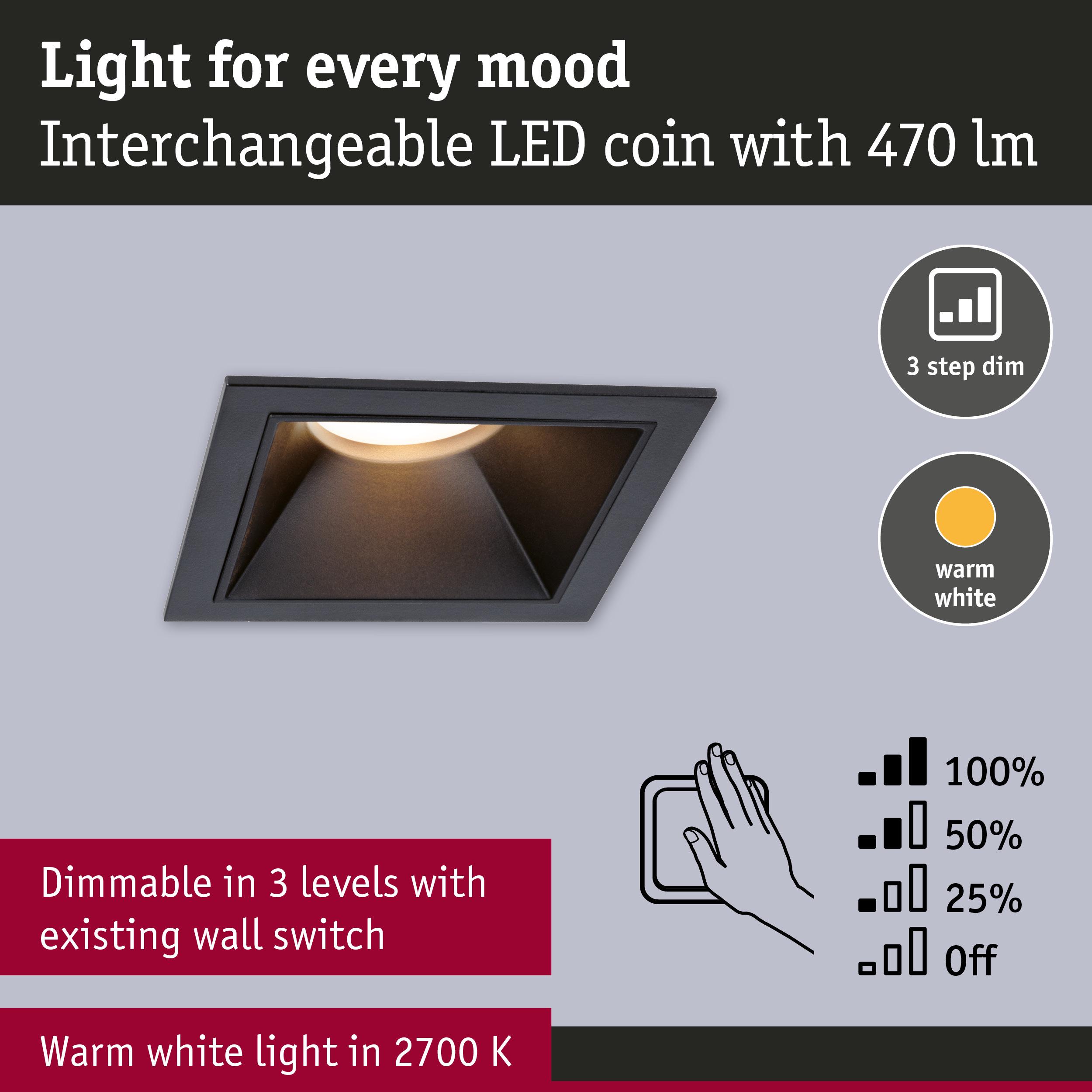

- Can be dimmed with a standard light switch, with 3 dimming levels
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 56 x B: 88 x T: 88 mm |
| Einbaudurchmesser | 80 mm |
| Mounting depth | 70 mm |

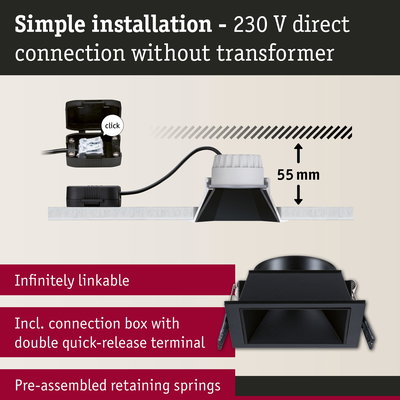

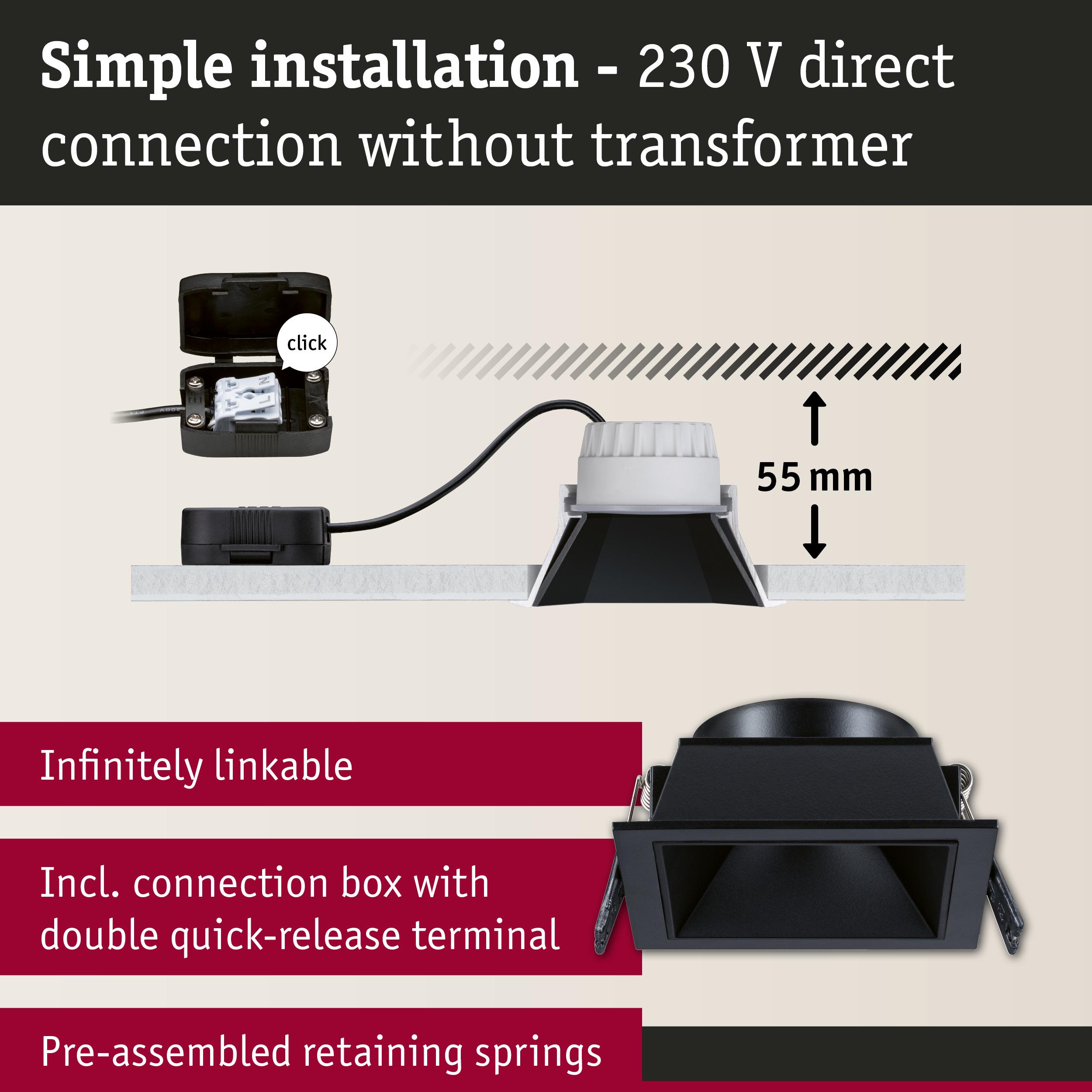

| Depth of hollow wall | 55 mm |
| Design and Material | |
|---|---|
| stainless | stainless alu |
| Colour | Black |
| Material | Plastic, Aluminium zinc |
| Form | angular |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| Beam angle | 100 ° |
| Nominal luminous flux | 470 lm |
| Color rendering index | > 80 Ra |
| color temp | Warm white |
| Lamp Features | |
|---|---|
| Component parts | 6 W |
| Technique | LED |
| Base/Socket | Coin |
| Dim | dimmable in 3 steps with normal light switch |
| Inclusive lamp | yes |
| Incandescent Equivalent | 40 W |
| Adjustability | fixed |
| Lamp property | Leuchtmittel enthalten und wechselbar |
| Dimmable | Yes |
| IP protection | IP44 ceiling mounting |
| Number of component parts | 3x |
| protection class | Protection class II |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
