Article-No.:
93407

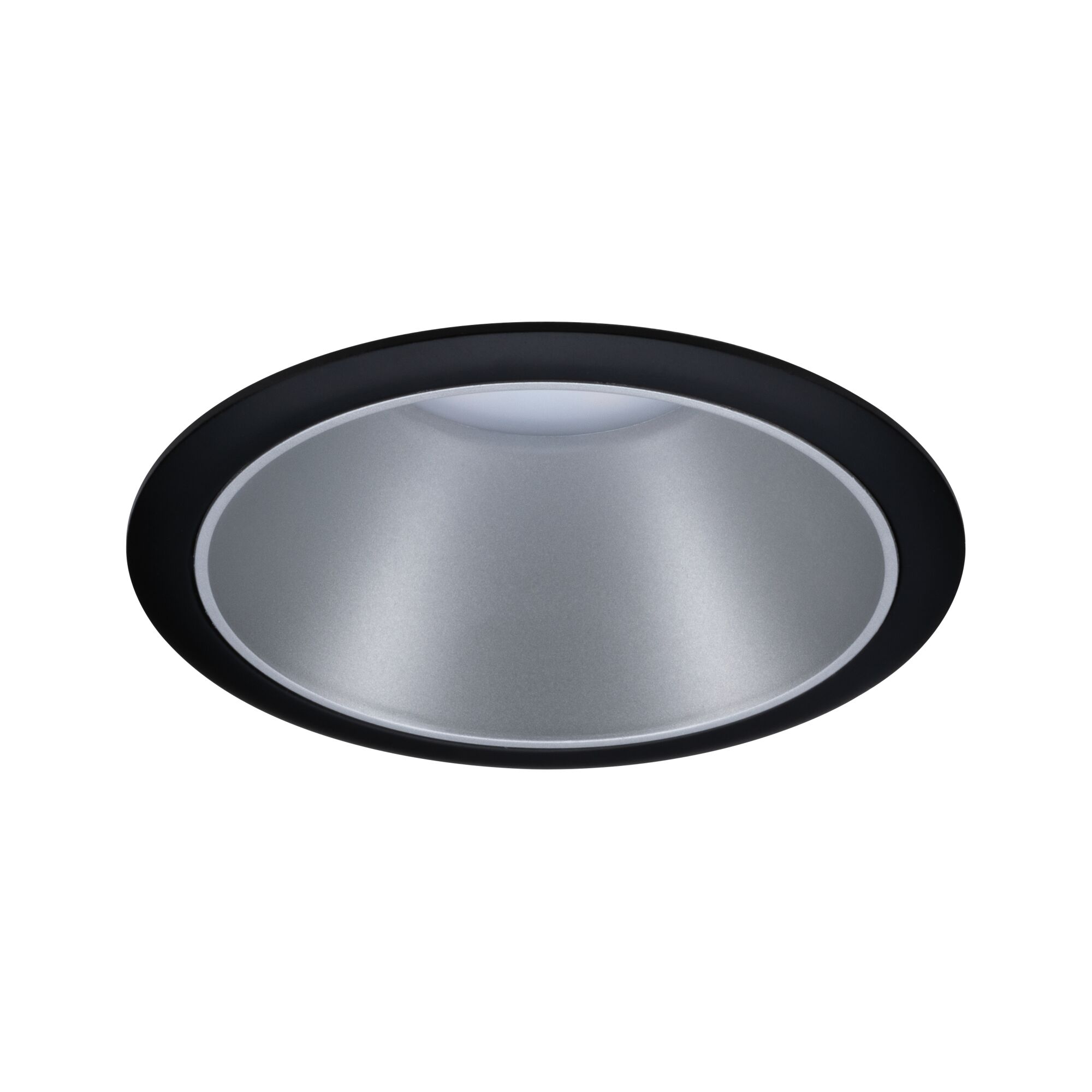

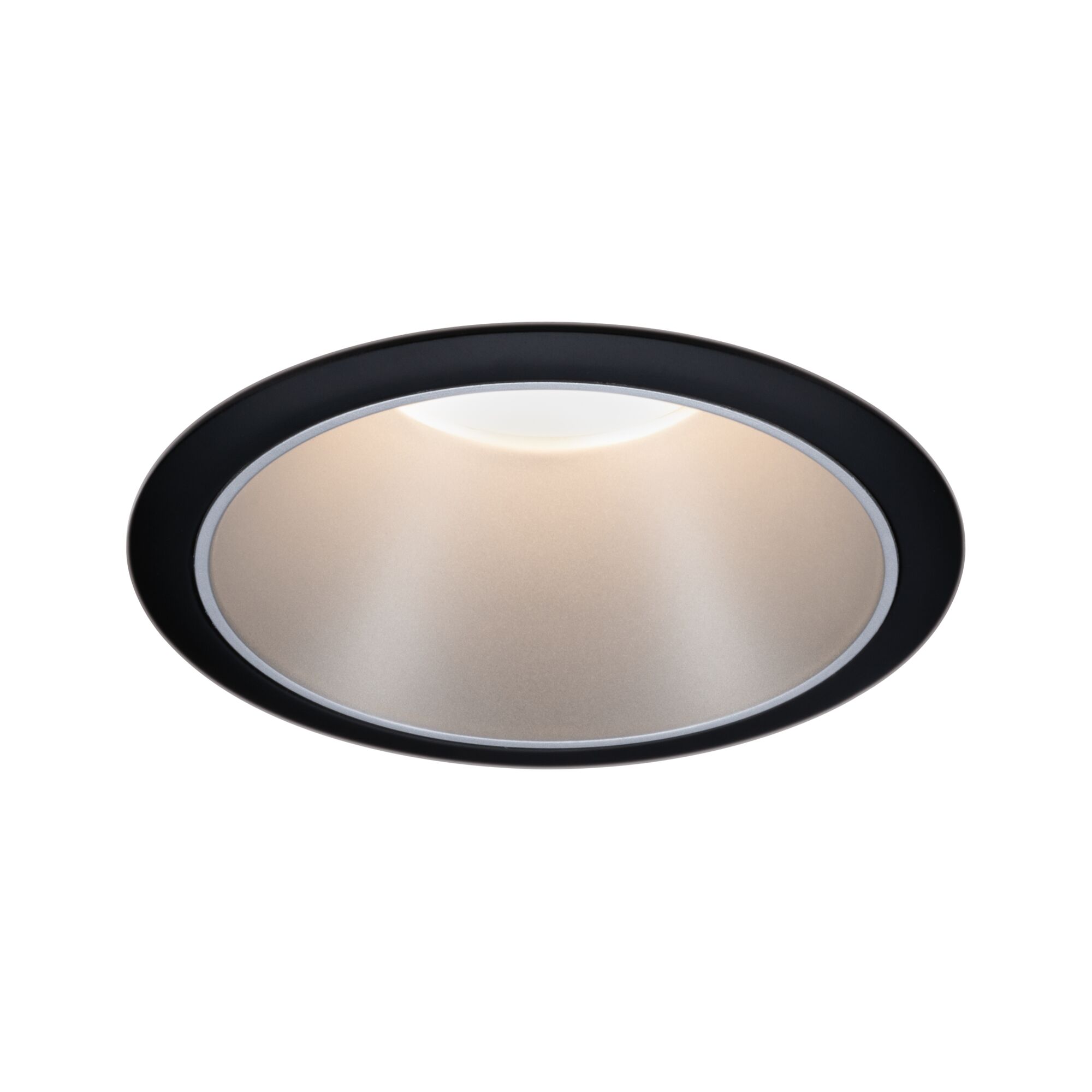

LED Recessed luminaire3-Step-Dim
Cole Coin 1-piece set
IP44 round 88mm Coin 6W 470lm 230V dimmable 2700K Black/Silver matt
IP44 round 88mm Coin 6W 470lm 230V dimmable 2700K Black/Silver matt
- Can be dimmed with a standard light switch, with 3 dimming levels

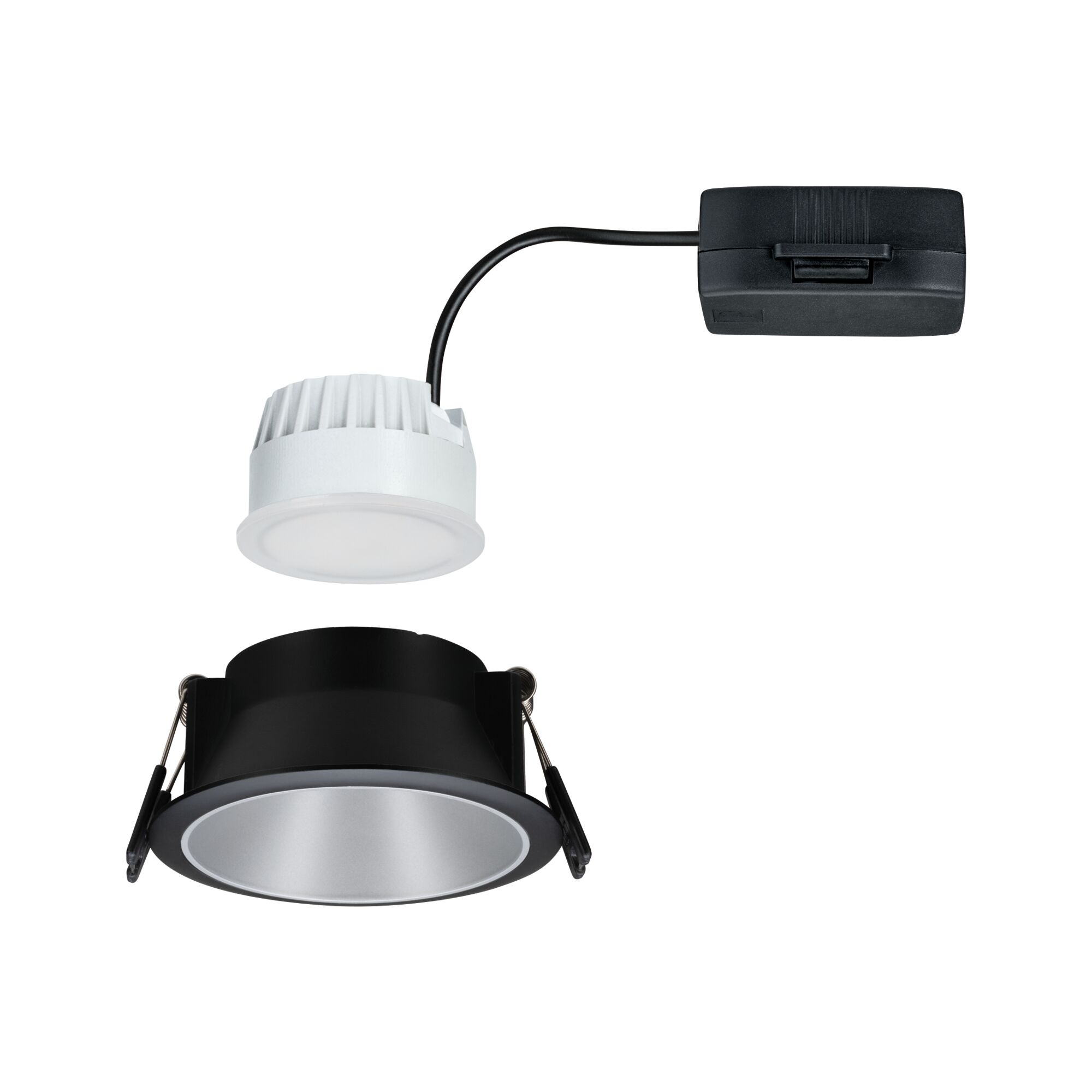

- Incl. replaceable LED lamp

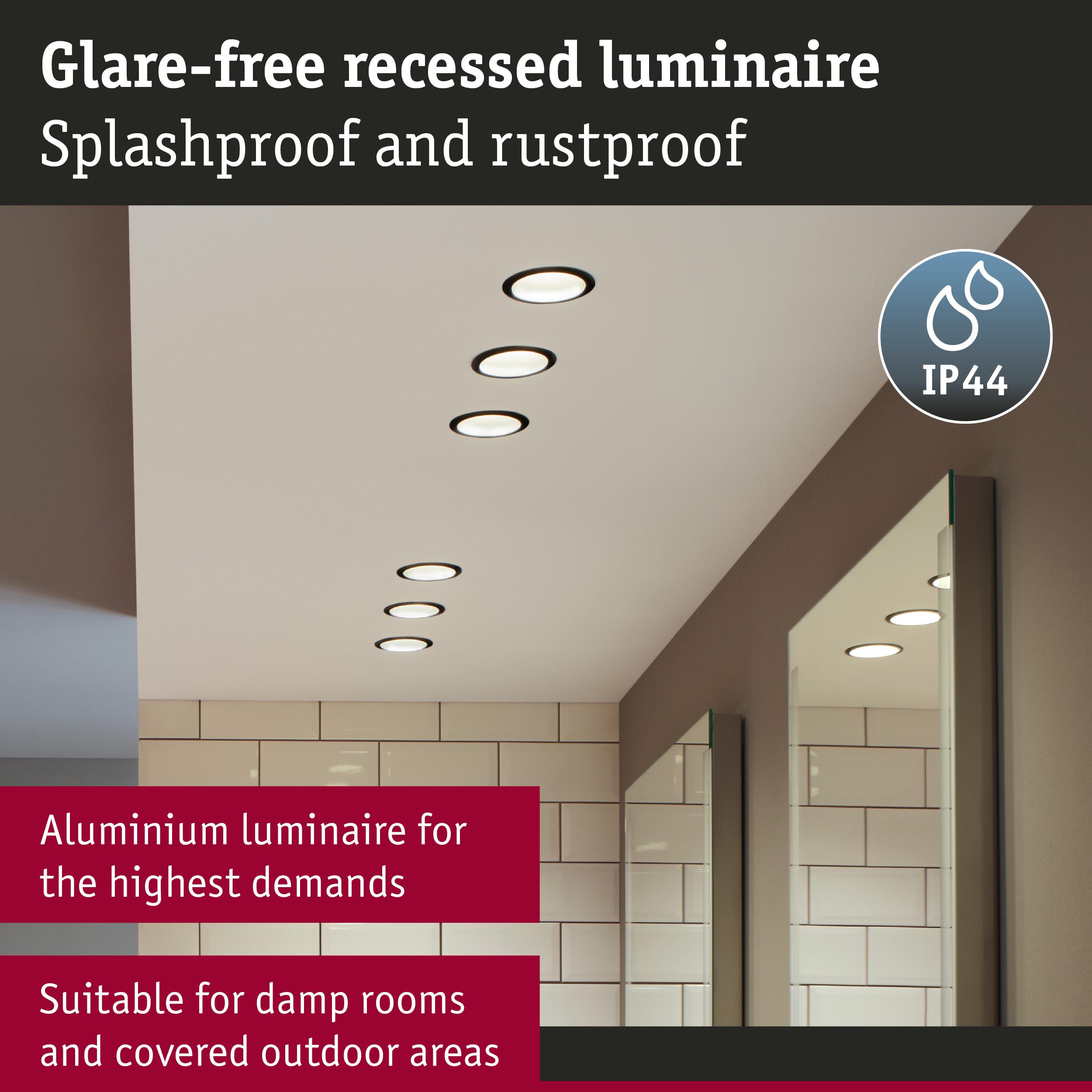

- IP protection: IP44 splash-protected
LED Recessed luminaire 3-Step-Dim Cole Coin 1-piece set IP44 round 88mm Coin 6W 470lm 230V dimmable 2700K Black/Silver matt

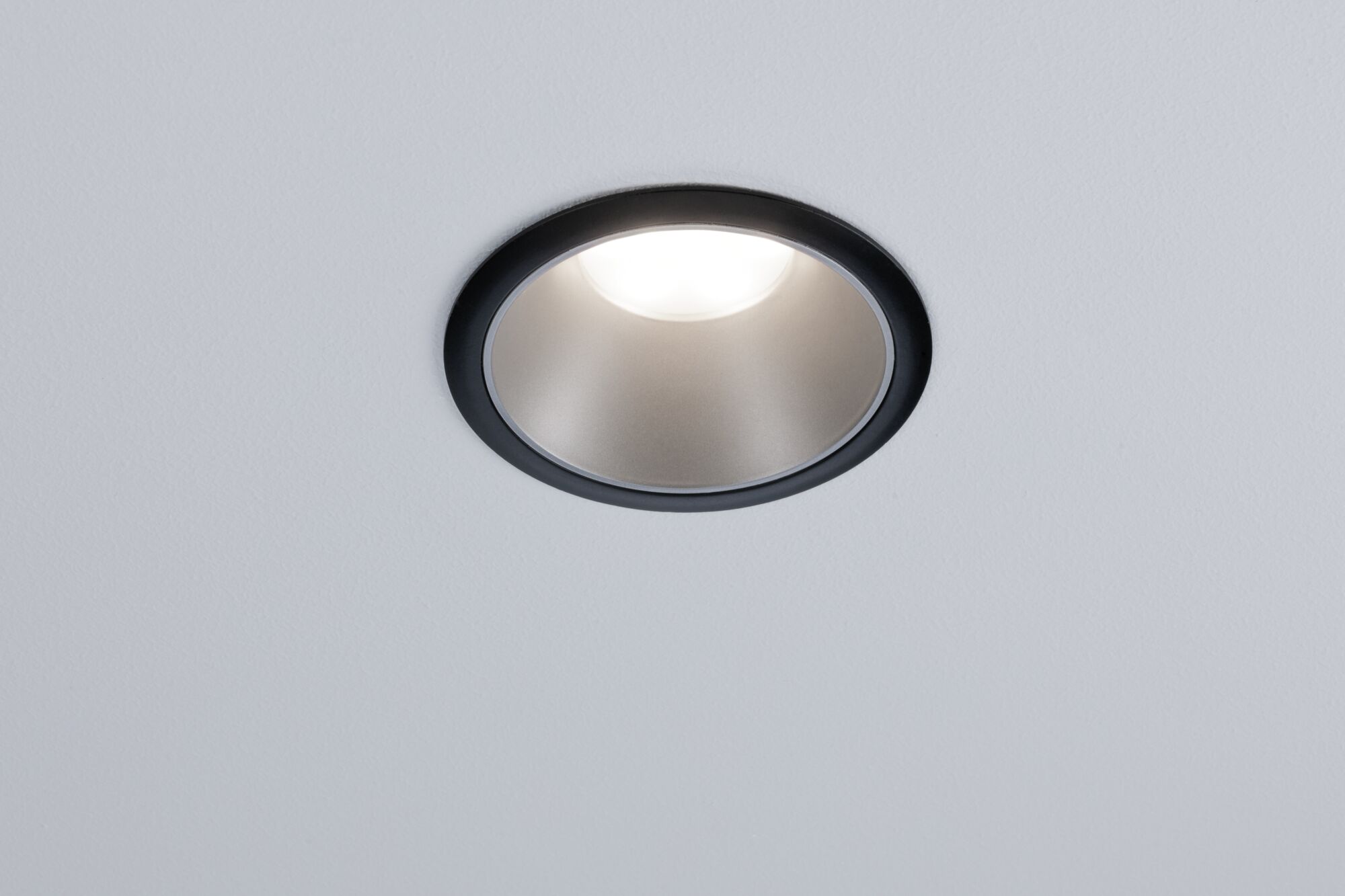

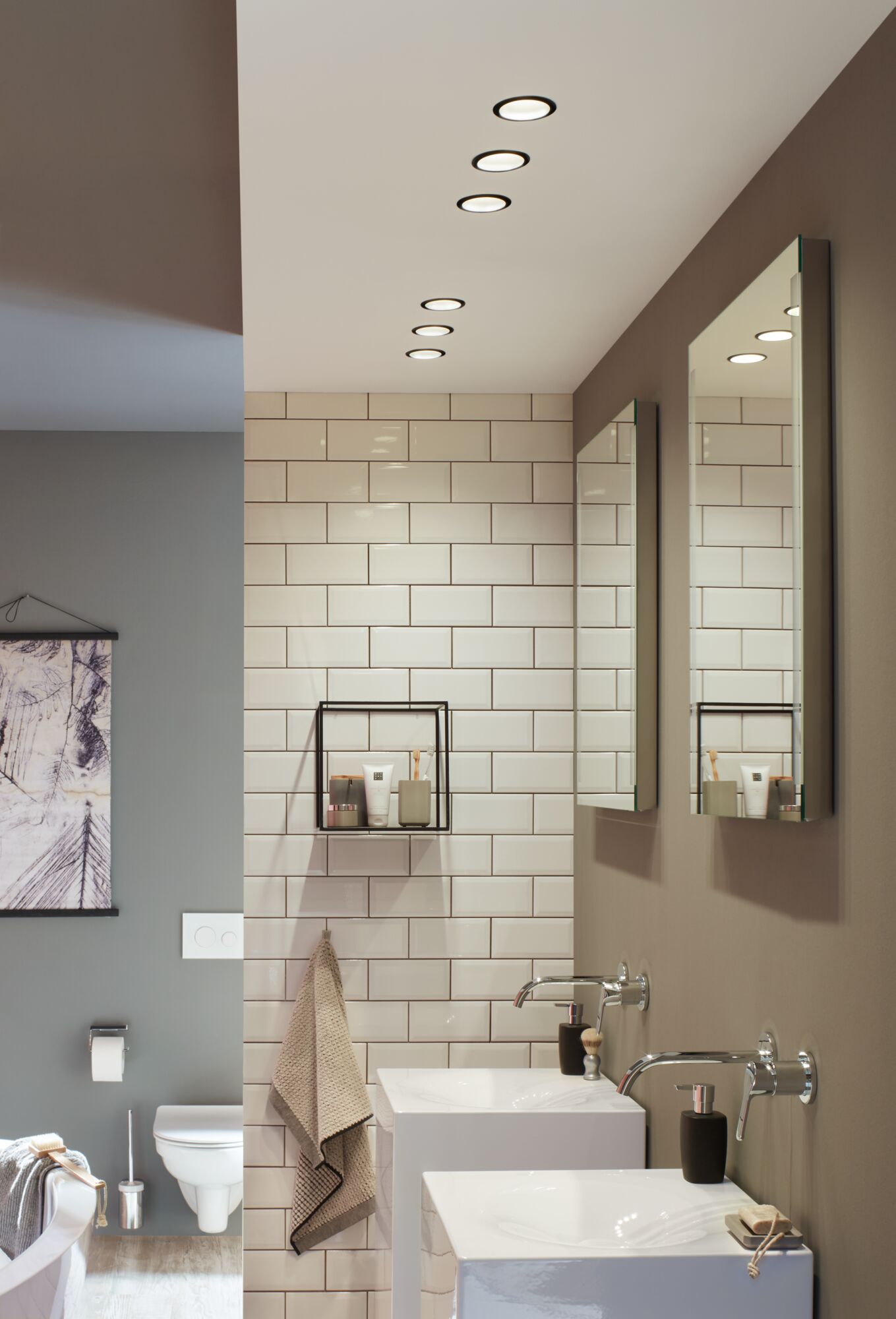

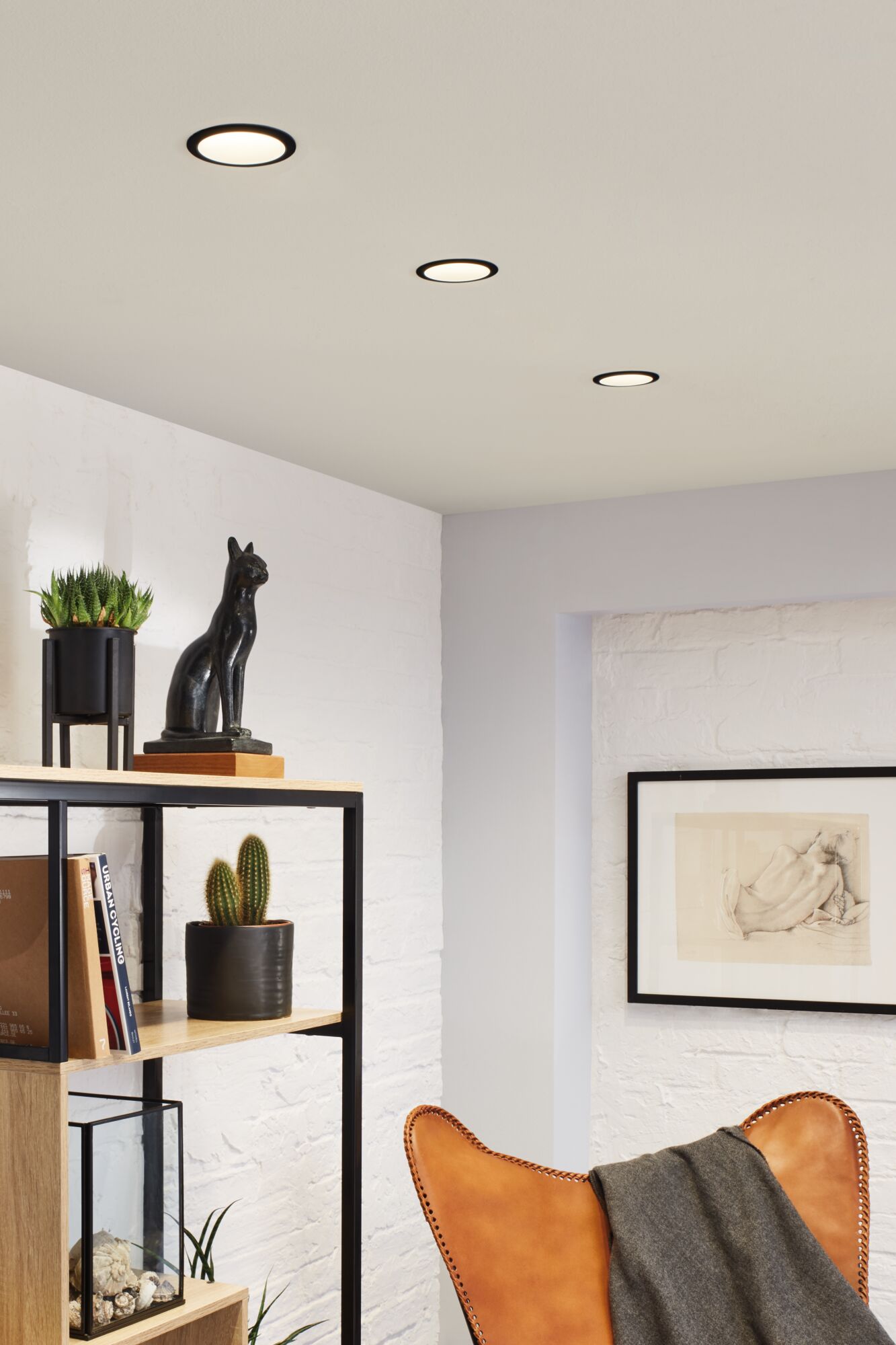

Love at second glance! The recessed luminaire Cole in black/silver blends almost seamlessly into the ceiling, thanks to the recessed lamp. Once you have spotted it though, you can hardly take your eyes off it. The light of the recessed coins on the matt silver surface provides soft, glare-free lighting. What’s more, they feature brilliant technology: The replaceable LED coin provides pleasant, warm white light and can be dimmed in three stages with a conventional light switch.
- Can be dimmed with a standard light switch, with 3 dimming levels
- Incl. replaceable LED lamp
- IP protection: IP44 splash-protected

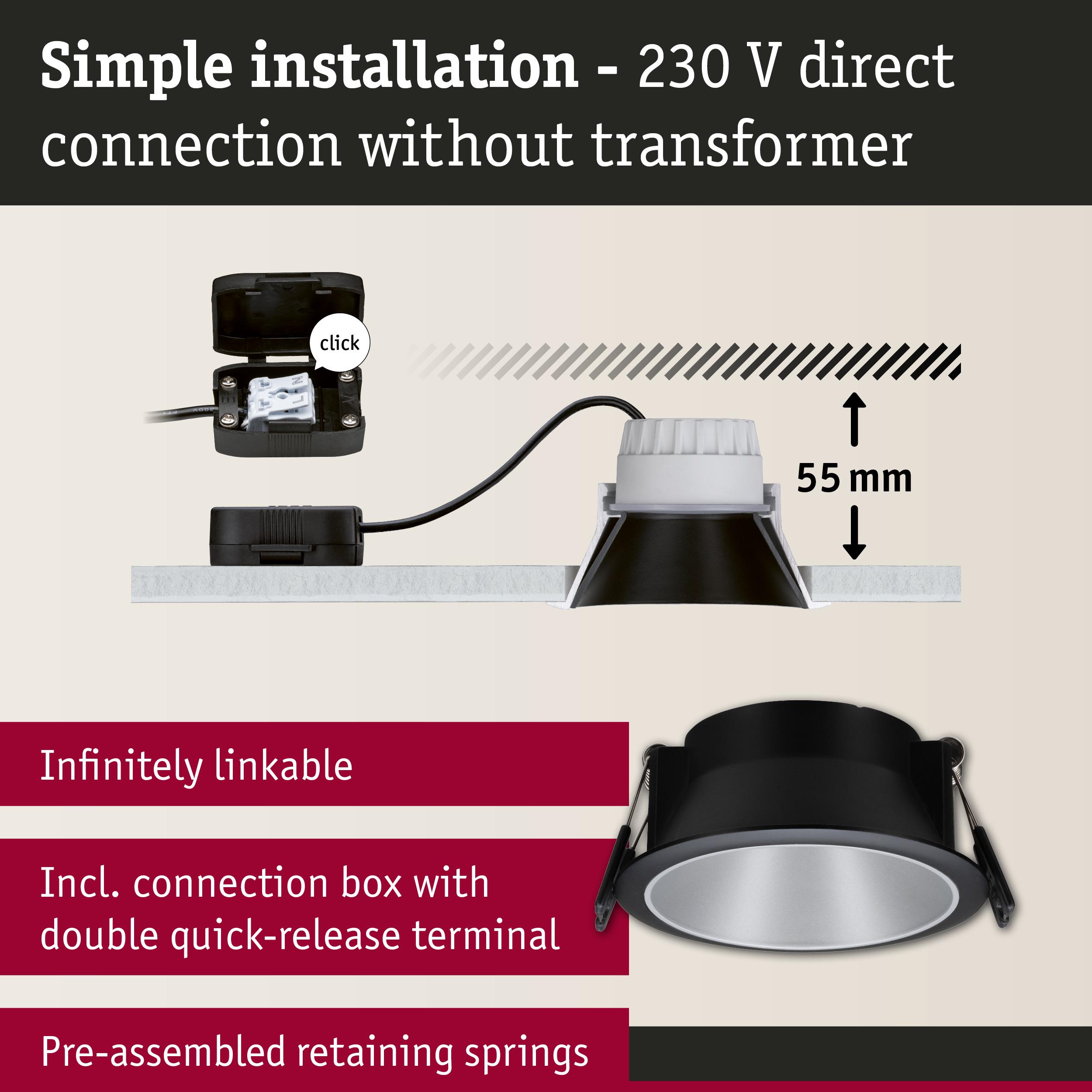

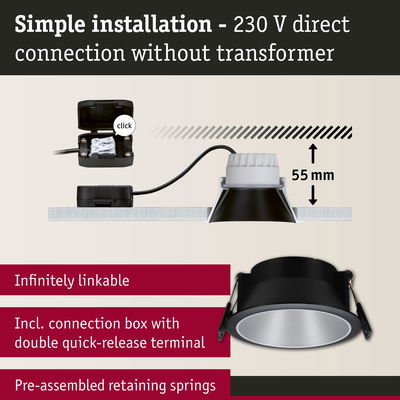

- For 230 V direct connection
| Dimension | |
|---|---|
| Einbaudurchmesser | 80 mm |
| Mounting depth | 70 mm |
| Depth of hollow wall | 55 mm |
| Diameter | 88 mm |
| Design and Material | |
|---|---|
| stainless | stainless alu |
| Colour | Black, Silver matt |
| Material | Plastic, Aluminium zinc |
| Type | Coin |
| Form | round |
| Energy consumption | |
|---|---|
| Energy consumption | 7 kWh_1000h |
| Energy efficiency (LED Module) | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| Beam angle | 100 ° |
| Nominal luminous flux | 470 lm |
| Color rendering index | > 85 Ra |
| color temp | Warm white |
| Colour consistency (SDCM) | 6 |
| Lamp Features | |
|---|---|
| Component parts | 6 W |
| Technique | LED |
| Base/Socket | Coin |
| Dim | dimmable in 3 steps with normal light switch |
| Inclusive lamp | yes |
| Incandescent Equivalent | 40 W |
| Adjustability | fixed |
| Lamp property | Leuchtmittel enthalten und wechselbar |
| Dimmable | Yes |
| IP protection | IP44 ceiling mounting |
| Number of component parts | 1x |
| protection class | Protection class II |
| Replacable | 2 Lightsource is replaceable without damage the lighting fixture by electrician. |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
