Article-No.:
93128

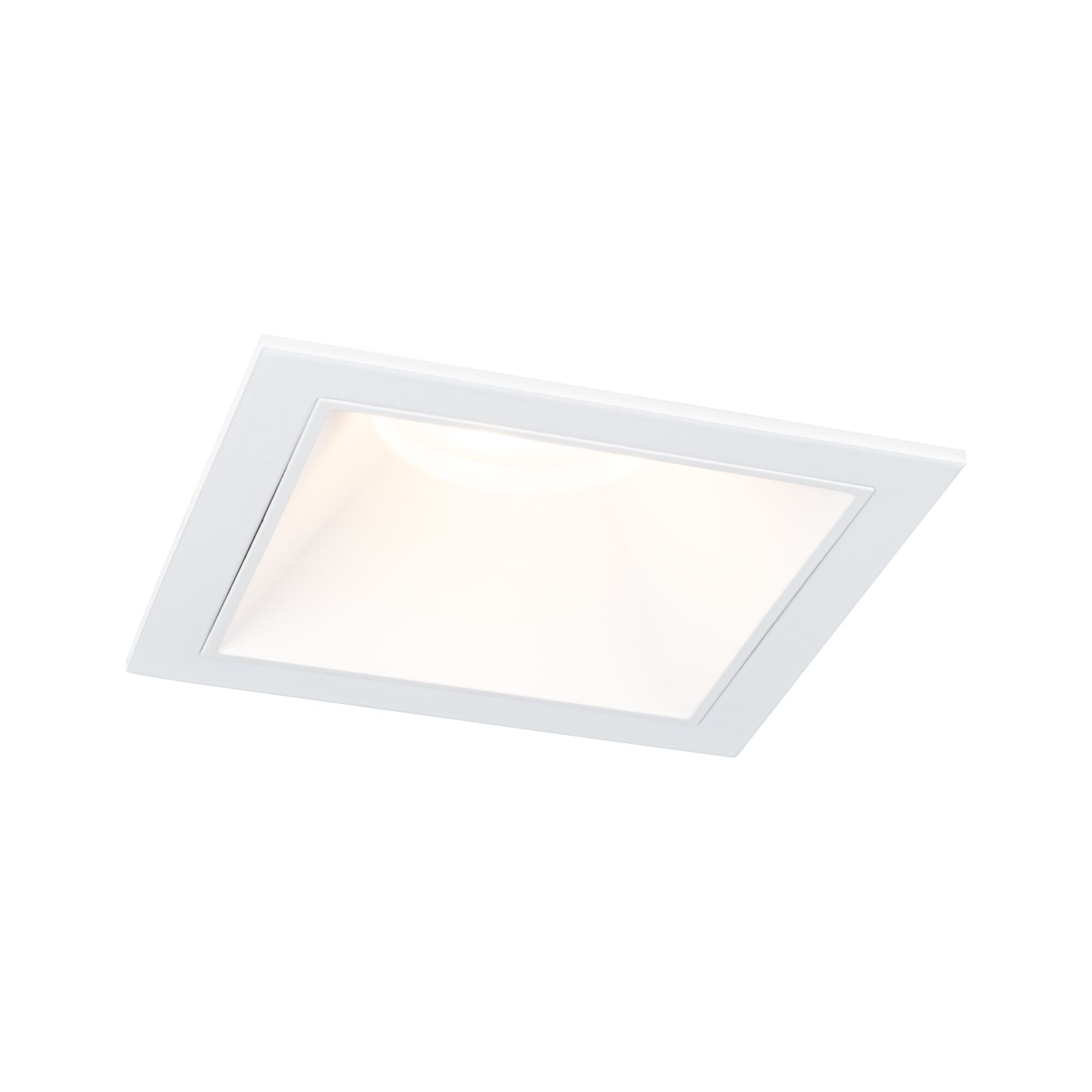

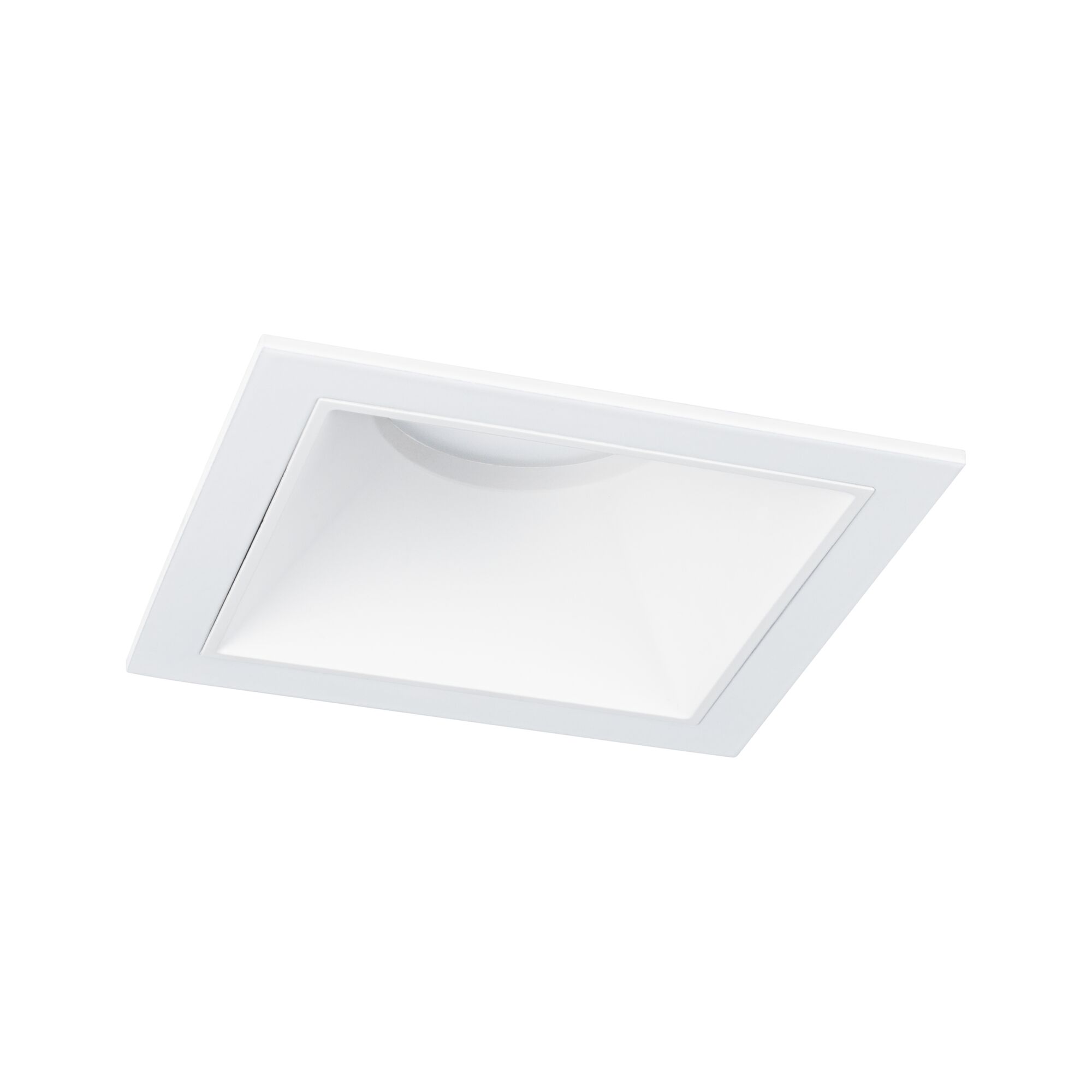

LED Recessed luminaire3-Step-Dim
Cole Coin 1-piece set
IP44 angular 88x88mm Coin 6W 470lm 230V dimmable 2700K White
IP44 angular 88x88mm Coin 6W 470lm 230V dimmable 2700K White
- Color temperatur: 2700K - Warm white

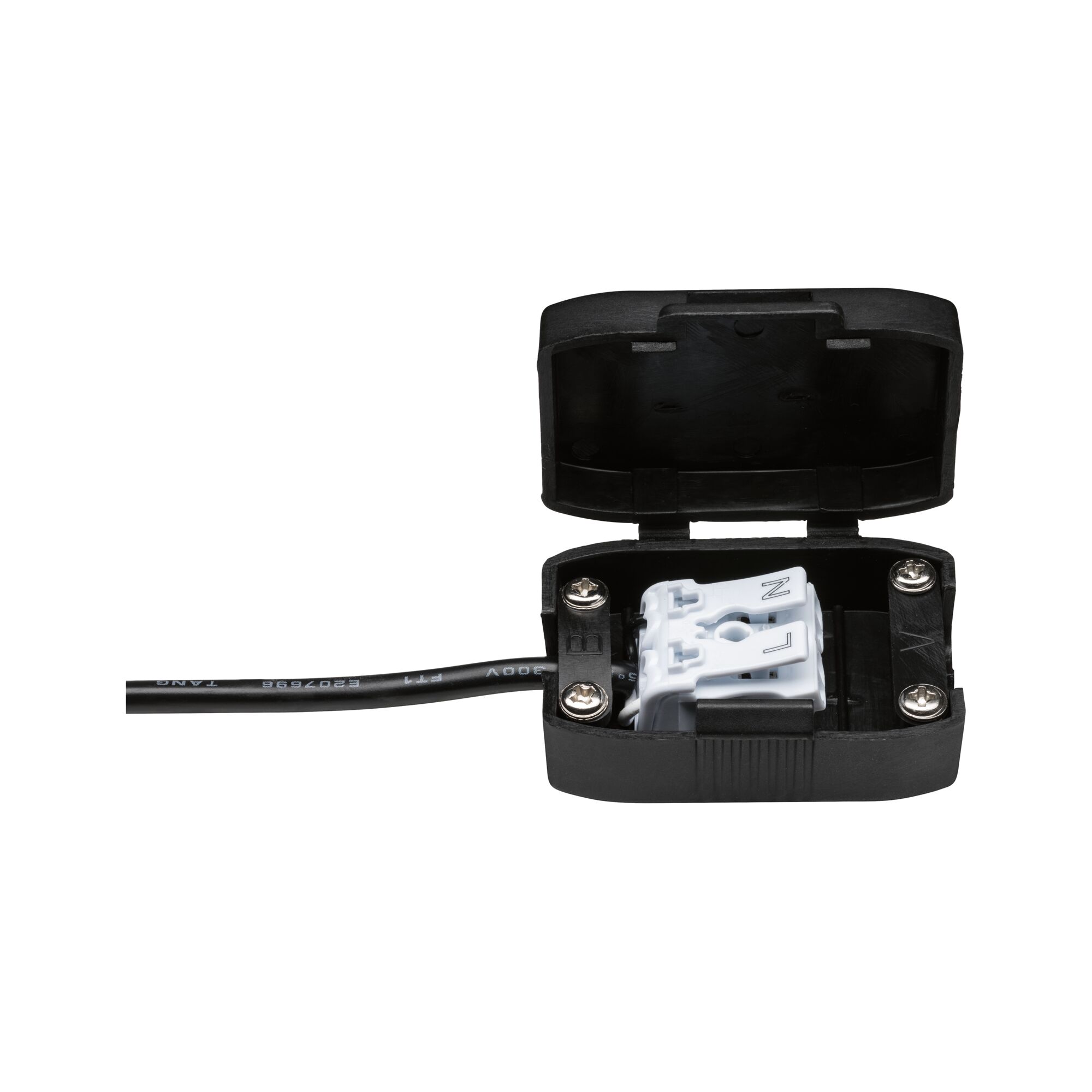

- For 230 V direct connection
- Incl. replaceable LED lamp

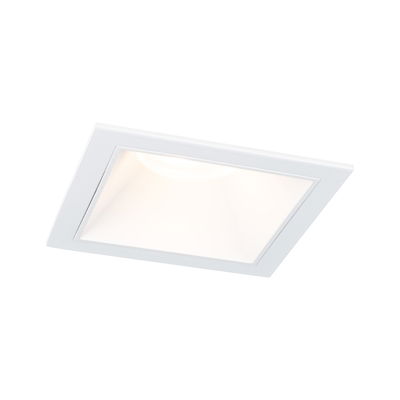

LED Recessed luminaire 3-Step-Dim Cole Coin 1-piece set IP44 angular 88x88mm Coin 6W 470lm 230V dimmable 2700K White

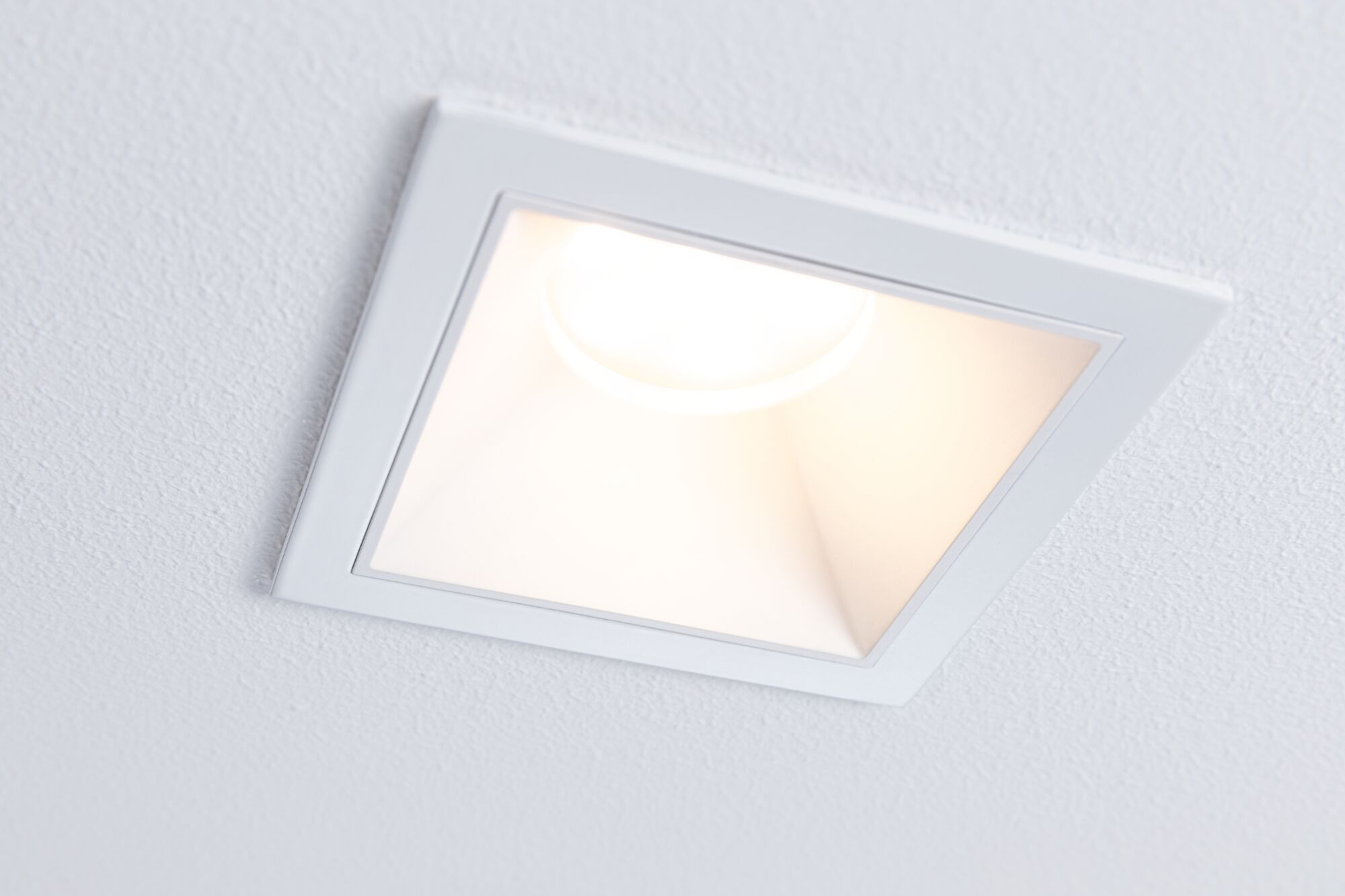

Love at second glance! The Cole recessed luminaires in white feature offset lamps, which allows them to almost blend into the ceiling. Once you do glimpse them it will be hard to look away. The light of the recessed coins on the matt black surface provides soft, glare-free lighting. They also get full marks for their brilliant technology: The replaceable LED coins emit a pleasant, warm white light and can be dimmed in three stages with a conventional light switch.
- Color temperatur: 2700K - Warm white
- For 230 V direct connection

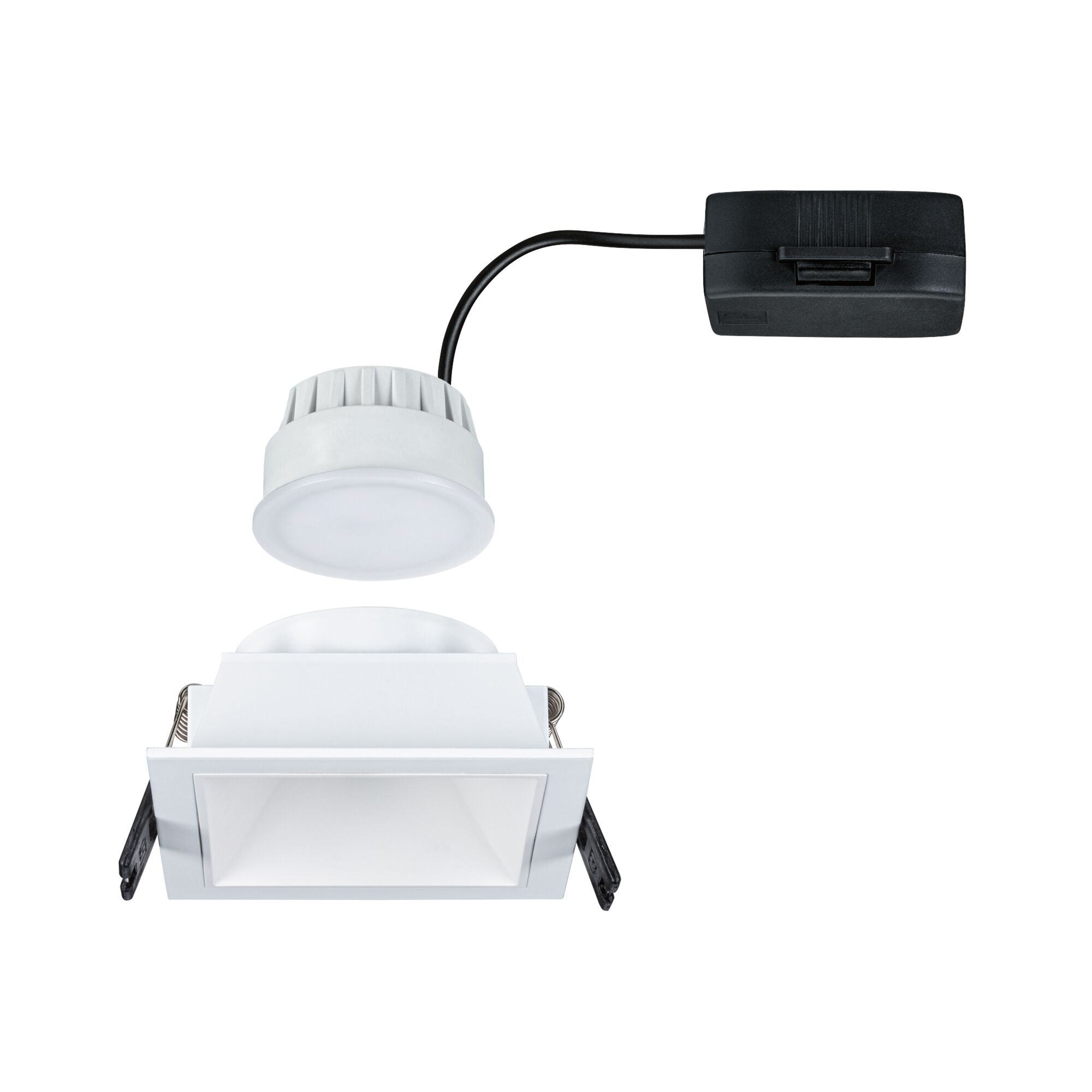

- Incl. replaceable LED lamp

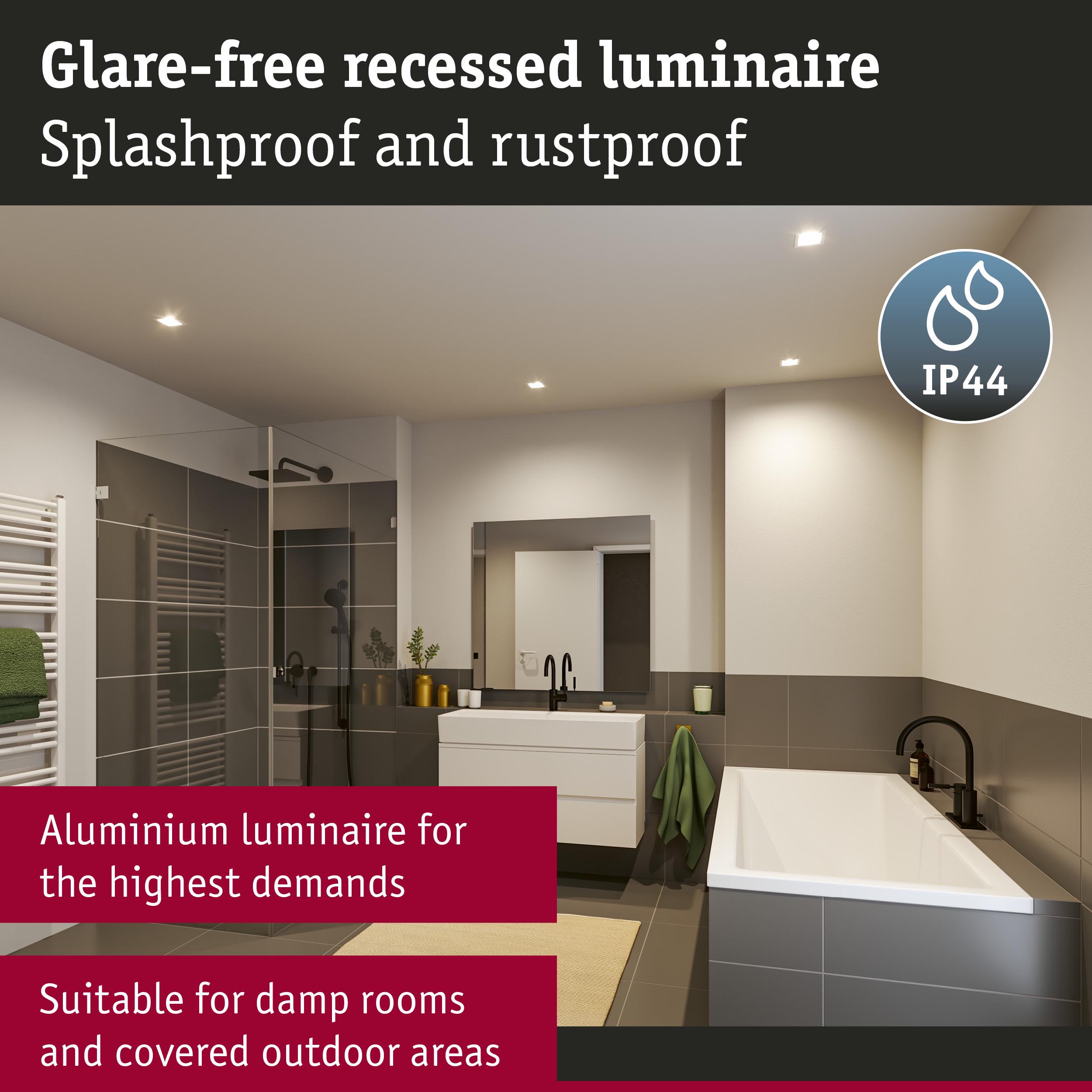

- IP protection: IP44 - splash-protected

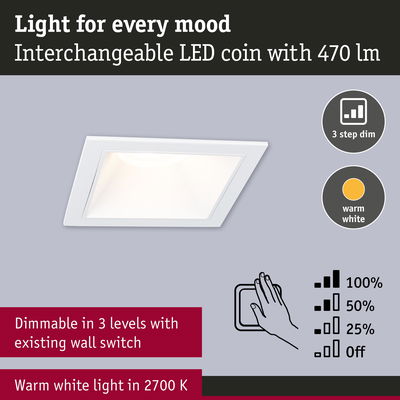

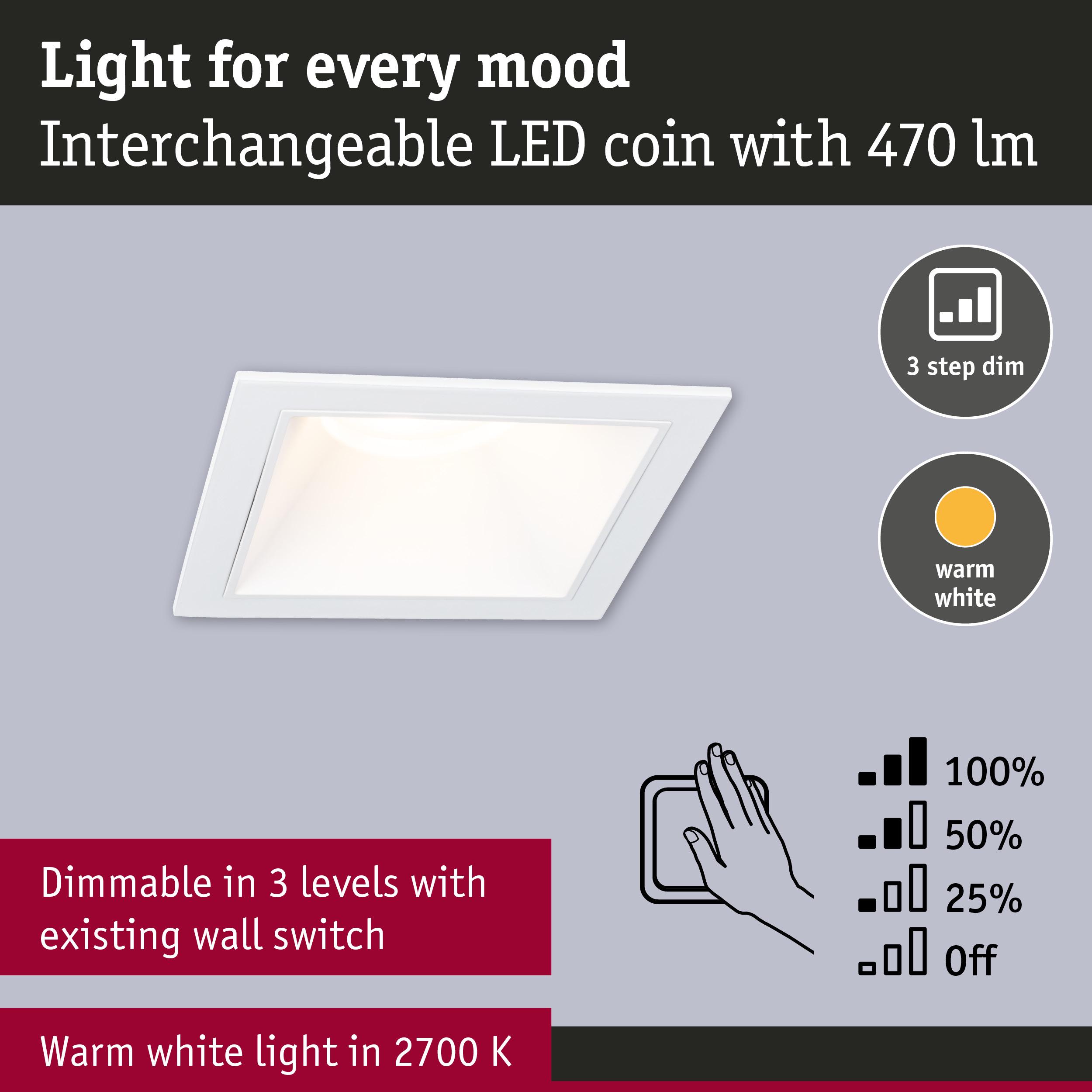

- Can be dimmed with a standard light switch, with 3 dimming levels
| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 56 x B: 88 x T: 88 mm |
| Built-in diameter | 80 mm |

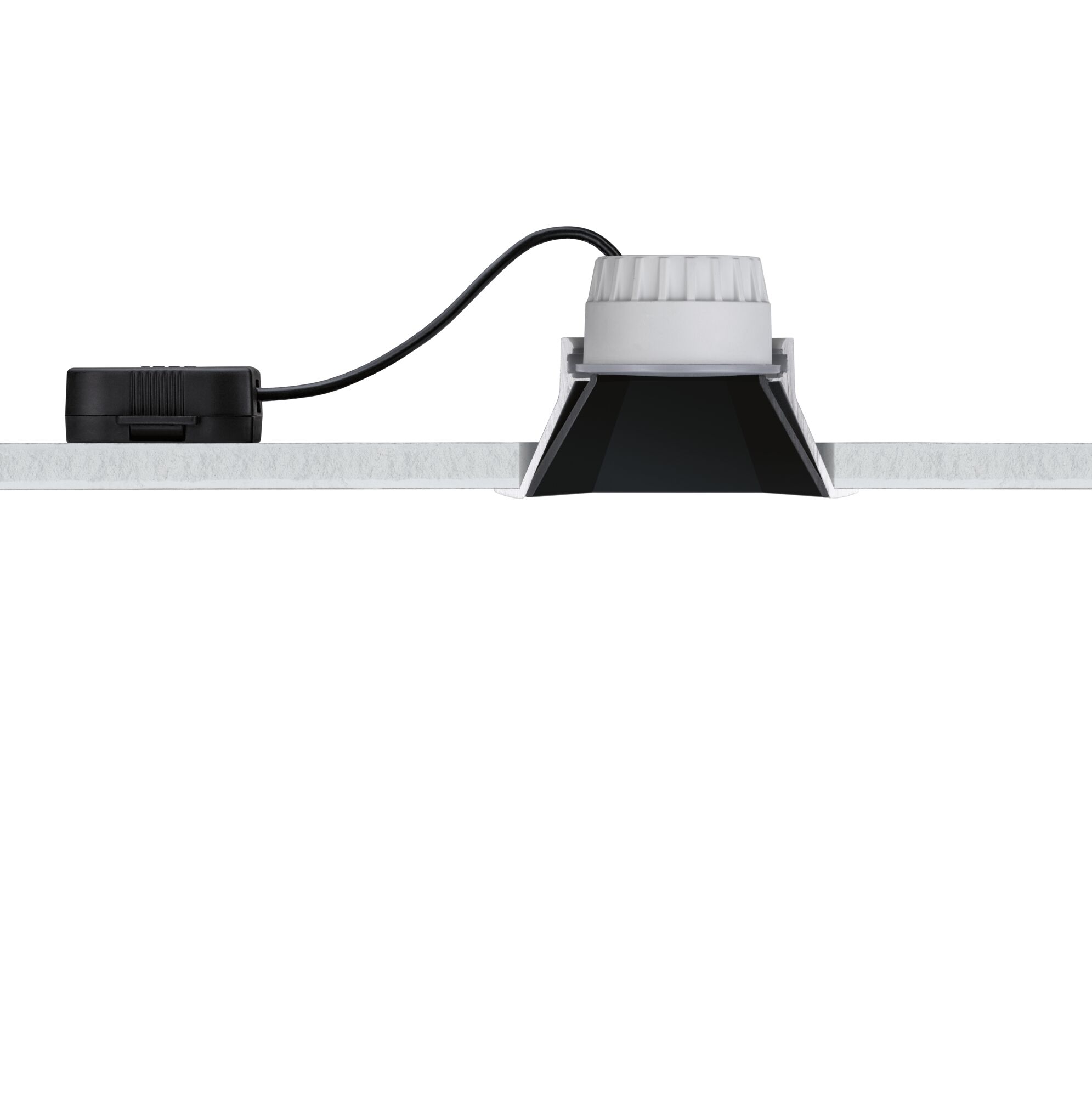

| Mounting depth | 70 mm |

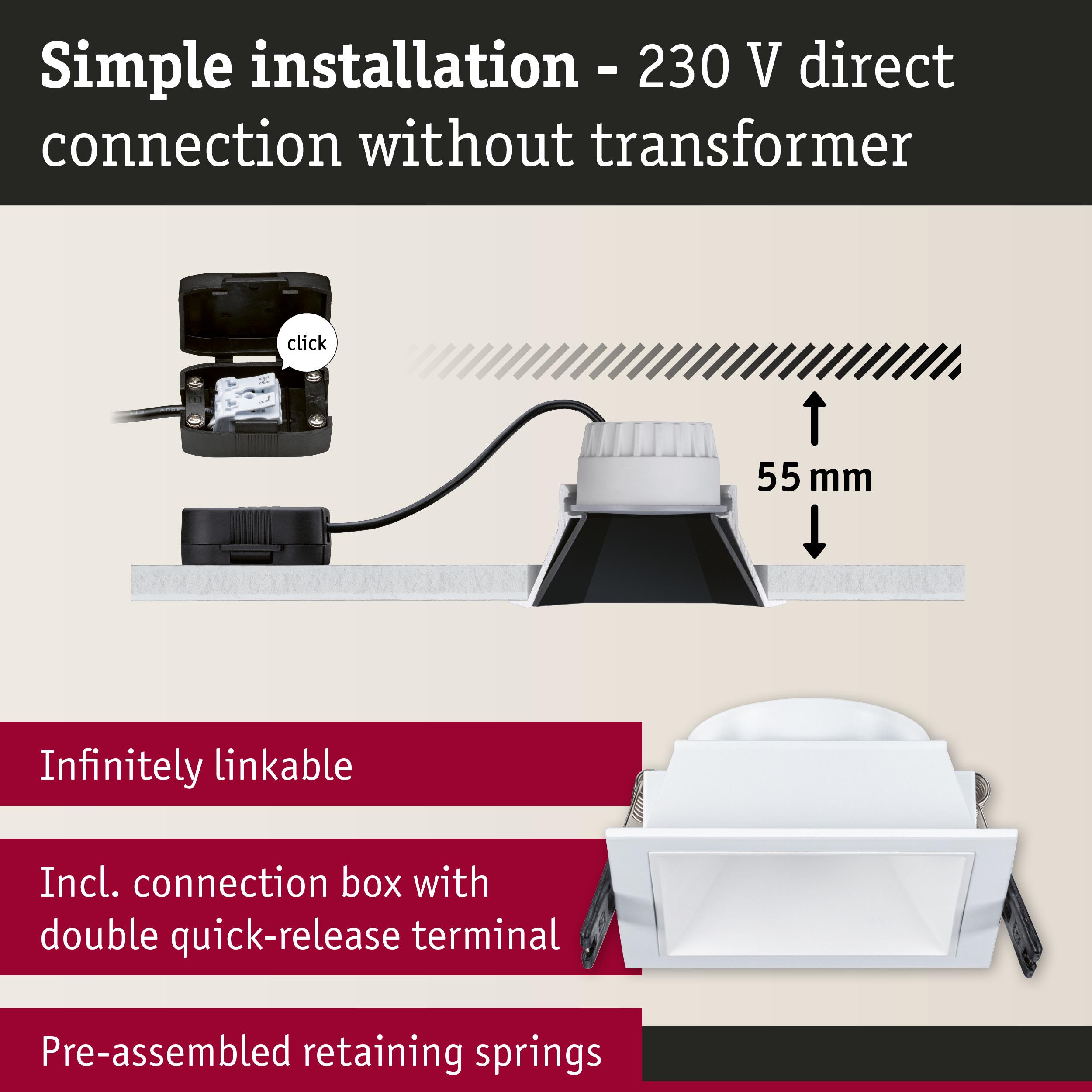

| Depth of hollow wall | 55 mm |
| Design and Material | |
|---|---|
| Form | angular |
| Colour | White |
| Material | Plastic, Aluminium zinc |
| Stainless | stainless alu |
| Recycled material included | no |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 2700 K |
| Nominal luminous flux | 470 lm |
| Color rendering index | > 80 Ra |
| Beam angle | 100 ° |
| Lamp Features | |
|---|---|
| Dimmable | Yes |
| Dim | Dimmable in 3 steps with normal light switch |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel enthalten und wechselbar |
| Incandescent Equivalent | 40 W |
| IP protection | IP44 ceiling mounting |
| Protection class | Protection class II |
| Base/Socket | Coin |
| Technique | LED |
| Component parts | 6 W |
| Number of component parts | 1x |
| Adjustability | fixed |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
Downloads
- LED Module recessed luminaire
