Article-No.:
99865

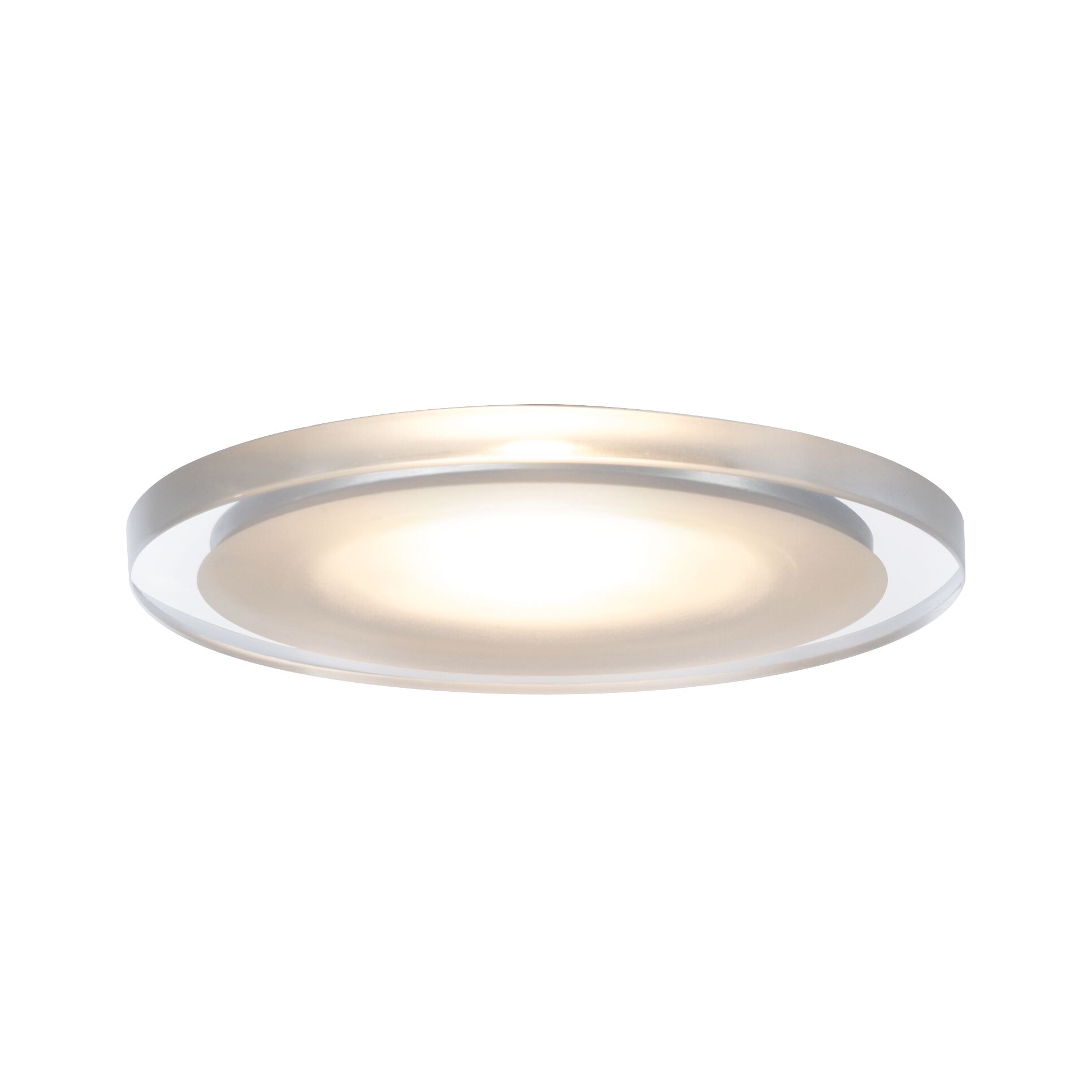

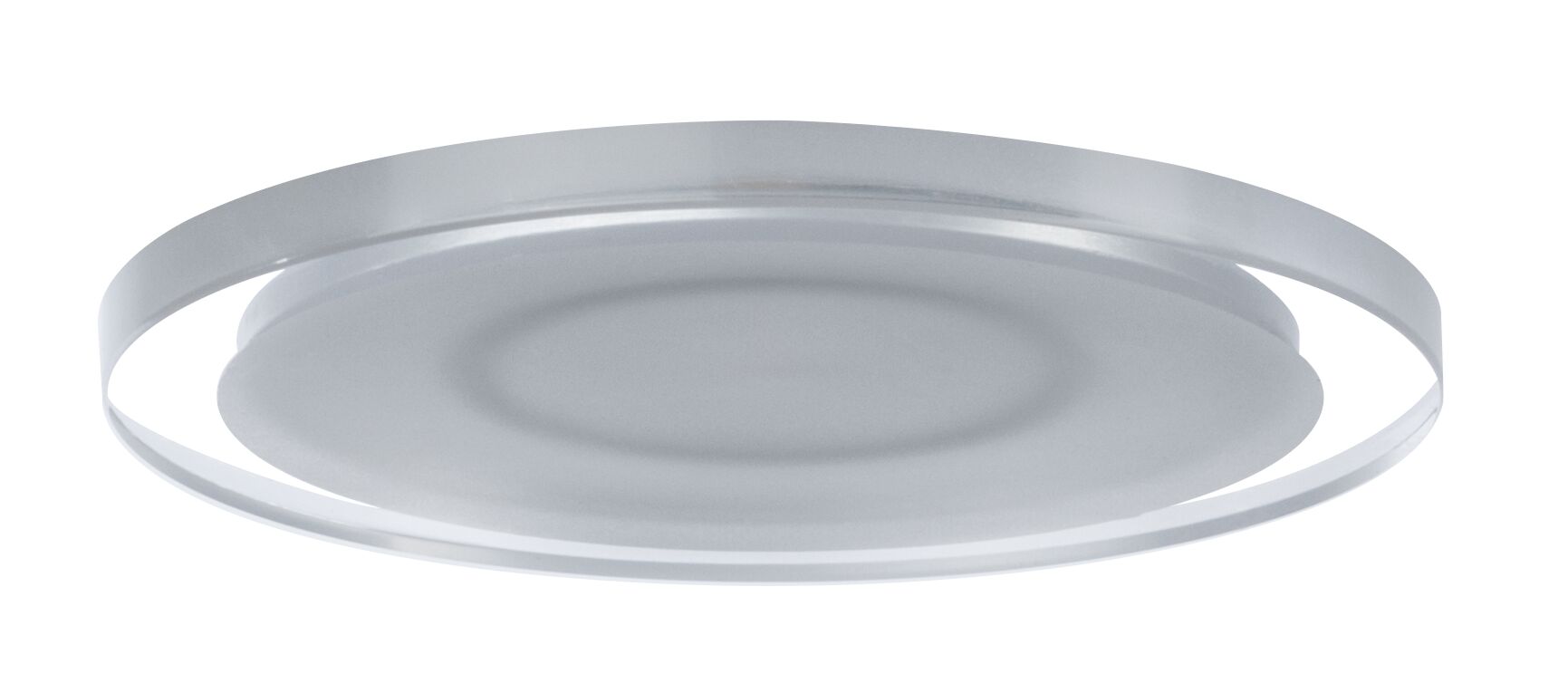

LED Recessed furniture luminaire
Whirl
round 65mm 3x2,4W 3x55lm 230V 2700K Satin
round 65mm 3x2,4W 3x55lm 230V 2700K Satin

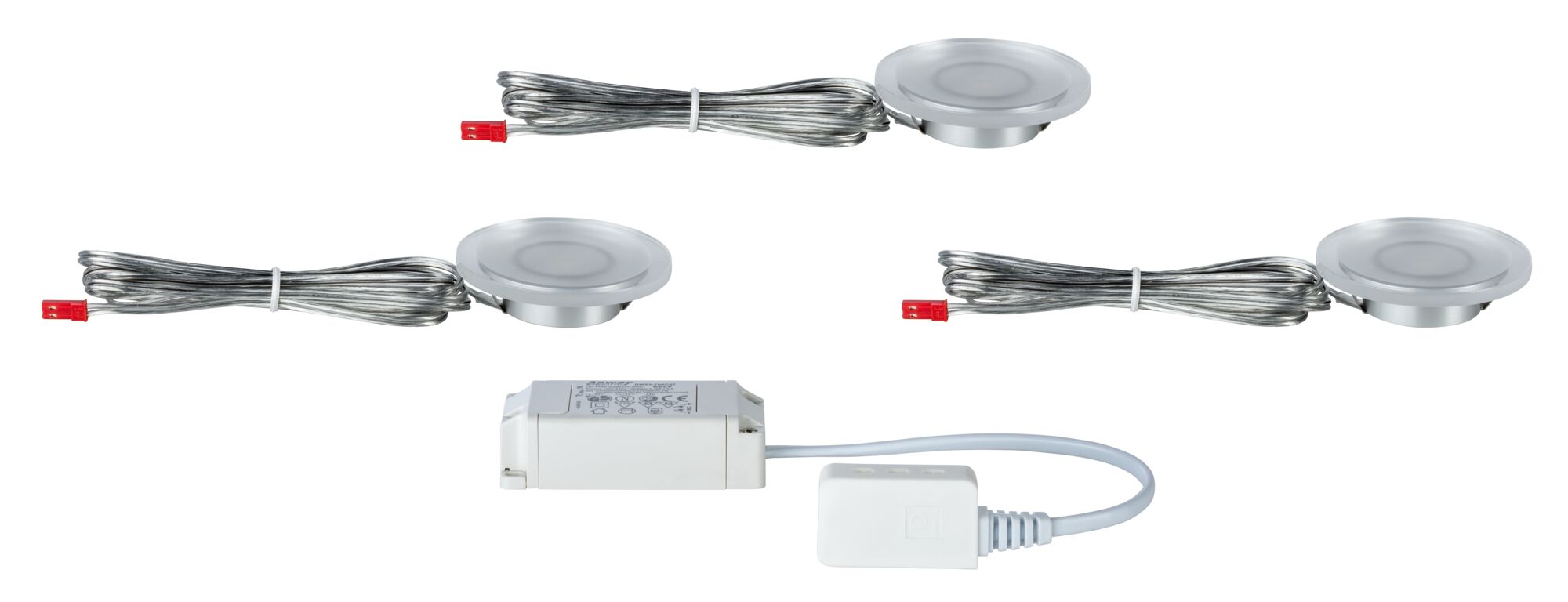

- Set of 3 luminaires incl. LED module and power supply unit
- Energy-saving LED technology conserves up to 80% energy in comparison to conventional filament lamps
- Color temperatur: 2700K - Warm white
LED Recessed furniture luminaire Whirl round 65mm 3x2,4W 3x55lm 230V 2700K Satin
Furniture recessed spotlights are extra flat. Thanks to their low installation depth they are ideal for mounting in cabinets and showcases where they help provide a clear overview or effectively highlight your collection. The high quality finish of the Whirl Mini furniture luminaires with their elegant design fit in with every style of furnishing. Their partly satined surface emits a glare-free and generous light in homely warm white.
- Set of 3 luminaires incl. LED module and power supply unit
- Energy-saving LED technology conserves up to 80% energy in comparison to conventional filament lamps
- Color temperatur: 2700K - Warm white
- Incl. plug-in connection
| Dimension | |
|---|---|
| Ø glass | 65 mm |
| Total Mounting depth | 15 mm |
| Dimensions (Height x Width x Depth) | H: 7 mm |
| Ø | 65 mm |
| Mounting hole | 40 mm |
| Form | round |
| Depth of hollow wall | 15 mm, 0 mm |
| Design and Material | |
|---|---|
| Colour | Satin |
| Material | Acrylic |
| Installation | |
|---|---|
| Installation site (recommendation) | Installation on cabinet |
| Connections | |
|---|---|
| Plug-and-socket connector | Plug-and-socket connector |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | G |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Rated life time | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| Beam angle | 100 ° |
| Usable luminous flux | 55 lm |
| Luminous flux LED module | 88 lm |
| color temp | 2700 K |
| Rated luminous flux (Lumen) | 3x115 lm |
| Lamp Features | |
|---|---|
| Component parts | 2,4 W |
| Technique | LED |
| IP protection | IP20 |
| Dimmable | No |
| Inclusive lamp | yes |
| Number of component parts | 3x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 10 W |
| Transformer | |
|---|---|
| Transformer power | 7 VA |
| Transformer height | 23 mm |
| Transformer width | 38 mm |
| Transformer depth | 80 mm |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
