Article-No.:
93555

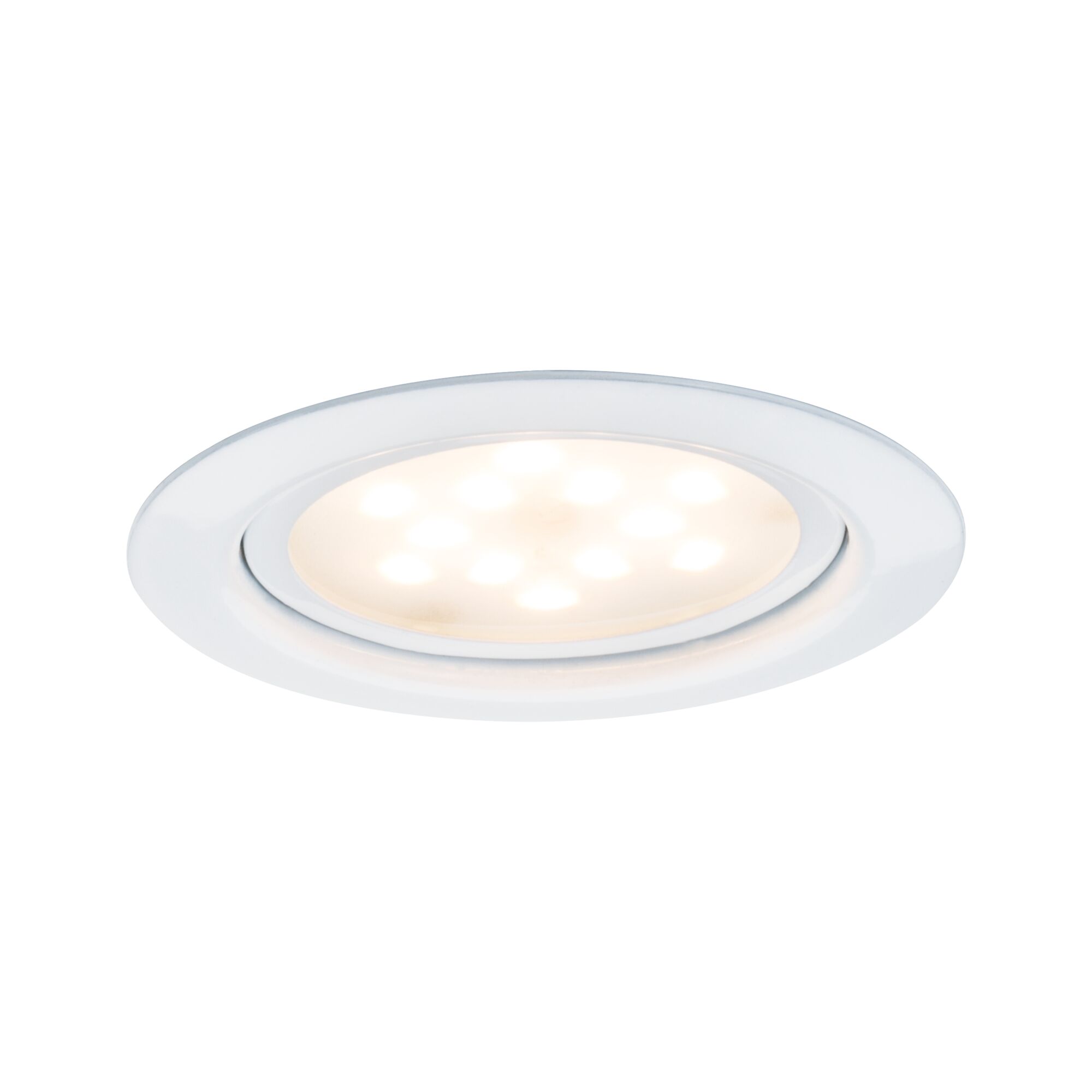

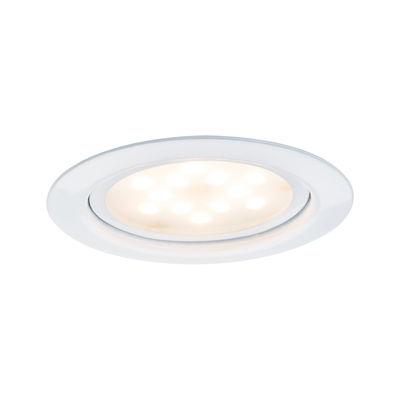

LED Recessed furniture luminaire
Micro Line Single Luminaire
round 65mm 4,5W 300lm 230V 2700K White
round 65mm 4,5W 300lm 230V 2700K White
LED Recessed furniture luminaire Micro Line Single Luminaire round 65mm 4,5W 300lm 230V 2700K White
The right choice for display cabinets, furniture, etc.: The Micro Line Flat LED furniture recessed luminaire set emits practically no heat at all and provides cupboard illumination for unobtrusive lighting and decorative effects.
- Set of 1 lamp including LED, 1x4.5 W
- Material: Metal
- Color: White
- Energy-saving LED technology (conserves up to 80% energy in comparison to conventional light bulbs)
- Low mounting depth: only 30mm
- Diameter: 65mm
- Operating voltage: 230 V
- protection class II
- Color temperatur: 2700K - Warm white

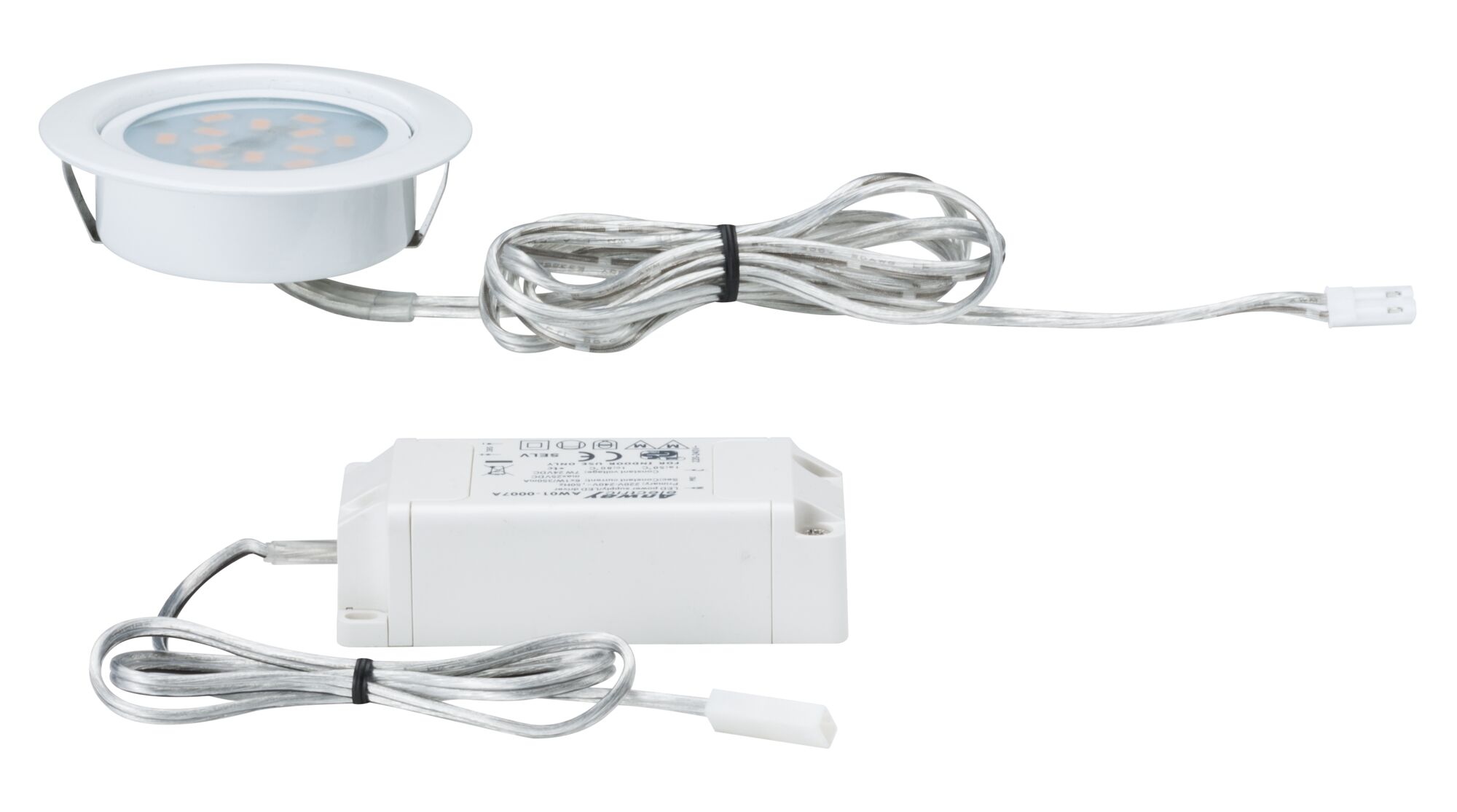

- Incl. plug-in connector and transformer
| Dimension | |
|---|---|
| Total Mounting depth | 30 mm |
| Ø | 65 mm |
| Mounting hole | 54 mm |
| Form | round |
| Depth of hollow wall | 15 mm, 15 mm |
| Design and Material | |
|---|---|
| Colour | White |
| Material | Metal |
| Installation | |
|---|---|
| Installation site (recommendation) | Installation on cabinet |
| Connections | |
|---|---|
| Plug-and-socket connector | Plug-and-socket connector |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | E |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Rated life time | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| Beam angle | 180 ° |
| Usable luminous flux | 300 lm |
| Luminous flux LED module | 550 lm |
| color temp | 2700 K |
| Rated luminous flux (Lumen) | 305 lm |
| Lamp Features | |
|---|---|
| Component parts | 4,5 W |
| Technique | LED |
| IP protection | IP20 |
| Dimmable | No |
| Inclusive lamp | yes |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 6,3 W |
| Transformer | |
|---|---|
| Transformer power | 6 VA |
| Transformer height | 20 mm |
| Transformer width | 40 mm |
| Transformer depth | 56 mm |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
