LED Recessed furniture luminaire Micro Line Mini round 35mm 5x1W 5x95lm 230V 2700K Chrome
LED Recessed furniture luminaire Micro Line Mini round 35mm 5x1W 5x95lm 230V 2700K Chrome
LED Recessed furniture luminaire Micro Line Mini round 35mm 5x1W 5x95lm 230V 2700K Chrome
LED Recessed furniture luminaire Micro Line Mini round 35mm 5x1W 5x95lm 230V 2700K Chrome
LED Recessed furniture luminaire Micro Line Mini round 35mm 5x1W 5x95lm 230V 2700K Chrome
LED Recessed furniture luminaire Micro Line Mini round 35mm 5x1W 5x95lm 230V 2700K Chrome
LED Recessed furniture luminaire Micro Line Mini round 35mm 5x1W 5x95lm 230V 2700K Chrome
LED Recessed furniture luminaire Micro Line Mini round 35mm 5x1W 5x95lm 230V 2700K Chrome
LED Recessed furniture luminaire Micro Line Mini round 35mm 5x1W 5x95lm 230V 2700K Chrome
LED Recessed furniture luminaire Micro Line Mini round 35mm 5x1W 5x95lm 230V 2700K Chrome
LED Recessed furniture luminaire Micro Line Mini round 35mm 5x1W 5x95lm 230V 2700K Chrome
LED Recessed furniture luminaire Micro Line Mini round 35mm 5x1W 5x95lm 230V 2700K Chrome
Article-No.: 93551

LED Recessed furniture luminaire Micro Line Mini

round 35mm 5x1W 5x95lm 230V 2700K Chrome

Form: round
Colour: Chrome

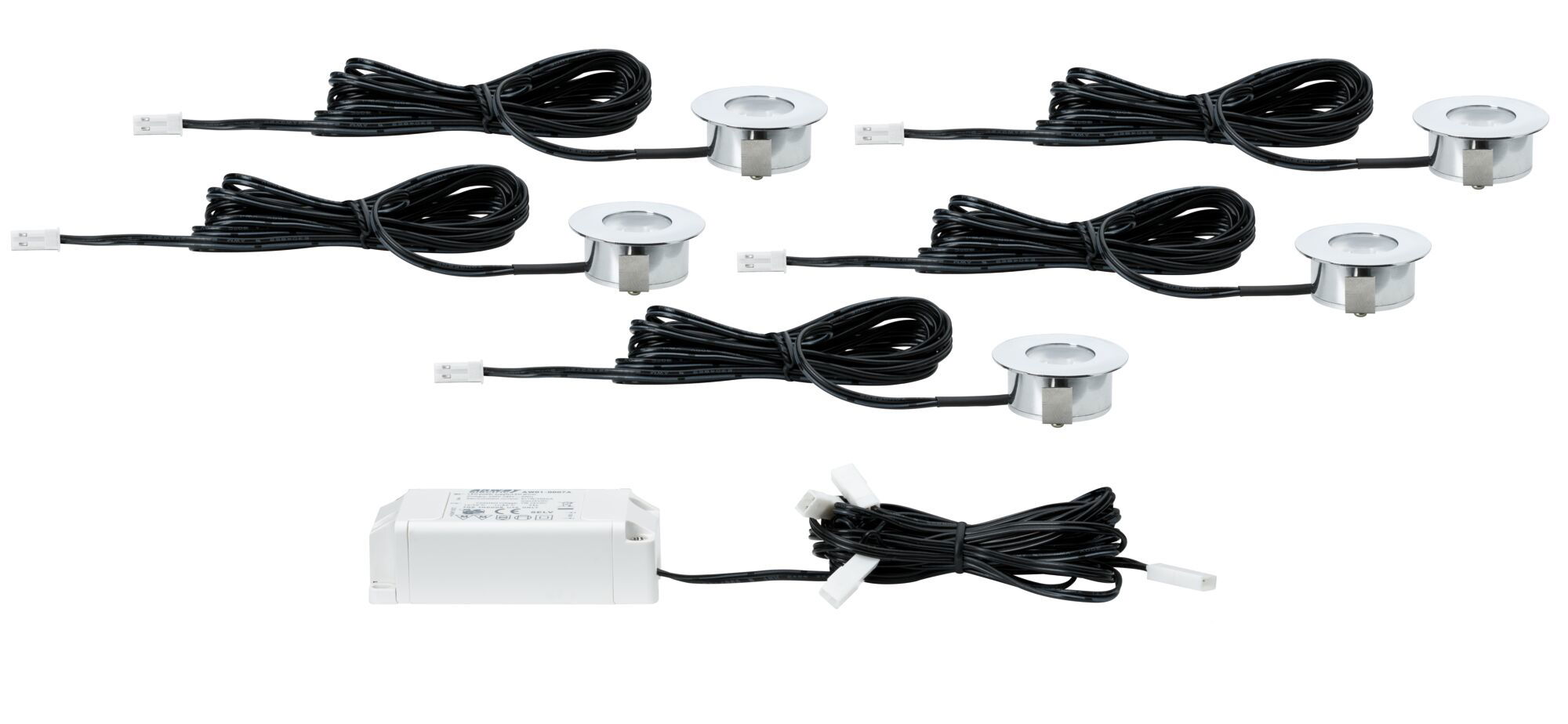

  • Set of 5 lamps including LED, 5x1W
  • Material: Alu
  • Color: Chrome
Questions about the product

LED Recessed furniture luminaire Micro Line Mini round 35mm 5x1W 5x95lm 230V 2700K Chrome

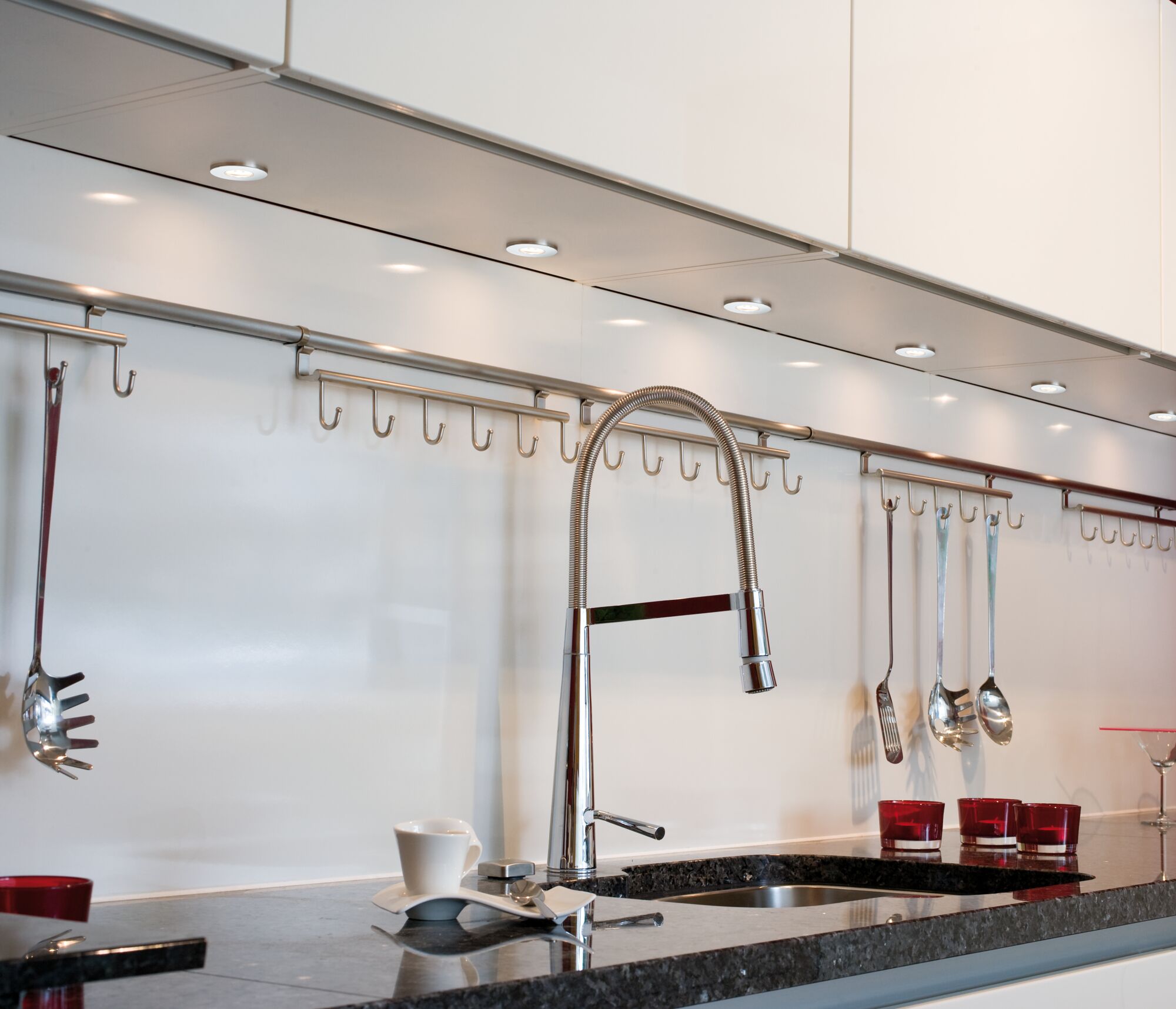

The right choice for display cases, furniture and the like: The Micro Line Mini LED furniture recessed lighting set needs an installation depth of just 20 mm and provides for decorative effects in particular in small display cases and cabinets, thanks to its small dimensions.
  • Set of 5 lamps including LED, 5x1W
  • Material: Alu
  • Color: Chrome
  • Energy-saving LED technology (conserves up to 80% energy in comparison to conventional light bulbs)
  • Low installation depth: only 20mm
  • Diameter: 35mm
  • Operating voltage: 230 V
  • protection class II
  • Color temperatur: 2700K - Warm white
Dimension
Total Mounting depth 20 mm
Ø 35 mm
Mounting hole 30 mm
Form round
Depth of hollow wall 5 mm, 5 mm
Design and Material
Colour Chrome
Material Aluminium
Installation
Installation site (recommendation) Installation on cabinet
Connections
Plug-and-socket connector Plug-and-socket connector
Service life
Lifetime 30000 h
Rated life time 30000 h
Light Characteristics
Colour temp. 2700 K
Beam angle 65 °
Usable luminous flux 95 lm
Luminous flux LED module 110 lm
color temp 2700 K
Luminous intensity 45 cd
Rated luminous flux (Lumen) 60 lm
Lamp Features
Component parts 1 W
Technique LED
IP protection IP20
Dimmable No
Inclusive lamp yes
Incandescent Equivalent 12 W
Number of component parts 5x
protection class protection class II
Replacable 7 not concerned.
Power consumption 7,5 W
Transformer
Transformer power 6 VA
Transformer height 23 mm
Transformer width 38 mm
Transformer depth 80 mm
Labelling
MM symbol MM symbol
WEEE-Reg.-No DE 39236390

Downloads

Manuals
Download Installation/Montage
Flyer and Safety instructions
Safety instructions Downlights
