Article-No.:
93553
LED Recessed furniture luminaire
Micro Line 3-piece set
round 65mm 3x4,5W 3x300lm 230V 2700K Brushed iron
round 65mm 3x4,5W 3x300lm 230V 2700K Brushed iron

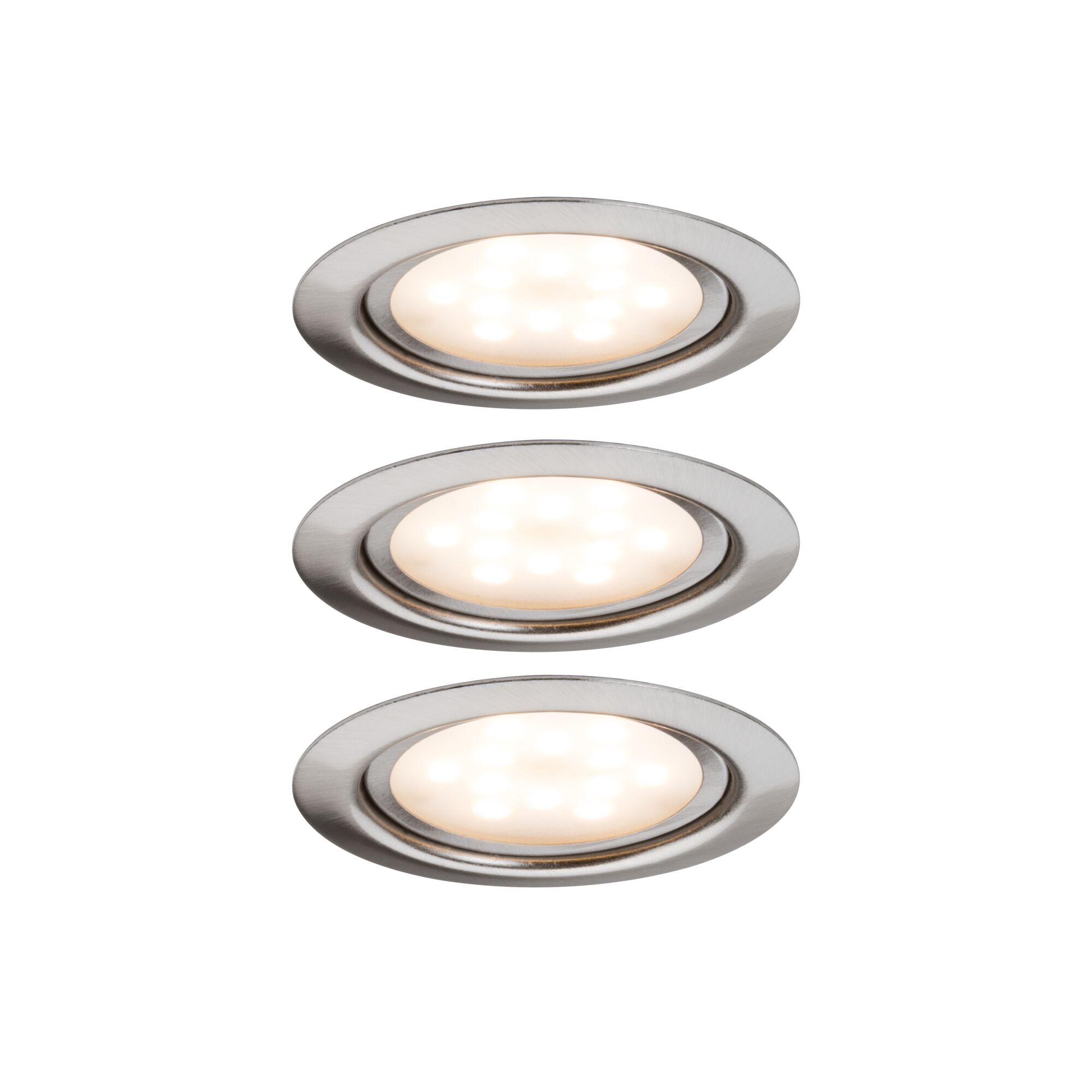

LED Recessed furniture luminaire Micro Line 3-piece set round 65mm 3x4,5W 3x300lm 230V 2700K Brushed iron

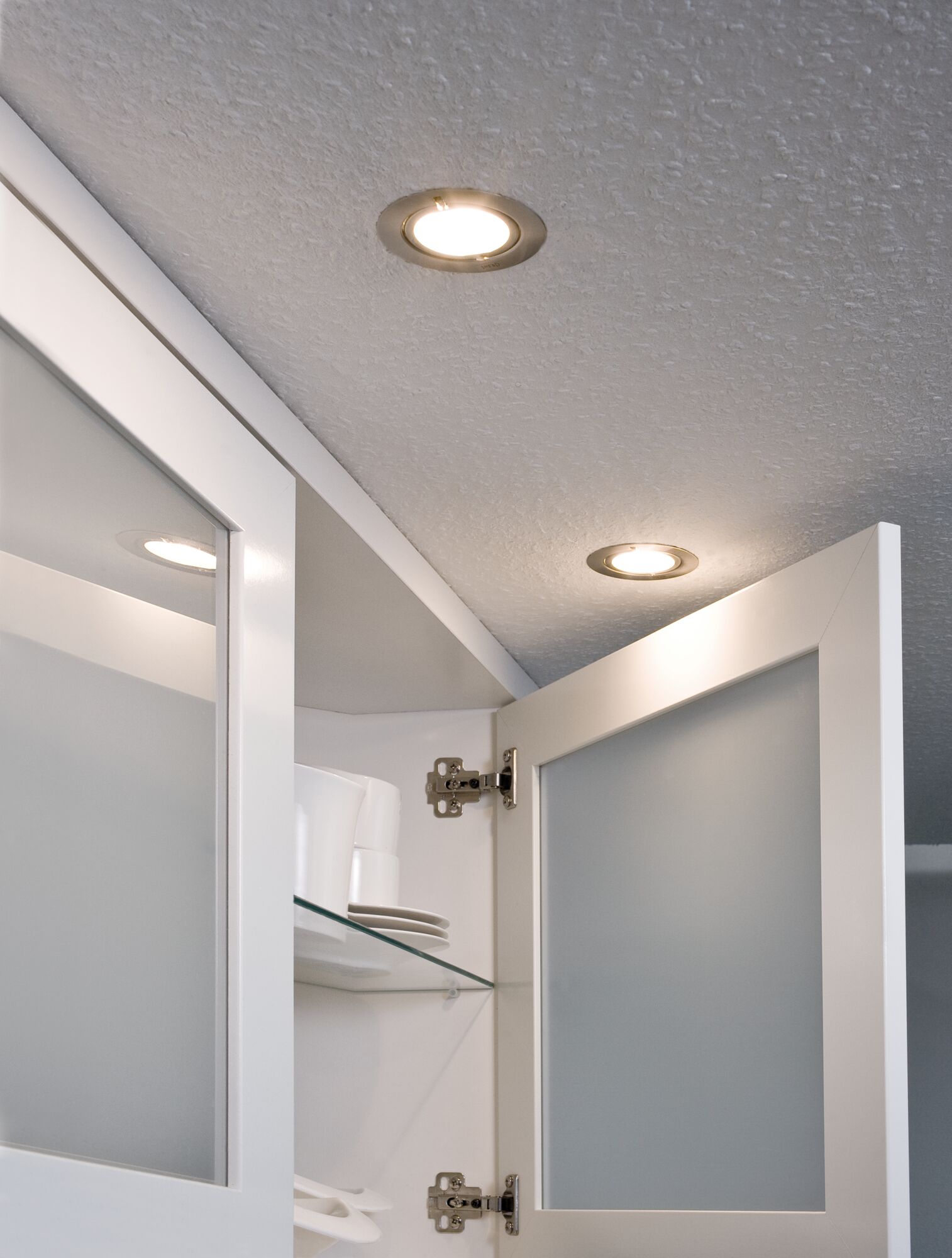

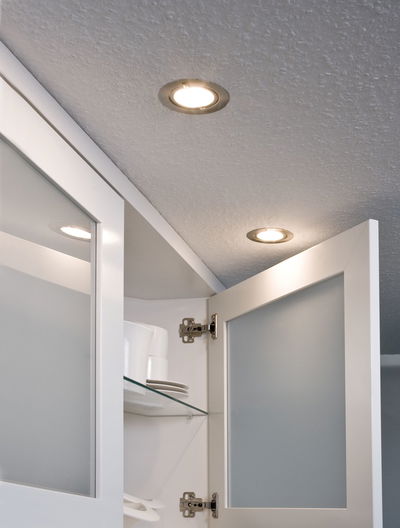

The right choice for display cabinets, furniture, etc.: The Micro Line Flat LED furniture recessed luminaire set emits practically no heat at all and provides cupboard illumination for unobtrusive lighting and decorative effects.
- Set of 3 lamps including LEDs, 3x4.5 W
- Material: Metal
- Color: Brushed iron
- Energy-saving LED technology (conserves up to 80% energy in comparison to conventional light bulbs)
- Low mounting depth: only 30mm
- Diameter: 65mm
- Operating voltage: 230 V
- protection class II
- Color temperatur: 2700K - Warm white

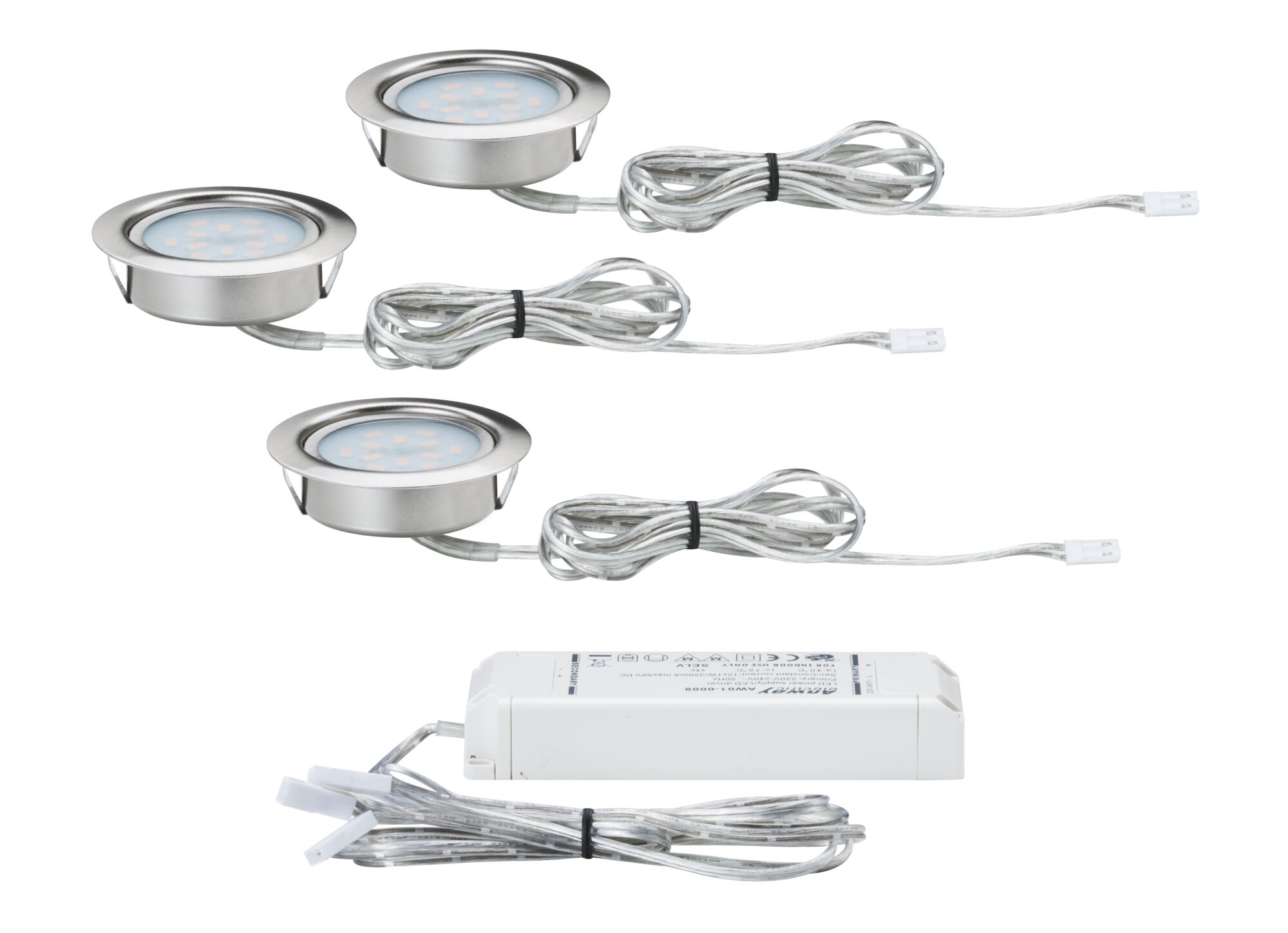

- Incl. plug-in connector and transformer
| Dimension | |
|---|---|
| Diameter | 65 mm |
| Built-in diameter | 54 mm |
| Mounting depth | 30 mm |
| Depth of hollow wall | 15 mm |
| Design and Material | |
|---|---|
| Form | round |
| Colour | Brushed iron |
| Material | Metal |
| Installation | |
|---|---|
| Installation site (recommendation) | Installation on cabinet |
| Connections | |
|---|---|
| Plug-and-socket connector | Plug-and-socket connector |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | E |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 2700 K |
| Nominal luminous flux | 300 lm |
| Luminous flux LED module | 580 lm |
| Beam angle | 180 ° |
| Lamp Features | |
|---|---|
| Dimmable | No |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel fest integriert |
| IP protection | IP20 |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 4,5 W |
| Number of component parts | 3x |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|4 Control gear is replaceable without damage the lighting fixture by enduser. |
| Power consumption | 16 W |
| Adjustability | fixed |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Transformer | |
|---|---|
| Transformer power range | 12 VA |
| Transformer height | 18 mm |
| Transformer width | 38 mm |
| Transformer depth | 122 mm |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
