Article-No.:
93788

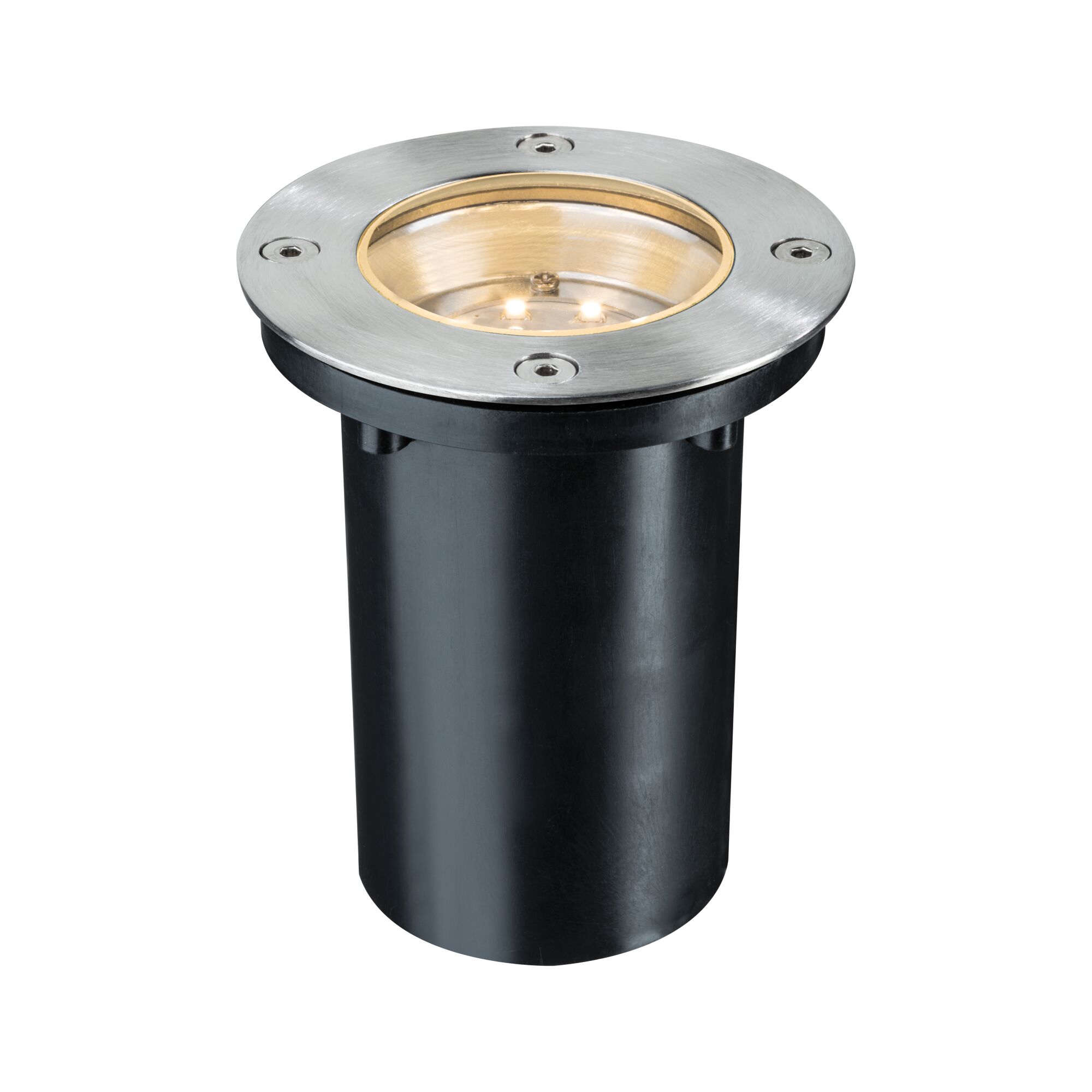

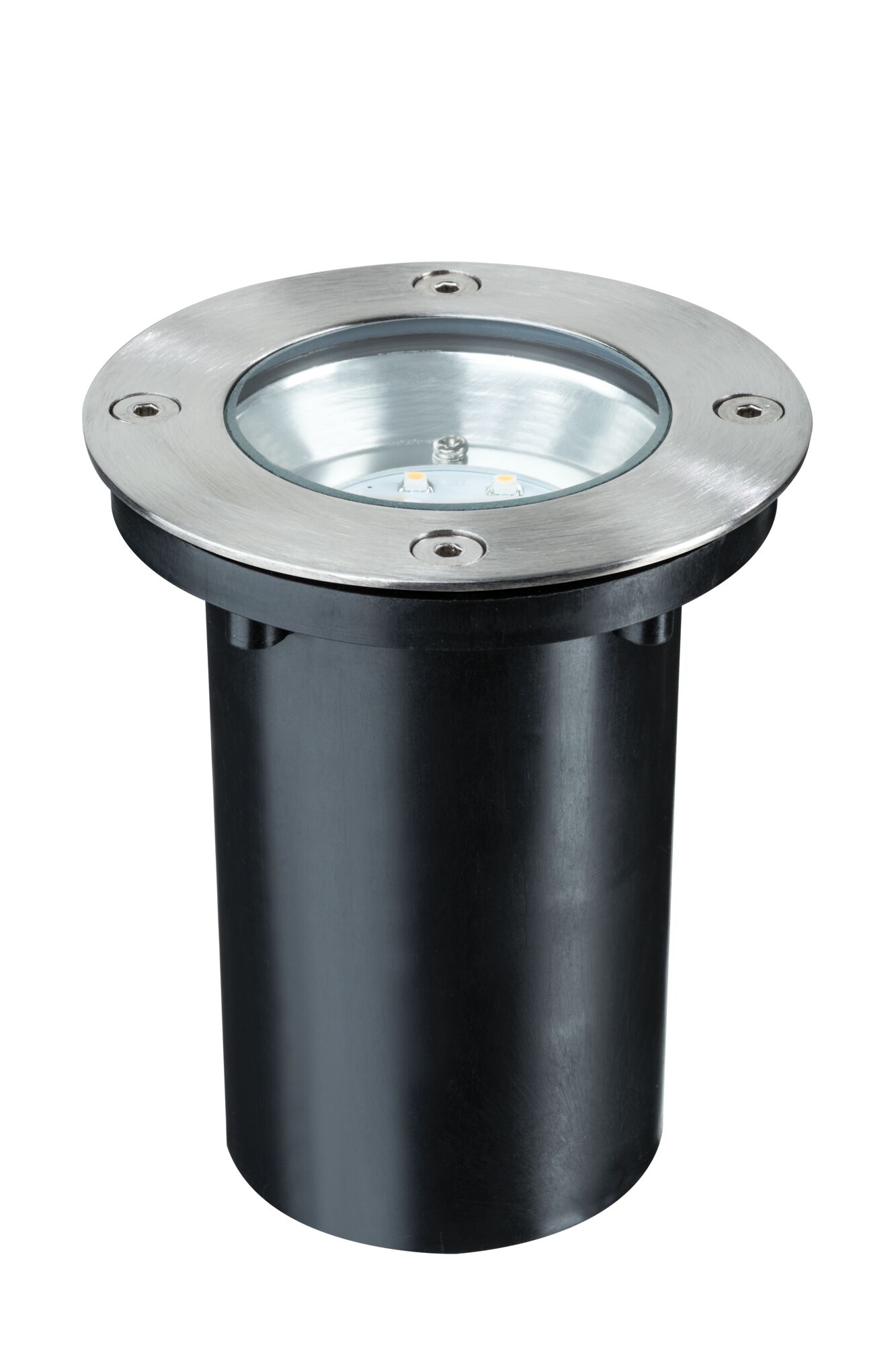

LED Recessed floor luminaire
LED Recessed floor luminaire
IP67 round 110mm 2700K 1,2W 20lm 230V Stainless steel Metal
IP67 round 110mm 2700K 1,2W 20lm 230V Stainless steel Metal
- Set of 1 lamp including LED, 1x1.2 W
- Material: Metal / Stainless steel
- Color: Black / Stainless steel
LED Recessed floor luminaire IP67 round 110mm 2700K 1,2W 20lm 230V Stainless steel Metal

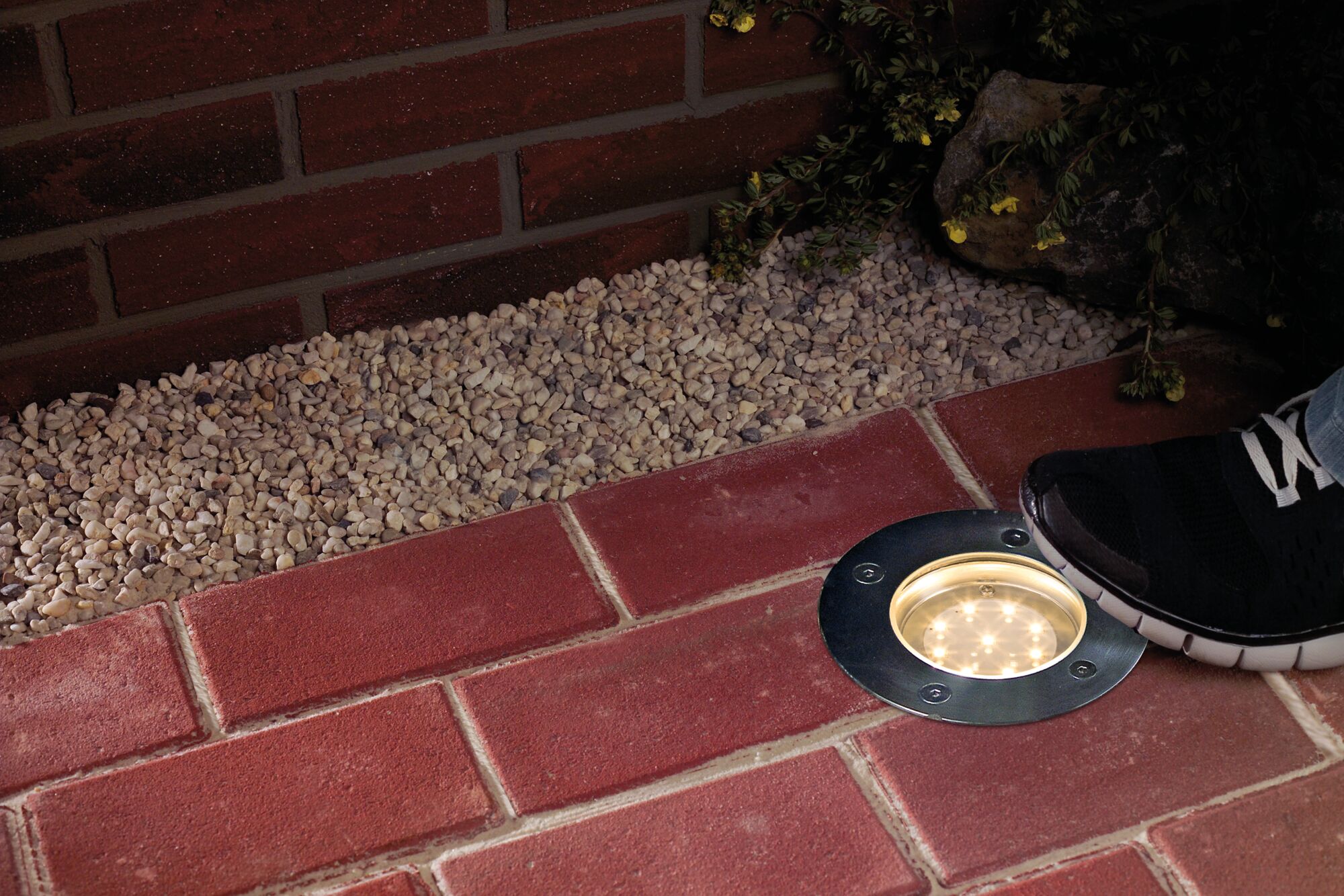

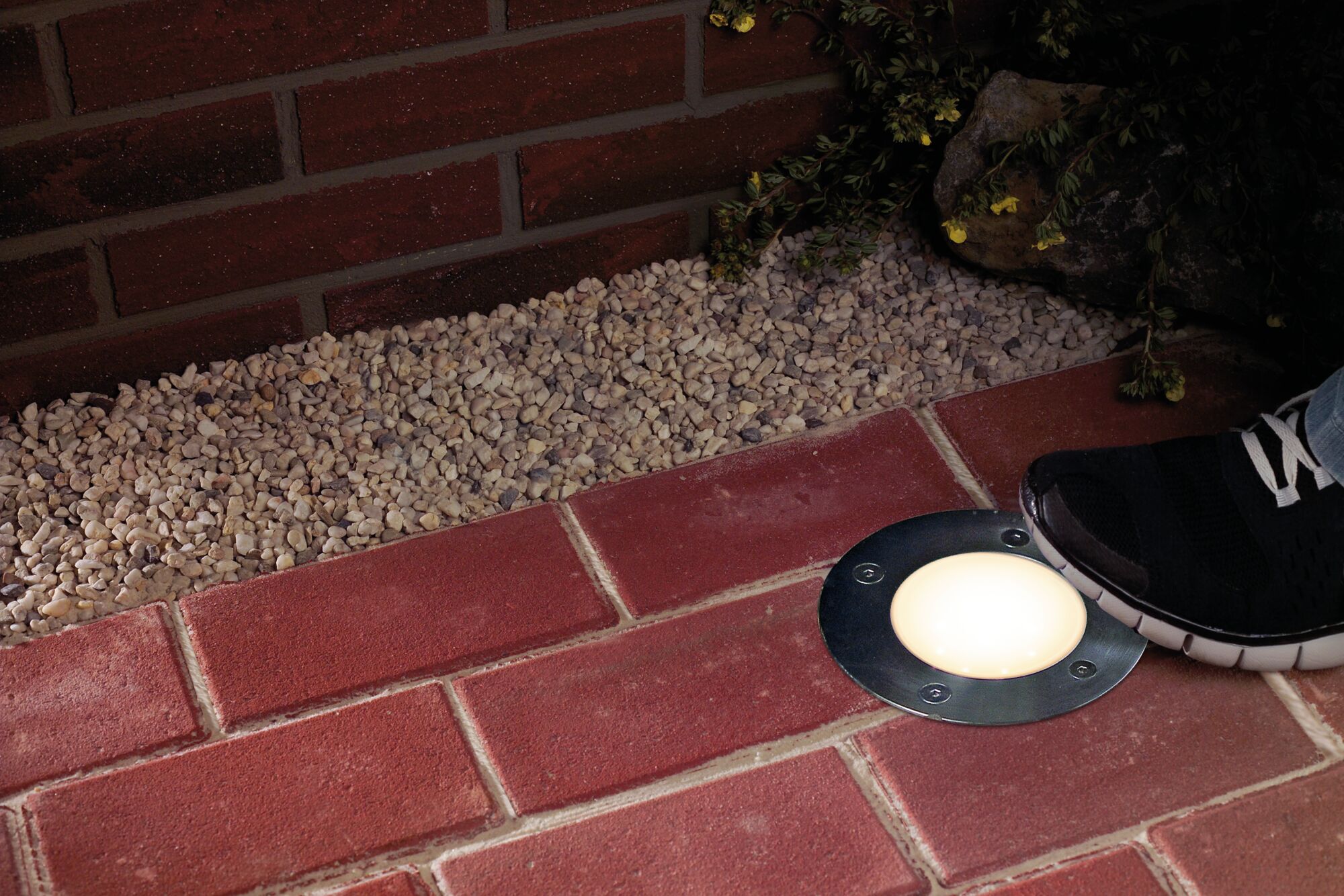

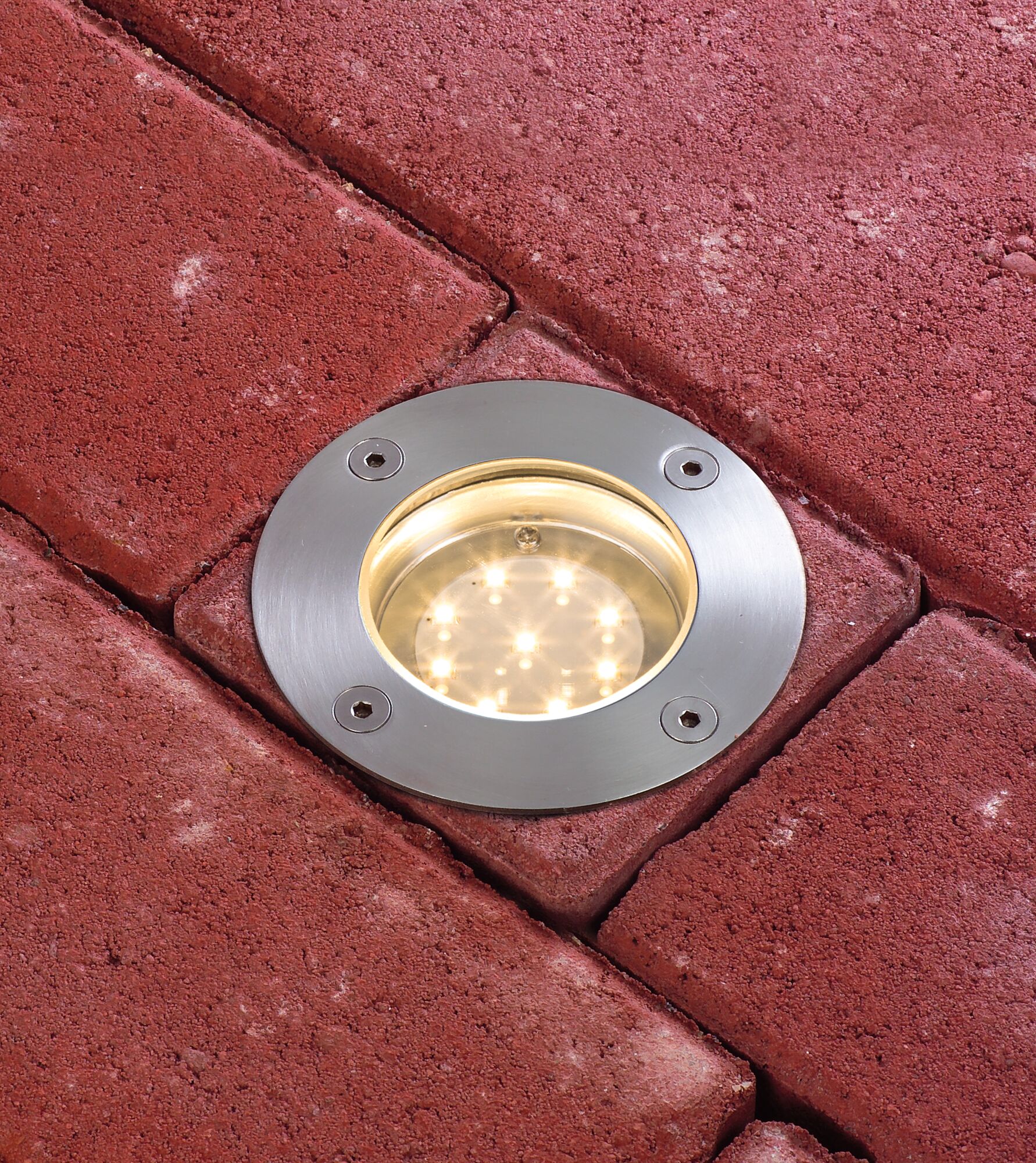

Tough in every way: This stainless steel recessed luminaire is IP67 protected, rust-free and suitable for installation in exterior spaces subject to pedestrian traffic – the “Special Line Floor” can stand up to up to 500 kg weights without problems.
- Set of 1 lamp including LED, 1x1.2 W
- Material: Metal / Stainless steel
- Color: Black / Stainless steel
- Energy-saving LED technology (conserves up to 80% energy in comparison to conventional light bulbs)
- protective system: IP67 – for wet-duty rooms and outdoor use
- Diameter: 110mm
- Operating voltage: 230 V
- Color temperatur: 2700K - Warm white
- The purpose of the included diffusor is to diffuse light and compensate irritating glares
- Two cable inlets allow the mains line to be looped through
| Dimension | |
|---|---|
| Total Mounting depth | 132 mm |
| Dimensions (Height x Width x Depth) | H: 132 mm |
| Diameter | 110 mm |
| Mounting hole | 103 mm |
| Form | round |
| Depth of hollow wall | 117 mm, 117 mm |
| Design and Material | |
|---|---|
| stainless | stainless |
| Colour | Stainless steel |
| Material | Metal |
| Installation | |
|---|---|
| Mounting location | floor |
| Energy consumption | |
|---|---|
| Energy efficiency | G |
| Service life | |
|---|---|
| Lifetime | 20000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| color temp | Warm white |
| Beam angle | 120 ° |
| Nominal luminous flux | 20 lm |
| Color rendering index | > 80 Ra |
| Luminous flux LED module | 30 lm |
| Luminous intensity | 17 cd |
| Rated luminous flux (Lumen) | 30 lm |
| Lamp Features | |
|---|---|
| Component parts | 1,2 W |
| Technique | LED |
| Inclusive lamp | yes |
| Adjustability | fixed |
| Lamp property | Leuchtmittel fest integriert |
| Dimmable | No |
| IP protection | IP67 |
| Number of component parts | 1x |
| protection class | Protection class I |
| Maximum load | 500 kg |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|6 Control gear is not replaceable, the complete lighting must be replaced. |
| Power consumption | 2,1 W |
| Transformer | |
|---|---|
| Transformer height | 32 mm |
| Transformer width | 27 mm |
| Transformer depth | 54 mm |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| MM symbol | MM symbol |
| WEEE-Reg.-No | DE 39236390 |
