Article-No.:
93993
LED Recessed floor luminaire
LED Recessed floor luminaire
IP67 angular 108x108mm 3000K 3,5W 230lm 230V Stainless steel Metal
IP67 angular 108x108mm 3000K 3,5W 230lm 230V Stainless steel Metal
- IP Protection: IP67 - protected against temporary immersion
- Incl. replaceable LED lamp
- For 230 V direct connection

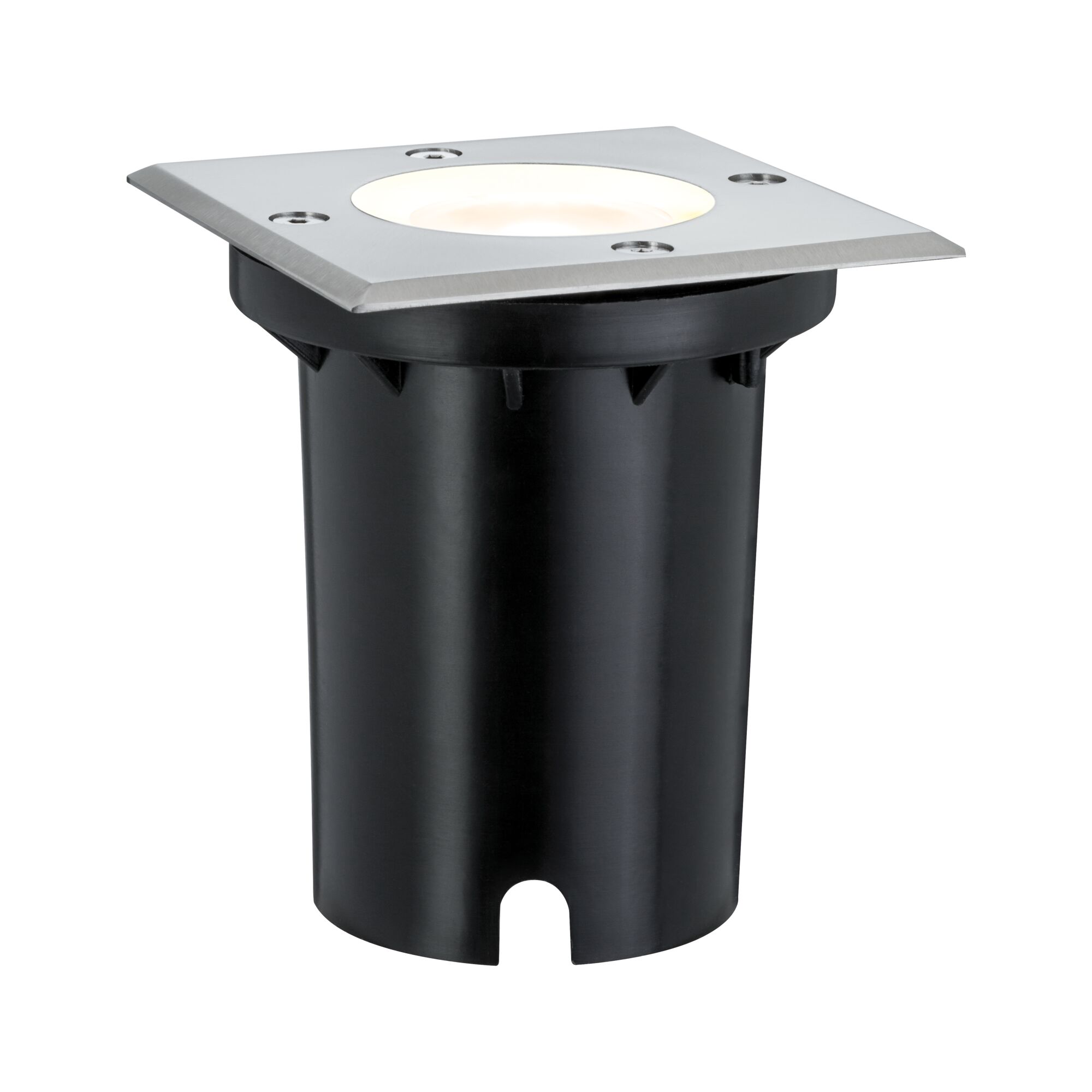

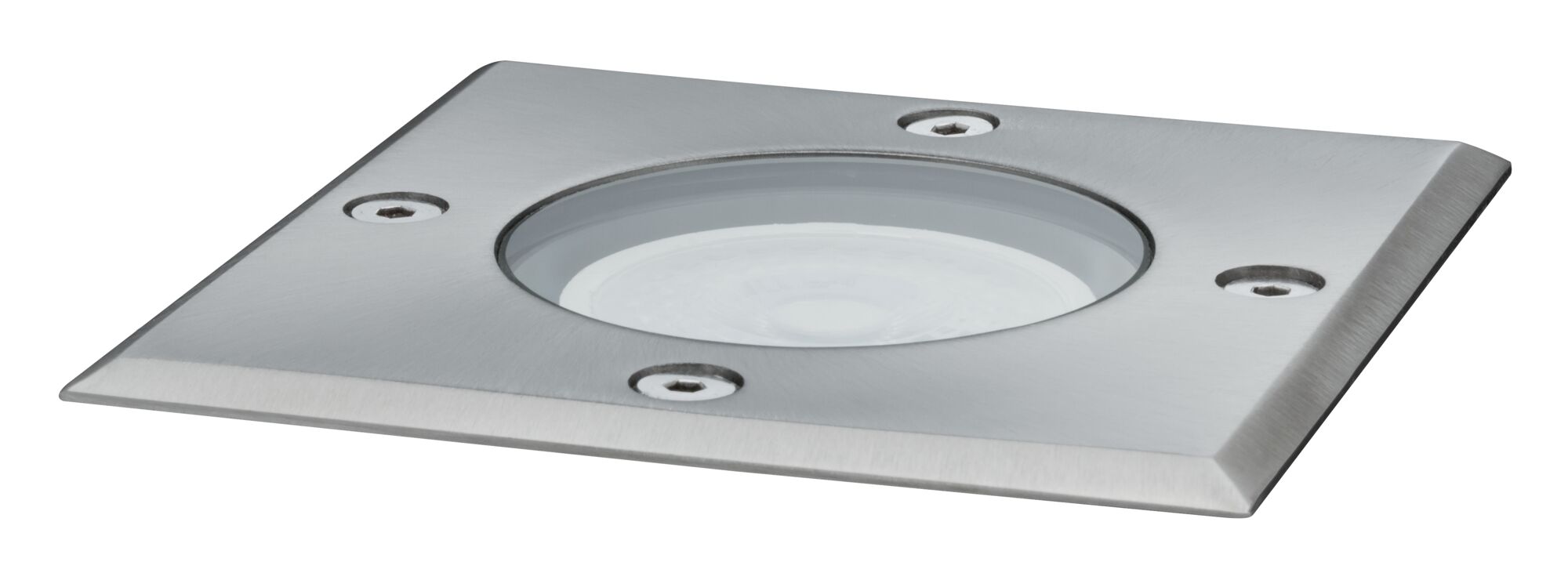

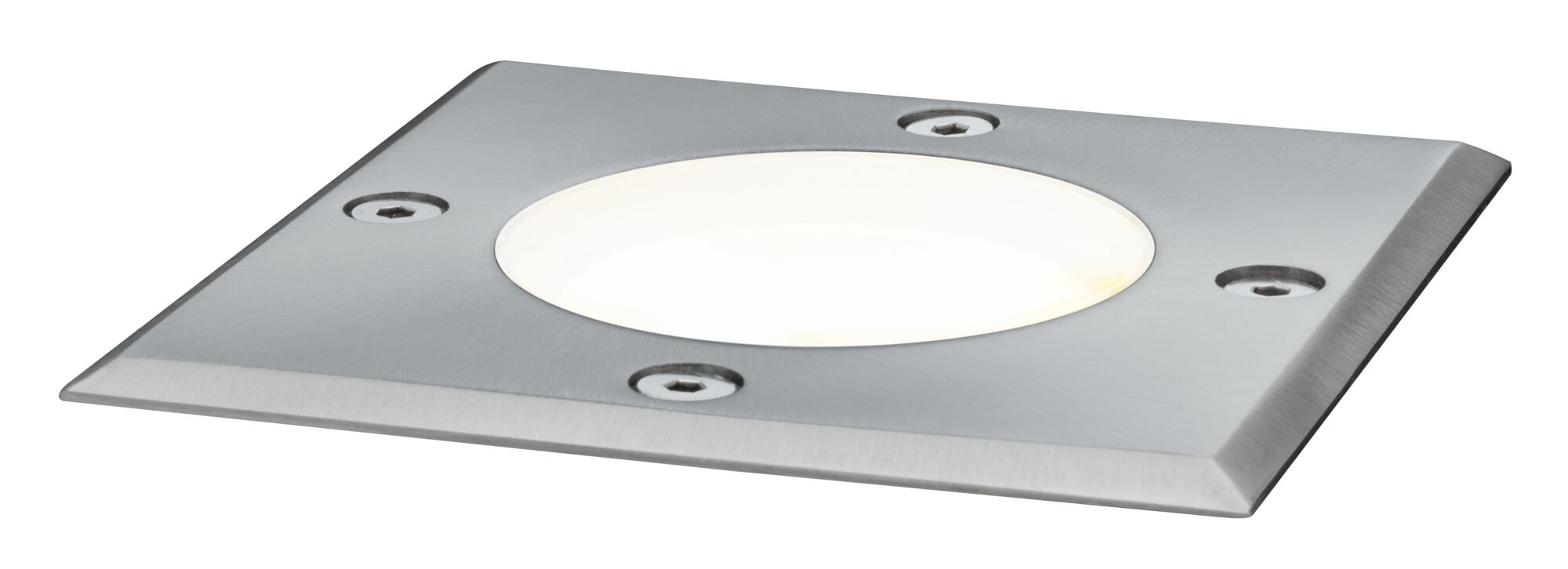

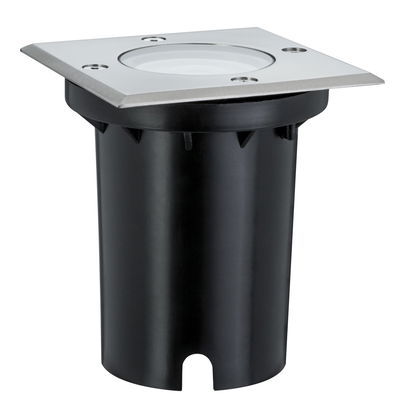

LED Recessed floor luminaire IP67 angular 108x108mm 3000K 3,5W 230lm 230V Stainless steel Metal

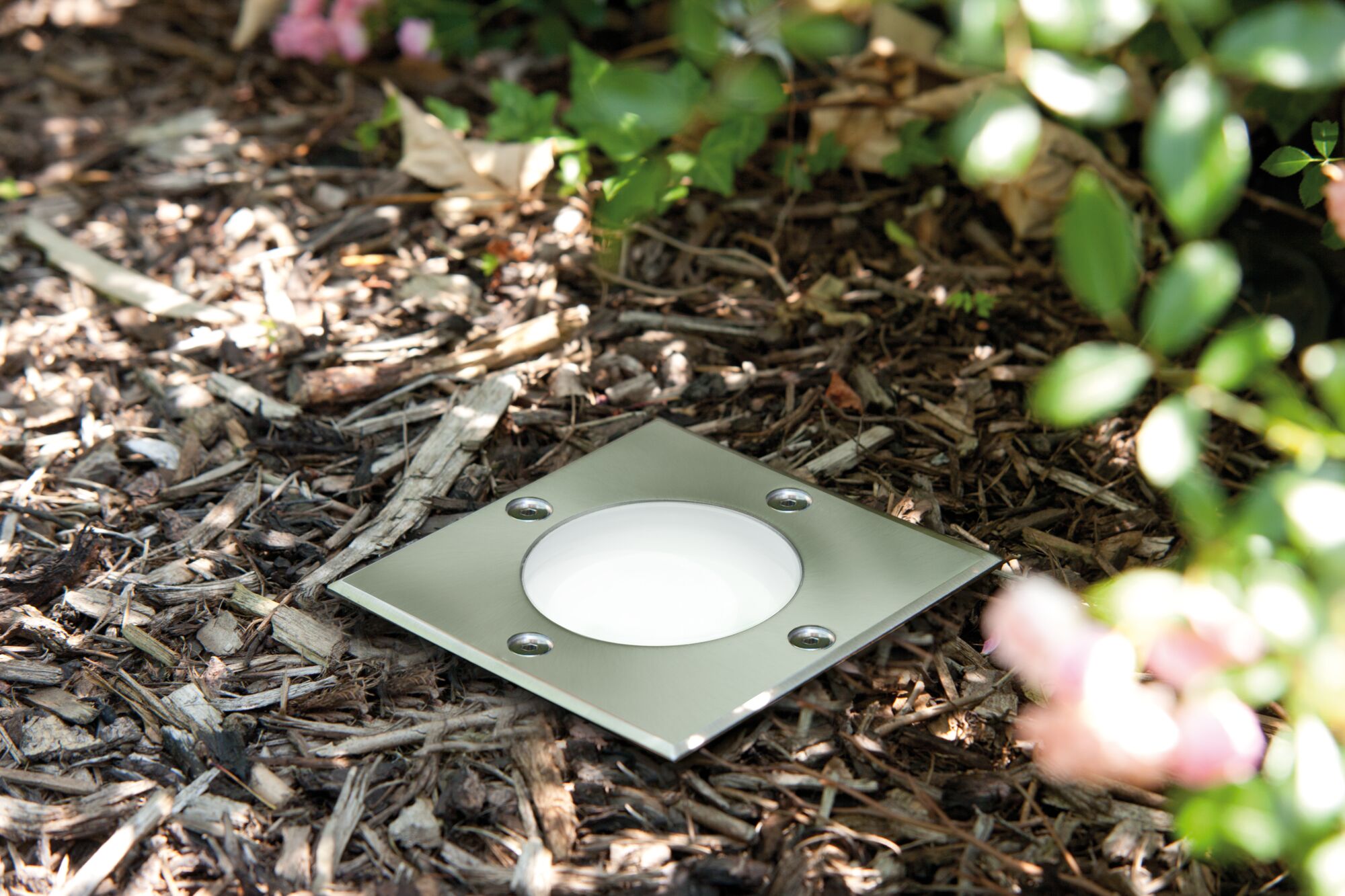

This rectangular floor recessed spotlight can bear loads of up to 500 kilograms, making it suitable for walkable outdoor spaces. Corrosion-resistant, waterproof and dust-proof, it emits warm white light in all weather conditions. The lamp supplied on delivery can be changed as required.
- IP Protection: IP67 - protected against temporary immersion
- Incl. replaceable LED lamp
- For 230 V direct connection
- Max. load up to 500 kg
| Dimension | |
|---|---|
| Depth of hollow wall | 100 mm, 100 mm |
| Total Mounting depth | 115 mm |
| Dimensions (Height x Width x Depth) | H: 124 x B: 108 x T: 108 mm |
| Mounting hole | 105 mm |
| Form | angular |
| Design and Material | |
|---|---|
| stainless | stainless |
| Colour | Stainless steel |
| Material | Metal |
| Installation | |
|---|---|
| Installation site (recommendation) | Floor mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | G |
| Energy consumption | 4 kWh_1000h |
| Service life | |
|---|---|
| Lifetime | 15000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 3000 K |
| Beam angle | 38 ° |
| Usable luminous flux | 230 lm |
| color temp | 3000 K |
| colour consistency | SDCM 6 |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 3,5 W |
| Technique | LED |
| Socket | GU10 |
| IP protection | IP67 |
| Dimmable | No |
| Inclusive lamp | yes |
| Maximum wattage range | max. 10 W |
| Number of component parts | 1x |
| protection class | protection class I |
| Maximum load | 500 kg |
| Replacable | 1 Lightsource is replaceable without damage the lighting fixture by enduser. |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
