Article-No.:
94387

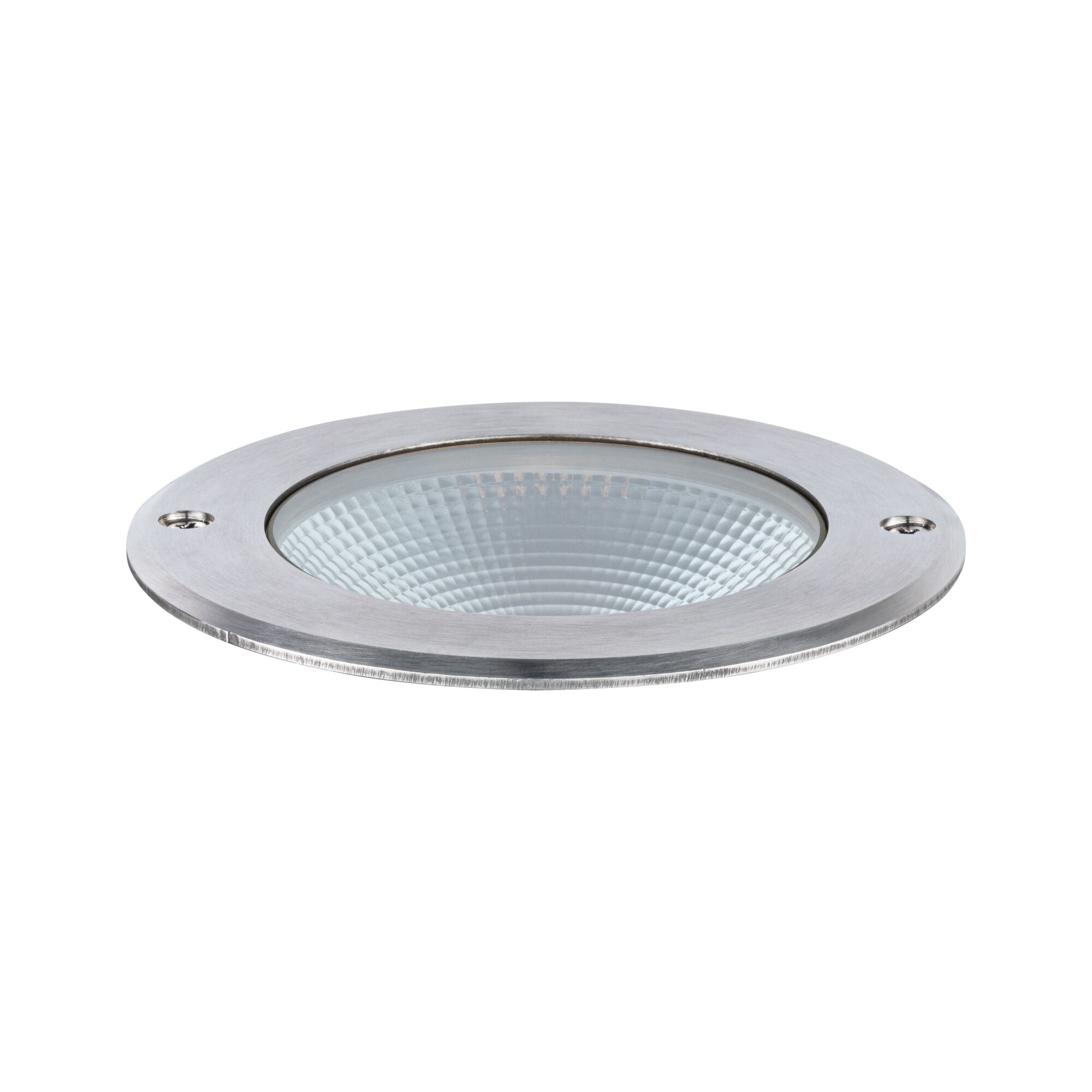

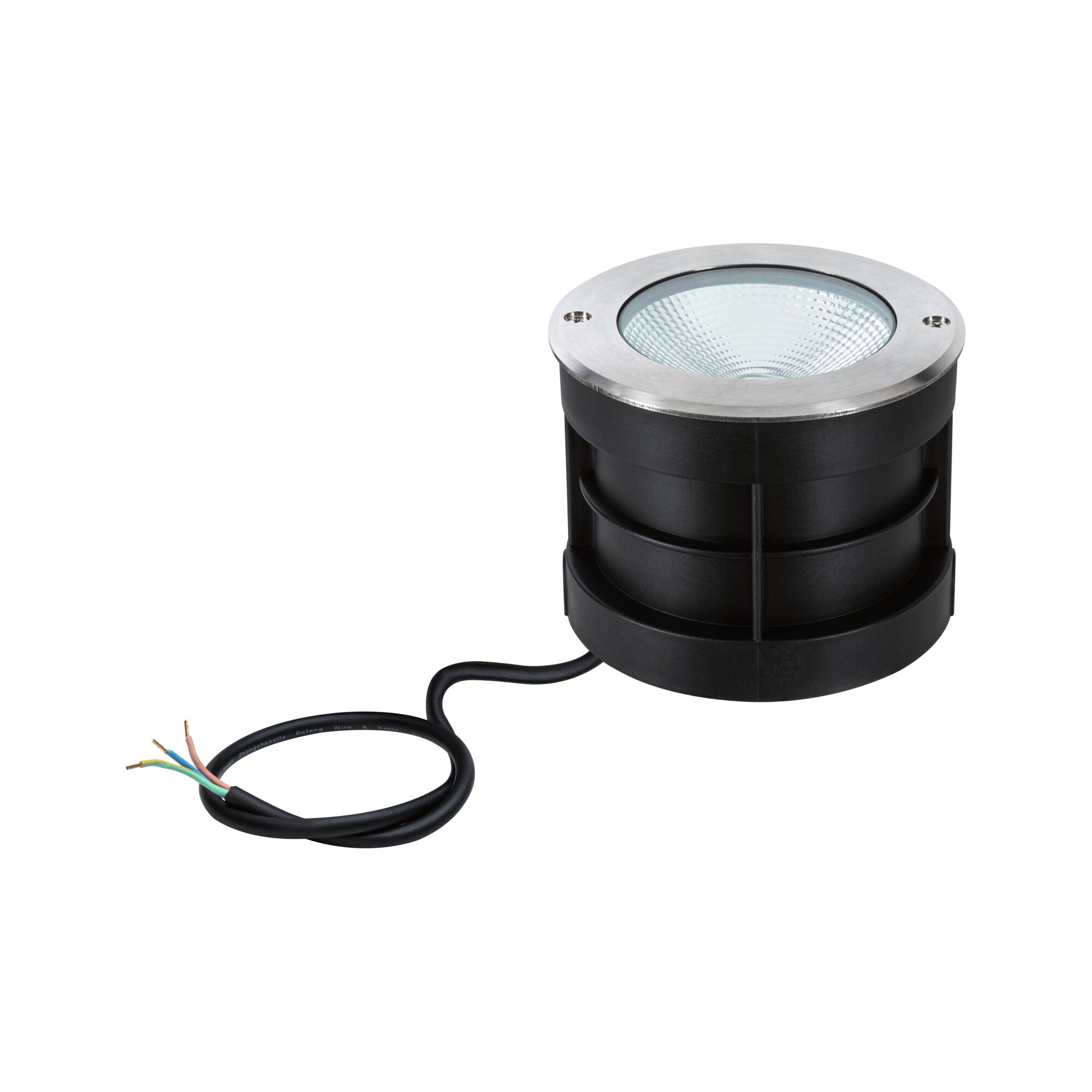

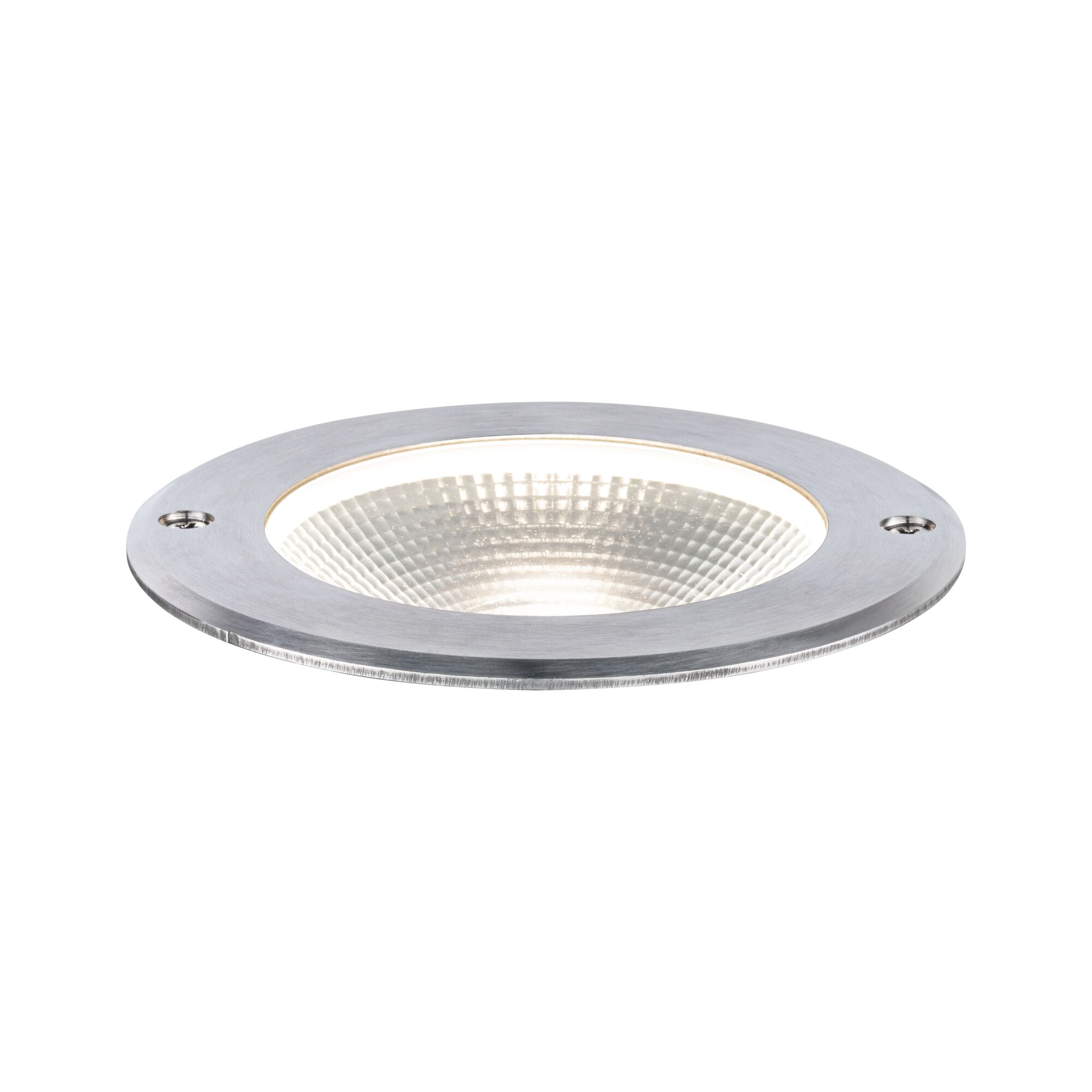

LED Recessed floor luminaire
Floor
IP67 120mm 3000K 6W 580lm 230V 100° Stainless steel Stainless steel/Aluminium
IP67 120mm 3000K 6W 580lm 230V 100° Stainless steel Stainless steel/Aluminium
- IP Protection: IP67 - protected against temporary immersion
- For 230 V direct connection
- LED lamp (fixed) included in scope of delivery
LED Recessed floor luminaire Floor IP67 120mm 3000K 6W 580lm 230V 100° Stainless steel Stainless steel/Aluminium

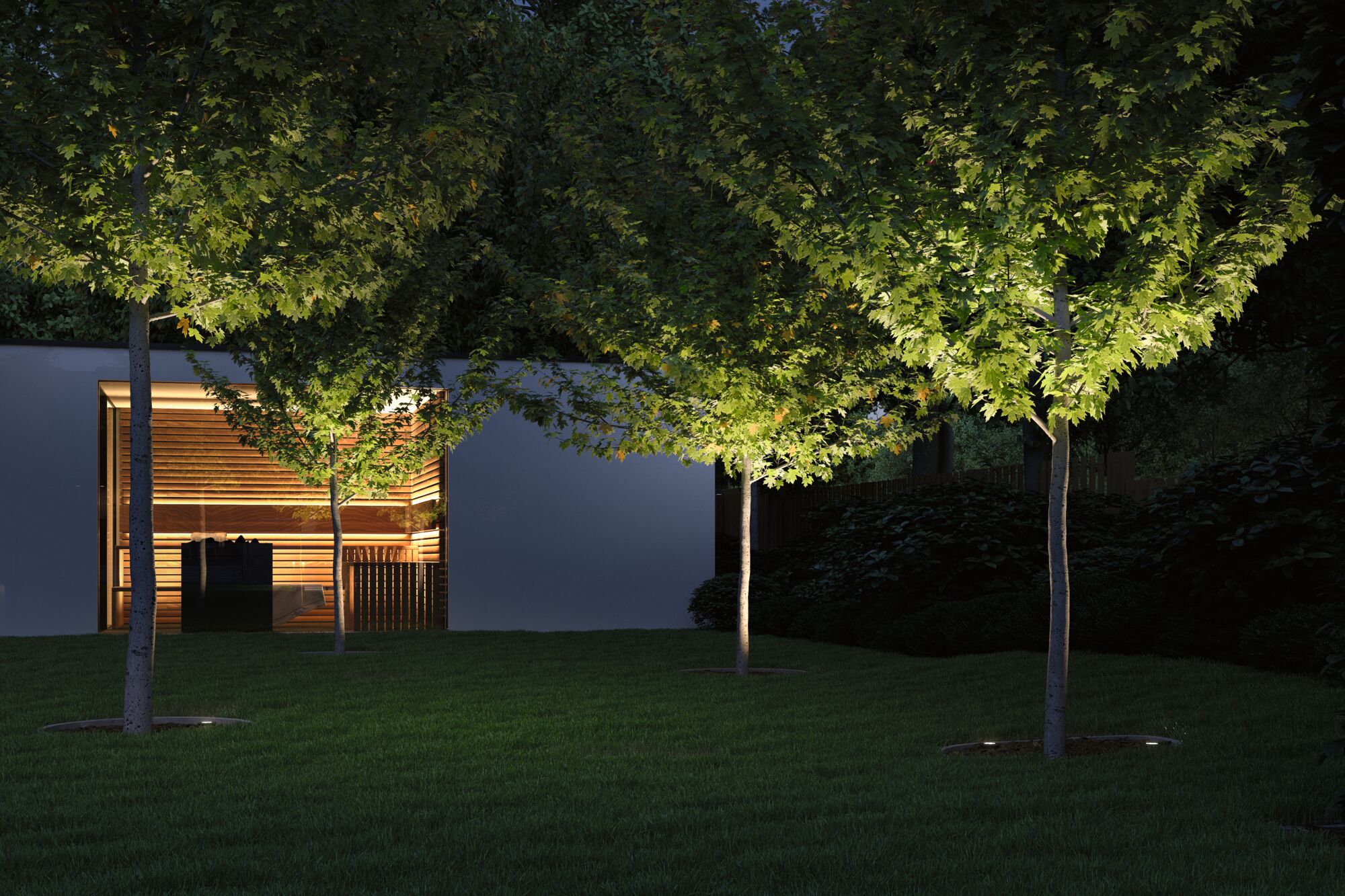

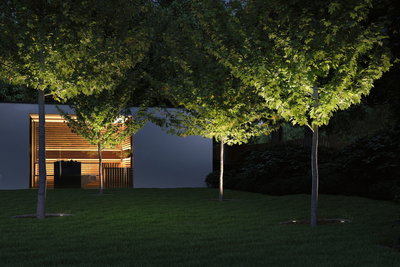

The round recessed floor luminaire Floor, made of high-quality stainless steel, is a real eye-catcher that adds lighting accents where needed. Thanks to protection class IP67, it is protected against splashing water from all sides, and suitable for installation underfoot in outdoor areas. The Floor recessed luminaire provides increased safety in the dark, along pathways, on patios and in driveways. It can't be walked on or driven over.
- IP Protection: IP67 - protected against temporary immersion
- For 230 V direct connection
- LED lamp (fixed) included in scope of delivery
- Color temperatur: 3000K - Warm white
| Dimension | |
|---|---|

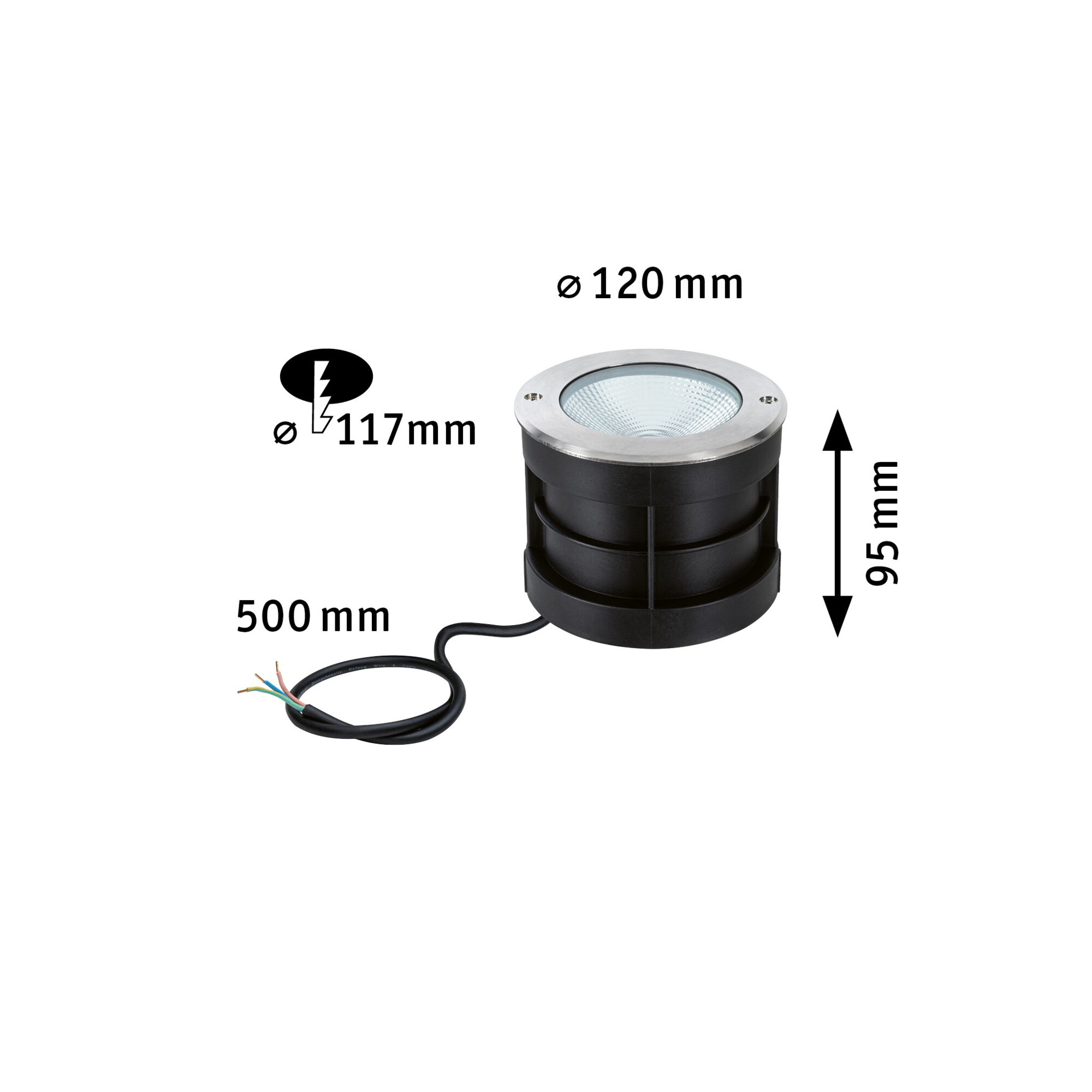

| Diameter | 120 mm |
| Dimensions (Height x Width x Depth) | T: 95 mm |
| Built-in diameter | 117 mm |
| Mounting depth | 95 mm |
| Depth of hollow wall | 80 mm |
| net weight | 671 g |
| Design and Material | |
|---|---|
| Colour | Stainless steel |
| Material | Aluminium, Stainless steel |
| Stainless | stainless |
| Installation | |
|---|---|
| Installation site (recommendation) | Floor mounting |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Nominal luminous flux | 580 lm |
| Beam angle | 100 ° |
| Colour temperature | Warm white, 3000 K |
| Luminous flux LED module | 620 lm |
| Lamp Features | |
|---|---|
| Inclusive lamp | yes |
| Component parts | 6 W |
| light source property | Light source integrated (non-replacable) |
| Incandescent Equivalent | 49 W |
| Technique | LED |
| Adjustability | fixed |
| Dimmable | No |
| IP protection | IP67 |
| Protection class | Protection class I |
| Number of component parts | 1x |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced. |
| Power consumption | 7,8 W |
| Voltage | 230 V |
| Transformer | |
|---|---|
| apparent power | 8.3 VA |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
