Article-No.:
79783
LED Pendant luminaire
Smart Home Zigbee 3.0
Puric Pane Effect
2700K 600lm / 300lm 6x6 / 1x3W Black dimmable
2700K 600lm / 300lm 6x6 / 1x3W Black dimmable

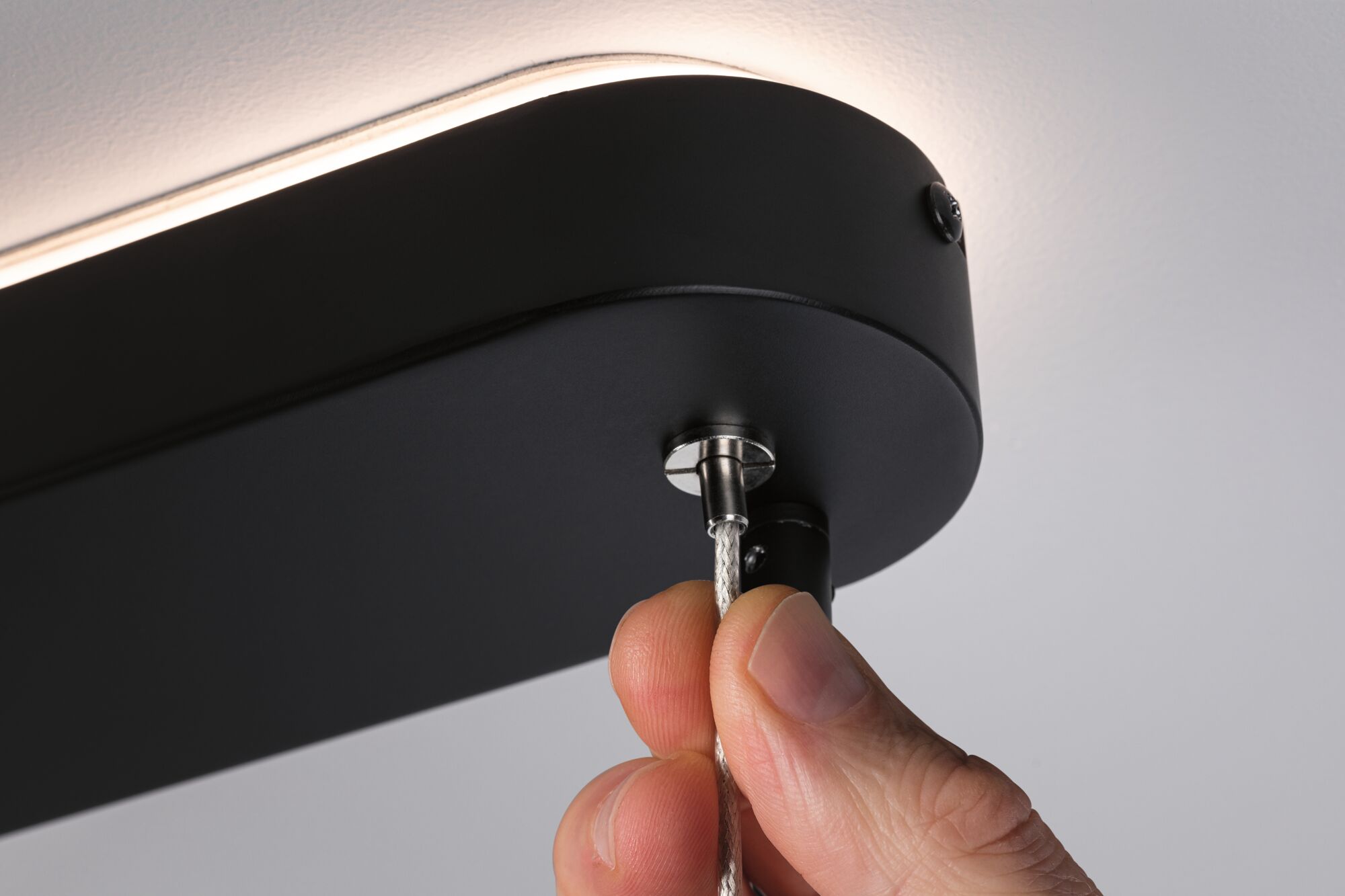

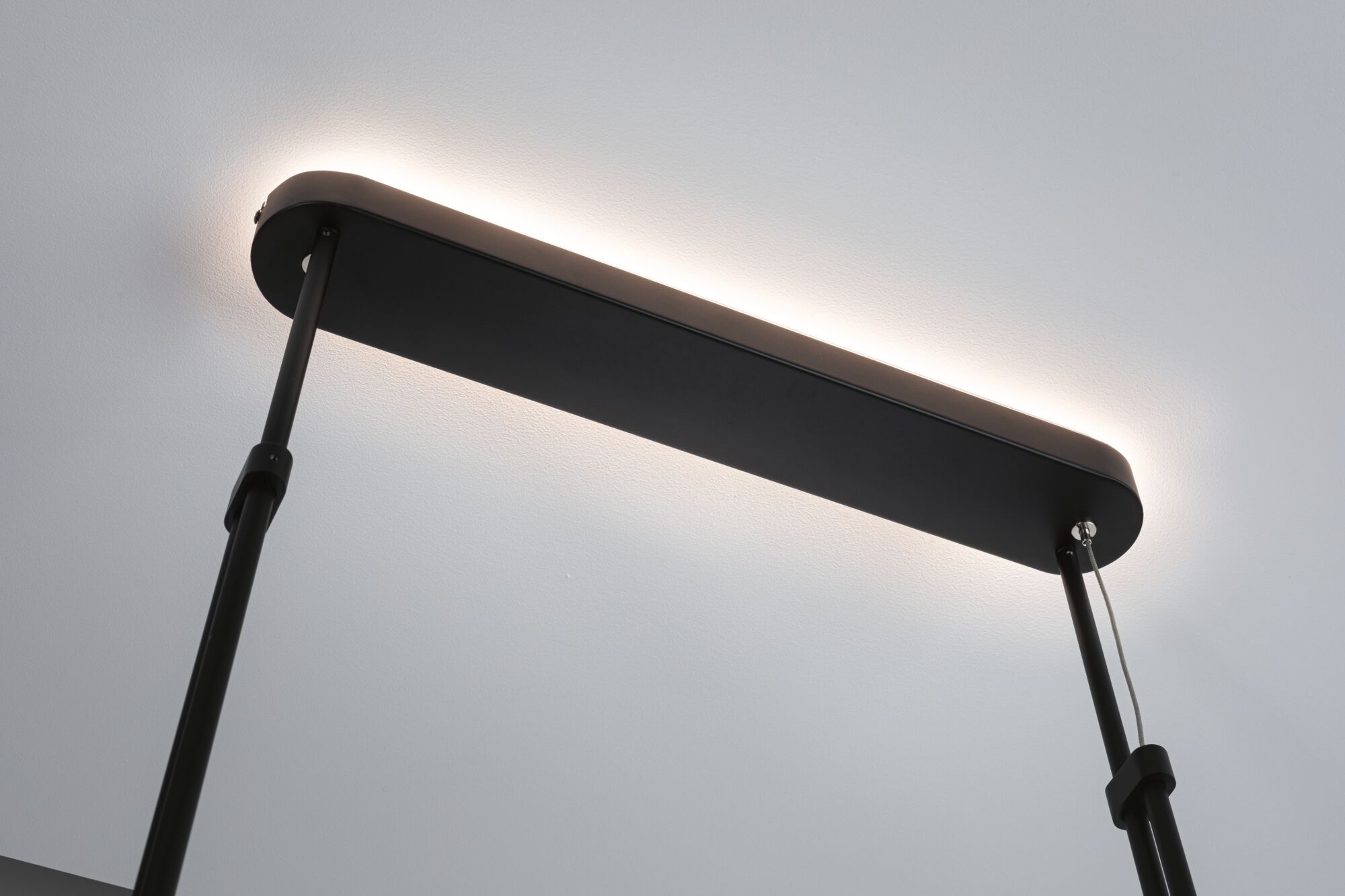

- Backlight technology for subtle, almost floating appearance of the luminaire
- Dimmable

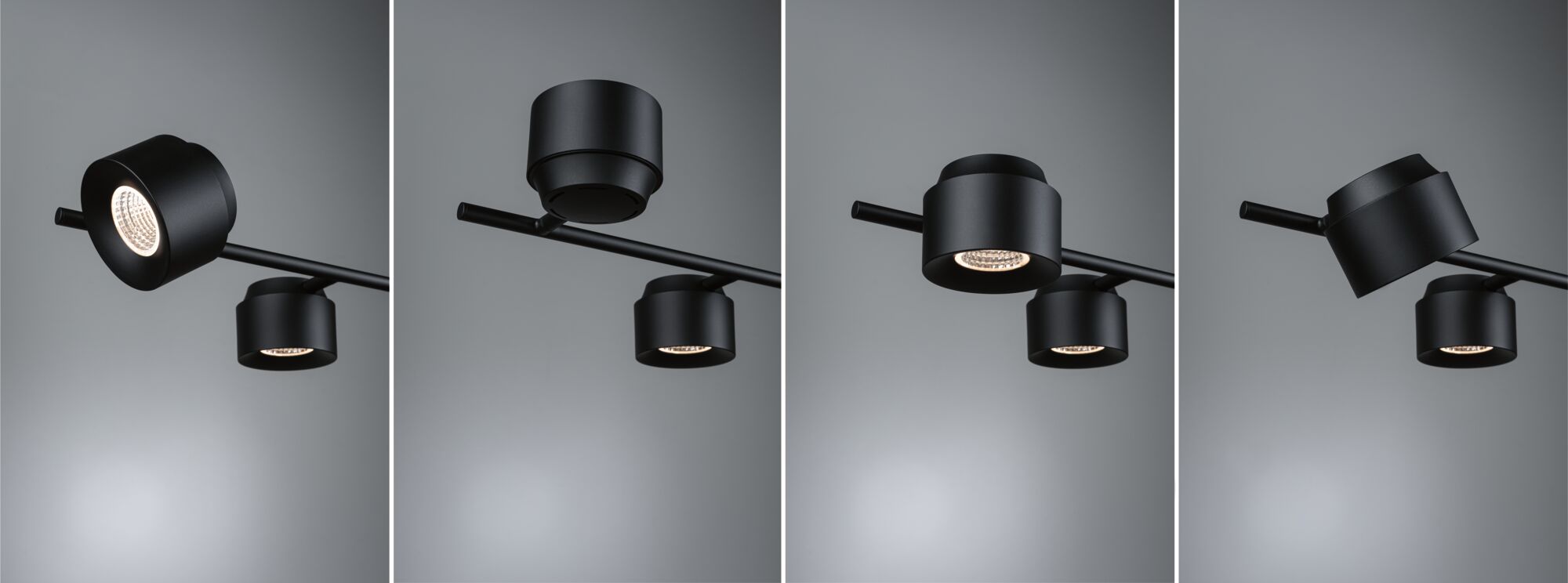

- swivelling

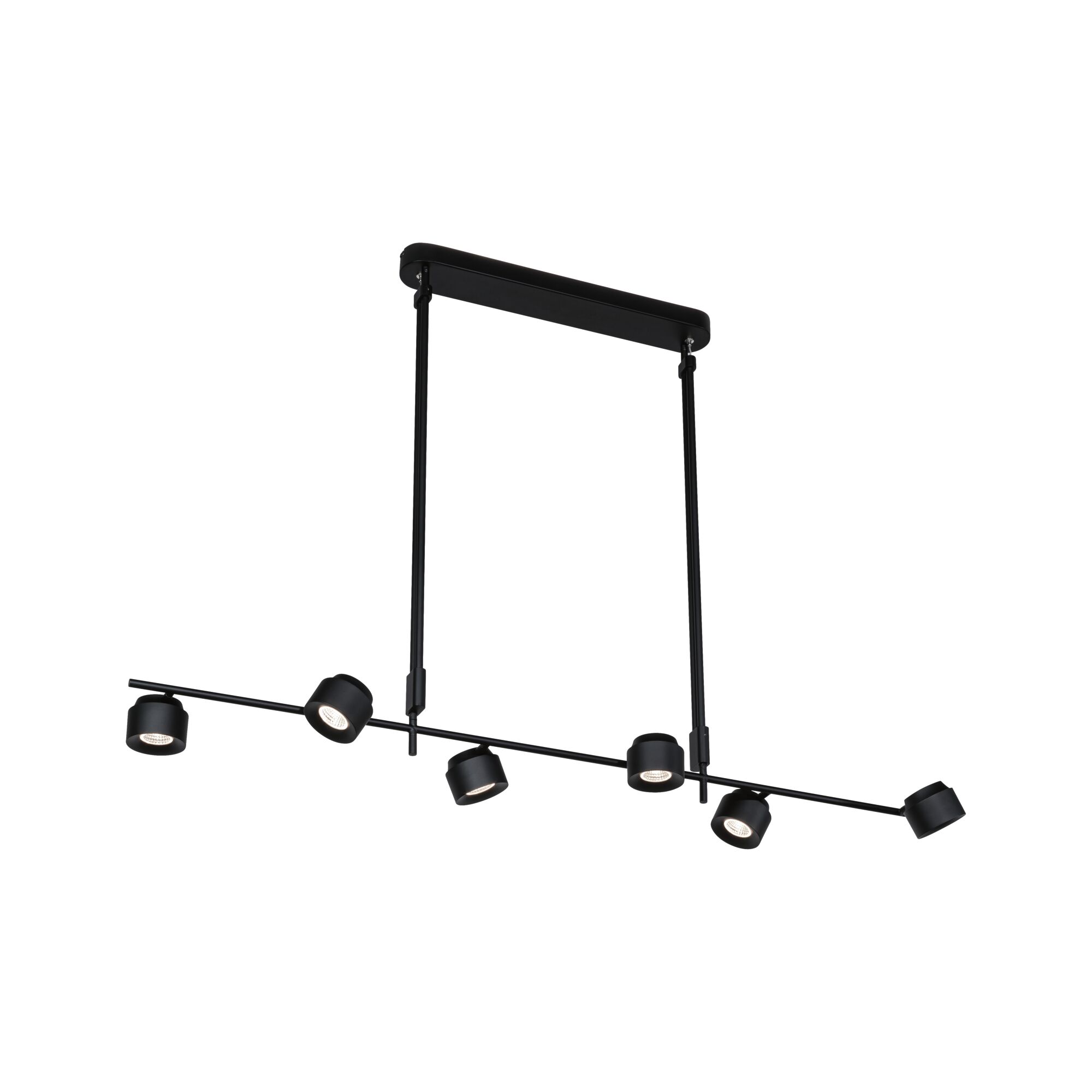

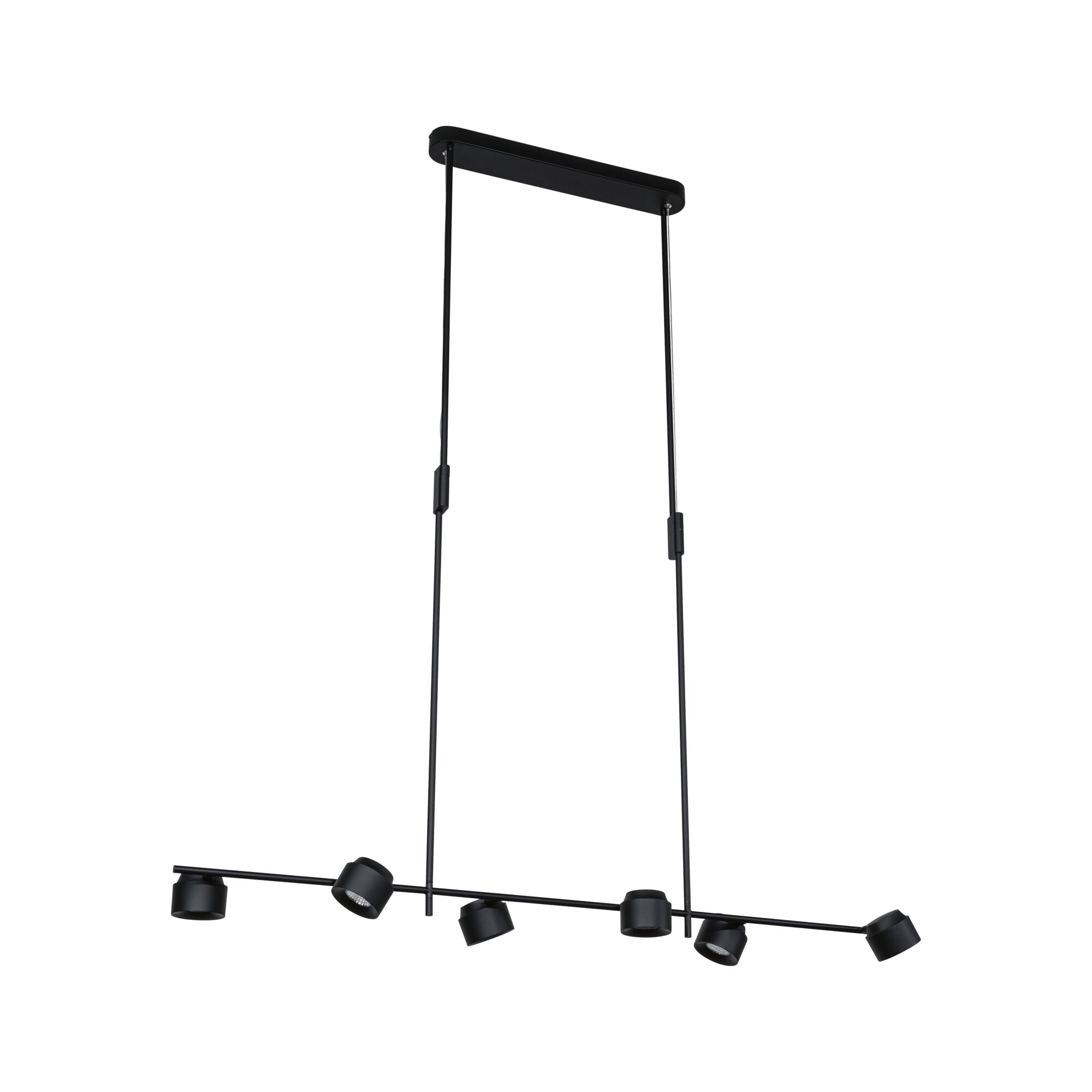

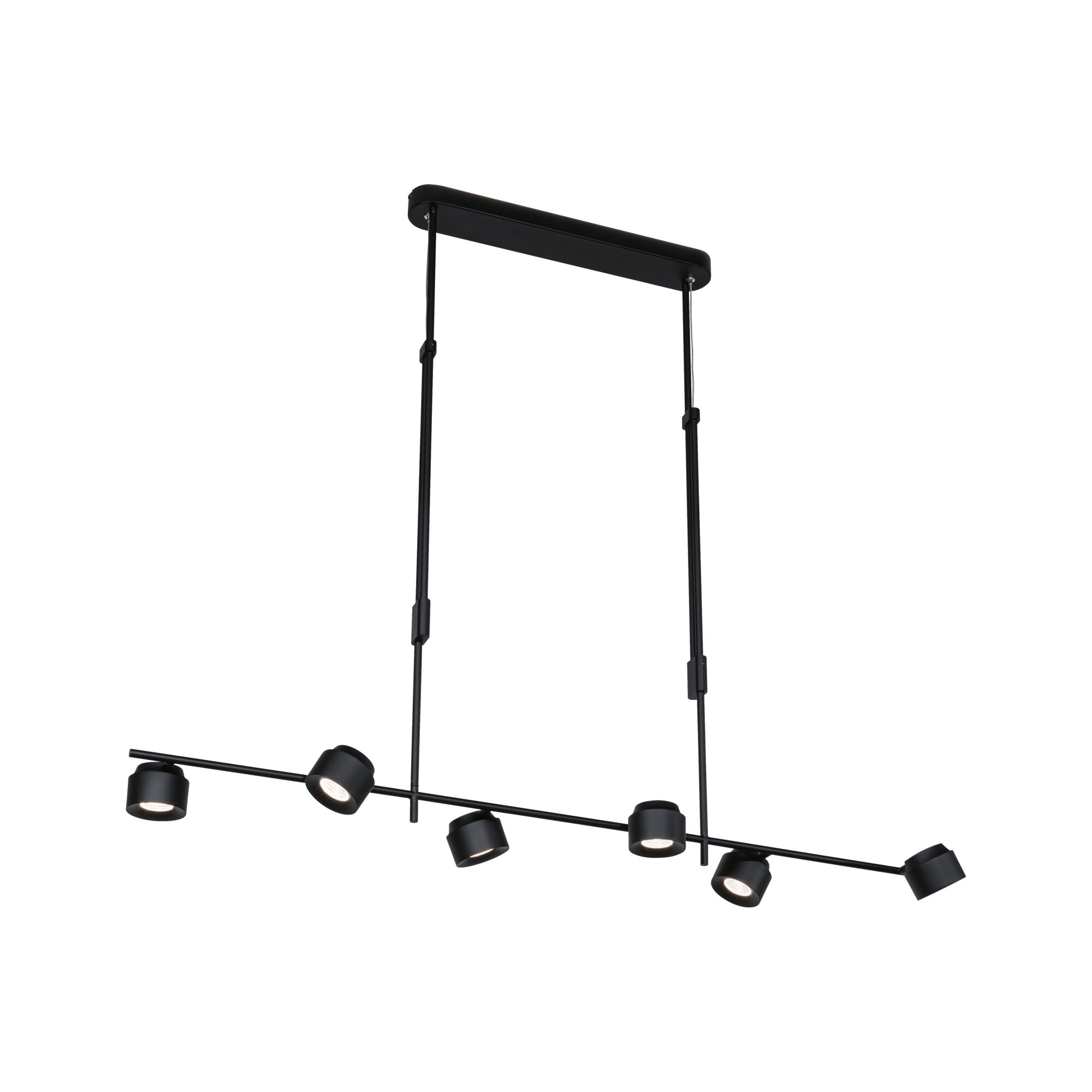

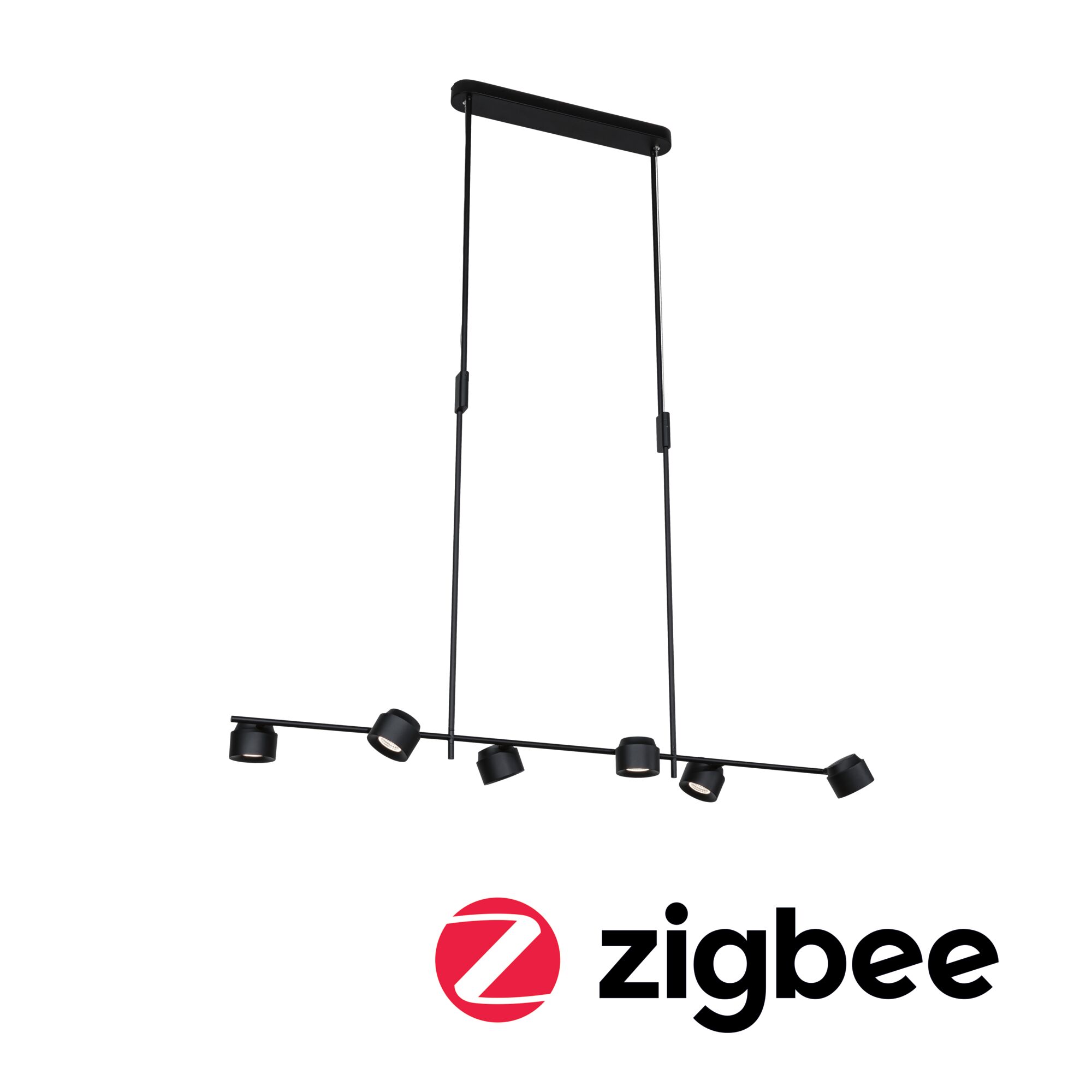

LED Pendant luminaire Smart Home Zigbee 3.0 Puric Pane Effect Effect 2700K 600lm / 300lm 6x6 / 1x3W Black dimmable
The 6-lamp, smart Puric Pane Effect pendant luminaire in black impresses with its modern, scaled-back design. The additional backlight technology conjures up a unique feel-good atmosphere and gives the pendant luminaire an almost floating lighting look. Thanks to the special facetted lens, the luminaire is particularly efficient. A large part of the light produced on the LED chip is directed to the front. The individual, adjustable spot heads and the adjustable pendant height allow for flexible lighting design. The pendant luminaire creates captivating lighting effects and is a visual highlight in any room. The luminaire is Zigbee 3.0-compatible. Zigbee 3.0 is a radio transmission protocol that interlinks devices from different manufacturers.
- Backlight technology for subtle, almost floating appearance of the luminaire
- Dimmable
- swivelling
- Pendant length individually adjustable
- LED lamp (fixed) included in scope of delivery
- Controllable with Paulmann Zigbee remote control Gent 500.67
- Usable with smart home gateways that have a Zigbee interface
| Dimension | |
|---|---|

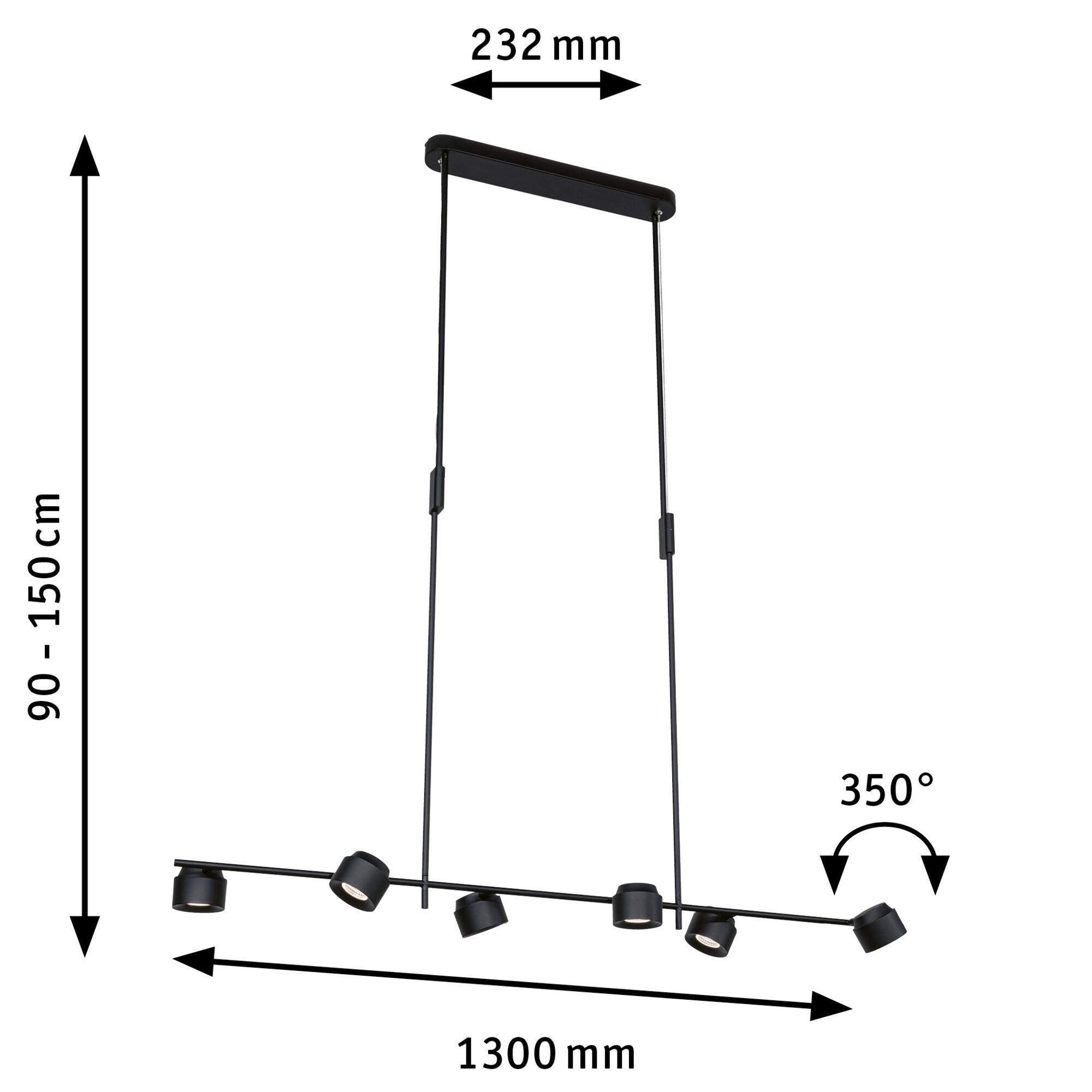

| Dimensions (Height x Width x Depth) | H: 1.526 x B: 1.300 x T: 232 mm |
| Canopy depth | 46 mm |
| Canopy width | 542 mm |
| Pendulum length range | 90-150 cm |
| Design and Material | |
|---|---|
| Colour | Black |
| Material | Metal, Plastic |
| Installation | |
|---|---|
| can be used with the following dimmers | Paulmann SmartHome Zigbee Gent2 501.40 |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | G |
| Service life | |
|---|---|
| Lifetime | 30.000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| Beam angle | 55 ° |
| Usable luminous flux | 450 lm |
| useful luminous flux 2 | 200 lm |
| color temp | 2.700 K |
| Lamp Features | |
|---|---|
| Component parts | 6 W |
| Compatible Smart Home technology | Zigbee |
| Technique | LED |
| IP protection | IP20 |
| Dim | with Smart Home |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Total Width | 1.300 mm |
| Incandescent Equivalent | 220 W |
| Number of component parts | 6x |
| protection class | protection class II |
| Radio frequency | 2,4 GHz |
| Radio range | 20 m |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 44 W |
| Transformer | |
|---|---|
| apparent power | 46 VA |
| Transformer height | 23 mm |
| Transformer width | 38 mm |
| Transformer depth | 80 mm |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
