Article-No.:
79772
LED Pendant luminaire3-Step-Dim
Puric Pane
2700K 600lm 9,5W Black dimmable
2700K 600lm 9,5W Black dimmable

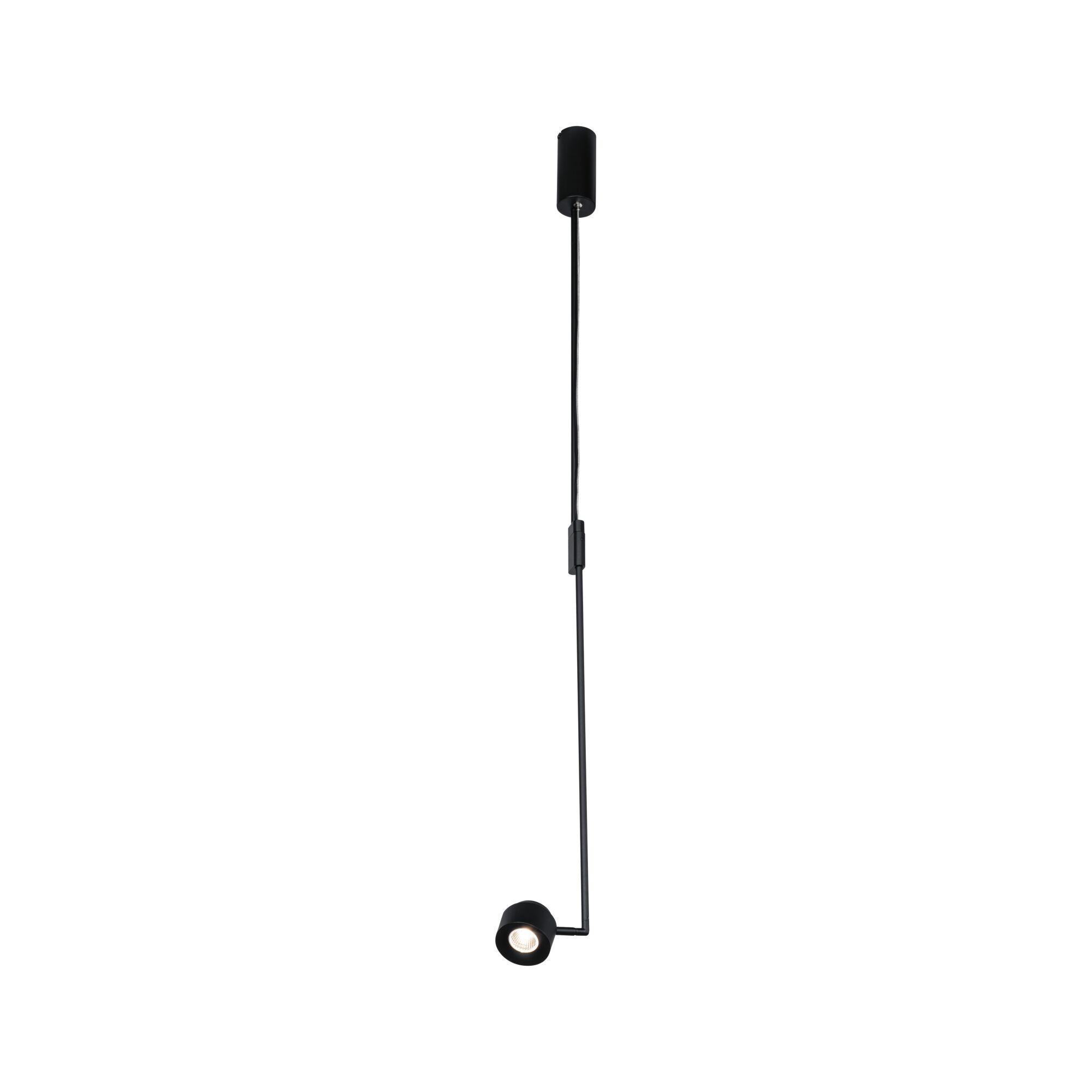

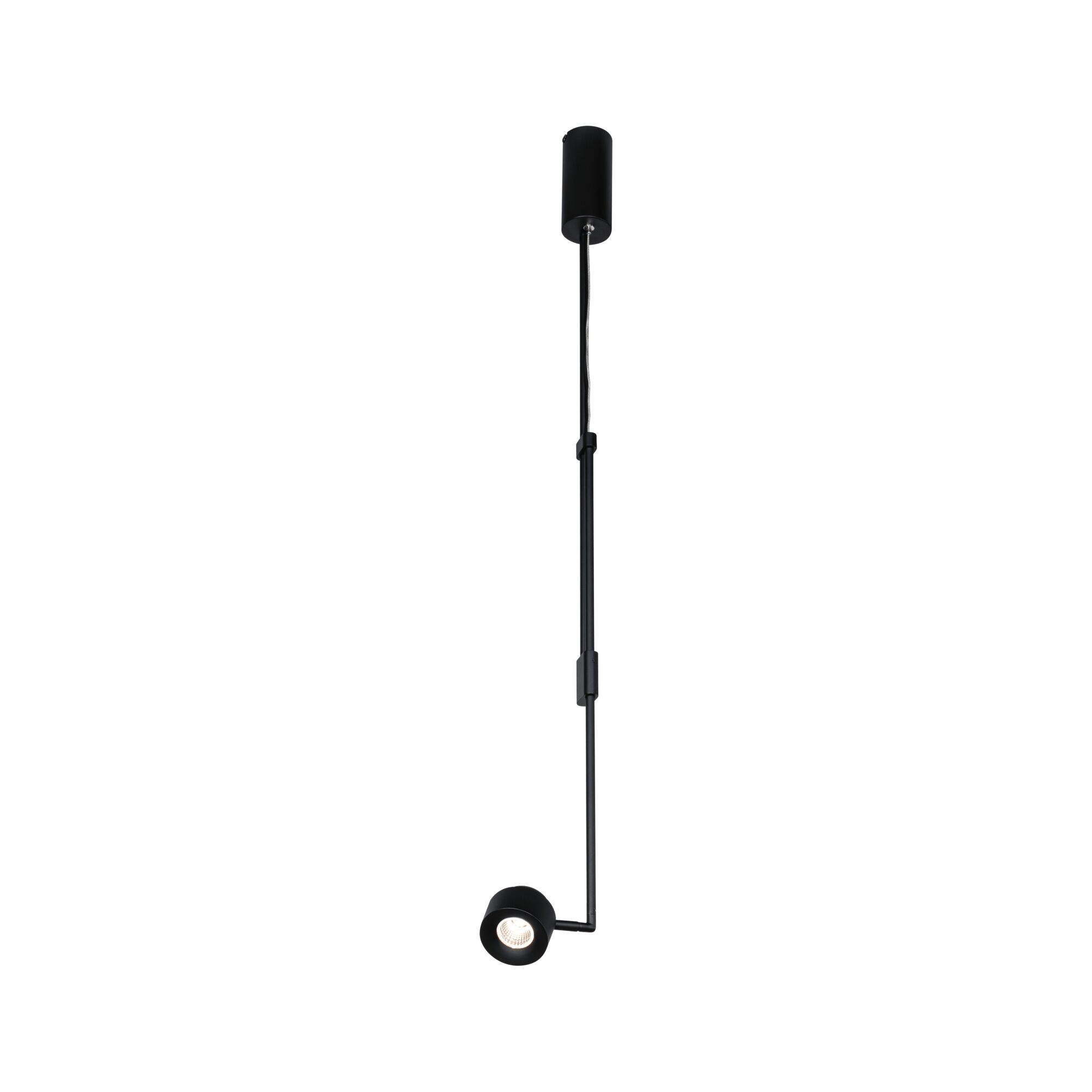

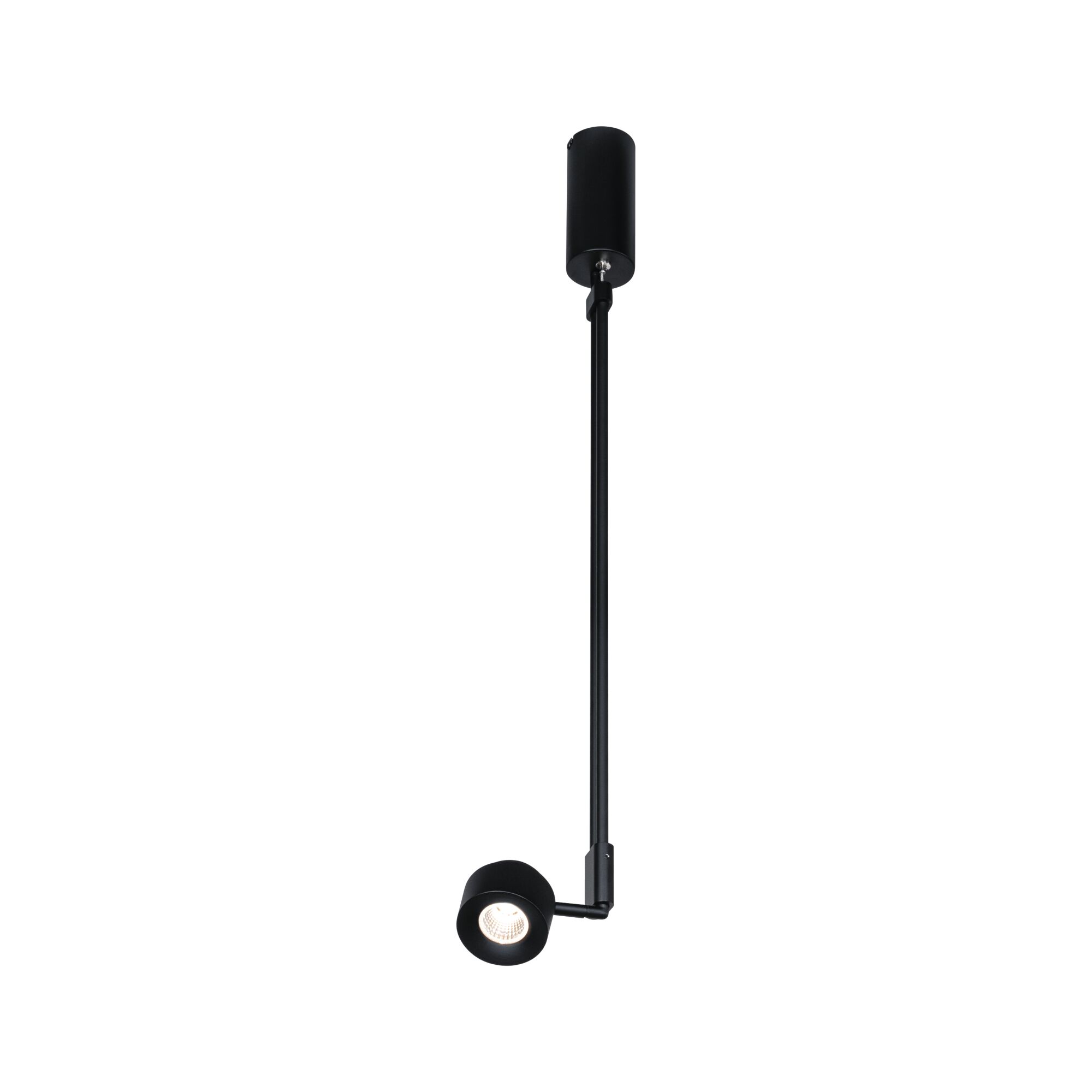

LED Pendant luminaire 3-Step-Dim Puric Pane 2700K 600lm 9,5W Black dimmable

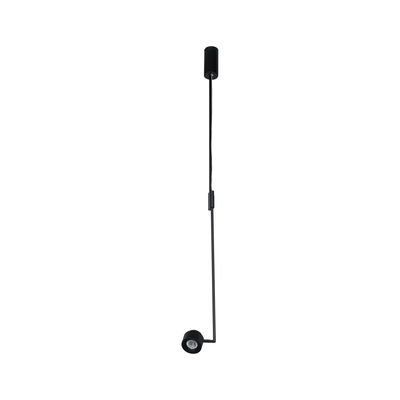

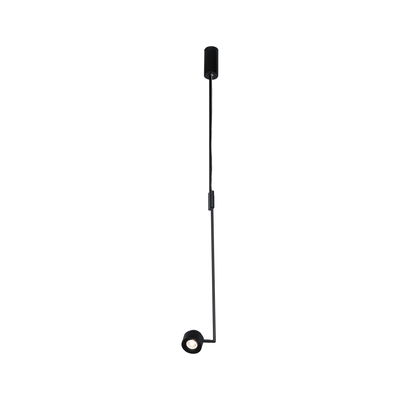

The 1-lamp Puric Pane pendant luminaire in black impresses with its modern, scaled-back design. Thanks to the special facetted lens, the luminaire is particularly efficient. A large part of the light produced on the LED chip is directed to the front. The individual, adjustable spot heads and the adjustable pendant height allow for flexible lighting design. The pendant luminaire provides captivating lighting effects and a visual highlight in any room. The luminaire can be dimmed in 3 steps via a wall switch, which allows for a variety of lighting designs.
- Dimmable

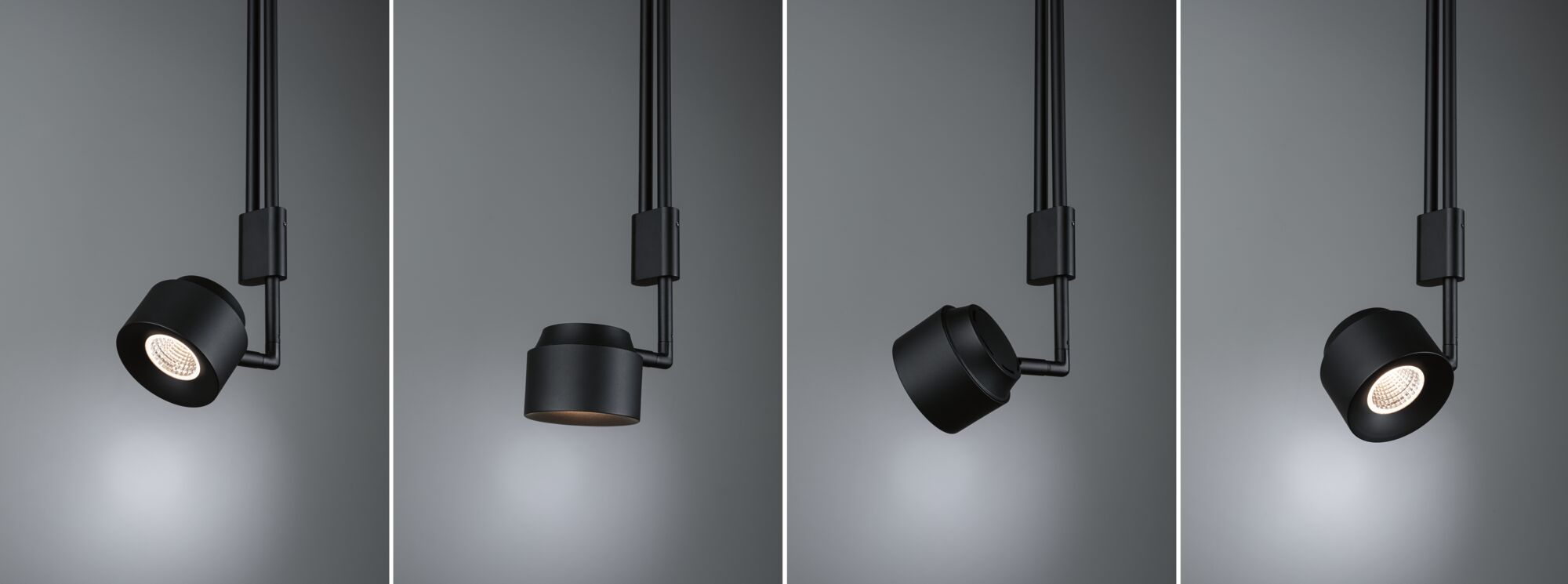

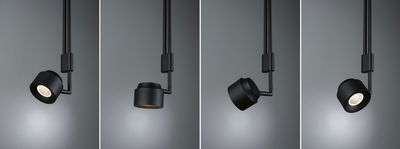

- swivelling
- 3 brightness levels
- Suitable for ceiling mounting

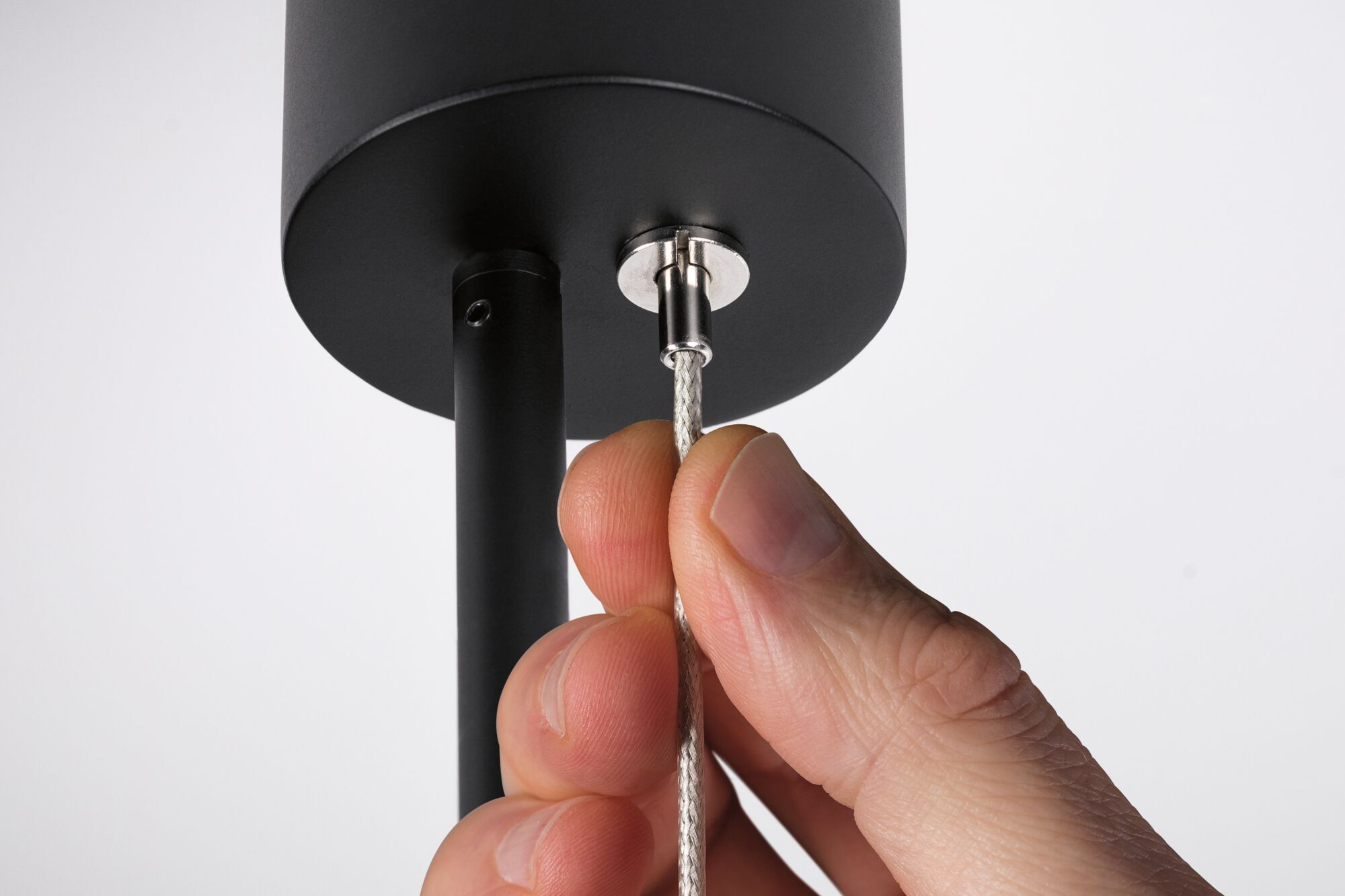

- Pendant height adjustable during installation
- Even room light based on cutting-edge LED technology
- LED lamp (fixed) included in scope of delivery
| Dimension | |
|---|---|

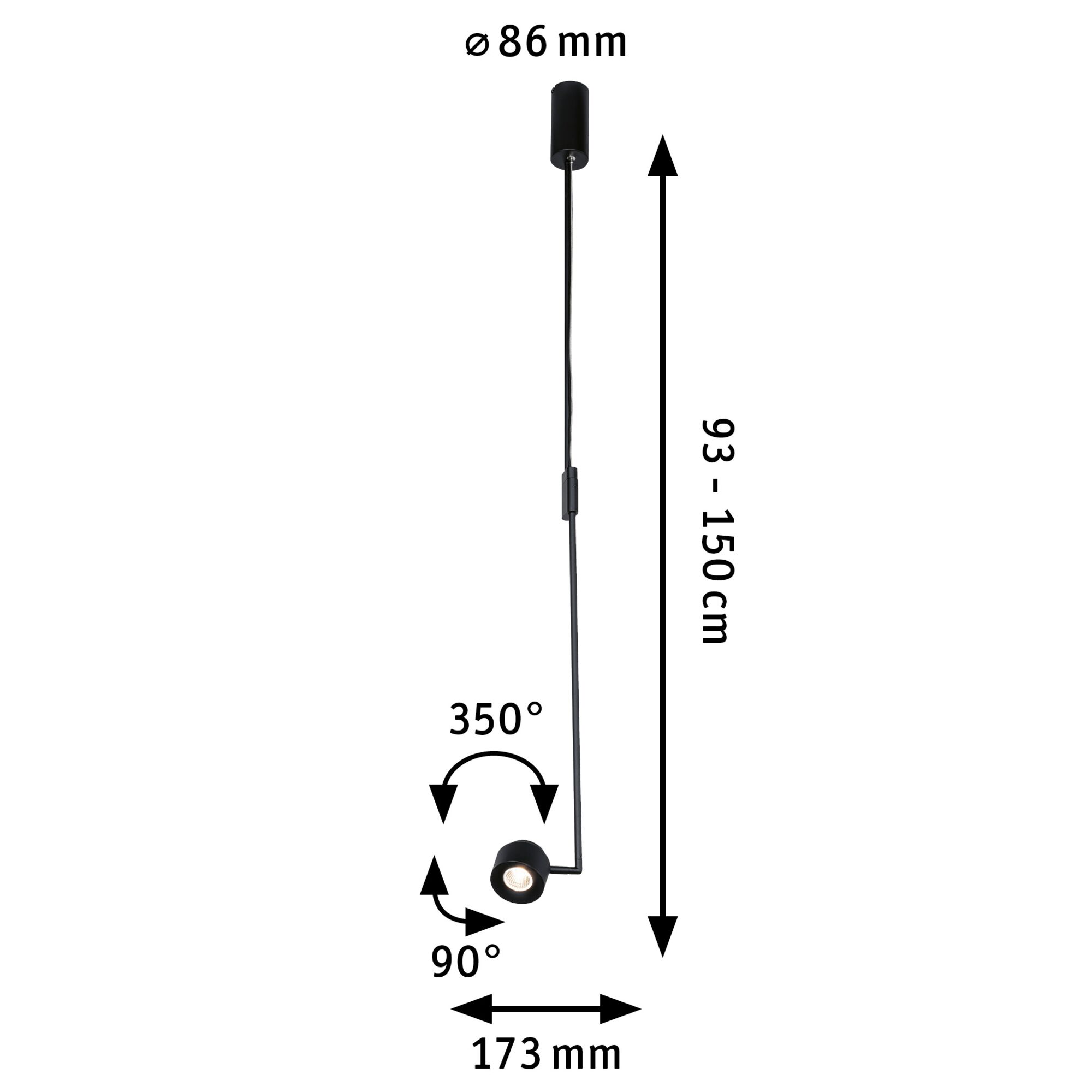

| Dimensions (Height x Width x Depth) | H: 1500 x B: 86 x T: 173 mm |
| Pendulum length range | 93-150 cm |
| Canopy depth | 150 mm |
| net weight | 1383 g |
| Design and Material | |
|---|---|
| Colour | Black |
| Material | Metal |
| Energy consumption | |
|---|---|
| Energy efficiency (spectrum A-G) (LED Module) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 2700 K |
| Nominal luminous flux | 600 lm |
| Luminous flux LED module | 1000 lm |
| Color rendering index | > 80 Ra |
| Beam angle | 55 ° |
| Lamp Features | |
|---|---|
| Dimmable | Yes |
| Dimming Control | Dimmable in 3 steps with normal light switch |
| Inclusive lamp | yes |
| light source property | Light source integrated (non-replacable) |
| Incandescent Equivalent | 71 W |
| IP protection | IP20 |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 9,5 W |
| Number of component parts | 1x |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 13 W |
| Adjustability | height adjustable |
| Voltage | 230 V |
| Transformer | |
|---|---|
| apparent power | 14 VA |
| Transformer height | 18 mm |
| Transformer width | 39 mm |
| Transformer depth | 122 mm |
| Accessories | |
|---|---|
| Radio control included | no |
