Article-No.:
79772
LED Pendant luminaire3-Step-Dim
Puric Pane
2700K 600lm 9,5W Black dimmable
2700K 600lm 9,5W Black dimmable

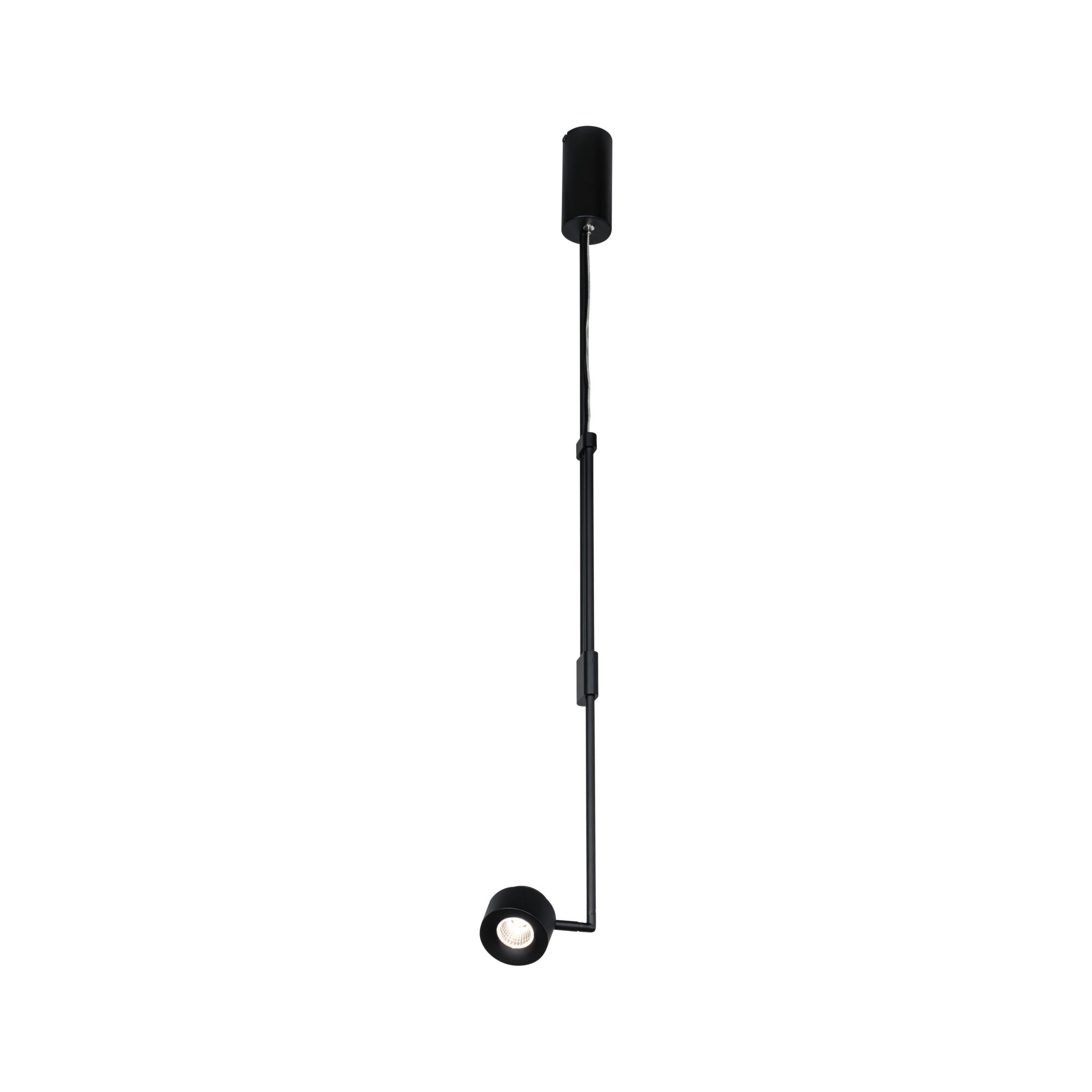

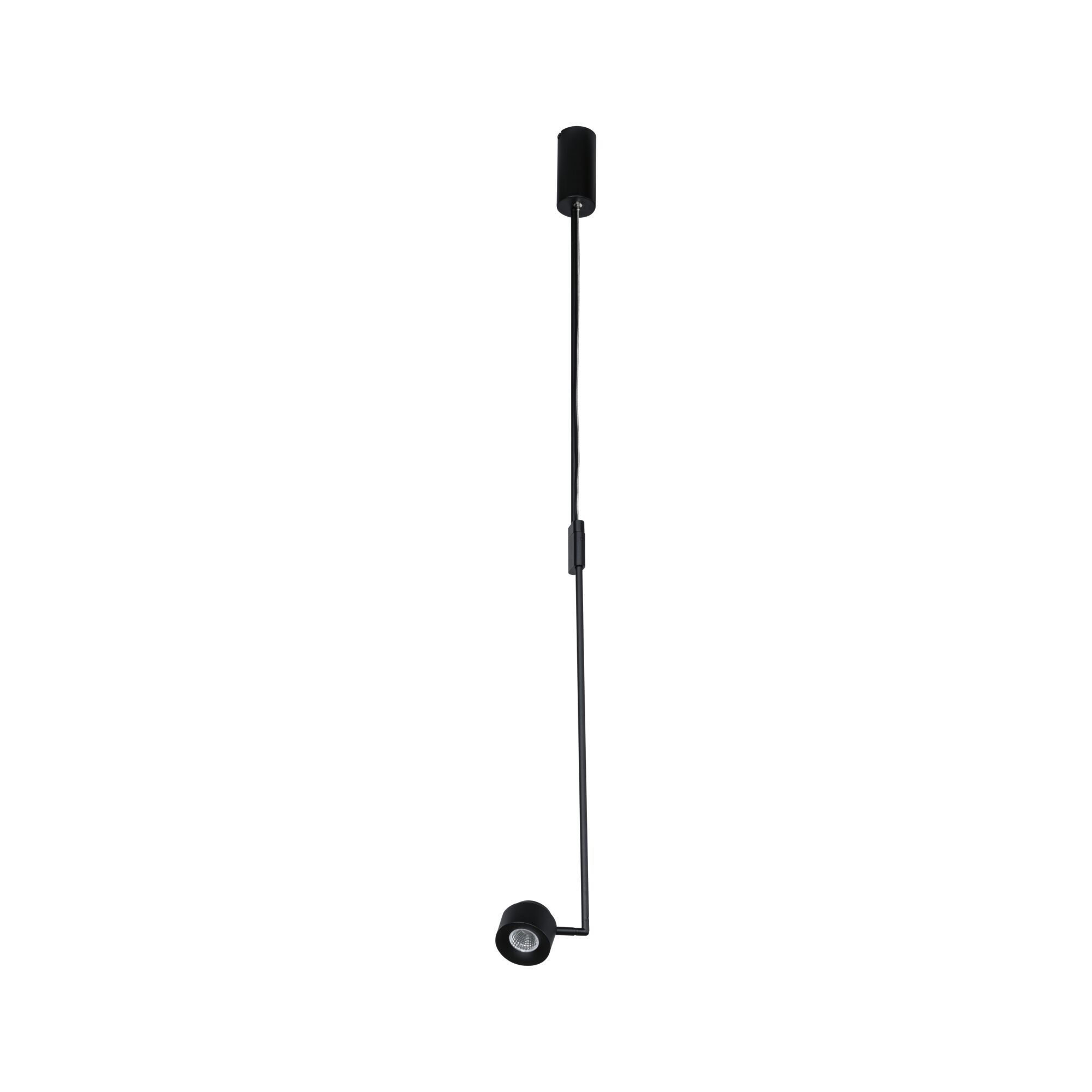

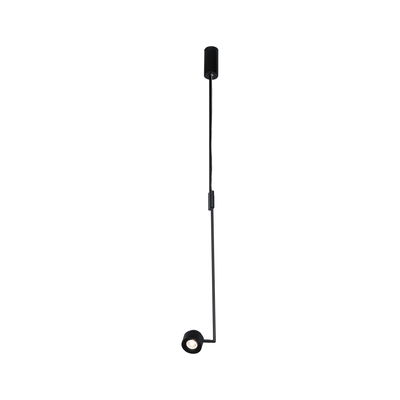

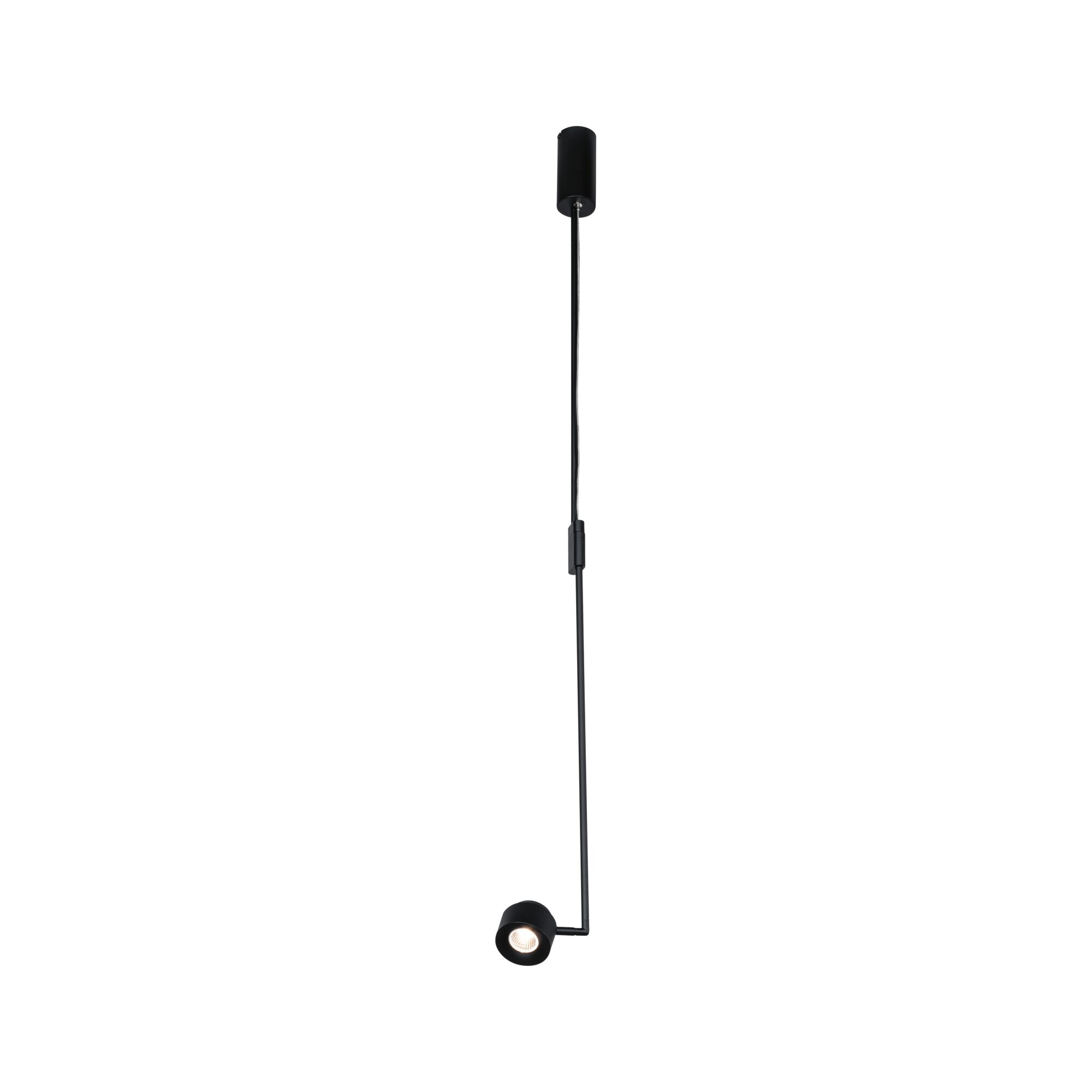

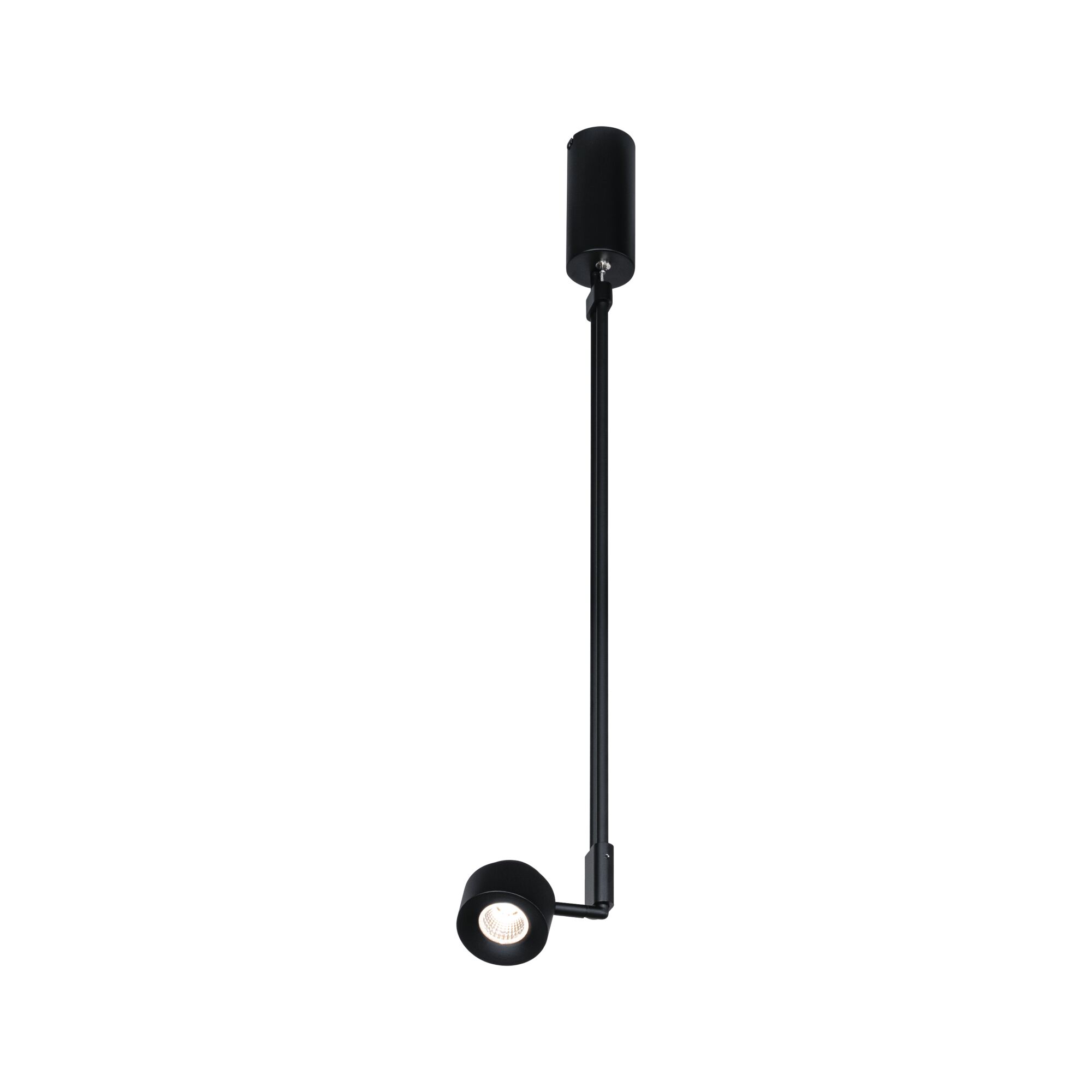

LED Pendant luminaire 3-Step-Dim Puric Pane 2700K 600lm 9,5W Black dimmable
The 1-lamp Puric Pane pendant luminaire in black impresses with its modern, scaled-back design. Thanks to the special facetted lens, the luminaire is particularly efficient. A large part of the light produced on the LED chip is directed to the front. The individual, adjustable spot heads and the adjustable pendant height allow for flexible lighting design. The pendant luminaire provides captivating lighting effects and a visual highlight in any room. The luminaire can be dimmed in 3 steps via a wall switch, which allows for a variety of lighting designs.
- Dimmable

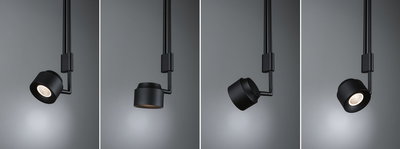

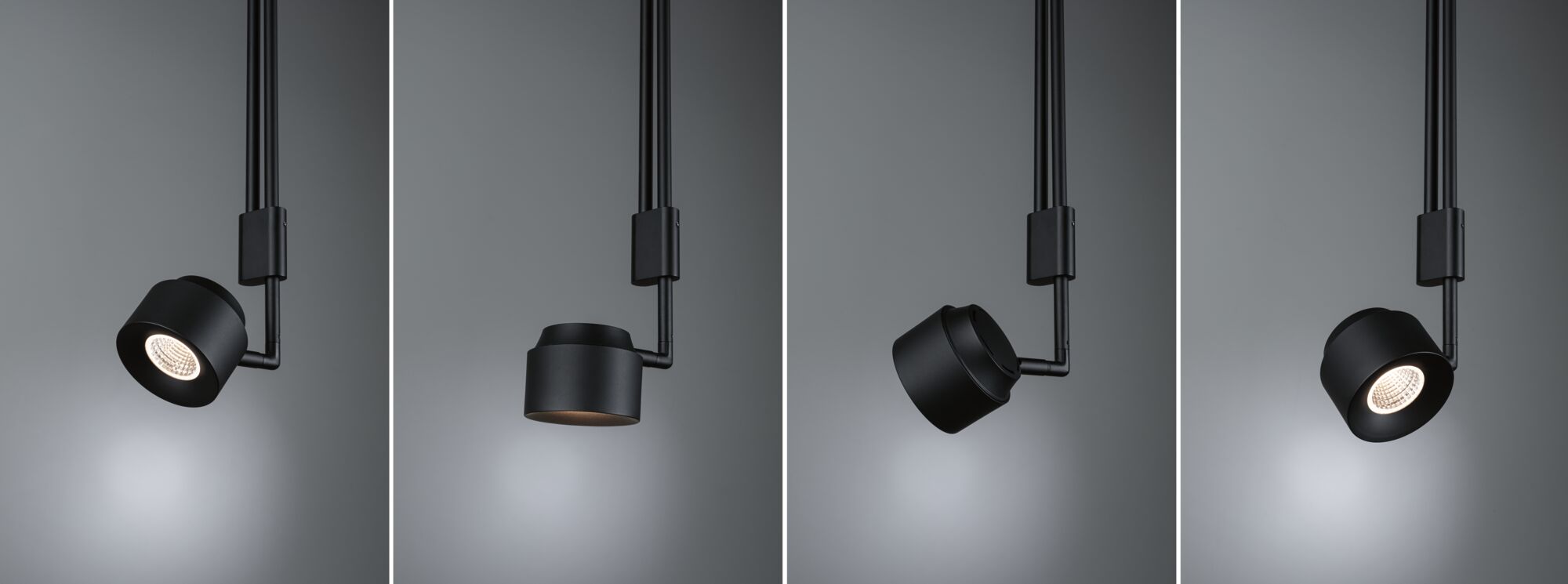

- swivelling
- 3 brightness levels
- Suitable for ceiling mounting

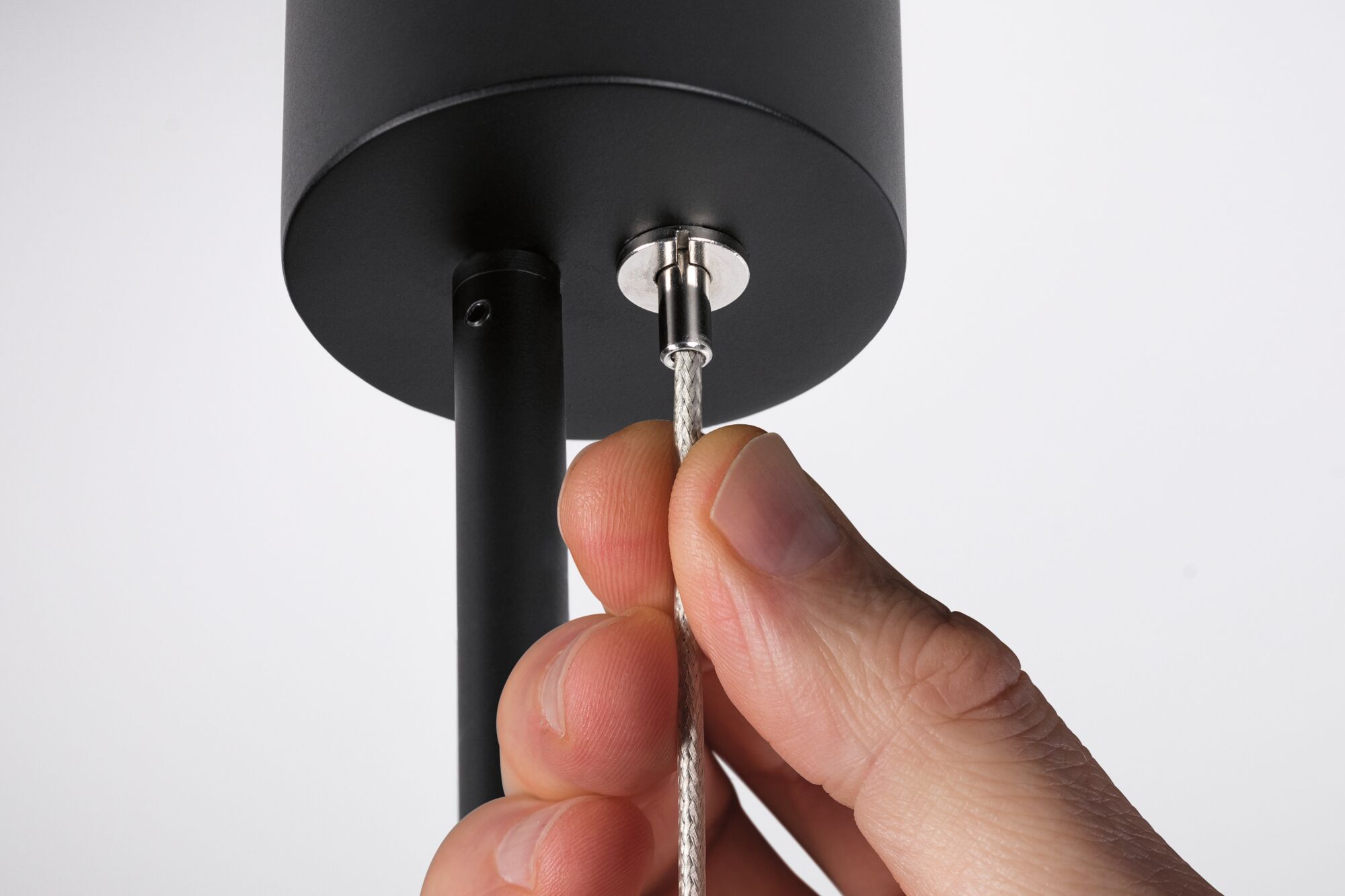

- Pendant height adjustable during installation
- Even room light based on cutting-edge LED technology
- LED lamp (fixed) included in scope of delivery
| Dimension | |
|---|---|

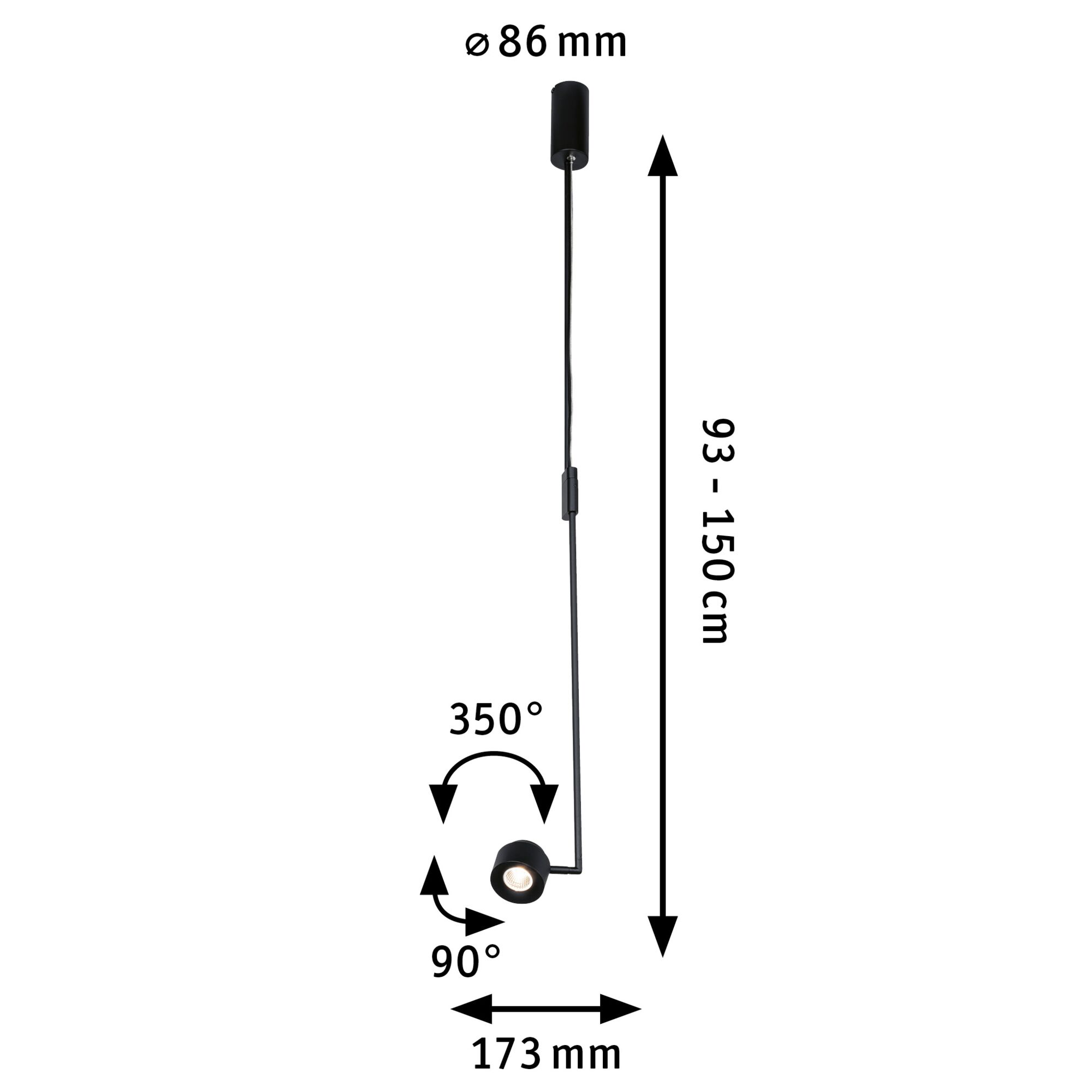

| Dimensions (Height x Width x Depth) | H: 1500 x B: 86 x T: 173 mm |
| Canopy depth | 150 mm |
| Pendulum length range | 93-150 cm |
| Design and Material | |
|---|---|
| Colour | Black |
| Material | Metal |
| Energy consumption | |
|---|---|
| Energy efficiency (A to G) | F |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temp. | 2700 K |
| color temp | 2700 K |
| Farbtemperatur_Text | Warmweiß |
| Beam angle | 55 ° |
| Usable luminous flux | 600 lm |
| Luminous flux LED module | 1000 lm |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Component parts | 9,5 W |
| Technique | LED |
| IP protection | IP20 |
| Dim | dimmable in 3 steps with normal light switch |
| Dimmable | Yes |
| Inclusive lamp | yes |
| Incandescent Equivalent | 71 W |
| Adjustability | height adjustable |
| Number of component parts | 1x |
| protection class | protection class II |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|5 Control gear is replaceable without damage the lighting fixture by electrician. |
| Power consumption | 13 W |
| Transformer | |
|---|---|
| apparent power | 14 VA |
| Transformer height | 18 mm |
| Transformer width | 39 mm |
| Transformer depth | 122 mm |
