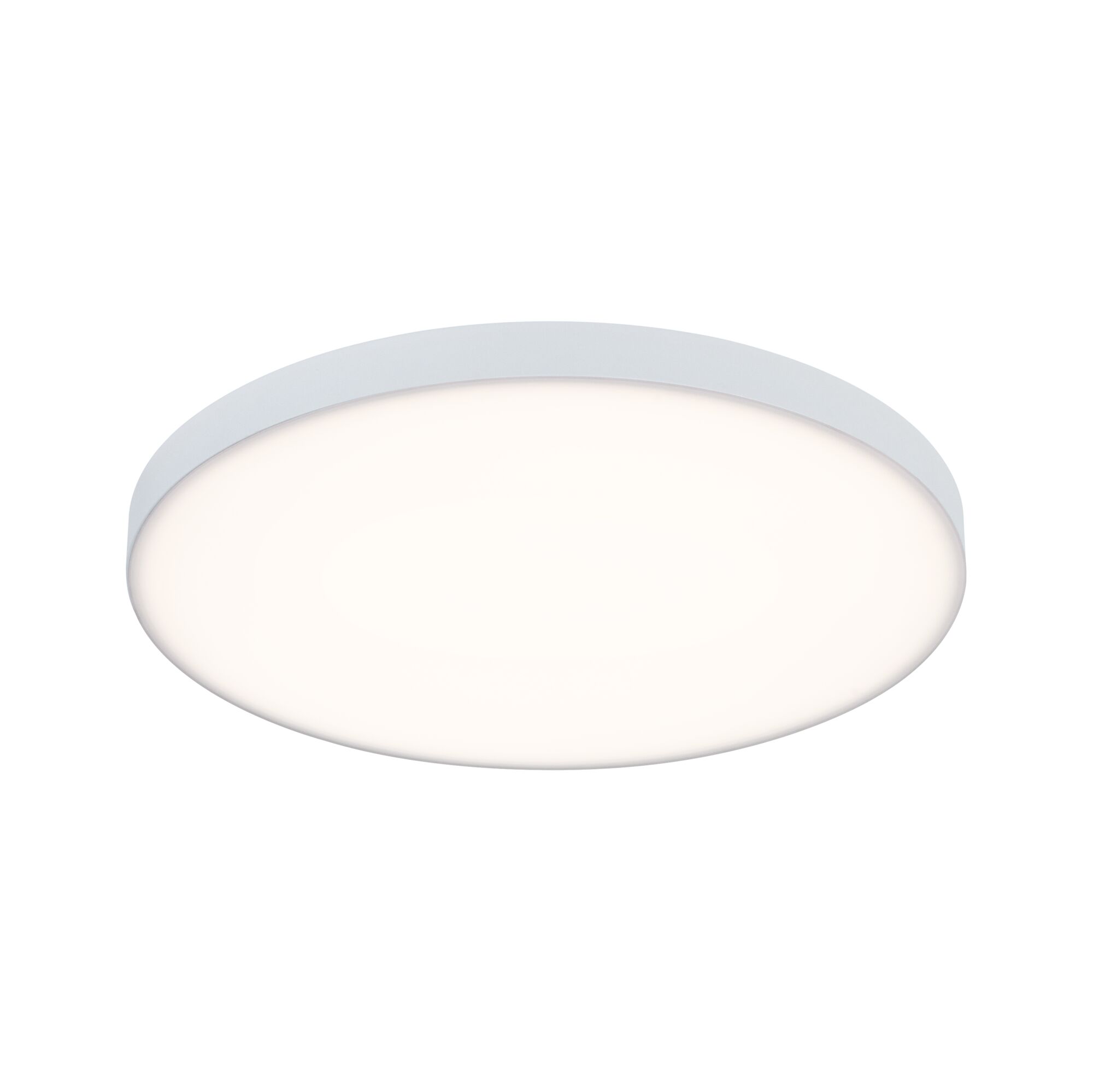

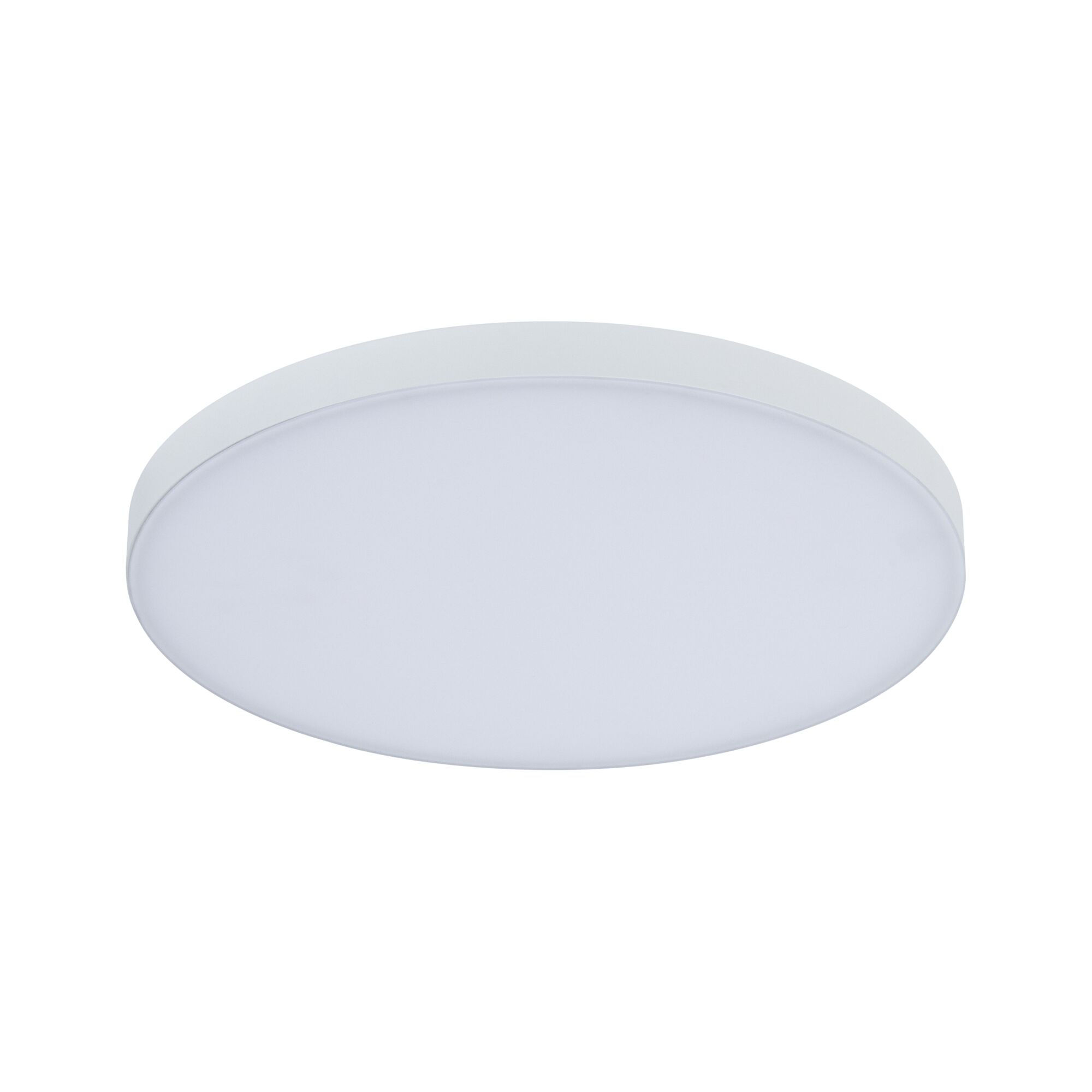

LED Panel Velora round 300mm 13W 1350lm White Switch White

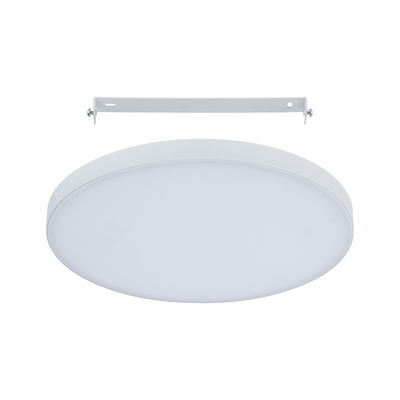

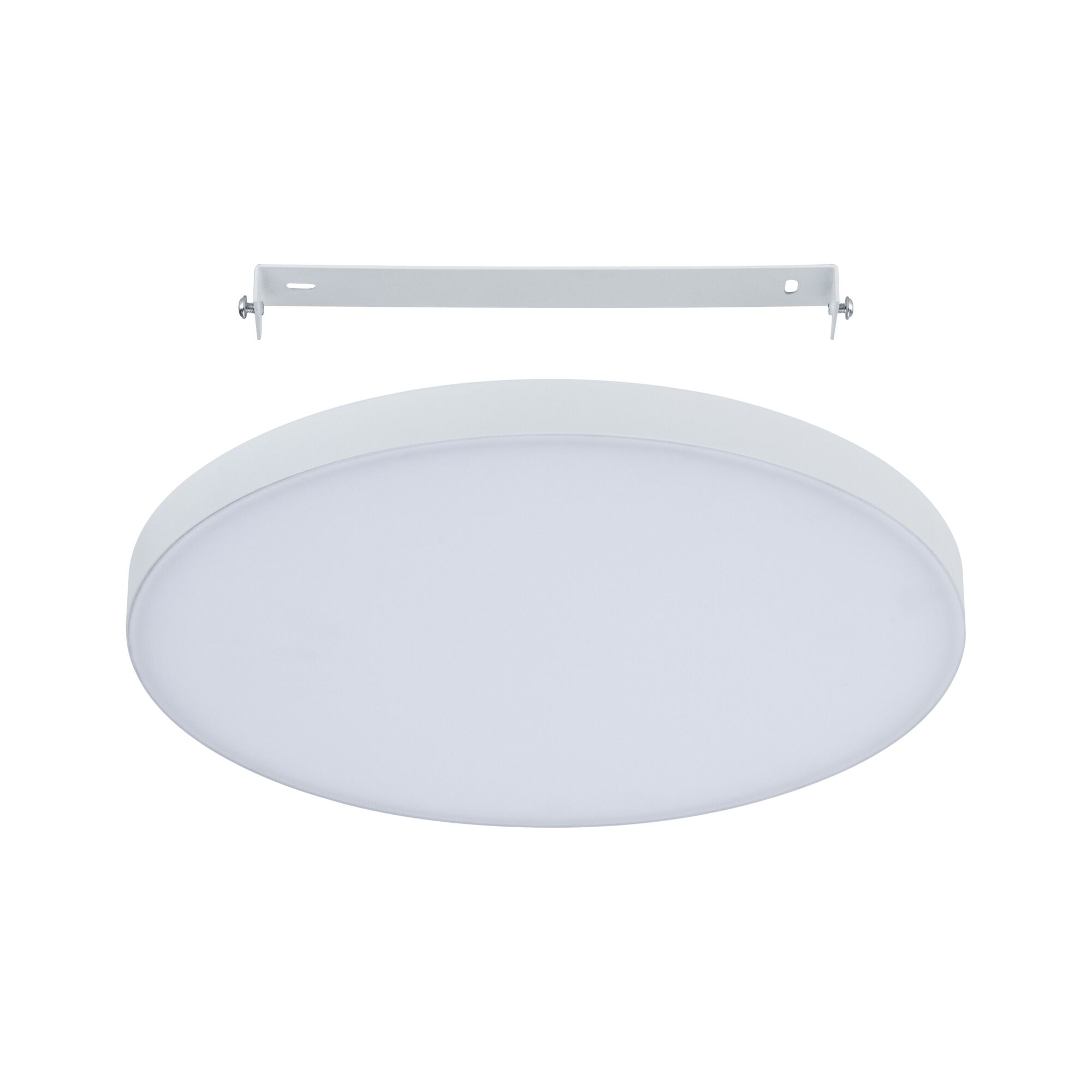

The frameless mounting panel Velora can be installed either on the wall or on the ceiling. Thanks to its ultra-flat design, the round panel with a diameter of 300 mm becomes one with the wall and ceiling. The diffuser plate’s satined finish emits pleasant light across a wide area. Installation is particularly easy thanks to the sturdy metal substructure and makes the panel appear to float. The integrated WhiteSwitch function offers three-step adjustment of the light colour with multiple pushes of a regular commercial light switch.

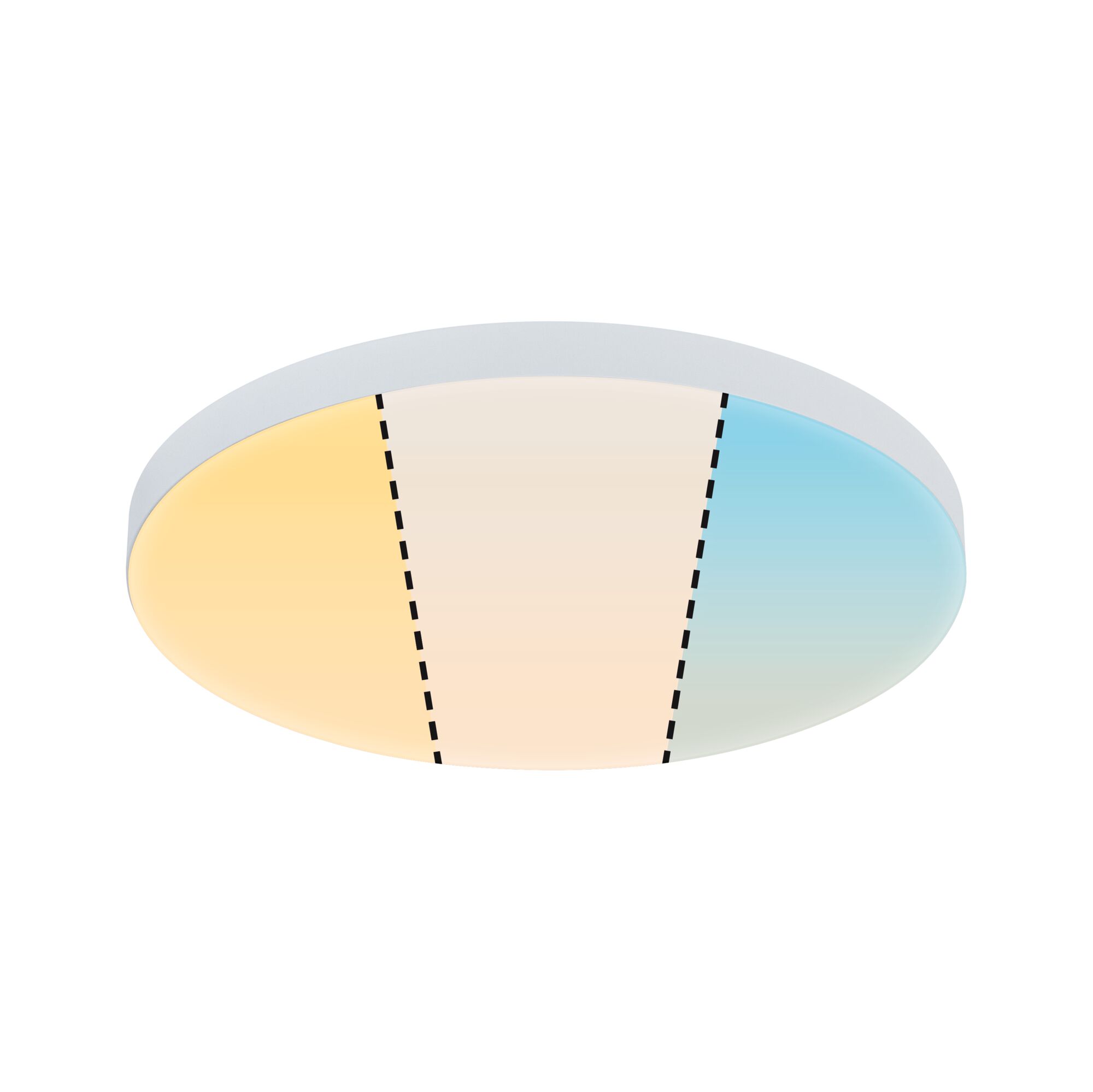

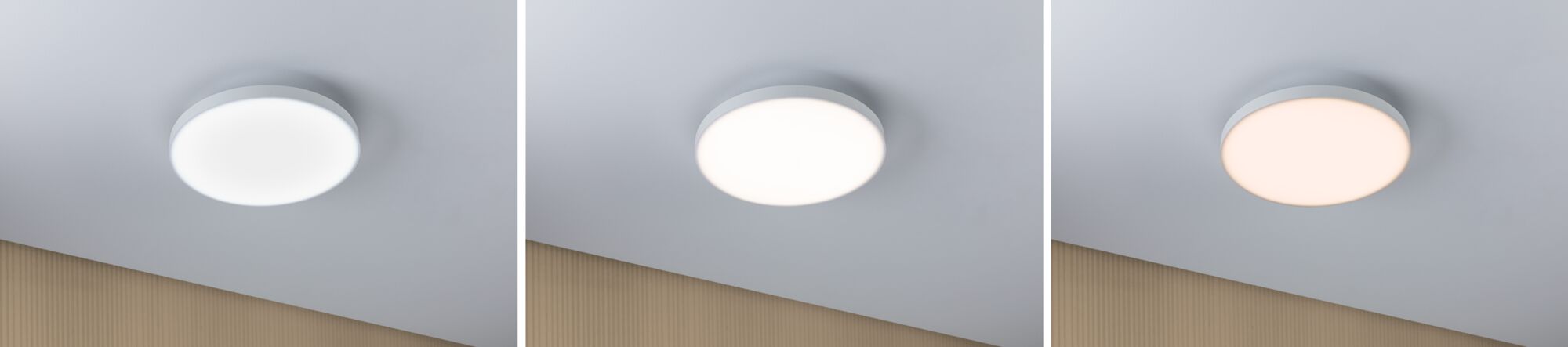

Whiteswitch - the colour temperature can be set by pressing the wall switch several times
Even room light based on cutting-edge LED technology
Especially flat construction
With integrated LED bulb
For 230 V direct connection

Dimension

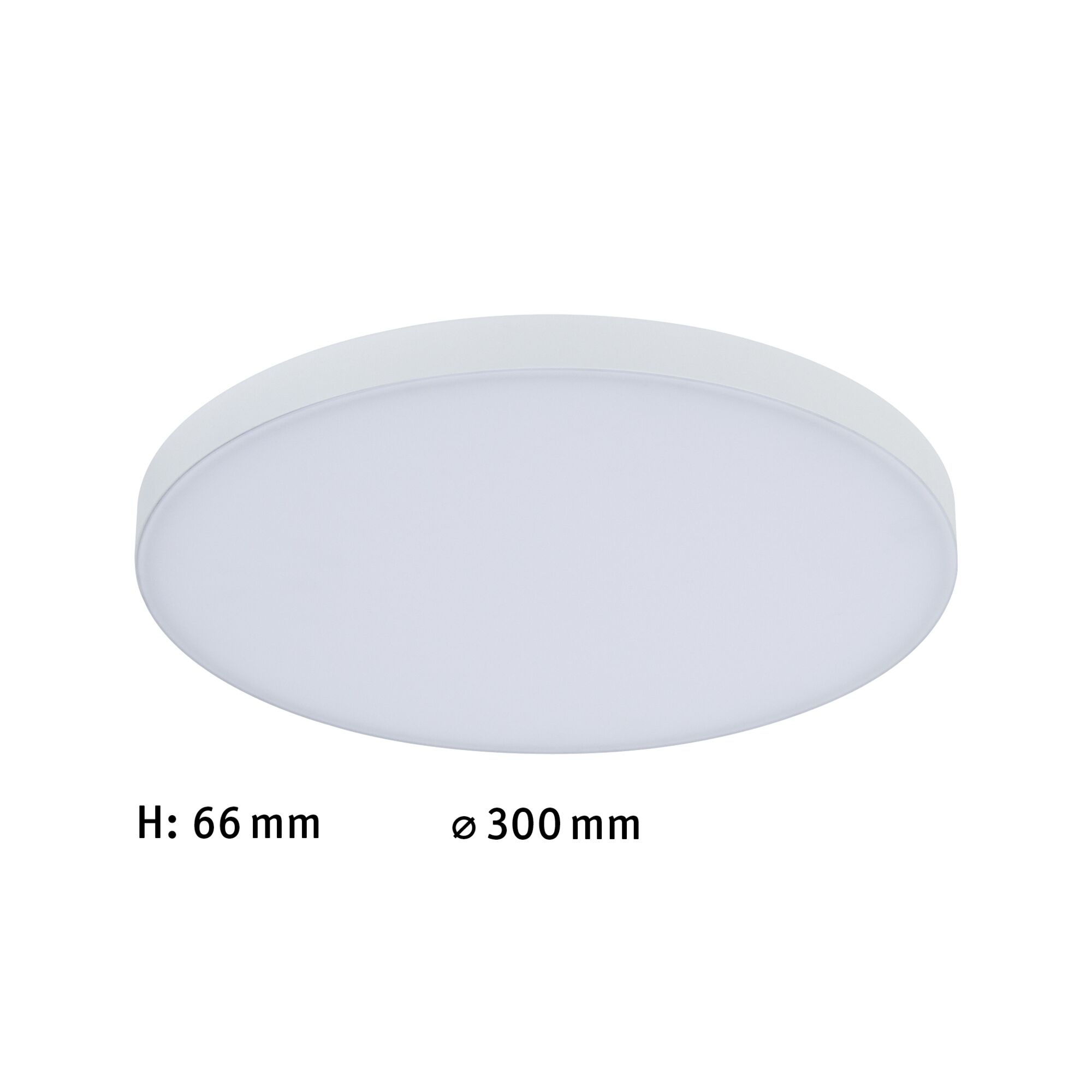

Dimensions (Height x Width x Depth)	H: 66 mm
Ø	300 mm
Form	round

Design and Material
Colour	White
Material	Metal

Energy consumption
Energy efficiency (A to G)	F

Service life
Lifetime	20000 h

Light Characteristics
Colour temp.	3000 K
Colour change	White Switch
Usable luminous flux	1350 lm
Luminous flux LED module	1530 lm
color temp	3000 - 6500 K
Color rendering index	> 80 Ra

Lamp Features
Component parts	13 W
Technique	LED
IP protection	IP20
Dimmable	No
Inclusive lamp	yes
Incandescent Equivalent	100 W
Number of component parts	1x
protection class	protection class II
Replacable	3 Lightsource is not replaceable, the complete lighting must be replaced.\|5 Control gear is replaceable without damage the lighting fixture by electrician.
Power consumption	15,5 W

Transformer
Transformer power	15 VA

Downloads

Manuals

Download Installation/Montage

LED Panel Velora

round 300mm 13W 1350lm White Switch White
