Article-No.:
70986
LED Panel
Abia
round 300mm 22W 2200lm 2700K Night Blue
round 300mm 22W 2200lm 2700K Night Blue
- Satined plastic cover for fine diffusion of light
- Even room light based on cutting-edge LED technology
- Especially flat construction

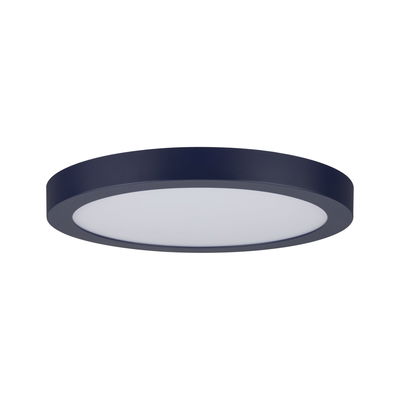

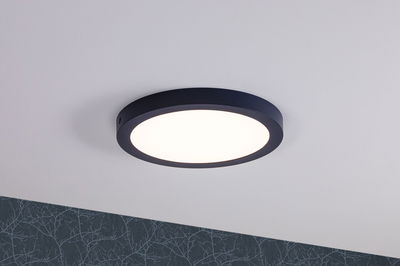

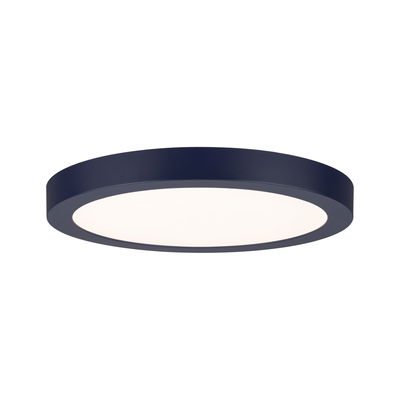

LED Panel Abia round 300mm 22W 2200lm 2700K Night Blue
The modern LED technology of the round Abia panel in Night Blue enables a very flat design with outstanding uniform light distribution. Its clean lines are in keeping with modern living styles and an architecture-oriented ambience.
- Satined plastic cover for fine diffusion of light
- Even room light based on cutting-edge LED technology
- Especially flat construction
- LED lamp (fixed) included in scope of delivery
- For 230 V direct connection

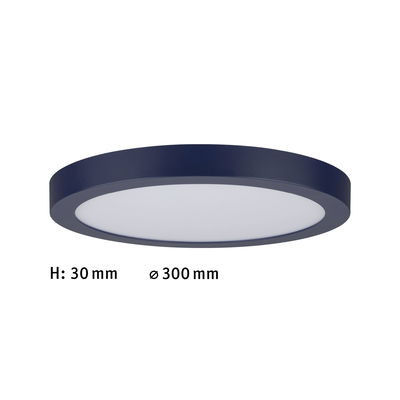

| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 30 mm |
| Diameter | 300 mm |
| Design and Material | |
|---|---|
| Form | round |
| Colour | Night Blue |
| Material | Plastic |
| Energy consumption | |
|---|---|
| Energy efficiency (LED Module) | E |
| Service life | |
|---|---|
| Lifetime | 30000 h |
| Light Characteristics | |
|---|---|
| Colour temperature | Warm white, 2700 K |
| Nominal luminous flux | 2200 lm |
| Luminous flux LED module | 3200 lm |
| Color rendering index | > 80 Ra |
| Lamp Features | |
|---|---|
| Dimmable | No |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel fest integriert |
| Incandescent Equivalent | 186 W |
| IP protection | IP20 |
| Protection class | Protection class II |
| Technique | LED |
| Component parts | 22 W |
| Number of component parts | 1x |
| Replacable | 3 Lightsource is not replaceable, the complete lighting must be replaced.|6 Control gear is not replaceable, the complete lighting must be replaced. |
| Power consumption | 24 W |
| Adjustability | fixed |
| Voltage | 230 V |
| Transformer | |
|---|---|
| apparent power | 46 VA |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
