Article-No.:
92470

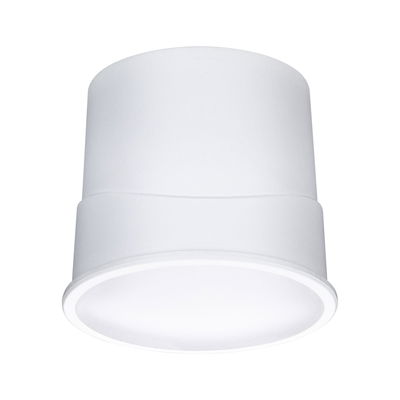

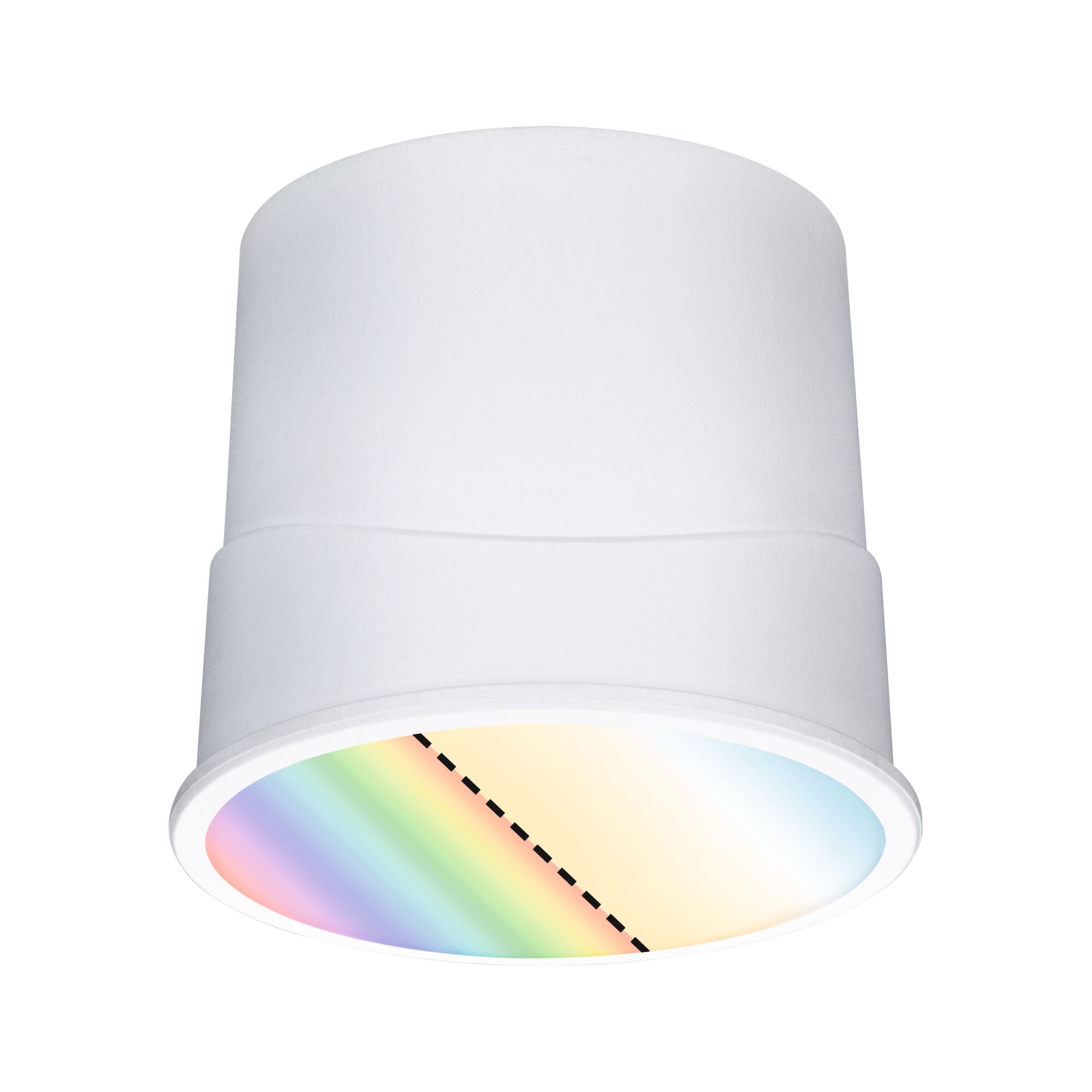

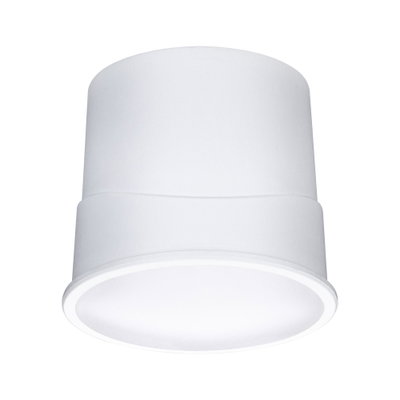

LED Module recessed luminaireSmart Home Zigbee 3.0
Base Coin 1-piece set
round 50mm Coin 4,9W 420lm 230V dimmable RGBW+ Satin
round 50mm Coin 4,9W 420lm 230V dimmable RGBW+ Satin
- Usable with smart home gateways that have a Zigbee interface
- Can be controlled with the Smart Home Zigbee remote control
- Can still be switched on and off with the light switch

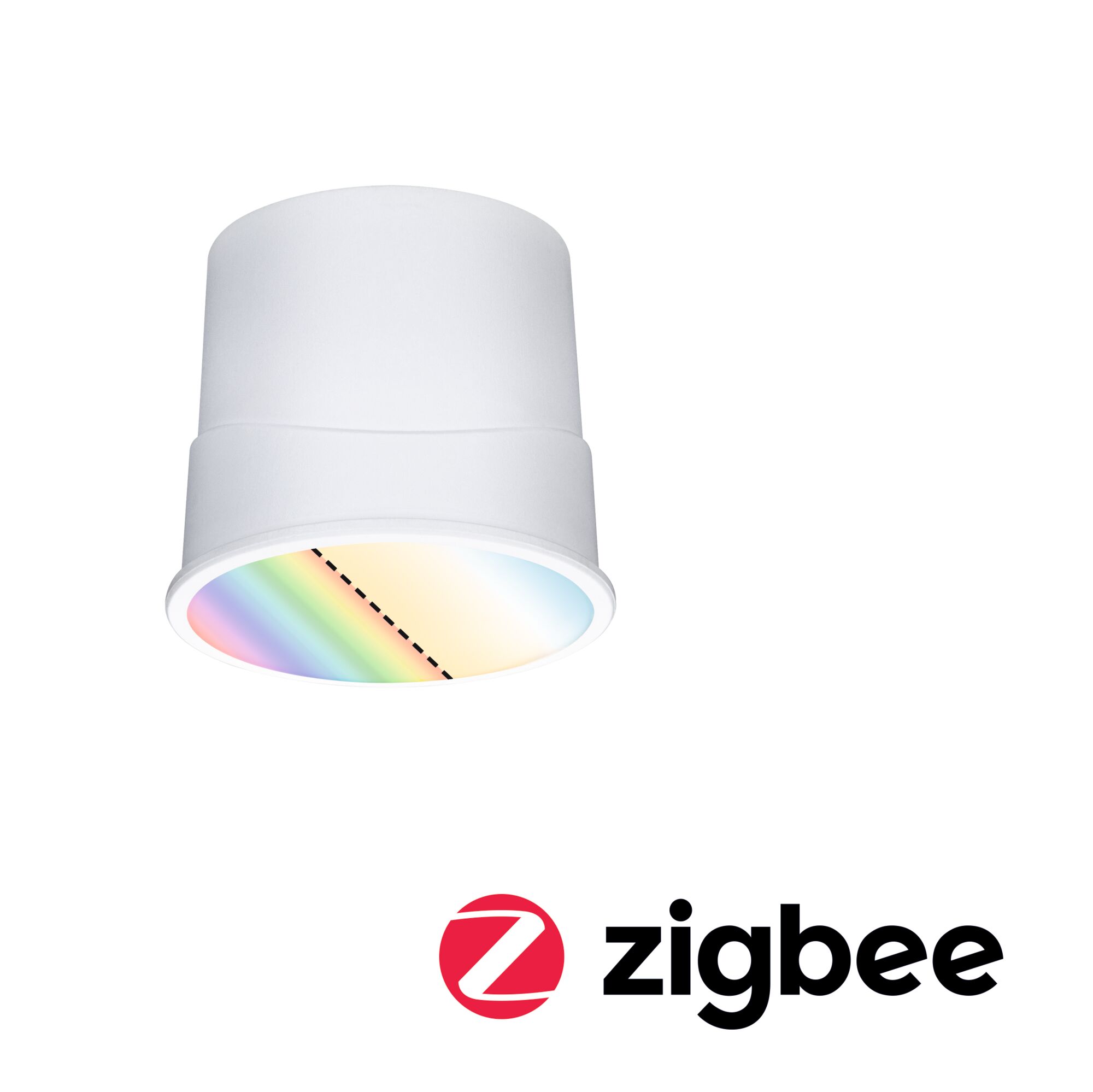

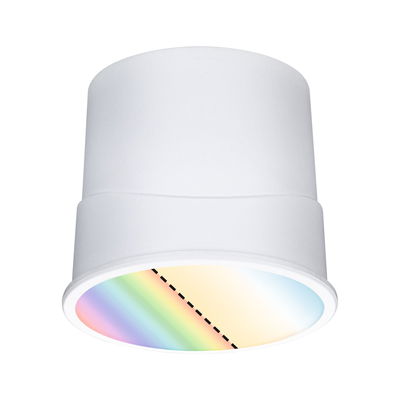

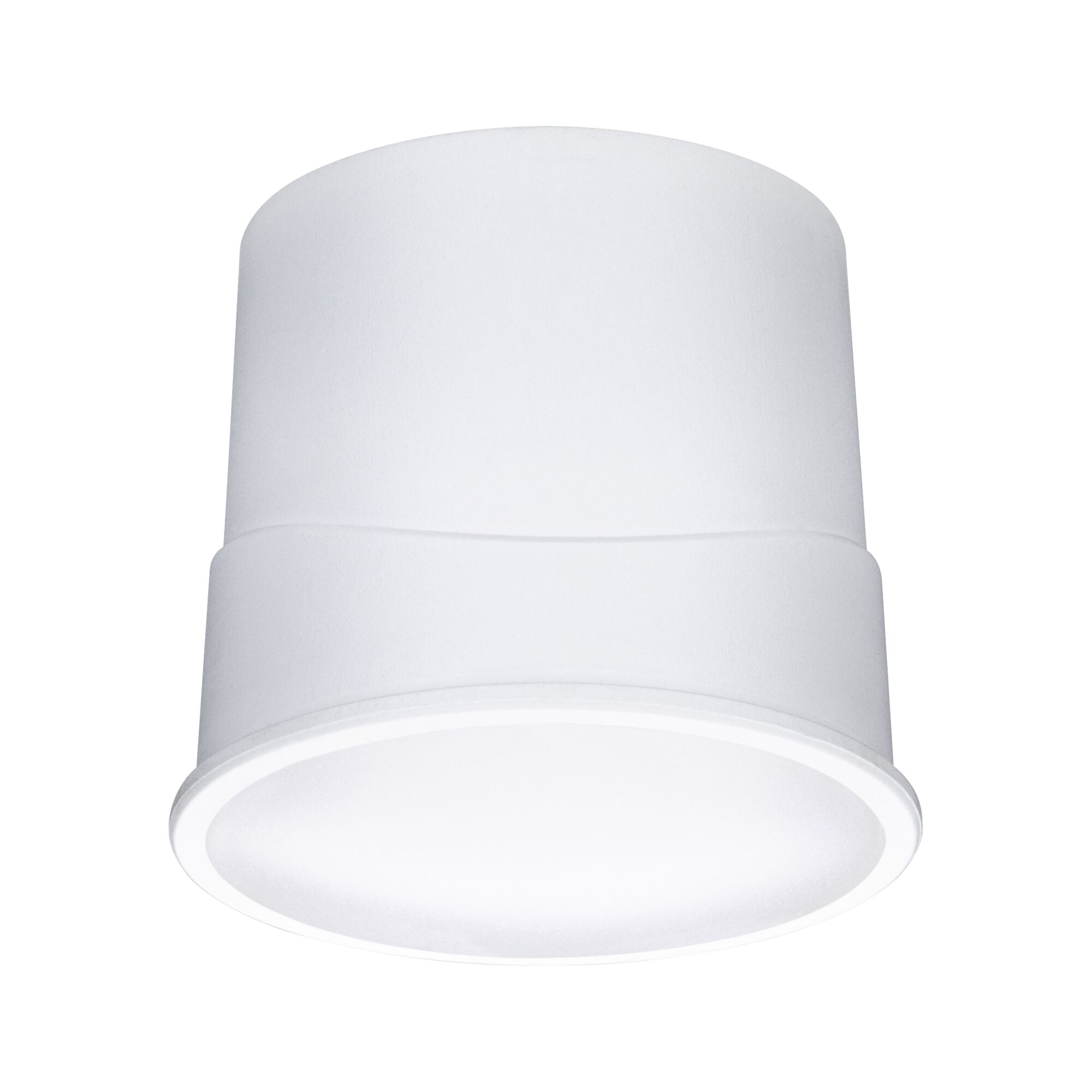

LED Module recessed luminaire Smart Home Zigbee 3.0 Base Coin 1-piece set round 50mm Coin 4,9W 420lm 230V dimmable RGBW+ Satin

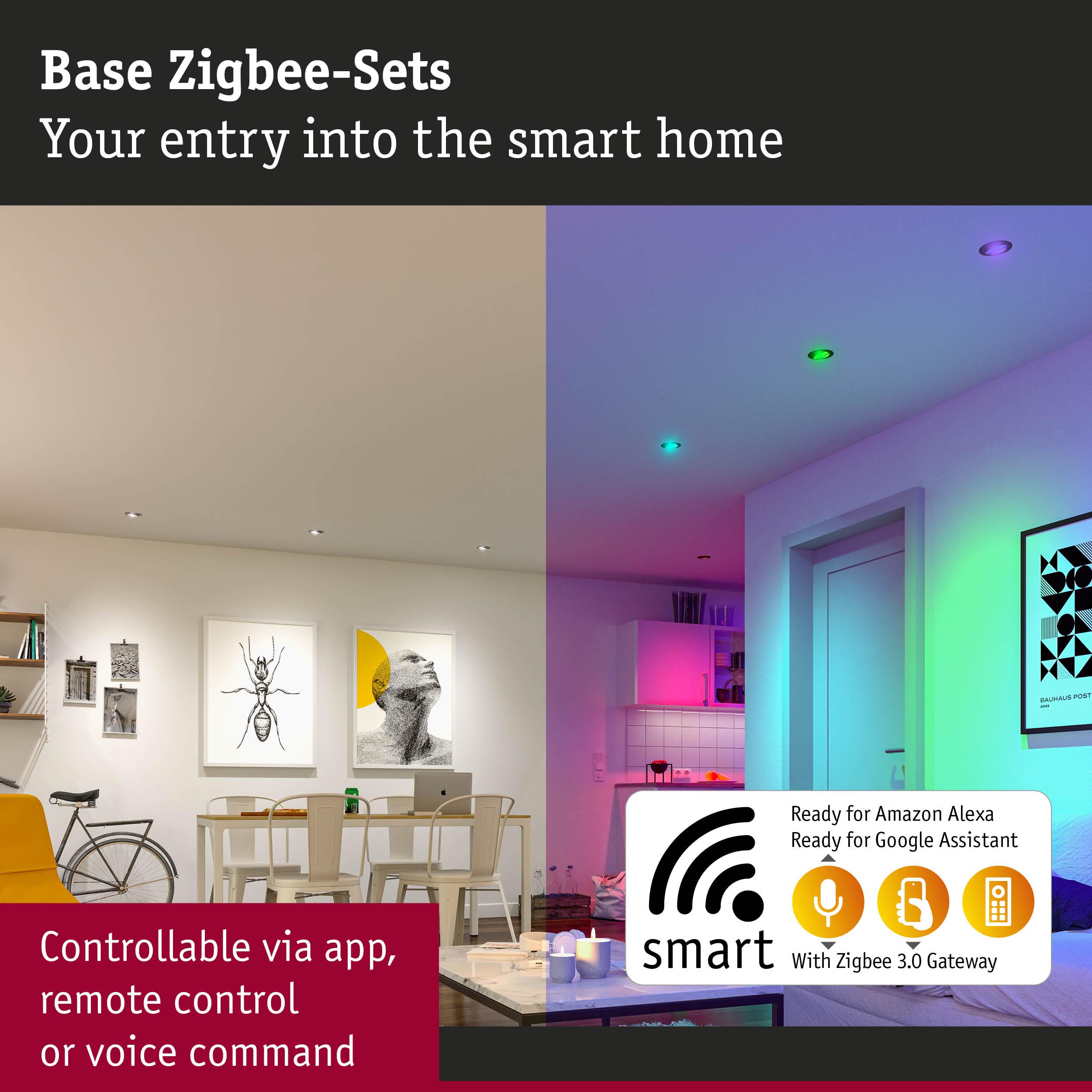

The smart, innovative Base Coins with RGBW Zigbee 3.0 control can be used in combination with existing light installations. If you have already installed recessed spotlights with a diameter of 51 mm, you can simply switch over to the energy-saving LED modules. Simply remove the old lamp, connect the RGBW Coin via its quick clip and switch on! The luminaires can now be controlled individually or in groups via app, remote control, or voice command. The combinations of Tunable White, RGB and dimming function are virtually endless – from gentle, dimmed warm white to objective daylight white or colourful colour gradients. The LED Coins are easier to interlink, are replaceable, and fit into small cavity depths.
- Usable with smart home gateways that have a Zigbee interface
- Can be controlled with the Smart Home Zigbee remote control
- Can still be switched on and off with the light switch
- Bidirectional data transfer
- RGBW multicolour colour change

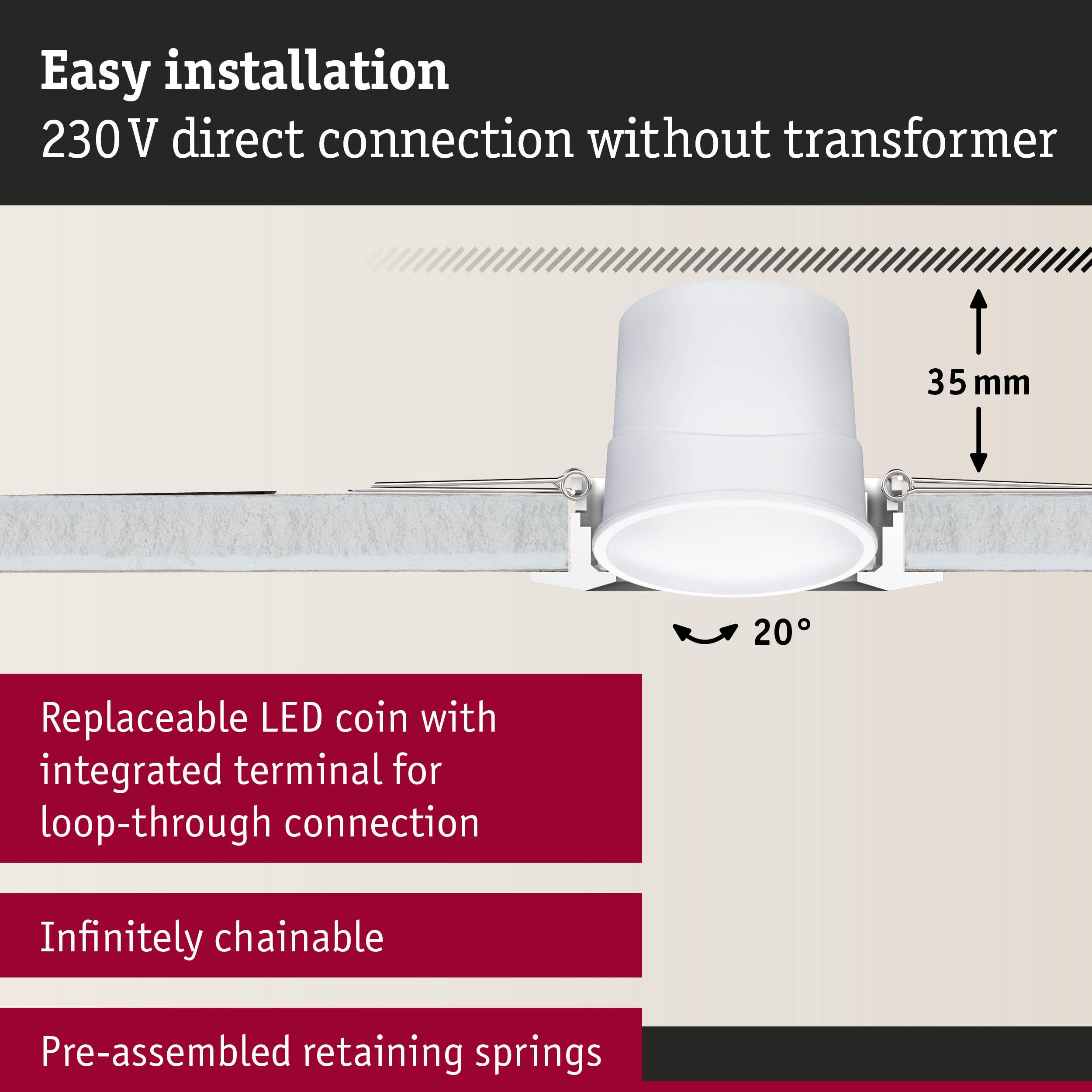

- For 230 V direct connection
- Color temperatur: 2700K - Warm white - 6500K -Daylight white
- Efficient LED technology

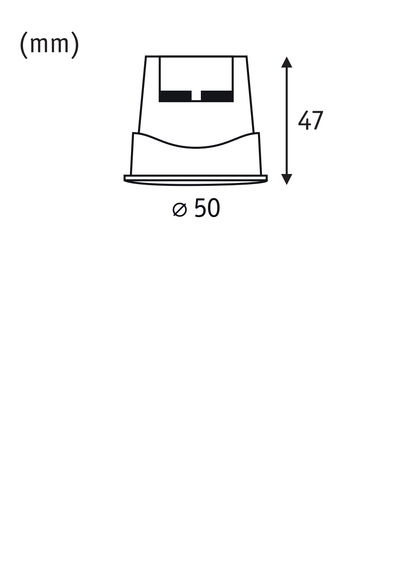

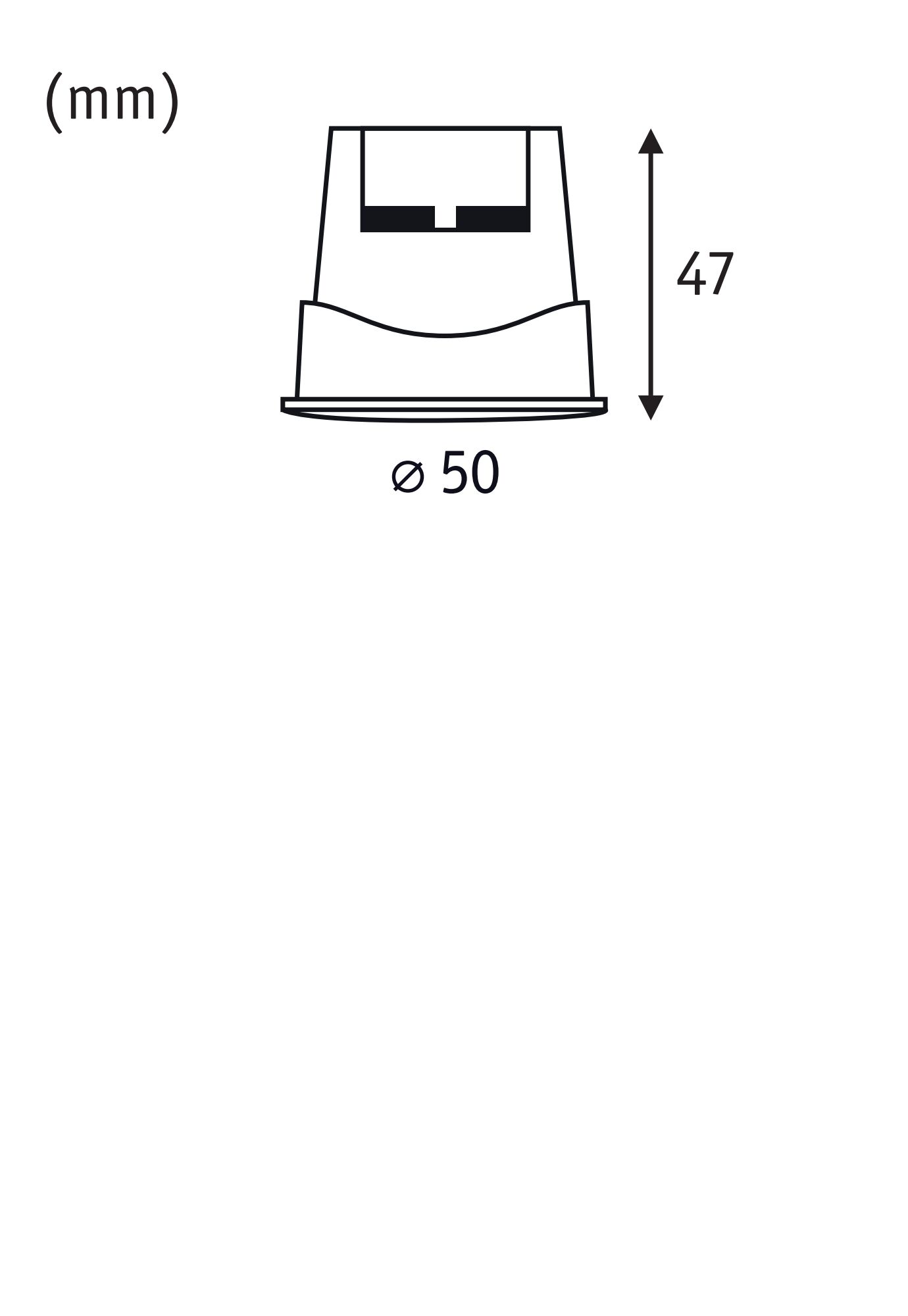

| Dimension | |
|---|---|
| Dimensions (Height x Width x Depth) | H: 46 mm |
| Diameter | 50 mm |
| Built-in diameter | 68 mm |
| Design and Material | |
|---|---|
| Form | round |
| Type | Coin |
| Colour | Satin |
| Material | Plastic |
| Recycled material included | no |
| Energy consumption | |
|---|---|
| Energy efficiency | F |
| Energy consumption | 5 kWh_1000h |
| Service life | |
|---|---|
| luminous flux at the end of lamplife | 93 % |
| Lifetime | 25000 h |
| Light Characteristics | |
|---|---|
| Colour temperature to | 6500 K |
| Colour temperature | Warm white to Daylight white, 3000 K |
| Nominal luminous flux | 420 lm |
| Luminous flux LED module | 420 lm |
| Colour consistency (SDCM) | 6 |
| Color rendering index | > 80 Ra |
| Beam angle | 110 ° |
| Colour change | coloured light with Tunable White function (RGBW), Tunable White |
| Lamp Features | |
|---|---|
| Dimmable | Yes |
| Dim | with Smart Home |
| Inclusive lamp | yes |
| Lamp property | Leuchtmittel |
| Incandescent Equivalent | 37 W |
| IP protection | IP20 |
| Protection class | Protection class II |
| Base/Socket | Coin |
| Technique | LED |
| Component parts | 4,9 W |
| Number of component parts | 1x |
| Compatible Smart Home technology | Zigbee |
| Replacable | 7 not concerned. |
| Power consumption | 4,9 W |
| Adjustability | fixed |
| Voltage | 230 V |
| Voltage type | AC 50 Hz |
| Transformer | |
|---|---|
| apparent power | 9 VA |
| Accessories | |
|---|---|
| Radio control included | no |
| Labelling | |
|---|---|
| WEEE-Reg.-No | DE 39236390 |
| Smart Home | |
|---|---|
| Protocol type | Zigbee 3.0 |
| Zigbee certification | Zigbee zertifiziert |
| Radio frequency | 2,4 GHz |
| Radio range (Open field) | 20 m |
